Model Whirlpool AKS3040E GAS COOK-TOP – Common Parts & Diagrams

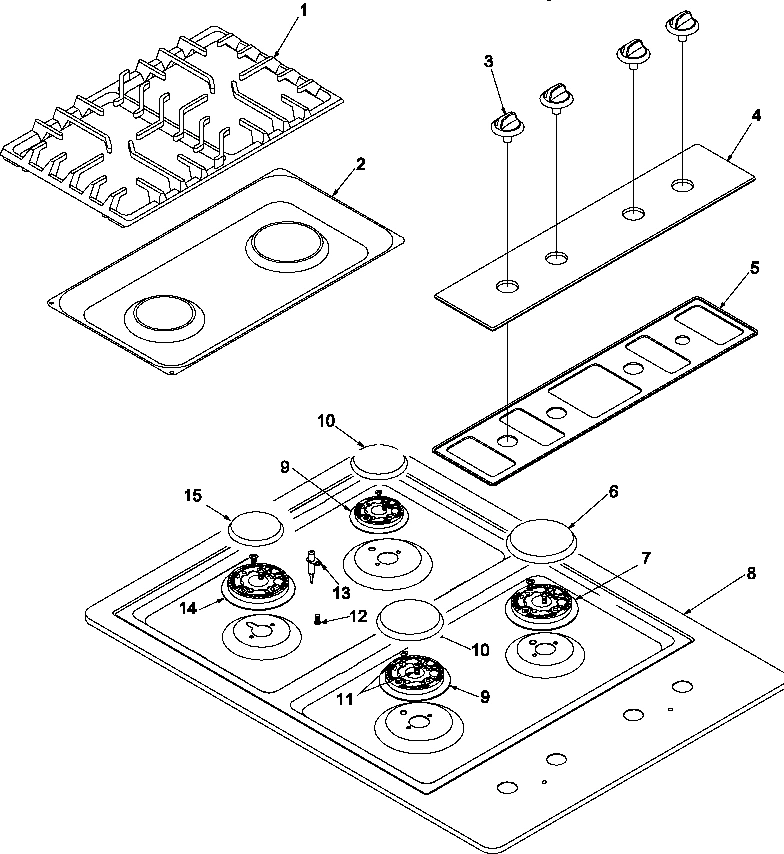

02 - MAIN TOP
01 - BURNER BOX
Common parts from model Whirlpool AKS3040E GAS COOK-TOP
2
BOWL, BURNER-DOUBLE (BLK)9/12K WPL 315600B Contact Us For Availability
2
BOWL, BURNER-DOUBLE (BLK) WPL 316289B Contact Us For Availability
2
BRKT, VENTURI MTG WPL Y0315640 Contact Us For Availability
3
VENTURI, LEFT SIDE WPL Y0315636 Contact Us For Availability
4
GLASS, CONTROL PANEL (BLK) WPL 31688701B Contact Us For Availability
4
BRKT, SPARK MODULE WPL Y0315097 Contact Us For Availability
5
FRAME-CONTROL PNL GLASS (BLK) WPL 316399B Contact Us For Availability
5
SPARK MODULE, 4+0 WPL 0315154 Contact Us For Availability
6
CAP, BURNER 9K (MATTE BLK) WPL 315765MB Contact Us For Availability
6
VALVE WPL Y0315645 Contact Us For Availability
7
VALVE, TOP BURNER(9.7K) WPL 31759501 Contact Us For Availability
8
ASSY, MAINTOP/SPACER (BLACK) WPL 315522B Contact Us For Availability
8
VALVE, TOP BURNER (5K) WPL Y0315647 Contact Us For Availability
9
TOP BURNER (LARGE 12/13K) WPL Y0315767 Contact Us For Availability
9
SHIELD, SWITCH WPL Y0314316 Contact Us For Availability
10
CAP, BURNER 12/13K (MATTE BLK) WPL 315764MB Contact Us For Availability
10
VENTURI, RIGHT WPL 0315635 Contact Us For Availability
11
SWITCH, SPARK (270 DEG) WPL Y0316705 Contact Us For Availability
12
SCREW, ELECTRODE WPL Y0316775 Contact Us For Availability
12
PIPE, MANIFOLD WPL Y0317061 Contact Us For Availability
13
SCREW, VALVE (BLK) WPL 31750703 Contact Us For Availability
14
TOP BURNER (SMALL 5K) WPL Y0315769 Contact Us For Availability
14
SHIELD, BURNER BOX-SIDE WPL Y0316984 Contact Us For Availability
15
REGULATOR, PRESSURE WPL Y0308866 Contact Us For Availability
16
SHIELD, BURNER BOX-BOTTOM WPL Y0316983 Contact Us For Availability
17
SCREW, WOOD WPL 31750704 Contact Us For Availability
18
BOX, BURNER (30`` GAS) WPL Y0315639 Contact Us For Availability
19
INSULATION, BURNER BOX WPL 0316985 Contact Us For Availability
20
SCREW, No.8-32 X3/8 P TRS HD LP WPL Y0052031 Contact Us For Availability
21
BRACKET-INSULATION WPL Y0305003 Contact Us For Availability
22
CLIP, TINNERMAN WPL Y0304999 Contact Us For Availability
NI
TINNERMAN CLIP No.C13091-8-Z WPL 31750127 Contact Us For Availability
NI
SCREW No.8 - 18 X .250 WPL Y0061164 Contact Us For Availability
NI
SPACER, NYLON (.14``) WPL Y0062445 Contact Us For Availability
NI
SCREW, No.8-18 X 1/2 WASHER HD WPL 31750707 Contact Us For Availability
NI
STRAIN RELIEF WPL Y0042109 Contact Us For Availability
NI
SEAL WPL Y0301012 Contact Us For Availability
NI
SEAL, INLET WPL Y0308941 Contact Us For Availability
NI
CORD, POWER SUPPLY WPL Y0316704 Contact Us For Availability
NI
HARNESS, SPARK MODULE (31``) WPL Y0316742 Contact Us For Availability
NI
HARNESS, SPARK MODULE (20``) WPL Y0316743 Contact Us For Availability
× ![]()
