Model Whirlpool AKE30W ELECTRIC COOK-TOP – Common Parts & Diagrams

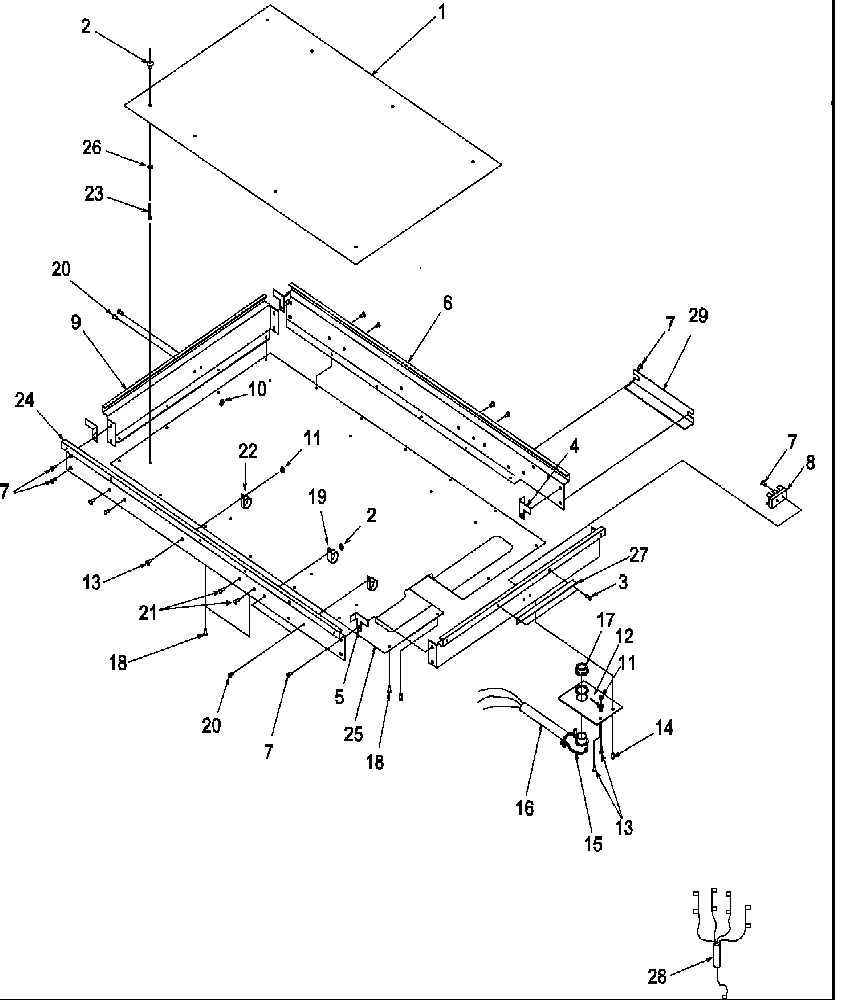

02 - HEATER BOX ASSY

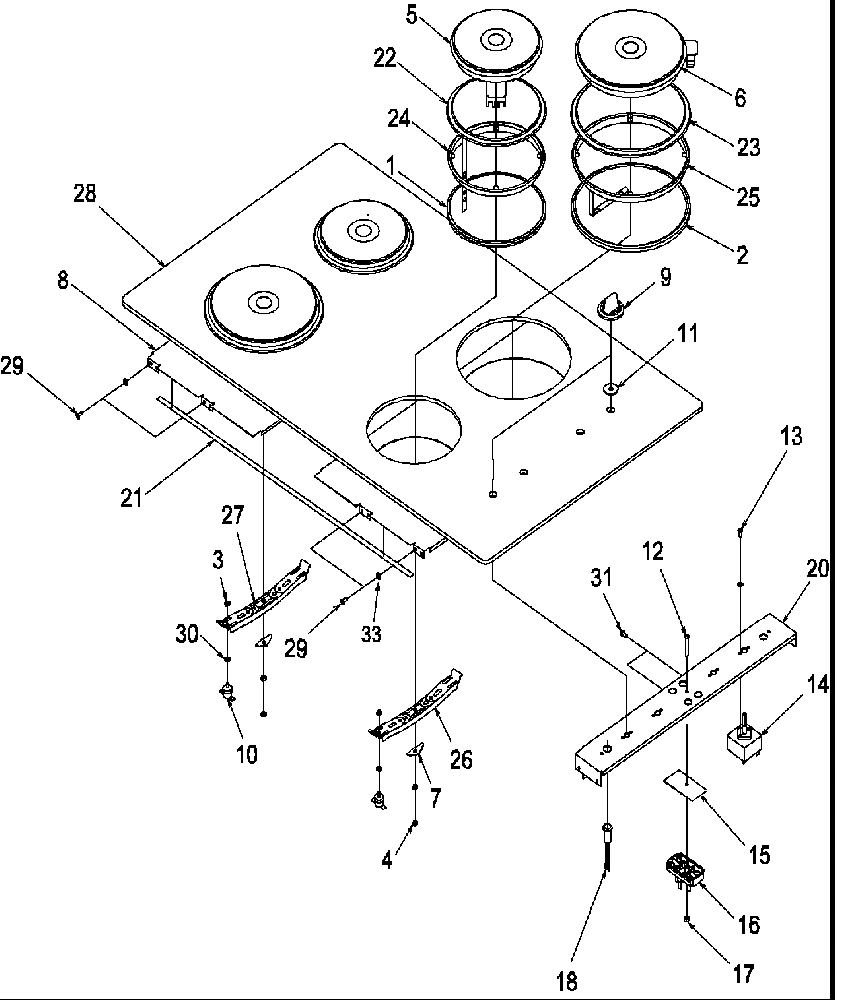

01 - COOKTOP ASSY
Common parts from model Whirlpool AKE30W ELECTRIC COOK-TOP
1
HEATER BOX BAFFLE WPL D8601606 Contact Us For Availability
1
GASKET WPL B5036803 Contact Us For Availability
2
GASKET WPL B5036804 Contact Us For Availability
3
NUT WPL M0294301 Contact Us For Availability
4
BRACKET, CORNER WPL B5036901 Contact Us For Availability
4
NUT WPL M0294302 Contact Us For Availability
5
BRACKET, CORNER WPL B5036902 Contact Us For Availability
6
HEAT BOX SIDE PNT WPL D8596512 Contact Us For Availability
6
ELEMENT, LARGE WPL D8600002 Contact Us For Availability
7
WASHER WPL A4431801 Contact Us For Availability
8
TERMINAL BLOCK WPL B5677203 Contact Us For Availability
8
GLASS SUPPORT PNT WPL D8600903 Contact Us For Availability
9
HEAT BOX END PNT WPL D8596703 Contact Us For Availability
9
KNOB, CONTROL WPL D8598002 Contact Us For Availability
10
TCO-ELEMENT WPL B5036401 Contact Us For Availability
11
USR 0041847 WPL M0282402 Contact Us For Availability
11
COVER, CONTROL HOLE K WPL B5037602 Contact Us For Availability
12
PLATE, CONDUIT WPL B5036301 Contact Us For Availability
12
SCREW WPL M0202521 Contact Us For Availability
13
SCREW WPL M0227817 Contact Us For Availability
14
CONTROL, SURFACE WPL C2740702 Contact Us For Availability
15
CONNECTOR, CONDUIT WPL M0321505 Contact Us For Availability
15
INSULATION, IND. LIGHT WPL A4402901 Contact Us For Availability
16
HARNESS, CONDUIT WPL D8597201 Contact Us For Availability
16
LIGHT, INDICATOR WPL C2702603 Contact Us For Availability
17
BUSHING, CONDUIT WPL M0327601 Contact Us For Availability
17
NUT A WPL M0281002 Contact Us For Availability
18
INDICATOR LIGHT WPL 10005401 Contact Us For Availability
19
CLAMP, TUBE WPL M0102305 Contact Us For Availability
20
CONTROL MTG BRACKET WPL D8596804 Contact Us For Availability
21
TAPE, VINYL WPL M0275044 Contact Us For Availability
22
CLAMP WPL M0102303 Contact Us For Availability
22
RING TRIM (LT. GRAY) WPL C2740303 Contact Us For Availability
23
STUD-SELF CLINCH WPL M0293502 Contact Us For Availability
23
RING TRIM (LT. GRAY) WPL C2740304 Contact Us For Availability
24
HEAT BOX SIDE PNT WPL D8596511 Contact Us For Availability
24
GASKET, RING WPL C2740401 Contact Us For Availability
25
ACCESS PANEL WPL D8597006 Contact Us For Availability
25
GASKET, RING WPL C2740402 Contact Us For Availability
26
EYELET WPL M0571201 Contact Us For Availability
26
BRACKET, SMALL ELEMENT WPL C2740501 Contact Us For Availability
27
ANGLE, SUPPORT WPL B8393401 Contact Us For Availability
27
BRACKET, LARGE ELEMENT WPL C2740601 Contact Us For Availability
28
HARNESS, IND LIGHT WPL D8601501 Contact Us For Availability
28
TOP, GLASS WPL D8606704 Contact Us For Availability
29
SCREW WPL M0210418 Contact Us For Availability
31
SCREW WPL M0211519 Contact Us For Availability
33
LOCK WASHER WPL M0272803 Contact Us For Availability
× ![]()
