Model Whirlpool AKDE5E ELECTRIC COOK-TOP – Common Parts & Diagrams

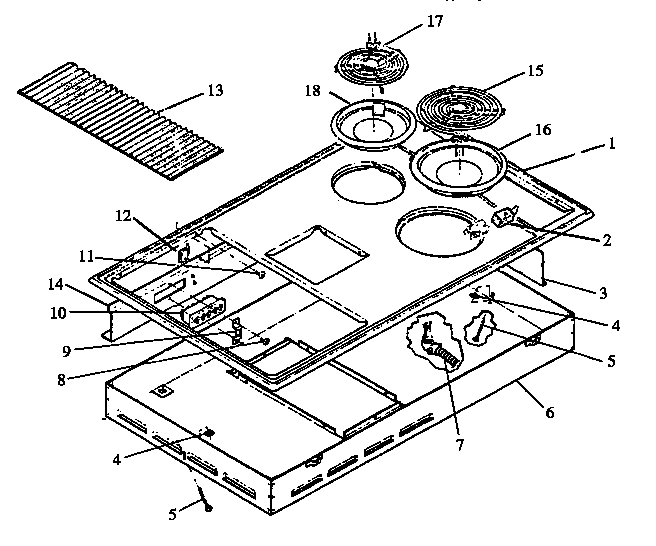

01 - BURNER BOX SECTION
03 - VENTILATION SECTION

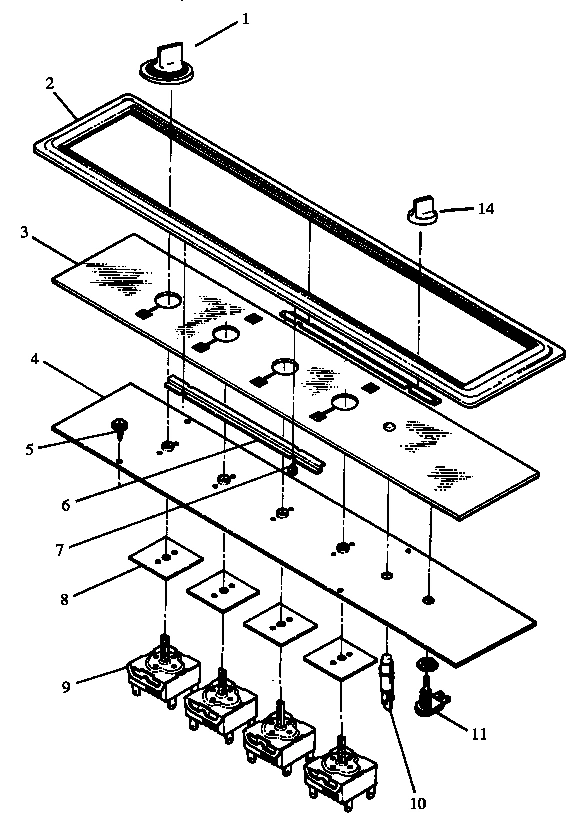

02 - CONTROL SECTION
Common parts from model Whirlpool AKDE5E ELECTRIC COOK-TOP
1
MAIN TOP, BLACK ENAMEL WPL 300981B Contact Us For Availability
1
FILTER EXHAUST KET595 WPL Y0042024 Contact Us For Availability
1
KNOB, INFINITE SWITCH (BLK) WPL 0305223 Contact Us For Availability
2
PLENUM WPL 0059560 Contact Us For Availability
3
SWITCH SHIELD ET-590 595 WPL Y0040821 Contact Us For Availability
3
TRANSITION WPL Y0059493 Contact Us For Availability
3
GLASS CONTROL WPL 0305217 Contact Us For Availability
4
NUT 1/4-20 SQ. ET590 595 WPL 0041861 Contact Us For Availability
4
BLOWER HOUSING, FLAT BLACK WPL 302681G Contact Us For Availability
4
SWITCH MOUNTING BRACKET WPL 0057499 Contact Us For Availability
5
SCREW 1/4-20-4`` 590 595 WPL Y0041836 Contact Us For Availability
5
LOCK-NUT NYLON KET595 WPL 0041862 Contact Us For Availability
6
BURNER BOX W/A W/VENT KET595 WPL 0040474 Contact Us For Availability
6
FAN WHEEL KET595 WPL Y0042752 Contact Us For Availability
7
5651118 C WPL Y0043748 Contact Us For Availability
8
SCREW, No.6-32 X .250 PAN HD PH WPL Y0041785 Contact Us For Availability
8
PLATE, MOTOR MTG WPL 0059470 Contact Us For Availability
8
SWITCH GASKET XET-490 WPL Y0041991 Contact Us For Availability
9
PLUG BLOCK MTG BRKT ET590 595 WPL Y0040965 Contact Us For Availability
9
BOLT, SHOULDER WPL 0303176 Contact Us For Availability
9
INFINITE SWITCH WPL Y0051726 Contact Us For Availability
10
PLUG BLOCK MODULAR TOP WPL Y0042210 Contact Us For Availability
10
WASHER K WPL 0041933 Contact Us For Availability
10
INDICATOR LIGHT WPL Y0042183 Contact Us For Availability
11
SCREW WPL Y0041810 Contact Us For Availability
11
MOTOR COVER WPL 0059471 Contact Us For Availability
11
SELECTOR SWITCH WPL Y0063503 Contact Us For Availability
12
SWITCH, FAN WPL Y0054254 Contact Us For Availability
13
VENT COVER, COOKTOP WPL 0058941 Contact Us For Availability
13
RUBBER GROMMET WPL 0041981 Contact Us For Availability
14
PLUG BLOCK BAFFLE KET570 WPL Y0040851 Contact Us For Availability
14
MOTOR, FAN 115V 60HZ WPL Y0058327 Contact Us For Availability
14
KNOB, FAN SWITCH (BLK) WPL 0305225 Contact Us For Availability
15
SCREW No.8-18X3/8 HEX HD. WPL 0305423 Contact Us For Availability
16
BOWL, LARGE BURNER (BLK) WPL Y059012B Contact Us For Availability
16
CONDUIT (3/8 X 18) WPL 0042115 Contact Us For Availability
18
BOWL, SMALL BURNER (BLK) WPL Y059011B Contact Us For Availability
NI
TINNERMAN CLIP PYRO TH WPL 0041896 Contact Us For Availability
NI
WIRE CLIP WPL Y0041875 Contact Us For Availability
NI
INSULATION BOARD WPL Y0041997 Contact Us For Availability
NI
ELEMENT, CONTACT-MODULE TOP WPL Y0042123 Contact Us For Availability
NI
SPACER, MOTOR COVER WPL 0059120 Contact Us For Availability
NI
GASKET, MOTOR MTG WPL 0059569 Contact Us For Availability
NI
CONNECTOR, 3/8`` WPL Y0058971 Contact Us For Availability
× ![]()
