Model Whirlpool AK2T30W2 ELECTRIC COOK-TOP – Common Parts & Diagrams
02 - HEATER BOX ASSEMBLY
03 - MISCELLAEOUS INFORMATION

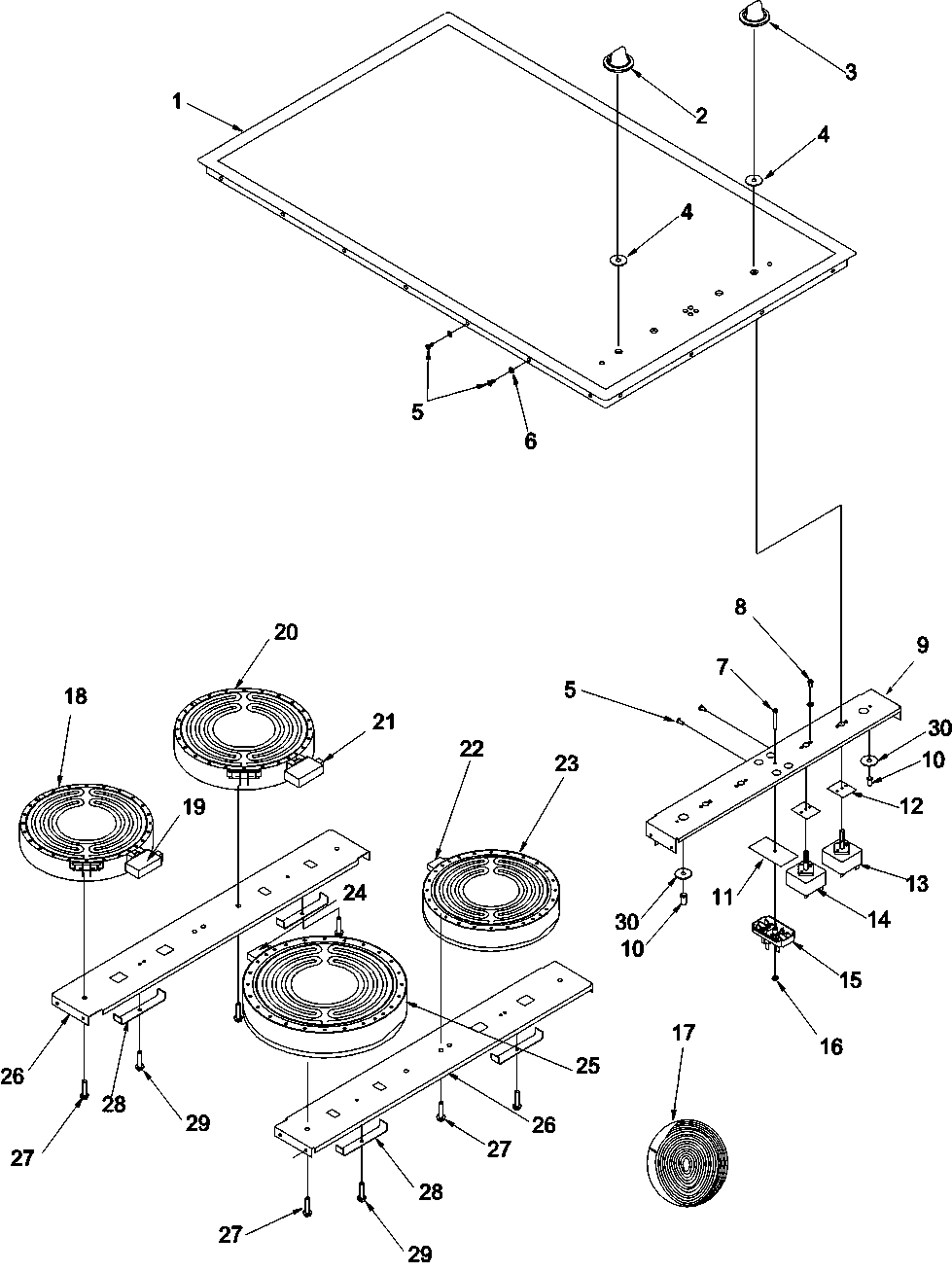

01 - COOKTOP ASSEMBLY
Common parts from model Whirlpool AK2T30W2 ELECTRIC COOK-TOP
1
ASSY, FRAME & GLASS (WHT) WPL 309943W Contact Us For Availability
2
BAFFLE, HEATER BOX WPL 307489B Contact Us For Availability
2
KNOB, INFINITE SW (WHITE) WPL 31760602W Contact Us For Availability
3
INSULATION WPL Y0307480 Contact Us For Availability
3
KNOB, DUAL INFIN SW (WHITE) WPL 31760604W Contact Us For Availability
4
INSULATION WPL 0307479 Contact Us For Availability
4
COVER, HOLE-ELECTRIC WPL Y0307427 Contact Us For Availability
5
END, HEATER BOX WPL 307476B Contact Us For Availability
6
SIDE, HEATER BOX WPL 307613B Contact Us For Availability
7
SCREW WPL M0202521 Contact Us For Availability
9
BRACKET,CONT MTG. WPL 307423B Contact Us For Availability
10
CLAMP, TUBE (1/2``) WPL Y0307456 Contact Us For Availability
10
LIGHT, INDICATOR WPL Y0307458 Contact Us For Availability
11
PANEL, ACCESS WPL 307460B Contact Us For Availability
11
INSULATION, IND. LIGHT WPL 0307444 Contact Us For Availability
12
SIDE, HTR BOX (BLACK) WPL 307605B Contact Us For Availability
12
SWITCH GASKET XET-490 WPL Y0041991 Contact Us For Availability
13
HEX NUT (NKL) WPL 31750124 Contact Us For Availability
14
BUSHING, CONDUIT WPL M03287601 Contact Us For Availability
14
SWITCH, DUAL INFINITE WPL 0309550 Contact Us For Availability
15
PLATE, CONDUIT WPL Y0307451 Contact Us For Availability
15
LIGHT, INDICATOR WPL Y0307442 Contact Us For Availability
16
CONNECTOR, CONDUIT WPL M0321505 Contact Us For Availability
16
NUT A WPL M0281002 Contact Us For Availability
17
SCREW, GRD No.10-32 X 1/2 PANHD WPL 31750523 Contact Us For Availability
18
CONDUIT, WIRE HARNESS WPL Y0309082 Contact Us For Availability
18
ELEMENT, RIBBON (1200W) WPL 31794701 Contact Us For Availability
21
LIMITER-DUAL WPL 0316689 Contact Us For Availability
24
LIMITER WPL 31846201 Contact Us For Availability
26
BRACKET, ELEMENT WPL 307425B Contact Us For Availability
27
SCREW, SHOULDER AB 6-20 X .825 WPL 31750715 Contact Us For Availability
28
SPRING, ELEMENT WPL Y0306683 Contact Us For Availability
29
SCREW, No.8-18 X 3/8 PPH WPL 31750425 Contact Us For Availability
30
WASHER, SPACER IND. LIGHT WPL 31750017 Contact Us For Availability
NI
INSTR, INSTALL WPL 0314580 Contact Us For Availability
NI
INSTR, TEMPLATE WPL 0314616 Contact Us For Availability
NI
MNL, OWNERS (AK2 H/T-AKT) WPL 31810501 Contact Us For Availability
NI
INSTR, INLAY WPL 31813301 Contact Us For Availability
NI
KIT, COOKTOP INLAY WPL CFK1 Contact Us For Availability
NI
TAPE PER ROLL WPL M0275045 Contact Us For Availability
NI
MNL, RANGE WPL RP2420017 Contact Us For Availability
NI
MNL, SVC CKTP WPL RS2420002 Contact Us For Availability
NI
RTV (BLK) WPL Y0308058 Contact Us For Availability
NI
CLEANER, COOKTOP(SMOOTH)ELCO 1 WPL Y0314274 Contact Us For Availability
NI
TAPE, REFLECTIVE WPL Y0314614 Contact Us For Availability
× ![]()
