Model Whirlpool AK2T30W1 ELECTRIC COOK-TOP – Common Parts & Diagrams
01 - COOKTOP ASSY
03 - MISCELLAEOUS INFORMATION

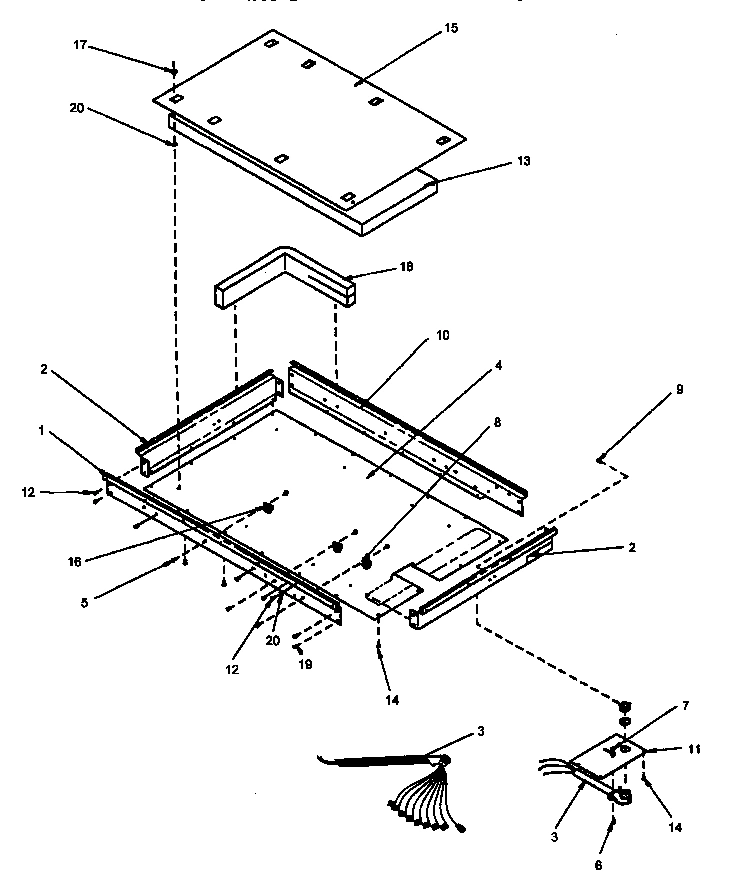

02 - HEATER BOX ASSY
Common parts from model Whirlpool AK2T30W1 ELECTRIC COOK-TOP
1
LIGHT, INDICATOR WPL Y0307458 Contact Us For Availability
1
SIDE, HTR BOX (BLACK) WPL 307605B Contact Us For Availability
2
LIGHT, INDICATOR WPL Y0307442 Contact Us For Availability
2
END, HEATER BOX WPL 307476B Contact Us For Availability
3
SCREW WPL M0202521 Contact Us For Availability
3
CONDUIT, WIRE HARNESS WPL Y0309082 Contact Us For Availability
4
NUT A WPL M0281002 Contact Us For Availability
4
PANEL, ACCESS WPL 307460B Contact Us For Availability
5
ASSY, FRAME & GLASS (WHT) WPL 309943W Contact Us For Availability
5
SCREW, T.C., CURTAIN WPL M0218231 Contact Us For Availability
6
SWITCH, DUAL INFINITE WPL 0309550 Contact Us For Availability
6
SCREW WPL M0227817 Contact Us For Availability
7
USR 0041847 WPL M0282402 Contact Us For Availability
9
BRACKET, CONTROL WPL 307639B Contact Us For Availability
10
INSULATION, IND. LIGHT WPL 0307444 Contact Us For Availability
10
SIDE, HTR. BOX (BLACK) WPL 307606B Contact Us For Availability
11
PLATE, CONDUIT WPL Y0307451 Contact Us For Availability
12
BRACKET, ELEMENT WPL 307425B Contact Us For Availability
13
INSULATION WPL Y0307480 Contact Us For Availability
14
LIMITER-TEMP, LARGE WPL 10061013 Contact Us For Availability
15
HEATER, RADIANT (1200W) WPL Y0306213 Contact Us For Availability
15
BAFFLE, HEATER BOX WPL 307489B Contact Us For Availability
16
LIMITER WPL 10061016 Contact Us For Availability
16
CLAMP, TUBE (1/2``) WPL Y0307456 Contact Us For Availability
17
KNOB, INFINITE SW (WHITE) WPL 314488W Contact Us For Availability
17
POP RIVET K WPL Y0307447 Contact Us For Availability
18
KNOB, DUAL INFIN SW (WHITE) WPL 314489W Contact Us For Availability
18
INSULATION WPL 0307479 Contact Us For Availability
19
SCREW WPL M0211519 Contact Us For Availability
20
COVER, HOLE-ELECTRIC WPL Y0307427 Contact Us For Availability
20
LOCK WASHER WPL M0272803 Contact Us For Availability
21
SPRING, ELEMENT WPL Y0306683 Contact Us For Availability
22
SCREW, SHOULDER WPL 0306212 Contact Us For Availability
23
SCREW, TT AB No.8 X 3/8`` WPL Y0071914 Contact Us For Availability
24
TAPE PER ROLL WPL M0275045 Contact Us For Availability
27
LIMITER WPL 10061018 Contact Us For Availability
28
LIMITER WPL 10061017 Contact Us For Availability
30
SWITCH GASKET XET-490 WPL Y0041991 Contact Us For Availability
NI
INSTR, INSTALL WPL 0314580 Contact Us For Availability
NI
INSTALLATION INSTRUCTIONS - CF WPL 0314615 Contact Us For Availability
NI
INSTR, TEMPLATE WPL 0314616 Contact Us For Availability
NI
KIT, COOKTOP INLAY WPL CFK1 Contact Us For Availability
NI
RTV (BLK) WPL Y0308058 Contact Us For Availability
NI
MANUAL, USE AND CARE WPL Y0314069 Contact Us For Availability
NI
CLEANER, COOKTOP(SMOOTH)ELCO 1 WPL Y0314274 Contact Us For Availability
NI
TAPE, REFLECTIVE WPL Y0314614 Contact Us For Availability
× ![]()
