Model Whirlpool AK2H30 ELECTRIC COOK-TOP – Common Parts & Diagrams

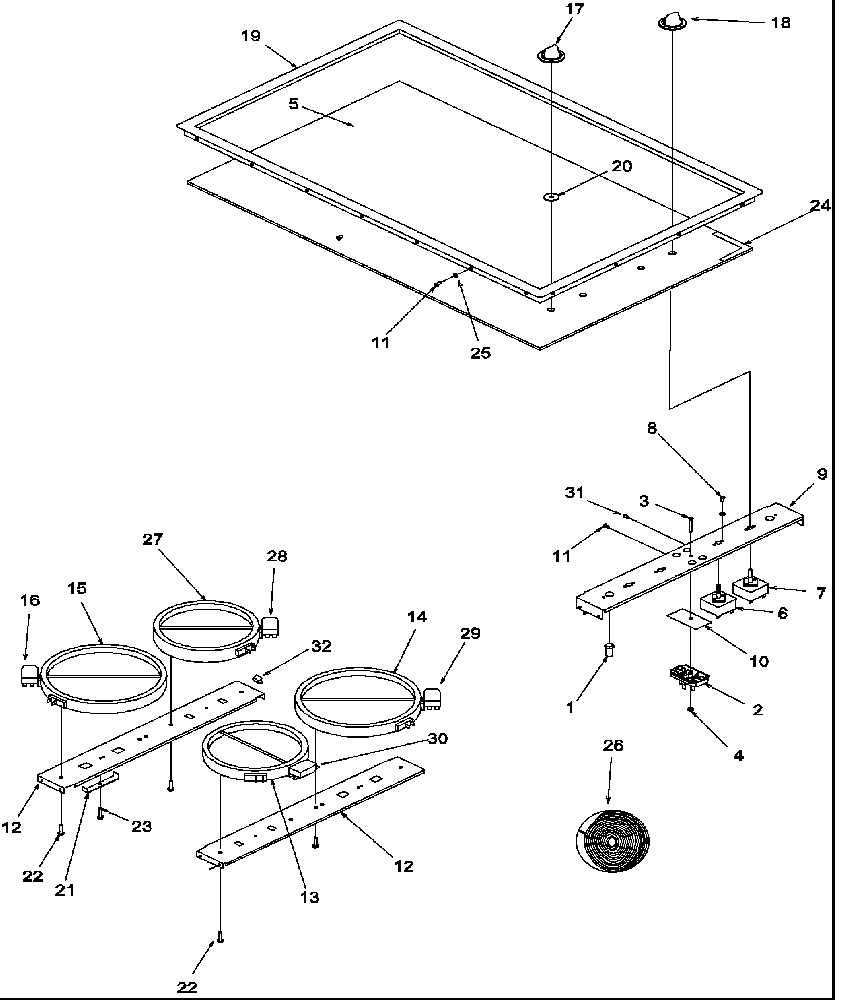

01 - COOKTOP ASSY

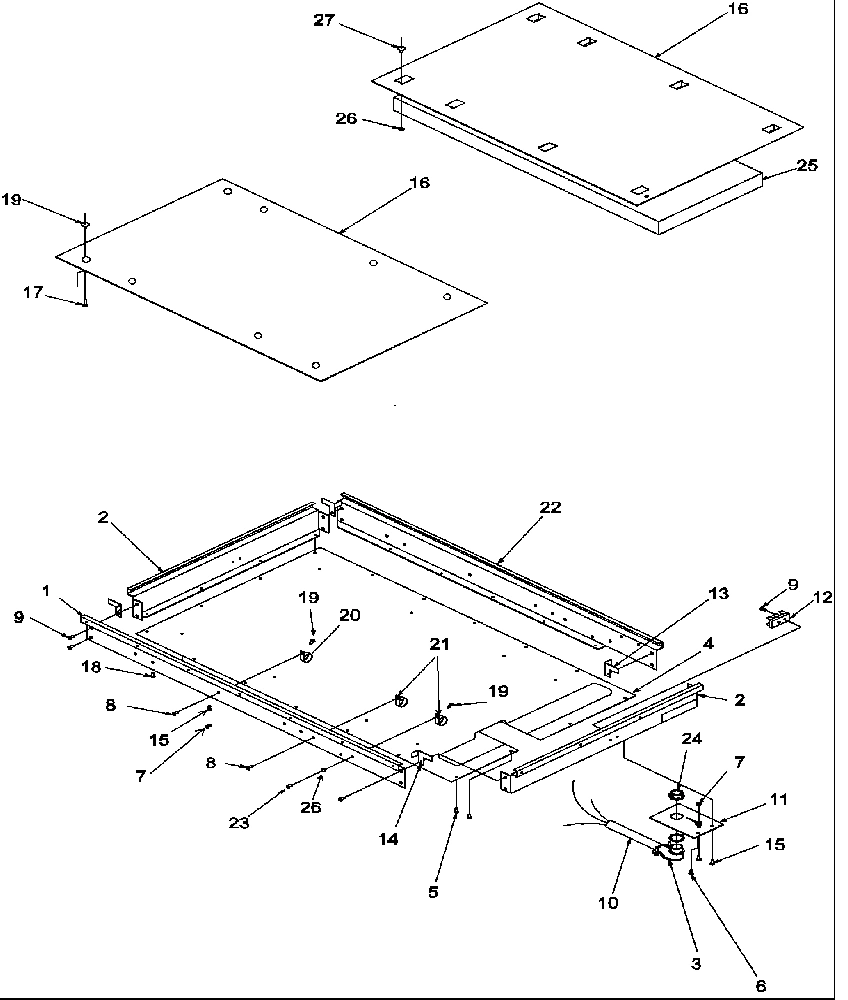

02 - HEATER BOX ASSY
Common parts from model Whirlpool AK2H30 ELECTRIC COOK-TOP
1
LIGHT, INDICATOR WPL 10035901 Contact Us For Availability
1
HEAT BOX SIDE PNT WPL D8596511 Contact Us For Availability
2
LIGHT, INDICATOR WPL C2702603 Contact Us For Availability
2
HEAT BOX END PNT WPL D8596703 Contact Us For Availability
3
CONNECTOR, CONDUIT WPL M0321505 Contact Us For Availability
4
NUT A WPL M0281002 Contact Us For Availability
4
ACCESS PANEL WPL D8597006 Contact Us For Availability
5
COOKTOP, CERAMIC WPL D8599904 Contact Us For Availability
5
SCREW WPL M0234016 Contact Us For Availability
6
SCREW WPL M0227817 Contact Us For Availability
7
SWITCH, DUAL INFINITE WPL C2740705 Contact Us For Availability
7
USR 0041847 WPL M0282402 Contact Us For Availability
8
SCREW WPL M0202521 Contact Us For Availability
9
CONTROL MTG BRACKET WPL D8596804 Contact Us For Availability
10
INSULATION, IND. LIGHT WPL A4402901 Contact Us For Availability
10
HARNESS, CONDUIT WPL D8597201 Contact Us For Availability
11
SCREW WPL M0210305 Contact Us For Availability
11
PLATE, CONDUIT WPL B5036301 Contact Us For Availability
12
ELEMENT MTG BRACKET WPL D8596903 Contact Us For Availability
12
TERMINAL BLOCK WPL B5677203 Contact Us For Availability
13
BRACKET, CORNER WPL B5036901 Contact Us For Availability
14
DUAL HEATER WPL 10008401 Contact Us For Availability
14
BRACKET, CORNER WPL B5036902 Contact Us For Availability
15
HEATER, HALOGEN - LG WPL D8598902 Contact Us For Availability
15
SCREW WPL M0251002 Contact Us For Availability
16
LIMITER-TEMP WPL 10061009 Contact Us For Availability
16
HEATER BOX BAFFLE WPL D8601606 Contact Us For Availability
17
EYELET WPL M0571201 Contact Us For Availability
18
KNOB, CONTROL WPL D8598005 Contact Us For Availability
18
STUD-SELF CLINCH WPL M0293502 Contact Us For Availability
19
FRAME, TRIM WPL D8601102 Contact Us For Availability
20
COVER, CONTROL HOLE K WPL B5037601 Contact Us For Availability
20
CLAMP WPL M0102303 Contact Us For Availability
21
SPRING WPL B5001201 Contact Us For Availability
21
CLAMP, TUBE WPL M0102305 Contact Us For Availability
22
SCREW, SHOULDER WPL M0228307 Contact Us For Availability
22
HEAT BOX SIDE PNT WPL D8596512 Contact Us For Availability
23
SCREW WPL M0217224 Contact Us For Availability
24
TAPE, VINYL FOAM, ROLL WPL M0275042 Contact Us For Availability
24
BUSHING, CONDUIT WPL M0327601 Contact Us For Availability
25
WASHER LOCK WPL M0272802 Contact Us For Availability
25
INSULATION WPL C2741701 Contact Us For Availability
26
TAPE PER ROLL WPL M0275045 Contact Us For Availability
27
HALOGEN ASSY SMALL WPL D8598903 Contact Us For Availability
28
LIMITER-TEMP WPL 10061008 Contact Us For Availability
29
LIMITER, TEMP. WPL 10061004 Contact Us For Availability
30
LIMITER WPL 10061002 Contact Us For Availability
× ![]()
