Model Whirlpool AK2500XV0 DEHUMIDIFIER – Common Parts & Diagrams
02 - SECTION

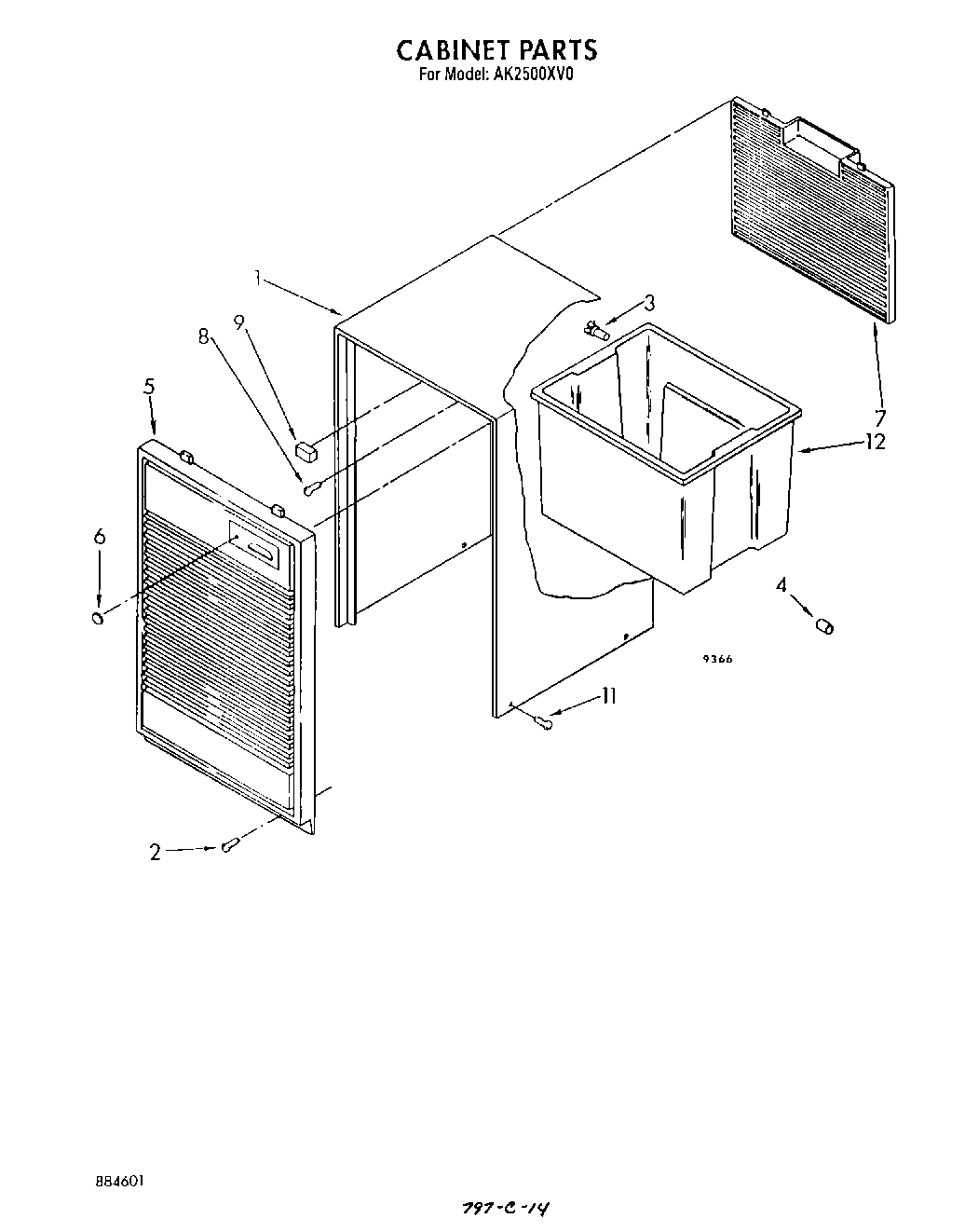

04 - SECTION

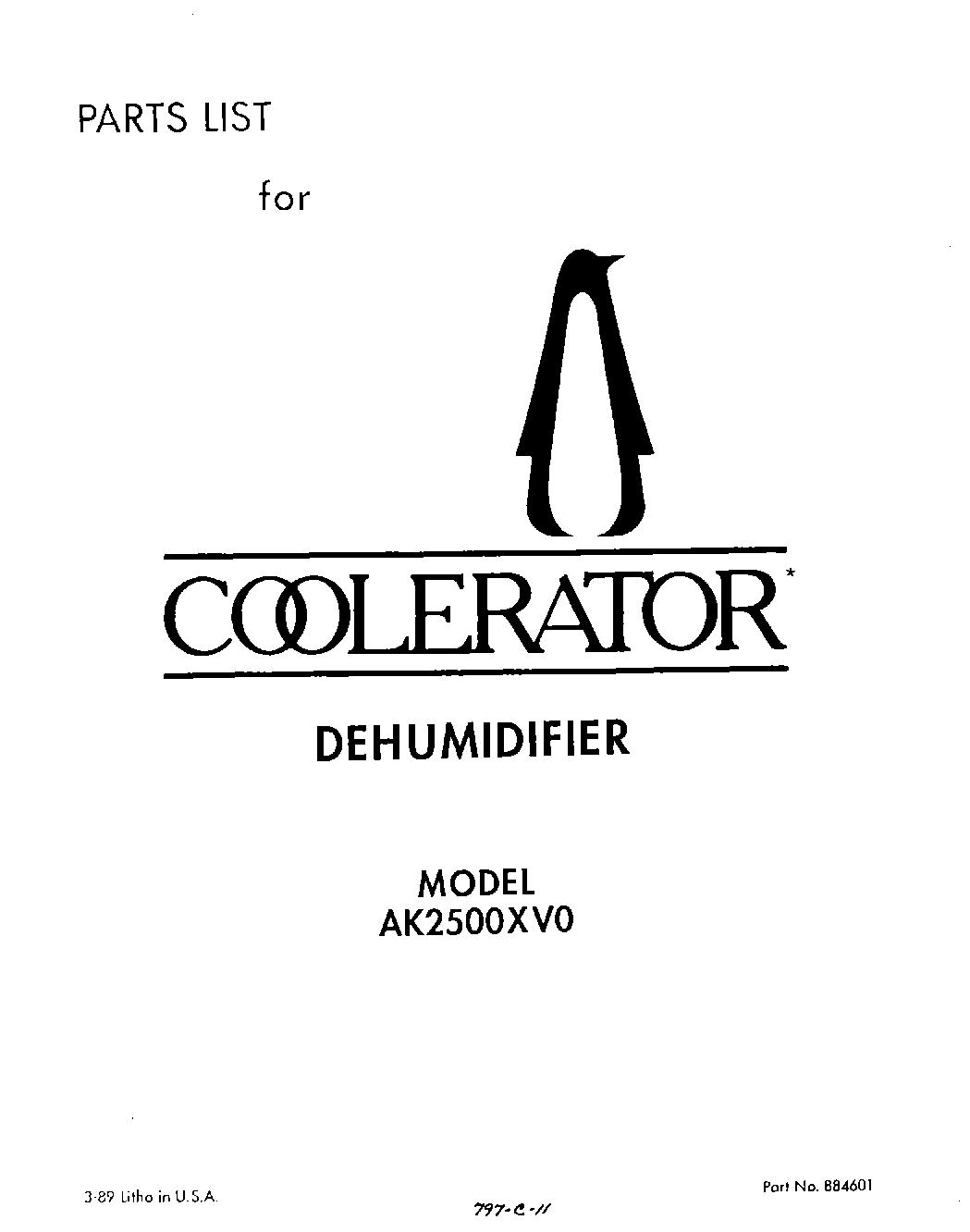

01 - SECTION

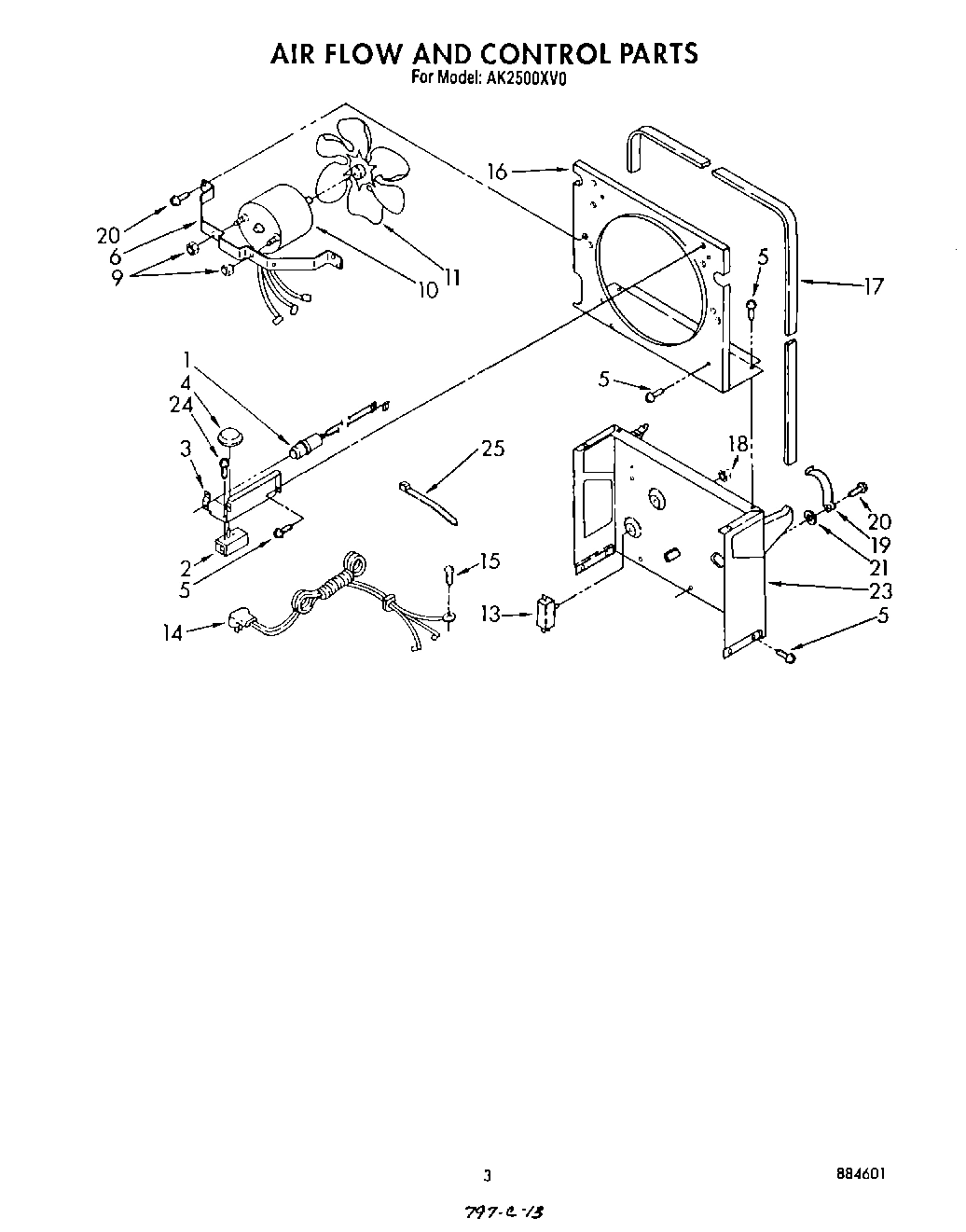

03 - SECTION
Common parts from model Whirlpool AK2500XV0 DEHUMIDIFIER
1
Cabinet WPL 998821 Contact Us For Availability
1
Light, Indicator WPL 1155666 Contact Us For Availability
2
Humidistat, Control WPL 1155848 Contact Us For Availability
3
Retainer, Pin (2) (Rear Grille) WPL 998813 Contact Us For Availability
3
Bracket, Control WPL 951285 Contact Us For Availability
4
Cap, Thread Cover (4) WPL 998869 Contact Us For Availability
4
Knob, Control WPL 998859 Contact Us For Availability
5
Screw, Sm No.8 x 3/8 WPL 488624 Contact Us For Availability
5
Grille, Front Assembly WPL 1156716 Contact Us For Availability
6
Lens, Light WPL 998846 Contact Us For Availability
6
Bracket, Fan Motor Mounting WPL 998777 Contact Us For Availability
7
Grille, Rear WPL 998832 Contact Us For Availability
9
Spacer, Grille WPL 948584 Contact Us For Availability
10
Overload, Protector WPL 1156819 Contact Us For Availability
10
Motor, Fan WPL 1156858 Contact Us For Availability
11
Relay, Start WPL 1156815 Contact Us For Availability
11
Screw, 8-32 x 3/8 (6) WPL 489016 Contact Us For Availability
11
Blade, Fan WPL 949645 Contact Us For Availability
12
5/8`` Tube O.D. WPL 978029 Contact Us For Availability
12
Tape, No Drip (30`) Valve, Access WPL 505168 Contact Us For Availability
12
Cover, Terminal WPL 1157582 Contact Us For Availability
12
Lacquer, Starlight Gray (1/2 Pt. Uncut) WPL 485426 Contact Us For Availability
12
Cap, Condensate Pan WPL 646753 Contact Us For Availability
12
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
12
Pan, Condensate WPL 951901 Contact Us For Availability
12
1/2`` Tube O.D. WPL 978028 Contact Us For Availability
12
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
13
Retainer, Cover WPL 938384 Contact Us For Availability
13
Switch, Water Level Control WPL 998783 Contact Us For Availability
14
evaporator WPL 998746 Contact Us For Availability
14
Cord, Appliance WPL 1155670 Contact Us For Availability
16
Seal WPL 998867 Contact Us For Availability
16
Plate, Orifice WPL 998779 Contact Us For Availability
17
Seal WPL 998802 Contact Us For Availability
18
Screw, 1/4-28 x 1`` (3) WPL 488400 Contact Us For Availability
18
Palnut, 3/8-32 WPL 489001 Contact Us For Availability
19
Harness, Wire WPL 484136 Contact Us For Availability
19
Spring, Water Level WPL 998730 Contact Us For Availability
20
Grommet (4) WPL 1156748 Contact Us For Availability
21
Base WPL 1157584 Contact Us For Availability
21
Washer (Repair) (.062 Thickness) WPL 489029 Contact Us For Availability
21
Washer, Repair (.030 Thickness) WPL 489083 Contact Us For Availability
21
Washer, Repair (.045 Thickness) WPL 489091 Contact Us For Availability
22
Roll Pin (2) WPL 489015 Contact Us For Availability
23
Glide (2) WPL 951886 Contact Us For Availability
23
Support WPL 998744 Contact Us For Availability
24
Roller (2) WPL 998726 Contact Us For Availability
24
Screw, 8 X 1/4 WPL 145450 Contact Us For Availability
25
Compressor, Service (Complete Assembly) WPL 876684 Contact Us For Availability
26
Retainer, Cover WPL 831282 Contact Us For Availability
27
Cover, Terminal WPL 865068 Contact Us For Availability
28
Overload WPL 876686 Contact Us For Availability
29
Spring, Overload WPL 549086 Contact Us For Availability
30
Relay, Start WPL 876689 Contact Us For Availability
× ![]()
