Model Electrolux AK18E7RYA ROOM AIR CONDITIONER – Common Parts & Diagrams

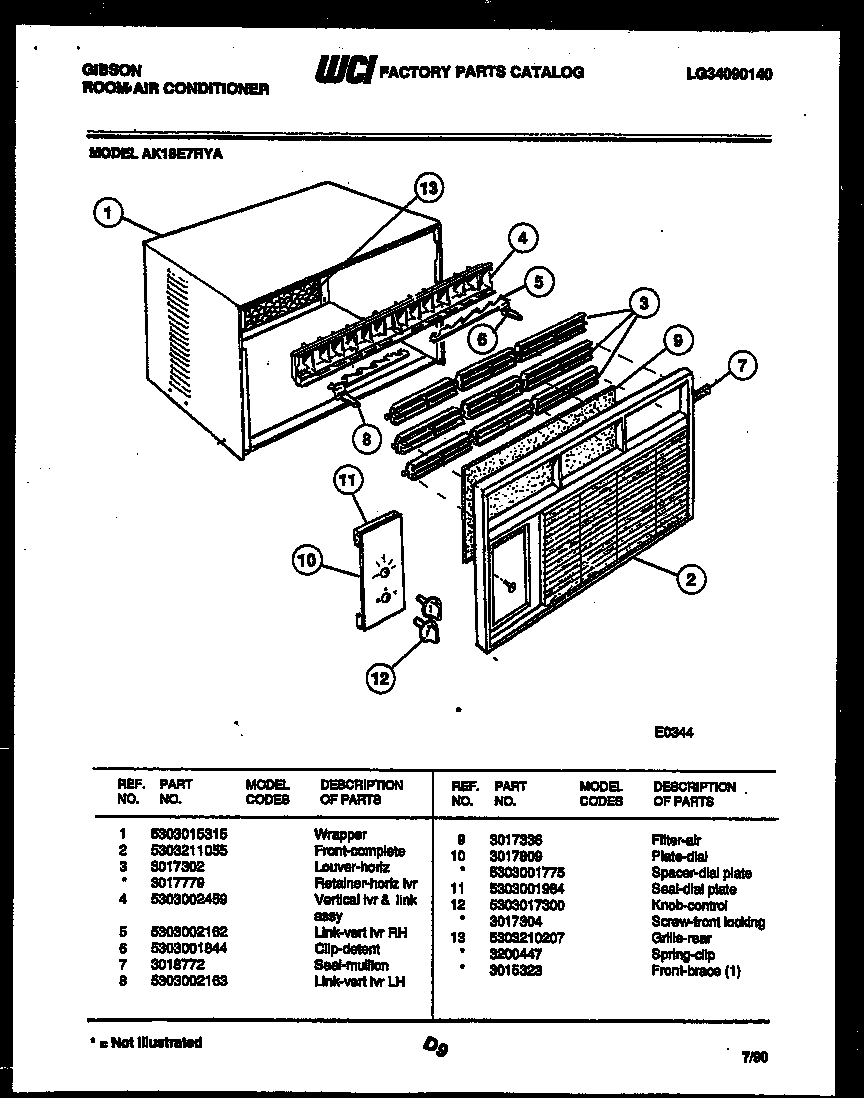

02 - CABINET PARTS

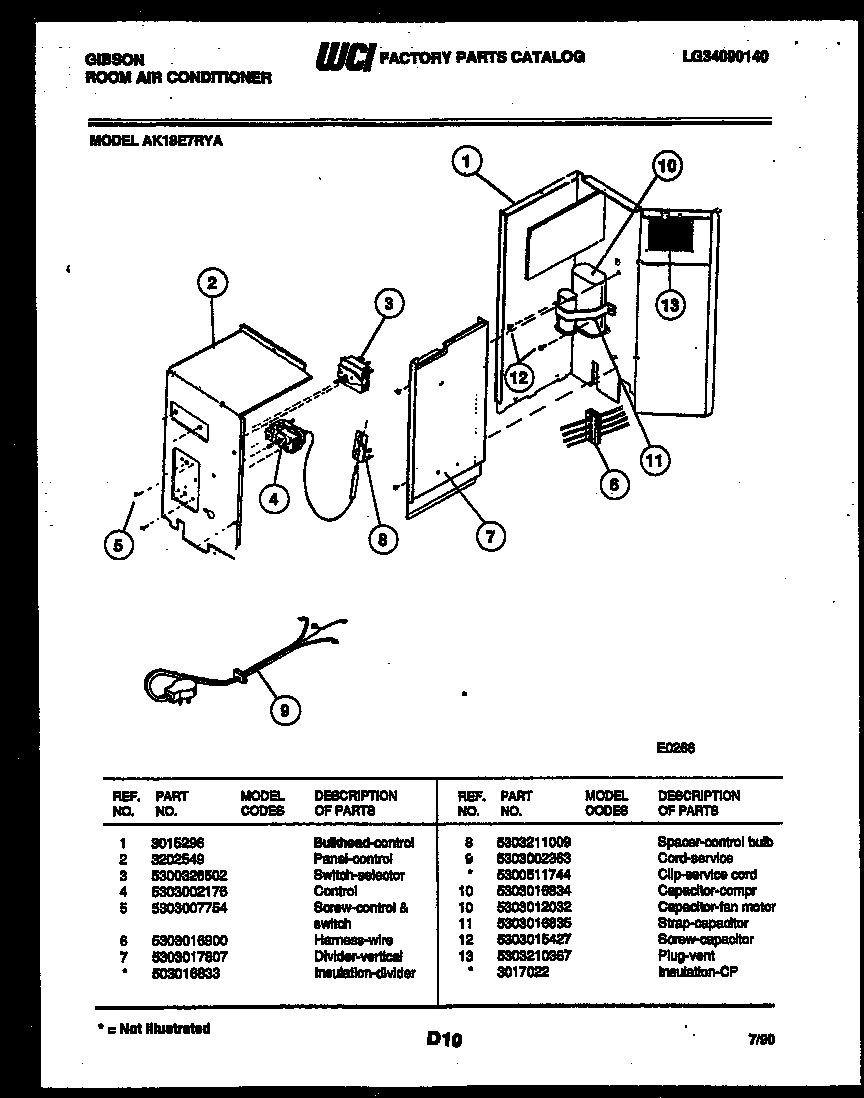

03 - ELECTRICAL PARTS

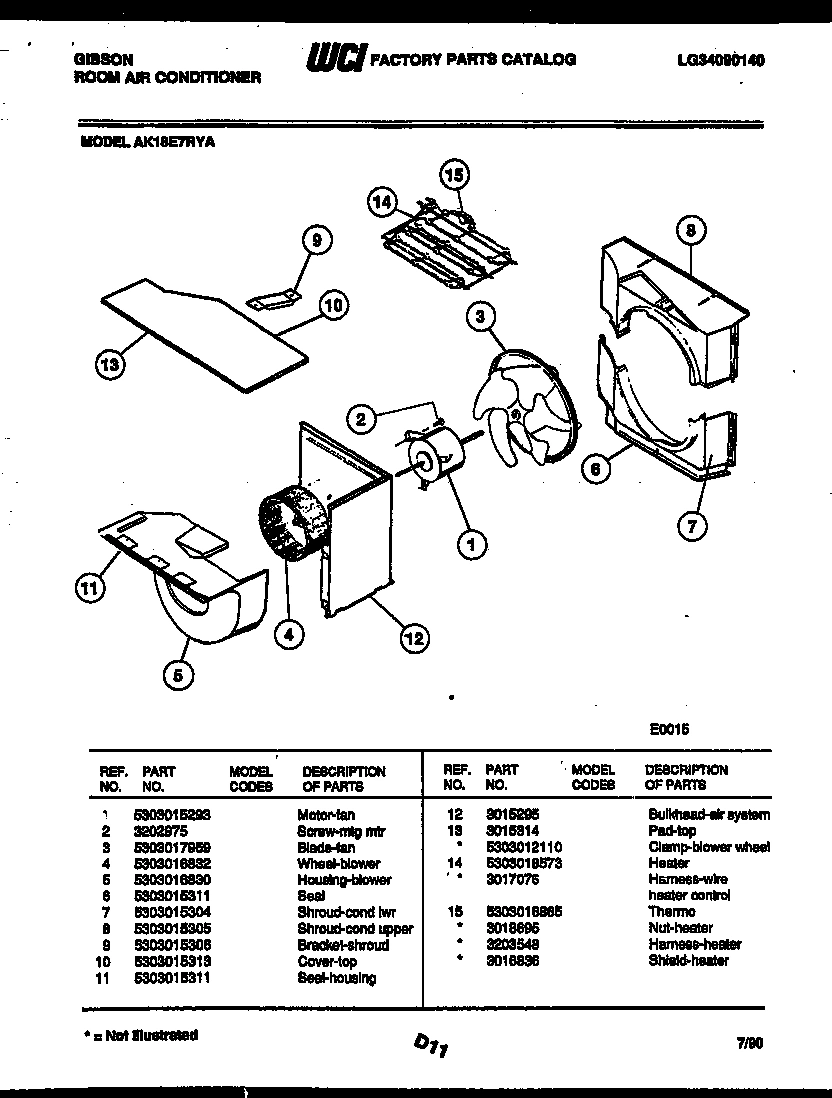

04 - AIR HANDLING PARTS

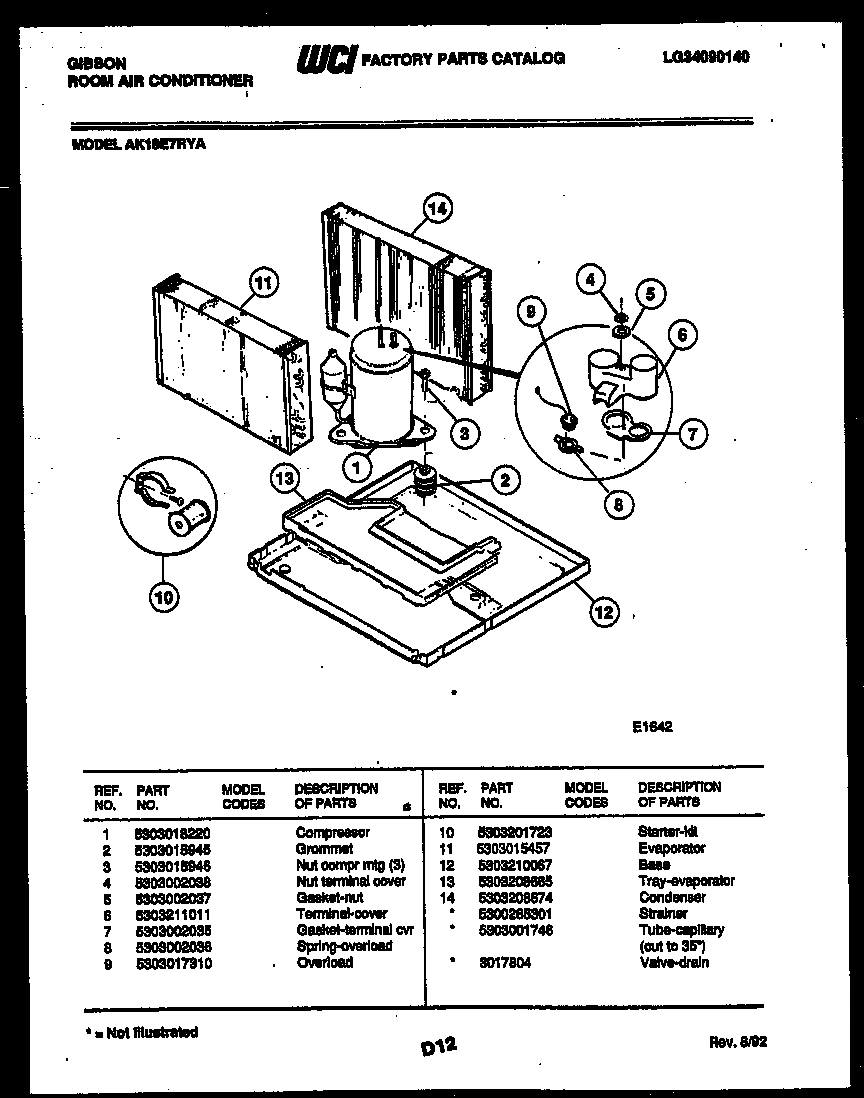

05 - SYSTEM PARTS

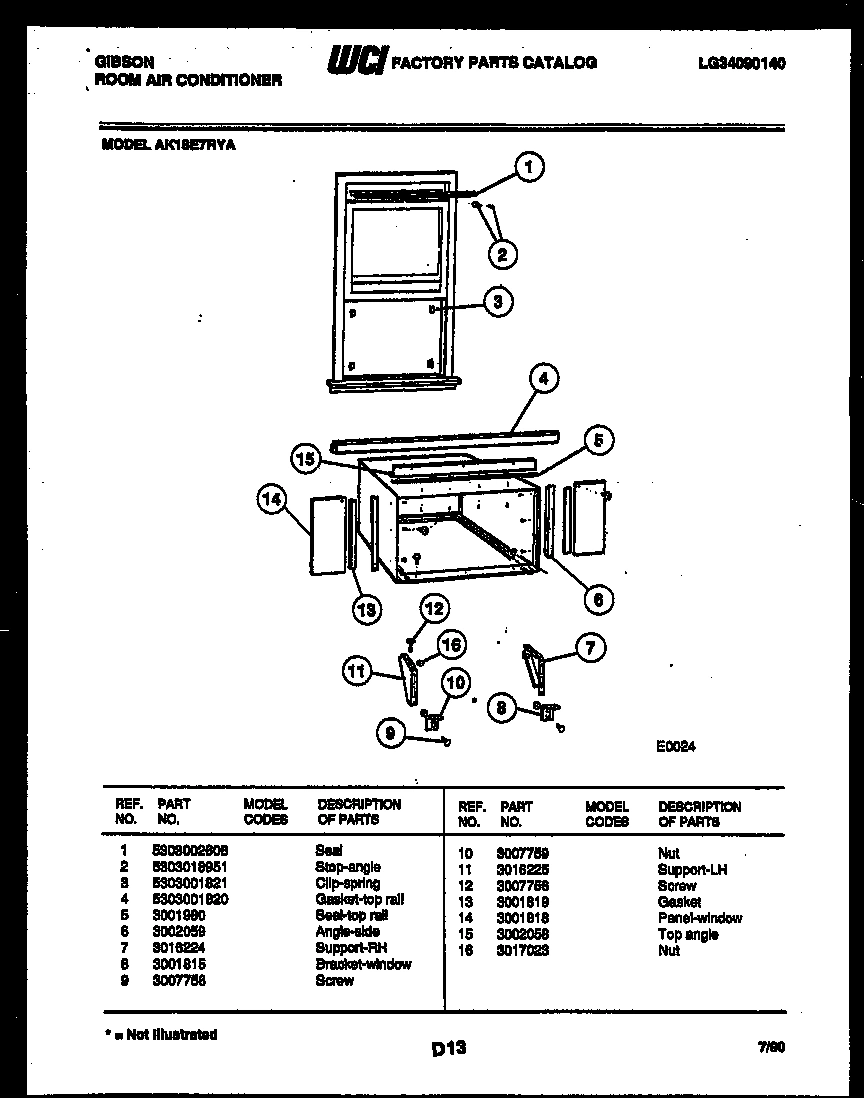

06 - CABINET AND INSTALLATION PARTS
Common parts from model Electrolux AK18E7RYA ROOM AIR CONDITIONER
*27808
SPRING-CLIP WCI 3200447 Contact Us For Availability
*27812
WCI 3017022 WCI 3017022 Contact Us For Availability
*27816
NUT-HEATER WCI 3018695 Contact Us For Availability
*27817
WCI 3016836 WCI 3016836 Contact Us For Availability
*27817
HARNESS & HEATER WCI 3203548 Contact Us For Availability
*27821
WCI 3017804 WCI 3017804 Contact Us For Availability
*27821
TUBE-CAPILLARY (CUT TO 35``) WCI 5303001746 Contact Us For Availability
1
WCI 5303015315 WCI 5303015315 Contact Us For Availability
1
BULKHEAD - CONTROL WCI 3015296 Contact Us For Availability
1
WCI 5303015293 WCI 5303015293 Contact Us For Availability
1
WCI 5303018220 WCI 5303018220 Contact Us For Availability
1
SEAL WCI 5303002608 Contact Us For Availability
2
WCI 5303211055 WCI 5303211055 Contact Us For Availability
2
WCI 3202549 WCI 3202549 Contact Us For Availability
2
GROMMET WCI 5303015945 Contact Us For Availability
2
WCI 5303018951 WCI 5303018951 Contact Us For Availability
3
LOUVER-HORIZ WCI 3017302 Contact Us For Availability
3
WCI 5300326502 WCI 5300326502 Contact Us For Availability
3
WCI 5303017959 WCI 5303017959 Contact Us For Availability
3
NUT COMPR. MTG. (3) WCI 5303015946 Contact Us For Availability
3
CLIP-SPRING WCI 5303001821 Contact Us For Availability
3A
RETAINER-HORIZ LVR (NON-ILLUSTRATED) WCI 3017779 Contact Us For Availability
4
VERTICAL LVR & LINK ASSY WCI 5303002459 Contact Us For Availability
4
CONTROL WCI 5303002176 Contact Us For Availability
4
WCI 5303016832 WCI 5303016832 Contact Us For Availability
4
NUT-TERMINAL COVER WCI 5303002038 Contact Us For Availability
4
WCI 5303001820 WCI 5303001820 Contact Us For Availability
5
LINK-VERT LVR RH WCI 5303002162 Contact Us For Availability
5
SCREW-CONTROL SWITCH WCI 5303007754 Contact Us For Availability
5
HOUSING-BLOWER WCI 5303016830 Contact Us For Availability
5
WCI 5303002037 WCI 5303002037 Contact Us For Availability
5
WCI 3001980 WCI 3001980 Contact Us For Availability
6
CLIP-DETENT WCI 5303001844 Contact Us For Availability
6
HARNESS-WIRE WCI 5303016900 Contact Us For Availability
6
TERMINAL-COVER WCI 5303211011 Contact Us For Availability
6
WCI 3002059 WCI 3002059 Contact Us For Availability
7
WCI 3018772 WCI 3018772 Contact Us For Availability
7
DIVIDER - VERTICAL WCI 5303017807 Contact Us For Availability
7
SHROUD-COND LWR WCI 5303015304 Contact Us For Availability
7
GASKET-TERMINAL CVR WCI 5303002035 Contact Us For Availability
7
SUPPORT-RH WCI 3016224 Contact Us For Availability
7A
WCI 503016833 WCI 503016833 Contact Us For Availability
8
LINK-VERT LVR LH WCI 5303002163 Contact Us For Availability
8
SPACER-CONTROL BULB WCI 5303211009 Contact Us For Availability
8
SHROUD-COND. UPPER WCI 5303015305 Contact Us For Availability
8
SPRING-OVERLOAD WCI 5303002036 Contact Us For Availability
8
BRACKET - WINDOW WCI 3001815 Contact Us For Availability
9
FILTER-AIR WCI 3017336 Contact Us For Availability
9
WCI 5303002363 WCI 5303002363 Contact Us For Availability
9
WCI 5303015306 WCI 5303015306 Contact Us For Availability
9
WCI 5303017310 WCI 5303017310 Contact Us For Availability
9A
WCI 5300511744 WCI 5300511744 Contact Us For Availability
10
WCI 3017809 WCI 3017809 Contact Us For Availability
10
CAPACITOR-FAN MOTOR WCI 5303012032 Contact Us For Availability
10
CAPACITOR COMPR WCI 5303016834 Contact Us For Availability
10
WCI 5303015313 WCI 5303015313 Contact Us For Availability
10
STARTER KIT WCI 5303201723 Contact Us For Availability
10
WCI 3007759 WCI 3007759 Contact Us For Availability
10A
SPACER-DIAL PLATE (NON-ILLUSTRATED) WCI 5303001775 Contact Us For Availability
11
SEAL - DIAL PLATE WCI 5303001984 Contact Us For Availability
11
STRAP-CAPACITOR WCI 5303016835 Contact Us For Availability
11
SEAL - HOUSING WCI 5303015311 Contact Us For Availability
11
SUPPORT-LH WCI 3016225 Contact Us For Availability
12
WCI 5303017300 WCI 5303017300 Contact Us For Availability
12
WCI 3015295 WCI 3015295 Contact Us For Availability
12
WCI 5303210067 WCI 5303210067 Contact Us For Availability
12
WCI 3007756 WCI 3007756 Contact Us For Availability
12A
SCREW-FRONT LOCKING (NON-ILLUSTRATED) WCI 3017304 Contact Us For Availability
13
GRILLE-REAR WCI 5303210207 Contact Us For Availability
13
PLUG VENT WCI 5303210367 Contact Us For Availability
13
PAD-TOP WCI 3015314 Contact Us For Availability
13
WCI 5303208665 WCI 5303208665 Contact Us For Availability
13
WCI 3001819 WCI 3001819 Contact Us For Availability
13A
CLAMP BLOWER WHEEL (NON-ILLUSTRATED) WCI 5303012110 Contact Us For Availability
14
WCI 5303018573 WCI 5303018573 Contact Us For Availability
14
WCI 5303208674 WCI 5303208674 Contact Us For Availability
14
WCI 3001818 WCI 3001818 Contact Us For Availability
14A
HARNESS-WIRE HEATER CONTROL (NON-ILLUSTRATED) WCI 3017076 Contact Us For Availability
15
THERMO WCI 5303016865 Contact Us For Availability
15
TOP - ANGLE WCI 3002058 Contact Us For Availability
× ![]()
