Model Hotpoint AH12H07D3BK1 Zoneline – Common Parts & Diagrams

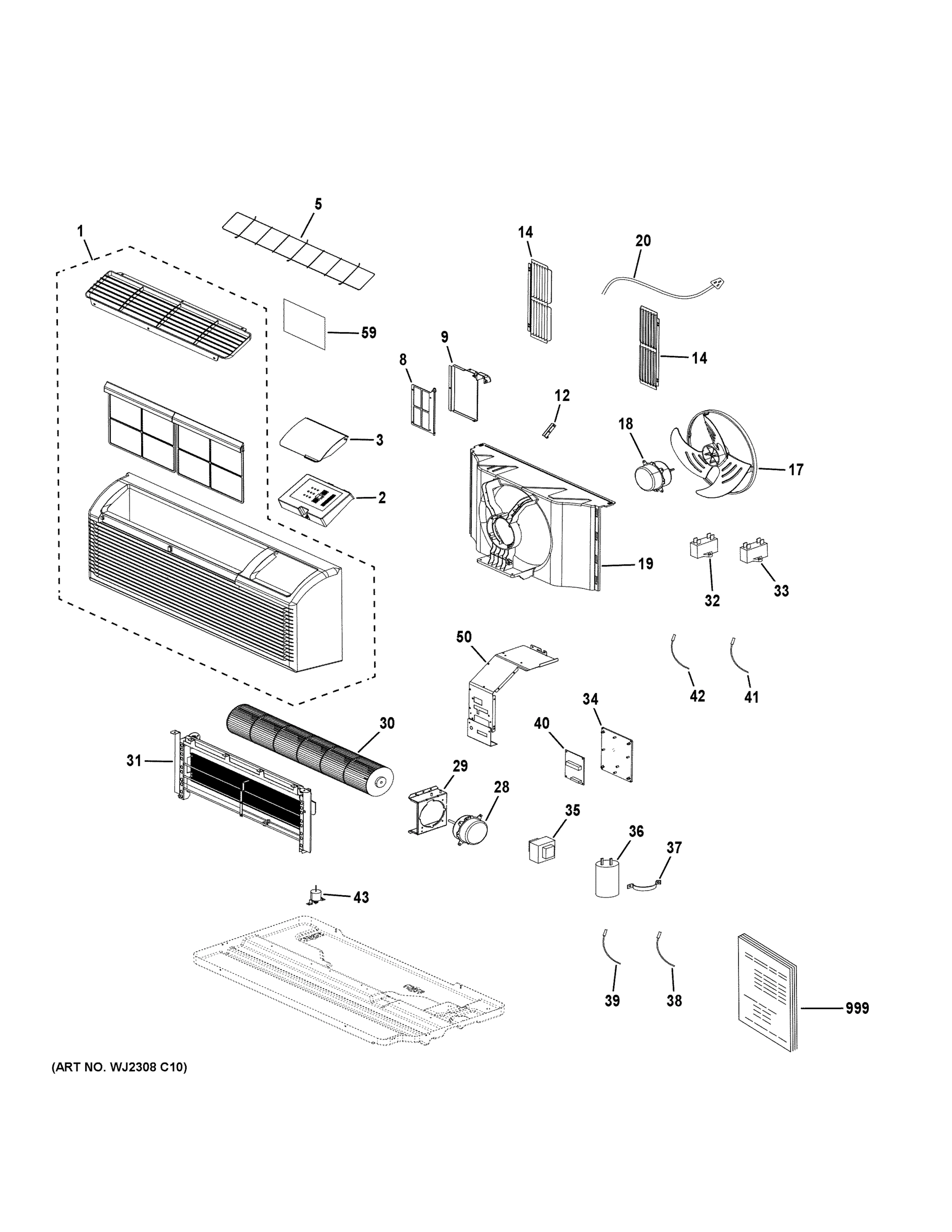

Common parts from model Hotpoint AH12H07D3BK1 Zoneline

OPTIONAL ACCESSORIES

Print

• This Diagram
• All Diagrams

1

WP71X24798 GE Room Front Assembly Backorder GEN WP71X24798 View Details $229.76

View on Model

2

UI HOUSING ASSEMBLY GEN WP59X33593 Contact Us For Availability

View on Model

3

UI HOUSING COVER Backorder GEN WP76X28018 View Details $9.48

View on Model

5

WP71X24879 GE Wire Grid Backorder GEN WP71X24879 View Details $28.44

View on Model

8

WP85X24872 GE Vent Door Filter Backorder GEN WP85X24872 View Details $6.98

View on Model

9

WP76X24875 GE Vent Door Assembly Backorder GEN WP76X24875 View Details $8.50

View on Model

12

WP65X24876 GE Vent Door Rod Backorder GEN WP65X24876 View Details $6.64

View on Model

14

WP71X24878 GE Horizontal Louver Backorder GEN WP71X24878 View Details $19.17

View on Model

17

WP73X24870 GE Outdoor Fan Backorder GEN WP73X24870 View Details $56.26

View on Model

18

WP94X27474 GE Outdoor Fan Motor Backorder GEN WP94X27474 View Details $169.79

View on Model

19

WP76X24871 GE Outdoor Fan Shroud Backorder GEN WP76X24871 View Details $87.80

View on Model

20

WJ35X27833 GE Power Cord Backorder GEN WJ35X27833 View Details $160.31

View on Model

28

INDOOR FAN MOTOR Backorder GEN WP94X33479 View Details $138.67

View on Model

29

WP65X33477 GE Indoor Fan Motor Bracket Backorder GEN WP65X33477 View Details $25.14

View on Model

30

WP73X24869 GE Indoor Fan Backorder GEN WP73X24869 View Details $209.72

View on Model

31

WP70X33473 GE Heater 3500W Backorder GEN WP70X33473 View Details $238.15

View on Model

32

WP20X24882 GE Fan Motor Capacitor 3µF/450V Backorder GEN WP20X24882 View Details $20.28

View on Model

33

FAN MOTOR CAPACITOR 1UF/450V-P2 GEN WP20X27490 Contact Us For Availability

View on Model

34

MAIN CONTROL BOARD Backorder GEN WP26X33540 View Details $5,126.81

View on Model

35

WP27X24868 GE Transformer Linear Backorder GEN WP27X24868 View Details $82.25

View on Model

36

WP20X27491 GE Compressor Capacitor Backorder GEN WP20X27491 View Details $30.96

View on Model

37

WP01X27484 GE Clamp Capacitor Backorder GEN WP01X27484 View Details $6.98

View on Model

38

WP26X27478 GE Thermistor Backorder GEN WP26X27478 View Details $8.36

View on Model

39

PIPE THERMISTOR GEN WP26X27482 Contact Us For Availability

View on Model

40

WP26X27488 GE Air Conditioner Thermostat Boar Backorder GEN WP26X27488 View Details $86.42

View on Model

41

WP26X27479 GE Thermistor Backorder GEN WP26X27479 View Details $16.17

View on Model

42

DISCHARGE THERMISTOR GEN WP26X27477 Contact Us For Availability

View on Model

43

WP26X24900 GE Drain Valve Backorder GEN WP26X24900 View Details $43.28

View on Model

50

MAIN CONTROL BOARD FRAME GEN WP76X24873 Contact Us For Availability

View on Model

59

WP71X29273 GE Wall Thermostat for Hotpoint Us Backorder GEN WP71X29273 View Details $23.71

View on Model

413

RAK149P2A GE Air Conditioner Programmable 2 F Backorder GEN RAK149P2A View Details $135.41

View on Model

414

RAK149F2A GE Thermostat Non-Programmable 2 Backorder GEN RAK149F2A View Details $113.05

View on Model

999

PM MINI MANUAL AND WIRING GEN 315000518 Contact Us For Availability

View on Model

999

PM OWNERS MANUAL GEN 495000041 Contact Us For Availability

View on Model

×
