Model Maytag AGR6011VDS2 GAS RANGE – Common Parts & Diagrams

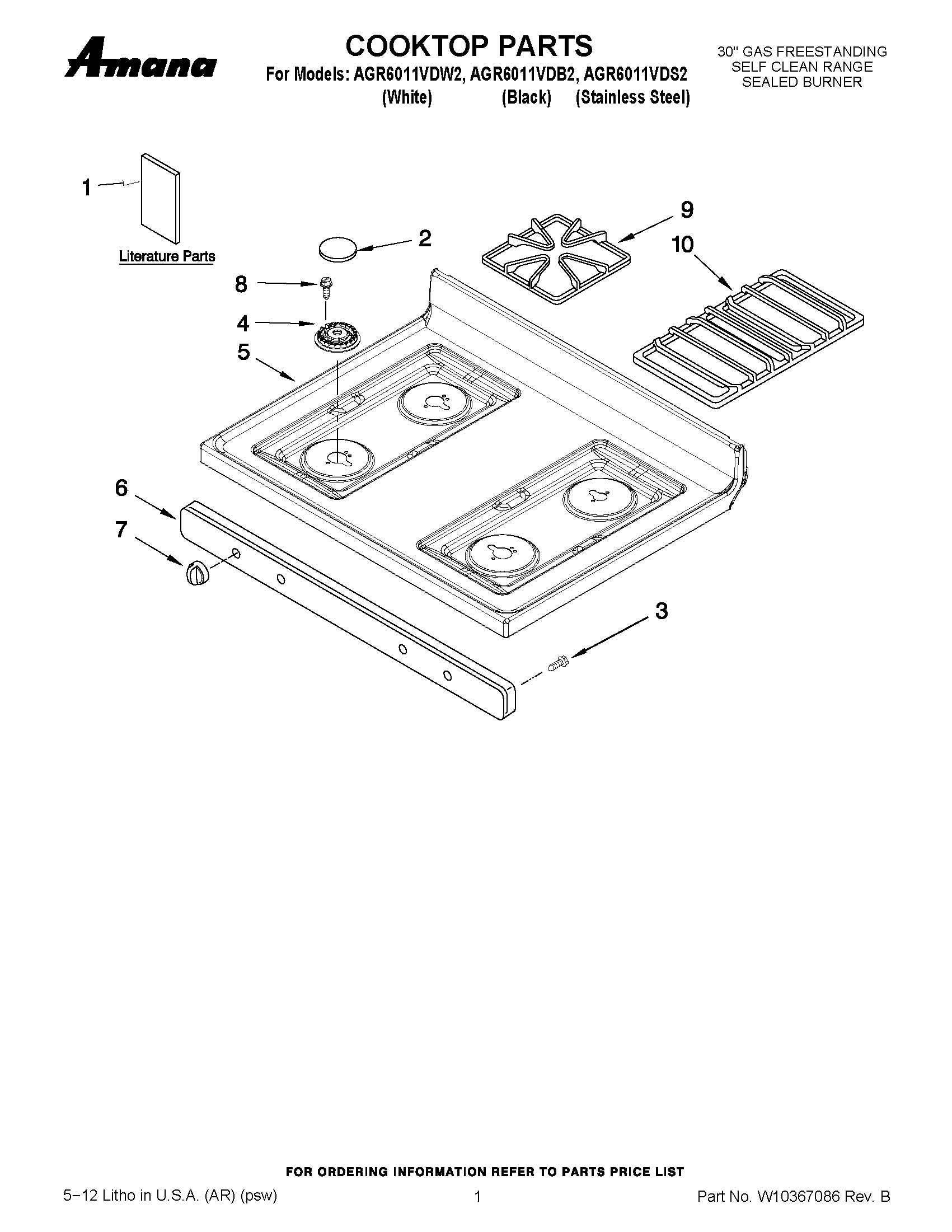

01 - COOKTOP PARTS

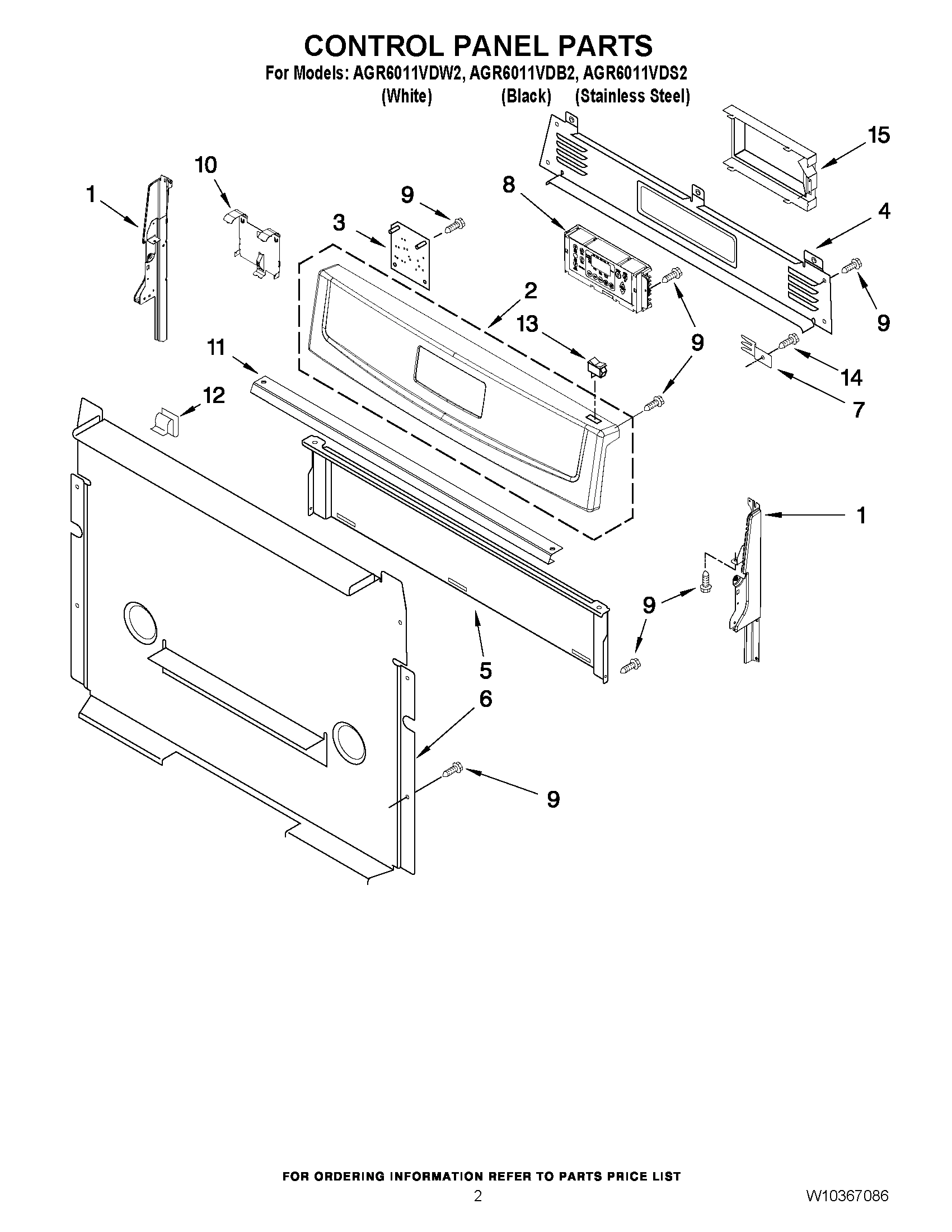

02 - CONTROL PANEL PARTS

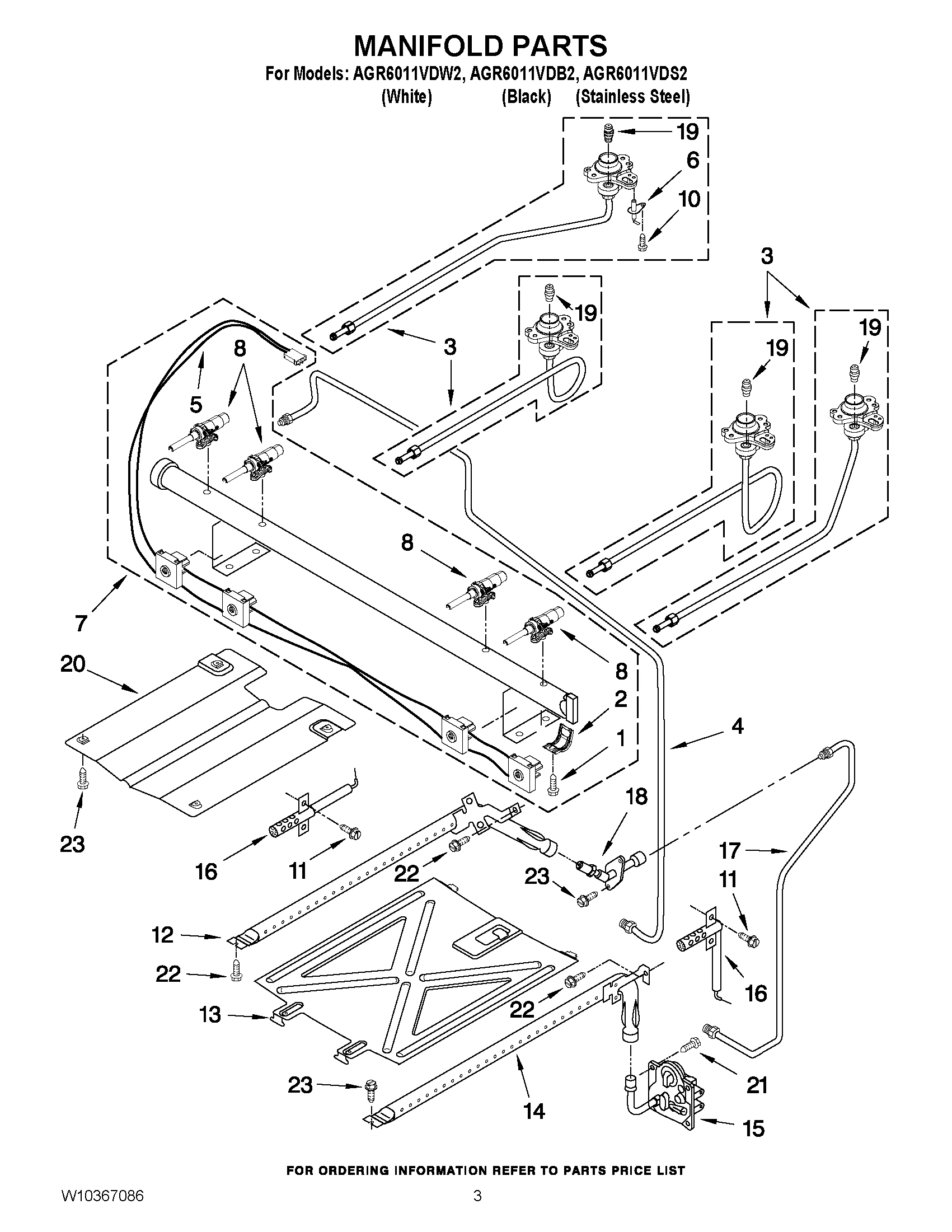

03 - MANIFOLD PARTS

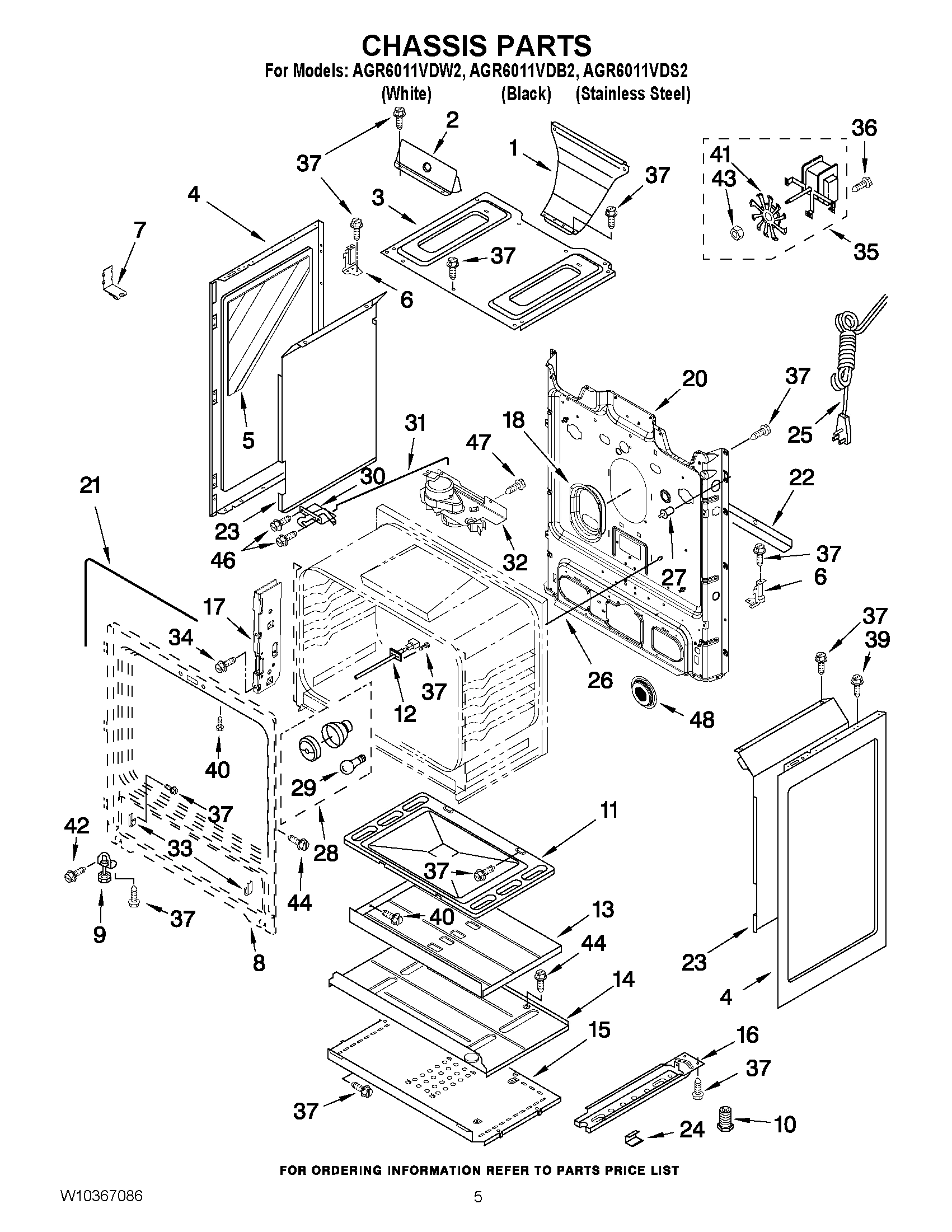

04 - CHASSIS PARTS

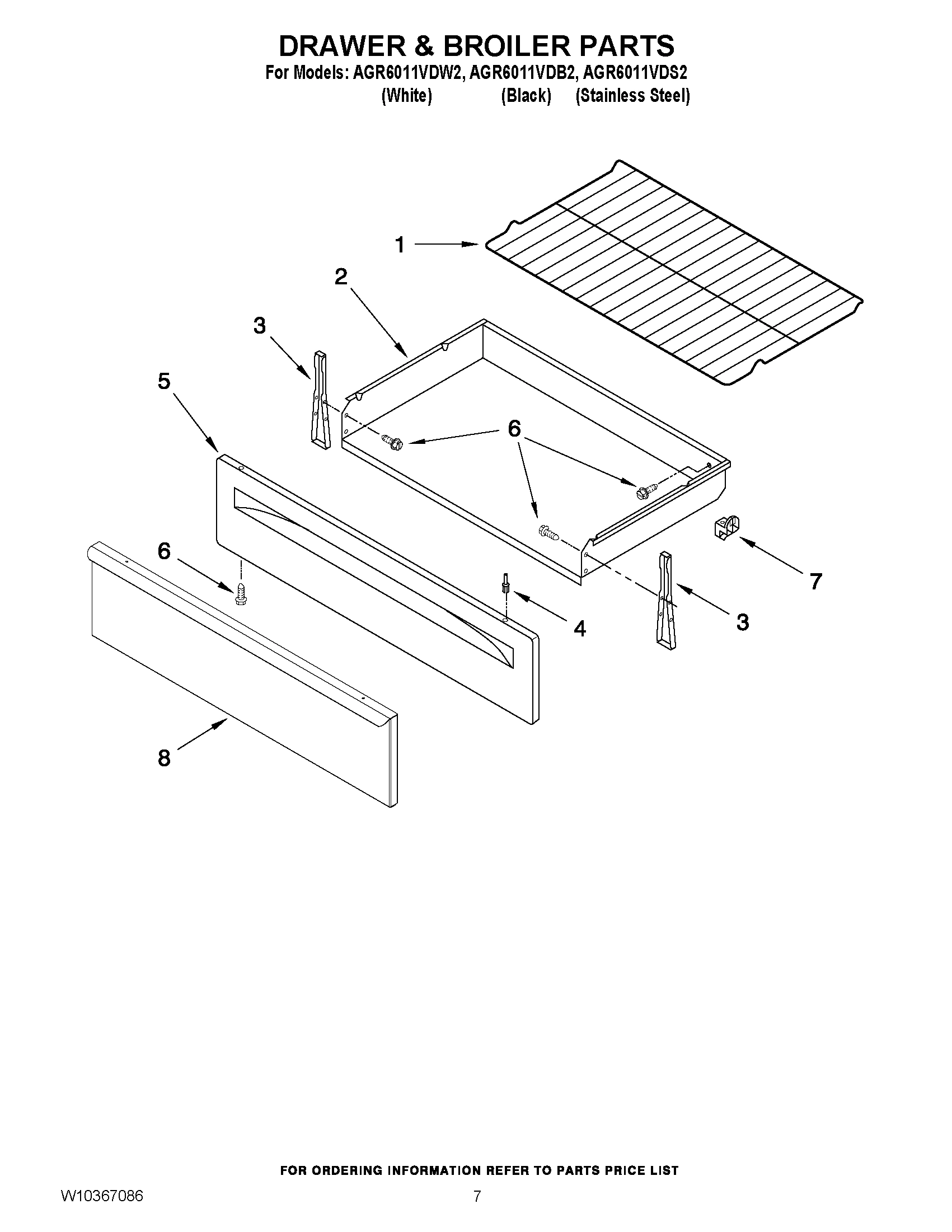

05 - DRAWER & BROILER PARTS

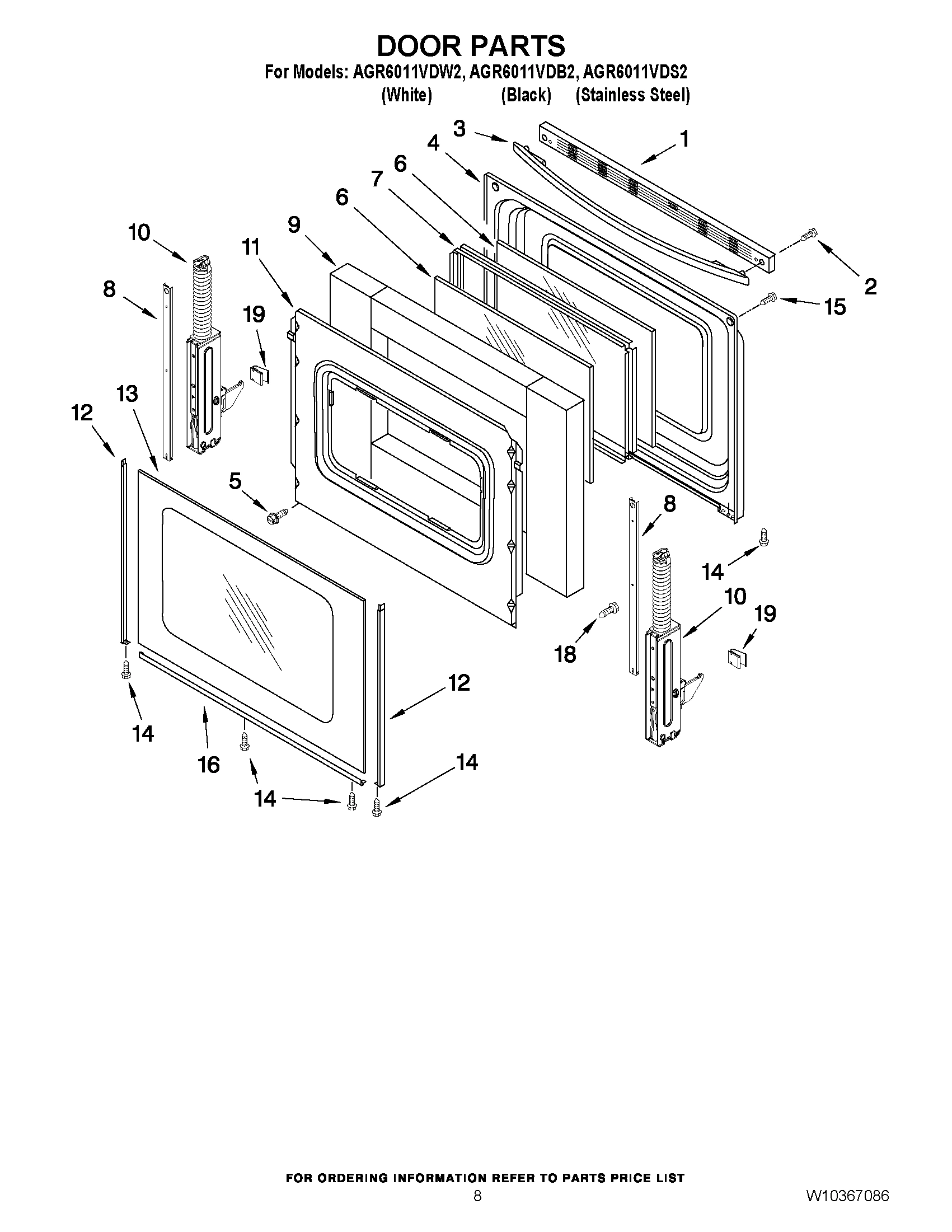

06 - DOOR PARTS
07 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag AGR6011VDS2 GAS RANGE
1
Anti-Tip Template (English/Spanish) MAY 9757142 Contact Us For Availability
1
Anti-Tip Template (English/French) MAY 9757143 Contact Us For Availability
1
ANTI-TIP TEMPLATE (SAFER COOKING TIPS) MAY 9762761 Contact Us For Availability
1
MAY W10196154 MAY W10196154 Contact Us For Availability
1
MAY W10196161 MAY W10196161 Contact Us For Availability
1
MAY W10198636 MAY W10198636 Contact Us For Availability
1
Endcap, Left Hand (White) MAY W10184433 Contact Us For Availability
1
Endcap, Right Hand (White) MAY W10184434 Contact Us For Availability
1
Endcap, Left Hand (Black) MAY W10184437 Contact Us For Availability
1
Endcap, Right Hand (Black) MAY W10184438 Contact Us For Availability
1
MAY W10295997 MAY W10295997 Contact Us For Availability
1
Flue Box MAY W10153186 Contact Us For Availability
1
MAY W10268578 MAY W10268578 Contact Us For Availability
1
TRIM, TOP (WHITE) MAY W10310920 Contact Us For Availability
1
MAY W10310922 MAY W10310922 Contact Us For Availability
2
CAP, BURNER (WETSTONE) MAY W10165809 Contact Us For Availability
2
CAP, BURNER (BLACK) MAY W10170554 Contact Us For Availability
2
MAY W10170026 MAY W10170026 Contact Us For Availability
2
MAY W10170027 MAY W10170027 Contact Us For Availability
2
MAY W10170028 MAY W10170028 Contact Us For Availability
2
BRACKET, VALVE MAY W10295996 Contact Us For Availability
2
MAY 8272747 MAY 8272747 Contact Us For Availability
2
MAY W10296838 MAY W10296838 Contact Us For Availability
2
MAY W10178143 MAY W10178143 Contact Us For Availability
3
MAY 3196557 MAY 3196557 Contact Us For Availability
3
MAY W10331686 MAY W10331686 Contact Us For Availability
3
TUBING, BURNER W/ORIFICE (RIGHT REAR (6K)) MAY W10175217 Contact Us For Availability
3
TUBING, BURNER W/ORIFICE (LEFT FRONT (12K)) MAY W10175219 Contact Us For Availability
3
TUBING, BURNER W/ORIFICE (LEFT REAR (9.5K)) MAY W10175220 Contact Us For Availability
3
TUBING, BURNER W/ORIFICE (RIGHT FRONT (9.5K)) MAY W10201350 Contact Us For Availability
3
BURNER, BOX MAY 8273036 Contact Us For Availability
3
BRACKET, DRAWER (SS ONLY) MAY 3196817 Contact Us For Availability
3
MAY W10174397 MAY W10174397 Contact Us For Availability
3
MAY W10144888 MAY W10144888 Contact Us For Availability
3
MAY W10144889 MAY W10144889 Contact Us For Availability
3
Handle, Door (Stainless Model) MAY W10144890 Contact Us For Availability
4
BURNER (RR(6K)) MAY W10406243 Contact Us For Availability
4
BURNER (LR - RF(9K)) MAY W10406283 Contact Us For Availability
4
BURNER (LF (12K)) MAY W10406797 Contact Us For Availability
4
MAY W10198745 MAY W10198745 Contact Us For Availability
4
TUBING (MANIFOLD TO REGULATOR) MAY W10314249 Contact Us For Availability
4
PANEL, SIDE (WHITE-TEXTURED) MAY W10322769 Contact Us For Availability
4
MAY W10322770 MAY W10322770 Contact Us For Availability
4
MAY 3196813 MAY 3196813 Contact Us For Availability
4
MAY 3196814 MAY 3196814 Contact Us For Availability
4
MAY 9761344 MAY 9761344 Contact Us For Availability
5
MAY 8272251 MAY 8272251 Contact Us For Availability
5
MAY 8272253 MAY 8272253 Contact Us For Availability
5
SHIELD, HEAT MAY 8053505 Contact Us For Availability
5
HARNESS, IGNITER (W/SWITCHES) MAY W10295998 Contact Us For Availability
5
MAY W10022090 MAY W10022090 Contact Us For Availability
5
MAY W10022100 MAY W10022100 Contact Us For Availability
5
MAY W10031790 MAY W10031790 Contact Us For Availability
6
MAY 8523854 MAY 8523854 Contact Us For Availability
6
MAY 8523855 MAY 8523855 Contact Us For Availability
6
Cover, Back MAY W10184251 Contact Us For Availability
6
MAY W10216419 MAY W10216419 Contact Us For Availability
6
Brkt, Manifold Mtg MAY 8523249 Contact Us For Availability
6
Screw MAY 3196168 Contact Us For Availability
6
MAY 9758162 MAY 9758162 Contact Us For Availability
7
MAY W10163287 MAY W10163287 Contact Us For Availability
7
MAY W10163288 MAY W10163288 Contact Us For Availability
7
Bracket, Support MAY 8523412 Contact Us For Availability
7
MAY W10314242 MAY W10314242 Contact Us For Availability
7
GLIDE, DRAWER MAY 8053334 Contact Us For Availability
7
MAY W10316950 MAY W10316950 Contact Us For Availability
8
MAY 3400701 MAY 3400701 Contact Us For Availability
8
MAY W10271725 MAY W10271725 Contact Us For Availability
8
MAY W10271726 MAY W10271726 Contact Us For Availability
8
VALVE (RIGHT REAR) MAY W10247744 Contact Us For Availability
8
VALVE (LF - RF - LR) MAY W10279614 Contact Us For Availability
8
FRAME, FRONT (NOT SERVICED) MAY N/P Contact Us For Availability
8
PANEL, STAINLESS MAY W10244872 Contact Us For Availability
8
STRAP, DOOR MAY W10113759 Contact Us For Availability
9
SET, GRATE (KIT OF 4) (BLACK) MAY 8522858 Contact Us For Availability
9
SET, GRATE (KIT OF 4) (WETSTONE) MAY W10166295 Contact Us For Availability
9
FOOT, FRONT MAY W10341186 Contact Us For Availability
9
INSULATION, DOOR MAY W10278991 Contact Us For Availability
10
MAY 8522854 MAY 8522854 Contact Us For Availability
10
MAY W10165812 MAY W10165812 Contact Us For Availability
10
Brkt-Mntg, DSI MAY W10137524 Contact Us For Availability
10
MAY 8273062 MAY 8273062 Contact Us For Availability
10
FOOT, REAR MAY W10058460 Contact Us For Availability
10
HINGE, DOOR ACTIVE MAY W10299224 Contact Us For Availability
10
HINGE, DOOR PASSIVE MAY W10299227 Contact Us For Availability
11
BRKT-MNTG,CONSOLE MAY W10211996 Contact Us For Availability
11
MAY 3196385 MAY 3196385 Contact Us For Availability
11
MAY 3195097 MAY 3195097 Contact Us For Availability
11
Retainer, Insul. MAY 9761357 Contact Us For Availability
12
Clip MAY 8273564 Contact Us For Availability
12
MAY 8054078 MAY 8054078 Contact Us For Availability
12
MAY W10181986 MAY W10181986 Contact Us For Availability
12
Trim, Door Side Right Hand (Black) MAY 8523165 Contact Us For Availability
12
Trim, Door Side Right Hand (White) MAY 8523166 Contact Us For Availability
12
TRIM, DOOR SIDE (LEFT HAND (BLACK)) MAY 8523171 Contact Us For Availability
12
Trim, Door Side Left Hand (White) MAY 8523172 Contact Us For Availability
12
Trim, Door Side Left Hand (Stainless Model) MAY W10113926 Contact Us For Availability
13
SWITCH, ROCKER (BLACK) MAY 3148564 Contact Us For Availability
13
SWITCH, ROCKER (WHITE) MAY 3149360 Contact Us For Availability
13
MAY W10184491 MAY W10184491 Contact Us For Availability
13
Baffle, Burner MAY 8053967 Contact Us For Availability
13
MAY W10118454 MAY W10118454 Contact Us For Availability
13
MAY W10118455 MAY W10118455 Contact Us For Availability
13
MAY W10144884 MAY W10144884 Contact Us For Availability
14
MAY 3196169 MAY 3196169 Contact Us For Availability
14
MAY 9758078 MAY 9758078 Contact Us For Availability
14
MAY 8053969 MAY 8053969 Contact Us For Availability
14
MAY 3196160 MAY 3196160 Contact Us For Availability
15
Cover MAY W10158780 Contact Us For Availability
15
Valve/Regulator MAY 9761959 Contact Us For Availability
15
MAY 8053968 MAY 8053968 Contact Us For Availability
15
MAY W10200660 MAY W10200660 Contact Us For Availability
16
Igniter (Broil) MAY 8054129 Contact Us For Availability
16
Igniter (Bake) MAY 9758079 Contact Us For Availability
16
RAIL, BASE MAY 9760314 Contact Us For Availability
16
MAY 8523175 MAY 8523175 Contact Us For Availability
16
MAY 8523177 MAY 8523177 Contact Us For Availability
17
MAY 8272222 MAY 8272222 Contact Us For Availability
17
MAY W10289077 MAY W10289077 Contact Us For Availability
18
MAY 3186489 MAY 3186489 Contact Us For Availability
18
MAY W10134126 MAY W10134126 Contact Us For Availability
18
MAY 3196165 MAY 3196165 Contact Us For Availability
19
Orifice, Burner (RR) MAY W10170506 Contact Us For Availability
19
Orifice, Burner (LR & RF) MAY W10170508 Contact Us For Availability
19
Orifice, Burner (LF) MAY W10178934 Contact Us For Availability
19
MAY W10292395 MAY W10292395 Contact Us For Availability
20
MAY W10137062 MAY W10137062 Contact Us For Availability
20
MAY W10134118 MAY W10134118 Contact Us For Availability
21
MAY 3400016 MAY 3400016 Contact Us For Availability
21
Seal, Oven MAY 8522416 Contact Us For Availability
22
MAY 3196265 MAY 3196265 Contact Us For Availability
22
MAY 8053971 MAY 8053971 Contact Us For Availability
23
RETAINER, INSUL.(RIGHT HAND) MAY 9761448 Contact Us For Availability
23
RETAINER, INSUL.(LEFT HAND) MAY 9761449 Contact Us For Availability
24
MAY W10137382 MAY W10137382 Contact Us For Availability
25
Cord, Power MAY 9757891 Contact Us For Availability
26
Rod - Dr Switch MAY 9757239 Contact Us For Availability
27
Switch, Door MAY 9757238 Contact Us For Availability
28
MAY 3196701 MAY 3196701 Contact Us For Availability
29
MAY 311255 MAY 311255 Contact Us For Availability
30
Latch, Door MAY 9761013 Contact Us For Availability
31
Rod, Latch MAY W10078370 Contact Us For Availability
32
Latch-Mtr MAY W10107830 Contact Us For Availability
33
Glide, Drawer MAY W10114344 Contact Us For Availability
34
MAY W10031780 MAY W10031780 Contact Us For Availability
35
MAY W10167915 MAY W10167915 Contact Us For Availability
36
MAY 4449809 MAY 4449809 Contact Us For Availability
39
Screw (White) MAY 3196166 Contact Us For Availability
40
Screw MAY 3196176 Contact Us For Availability
41
Fan Blade MAY W10116351 Contact Us For Availability
42
MAY 3196178 MAY 3196178 Contact Us For Availability
43
MAY W10213748 MAY W10213748 Contact Us For Availability
44
MAY W10067840 MAY W10067840 Contact Us For Availability
46
MAY 3196560 MAY 3196560 Contact Us For Availability
48
MAY W10134124 MAY W10134124 Contact Us For Availability
NI
SPUDS, LP GAS (KIT) MAY W10170531 Contact Us For Availability
NI
MAY 8524099 MAY 8524099 Contact Us For Availability
NI
MAY W10180437 MAY W10180437 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. PRIMER (WHITE MAY 206922 Contact Us For Availability
NI
MAY 240132 MAY 240132 Contact Us For Availability
NI
FOIL, ALUMINUM MAY 241430 Contact Us For Availability
NI
REFINISHING MATERIAL (REPAIR (WHITE) TOUCH-UP MAY 242756 Contact Us For Availability
NI
MAY 261514 MAY 261514 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (SUPERIOR B MAY 285006 Contact Us For Availability
NI
MAY 313438 MAY 313438 Contact Us For Availability
NI
Screw MAY 3196174 Contact Us For Availability
NI
MAY 3196520 MAY 3196520 Contact Us For Availability
NI
Clip, Harness MAY 3196696 Contact Us For Availability
NI
MAY 3196896 MAY 3196896 Contact Us For Availability
NI
Screw, Ground MAY 3400964 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE PORCELAIN (2 MAY 511873 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
MAY W10017440 MAY W10017440 Contact Us For Availability
NI
Harness, Grnd DSI MAY W10045060 Contact Us For Availability
NI
MAY W10174441 MAY W10174441 Contact Us For Availability
NI
WIRE, TIE MAY W10182767 Contact Us For Availability
NI
HARNESS, BAKE & BROIL IGNITOR MAY W10322359 Contact Us For Availability
NI
HARNESS, WIRE (COOKTOP SPARK) MAY W10322362 Contact Us For Availability
× ![]()
Login and Registration Form
