Model Maytag AGR6011VDS1 GAS RANGE – Common Parts & Diagrams

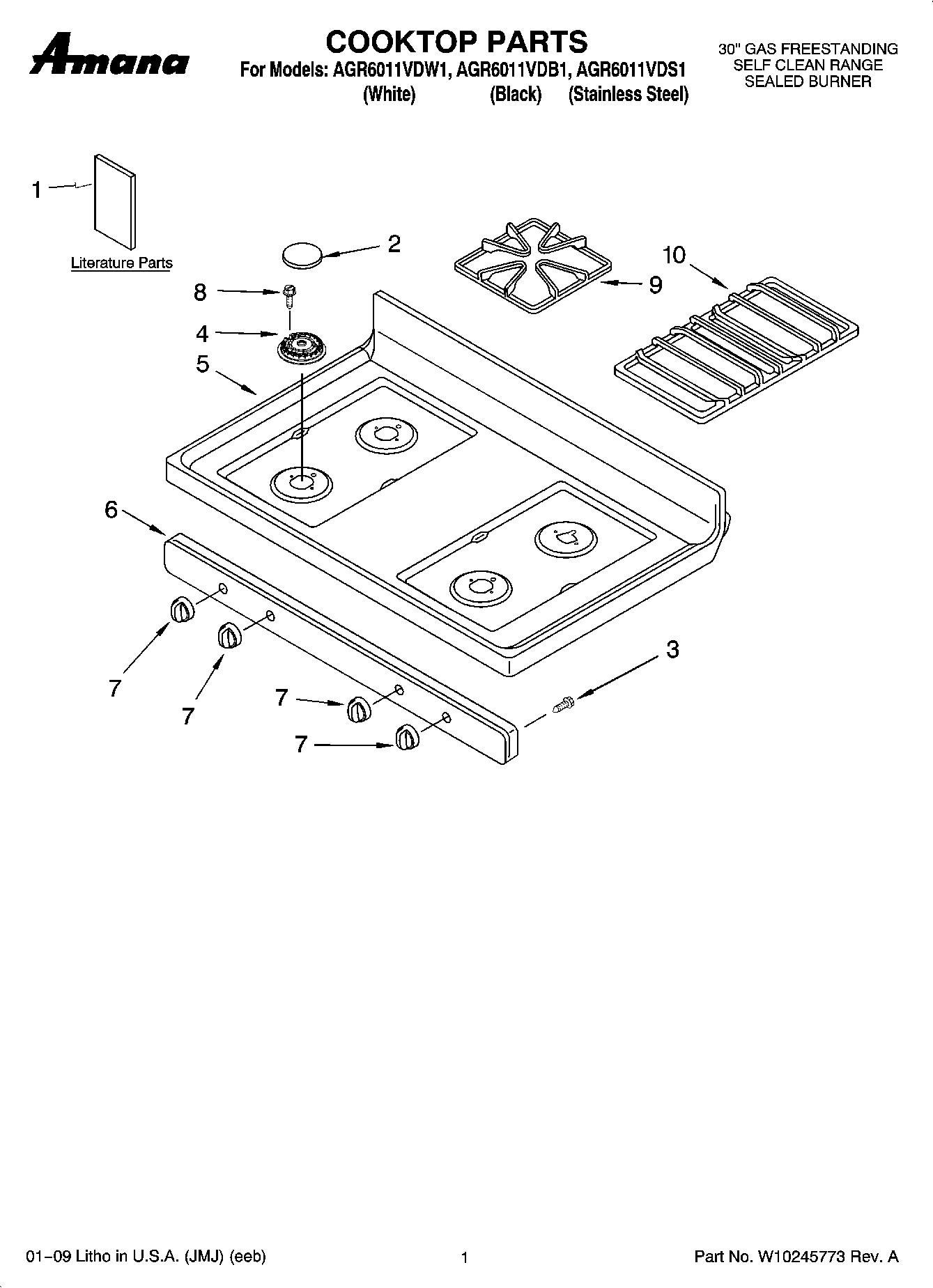

01 - COOKTOP PARTS
02 - CONTROL PANEL PARTS
03 - MANIFOLD PARTS
04 - CHASSIS PARTS
05 - DRAWER & BROILER PARTS
06 - DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag AGR6011VDS1 GAS RANGE
1
Anti-Tip Template (English/Spanish) MAY 9757142 Contact Us For Availability
1
Anti-Tip Template (English/French) MAY 9757143 Contact Us For Availability
1
Safer Cooking Tips MAY 9762761 Contact Us For Availability
1
MAY W10196154 MAY W10196154 Contact Us For Availability
1
MAY W10196161 MAY W10196161 Contact Us For Availability
1
MAY W10198636 MAY W10198636 Contact Us For Availability
1
Endcap, Left Hand (White) MAY W10184433 Contact Us For Availability
1
Endcap, Right Hand (White) MAY W10184434 Contact Us For Availability
1
Endcap, Left Hand (Black) MAY W10184437 Contact Us For Availability
1
Endcap, Right Hand (Black) MAY W10184438 Contact Us For Availability
1
MAY 8273096 MAY 8273096 Contact Us For Availability
1
Flue Box MAY W10153186 Contact Us For Availability
1
MAY W10179196 MAY W10179196 Contact Us For Availability
1
MAY 9762394 MAY 9762394 Contact Us For Availability
1
MAY W10144869 MAY W10144869 Contact Us For Availability
1
Trim, Top (Black) MAY W10144870 Contact Us For Availability
2
Cap, Burner LF & RF (Grey) MAY W10169974 Contact Us For Availability
2
Cap, Burner RR (Grey) MAY W10169975 Contact Us For Availability
2
Cap, Burner LF & RF (Black) MAY W10169984 Contact Us For Availability
2
Cap, Burner RR (Black) MAY W10169985 Contact Us For Availability
2
Cap, Burner LR (Grey) MAY W10173832 Contact Us For Availability
2
Cap, Burner LR (Black) MAY W10173833 Contact Us For Availability
2
MAY W10170026 MAY W10170026 Contact Us For Availability
2
MAY W10170027 MAY W10170027 Contact Us For Availability
2
MAY W10170028 MAY W10170028 Contact Us For Availability
2
MAY 8272747 MAY 8272747 Contact Us For Availability
2
MAY 9761031 MAY 9761031 Contact Us For Availability
2
Screw MAY 3196164 Contact Us For Availability
3
MAY 3196557 MAY 3196557 Contact Us For Availability
3
MAY 9758080 MAY 9758080 Contact Us For Availability
3
TUBING, BURNER (W/ORIFICE (RIGHT REAR)) MAY W10175217 Contact Us For Availability
3
MAY W10175219 MAY W10175219 Contact Us For Availability
3
TUBING, BURNER (W/ORIFICE (LEFT REAR)) MAY W10175220 Contact Us For Availability
3
Tubing, Burner W/Orifice (Right Front) MAY W10201350 Contact Us For Availability
3
BURNER, BOX MAY 8273036 Contact Us For Availability
3
Bracket, Drawer(2) MAY W10174397 Contact Us For Availability
3
MAY W10144888 MAY W10144888 Contact Us For Availability
3
MAY W10144889 MAY W10144889 Contact Us For Availability
3
Handle, Door (Stainless Model) MAY W10144890 Contact Us For Availability
4
Burner (RR(6K)) MAY 8286181 Contact Us For Availability
4
Burner (LF & RF (12K)) MAY 8286182 Contact Us For Availability
4
Burner (LR - RF(9K)) MAY W10194076 Contact Us For Availability
4
MAY W10198745 MAY W10198745 Contact Us For Availability
4
Tubing (Manifold to Regulator) MAY W10169490 Contact Us For Availability
4
MAY 8053830 MAY 8053830 Contact Us For Availability
4
MAY 8053832 MAY 8053832 Contact Us For Availability
4
Rivet, Push (2) (Black) MAY 3196813 Contact Us For Availability
4
Rivet, Push (2) (White) MAY 3196814 Contact Us For Availability
4
MAY 9761344 MAY 9761344 Contact Us For Availability
5
MAY 8272251 MAY 8272251 Contact Us For Availability
5
MAY 8272253 MAY 8272253 Contact Us For Availability
5
MAY W10192841 MAY W10192841 Contact Us For Availability
5
MAY 8523406 MAY 8523406 Contact Us For Availability
5
MAY W10182346 MAY W10182346 Contact Us For Availability
5
MAY W10022090 MAY W10022090 Contact Us For Availability
5
MAY W10022100 MAY W10022100 Contact Us For Availability
5
MAY W10031790 MAY W10031790 Contact Us For Availability
6
MAY 8523854 MAY 8523854 Contact Us For Availability
6
MAY 8523855 MAY 8523855 Contact Us For Availability
6
Cover, Back MAY W10184251 Contact Us For Availability
6
Electrode (4) MAY W10216419 Contact Us For Availability
6
Brkt, Manifold Mtg MAY 8523249 Contact Us For Availability
6
Screw MAY 3196168 Contact Us For Availability
6
Glass, Inner (2) MAY 9758162 Contact Us For Availability
7
Knob, Control (2) (White) MAY W10163287 Contact Us For Availability
7
Knob, Control (2) (Black) MAY W10163288 Contact Us For Availability
7
Bracket, Support MAY 8523412 Contact Us For Availability
7
MAY W10169928 MAY W10169928 Contact Us For Availability
7
MAY 9761033 MAY 9761033 Contact Us For Availability
7
MAY 3186289 MAY 3186289 Contact Us For Availability
8
MAY 3400701 MAY 3400701 Contact Us For Availability
8
MAY W10173502 MAY W10173502 Contact Us For Availability
8
MAY W10173503 MAY W10173503 Contact Us For Availability
8
VALVE(RIGHT REAR) MAY 8273004 Contact Us For Availability
8
Valve (LF - RF - LR) MAY 9757218 Contact Us For Availability
8
Spacer, Glide MAY 8053334 Contact Us For Availability
8
Strap,Door (2) MAY W10113759 Contact Us For Availability
9
Grate, Burner (4) (Black) MAY 8522851 Contact Us For Availability
9
MAY W10165803 MAY W10165803 Contact Us For Availability
9
MAY 3196037 MAY 3196037 Contact Us For Availability
9
Panel, Stainless MAY W10133364 Contact Us For Availability
9
MAY 8272618 MAY 8272618 Contact Us For Availability
10
Grate, Center (Black) MAY 8522846 Contact Us For Availability
10
MAY W10165811 MAY W10165811 Contact Us For Availability
10
Brkt-Mntg, DSI MAY W10137524 Contact Us For Availability
10
Screw (4) MAY 8273062 Contact Us For Availability
10
Foot, Rear (2) MAY W10058460 Contact Us For Availability
10
Handle, Stainless MAY W10197980 Contact Us For Availability
10
Hinge, Door MAY 9761493 Contact Us For Availability
10
Hinge, Door (Stainless Model) MAY 9761496 Contact Us For Availability
11
BRKT-MNTG,CONSOLE MAY W10211996 Contact Us For Availability
11
BOLT MAY 3400228 Contact Us For Availability
11
MAY 3195097 MAY 3195097 Contact Us For Availability
11
Clip MAY 9781235 Contact Us For Availability
11
Retainer, Insul. MAY 9761357 Contact Us For Availability
12
Clip MAY 8273564 Contact Us For Availability
12
MAY 8054078 MAY 8054078 Contact Us For Availability
12
MAY W10181986 MAY W10181986 Contact Us For Availability
12
Trim, Door Side Right Hand (Black) MAY 8523165 Contact Us For Availability
12
Trim, Door Side Right Hand (White) MAY 8523166 Contact Us For Availability
12
TRIM, DOOR SIDE (LEFT HAND (BLACK)) MAY 8523171 Contact Us For Availability
12
Trim, Door Side Left Hand (White) MAY 8523172 Contact Us For Availability
12
Trim, Door Side Right Hand (Stainless Model) MAY W10113925 Contact Us For Availability
12
Trim, Door Side Left Hand (Stainless Model) MAY W10113926 Contact Us For Availability
13
SWITCH, ROCKER (BLACK) MAY 3148564 Contact Us For Availability
13
SWITCH, ROCKER (WHITE) MAY 3149360 Contact Us For Availability
13
MAY W10184491 MAY W10184491 Contact Us For Availability
13
Baffle, Burner MAY 8053967 Contact Us For Availability
13
MAY W10118454 MAY W10118454 Contact Us For Availability
13
MAY W10118455 MAY W10118455 Contact Us For Availability
14
MAY 3196169 MAY 3196169 Contact Us For Availability
14
MAY 9758078 MAY 9758078 Contact Us For Availability
14
MAY 8053969 MAY 8053969 Contact Us For Availability
14
MAY 3196160 MAY 3196160 Contact Us For Availability
15
Cover MAY W10158780 Contact Us For Availability
15
Valve/Regulator MAY 9761959 Contact Us For Availability
15
Shield, Lower MAY 8053505 Contact Us For Availability
15
MAY W10031780 MAY W10031780 Contact Us For Availability
15
Clip, Door Glass MAY 3196025 Contact Us For Availability
16
Igniter (Broil) MAY 8054129 Contact Us For Availability
16
Igniter (Bake) MAY 9758079 Contact Us For Availability
16
MAY 9760314 MAY 9760314 Contact Us For Availability
16
MAY 8523175 MAY 8523175 Contact Us For Availability
16
MAY 8523177 MAY 8523177 Contact Us For Availability
17
MAY 8272222 MAY 8272222 Contact Us For Availability
17
BRKT - MOUNTING MAY 9760407 Contact Us For Availability
18
MAY 3186489 MAY 3186489 Contact Us For Availability
18
MAY W10008830 MAY W10008830 Contact Us For Availability
18
MAY 3196165 MAY 3196165 Contact Us For Availability
19
Orifice, Burner (RR) MAY W10170506 Contact Us For Availability
19
Orifice, Burner (LR & RF) MAY W10170508 Contact Us For Availability
19
Orifice, Burner (LF) MAY W10178934 Contact Us For Availability
19
Spacer, Door MAY 9758701 Contact Us For Availability
19
Clip,Door Mntg(2) MAY 9761517 Contact Us For Availability
20
MAY W10137062 MAY W10137062 Contact Us For Availability
20
MAY W10134118 MAY W10134118 Contact Us For Availability
21
MAY 3400016 MAY 3400016 Contact Us For Availability
21
Seal, Oven MAY 8522416 Contact Us For Availability
22
MAY 3196265 MAY 3196265 Contact Us For Availability
22
MAY 8053971 MAY 8053971 Contact Us For Availability
23
RETAINER, INSUL.(RIGHT HAND) MAY 9761448 Contact Us For Availability
23
RETAINER, INSUL.(LEFT HAND) MAY 9761449 Contact Us For Availability
24
MAY 3196385 MAY 3196385 Contact Us For Availability
24
Clip, Panel (6) MAY W10137382 Contact Us For Availability
25
Cord, Power MAY 9757891 Contact Us For Availability
26
Rod - Dr Switch MAY 9757239 Contact Us For Availability
27
Switch, Door MAY 9757238 Contact Us For Availability
28
MAY 3196701 MAY 3196701 Contact Us For Availability
29
MAY 311255 MAY 311255 Contact Us For Availability
30
Latch, Door MAY 9761013 Contact Us For Availability
31
Rod, Latch MAY W10078370 Contact Us For Availability
32
Latch-Mtr MAY W10107830 Contact Us For Availability
33
Glide, Drawer MAY W10114344 Contact Us For Availability
35
MAY W10167915 MAY W10167915 Contact Us For Availability
36
MAY 4449809 MAY 4449809 Contact Us For Availability
37
MAY 3196178 MAY 3196178 Contact Us For Availability
38
MAY 3196152 MAY 3196152 Contact Us For Availability
39
Screw (White) MAY 3196166 Contact Us For Availability
40
Screw MAY 3196176 Contact Us For Availability
41
Fan Blade MAY W10116351 Contact Us For Availability
42
Screw MAY 3196179 Contact Us For Availability
43
MAY W10116349 MAY W10116349 Contact Us For Availability
44
Screw MAY 3196177 Contact Us For Availability
46
MAY 3196560 MAY 3196560 Contact Us For Availability
48
MAY W10134124 MAY W10134124 Contact Us For Availability
49
MAY W10134126 MAY W10134126 Contact Us For Availability
NI
MAY 8523420 MAY 8523420 Contact Us For Availability
NI
MAY 8272613 MAY 8272613 Contact Us For Availability
NI
MAY 8524099 MAY 8524099 Contact Us For Availability
NI
MAY W10180437 MAY W10180437 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. PRIMER (WHITE MAY 206922 Contact Us For Availability
NI
MAY 240132 MAY 240132 Contact Us For Availability
NI
MAY 241430 MAY 241430 Contact Us For Availability
NI
Touch-Up Self-Clean(1/2 Pt) MAY 242756 Contact Us For Availability
NI
MAY 261514 MAY 261514 Contact Us For Availability
NI
MAY 261582 MAY 261582 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (SUPERIOR B MAY 285006 Contact Us For Availability
NI
MAY 313438 MAY 313438 Contact Us For Availability
NI
Wire, Tie MAY 3195927 Contact Us For Availability
NI
Screw MAY 3196173 Contact Us For Availability
NI
MAY 3196520 MAY 3196520 Contact Us For Availability
NI
Clip, Harness MAY 3196696 Contact Us For Availability
NI
MAY 3196896 MAY 3196896 Contact Us For Availability
NI
Screw, Ground MAY 3400964 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAN - BROILER MAY 4396923 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE PORCELAIN (2 MAY 511873 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
MAY 799832 MAY 799832 Contact Us For Availability
NI
Harness, Wire (Cooktop Spark) MAY 8523599 Contact Us For Availability
NI
MAY W10017440 MAY W10017440 Contact Us For Availability
NI
Harness, Bake & Broil Ignitor MAY W10170250 Contact Us For Availability
NI
MAY W10174441 MAY W10174441 Contact Us For Availability
NI
Harness, Grnd DSI MAY W10174458 Contact Us For Availability
× ![]()
Login and Registration Form
