Model Maytag AGR5844VDD2 GAS RANGE – Common Parts & Diagrams

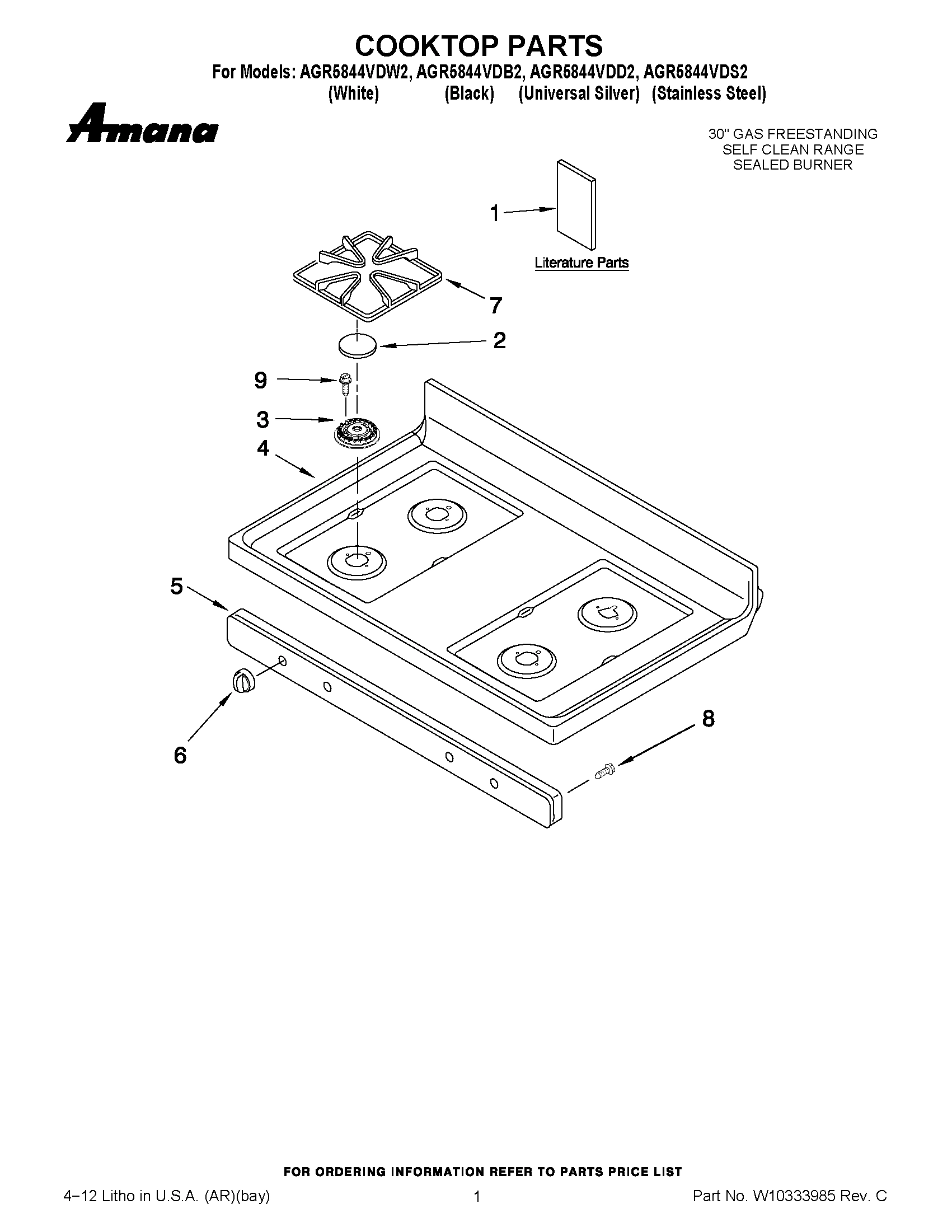

01 - COOKTOP PARTS

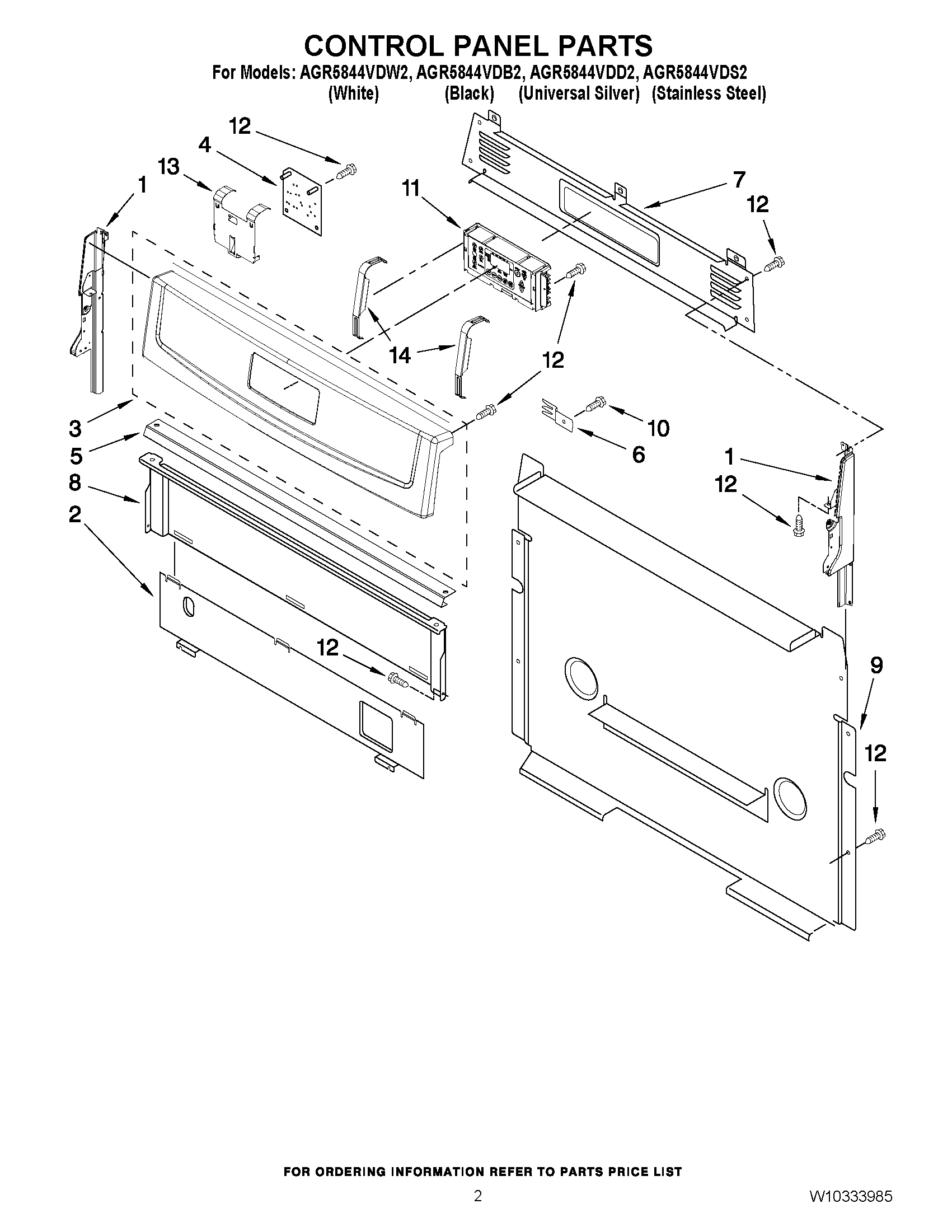

02 - CONTROL PANEL PARTS

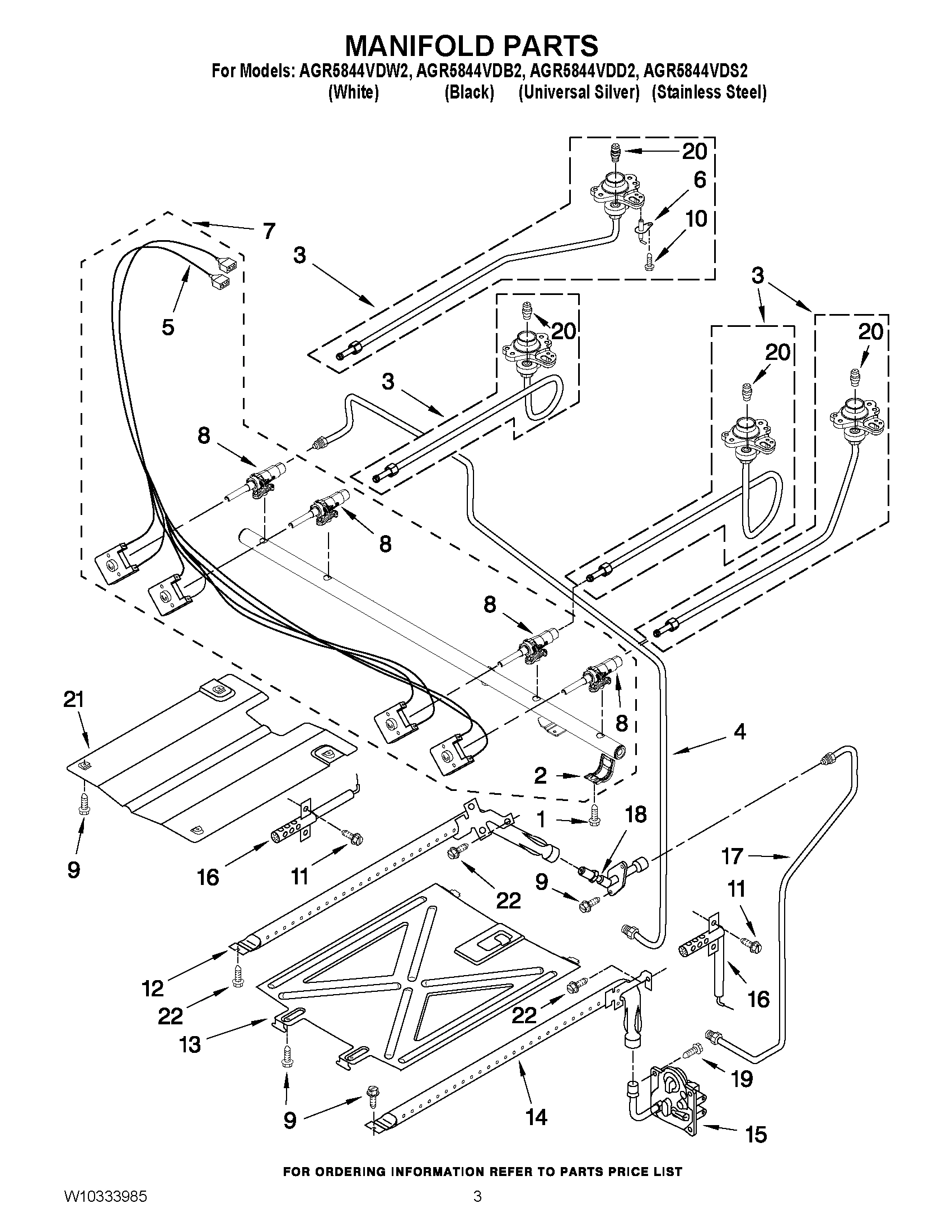

03 - MANIFOLD PARTS

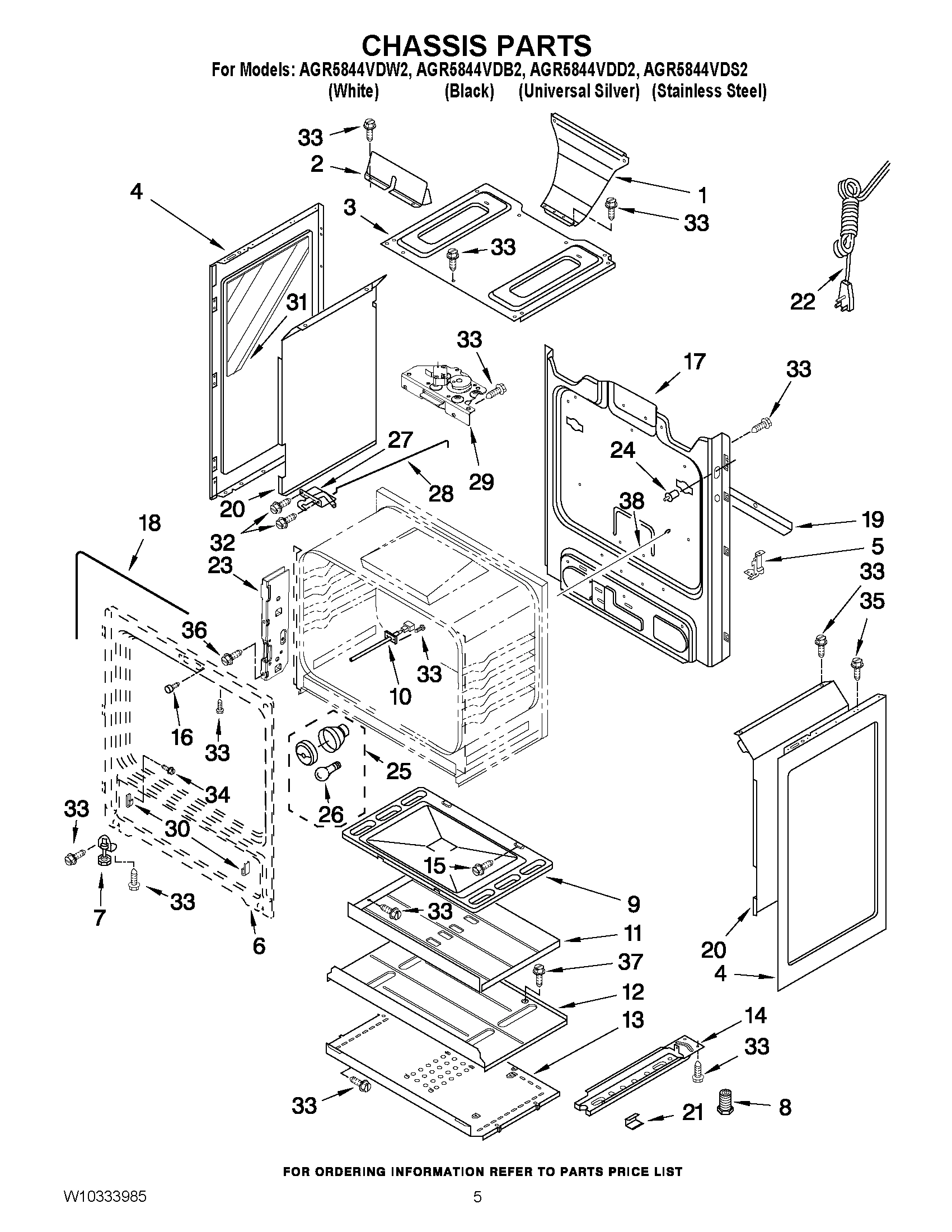

04 - CHASSIS PARTS

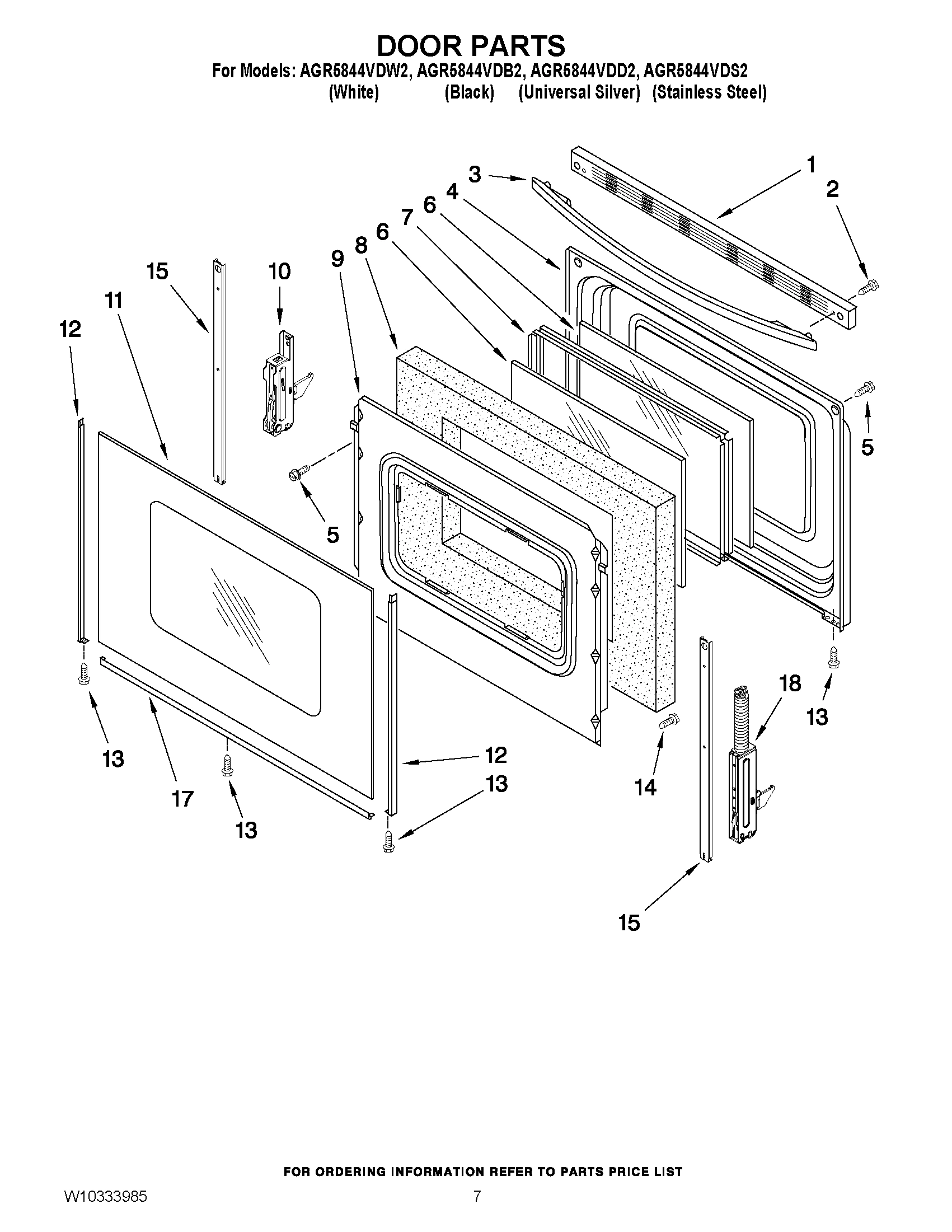

05 - DOOR PARTS

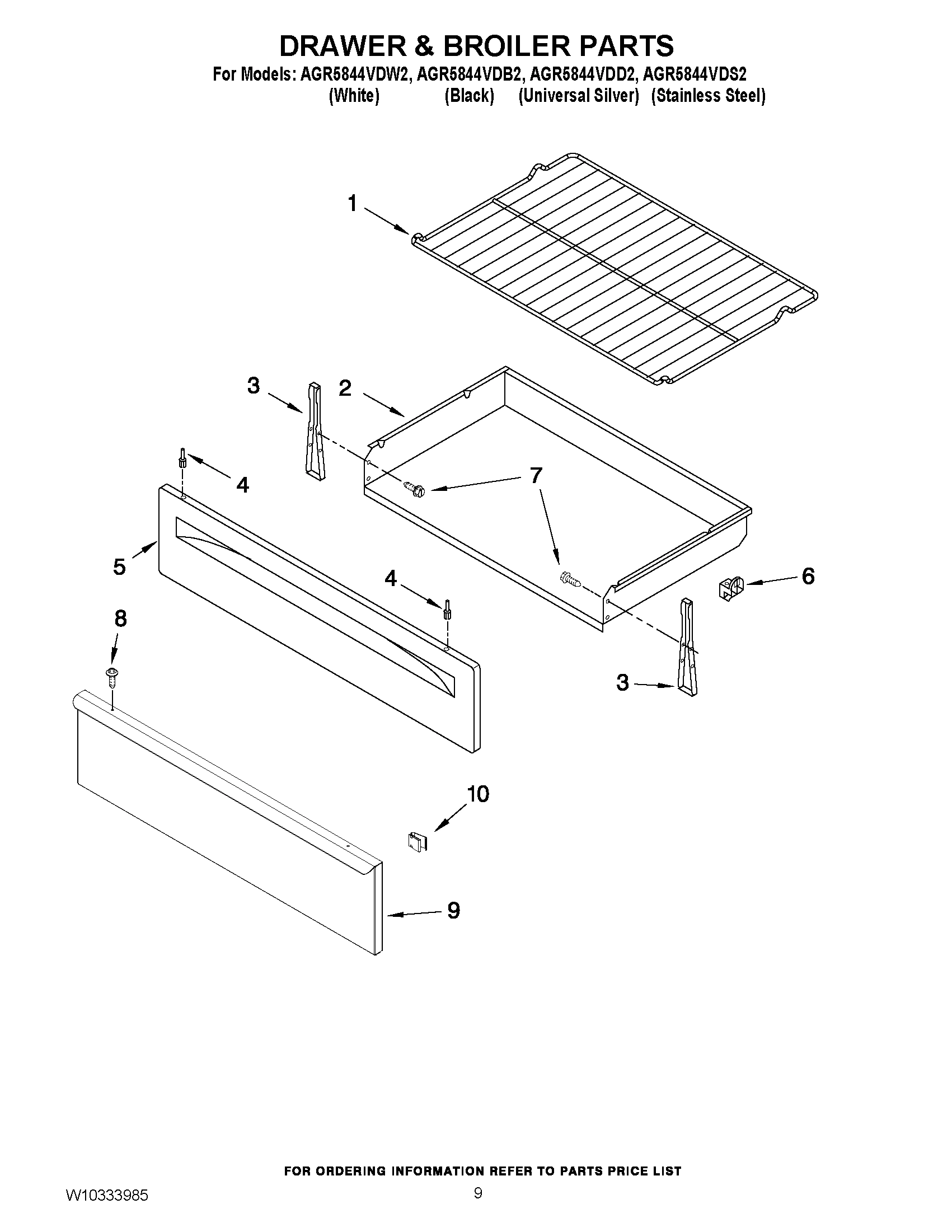

06 - DRAWER & BROILER PARTS
07 - OPTIONAL PARTS
Common parts from model Maytag AGR5844VDD2 GAS RANGE
1
Anti-Tip Template (English/Spanish) MAY 9757142 Contact Us For Availability
1
Anti-Tip Template (English/French) MAY 9757143 Contact Us For Availability
1
Safer Cooking Tips MAY 9762761 Contact Us For Availability
1
MAY W10196156 MAY W10196156 Contact Us For Availability
1
MAY W10196161 MAY W10196161 Contact Us For Availability
1
MAY W10198635 MAY W10198635 Contact Us For Availability
1
Endcap (White Hand Left) MAY W10184433 Contact Us For Availability
1
MAY W10184434 MAY W10184434 Contact Us For Availability
1
ENDCAP (BLACK (LEFT HAND)) MAY W10184437 Contact Us For Availability
1
ENDCAP (BLACK (RIGHT HAND)) MAY W10184438 Contact Us For Availability
1
MAY W10295997 MAY W10295997 Contact Us For Availability
1
Flue Box MAY W10153186 Contact Us For Availability
1
TRIM, TOP (WHITE) MAY W10310920 Contact Us For Availability
1
MAY W10310922 MAY W10310922 Contact Us For Availability
1
MAY W10268578 MAY W10268578 Contact Us For Availability
2
CAP, BURNER (GREY) MAY W10165809 Contact Us For Availability
2
CAP, BURNER (BLACK) MAY W10170554 Contact Us For Availability
2
Shield-Heat, Lwr MAY 8053505 Contact Us For Availability
2
BRACKET, VALVE MAY W10295996 Contact Us For Availability
2
MAY 8272747 MAY 8272747 Contact Us For Availability
2
MAY W10200660 MAY W10200660 Contact Us For Availability
2
MAY W10296838 MAY W10296838 Contact Us For Availability
3
BURNER HEAD (6K, RR) MAY W10406243 Contact Us For Availability
3
BURNER HEAD (9.5K, RF & LR) MAY W10406283 Contact Us For Availability
3
BURNER HEAD (12K, LF) MAY W10406797 Contact Us For Availability
3
MAY W10170022 MAY W10170022 Contact Us For Availability
3
MAY W10170023 MAY W10170023 Contact Us For Availability
3
MAY W10170024 MAY W10170024 Contact Us For Availability
3
Panel, Console (Stainless Model) MAY W10170025 Contact Us For Availability
3
TUBING, BURNER (W/ORIFICE (RIGHT REAR)) MAY W10175217 Contact Us For Availability
3
MAY W10175219 MAY W10175219 Contact Us For Availability
3
TUBING, BURNER (W/ORIFICE (LEFT REAR)) MAY W10175220 Contact Us For Availability
3
Tubing, Burner W/Orifice (Right Front) MAY W10201350 Contact Us For Availability
3
BURNER, BOX MAY 8273036 Contact Us For Availability
3
MAY W10144888 MAY W10144888 Contact Us For Availability
3
MAY W10144889 MAY W10144889 Contact Us For Availability
3
Handle, Door (Stainless Model) MAY W10144890 Contact Us For Availability
3
BRACKET, DRAWER (SS ONLY) MAY 3196817 Contact Us For Availability
3
BRACKET, DRAWER (BLACK/WHITE) MAY W10174397 Contact Us For Availability
4
MAY 8272251 MAY 8272251 Contact Us For Availability
4
MAY 8272253 MAY 8272253 Contact Us For Availability
4
MAY W10331686 MAY W10331686 Contact Us For Availability
4
TUBING (MANIFOLD TO REGULATOR) MAY W10314249 Contact Us For Availability
4
PANEL, SIDE (WHITE-TEXTURED) MAY W10322769 Contact Us For Availability
4
MAY W10322770 MAY W10322770 Contact Us For Availability
4
MAY 9761344 MAY 9761344 Contact Us For Availability
4
MAY 3196813 MAY 3196813 Contact Us For Availability
4
MAY 3196814 MAY 3196814 Contact Us For Availability
5
MAY 8523854 MAY 8523854 Contact Us For Availability
5
MAY 8523855 MAY 8523855 Contact Us For Availability
5
BRKT-MNTG,CONSOLE MAY W10211996 Contact Us For Availability
5
HARNESS, IGNITER (W/SWITCHES) MAY W10295998 Contact Us For Availability
5
Brkt, Manifold Mtg MAY 8523249 Contact Us For Availability
5
MAY W10031790 MAY W10031790 Contact Us For Availability
5
MAY 8053336 MAY 8053336 Contact Us For Availability
5
MAY 9761693 MAY 9761693 Contact Us For Availability
5
MAY W10022100 MAY W10022100 Contact Us For Availability
6
MAY W10163287 MAY W10163287 Contact Us For Availability
6
MAY W10163288 MAY W10163288 Contact Us For Availability
6
Bracket, Support MAY 8523412 Contact Us For Availability
6
MAY W10216419 MAY W10216419 Contact Us For Availability
6
FRAME, FRONT (NOT SERVICED) MAY N/P Contact Us For Availability
6
MAY 9758162 MAY 9758162 Contact Us For Availability
6
Spacer, Glide MAY 8053334 Contact Us For Availability
7
GRATE, BURNER (BLACK) MAY 8053580 Contact Us For Availability
7
GRATE, BURNER (GREY) MAY W10166294 Contact Us For Availability
7
MAY W10198745 MAY W10198745 Contact Us For Availability
7
PIPE, MANIFOLD MAY W10314242 Contact Us For Availability
7
FOOT, FRONT MAY W10341186 Contact Us For Availability
7
WINDOW, FRAME MAY W10316950 Contact Us For Availability
7
MAY 3196165 MAY 3196165 Contact Us For Availability
8
MAY 3400701 MAY 3400701 Contact Us For Availability
8
MAY W10192841 MAY W10192841 Contact Us For Availability
8
VALVE (RIGHT REAR) MAY W10247744 Contact Us For Availability
8
VALVE (LF - RF - LR) MAY W10279614 Contact Us For Availability
8
FOOT, REAR MAY W10058460 Contact Us For Availability
8
INSULATION, DOOR MAY W10278991 Contact Us For Availability
8
SCREW (SS ONLY) MAY 7101P634-60 Contact Us For Availability
9
MAY 3196557 MAY 3196557 Contact Us For Availability
9
MAY W10184370 MAY W10184370 Contact Us For Availability
9
Screw MAY 3196176 Contact Us For Availability
9
MAY 3195097 MAY 3195097 Contact Us For Availability
9
Retainer, Insul. MAY 9761357 Contact Us For Availability
9
PANEL (SS ONLY) MAY W10244872 Contact Us For Availability
10
MAY 3196169 MAY 3196169 Contact Us For Availability
10
MAY 8273062 MAY 8273062 Contact Us For Availability
10
MAY W10181986 MAY W10181986 Contact Us For Availability
10
HINGE, PASSIVE MAY W10299227 Contact Us For Availability
10
CLIP STORAGE DRAWER MAY W10292395 Contact Us For Availability
11
MAY W10271731 MAY W10271731 Contact Us For Availability
11
MAY W10271732 MAY W10271732 Contact Us For Availability
11
MAY 3196385 MAY 3196385 Contact Us For Availability
11
Baffle, Burner MAY 8053967 Contact Us For Availability
11
MAY W10118454 MAY W10118454 Contact Us For Availability
11
MAY W10118455 MAY W10118455 Contact Us For Availability
12
MAY 8054078 MAY 8054078 Contact Us For Availability
12
MAY 8053969 MAY 8053969 Contact Us For Availability
12
MAY 8523165 MAY 8523165 Contact Us For Availability
12
Trim, Door Side (White Right Hand) MAY 8523166 Contact Us For Availability
12
MAY 8523171 MAY 8523171 Contact Us For Availability
12
Trim, Door Side (White Left Hand) MAY 8523172 Contact Us For Availability
13
Brkt-Mntg, DSI MAY W10137524 Contact Us For Availability
13
MAY W10184491 MAY W10184491 Contact Us For Availability
13
MAY 8053968 MAY 8053968 Contact Us For Availability
13
MAY 3196160 MAY 3196160 Contact Us For Availability
14
Bracket, EOC Mount MAY W10138683 Contact Us For Availability
14
MAY 9758078 MAY 9758078 Contact Us For Availability
14
RAIL, BASE MAY 9760314 Contact Us For Availability
15
Valve/Regulator MAY 9761959 Contact Us For Availability
15
MAY W10379120 MAY W10379120 Contact Us For Availability
15
STRAP, DOOR MAY W10113759 Contact Us For Availability
16
Igniter (Broil) MAY 8054129 Contact Us For Availability
16
Igniter (Bake) MAY 9758079 Contact Us For Availability
16
Spacer, Door MAY 9758701 Contact Us For Availability
17
MAY 8272222 MAY 8272222 Contact Us For Availability
17
MAY W10222733 MAY W10222733 Contact Us For Availability
17
MAY 8523175 MAY 8523175 Contact Us For Availability
17
MAY 8523177 MAY 8523177 Contact Us For Availability
17
MAY W10067550 MAY W10067550 Contact Us For Availability
18
MAY 3186489 MAY 3186489 Contact Us For Availability
18
Seal, Oven MAY 8522416 Contact Us For Availability
18
HINGE, ACTIVE MAY W10299224 Contact Us For Availability
19
MAY 3400016 MAY 3400016 Contact Us For Availability
19
MAY 8053971 MAY 8053971 Contact Us For Availability
20
Orifice, Burner (Right Rear) MAY W10170506 Contact Us For Availability
20
Orifice, Burner (Left & Right Front) MAY W10170508 Contact Us For Availability
20
Orifice, Burner (Left Rear) MAY W10178934 Contact Us For Availability
20
RETAINER, INSUL.(RIGHT HAND) MAY 9761448 Contact Us For Availability
20
RETAINER, INSUL.(LEFT HAND) MAY 9761449 Contact Us For Availability
21
MAY W10137062 MAY W10137062 Contact Us For Availability
21
MAY W10137382 MAY W10137382 Contact Us For Availability
22
MAY 3196265 MAY 3196265 Contact Us For Availability
22
Cord, Power MAY 9757891 Contact Us For Availability
23
DOOR, HINGE RECIEVER HINGE MAY W10289077 Contact Us For Availability
24
MAY 9757262 MAY 9757262 Contact Us For Availability
25
MAY 3196701 MAY 3196701 Contact Us For Availability
26
MAY 311255 MAY 311255 Contact Us For Availability
27
Latch, Door MAY 9761013 Contact Us For Availability
28
Rod, Latch MAY W10078370 Contact Us For Availability
29
Latch-Mtr MAY W10107820 Contact Us For Availability
30
Glide, Drawer MAY W10114344 Contact Us For Availability
31
MAY W10182346 MAY W10182346 Contact Us For Availability
32
MAY 3196560 MAY 3196560 Contact Us For Availability
34
MAY 3196152 MAY 3196152 Contact Us For Availability
35
Screw (White) MAY 3196166 Contact Us For Availability
35
Screw (Black) MAY 3196168 Contact Us For Availability
36
MAY W10031780 MAY W10031780 Contact Us For Availability
37
MAY 3196178 MAY 3196178 Contact Us For Availability
38
Rod, Door Switch Rear Mount MAY 9757239 Contact Us For Availability
NI
SPUDS, LP GAS (KIT OF 4) MAY W10170531 Contact Us For Availability
NI
MAY 8524099 MAY 8524099 Contact Us For Availability
NI
MAY W10180437 MAY W10180437 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. PRIMER (WHITE MAY 206922 Contact Us For Availability
NI
MAY 240132 MAY 240132 Contact Us For Availability
NI
FOIL, ALUMINUM (18`` X 25’) MAY 241430 Contact Us For Availability
NI
REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 MAY 242756 Contact Us For Availability
NI
MAY 261514 MAY 261514 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (SUPERIOR B MAY 285006 Contact Us For Availability
NI
Screw-Grnd Harns MAY 3196174 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAN - BROILER MAY 4396923 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE PORCELAIN (2 MAY 511873 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
MAY W10017440 MAY W10017440 Contact Us For Availability
NI
Harness, Wire (Ground) MAY W10045060 Contact Us For Availability
NI
Harness, Main (EOC Pyro) MAY W10182840 Contact Us For Availability
NI
HARNESS, WIRE (BAKE/BROIL) MAY W10322359 Contact Us For Availability
NI
HARNESS, WIRE (COOKTOP) MAY W10322362 Contact Us For Availability
× ![]()
