Model Maytag AGR4433XDW0 GAS RANGE – Common Parts & Diagrams
01 - COOKTOP PARTS

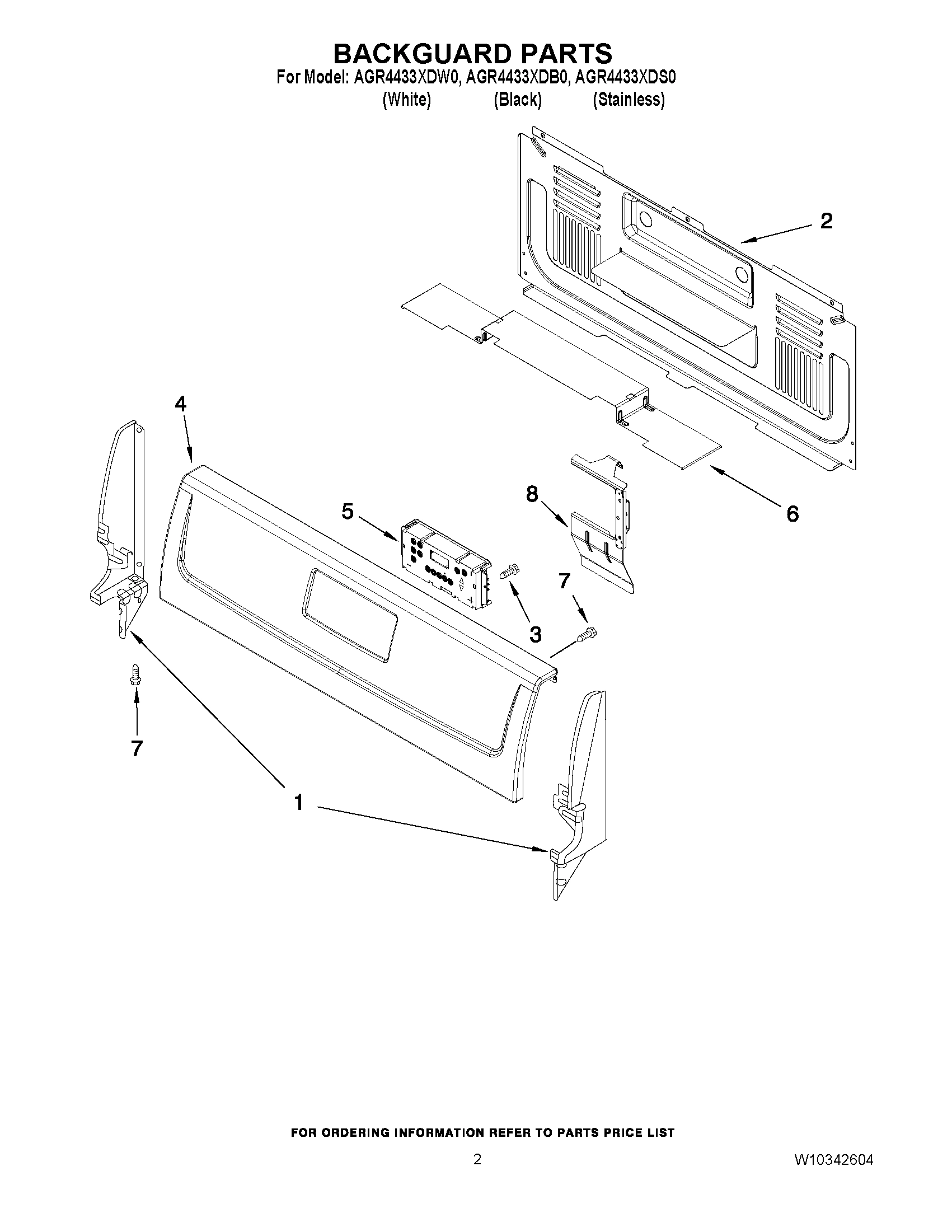

02 - BACKGUARD PARTS

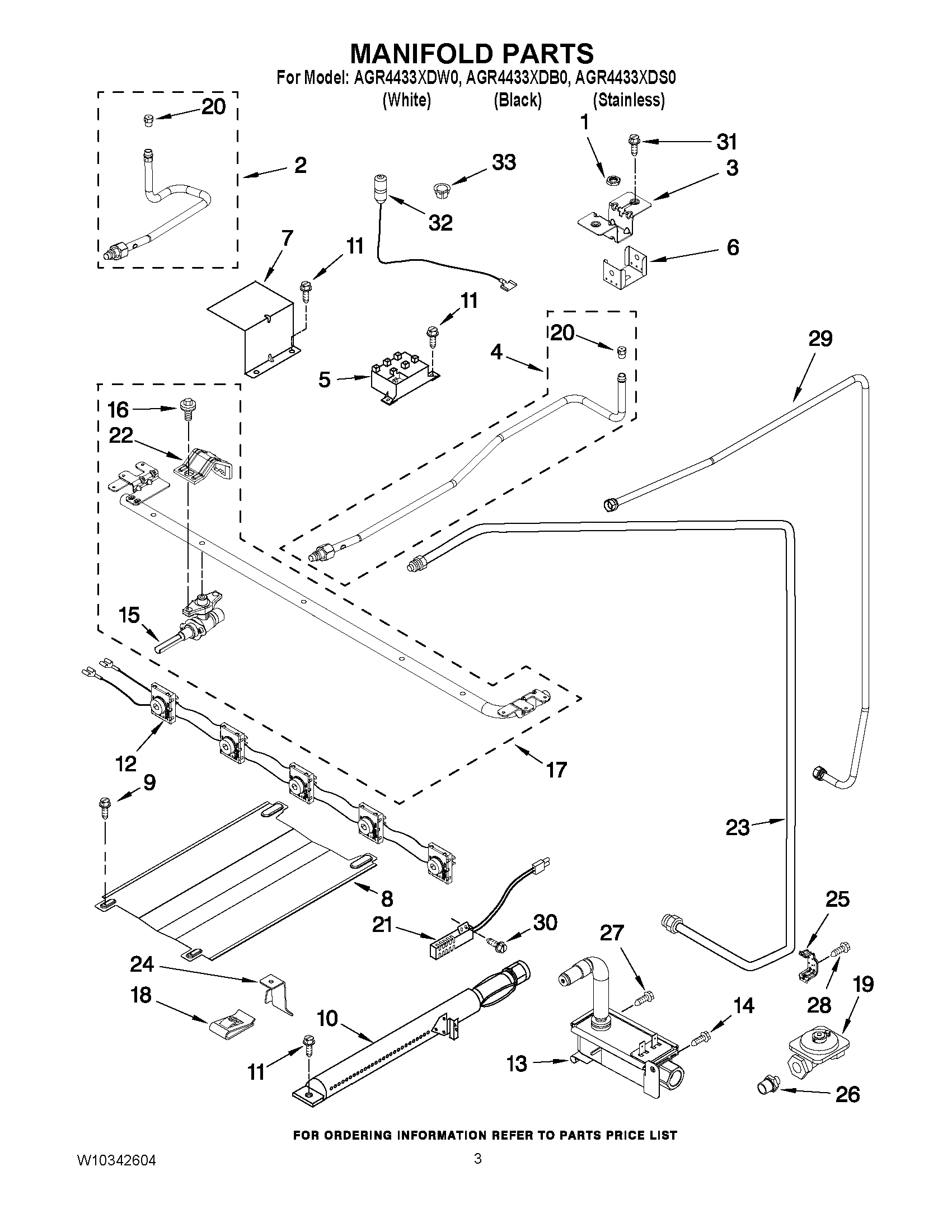

03 - MANIFOLD PARTS

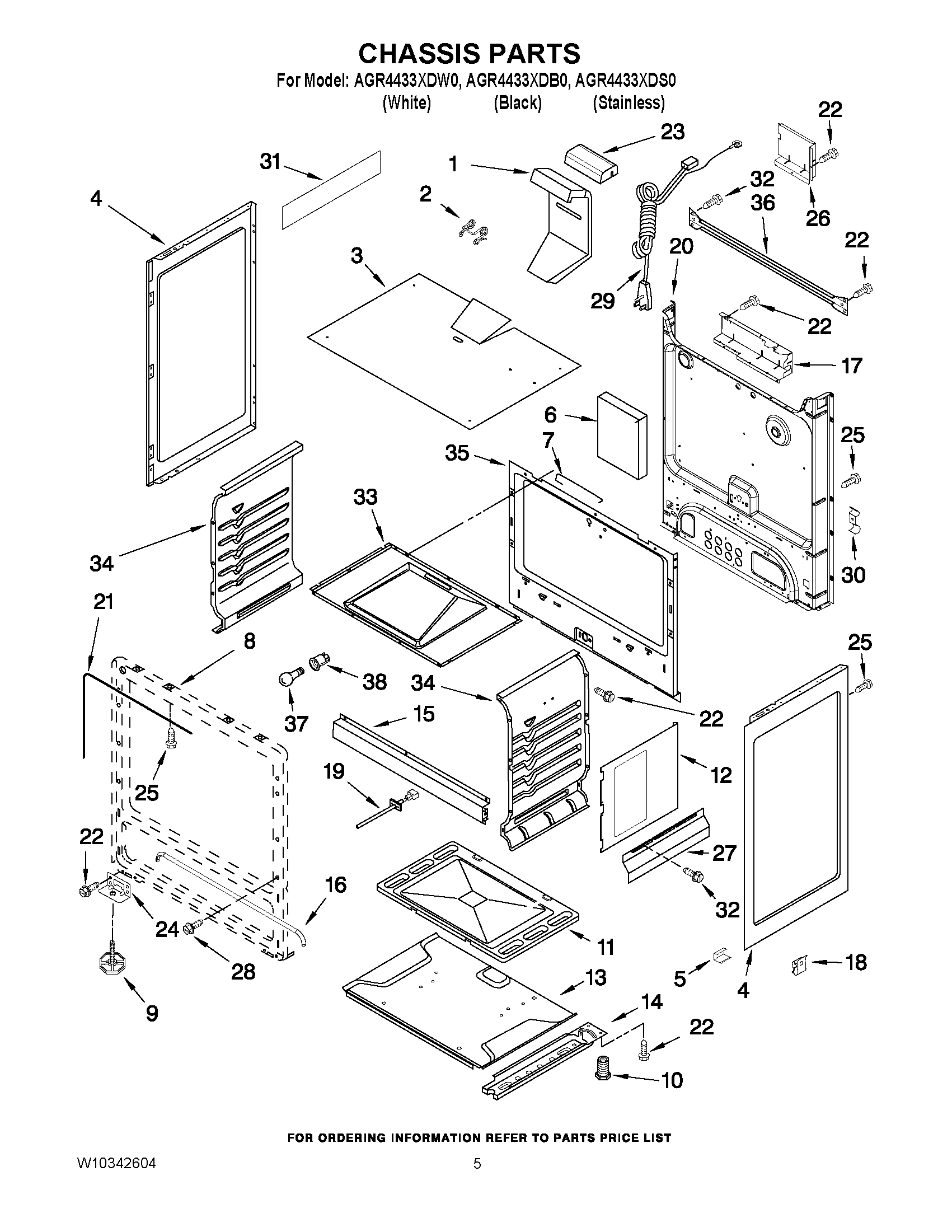

04 - CHASSIS PARTS

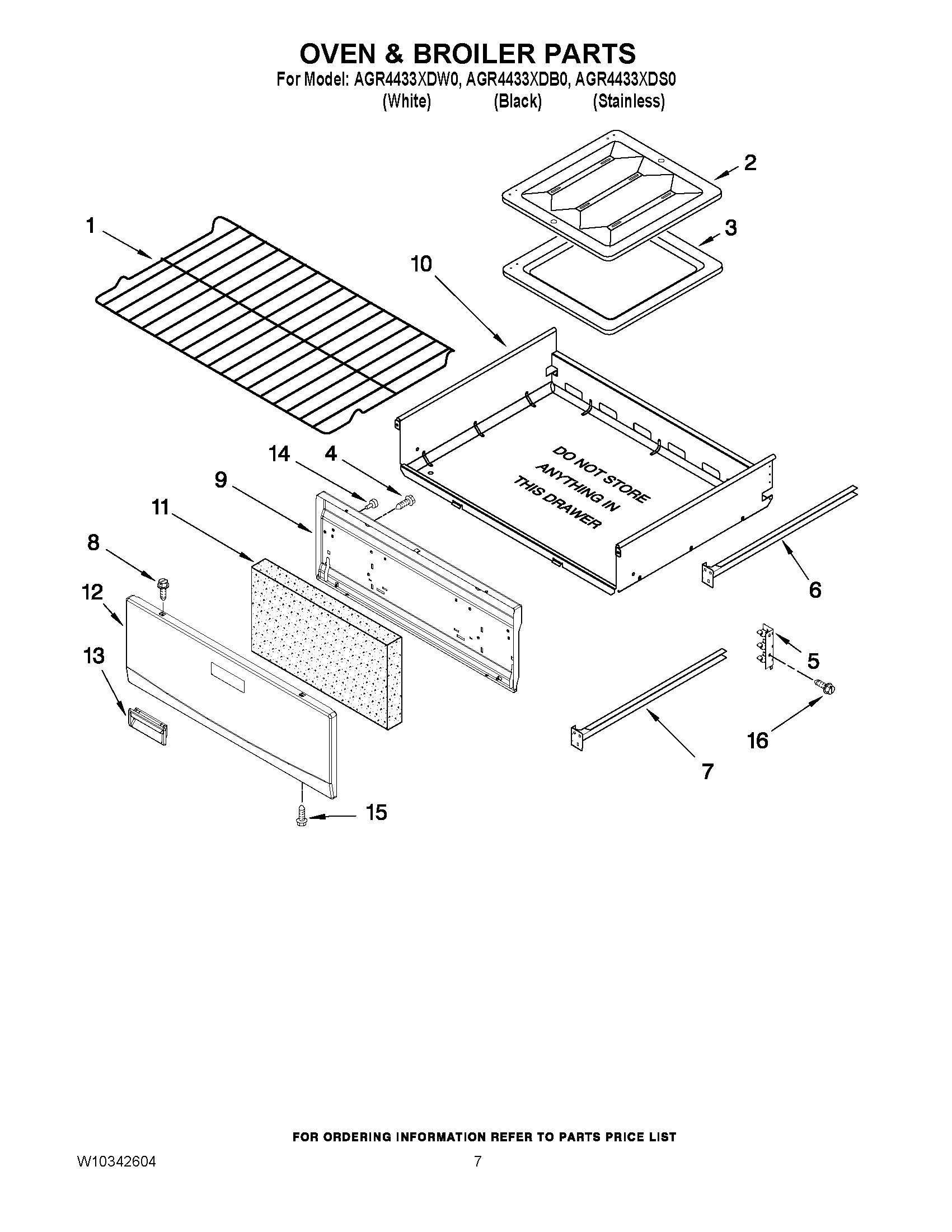

05 - OVEN & BROILER PARTS

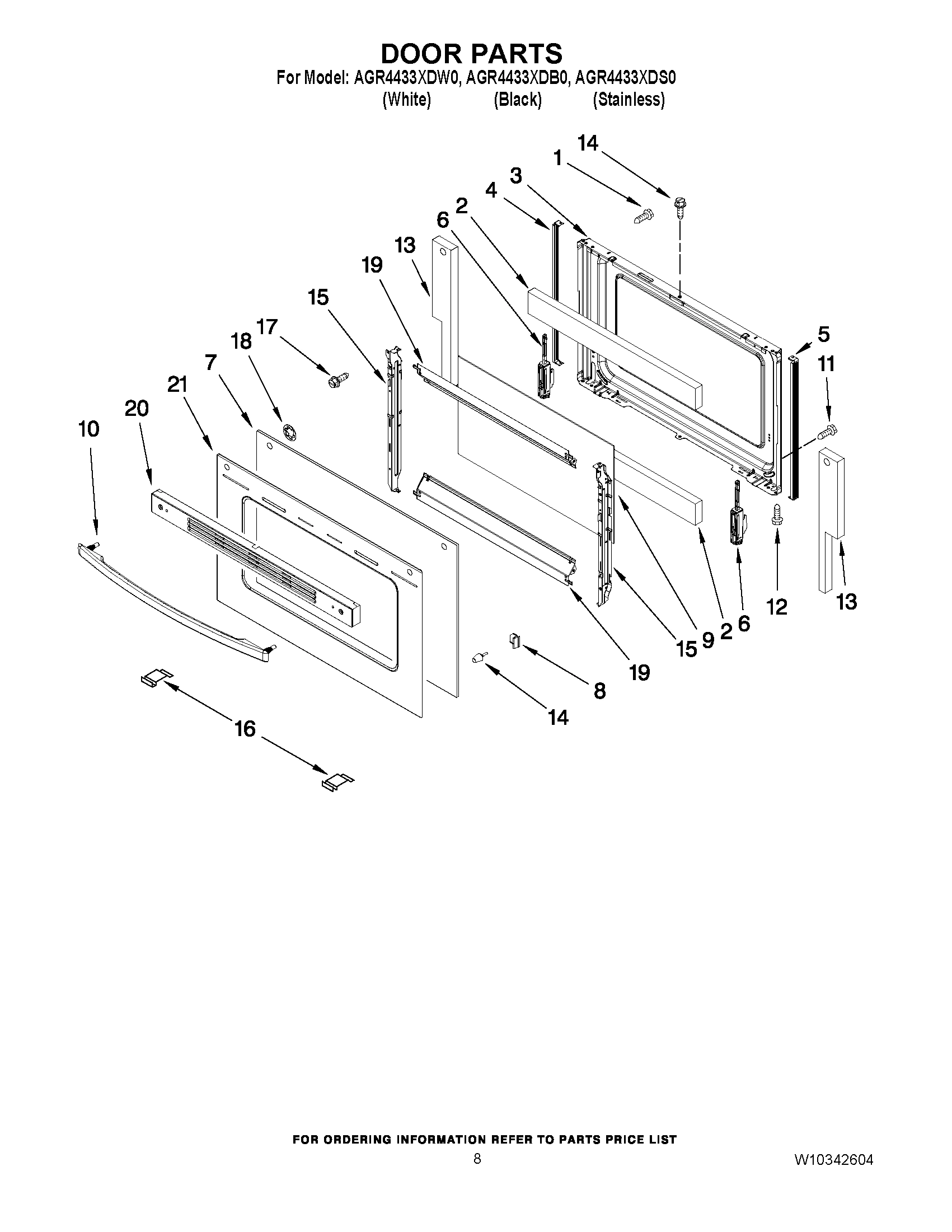

06 - DOOR PARTS
07 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag AGR4433XDW0 GAS RANGE
1
MAY 98007130 MAY 98007130 Contact Us For Availability
1
MAY W10138585 MAY W10138585 Contact Us For Availability
1
MAY W10142327 MAY W10142327 Contact Us For Availability
1
Instruct, Install MAY W10153329 Contact Us For Availability
1
MAY W10296196 MAY W10296196 Contact Us For Availability
1
ENDCAP (BLACK LEFT) MAY 98004632 Contact Us For Availability
1
ENDCAP (BLACK RIGHT) MAY 98004633 Contact Us For Availability
1
Endcap (White Left) MAY 98005336 Contact Us For Availability
1
Endcap (White Right) MAY 98005337 Contact Us For Availability
1
NUT MAY 98017323 Contact Us For Availability
1
MAY 98003799 MAY 98003799 Contact Us For Availability
1
RACK, OVEN MAY 98014136 Contact Us For Availability
1
MAY 8533843 MAY 8533843 Contact Us For Availability
2
MAY 98017619B MAY 98017619B Contact Us For Availability
2
Cooktop (White) MAY 98017619W Contact Us For Availability
2
Rear, Backguard MAY 98006083 Contact Us For Availability
2
VENTURI, FRONT (RF) MAY 98017582 Contact Us For Availability
2
VENTURI, FRONT (LF) MAY 98017583 Contact Us For Availability
2
Clip, Flue MAY 98013690 Contact Us For Availability
2
MAY 98003480 MAY 98003480 Contact Us For Availability
2
INSULATION MAY W10111139 Contact Us For Availability
3
MAY W10297372 MAY W10297372 Contact Us For Availability
3
MAY W10297384 MAY W10297384 Contact Us For Availability
3
BRACKET, VENTURI MAY 98017741 Contact Us For Availability
3
MAY W10306785 MAY W10306785 Contact Us For Availability
3
MAY 98016005 MAY 98016005 Contact Us For Availability
3
LINER-DOOR MAY 98015563 Contact Us For Availability
4
MAY W10243959 MAY W10243959 Contact Us For Availability
4
MAY W10243961 MAY W10243961 Contact Us For Availability
4
MAY W10296474 MAY W10296474 Contact Us For Availability
4
MAY W10296475 MAY W10296475 Contact Us For Availability
4
MAY W10296476 MAY W10296476 Contact Us For Availability
4
VENTURI, REAR MAY 98017359 Contact Us For Availability
4
PANEL, SIDE (WHITE) MAY 98010042 Contact Us For Availability
4
PANEL, SIDE (BLACK) MAY 98010043 Contact Us For Availability
4
TRIM, SIDE LH (BLACK) MAY 98016787B Contact Us For Availability
4
TRIM, SIDE LH (WHITE) MAY 98016787W Contact Us For Availability
5
MAY 98007225 MAY 98007225 Contact Us For Availability
5
MAY W10178428 MAY W10178428 Contact Us For Availability
5
MAY W10178429 MAY W10178429 Contact Us For Availability
5
MAY 98003960 MAY 98003960 Contact Us For Availability
5
Clip, Oven Bottom MAY 98005502 Contact Us For Availability
5
SUPPORT, TRAY (LEFT) MAY 98016664 Contact Us For Availability
5
SUPPORT, TRAY (RIGHT) MAY 98016666 Contact Us For Availability
5
TRIM, SIDE RH (BLACK) MAY 98016795B Contact Us For Availability
5
TRIM, SIDE RH (WHITE) MAY 98016795W Contact Us For Availability
6
GRATE, BURNER (BLACK) MAY W10180089 Contact Us For Availability
6
GRATE, BURNER (GRAY) MAY W10219702 Contact Us For Availability
6
MAY W10120794 MAY W10120794 Contact Us For Availability
6
MAY W10306464 MAY W10306464 Contact Us For Availability
6
MAY 98006710 MAY 98006710 Contact Us For Availability
6
GUIDE, FIXED (RIGHT) MAY W10206639 Contact Us For Availability
6
GUIDE, FIXED (LEFT) MAY W10206640 Contact Us For Availability
6
HINGE, DOOR MAY 98017875 Contact Us For Availability
7
MAY 98004722 MAY 98004722 Contact Us For Availability
7
Screw MAY 98015526 Contact Us For Availability
7
MAY 98007192 MAY 98007192 Contact Us For Availability
7
MAY 98006739 MAY 98006739 Contact Us For Availability
7
GUIDE, MOBILE (RIGHT) MAY W10206641 Contact Us For Availability
7
GUIDE, MOBILE (LEFT) MAY W10206642 Contact Us For Availability
7
MAY W10217617 MAY W10217617 Contact Us For Availability
7
MAY W10296568 MAY W10296568 Contact Us For Availability
8
MAY 98014544 MAY 98014544 Contact Us For Availability
8
Bracket, Timer (Right) MAY 98018143 Contact Us For Availability
8
Bracket, Timer (Left) MAY 98018144 Contact Us For Availability
8
Spreader, Flame MAY 98015099 Contact Us For Availability
8
MAY W10166434 MAY W10166434 Contact Us For Availability
8
Screw (White) MAY 98006727 Contact Us For Availability
8
CLIP, GLASS (WHITE) MAY 98004952 Contact Us For Availability
8
CLIP, GLASS (BLACK) MAY 98004953 Contact Us For Availability
9
MAY 98013389 MAY 98013389 Contact Us For Availability
9
FOOT, FRONT MAY W10153610 Contact Us For Availability
9
MAY W10162118 MAY W10162118 Contact Us For Availability
9
MAY W10109950 MAY W10109950 Contact Us For Availability
10
SCREW MAY 98005000 Contact Us For Availability
10
MAY 98012138 MAY 98012138 Contact Us For Availability
10
FOOT, REAR MAY W10058460 Contact Us For Availability
10
Storage, Drawer MAY 98017784 Contact Us For Availability
10
MAY 98004942 MAY 98004942 Contact Us For Availability
10
MAY 98004943 MAY 98004943 Contact Us For Availability
11
Cap, Burner (Black) MAY 98017461 Contact Us For Availability
11
CAP, BURNER MAY 98017465 Contact Us For Availability
11
MAY 98004449 MAY 98004449 Contact Us For Availability
11
MAY W10137230 MAY W10137230 Contact Us For Availability
11
MAY 98008699 MAY 98008699 Contact Us For Availability
12
Screw MAY 8534079 Contact Us For Availability
12
MAY 98014545 MAY 98014545 Contact Us For Availability
12
BAFFLE, SIDE MAY W10121634 Contact Us For Availability
12
MAY W10174741 MAY W10174741 Contact Us For Availability
12
MAY W10174742 MAY W10174742 Contact Us For Availability
12
MAY W10175152 MAY W10175152 Contact Us For Availability
12
MAY 98004993 MAY 98004993 Contact Us For Availability
13
BURNER, TOP MAY W10243396 Contact Us For Availability
13
MAY 98014893 MAY 98014893 Contact Us For Availability
13
MAY 98003847 MAY 98003847 Contact Us For Availability
13
Handle, Brlr Door (White) MAY 98008486 Contact Us For Availability
13
MAY 98015643 MAY 98015643 Contact Us For Availability
13
MAY W10110943 MAY W10110943 Contact Us For Availability
13
MAY W10110944 MAY W10110944 Contact Us For Availability
14
MAY 98003830 MAY 98003830 Contact Us For Availability
14
BUMPER, DOOR MAY 98004052 Contact Us For Availability
14
MAY 98004227 MAY 98004227 Contact Us For Availability
15
VALVE, BURNER (LF, LR, RF, RR) MAY W10141709 Contact Us For Availability
15
MAY 98012175 MAY 98012175 Contact Us For Availability
15
MAY 98004564 MAY 98004564 Contact Us For Availability
15
MAY 98004629 MAY 98004629 Contact Us For Availability
16
MAY 98017517 MAY 98017517 Contact Us For Availability
16
Gasket, Broil Door MAY 98017162 Contact Us For Availability
16
SCREW MAY 98008545 Contact Us For Availability
16
SUPPORT, GLASS (WHITE) MAY 98010185 Contact Us For Availability
16
SUPPORT, GLASS (BLACK) MAY 98010187 Contact Us For Availability
17
MAY 98004219 MAY 98004219 Contact Us For Availability
17
MAY W10145011 MAY W10145011 Contact Us For Availability
17
MAY 98014105 MAY 98014105 Contact Us For Availability
18
U-Nut MAY 98009179 Contact Us For Availability
18
MAY 98004650 MAY 98004650 Contact Us For Availability
19
MAY 98007411 MAY 98007411 Contact Us For Availability
19
MAY W10181986 MAY W10181986 Contact Us For Availability
19
MAY 98015806 MAY 98015806 Contact Us For Availability
20
Orifice (RF, RR, LR) MAY 98017348 Contact Us For Availability
20
MAY 98017349 MAY 98017349 Contact Us For Availability
20
MAY 98015100 MAY 98015100 Contact Us For Availability
20
BASE, OVEN HANDLE (BLACK) MAY 98017767B Contact Us For Availability
20
BASE, OVEN HANDLE (WHITE) MAY 98017767W Contact Us For Availability
21
IGNITOR, OVEN PILOT) MAY W10140611 Contact Us For Availability
21
MAY W10217472 MAY W10217472 Contact Us For Availability
21
OUTER PANEL, SS ONLY MAY W10307498 Contact Us For Availability
22
Screw MAY 98006633 Contact Us For Availability
22
BRACKET, VALVE MAY 98017516 Contact Us For Availability
23
TUBING (REGULATOR TO OVEN VALVE) MAY 98007428 Contact Us For Availability
23
MAY 98007205 MAY 98007205 Contact Us For Availability
24
MAY 98013314 MAY 98013314 Contact Us For Availability
24
Base, Foot MAY 98007126 Contact Us For Availability
25
MAY 98006632 MAY 98006632 Contact Us For Availability
25
MAY 98007410 MAY 98007410 Contact Us For Availability
26
MAY 98007431 MAY 98007431 Contact Us For Availability
26
Cover, Socket MAY 98014104 Contact Us For Availability
27
MAY 98013634 MAY 98013634 Contact Us For Availability
27
Shield, Lower MAY 98007191 Contact Us For Availability
28
Screw MAY 1180823 Contact Us For Availability
29
Tubing, Inlet MAY 98017171 Contact Us For Availability
29
MAY 98014532 MAY 98014532 Contact Us For Availability
30
MAY 98005659 MAY 98005659 Contact Us For Availability
30
MAY 98005026 MAY 98005026 Contact Us For Availability
31
MAY W10146346 MAY W10146346 Contact Us For Availability
31
FOIL, SIDE MAY 98015346 Contact Us For Availability
32
IGNITOR, TOP (RF, RR, LF) MAY W10209656 Contact Us For Availability
32
IGNITOR, TOP (LEFT REAR) MAY W10209657 Contact Us For Availability
32
Screw MAY 98006634 Contact Us For Availability
33
MAY W10278150 MAY W10278150 Contact Us For Availability
33
MAY 98004447 MAY 98004447 Contact Us For Availability
34
Side, Oven (Left Hand) MAY 98004451 Contact Us For Availability
34
Side, Oven (Right Hand) MAY 98004452 Contact Us For Availability
35
MAY 98013777 MAY 98013777 Contact Us For Availability
36
MAY 98015363 MAY 98015363 Contact Us For Availability
37
MAY 98004498 MAY 98004498 Contact Us For Availability
38
MAY W10114530 MAY W10114530 Contact Us For Availability
NI
LP Orifice Kit (For Use With LP) MAY W10032030 Contact Us For Availability
NI
INSULATION, TOP MAY W10137223 Contact Us For Availability
NI
MAY W10137233 MAY W10137233 Contact Us For Availability
NI
MAY W10183196 MAY W10183196 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. PRIMER (WHITE MAY 206922 Contact Us For Availability
NI
MAY 240132 MAY 240132 Contact Us For Availability
NI
REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 MAY 242756 Contact Us For Availability
NI
MAY 261514 MAY 261514 Contact Us For Availability
NI
REFINISHING MATERIAL (GREASE) MAY 261582 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (SUPERIOR B MAY 285006 Contact Us For Availability
NI
Clip, Wire MAY 3196696 Contact Us For Availability
NI
Cable Tie-Push Mnt MAY 3391018 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
MAY 4392899 MAY 4392899 Contact Us For Availability
NI
MAY 4392900 MAY 4392900 Contact Us For Availability
NI
MAY 4392901 MAY 4392901 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE PORCELAIN (2 MAY 511873 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
REFINISHING MATERIAL (KIT, PORCELAIN REPAIR ( MAY 799832 Contact Us For Availability
NI
MAY 98005894 MAY 98005894 Contact Us For Availability
NI
MAY 98005896 MAY 98005896 Contact Us For Availability
NI
Pin Kit-Dr Removal MAY 98012220 Contact Us For Availability
NI
MAY 98015022 MAY 98015022 Contact Us For Availability
NI
MAY 98017833 MAY 98017833 Contact Us For Availability
NI
MAY W10141515 MAY W10141515 Contact Us For Availability
NI
MAY W10142307 MAY W10142307 Contact Us For Availability
× ![]()
Login and Registration Form
