Model Maytag AGR4433XDS1 GAS RANGE – Common Parts & Diagrams

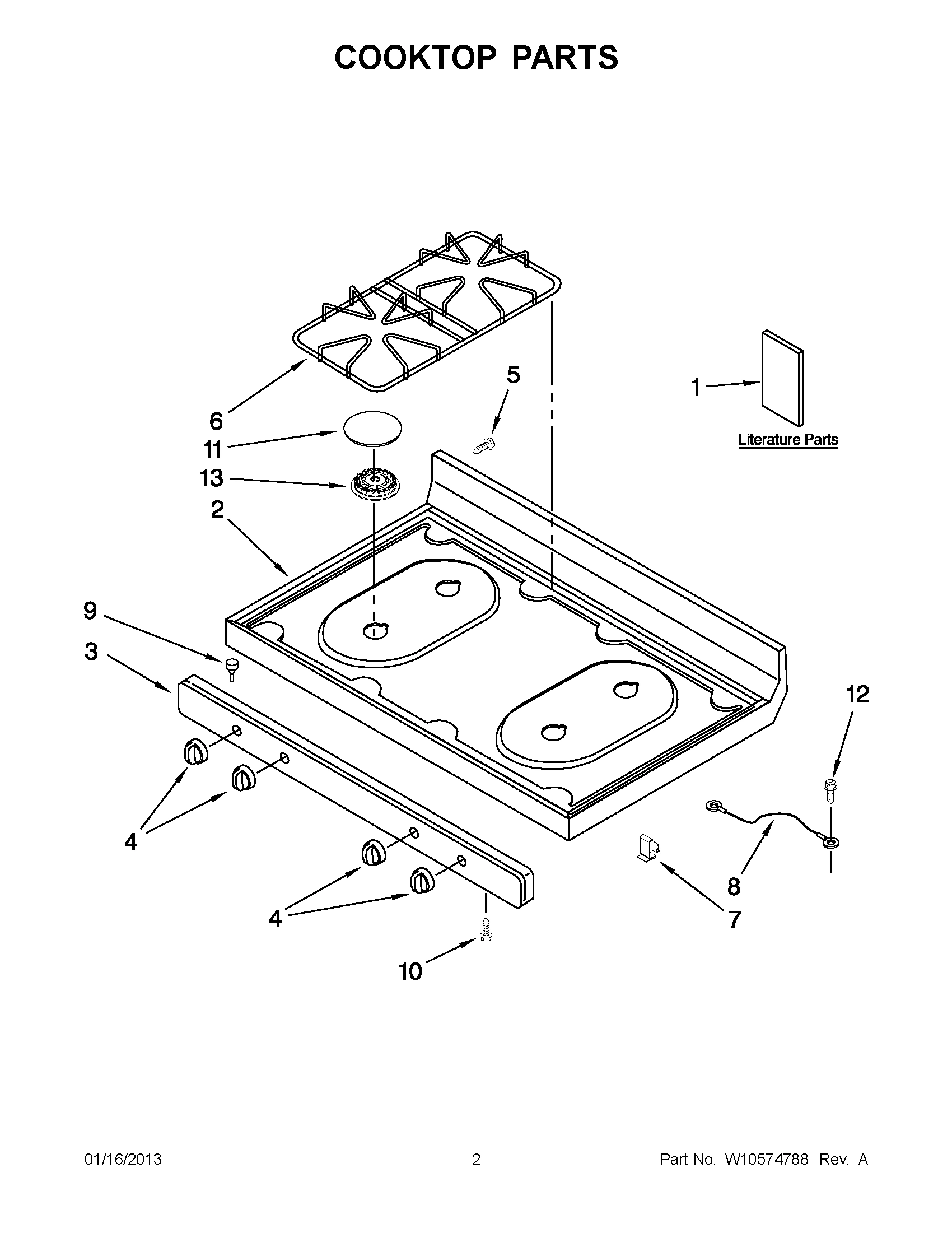

01 - COOKTOP PARTS

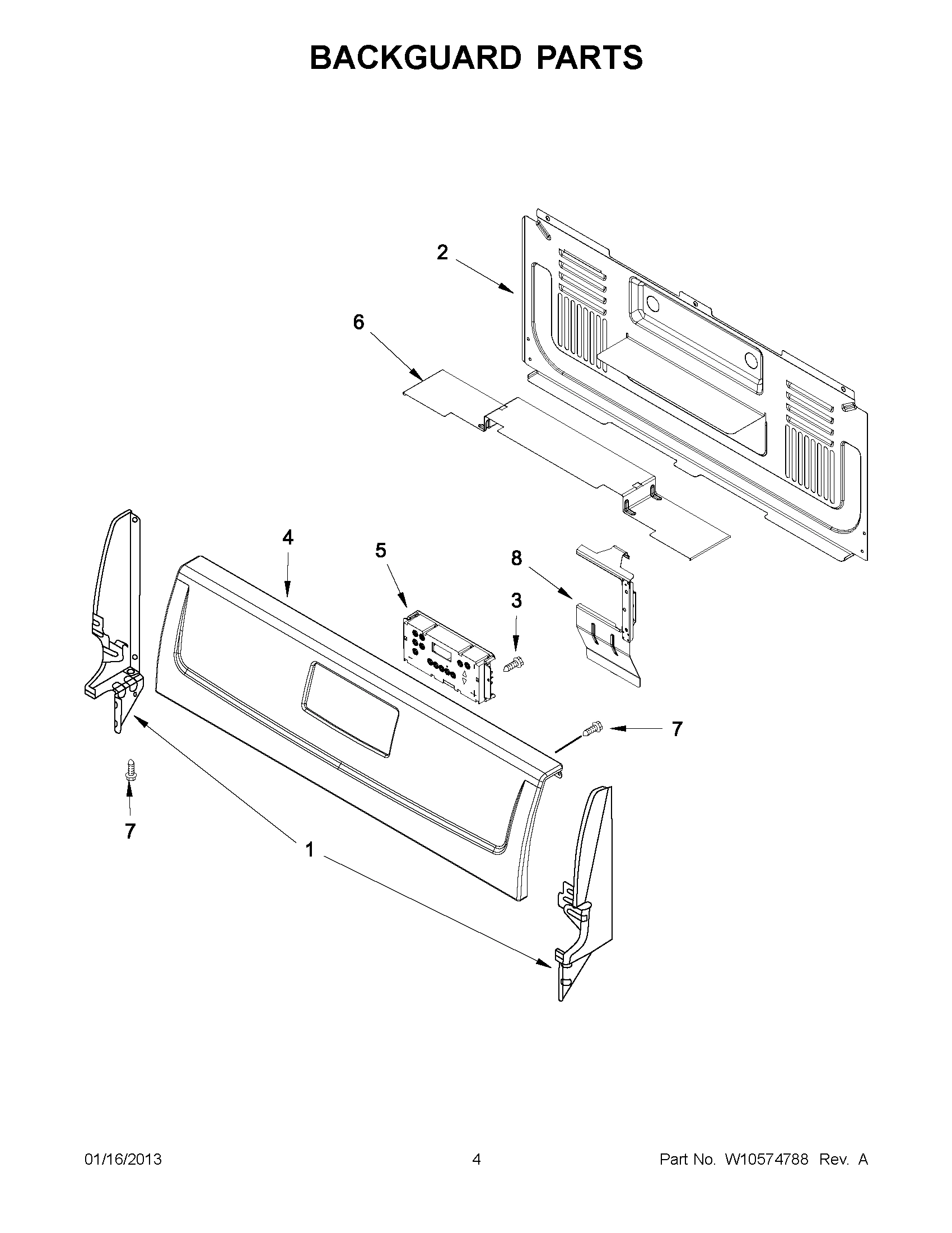

02 - BACKGUARD PARTS

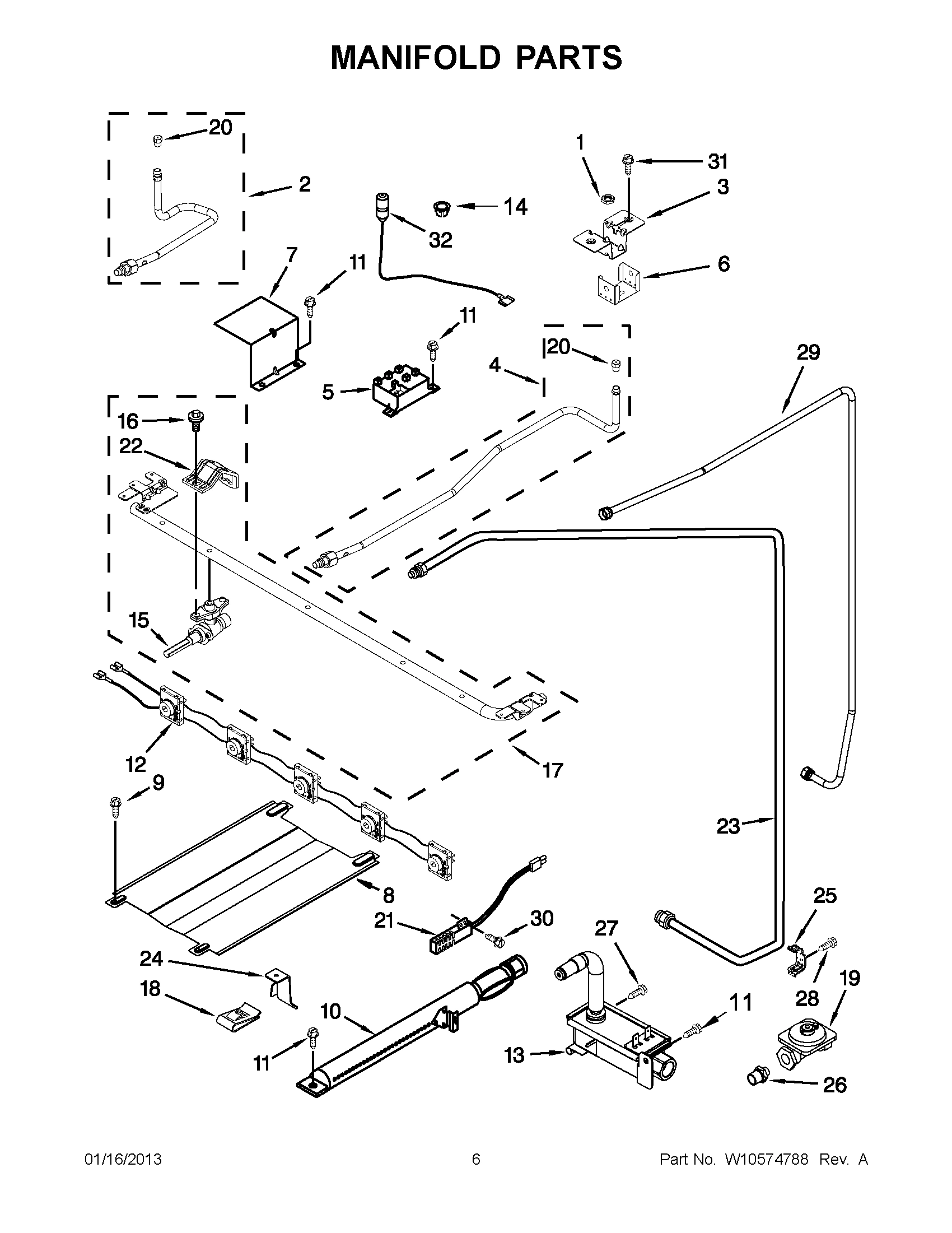

03 - MANIFOLD PARTS

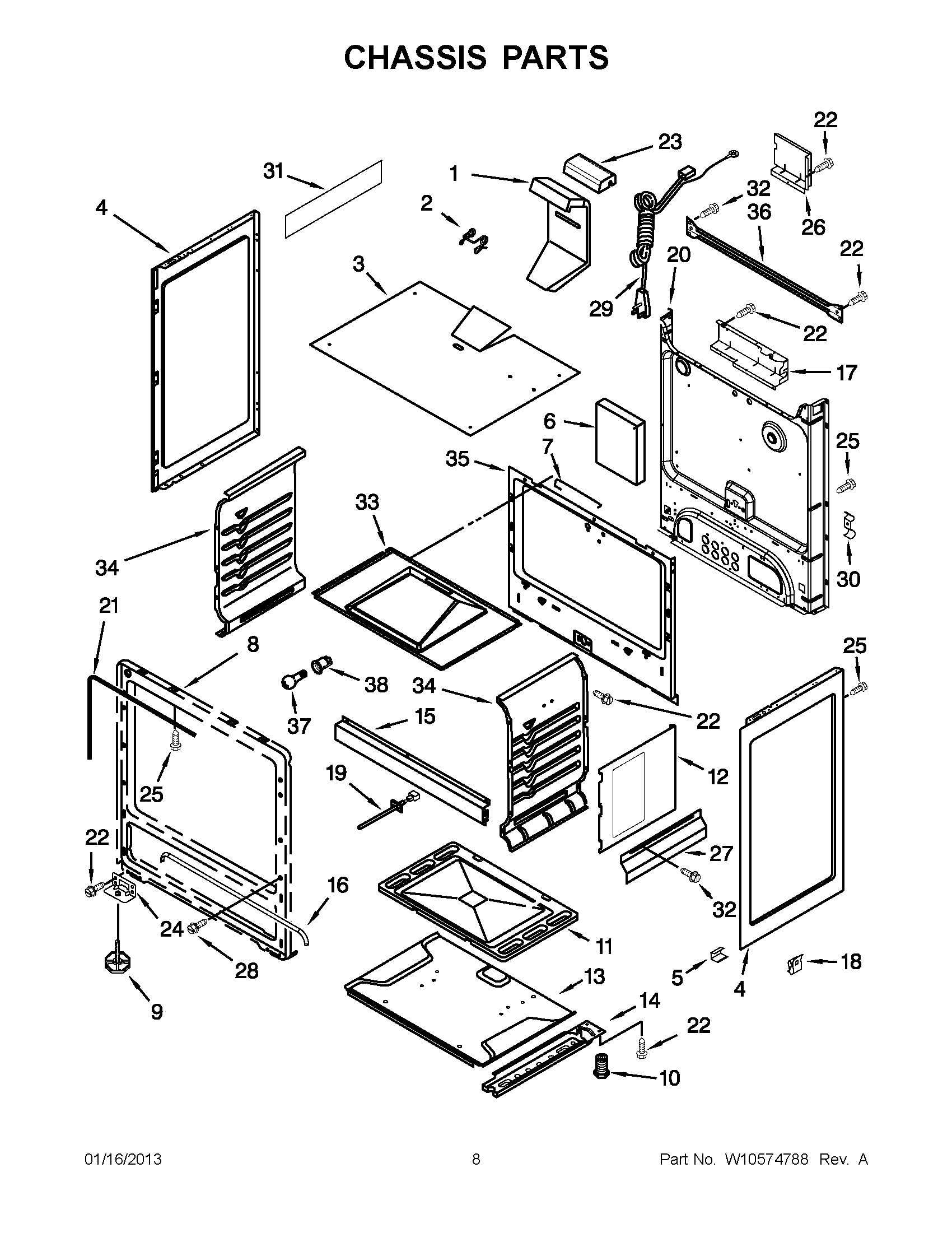

04 - CHASSIS PARTS

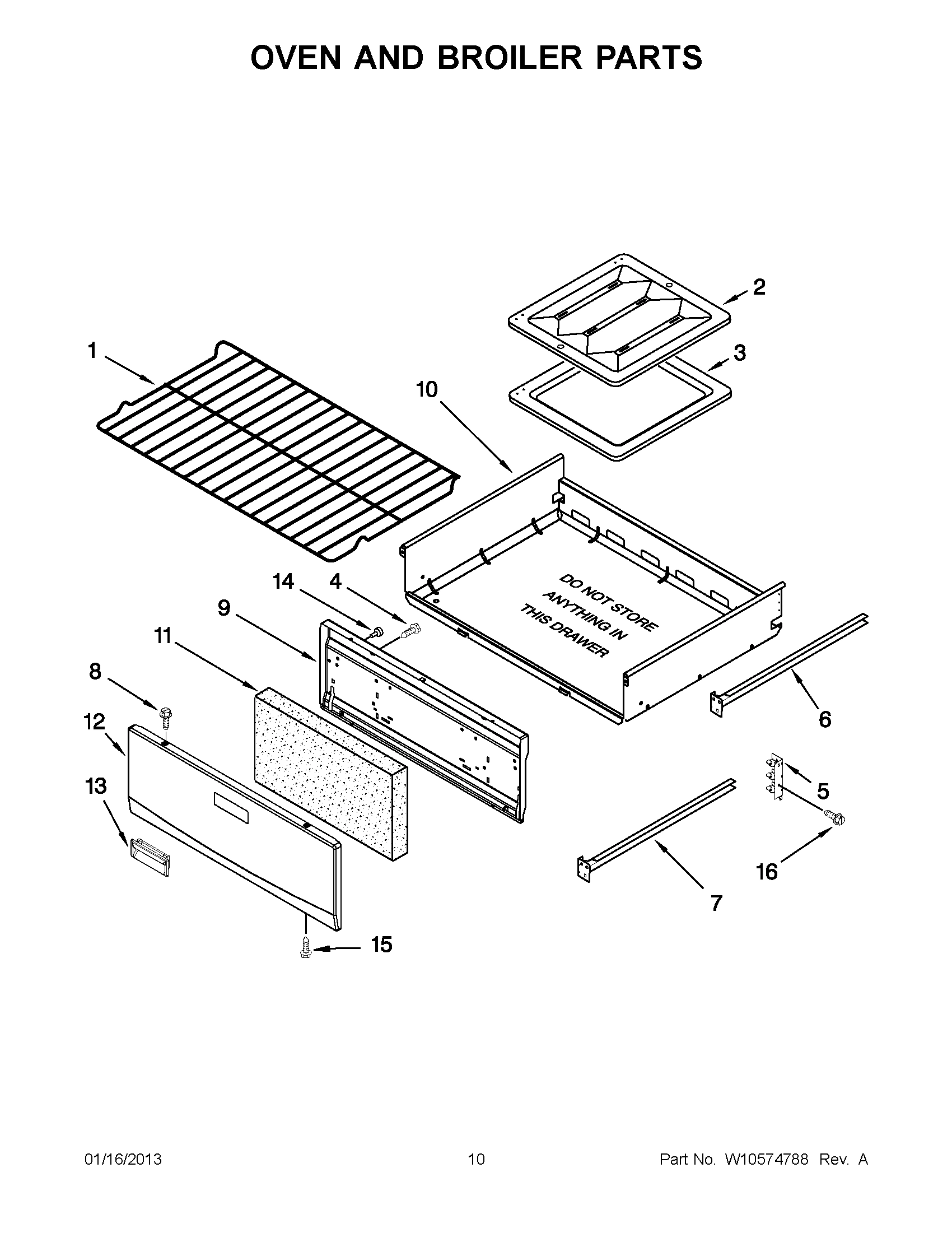

05 - OVEN AND BROILER PARTS

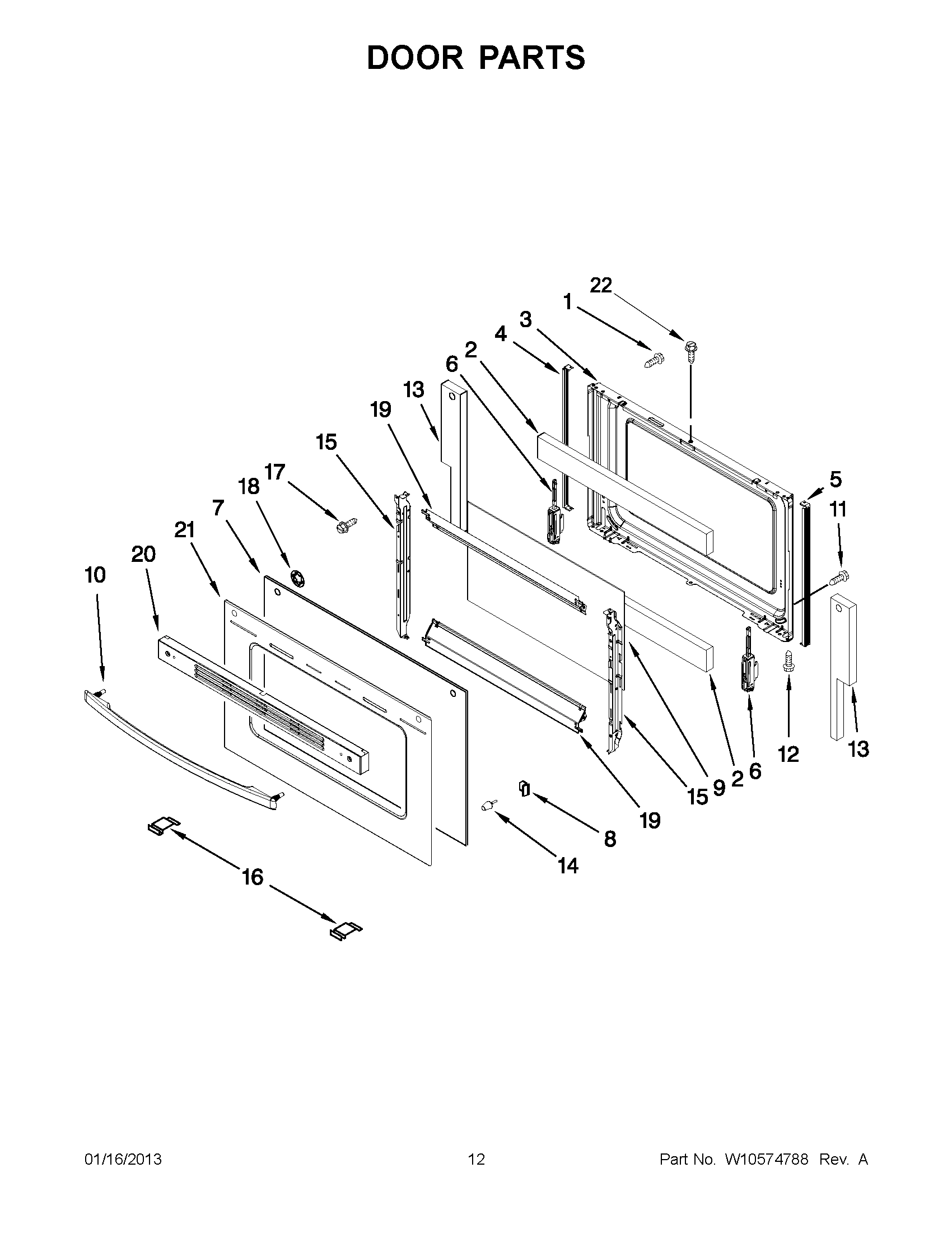

06 - DOOR PARTS
07 - OPTIONAL PARTS
Common parts from model Maytag AGR4433XDS1 GAS RANGE
1
TIPS, SAFE COOKING (ENGLISH) MAY 98007130 Contact Us For Availability
1
MAY W10142327 MAY W10142327 Contact Us For Availability
1
MAY W10477534 MAY W10477534 Contact Us For Availability
1
ENDCAP (LEFT HAND) (BLACK) MAY 98004632 Contact Us For Availability
1
ENDCAP (RIGHT HAND) (BLACK) MAY 98004633 Contact Us For Availability
1
ENDCAP (LEFT HAND) (WHITE) MAY 98005336 Contact Us For Availability
1
ENDCAP (RIGHT HAND) (WHITE) MAY 98005337 Contact Us For Availability
1
NUT MAY 98017323 Contact Us For Availability
1
BOX, FLUE MAY W10116396 Contact Us For Availability
1
MAY W10312013 MAY W10312013 Contact Us For Availability
1
MAY 8533843 MAY 8533843 Contact Us For Availability
2
MAY 98017619B MAY 98017619B Contact Us For Availability
2
Cooktop (White) MAY 98017619W Contact Us For Availability
2
BACKGUARD, REAR MAY 98006083 Contact Us For Availability
2
ASSEMBLY, TUBING (RIGHT FRONT) MAY 98017582 Contact Us For Availability
2
ASSEMBLY, TUBING (LEFT FRONT) MAY 98017583 Contact Us For Availability
2
MAY 98013690 MAY 98013690 Contact Us For Availability
2
MAY 98003480 MAY 98003480 Contact Us For Availability
2
INSULATION MAY W10111139 Contact Us For Availability
3
MAY W10297372 MAY W10297372 Contact Us For Availability
3
MAY W10297384 MAY W10297384 Contact Us For Availability
3
BRACKET, VENTURI MAY 98017741 Contact Us For Availability
3
MAY W10306785 MAY W10306785 Contact Us For Availability
3
MAY 98016005 MAY 98016005 Contact Us For Availability
3
LINER-DOOR MAY 98015563 Contact Us For Availability
4
MAY W10243959 MAY W10243959 Contact Us For Availability
4
MAY W10243961 MAY W10243961 Contact Us For Availability
4
MAY W10296474 MAY W10296474 Contact Us For Availability
4
MAY W10296475 MAY W10296475 Contact Us For Availability
4
MAY W10296476 MAY W10296476 Contact Us For Availability
4
ASSEMBLY, TUBING (LEFT REAR / RIGHT REAR) MAY 98017359 Contact Us For Availability
4
PANEL, SIDE (WHITE) MAY 98010042 Contact Us For Availability
4
PANEL, SIDE (BLACK) MAY 98010043 Contact Us For Availability
4
TRIM, SIDE (LEFT HAND) (BLACK) MAY 98016787B Contact Us For Availability
4
TRIM, SIDE (LEFT HAND) (WHITE) MAY 98016787W Contact Us For Availability
5
MAY W10183056 MAY W10183056 Contact Us For Availability
5
MAY W10183057 MAY W10183057 Contact Us For Availability
5
MAY 6610341 MAY 6610341 Contact Us For Availability
5
MAY 98005502 MAY 98005502 Contact Us For Availability
5
SUPPORT, TRAY (LEFT HAND) MAY 98016664 Contact Us For Availability
5
SUPPORT, TRAY (RIGHT HAND) MAY 98016666 Contact Us For Availability
5
TRIM, SIDE (RIGHT HAND) (BLACK) MAY 98016795B Contact Us For Availability
5
TRIM, SIDE (RIGHT HAND) (WHITE) MAY 98016795W Contact Us For Availability
6
GRATE, BURNER (BLACK) MAY W10180089 Contact Us For Availability
6
GRATE, BURNER (GRAY) MAY W10219702 Contact Us For Availability
6
DEFLECTOR, REAR COVER MAY W10120794 Contact Us For Availability
6
MAY W10306464 MAY W10306464 Contact Us For Availability
6
MAY 98006710 MAY 98006710 Contact Us For Availability
6
MAY W10206639 MAY W10206639 Contact Us For Availability
6
MAY W10206640 MAY W10206640 Contact Us For Availability
6
HINGE, OVEN DOOR MAY 98017875 Contact Us For Availability
7
MAY 98004722 MAY 98004722 Contact Us For Availability
7
Screw MAY 98015526 Contact Us For Availability
7
MAY 98007192 MAY 98007192 Contact Us For Availability
7
MAY 98006739 MAY 98006739 Contact Us For Availability
7
MAY W10206641 MAY W10206641 Contact Us For Availability
7
MAY W10206642 MAY W10206642 Contact Us For Availability
7
MAY W10217617 MAY W10217617 Contact Us For Availability
7
MAY W10296568 MAY W10296568 Contact Us For Availability
8
MAY 98014544 MAY 98014544 Contact Us For Availability
8
BRACKET, TIMER (RIGHT HAND) MAY 98018143 Contact Us For Availability
8
BRACKET, TIMER (LEFT HAND) MAY 98018144 Contact Us For Availability
8
SPREAD, FLAME (BAKE) MAY 98015099 Contact Us For Availability
8
MAY W10166434 MAY W10166434 Contact Us For Availability
8
CLIP, GLASS (LEFT HAND) MAY 98004952 Contact Us For Availability
8
CLIP, GLASS (RIGHT HAND) MAY 98004953 Contact Us For Availability
9
MAY 98013389 MAY 98013389 Contact Us For Availability
9
FOOT, FRONT MAY W10153610 Contact Us For Availability
9
MAY W10162118 MAY W10162118 Contact Us For Availability
9
MAY W10109950 MAY W10109950 Contact Us For Availability
10
SCREW MAY 98005000 Contact Us For Availability
10
MAY 98012138 MAY 98012138 Contact Us For Availability
10
MAY W10058460 MAY W10058460 Contact Us For Availability
10
MAY 98017784 MAY 98017784 Contact Us For Availability
10
MAY 98004942 MAY 98004942 Contact Us For Availability
10
MAY 98004943 MAY 98004943 Contact Us For Availability
11
Cap, Burner (Black) MAY 98017461 Contact Us For Availability
11
CAP, BURNER (CUMBERLAND GREY) MAY 98017465 Contact Us For Availability
11
MAY 98004449 MAY 98004449 Contact Us For Availability
11
INSULATION, BROILER DOOR MAY W10137230 Contact Us For Availability
11
MAY 98008699 MAY 98008699 Contact Us For Availability
12
MAY 8534079 MAY 8534079 Contact Us For Availability
12
MAY W10361492 MAY W10361492 Contact Us For Availability
12
BAFFLE, SIDE MAY W10164109 Contact Us For Availability
12
PANEL, BROILER DOOR (WHITE) MAY W10174741 Contact Us For Availability
12
PANEL, BROILER DOOR (BLACK) MAY W10174742 Contact Us For Availability
12
PANEL, BROILER DOOR (STAINLESS) MAY W10175152 Contact Us For Availability
12
MAY 98004993 MAY 98004993 Contact Us For Availability
13
MAY W10243396 MAY W10243396 Contact Us For Availability
13
MAY 98014893 MAY 98014893 Contact Us For Availability
13
MAY 98003847 MAY 98003847 Contact Us For Availability
13
HANDLE, BROILER DOOR (WHITE) MAY 98008486 Contact Us For Availability
13
HANDLE, BROILER DOOR (BLACK) MAY 98015643 Contact Us For Availability
13
INSULATION, OVEN DOOR SIDE (LEFT HAND) MAY W10110943 Contact Us For Availability
13
INSULATION, OVEN DOOR SIDE (RIGHT HAND) MAY W10110944 Contact Us For Availability
14
MAY W10278150 MAY W10278150 Contact Us For Availability
14
MAY 98003830 MAY 98003830 Contact Us For Availability
14
BUMPER, DOOR MAY 98004052 Contact Us For Availability
14
MAY 98004227 MAY 98004227 Contact Us For Availability
15
VALVE, SADDLE MAY W10141709 Contact Us For Availability
15
MAY 98012175 MAY 98012175 Contact Us For Availability
15
RETAINER (RIGHT HAND) MAY 98004564 Contact Us For Availability
15
RETAINER (LEFT HAND) MAY 98004629 Contact Us For Availability
16
SCREW MAY 98017517 Contact Us For Availability
16
SEAL, BROILER DOOR MAY 98017162 Contact Us For Availability
16
SCREW, TRIM MAY 98008545 Contact Us For Availability
16
SUPPORT, GLASS (WHITE) MAY 98010185 Contact Us For Availability
16
SUPPORT, GLASS (BLACK) MAY 98010187 Contact Us For Availability
17
MAY 98004219 MAY 98004219 Contact Us For Availability
17
MAY W10145011 MAY W10145011 Contact Us For Availability
17
MAY 98014105 MAY 98014105 Contact Us For Availability
18
U-Nut MAY 98009179 Contact Us For Availability
18
MAY 98004650 MAY 98004650 Contact Us For Availability
19
MAY W10469572 MAY W10469572 Contact Us For Availability
19
MAY W10181986 MAY W10181986 Contact Us For Availability
19
RETAINER, INSULATION MAY 98015806 Contact Us For Availability
20
ORIFICE, NATURAL (9.5K) (LEFT REAR / RIGHT RE MAY 98017348 Contact Us For Availability
20
ORIFICE, NATURAL (11.5K) (LEFT FRONT) MAY 98017349 Contact Us For Availability
20
MAY 98015100 MAY 98015100 Contact Us For Availability
20
BASE, OVEN HANDLE (BLACK) MAY 98017767B Contact Us For Availability
20
BASE, OVEN HANDLE (WHITE) MAY 98017767W Contact Us For Availability
21
IGNITER, HOT SURFACE MAY 98005652 Contact Us For Availability
21
MAY W10217472 MAY W10217472 Contact Us For Availability
21
PANEL, OUTER PANEL (STAINLESS) MAY W10307498 Contact Us For Availability
22
Screw MAY 98006633 Contact Us For Availability
22
MAY W10421119 MAY W10421119 Contact Us For Availability
22
SCREW (BLACK) MAY 98006726 Contact Us For Availability
22
Screw (White) MAY 98006727 Contact Us For Availability
23
MAY W10469571 MAY W10469571 Contact Us For Availability
23
MAY 98007205 MAY 98007205 Contact Us For Availability
24
MAY 98013314 MAY 98013314 Contact Us For Availability
24
Base, Foot MAY 98007126 Contact Us For Availability
25
MAY 98006632 MAY 98006632 Contact Us For Availability
25
MAY 98007410 MAY 98007410 Contact Us For Availability
26
MAY 98007431 MAY 98007431 Contact Us For Availability
26
Cover, Socket MAY 98014104 Contact Us For Availability
27
MAY 98013634 MAY 98013634 Contact Us For Availability
27
MAY 98007191 MAY 98007191 Contact Us For Availability
28
MAY 98007225 MAY 98007225 Contact Us For Availability
29
TUBING (MANIFOLD TO REGULATOR) MAY 98017171 Contact Us For Availability
29
MAY 98014532 MAY 98014532 Contact Us For Availability
30
MAY 98005659 MAY 98005659 Contact Us For Availability
30
MAY 98005026 MAY 98005026 Contact Us For Availability
31
MAY W10146346 MAY W10146346 Contact Us For Availability
31
FOIL, SIDE MAY 98015346 Contact Us For Availability
32
IGNITOR, TOP (BLACK) MAY W10209656 Contact Us For Availability
32
IGNITOR, TOP (NATURAL) MAY W10209657 Contact Us For Availability
32
Screw MAY 98006634 Contact Us For Availability
33
MAY 98004447 MAY 98004447 Contact Us For Availability
34
Side, Oven (Left Hand) MAY 98004451 Contact Us For Availability
34
Side, Oven (Right Hand) MAY 98004452 Contact Us For Availability
35
MAY 98013777 MAY 98013777 Contact Us For Availability
36
MAY 98015363 MAY 98015363 Contact Us For Availability
37
MAY 98004498 MAY 98004498 Contact Us For Availability
38
SOCKET, LIGHT BULB MAY W10114530 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED, MAY N/P Contact Us For Availability
NI
KIT, LP CONVERSION MAY W10032030 Contact Us For Availability
NI
INSULATION, OVEN DOOR MAY W10137223 Contact Us For Availability
NI
MAY W10137227 MAY W10137227 Contact Us For Availability
NI
MAY W10137233 MAY W10137233 Contact Us For Availability
NI
INSULATION (2-1/2`` X 22`` X 120``) MAY 240132 Contact Us For Availability
NI
MAY 242756 MAY 242756 Contact Us For Availability
NI
INSULATION (1-1/2`` X 24`` X 120``) MAY 261514 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BLACK) MAY 285006 Contact Us For Availability
NI
WIRING HARNESS PARTS, CLIP, HARNESS MAY 3196696 Contact Us For Availability
NI
WIRING HARNESS PARTS, TIE, CABLE MAY 3391018 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, BULK (1 QT. BISCUIT/BISQUE) MAY 4392900 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BISCUIT/BISQU MAY 4392901 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE PORCELAIN (2 MAY 511873 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
NI
WIRING HARNESS PARTS, CLAMP, CORD MAY 98005894 Contact Us For Availability
NI
WIRING HARNESS PARTS, CLIP, WIRE MAY 98005896 Contact Us For Availability
NI
MISCELLANEOUS, KIT, DOOR PIN MAY 98012220 Contact Us For Availability
NI
WIRING HARNESS PARTS, BUSHING, SNAP MAY 98015022 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, CONTROL MAY W10141515 Contact Us For Availability
NI
MAY W10477747 MAY W10477747 Contact Us For Availability
× ![]()
Login and Registration Form
