Model Maytag AGR3311WDW0 GAS RANGE – Common Parts & Diagrams

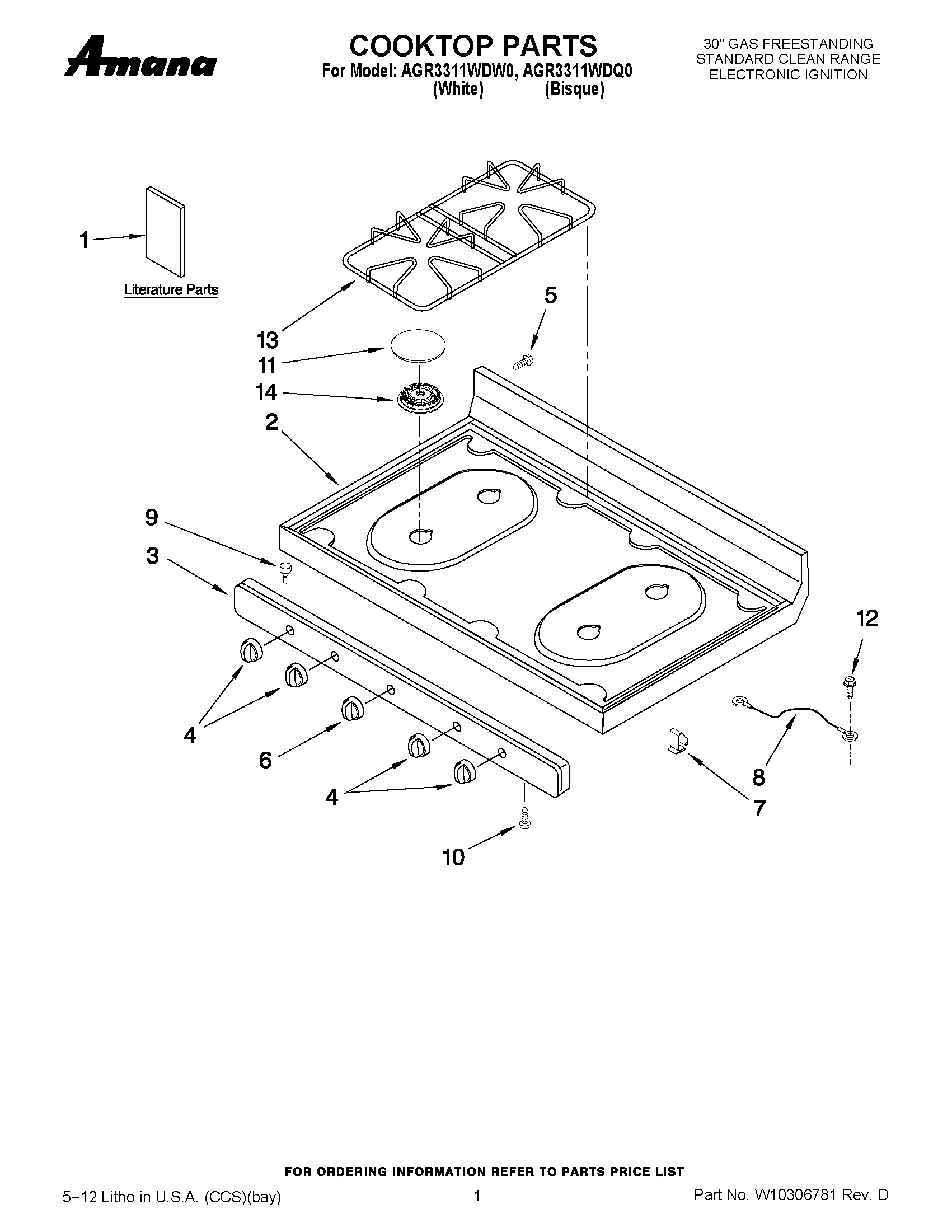

01 - COOKTOP PARTS

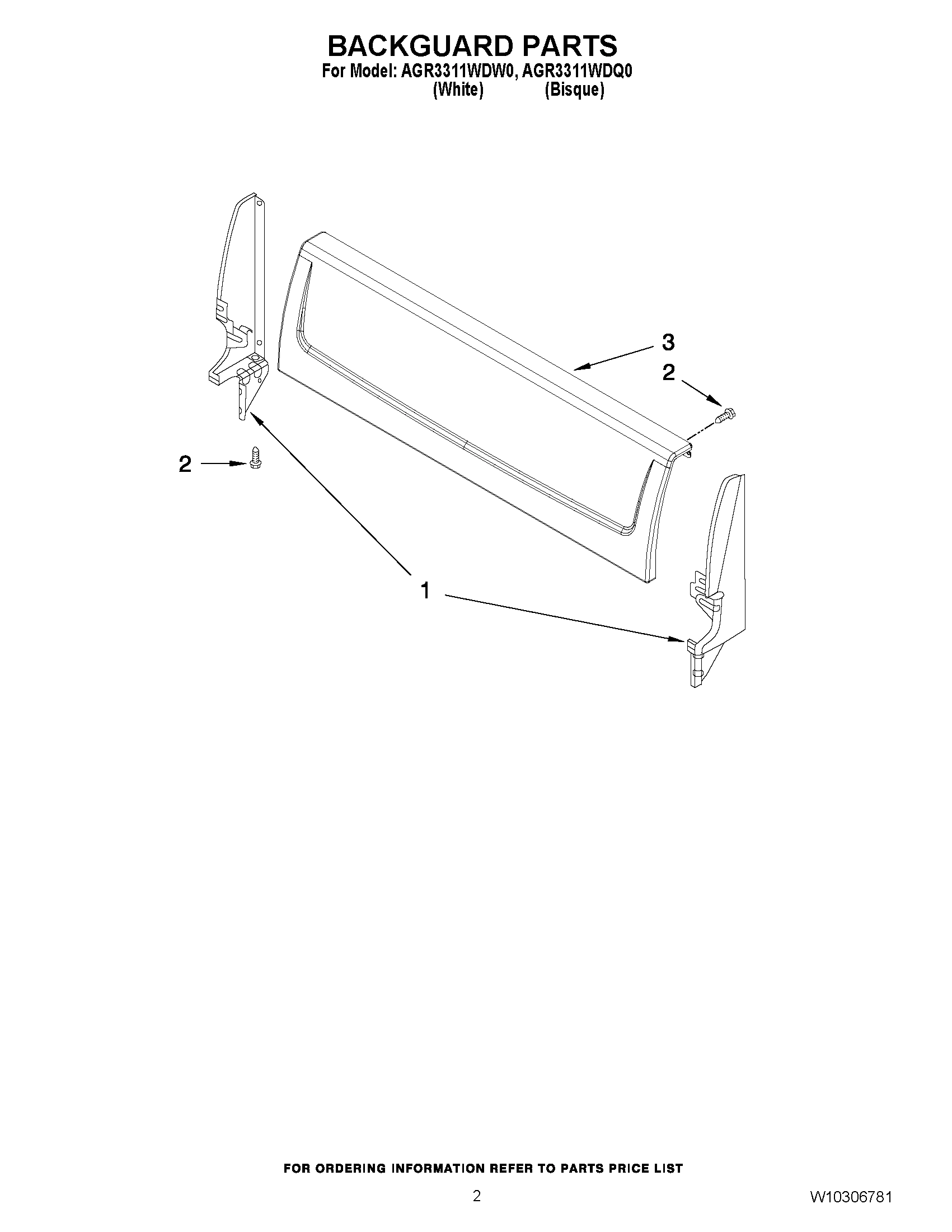

02 - BACKGUARD PARTS

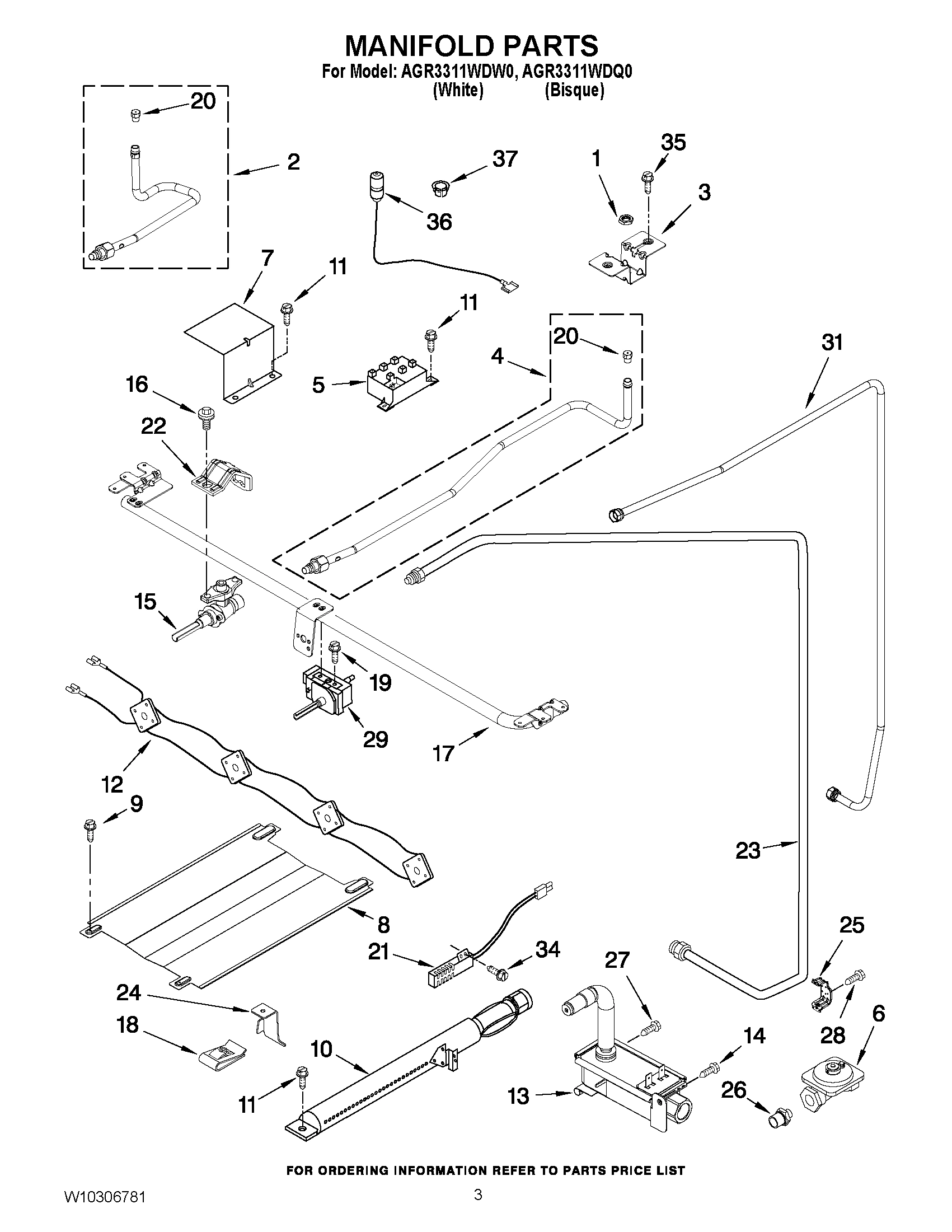

03 - MANIFOLD PARTS

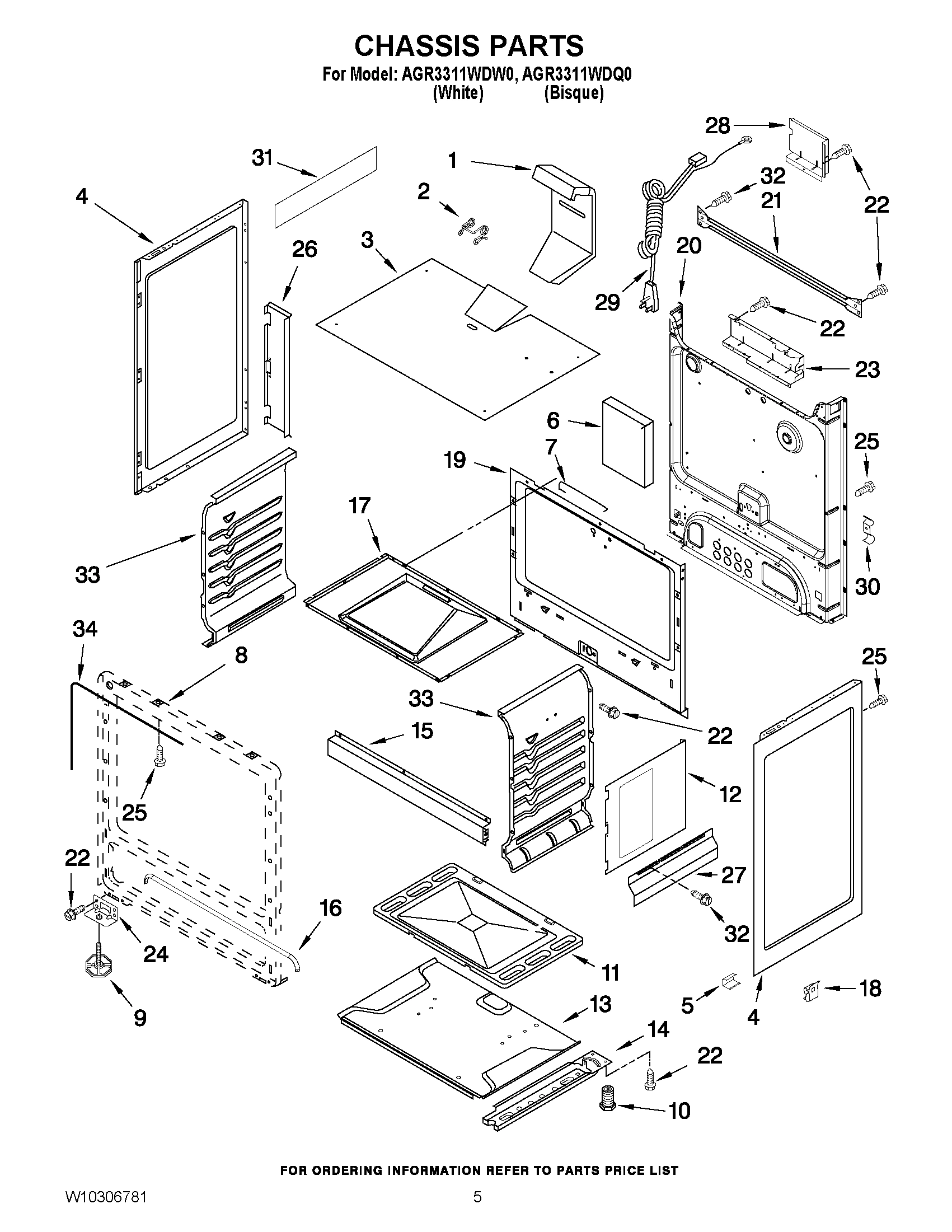

04 - CHASSIS PARTS

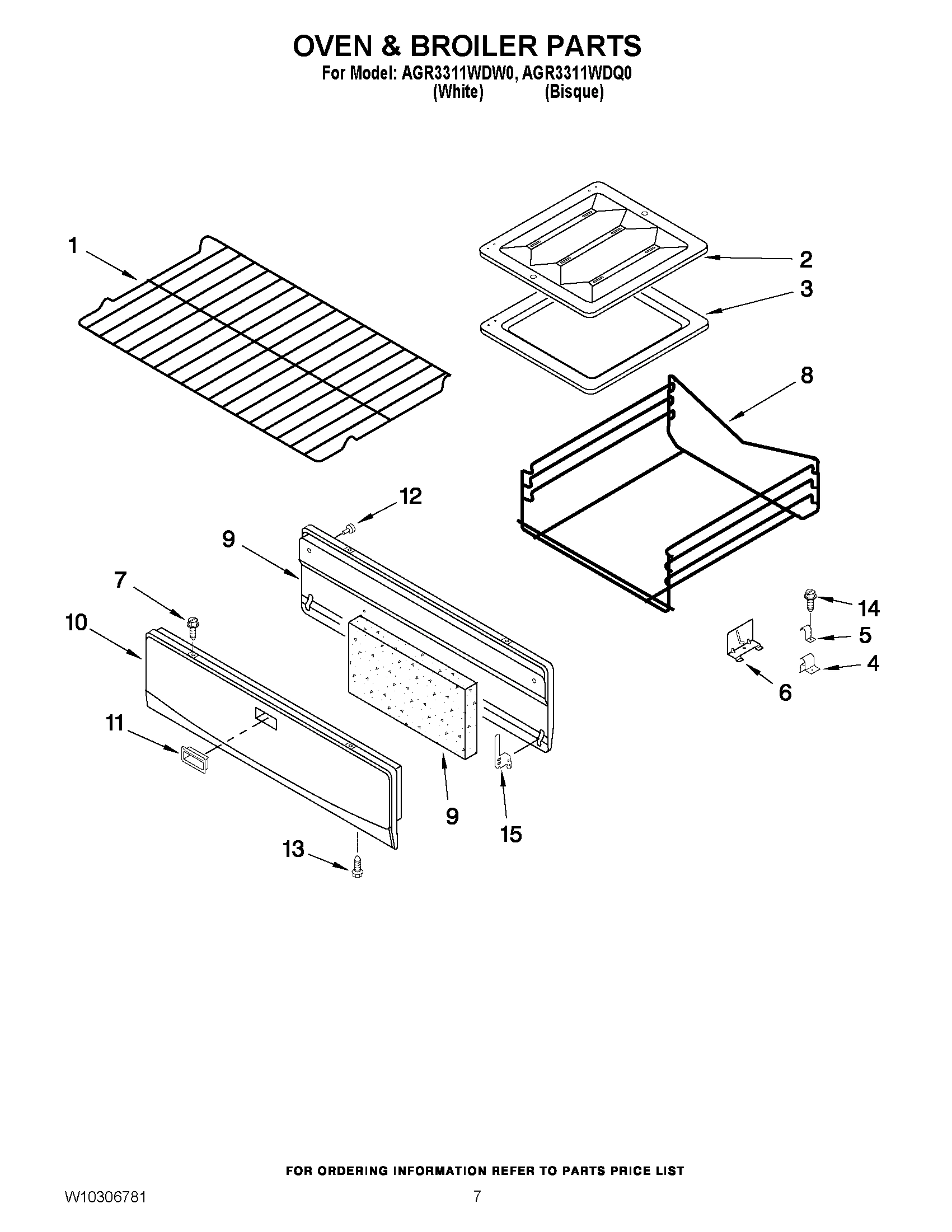

05 - OVEN & BROILER PARTS

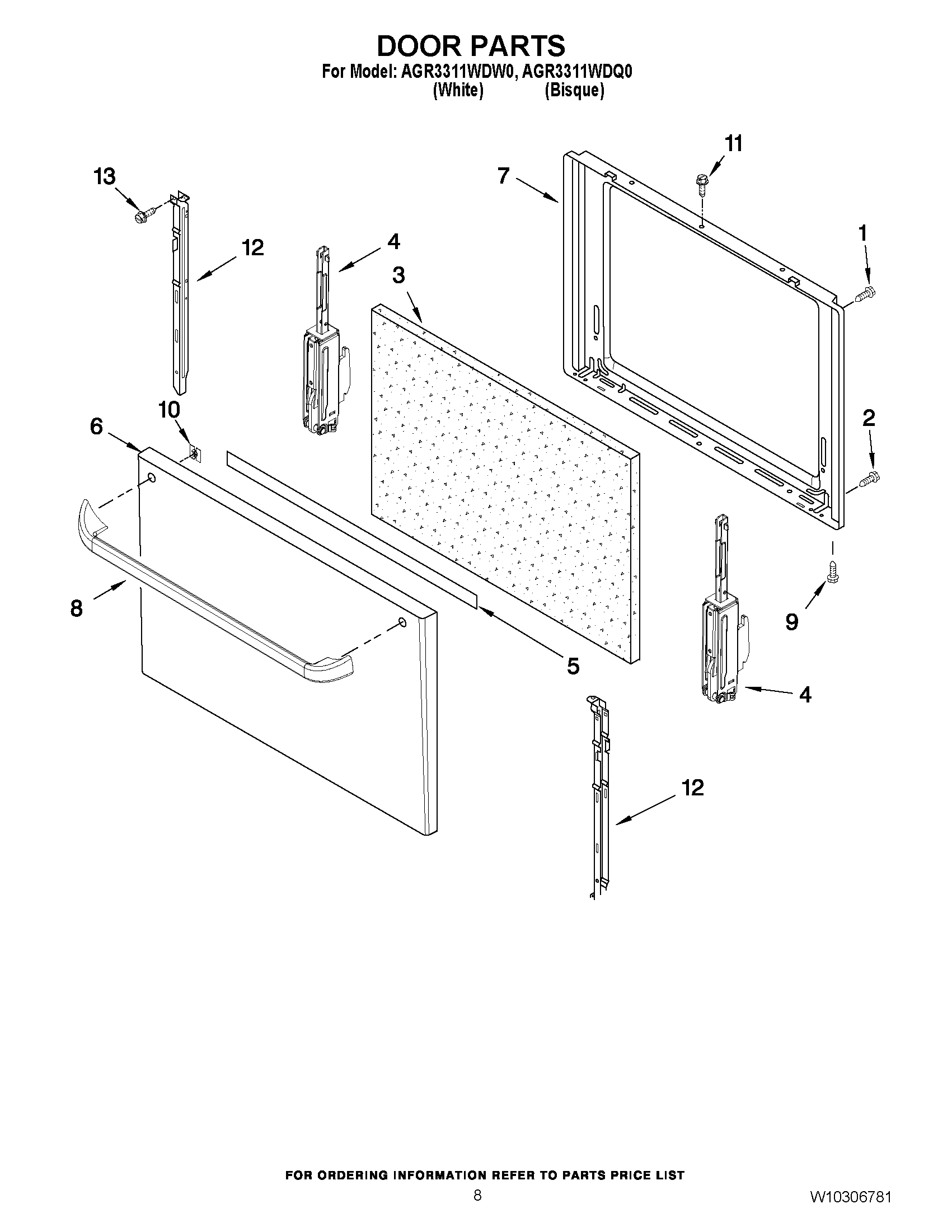

06 - DOOR PARTS
07 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag AGR3311WDW0 GAS RANGE
1
MAY 98007032 MAY 98007032 Contact Us For Availability
1
MAY 98007130 MAY 98007130 Contact Us For Availability
1
INSTRUCT, INSTALL MAY W10130752 Contact Us For Availability
1
MAY W10138585 MAY W10138585 Contact Us For Availability
1
MAY W10162222 MAY W10162222 Contact Us For Availability
1
ENDCAP (WHITE LEFT) MAY 98005252 Contact Us For Availability
1
ENDCAP (WHITE RIGHT) MAY 98005253 Contact Us For Availability
1
ENDCAP (BISQUE LEFT) MAY 98015392 Contact Us For Availability
1
ENDCAP (BISQUE RIGHT) MAY 98015393 Contact Us For Availability
1
NUT MAY 98017323 Contact Us For Availability
1
MAY 98003799 MAY 98003799 Contact Us For Availability
1
RACK, OVEN MAY 98014136 Contact Us For Availability
1
MAY 8533842 MAY 8533842 Contact Us For Availability
2
COOKTOP (BISQUE) MAY 98017619T Contact Us For Availability
2
Cooktop (White) MAY 98017619W Contact Us For Availability
2
Screw MAY 98015526 Contact Us For Availability
2
VENTURI, FRONT (FRONT) MAY 98017582 Contact Us For Availability
2
Clip, Flue MAY 98013690 Contact Us For Availability
2
MAY 98003480 MAY 98003480 Contact Us For Availability
2
MAY 98008699 MAY 98008699 Contact Us For Availability
3
MAY W10260205 MAY W10260205 Contact Us For Availability
3
MAY W10323645 MAY W10323645 Contact Us For Availability
3
BACKGUARD (WHITE) MAY 98009818 Contact Us For Availability
3
BACKGUARD (BISQUE) MAY W10132680 Contact Us For Availability
3
BRKT., VENTURI MAY 98017741 Contact Us For Availability
3
SHIELD, UPPER MAY W10164112 Contact Us For Availability
3
MAY 98016005 MAY 98016005 Contact Us For Availability
3
MAY W10137223 MAY W10137223 Contact Us For Availability
4
KNOB, BURNER (WHITE) MAY 98006102 Contact Us For Availability
4
KNOB, BURNER (BISQUE) MAY 98008208 Contact Us For Availability
4
VENTURI, REAR MAY 98017359 Contact Us For Availability
4
PANEL, SIDE (WHITE) MAY 98010042 Contact Us For Availability
4
PANEL, SIDE (BISQUE) MAY 98010045 Contact Us For Availability
4
GUIDE, RACK MAY 98004715 Contact Us For Availability
4
HINGE, DOOR (LEFT) MAY 98017873 Contact Us For Availability
4
HINGE, DOOR (RIGHT) MAY 98017875 Contact Us For Availability
5
MAY 98007225 MAY 98007225 Contact Us For Availability
5
MAY 6610341 MAY 6610341 Contact Us For Availability
5
Clip, Oven Bottom MAY 98005502 Contact Us For Availability
5
MAY 98008341 MAY 98008341 Contact Us For Availability
5
RETAINER, INSUL. MAY 98017250 Contact Us For Availability
6
KNOB, OVEN (WHITE) MAY 98008321 Contact Us For Availability
6
KNOB, OVEN (BISQUE) MAY 98008322 Contact Us For Availability
6
MAY 98007411 MAY 98007411 Contact Us For Availability
6
MAY 98006710 MAY 98006710 Contact Us For Availability
6
MAY 98004761 MAY 98004761 Contact Us For Availability
6
PANEL, DOOR (BISQUE) MAY 98017968T Contact Us For Availability
6
PANEL, DOOR (WHITE) MAY 98017968W Contact Us For Availability
7
MAY 98004722 MAY 98004722 Contact Us For Availability
7
MAY 98007192 MAY 98007192 Contact Us For Availability
7
MAY 98006739 MAY 98006739 Contact Us For Availability
7
MAY 98006727 MAY 98006727 Contact Us For Availability
7
MAY 98017966 MAY 98017966 Contact Us For Availability
8
Wire, Ground MAY 6610473 Contact Us For Availability
8
Spreader, Flame MAY 98015099 Contact Us For Availability
8
MAY W10166434 MAY W10166434 Contact Us For Availability
8
MAY 98016570 MAY 98016570 Contact Us For Availability
8
HANDLE, DOOR (BISQUE) MAY 98017915T Contact Us For Availability
8
HANDLE, DOOR (WHITE) MAY 98017915W Contact Us For Availability
9
MAY 98013389 MAY 98013389 Contact Us For Availability
9
FOOT, FRONT MAY W10153610 Contact Us For Availability
9
MAY W10137230 MAY W10137230 Contact Us For Availability
9
MAY 98004993 MAY 98004993 Contact Us For Availability
10
SCREW MAY 98005000 Contact Us For Availability
10
MAY 98012138 MAY 98012138 Contact Us For Availability
10
FOOT, REAR MAY W10058460 Contact Us For Availability
10
PANEL, DRAWER (BISQUE) MAY 98009341 Contact Us For Availability
10
PANEL, DRAWER (WHITE) MAY 98009342 Contact Us For Availability
10
BRACKET, HANDLE MAY 98017967 Contact Us For Availability
11
MAY 98017461 MAY 98017461 Contact Us For Availability
11
MAY 98004449 MAY 98004449 Contact Us For Availability
11
HANDLE, DRAWER (WHITE) MAY 98008486 Contact Us For Availability
11
HANDLE, DRAWER (BISQUE) MAY 98008488 Contact Us For Availability
11
SCREW MAY 98008545 Contact Us For Availability
12
Screw MAY 8534079 Contact Us For Availability
12
MAY 98014545 MAY 98014545 Contact Us For Availability
12
BAFFLE, SIDE MAY W10121634 Contact Us For Availability
12
BUMPER, DOOR MAY 98004052 Contact Us For Availability
12
MAY 98004564 MAY 98004564 Contact Us For Availability
12
MAY 98004629 MAY 98004629 Contact Us For Availability
13
GRATE, BURNER MAY W10180089 Contact Us For Availability
13
MAY 98014893 MAY 98014893 Contact Us For Availability
13
MAY 98003847 MAY 98003847 Contact Us For Availability
13
MAY 98004219 MAY 98004219 Contact Us For Availability
14
BURNER, TOP MAY W10243396 Contact Us For Availability
14
Screw MAY 98006633 Contact Us For Availability
14
MAY 98003830 MAY 98003830 Contact Us For Availability
15
VALVE, BURNER MAY W10141709 Contact Us For Availability
15
MAY 98012175 MAY 98012175 Contact Us For Availability
15
HINGE, BRLR DOOR MAY W10201341 Contact Us For Availability
16
MAY 98017517 MAY 98017517 Contact Us For Availability
16
Gasket, Broil Door MAY 98017162 Contact Us For Availability
17
MAY 98017558 MAY 98017558 Contact Us For Availability
17
MAY 98004447 MAY 98004447 Contact Us For Availability
18
U-Nut MAY 98009179 Contact Us For Availability
19
MAY W10159016 MAY W10159016 Contact Us For Availability
19
MAY 98005768 MAY 98005768 Contact Us For Availability
20
ORIFICE MAY 98017348 Contact Us For Availability
20
MAY 98015100 MAY 98015100 Contact Us For Availability
21
Igniter, Oven Oven Pilot) MAY 98005652 Contact Us For Availability
21
MAY 98015363 MAY 98015363 Contact Us For Availability
22
BRACKET, VALVE MAY 98017516 Contact Us For Availability
23
MAY 98007428 MAY 98007428 Contact Us For Availability
23
MAY 98014105 MAY 98014105 Contact Us For Availability
24
MAY 98013314 MAY 98013314 Contact Us For Availability
24
Base, Foot MAY 98007126 Contact Us For Availability
25
MAY 98006632 MAY 98006632 Contact Us For Availability
25
MAY 98007410 MAY 98007410 Contact Us For Availability
26
MAY 98007431 MAY 98007431 Contact Us For Availability
26
Shield, Channel MAY 98006715 Contact Us For Availability
27
MAY 98013634 MAY 98013634 Contact Us For Availability
27
Shield, Lower MAY 98007191 Contact Us For Availability
28
Screw MAY 1180823 Contact Us For Availability
28
Cover, Socket MAY 98014104 Contact Us For Availability
29
SCREW MAY 98005663 Contact Us For Availability
29
CORD-POWER MAY 6610433 Contact Us For Availability
30
MAY 98005026 MAY 98005026 Contact Us For Availability
31
Tubing, Inlet MAY 98017171 Contact Us For Availability
31
FOIL, SIDE MAY 98015346 Contact Us For Availability
32
Screw MAY 98006634 Contact Us For Availability
33
Side, Oven (Left Hand) MAY 98004451 Contact Us For Availability
33
Side, Oven (Right Hand) MAY 98004452 Contact Us For Availability
34
MAY 98005659 MAY 98005659 Contact Us For Availability
34
MAY W10217472 MAY W10217472 Contact Us For Availability
35
MAY W10146346 MAY W10146346 Contact Us For Availability
36
Igniter, Top (RF, RR & LF) MAY W10209656 Contact Us For Availability
36
MAY W10209657 MAY W10209657 Contact Us For Availability
37
CLIP, IGNITER MAY W10278150 Contact Us For Availability
NI
LP ORIFICE KIT (FOR USE WITH LP) MAY W10032010 Contact Us For Availability
NI
MAY W10137227 MAY W10137227 Contact Us For Availability
NI
MAY W10137233 MAY W10137233 Contact Us For Availability
NI
Pin Kit-Dr Removal MAY 98012220 Contact Us For Availability
NI
MAY 240132 MAY 240132 Contact Us For Availability
NI
REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 MAY 242756 Contact Us For Availability
NI
MAY 261514 MAY 261514 Contact Us For Availability
NI
Clip, Wire MAY 3196696 Contact Us For Availability
NI
Cable Tie-Push Mnt MAY 3391018 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (GRAY PRIME MAY 350938 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. WHITE PRIMER) MAY 350942 Contact Us For Availability
NI
MAY 4392899 MAY 4392899 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE PORCELAIN (2 MAY 511873 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
MAY 98005894 MAY 98005894 Contact Us For Availability
NI
MAY 98005896 MAY 98005896 Contact Us For Availability
NI
MAY 98014534 MAY 98014534 Contact Us For Availability
NI
BUSHING, SNAP MAY 98015022 Contact Us For Availability
NI
MAY W10142307 MAY W10142307 Contact Us For Availability
NI
MAY W10233413 MAY W10233413 Contact Us For Availability
× ![]()
