Model Maytag AGR3130BAW0 GAS RANGE – Common Parts & Diagrams
01 - COVER SHEET

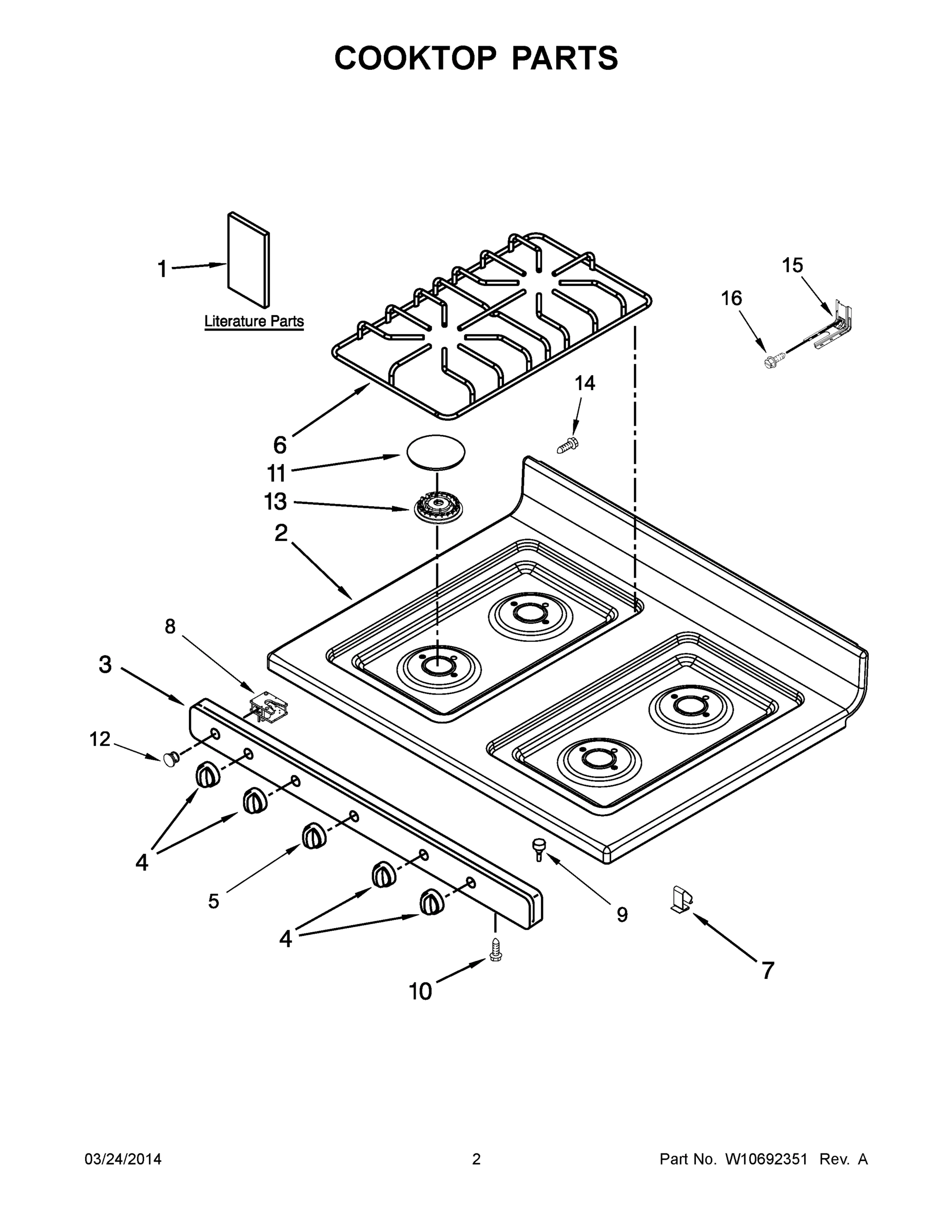

02 - COOKTOP PARTS

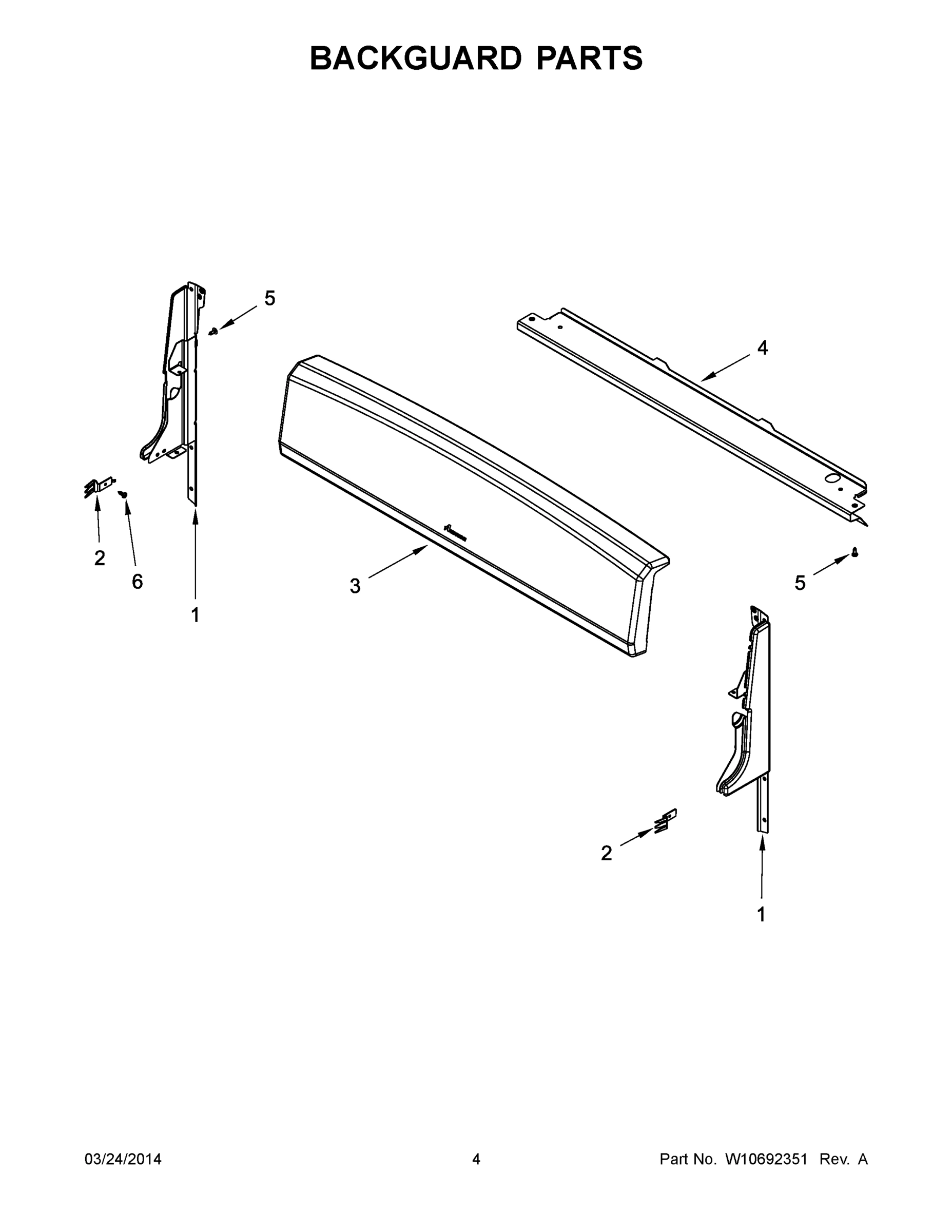

03 - BACKGUARD PARTS

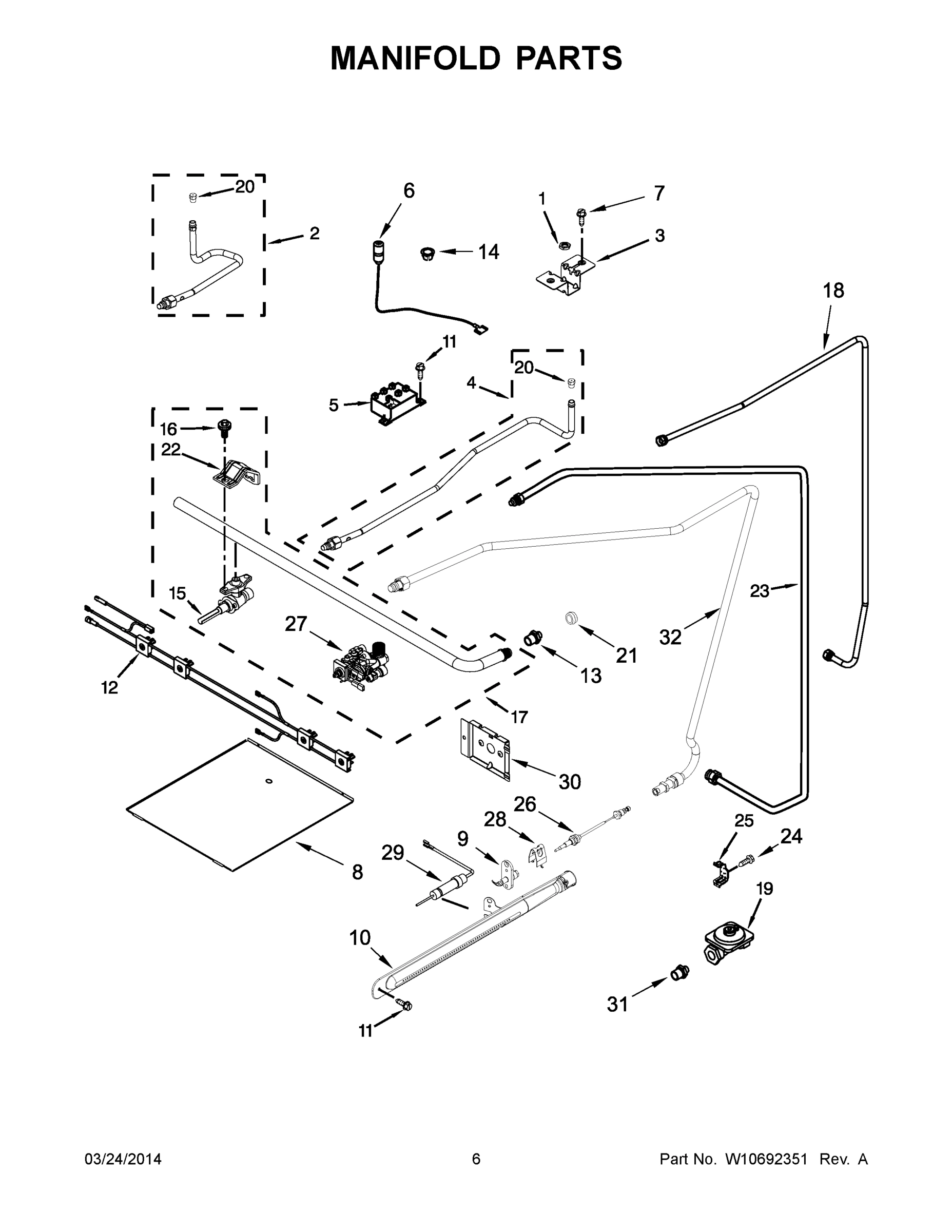

04 - MANIFOLD PARTS

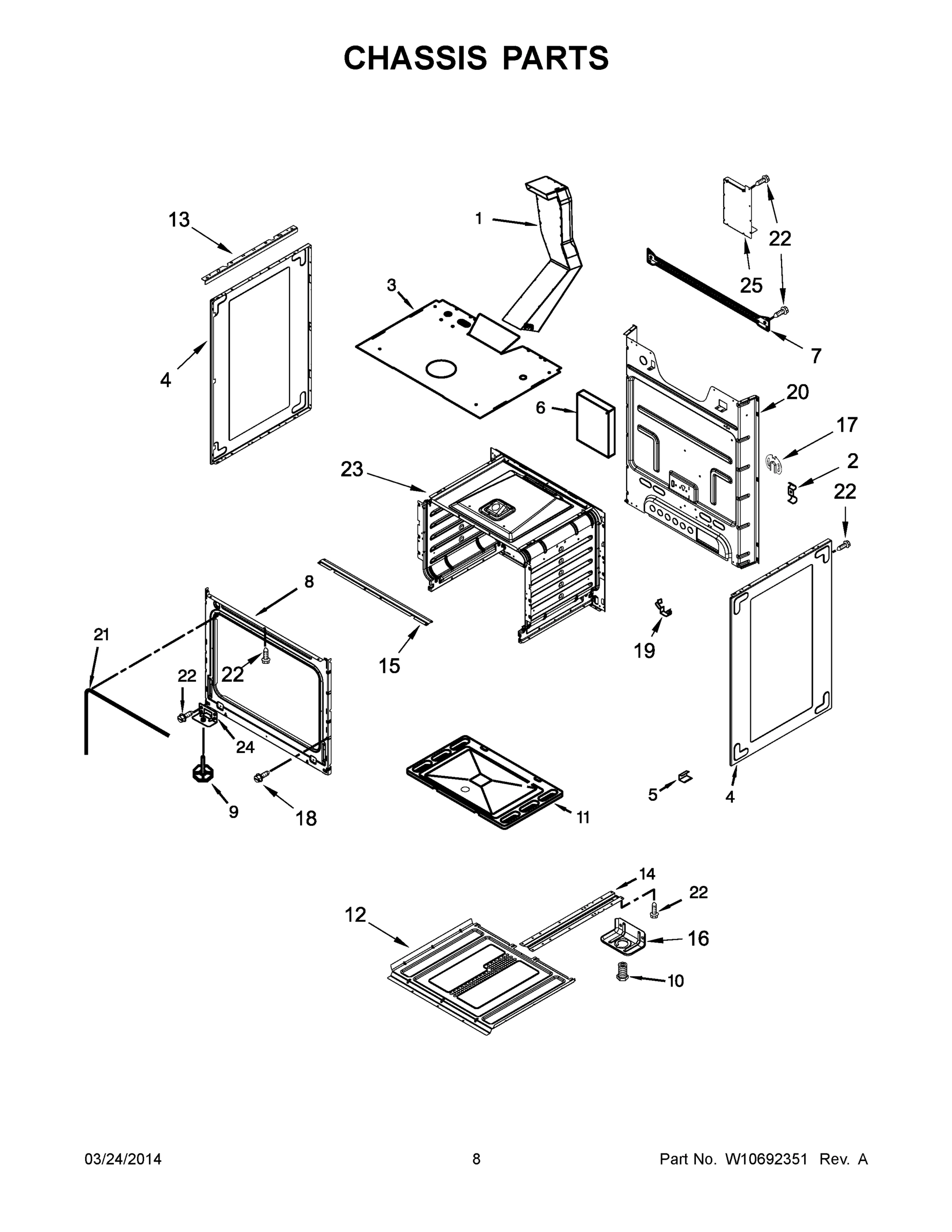

05 - CHASSIS PARTS

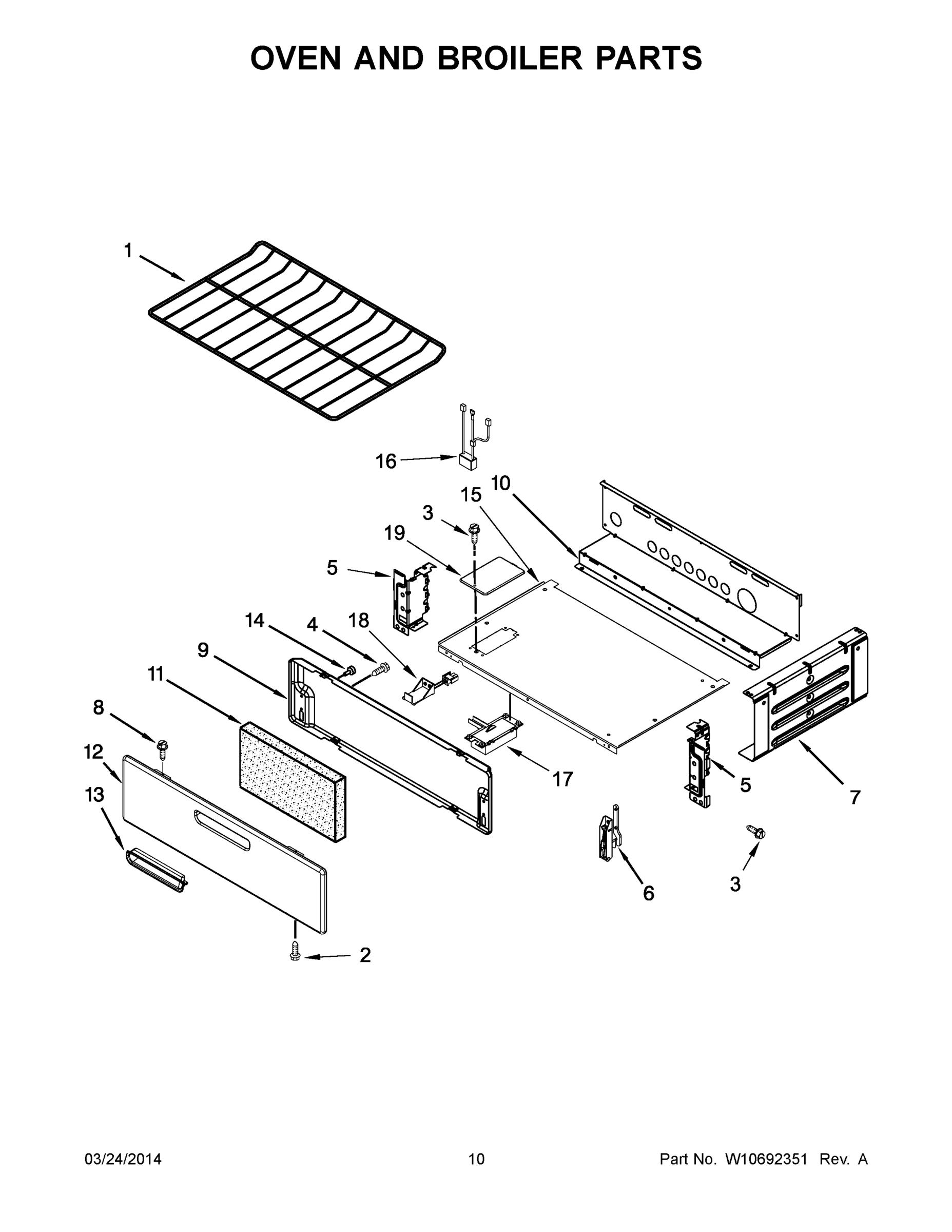

06 - OVEN AND BROILER PARTS

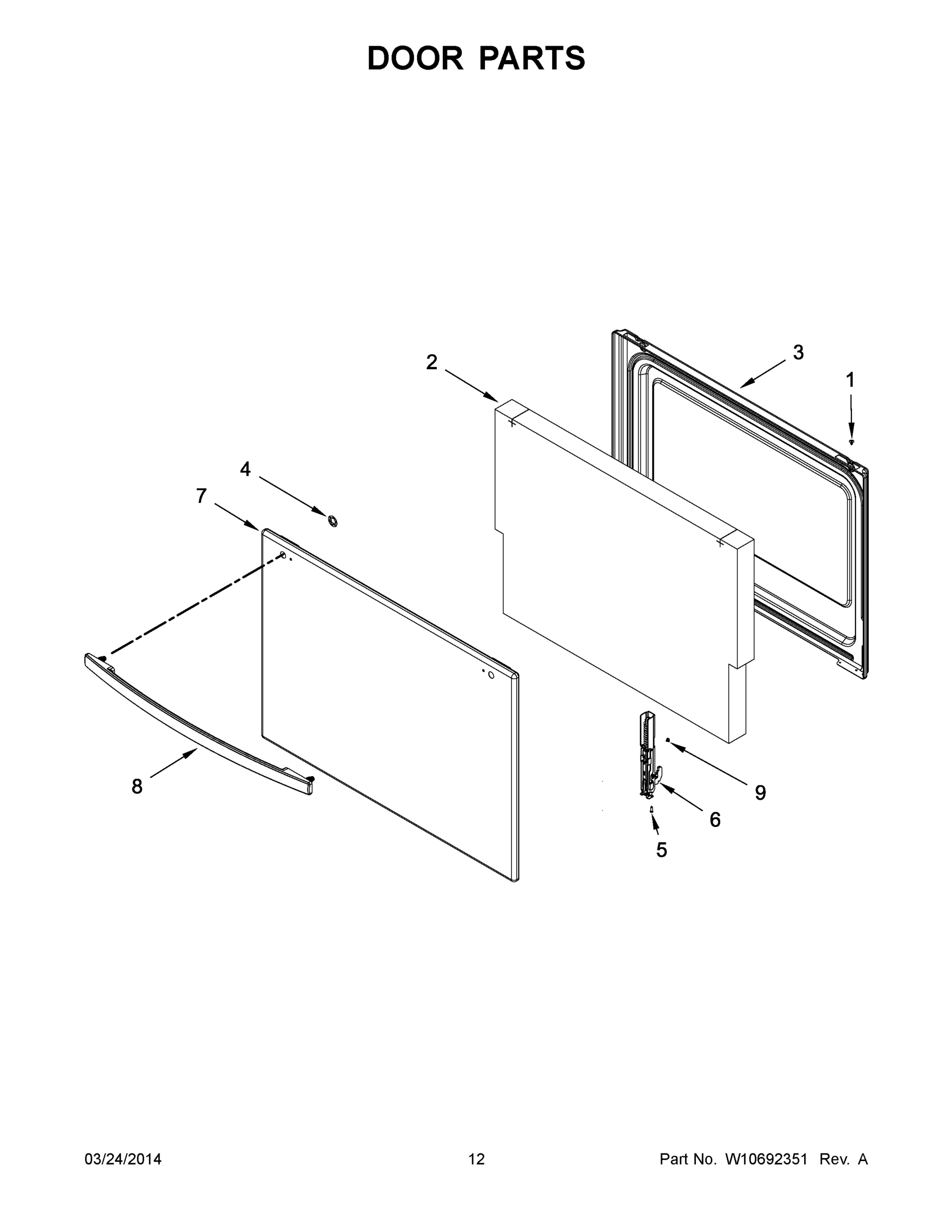

07 - DOOR PARTS
08 - OPTIONAL PARTS
Common parts from model Maytag AGR3130BAW0 GAS RANGE
1
TIPS, SAFE COOKING (ENGLISH) MAY 98007130 Contact Us For Availability
1
MAY W10539409 MAY W10539409 Contact Us For Availability
1
MAY W10620412 MAY W10620412 Contact Us For Availability
1
MAY W10620421 MAY W10620421 Contact Us For Availability
1
MAY W10661915 MAY W10661915 Contact Us For Availability
1
MAY W10662110 MAY W10662110 Contact Us For Availability
1
NUT MAY 98017323 Contact Us For Availability
1
MAY W10675411 MAY W10675411 Contact Us For Availability
1
MAY W10550642 MAY W10550642 Contact Us For Availability
1
SCREW (BLACK) MAY 98006726 Contact Us For Availability
1
Screw (White) MAY 98006727 Contact Us For Availability
2
MAY W10535684 MAY W10535684 Contact Us For Availability
2
MAY W10535815 MAY W10535815 Contact Us For Availability
2
MAY W10512771 MAY W10512771 Contact Us For Availability
2
MAY W10543959 MAY W10543959 Contact Us For Availability
2
MAY 98005026 MAY 98005026 Contact Us For Availability
2
MAY W10119413 MAY W10119413 Contact Us For Availability
2
MAY W10535750 MAY W10535750 Contact Us For Availability
3
MAY W10620531 MAY W10620531 Contact Us For Availability
3
MAY W10620551 MAY W10620551 Contact Us For Availability
3
MAY W10122103 MAY W10122103 Contact Us For Availability
3
MAY W10164110 MAY W10164110 Contact Us For Availability
3
SCREW, TRIM MAY 98008545 Contact Us For Availability
3
MAY W10535761 MAY W10535761 Contact Us For Availability
4
MAY W10614597 MAY W10614597 Contact Us For Availability
4
MAY W10535746 MAY W10535746 Contact Us For Availability
4
MAY W10512770 MAY W10512770 Contact Us For Availability
4
MAY W10544971 MAY W10544971 Contact Us For Availability
4
MAY W10666141 MAY W10666141 Contact Us For Availability
4
MAY W10666176 MAY W10666176 Contact Us For Availability
4
MAY W10155121 MAY W10155121 Contact Us For Availability
4
MAY 98004650 MAY 98004650 Contact Us For Availability
5
MAY W10615600 MAY W10615600 Contact Us For Availability
5
SCREW MAY 98005000 Contact Us For Availability
5
MAY W10518414 MAY W10518414 Contact Us For Availability
5
MAY W10146346 MAY W10146346 Contact Us For Availability
5
MAY 98005502 MAY 98005502 Contact Us For Availability
5
MAY W10624273 MAY W10624273 Contact Us For Availability
5
MAY W10624275 MAY W10624275 Contact Us For Availability
6
MAY W10578251 MAY W10578251 Contact Us For Availability
6
IGNITOR, TOP (BLACK) MAY W10209656 Contact Us For Availability
6
IGNITOR, TOP (NATURAL) MAY W10209657 Contact Us For Availability
6
MAY 98006710 MAY 98006710 Contact Us For Availability
6
MAY W10647966 MAY W10647966 Contact Us For Availability
6
MAY W10535789 MAY W10535789 Contact Us For Availability
7
MAY 98004722 MAY 98004722 Contact Us For Availability
7
MAY 98015363 MAY 98015363 Contact Us For Availability
7
MAY W10605426 MAY W10605426 Contact Us For Availability
7
MAY W10535785 MAY W10535785 Contact Us For Availability
8
MAY W10533468 MAY W10533468 Contact Us For Availability
8
MAY W10582462 MAY W10582462 Contact Us For Availability
8
MAY W10535774 MAY W10535774 Contact Us For Availability
9
MAY 98013389 MAY 98013389 Contact Us For Availability
9
MAY W10085400 MAY W10085400 Contact Us For Availability
9
MAY W10519868 MAY W10519868 Contact Us For Availability
9
MAY W10446851 MAY W10446851 Contact Us For Availability
9
MAY 98008699 MAY 98008699 Contact Us For Availability
10
MAY W10517877 MAY W10517877 Contact Us For Availability
10
FOOT, LEVELING (REAR) MAY W10058460 Contact Us For Availability
10
MAY W10364810 MAY W10364810 Contact Us For Availability
11
Cap, Burner (Black) MAY 98017461 Contact Us For Availability
11
MAY W10620408 MAY W10620408 Contact Us For Availability
11
MAY W10216478 MAY W10216478 Contact Us For Availability
12
LENS, INDICATOR MAY W10179657 Contact Us For Availability
12
MAY W10556706 MAY W10556706 Contact Us For Availability
12
MAY W10670197 MAY W10670197 Contact Us For Availability
12
MAY W10483323 MAY W10483323 Contact Us For Availability
13
MAY W10636224 MAY W10636224 Contact Us For Availability
13
MAY 98007116 MAY 98007116 Contact Us For Availability
13
MAY W10577312 MAY W10577312 Contact Us For Availability
13
MAY W10498563 MAY W10498563 Contact Us For Availability
14
MAY 98007225 MAY 98007225 Contact Us For Availability
14
MAY W10278150 MAY W10278150 Contact Us For Availability
14
MAY W10520269 MAY W10520269 Contact Us For Availability
14
BUMPER, DOOR MAY 98004052 Contact Us For Availability
15
MAY W10613666 MAY W10613666 Contact Us For Availability
15
VALVE, SADDLE MAY W10141709 Contact Us For Availability
15
MAY W10545322 MAY W10545322 Contact Us For Availability
15
MAY W10680080 MAY W10680080 Contact Us For Availability
16
SCREW, ANTI TIP MAY 7101P485-60 Contact Us For Availability
16
SCREW MAY 98017517 Contact Us For Availability
16
MAY W10535682 MAY W10535682 Contact Us For Availability
16
MAY W10538600 MAY W10538600 Contact Us For Availability
17
MAY W10579474 MAY W10579474 Contact Us For Availability
17
MAY 98005713 MAY 98005713 Contact Us For Availability
17
MAY W10518026 MAY W10518026 Contact Us For Availability
18
MAY W10515689 MAY W10515689 Contact Us For Availability
18
MAY W10518028 MAY W10518028 Contact Us For Availability
19
MAY 98007462 MAY 98007462 Contact Us For Availability
19
MAY 98005642 MAY 98005642 Contact Us For Availability
19
MAY W10518027 MAY W10518027 Contact Us For Availability
20
ORIFICE, NATURAL (9.5K) (LEFT FRONT, RIGHT FR MAY 98017348 Contact Us For Availability
20
MAY W10554678 MAY W10554678 Contact Us For Availability
21
MAY 98005514 MAY 98005514 Contact Us For Availability
21
MAY W10535778 MAY W10535778 Contact Us For Availability
22
Screw MAY 98006633 Contact Us For Availability
22
MAY W10574737 MAY W10574737 Contact Us For Availability
23
TUBING, THERMOSTAT TO PILOT MAY 98004310 Contact Us For Availability
23
LINER, OVEN (NOT SERVICED) MAY N/P Contact Us For Availability
24
Screw MAY 1180823 Contact Us For Availability
24
MAY W10562043 MAY W10562043 Contact Us For Availability
25
MAY 98007410 MAY 98007410 Contact Us For Availability
25
MAY W10538845 MAY W10538845 Contact Us For Availability
26
MAY W10155906 MAY W10155906 Contact Us For Availability
27
MAY W10503587 MAY W10503587 Contact Us For Availability
28
RETAINER, THERMOCOUPLE MAY 98007109 Contact Us For Availability
29
MAY W10145060 MAY W10145060 Contact Us For Availability
30
MAY W10570943 MAY W10570943 Contact Us For Availability
31
MAY 98007431 MAY 98007431 Contact Us For Availability
32
MAY W10532503 MAY W10532503 Contact Us For Availability
NI
MAY W10537440 MAY W10537440 Contact Us For Availability
NI
WIRE TIE, INSULATION MAY 98004294 Contact Us For Availability
NI
MAY W10537475 MAY W10537475 Contact Us For Availability
NI
MAY W10609560 MAY W10609560 Contact Us For Availability
NI
MAY W10613818 MAY W10613818 Contact Us For Availability
NI
INSULATION (2-1/2`` X 22`` X 120``) MAY 240132 Contact Us For Availability
NI
MAY 242756 MAY 242756 Contact Us For Availability
NI
INSULATION (1-1/2`` X 24`` X 120``) MAY 261514 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BLACK) MAY 285006 Contact Us For Availability
NI
WIRING HARNESS PARTS, CLIP, HARNESS MAY 3196696 Contact Us For Availability
NI
WIRING HARNESS PARTS, TIE, CABLE MAY 3391018 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, BULK (1 QT. BISCUIT/BISQUE) MAY 4392900 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BISCUIT/BISQU MAY 4392901 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE PORCELAIN (2 MAY 511873 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
NI
WIRING HARNESS PARTS, CLAMP, CORD MAY 98005894 Contact Us For Availability
NI
WIRING HARNESS PARTS, CLIP, WIRE MAY 98005896 Contact Us For Availability
NI
MISCELLANEOUS, KIT, DOOR PIN MAY 98012220 Contact Us For Availability
NI
WIRING HARNESS PARTS, BUSHING, SNAP MAY 98015022 Contact Us For Availability
NI
MAY W10645638 MAY W10645638 Contact Us For Availability
× ![]()
