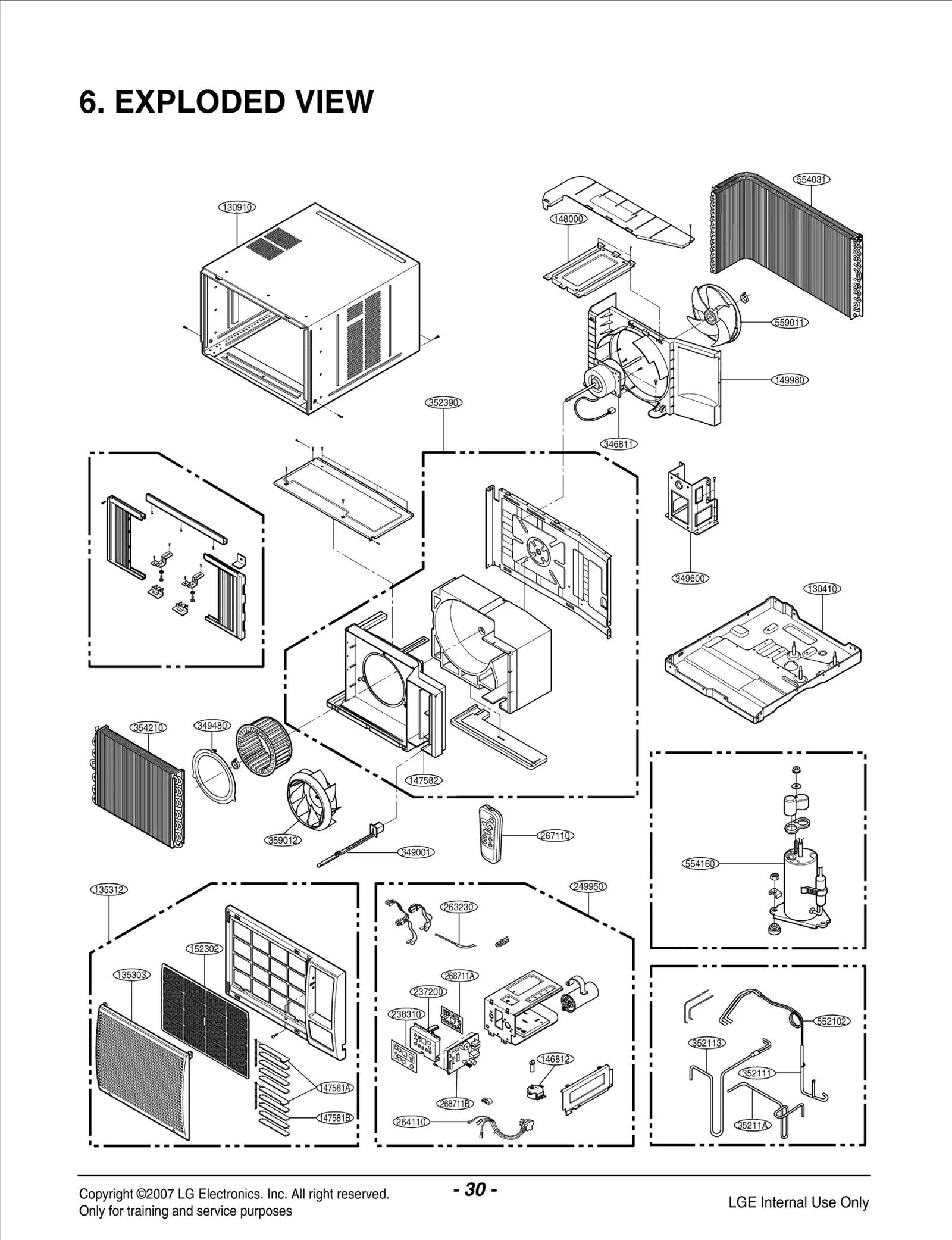

Model LG AGQ18DA Window AC – Common Parts & Diagrams

35211A
TUBE ASSEMBLY,SUCTION SINGLE
TUBE ASSEMBLY,SUCTION SINGLE LGE 5211A20204C Contact Us For Availability
View on Model
130410
Base Assembly,Single
Base Assembly,Single LGE 3041A30002D Contact Us For Availability
View on Model
130910
CABINET ASSY,SINGLE
CABINET ASSY,SINGLE LGE 3091AR6057A Contact Us For Availability
View on Model
135303
Grille Assembly,Inlet
Grille Assembly,Inlet LGE 5236AR1418B Contact Us For Availability
View on Model
135312
Grille Assembly,Front
Grille Assembly,Front LGE 3531AR2832D Contact Us For Availability
View on Model
146812
Motor,AC
Motor,AC LGE 2H01102K Contact Us For Availability
View on Model
147581A
LOUVER,HORIZONTAL
LOUVER,HORIZONTAL LGE 4758AR7264D Contact Us For Availability
View on Model
147581B
LOUVER,HORIZONTAL
LOUVER,HORIZONTAL LGE 4758AR7278D Contact Us For Availability
View on Model
147582
LOUVER
LOUVER LGE 4758AR6157A Contact Us For Availability
View on Model
149980
SHROUD
SHROUD LGE 4998AR1597A Contact Us For Availability
View on Model
152302
FILTER(MECH)
FILTER(MECH) LGE 5230AR1327B Contact Us For Availability
View on Model
238310
ESCUTCHEON
ESCUTCHEON LGE 3831A10002T Contact Us For Availability
View on Model
249950
CONTROL BOX ASSEMBLY,SINGLE
CONTROL BOX ASSEMBLY,SINGLE LGE 4995A20101J Contact Us For Availability
View on Model
263230
THERMISTOR ASSY
THERMISTOR ASSY LGE 6323A20003D Contact Us For Availability
View on Model
264110
POWER CORD ASSY
POWER CORD ASSY LGE 2H00677X Contact Us For Availability
View on Model
267110
REMOTE CONTROLLER ASSY
REMOTE CONTROLLER ASSY LGE 6711A20035H Contact Us For Availability
View on Model
268711A
PWB(PCB) ASSEMBLY,DISPLAY
PWB(PCB) ASSEMBLY,DISPLAY LGE 6871A20195K Contact Us For Availability
View on Model
268711B
PWB(PCB) ASSEMBLY,MAIN(AC)
PWB(PCB) ASSEMBLY,MAIN(AC) LGE 6871A20188N Contact Us For Availability
View on Model
346811
MOTOR ASSY,AC
MOTOR ASSY,AC LGE 4681AR6033K Contact Us For Availability
View on Model
349001
Damper,Vent
Damper,Vent LGE 4900AR7265B Contact Us For Availability
View on Model
349480
ORIFICE
ORIFICE LGE 4948A30006A Contact Us For Availability
View on Model
349600
MOUNT,MOTOR
MOUNT,MOTOR LGE 4960AR1596A Contact Us For Availability
View on Model
352113
TUBE ASSY,DISCHARGE (OUTDOOR)
TUBE ASSY,DISCHARGE (OUTDOOR) LGE 5211A30066K Contact Us For Availability
View on Model
352390
AIR GUIDE ASSY
AIR GUIDE ASSY LGE 5239A20001F Contact Us For Availability
View on Model
354210
EVAPORATOR ASSEMBLY,FIRST
EVAPORATOR ASSEMBLY,FIRST LGE 5421A20059F Contact Us For Availability
View on Model
354210
Evaporator Assembly,First
Evaporator Assembly,First LGE 5421A90048A Contact Us For Availability
View on Model
552102
TUBE ASSY,CAPILLARY
TUBE ASSY,CAPILLARY LGE 5211A20020P Contact Us For Availability
View on Model
554031
CONDENSER ASSY,BEND
CONDENSER ASSY,BEND LGE 5403A20004F Contact Us For Availability
View on Model
554160
COMPRESSOR SET
COMPRESSOR SET LGE 2520UMNK2BA Contact Us For Availability
View on Model
559011
FAN
FAN LGE 5900AR1508A Contact Us For Availability
View on Model
