Model Maytag AGG222VDW0 GAS RANGE – Common Parts & Diagrams

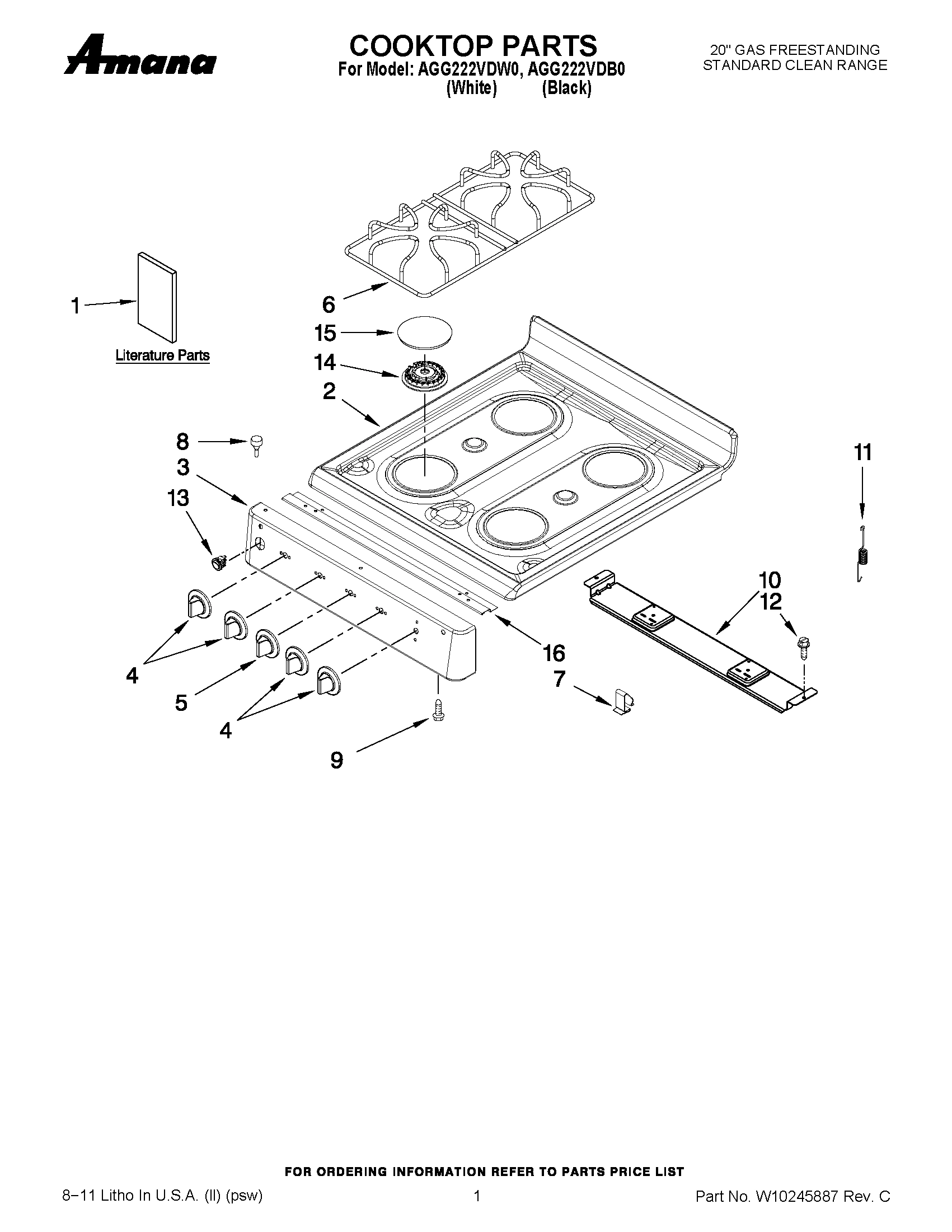

01 - COOKTOP PARTS

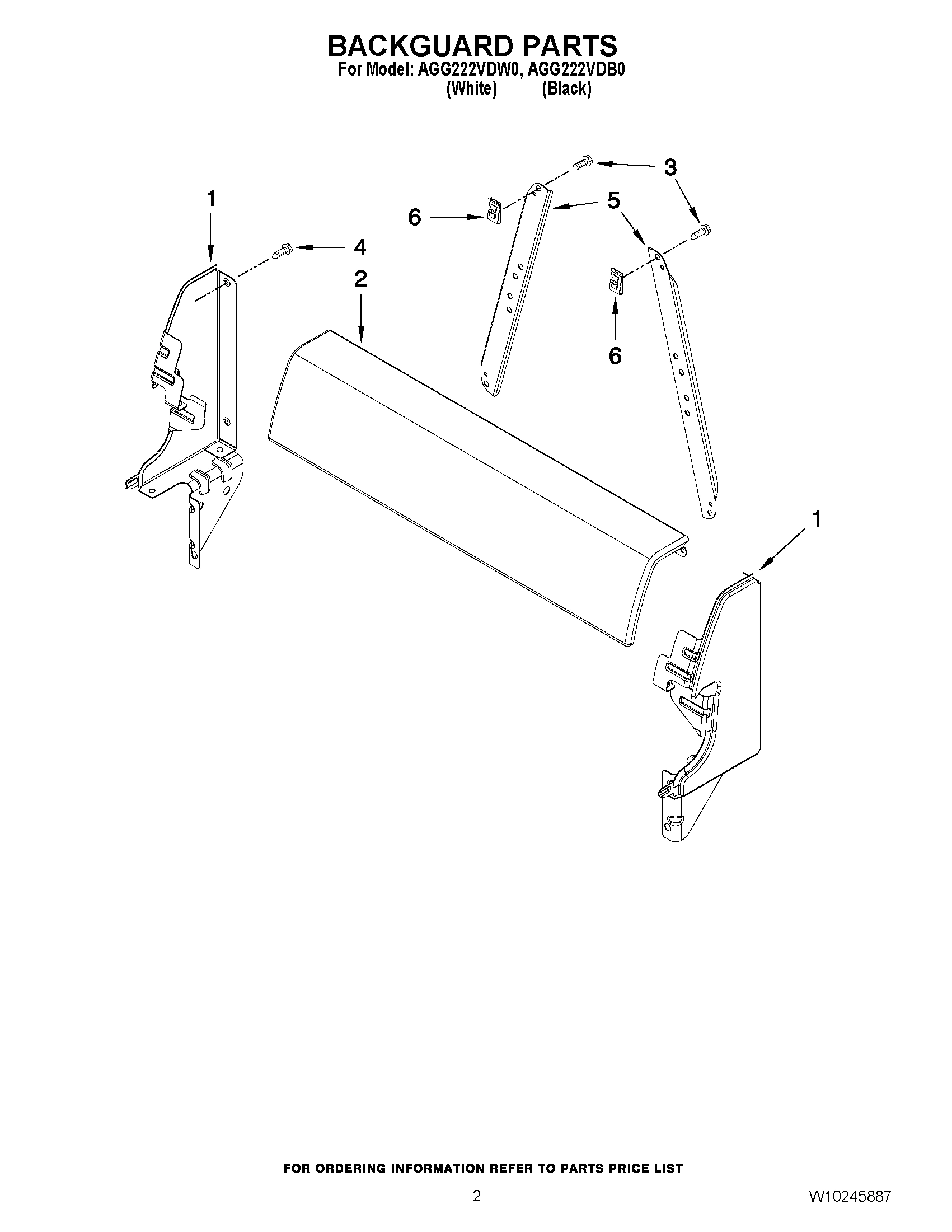

02 - BACKGUARD PARTS

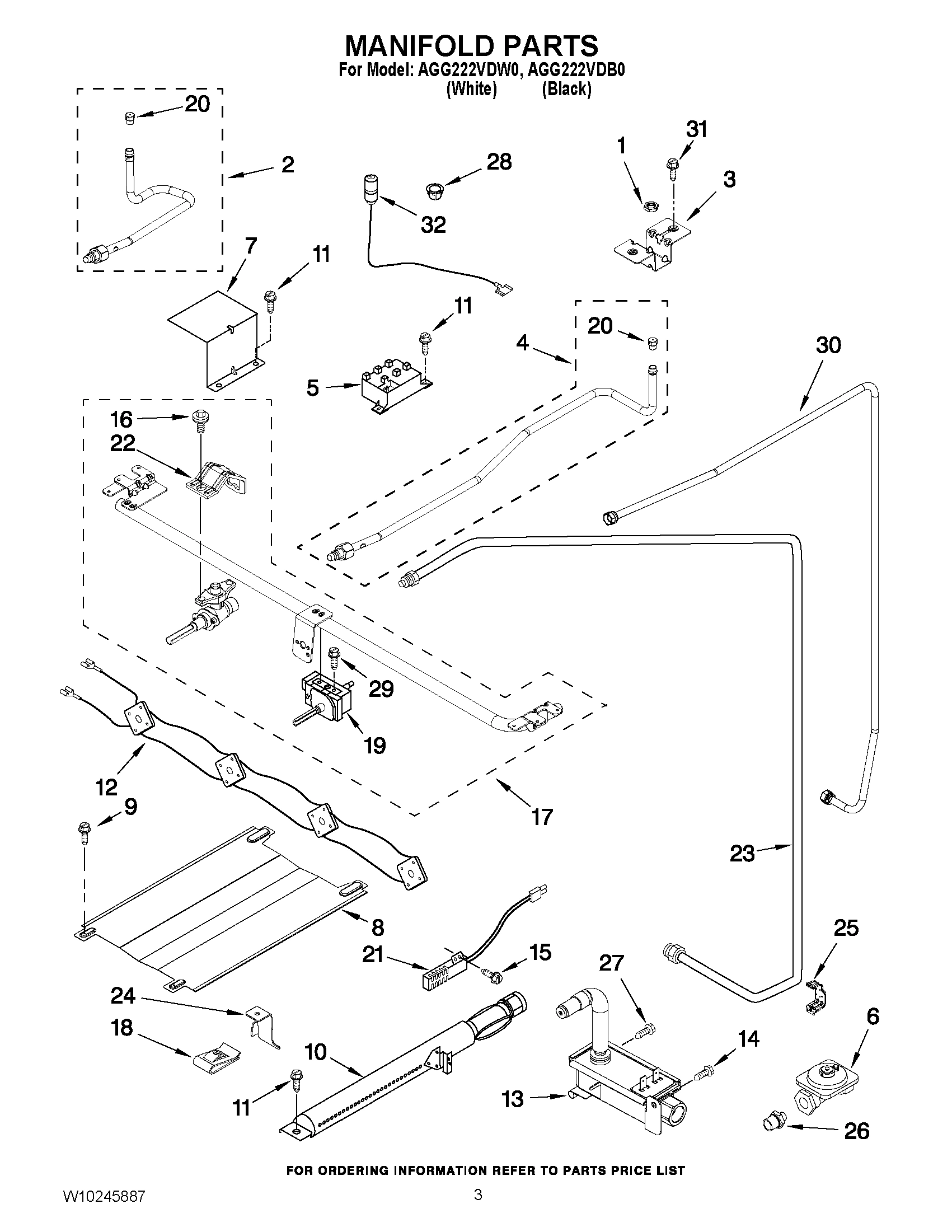

03 - MANIFOLD PARTS

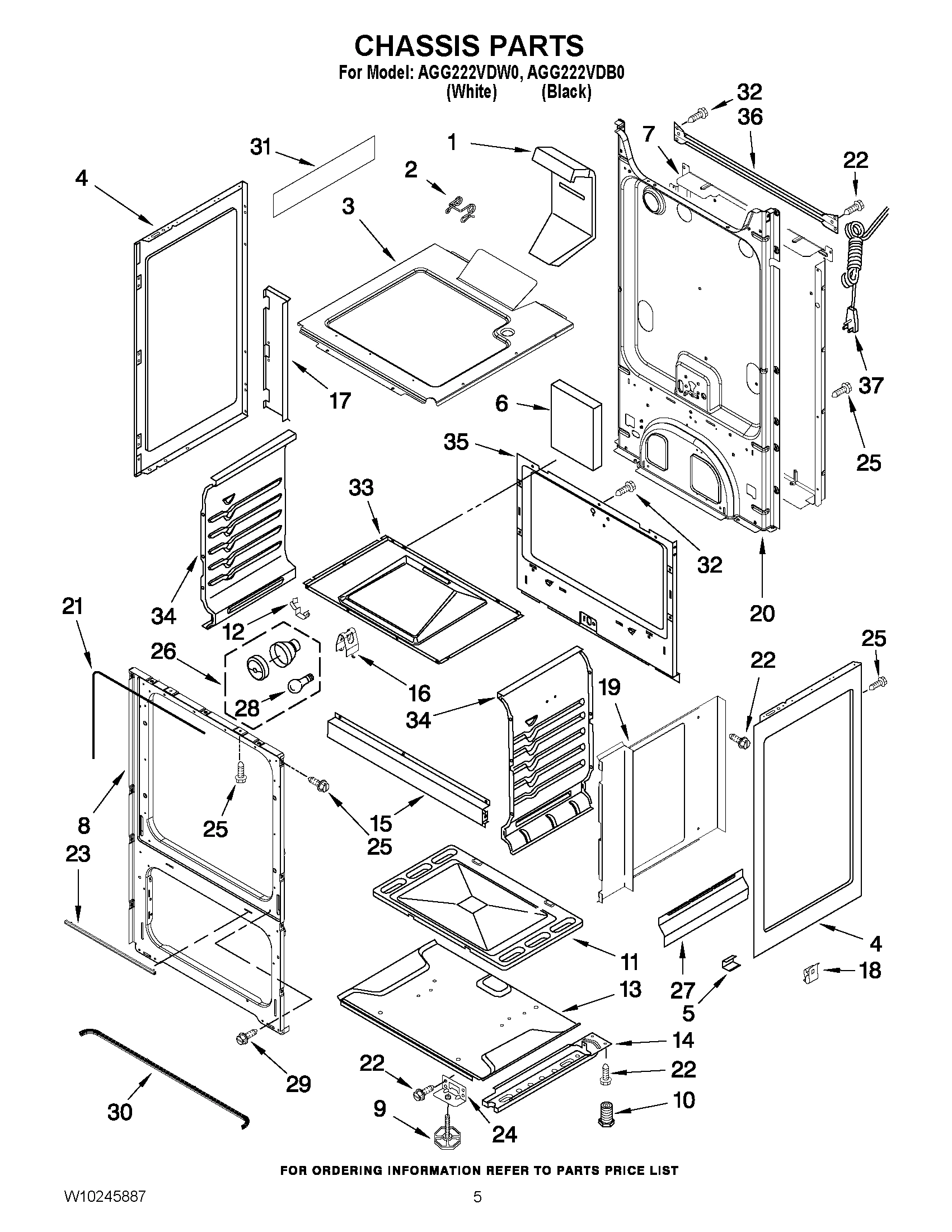

04 - CHASSIS PARTS

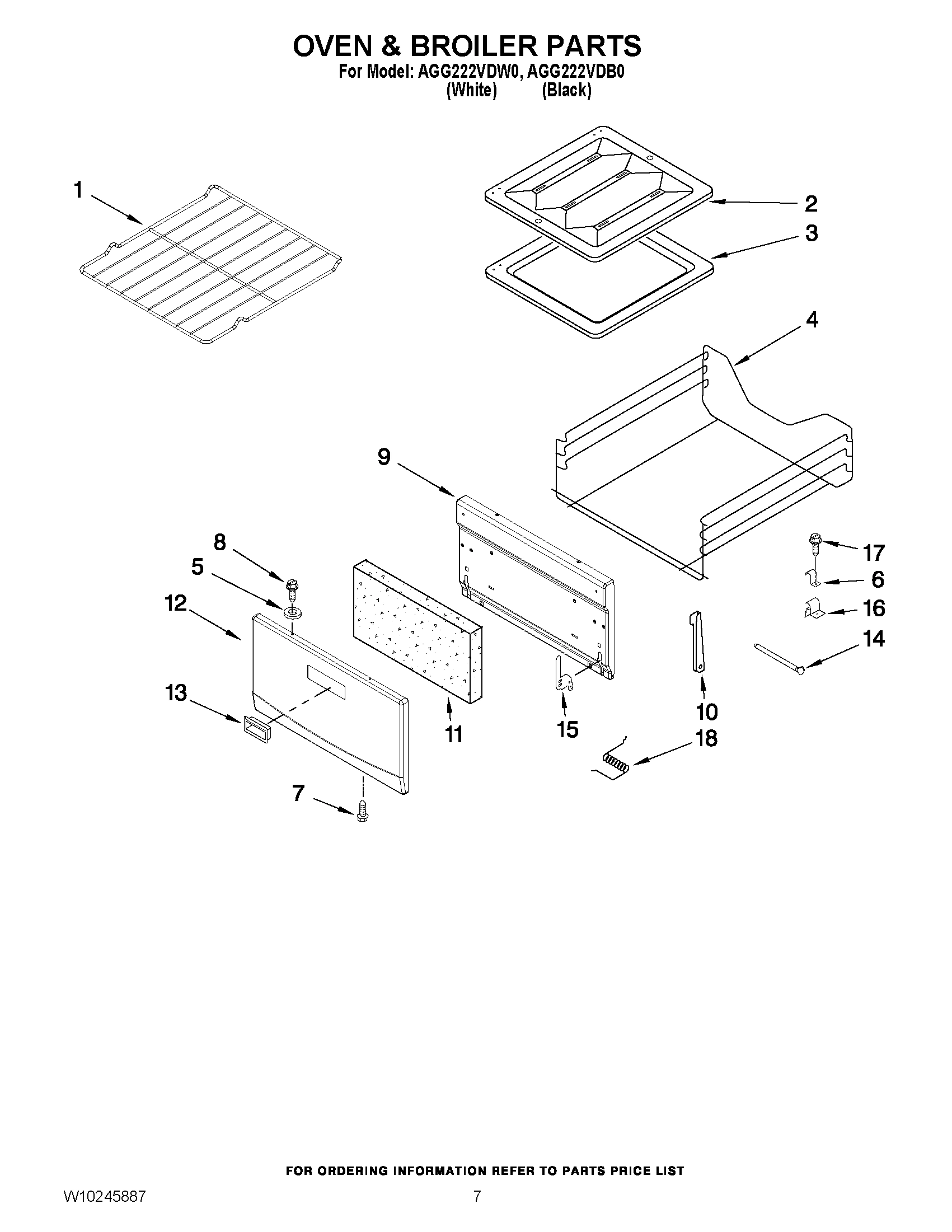

05 - OVEN & BROILER PARTS

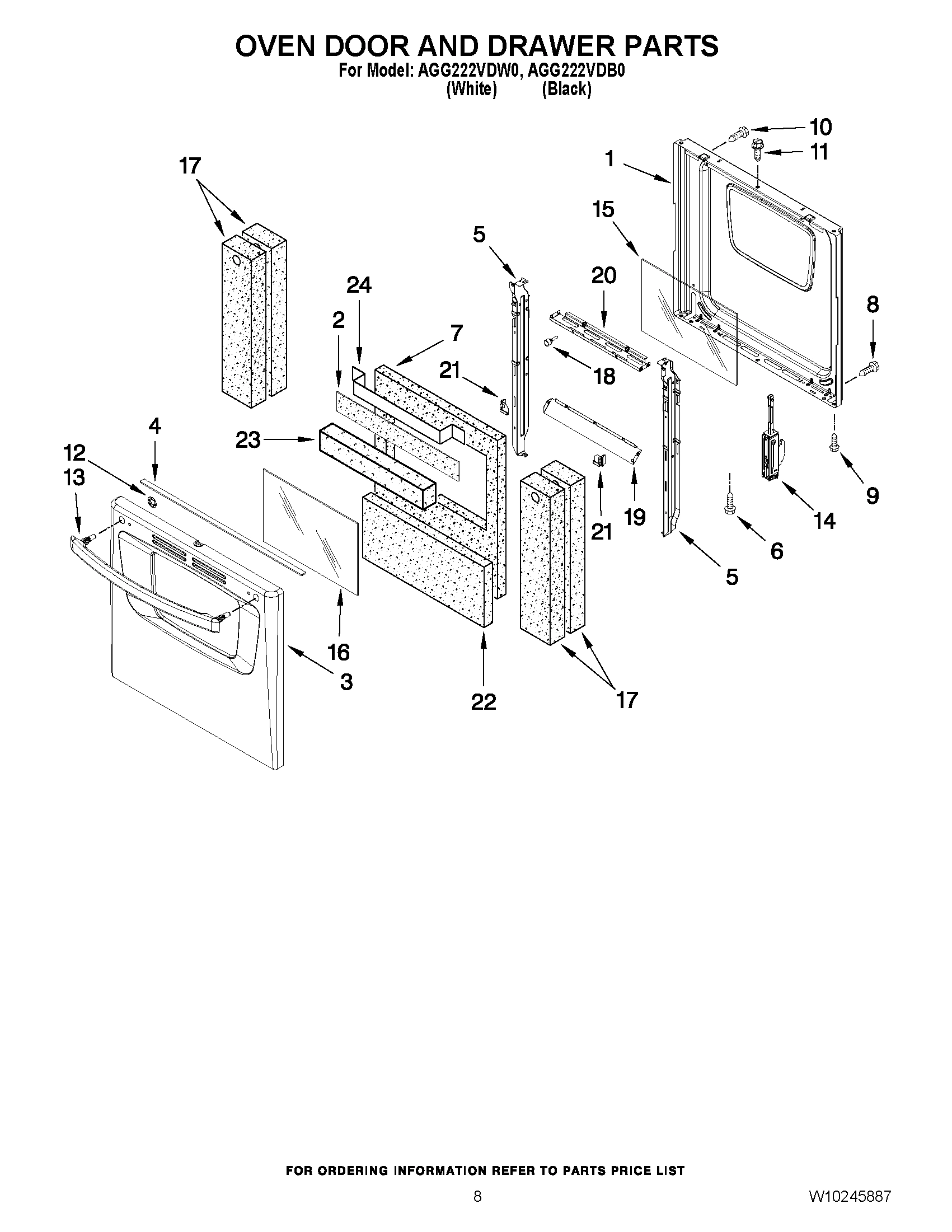

06 - OVEN DOOR AND DRAWER PARTS
07 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag AGG222VDW0 GAS RANGE
1
MAY 98007032 MAY 98007032 Contact Us For Availability
1
MAY 98007130 MAY 98007130 Contact Us For Availability
1
Installation Instr (Template) MAY 98015589 Contact Us For Availability
1
MAY W10173755 MAY W10173755 Contact Us For Availability
1
MAY W10181330 MAY W10181330 Contact Us For Availability
1
ENDCAP (LH WHITE) MAY W10144828 Contact Us For Availability
1
ENDCAP (RH WHITE) MAY W10144829 Contact Us For Availability
1
ENDCAP (LH BLACK) MAY W10212836 Contact Us For Availability
1
ENDCAP (RH BLACK) MAY W10212837 Contact Us For Availability
1
NUT MAY 98017323 Contact Us For Availability
1
FLUE BOX MAY W10116396 Contact Us For Availability
1
MAY 98016942 MAY 98016942 Contact Us For Availability
1
MAY W10222941 MAY W10222941 Contact Us For Availability
2
MAY W10179560 MAY W10179560 Contact Us For Availability
2
MAY W10180088 MAY W10180088 Contact Us For Availability
2
PANEL, BACKGUARD (WHITE) MAY W10208451 Contact Us For Availability
2
MAY W10208572 MAY W10208572 Contact Us For Availability
2
VENTURI, FRONT MAY 98017582 Contact Us For Availability
2
Clip, Flue MAY 98013690 Contact Us For Availability
2
MAY 98003480 MAY 98003480 Contact Us For Availability
2
RETAINER, INSULATION MAY W10157839 Contact Us For Availability
3
MAY W10225327 MAY W10225327 Contact Us For Availability
3
MAY W10322512 MAY W10322512 Contact Us For Availability
3
BRKT., VENTURI MAY W10122103 Contact Us For Availability
3
MAY W10168214 MAY W10168214 Contact Us For Availability
3
MAY 98016005 MAY 98016005 Contact Us For Availability
3
MAY W10223098 MAY W10223098 Contact Us For Availability
3
MAY W10223099 MAY W10223099 Contact Us For Availability
4
KNOB, BURNER (BLACK) MAY 98006100 Contact Us For Availability
4
KNOB, BURNER (WHITE) MAY 98006102 Contact Us For Availability
4
Screw MAY 98015526 Contact Us For Availability
4
VENTURI, REAR MAY 98017359 Contact Us For Availability
4
MAY 98010059 MAY 98010059 Contact Us For Availability
4
PANEL, SIDE (WHITE) MAY 98010061 Contact Us For Availability
4
MAY 98016570 MAY 98016570 Contact Us For Availability
4
MAY W10219461 MAY W10219461 Contact Us For Availability
5
KNOB, THERMOSTAT (WHITE) MAY 98008321 Contact Us For Availability
5
MAY W10145101 MAY W10145101 Contact Us For Availability
5
MAY 6610341 MAY 6610341 Contact Us For Availability
5
Clip, Oven Bottom MAY 98005502 Contact Us For Availability
5
WASHER MAY W10216805 Contact Us For Availability
5
MAY 98004564 MAY 98004564 Contact Us For Availability
5
MAY 98004629 MAY 98004629 Contact Us For Availability
6
SET, GRATE BURNER MAY W10180089 Contact Us For Availability
6
MAY W10177394 MAY W10177394 Contact Us For Availability
6
COUNTER WEIGHT MAY W10185442 Contact Us For Availability
6
GUIDE, RACK MAY 98004715 Contact Us For Availability
6
MAY 98004993 MAY 98004993 Contact Us For Availability
7
MAY 98010823 MAY 98010823 Contact Us For Availability
7
MAY W10165402 MAY W10165402 Contact Us For Availability
7
MAY W10212696 MAY W10212696 Contact Us For Availability
8
MAY W10207167 MAY W10207167 Contact Us For Availability
8
MAY W10212101 MAY W10212101 Contact Us For Availability
8
MAY W10212614 MAY W10212614 Contact Us For Availability
8
MAY 98008544 MAY 98008544 Contact Us For Availability
8
MAY 98008699 MAY 98008699 Contact Us For Availability
9
SCREW MAY 98005000 Contact Us For Availability
9
FOOT, FRONT MAY W10153610 Contact Us For Availability
9
MAY 98004219 MAY 98004219 Contact Us For Availability
9
MAY 98004700 MAY 98004700 Contact Us For Availability
10
MAY 98012138 MAY 98012138 Contact Us For Availability
10
FOOT, REAR MAY W10058460 Contact Us For Availability
10
MAY 98003791 MAY 98003791 Contact Us For Availability
10
MAY 8533842 MAY 8533842 Contact Us For Availability
11
SPRING, COOKTOP MAY 98004722 Contact Us For Availability
11
MAY 98004450 MAY 98004450 Contact Us For Availability
11
MAY W10137224 MAY W10137224 Contact Us For Availability
11
MAY 98006727 MAY 98006727 Contact Us For Availability
12
MAY 98017156B MAY 98017156B Contact Us For Availability
12
PANEL, DOOR (WHITE) MAY 98017156W Contact Us For Availability
12
MAY 98004650 MAY 98004650 Contact Us For Availability
13
SWITCH, ROCKER (BLACK) MAY 98011569 Contact Us For Availability
13
SWITCH, ROCKER (WHITE) MAY 98011571 Contact Us For Availability
13
MAY W10205816 MAY W10205816 Contact Us For Availability
13
MAY 98003945 MAY 98003945 Contact Us For Availability
13
Handle, Brlr Door (White) MAY 98008486 Contact Us For Availability
13
MAY 98015643 MAY 98015643 Contact Us For Availability
13
MAY 98004946 MAY 98004946 Contact Us For Availability
13
HANDLE, OVEN DOOR (WHITE) MAY 98004947 Contact Us For Availability
14
BURNER MAY 98017537 Contact Us For Availability
14
MAY 98003830 MAY 98003830 Contact Us For Availability
14
PIN, HINGE MAY 98004053 Contact Us For Availability
14
MAY 98017873 MAY 98017873 Contact Us For Availability
15
SUPPORT, BURNER MAY 98012912 Contact Us For Availability
15
MAY 98017461 MAY 98017461 Contact Us For Availability
15
MAY 98005659 MAY 98005659 Contact Us For Availability
15
MAY 98003790 MAY 98003790 Contact Us For Availability
15
MAY W10201296 MAY W10201296 Contact Us For Availability
16
MAY W10222744 MAY W10222744 Contact Us For Availability
16
RETAINER, THRMOCPL MAY 98005642 Contact Us For Availability
16
MAY 98008341 MAY 98008341 Contact Us For Availability
16
MAY W10168624 MAY W10168624 Contact Us For Availability
17
Screw MAY 98006633 Contact Us For Availability
17
ASSEMBLY, MANIFOLD MAY W10180270 Contact Us For Availability
17
CHANNEL SHIELD MAY 98006715 Contact Us For Availability
17
INSULATION MAY W10212526 Contact Us For Availability
18
U-Nut MAY 98009179 Contact Us For Availability
18
MAY 98009248 MAY 98009248 Contact Us For Availability
18
MAY 98009249 MAY 98009249 Contact Us For Availability
18
MAY 98004979 MAY 98004979 Contact Us For Availability
19
MAY W10159016 MAY W10159016 Contact Us For Availability
19
BAFFLE, SIDE MAY W10121634 Contact Us For Availability
19
MAY 98012903 MAY 98012903 Contact Us For Availability
20
ORIFICE MAY 98017348 Contact Us For Availability
20
MAY 98003944 MAY 98003944 Contact Us For Availability
20
Insul., Retainer (Top) MAY 98004981 Contact Us For Availability
21
Igniter, Oven Oven Pilot) MAY 98005652 Contact Us For Availability
21
MAY W10212528 MAY W10212528 Contact Us For Availability
21
Clip, Glass (Retainer, LH) MAY 98004952 Contact Us For Availability
21
Clip, Glass (Retainer, RH) MAY 98004953 Contact Us For Availability
22
BRACKET, VALVE MAY W10180267 Contact Us For Availability
22
MAY W10212525 MAY W10212525 Contact Us For Availability
23
MAY W10177392 MAY W10177392 Contact Us For Availability
23
MAY W10209302 MAY W10209302 Contact Us For Availability
23
MAY W10222964 MAY W10222964 Contact Us For Availability
24
MAY 98013314 MAY 98013314 Contact Us For Availability
24
Base, Foot MAY 98007126 Contact Us For Availability
24
MAY W10221498 MAY W10221498 Contact Us For Availability
25
MAY 98006632 MAY 98006632 Contact Us For Availability
25
MAY 98007410 MAY 98007410 Contact Us For Availability
26
FITTING 3/8-9/16 MAY 98007431 Contact Us For Availability
26
SOCKET, LIGHT BULB MAY W10114530 Contact Us For Availability
27
MAY 98013634 MAY 98013634 Contact Us For Availability
27
Shield, Lower MAY 98007191 Contact Us For Availability
28
MAY 98015032 MAY 98015032 Contact Us For Availability
28
LIGHT BULB MAY 98004498 Contact Us For Availability
29
BOLT, T-STAT MTG MAY 98005663 Contact Us For Availability
29
SCREW MAY 98008545 Contact Us For Availability
30
Tubing, Inlet MAY 98017171 Contact Us For Availability
30
MAY W10170594 MAY W10170594 Contact Us For Availability
31
FOIL, SIDE MAY 98015346 Contact Us For Availability
32
Igniter, Top (RF, RR & LF) MAY W10209656 Contact Us For Availability
32
MAY W10209657 MAY W10209657 Contact Us For Availability
32
Screw MAY 98006634 Contact Us For Availability
33
MAY 98004448 MAY 98004448 Contact Us For Availability
34
Side, Oven (Left Hand) MAY 98004451 Contact Us For Availability
34
Side, Oven (Right Hand) MAY 98004452 Contact Us For Availability
35
MAY W10180590 MAY W10180590 Contact Us For Availability
36
MAY 98010054 MAY 98010054 Contact Us For Availability
37
MAY W10193475 MAY W10193475 Contact Us For Availability
NI
MAY W10173884 MAY W10173884 Contact Us For Availability
NI
MAY W10207842 MAY W10207842 Contact Us For Availability
NI
MAY 98011072 MAY 98011072 Contact Us For Availability
NI
MAY W10137234 MAY W10137234 Contact Us For Availability
NI
MAY W10206735 MAY W10206735 Contact Us For Availability
NI
MAY W10207891 MAY W10207891 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. PRIMER (WHITE MAY 206922 Contact Us For Availability
NI
MAY 240132 MAY 240132 Contact Us For Availability
NI
REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 MAY 242756 Contact Us For Availability
NI
MAY 261514 MAY 261514 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (SUPERIOR B MAY 285006 Contact Us For Availability
NI
Clip, Harness MAY 3196696 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE PORCELAIN (2 MAY 511873 Contact Us For Availability
NI
WIRE, GROUND (CKTP TO CHASSIS) MAY 6610473 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
TIE, WIRE MAY 98004294 Contact Us For Availability
NI
Pin Kit-Dr Removal MAY 98012220 Contact Us For Availability
NI
BUSHING, SNAP MAY 98015022 Contact Us For Availability
NI
MAY 98017833 MAY 98017833 Contact Us For Availability
NI
MAY W10173886 MAY W10173886 Contact Us For Availability
× ![]()
