Model Maytag AGG200AAW0 GAS RANGE – Common Parts & Diagrams

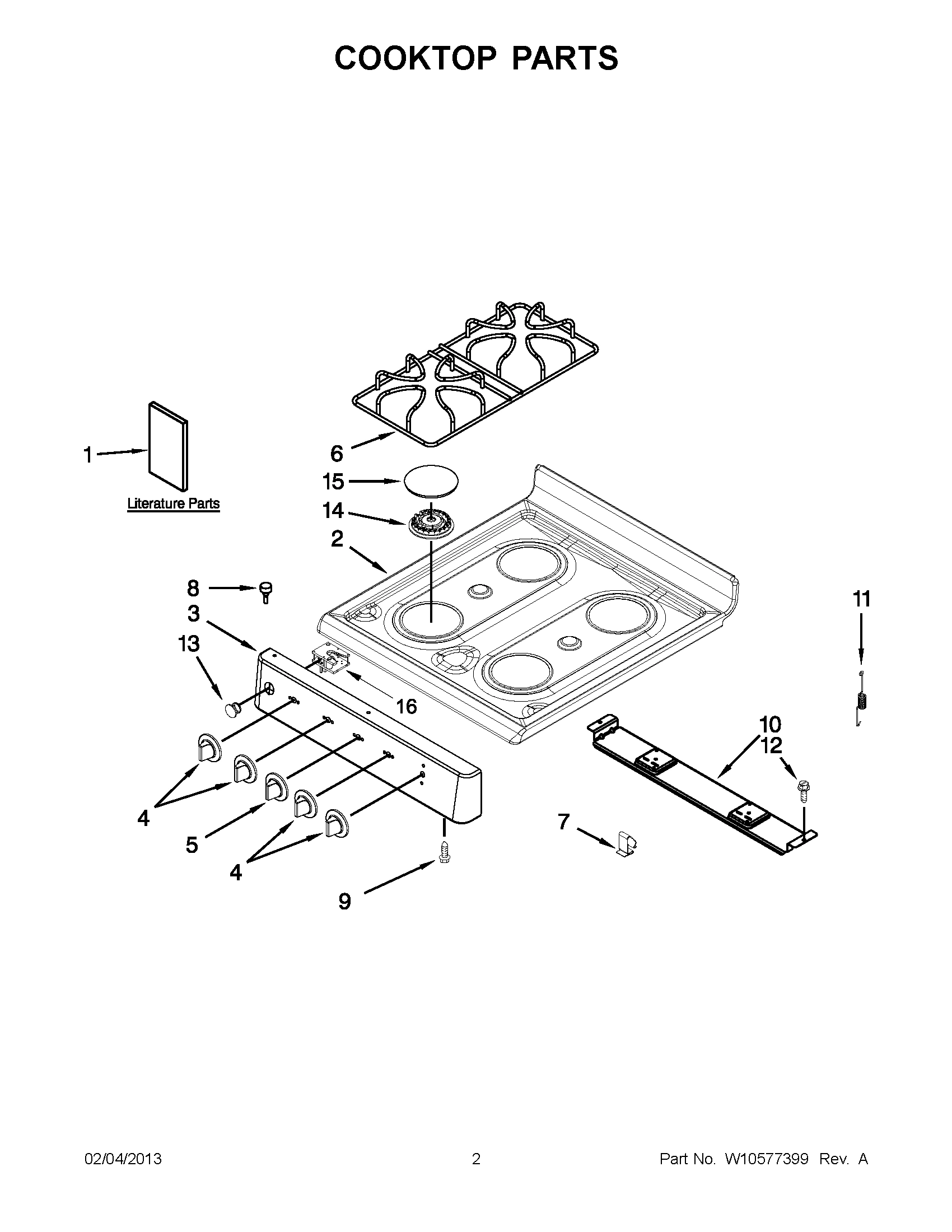

01 - COOKTOP PARTS

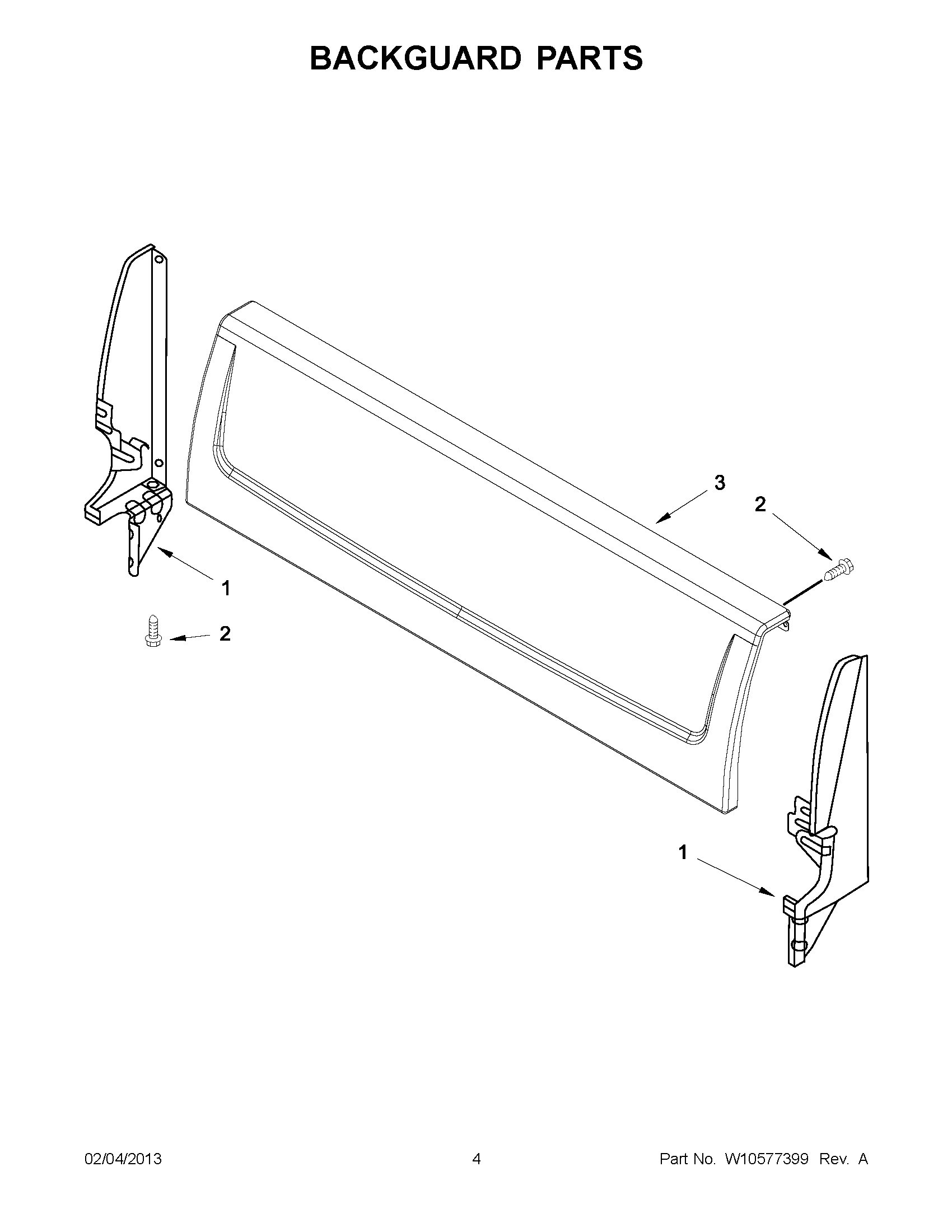

02 - BACKGUARD PARTS

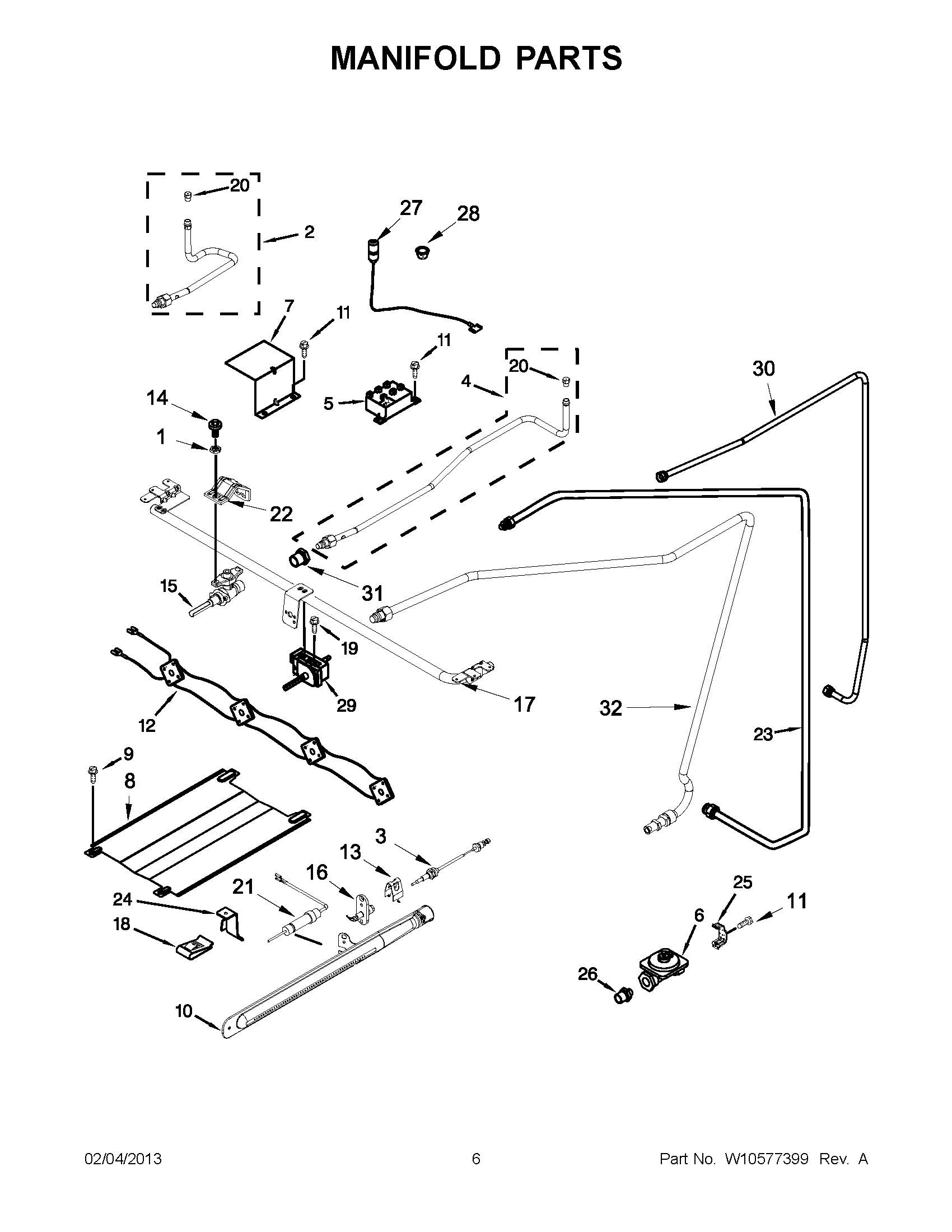

03 - MANIFOLD PARTS

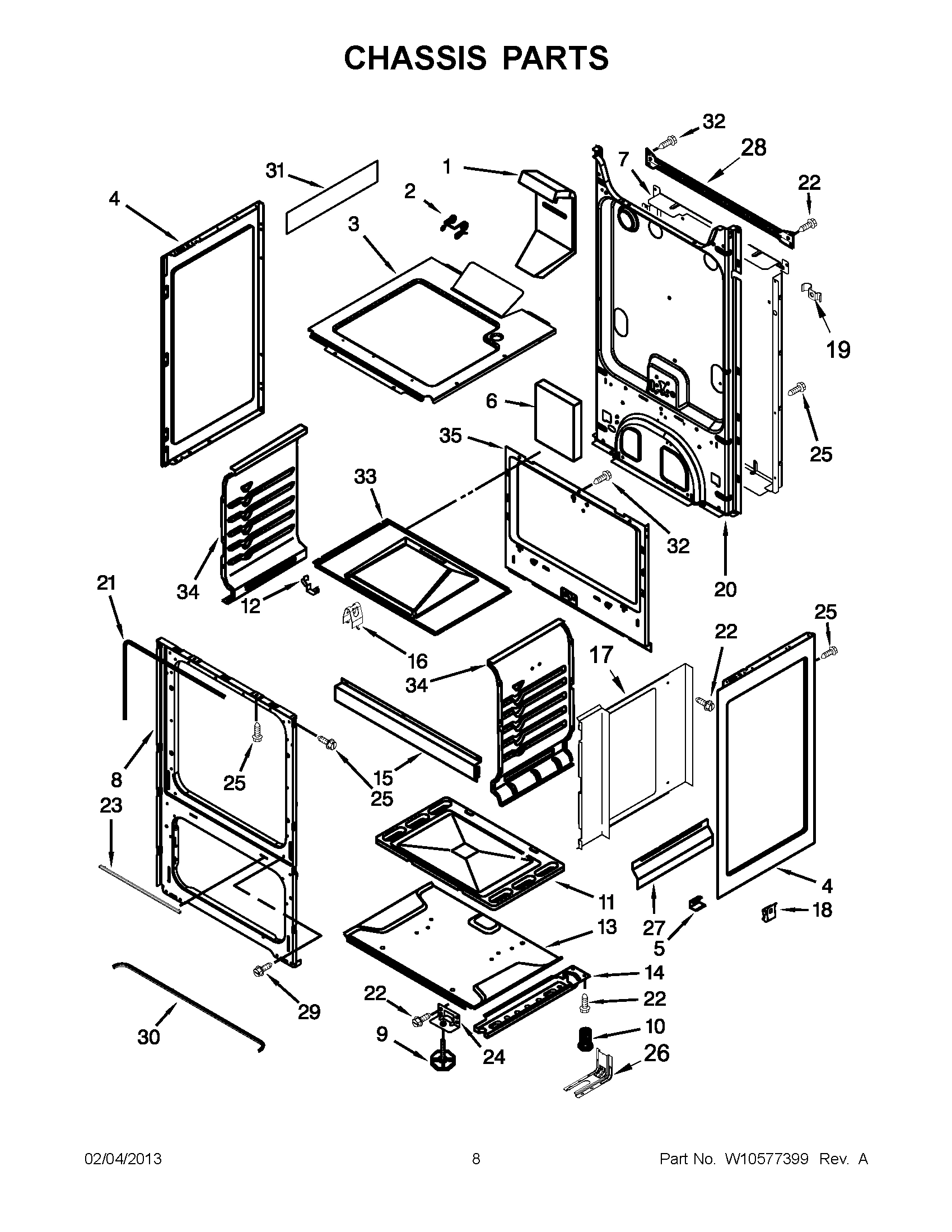

04 - CHASSIS PARTS

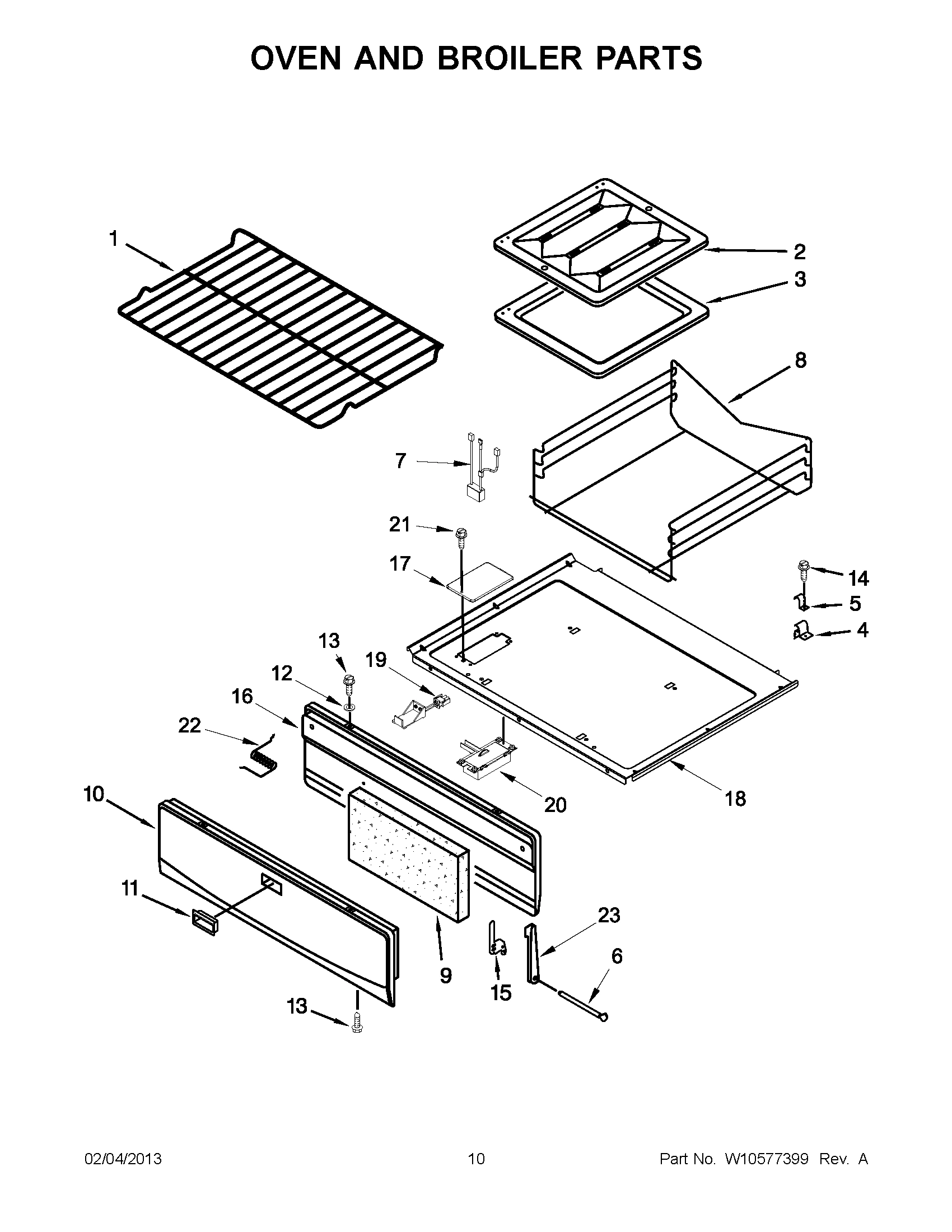

05 - OVEN AND BROILER PARTS

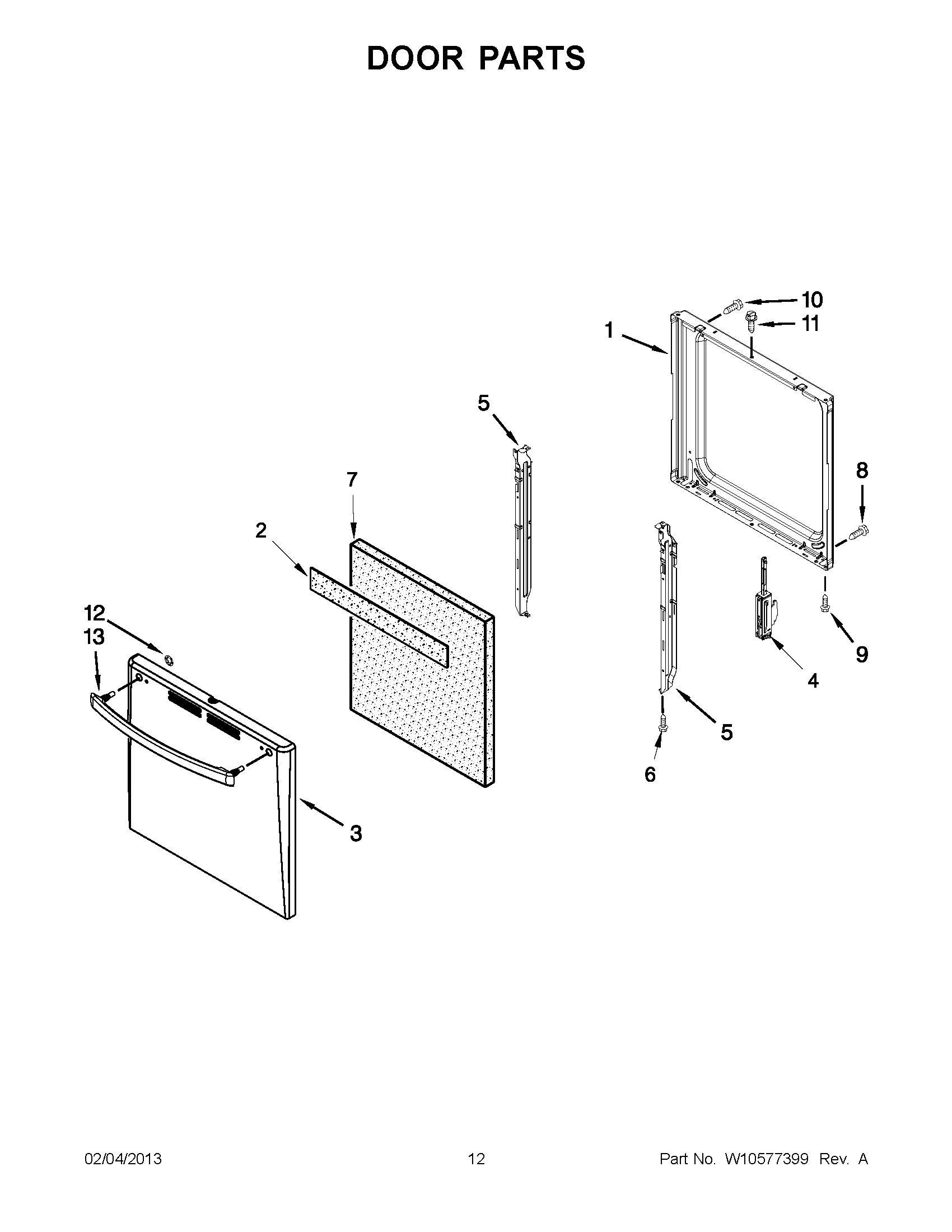

06 - DOOR PARTS
07 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag AGG200AAW0 GAS RANGE
1
TIPS, SAFE COOKING (ENGLISH) MAY 98007130 Contact Us For Availability
1
MAY W10531342 MAY W10531342 Contact Us For Availability
1
MAY W10531343 MAY W10531343 Contact Us For Availability
1
MAY W10539409 MAY W10539409 Contact Us For Availability
1
MAY W10552353 MAY W10552353 Contact Us For Availability
1
ENDCAP (WHITE LEFT HAND) MAY W10144828 Contact Us For Availability
1
ENDCAP (WHITE RIGHT HAND) MAY W10144829 Contact Us For Availability
1
NUT MAY 98017323 Contact Us For Availability
1
BOX, FLUE MAY W10116396 Contact Us For Availability
1
MAY 98016942 MAY 98016942 Contact Us For Availability
1
MAY 98010414 MAY 98010414 Contact Us For Availability
2
MAY W10179560 MAY W10179560 Contact Us For Availability
2
Screw MAY 98015526 Contact Us For Availability
2
ASSEMBLY, TUBING (LEFT FRONT) MAY 98017582 Contact Us For Availability
2
ASSEMBLY, TUBING (RIGHT FRONT) MAY W10110343 Contact Us For Availability
2
MAY 98013690 MAY 98013690 Contact Us For Availability
2
MAY 98003480 MAY 98003480 Contact Us For Availability
2
RETAINER, INSULATION MAY W10157839 Contact Us For Availability
3
MAY W10534699 MAY W10534699 Contact Us For Availability
3
PANEL, BACKGUARD (WHITE) MAY W10208451 Contact Us For Availability
3
MAY W10155906 MAY W10155906 Contact Us For Availability
3
MAY W10168214 MAY W10168214 Contact Us For Availability
3
MAY 98016005 MAY 98016005 Contact Us For Availability
3
PANEL, OVEN DOOR MAY W10209296 Contact Us For Availability
4
MAY W10483313 MAY W10483313 Contact Us For Availability
4
ASSEMBLY, TUBING (RIGHT REAR) MAY 98017359 Contact Us For Availability
4
ASSEMBLY, TUBING (LEFT REAR) MAY W10110342 Contact Us For Availability
4
PANEL, SIDE (WHITE) MAY 98010061 Contact Us For Availability
4
GUIDE, RACK MAY 98004715 Contact Us For Availability
4
MAY 98017873 MAY 98017873 Contact Us For Availability
5
MAY W10561694 MAY W10561694 Contact Us For Availability
5
MAY W10518414 MAY W10518414 Contact Us For Availability
5
MAY 98005502 MAY 98005502 Contact Us For Availability
5
MAY 98008341 MAY 98008341 Contact Us For Availability
5
RETAINER (RIGHT HAND) MAY 98004564 Contact Us For Availability
5
RETAINER (LEFT HAND) MAY 98004629 Contact Us For Availability
6
GRATE, SET (BLACK) MAY W10180089 Contact Us For Availability
6
MAY 98007462 MAY 98007462 Contact Us For Availability
6
COUNTER WEIGHT MAY W10185442 Contact Us For Availability
6
PIN, HINGE MAY 98004053 Contact Us For Availability
6
MAY 98004993 MAY 98004993 Contact Us For Availability
7
MAY 98010823 MAY 98010823 Contact Us For Availability
7
MAY W10165402 MAY W10165402 Contact Us For Availability
7
MAY W10538600 MAY W10538600 Contact Us For Availability
7
MAY W10208853 MAY W10208853 Contact Us For Availability
8
MAY W10207167 MAY W10207167 Contact Us For Availability
8
MAY W10566543 MAY W10566543 Contact Us For Availability
8
MAY W10212614 MAY W10212614 Contact Us For Availability
8
MAY 98016570 MAY 98016570 Contact Us For Availability
8
MAY 98008699 MAY 98008699 Contact Us For Availability
9
SCREW MAY 98005000 Contact Us For Availability
9
FOOT, FRONT MAY W10153610 Contact Us For Availability
9
MAY W10137224 MAY W10137224 Contact Us For Availability
9
MAY 98004219 MAY 98004219 Contact Us For Availability
10
MAY W10517877 MAY W10517877 Contact Us For Availability
10
MAY W10058460 MAY W10058460 Contact Us For Availability
10
PANEL, DRAWER (WHITE) MAY 98017156W Contact Us For Availability
10
MAY 8533842 MAY 8533842 Contact Us For Availability
11
MAY 98004722 MAY 98004722 Contact Us For Availability
11
MAY W10518044 MAY W10518044 Contact Us For Availability
11
HANDLE, BROILER DRAWER (WHITE) MAY 98008486 Contact Us For Availability
11
WHITE MAY 98006727 Contact Us For Availability
12
MAY W10518030 MAY W10518030 Contact Us For Availability
12
WASHER MAY W10216805 Contact Us For Availability
12
MAY 98004650 MAY 98004650 Contact Us For Availability
13
MAY W10533468 MAY W10533468 Contact Us For Availability
13
RETAINER, THERMOCOUPLE MAY 98007109 Contact Us For Availability
13
MAY 98003945 MAY 98003945 Contact Us For Availability
13
HANDLE, OVEN DOOR (WHITE) MAY 98004947 Contact Us For Availability
14
Screw MAY 98006633 Contact Us For Availability
14
MAY W10243396 MAY W10243396 Contact Us For Availability
14
MAY 98003830 MAY 98003830 Contact Us For Availability
15
SUPPORT, OVEN BURNER MAY 98012912 Contact Us For Availability
15
Cap, Burner (Black) MAY 98017461 Contact Us For Availability
15
VALVE, SADDLE MAY W10141709 Contact Us For Availability
15
MAY 98003790 MAY 98003790 Contact Us For Availability
16
LENS, INDICATOR MAY W10179657 Contact Us For Availability
16
MAY W10085400 MAY W10085400 Contact Us For Availability
16
MAY 98005642 MAY 98005642 Contact Us For Availability
16
MAY 98004700 MAY 98004700 Contact Us For Availability
17
MAY W10518322 MAY W10518322 Contact Us For Availability
17
MAY 98017387 MAY 98017387 Contact Us For Availability
17
MAY W10518027 MAY W10518027 Contact Us For Availability
18
U-Nut MAY 98009179 Contact Us For Availability
18
MAY W10517863 MAY W10517863 Contact Us For Availability
19
SCREW MAY 98005663 Contact Us For Availability
19
MAY 98005026 MAY 98005026 Contact Us For Availability
19
MAY W10518028 MAY W10518028 Contact Us For Availability
20
ORIFICE, NATURAL (9.5K) (RIGHT REAR, LEFT FRO MAY 98017348 Contact Us For Availability
20
ORIFICE, NATURAL (7.5K) (RIGHT FRONT, LEFT RE MAY 98017587 Contact Us For Availability
20
MAY 98003944 MAY 98003944 Contact Us For Availability
20
MAY W10518026 MAY W10518026 Contact Us For Availability
21
MAY W10146346 MAY W10146346 Contact Us For Availability
21
MAY W10525210 MAY W10525210 Contact Us For Availability
21
MAY W10205601 MAY W10205601 Contact Us For Availability
22
BRKT., VENTURI MAY W10122103 Contact Us For Availability
22
SPRING, HINGE (RIGHT HAND) MAY 98009248 Contact Us For Availability
22
SPRING, HINGE (LEFT HAND) MAY 98009249 Contact Us For Availability
23
TUBING, THERMOSTAT TO PILOT MAY 98004310 Contact Us For Availability
23
MAY W10219461 MAY W10219461 Contact Us For Availability
23
MAY 98003791 MAY 98003791 Contact Us For Availability
24
MAY 98013314 MAY 98013314 Contact Us For Availability
24
Base, Foot MAY 98007126 Contact Us For Availability
25
MAY 98006632 MAY 98006632 Contact Us For Availability
25
MAY 98007410 MAY 98007410 Contact Us For Availability
26
MAY 98007431 MAY 98007431 Contact Us For Availability
27
IGNITER, TOP (BLACK) MAY W10209656 Contact Us For Availability
27
IGNITER, TOP (NATURAL) MAY W10209657 Contact Us For Availability
27
MAY 98007191 MAY 98007191 Contact Us For Availability
28
MAY W10278150 MAY W10278150 Contact Us For Availability
28
MAY 98010054 MAY 98010054 Contact Us For Availability
29
MAY W10503587 MAY W10503587 Contact Us For Availability
29
SCREW, TRIM MAY 98008545 Contact Us For Availability
30
TUBING (MANIFOLD TO REGULATOR) MAY 98017171 Contact Us For Availability
30
MAY W10170594 MAY W10170594 Contact Us For Availability
31
MAY 98005514 MAY 98005514 Contact Us For Availability
31
FOIL, SIDE MAY 98015346 Contact Us For Availability
32
MAY W10205813 MAY W10205813 Contact Us For Availability
32
Screw MAY 98006634 Contact Us For Availability
33
MAY 98004448 MAY 98004448 Contact Us For Availability
34
Side, Oven (Left Hand) MAY 98004451 Contact Us For Availability
34
Side, Oven (Right Hand) MAY 98004452 Contact Us For Availability
35
MAY W10180590 MAY W10180590 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED, MAY N/P Contact Us For Availability
NI
MAY W10537441 MAY W10537441 Contact Us For Availability
NI
MAY W10477747 MAY W10477747 Contact Us For Availability
NI
MAY W10137234 MAY W10137234 Contact Us For Availability
NI
MAY W10206735 MAY W10206735 Contact Us For Availability
NI
MAY W10207891 MAY W10207891 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. ) MAY 206922 Contact Us For Availability
NI
INSULATION (2-1/2`` X 22`` X 120``) MAY 240132 Contact Us For Availability
NI
MAY 242756 MAY 242756 Contact Us For Availability
NI
INSULATION (1-1/2`` X 24`` X 120``) MAY 261514 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BLACK) MAY 285006 Contact Us For Availability
NI
WIRING HARNESS PARTS, CLIP, HARNESS MAY 3196696 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE PORCELAIN (2 MAY 511873 Contact Us For Availability
NI
WIRING HARNESS PARTS, WIRE, GROUND MAY 6610473 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
NI
WIRING HARNESS PARTS, WIRE TIE, INSULATION MAY 98004294 Contact Us For Availability
NI
MISCELLANEOUS, KIT, DOOR PIN MAY 98012220 Contact Us For Availability
NI
WIRING HARNESS PARTS, BUSHING, SNAP MAY 98015022 Contact Us For Availability
× ![]()
