Model AFN51FSP541RN01 – Common Parts & Diagrams

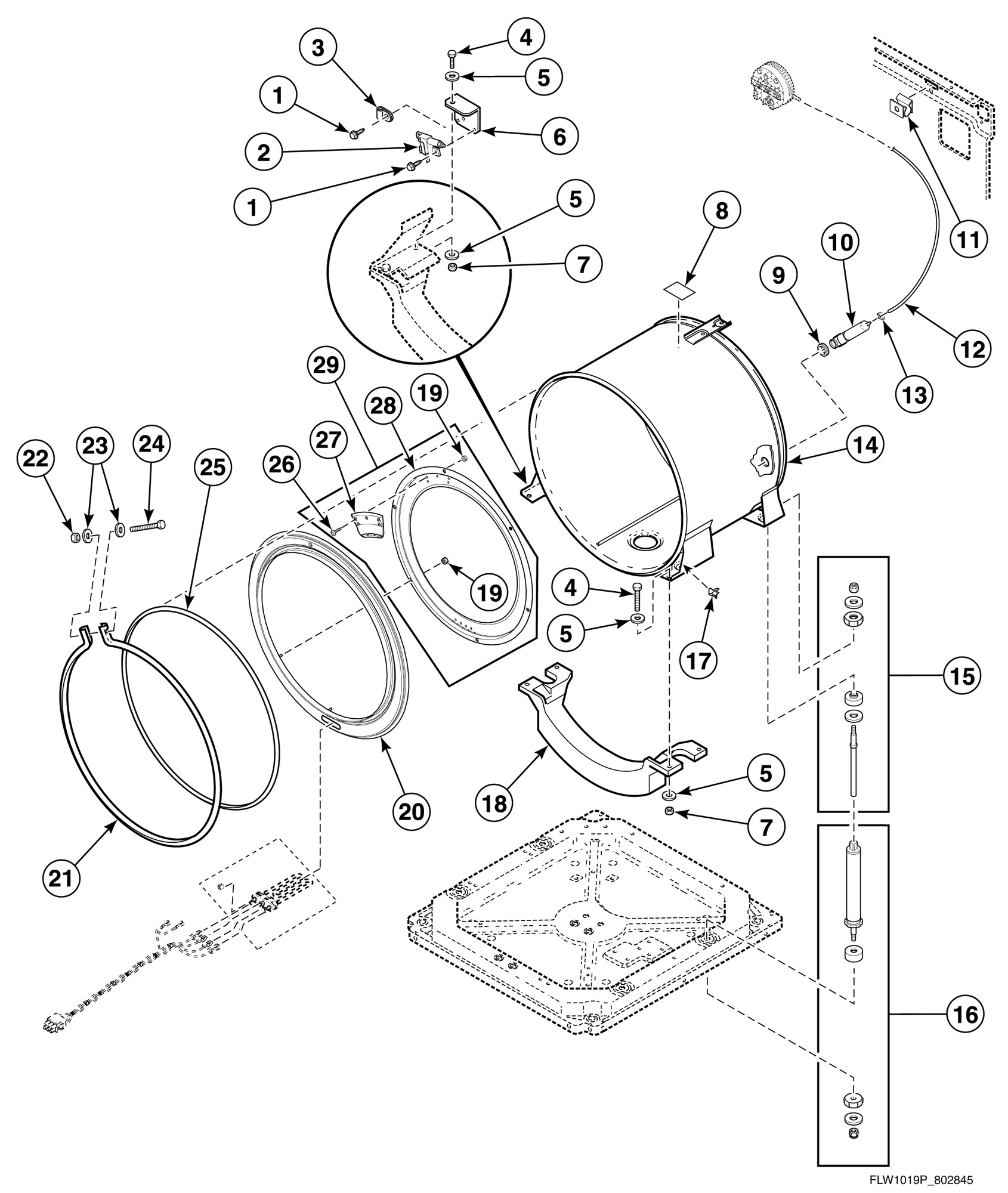

Outer Tub, Front And Clamp Ring

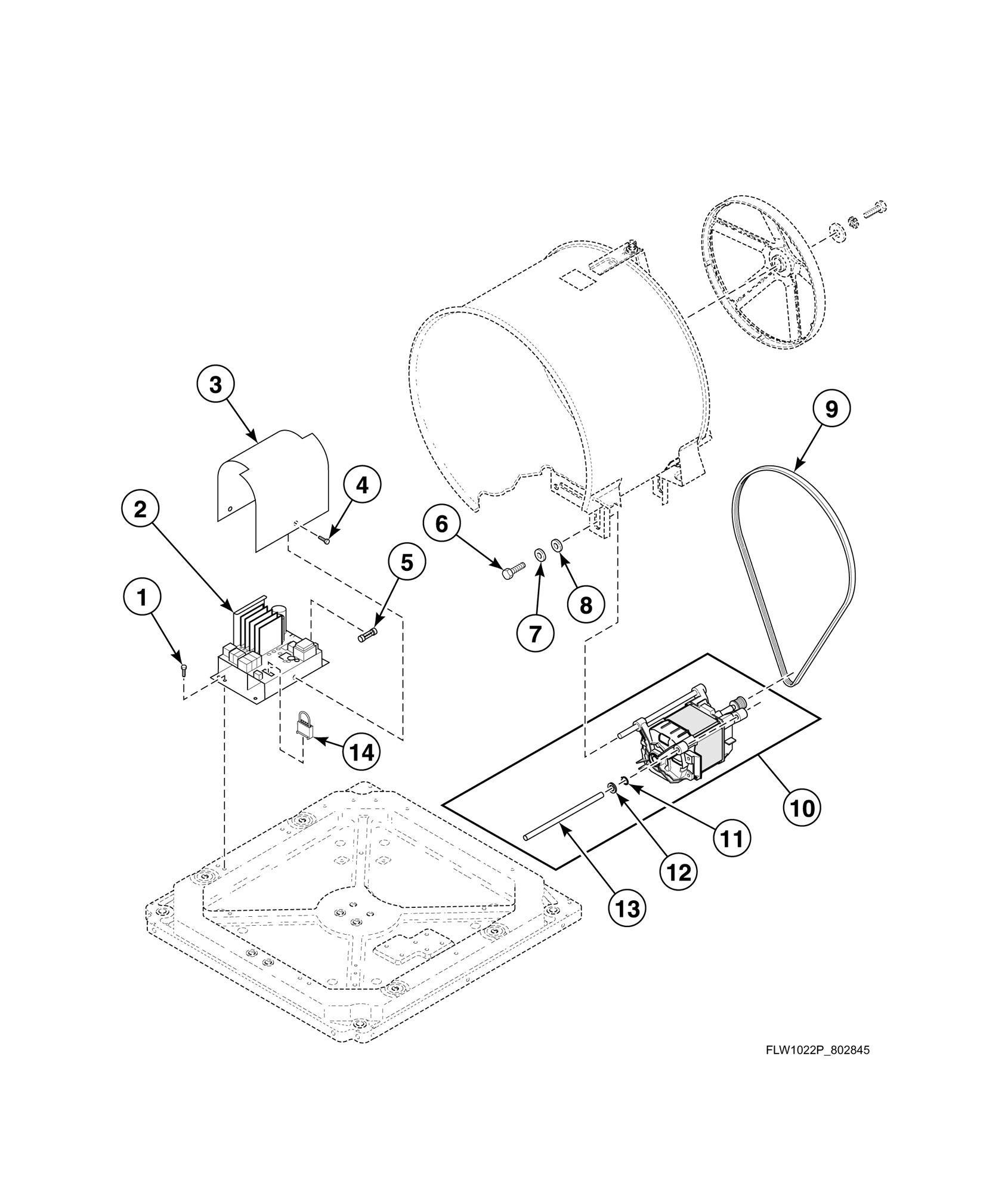

Motor And Belt
Wire Ties, Clips And Lead-in Cord

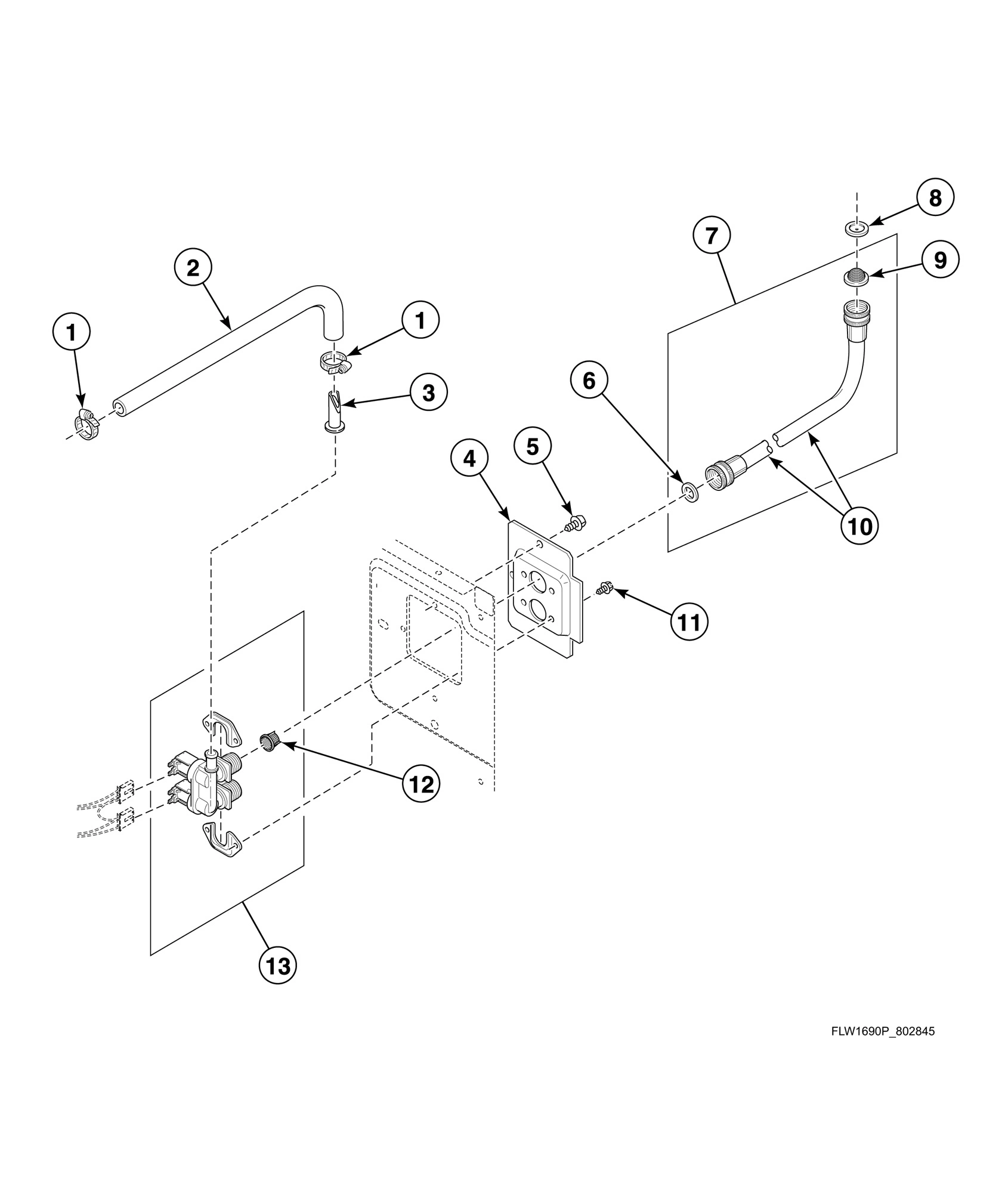

Mixing Valve, Fill Hose And Valve-to-dispenser Hose
Base, Side Panels And Rear Panel

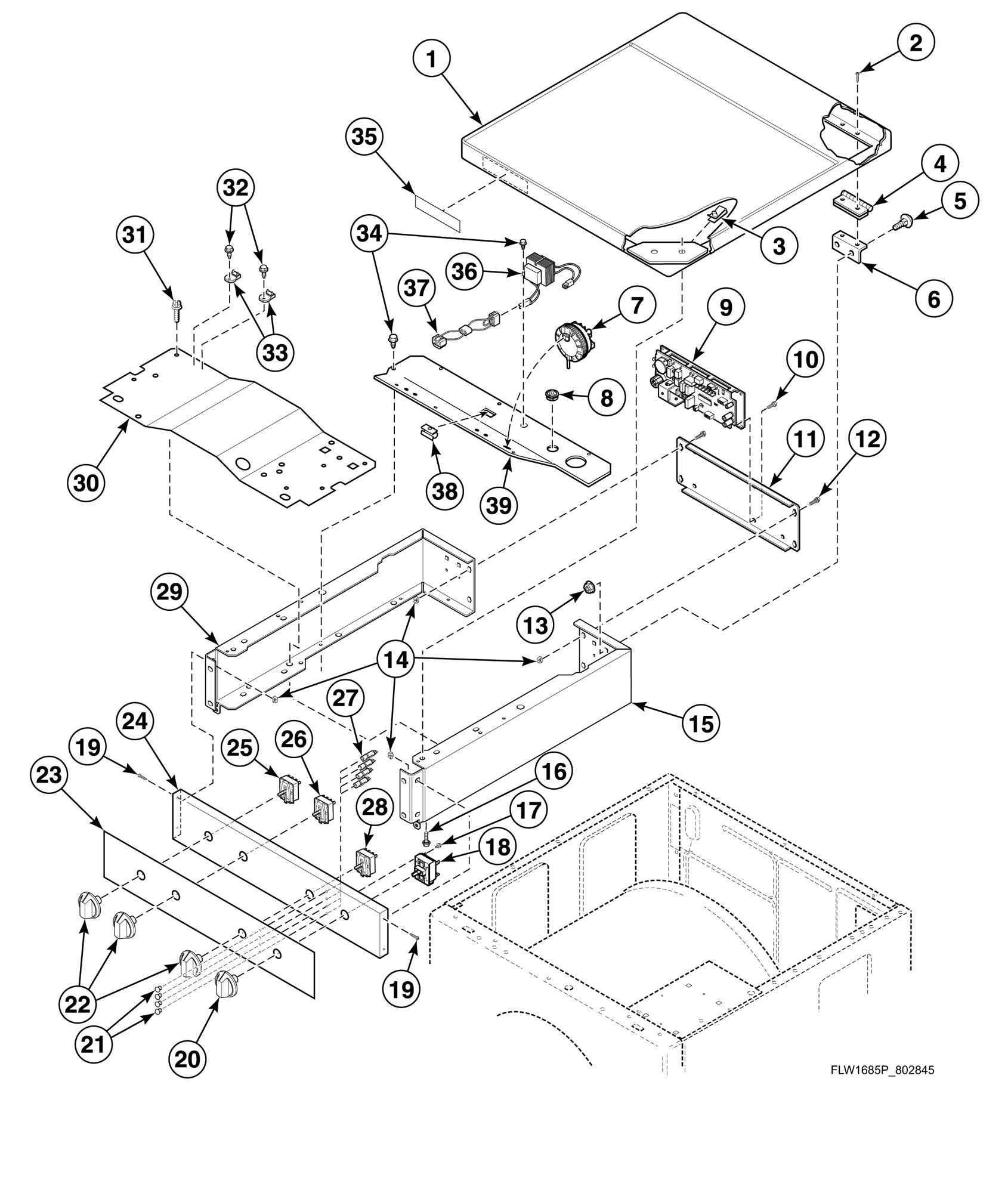

Control Cabinet, Top And Controls (drawing 2 Of 2)
Motor And Belt
Outer Tub, Front And Clamp Ring
Control Cabinet, Top And Controls (drawing 2 Of 2)
Base, Side Panels And Rear Panel

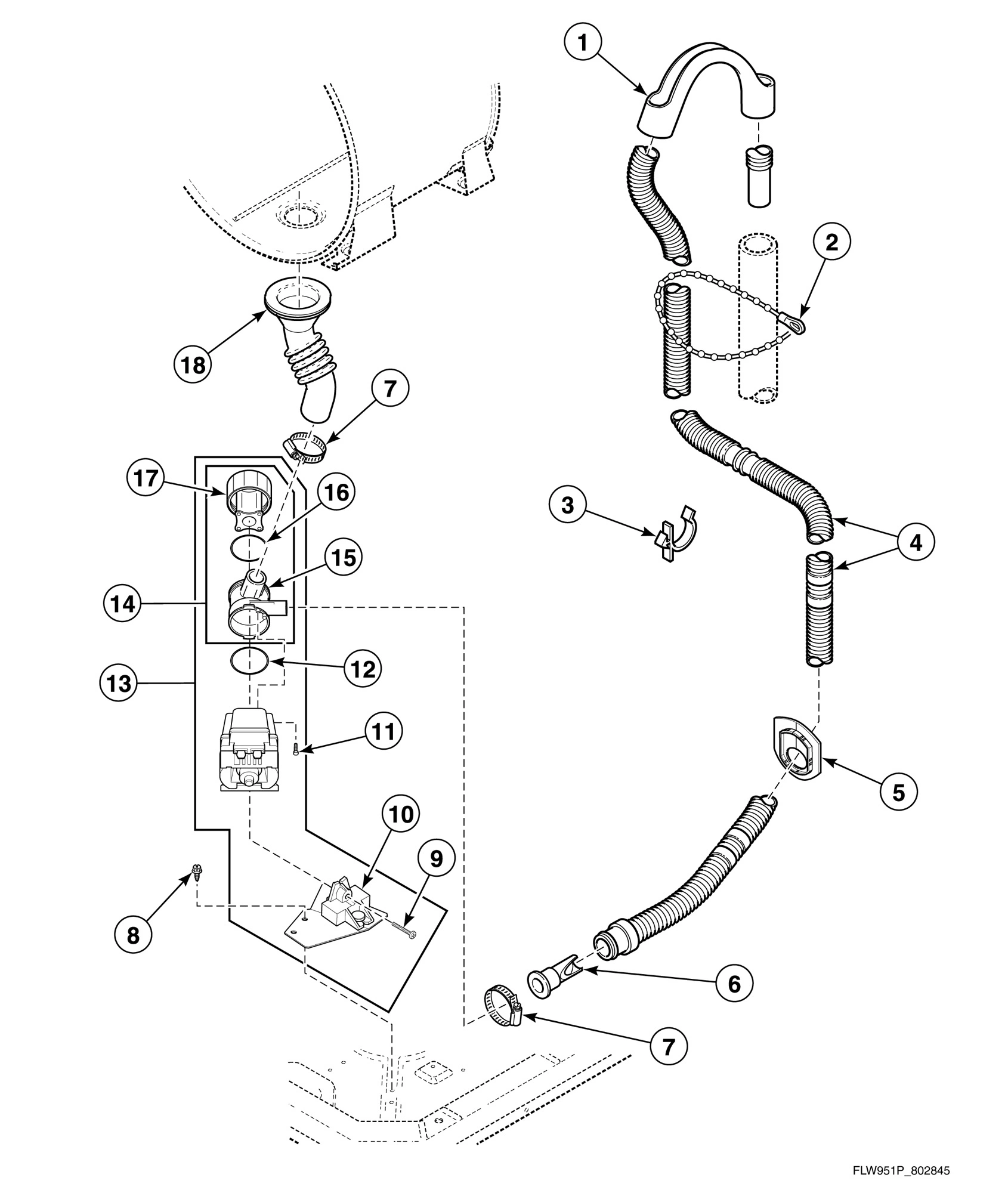

Drain Hose And Pump
Base, Side Panels And Rear Panel
Drain Hose And Pump

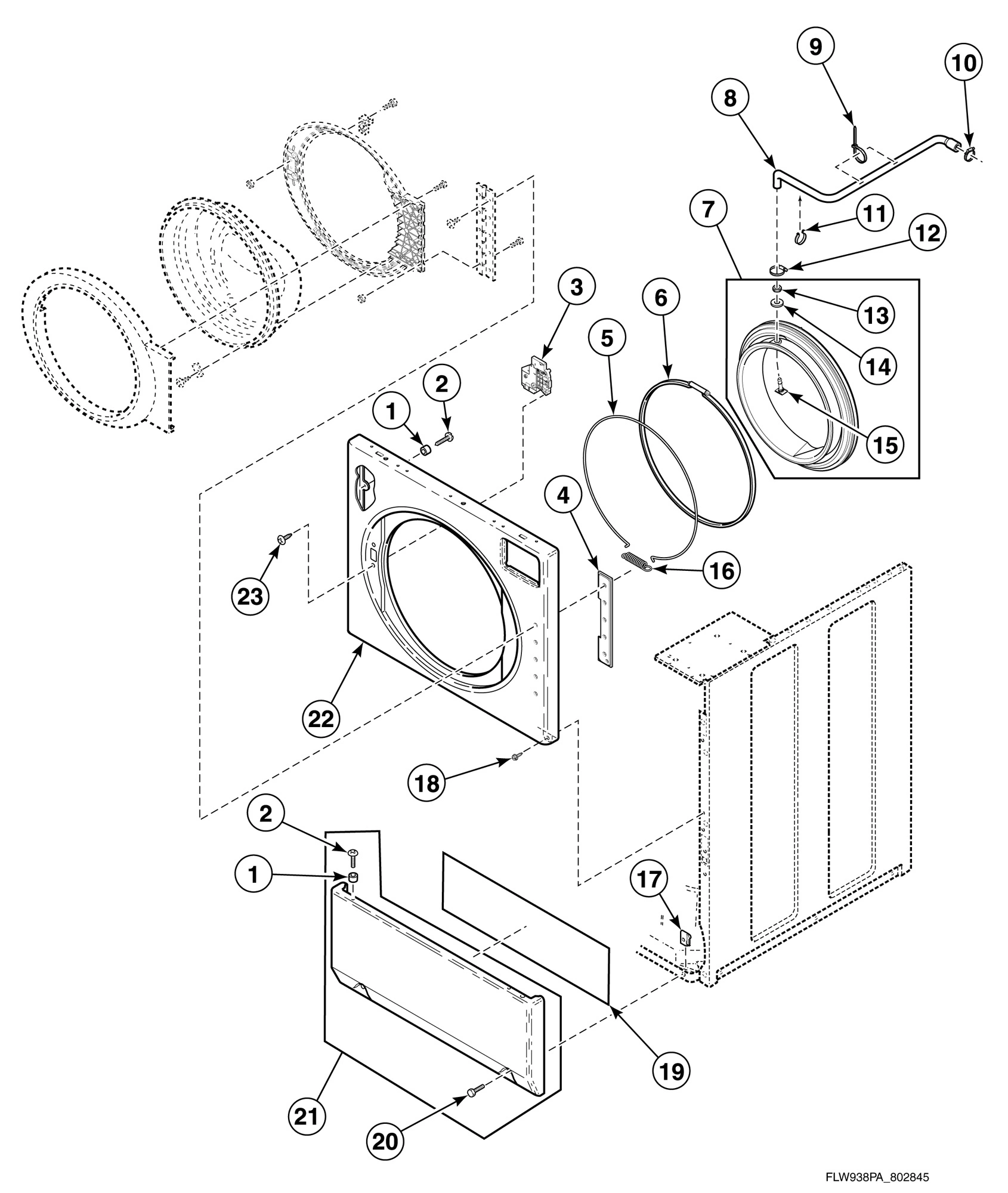

Front Panel And Door Seal
Control Cabinet, Top And Controls (drawing 2 Of 2)
Front Panel And Door Seal
Base, Side Panels And Rear Panel
Wire Ties, Clips And Lead-in Cord
Control Cabinet, Top And Controls (drawing 2 Of 2)
Mixing Valve, Fill Hose And Valve-to-dispenser Hose
Wire Ties, Clips And Lead-in Cord
Front Panel And Door Seal
Base, Side Panels And Rear Panel

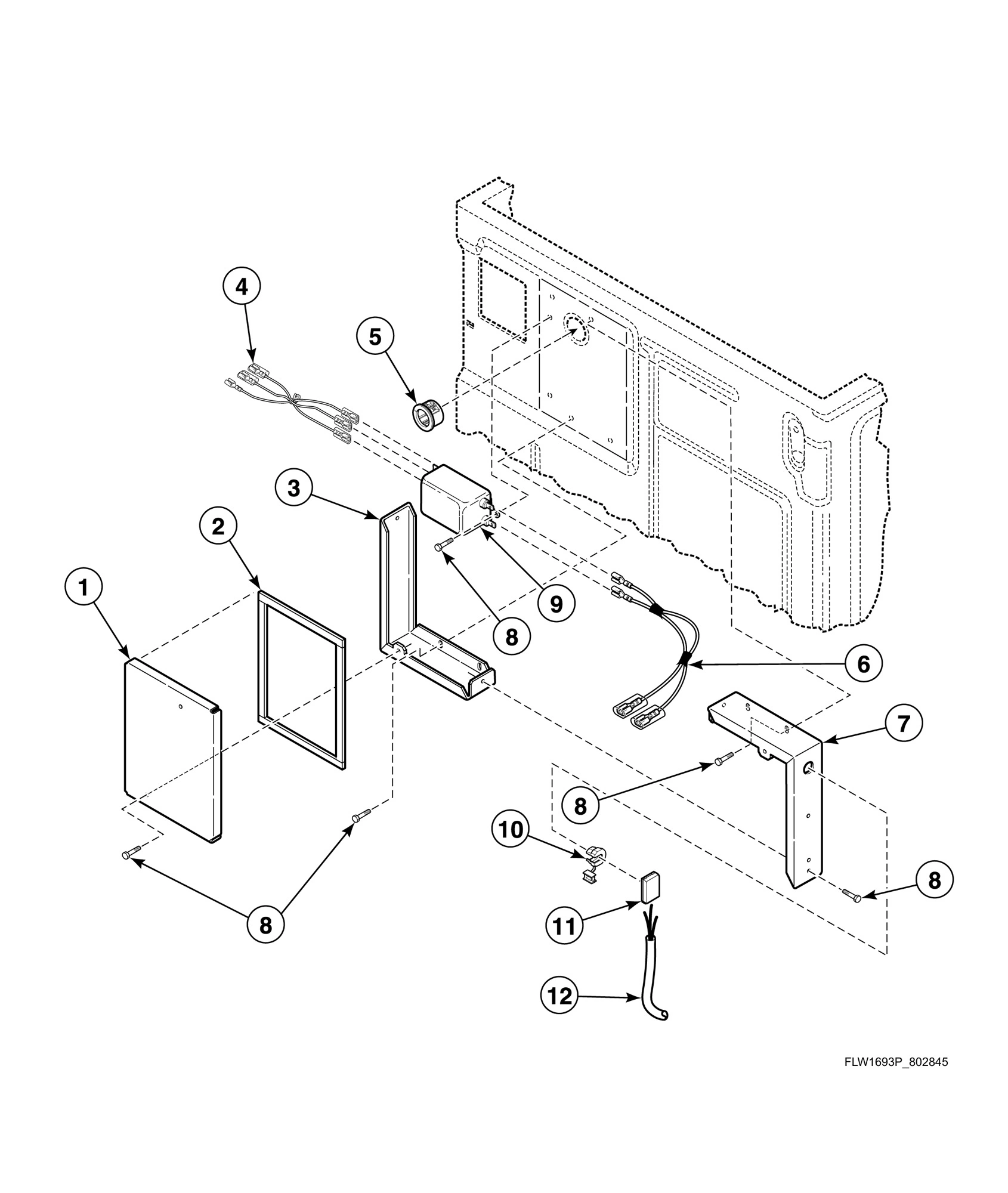

Junction Box And Power Cord
Wire Harnesses And Wires (drawing 2 Of 2)
Wire Harnesses And Wires (drawing 1 Of 2)
Wire Harnesses And Wires (drawing 2 Of 2)
Wire Harnesses And Wires (drawing 1 Of 2)
Motor And Belt
Wire Ties, Clips And Lead-in Cord
Front Panel And Door Seal

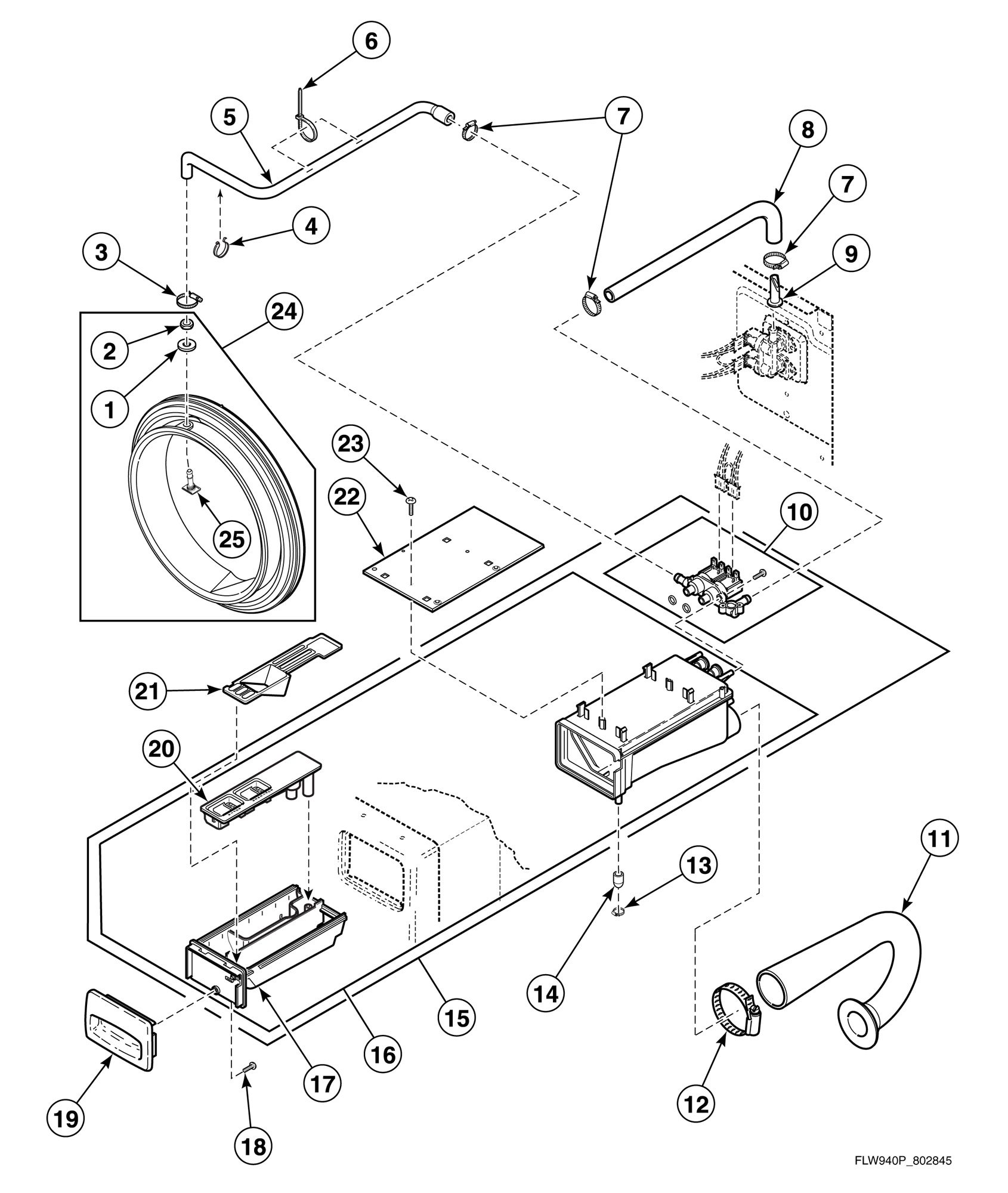

Dispenser Assembly
Front Panel And Door Seal
Base, Side Panels And Rear Panel
Junction Box And Power Cord
Outer Tub, Front And Clamp Ring
Control Cabinet, Top And Controls (drawing 2 Of 2)
Base, Side Panels And Rear Panel
Dispenser Assembly
Drain Hose And Pump

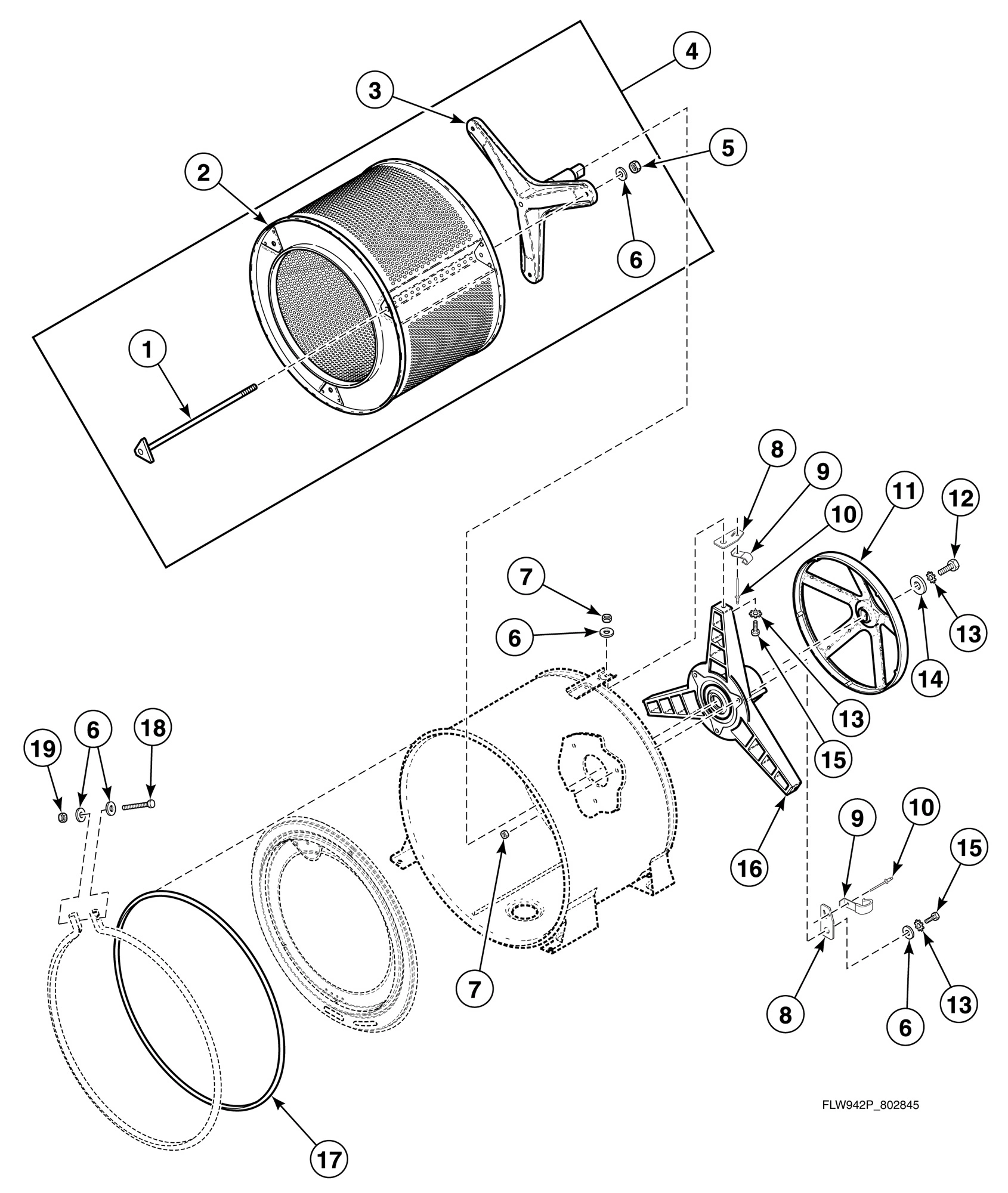

Inner Basket, Trunnion, Bearing Housing And Pulley

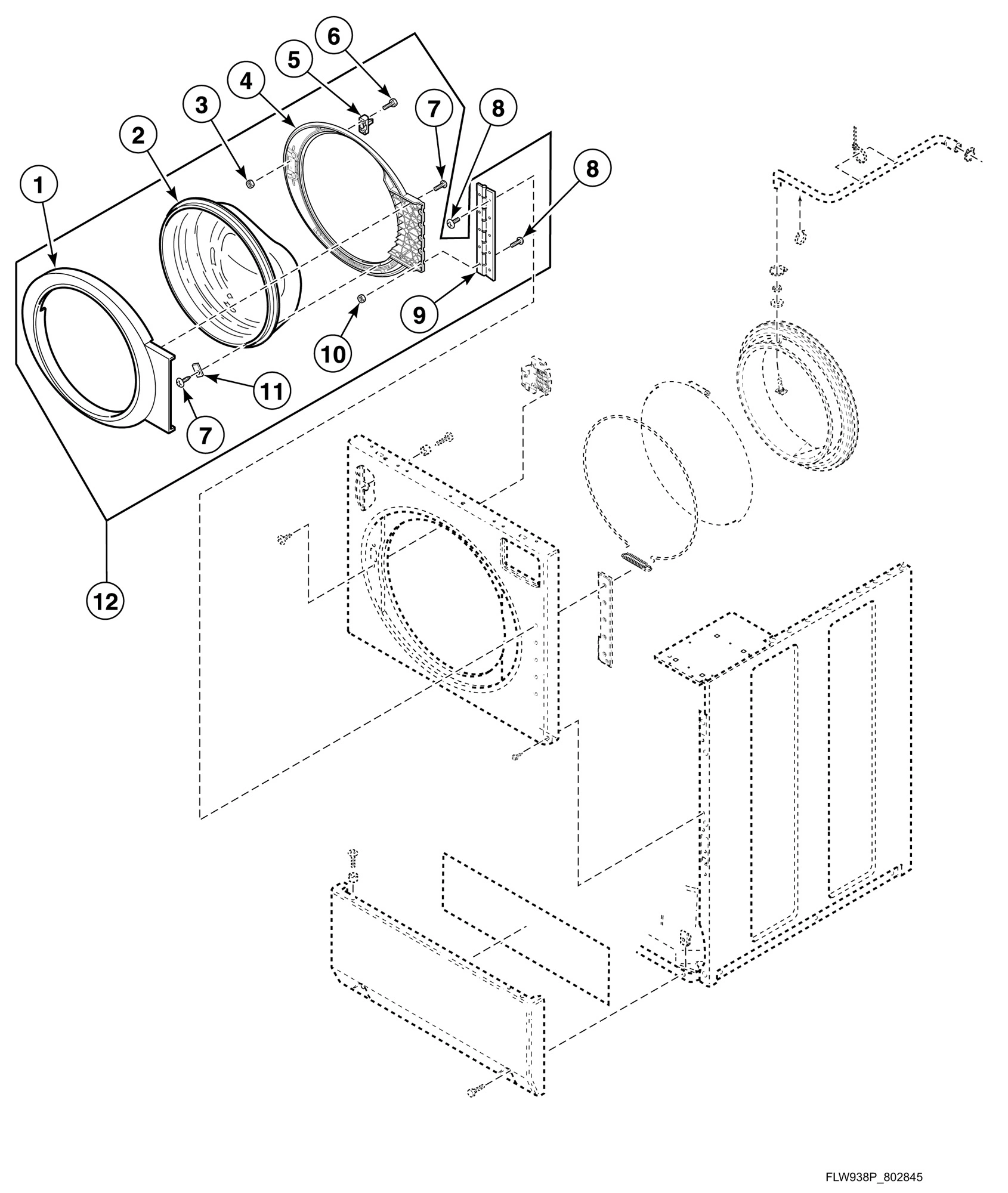

Door Assembly
Inner Basket, Trunnion, Bearing Housing And Pulley
Control Cabinet, Top And Controls (drawing 2 Of 2)
Base, Side Panels And Rear Panel
Shipping Materials
Wire Ties, Clips And Lead-in Cord
Front Panel And Door Seal
Dispenser Assembly
Control Cabinet, Top And Controls (drawing 2 Of 2)
Base, Side Panels And Rear Panel
Outer Tub, Front And Clamp Ring
Drain Hose And Pump
Outer Tub, Front And Clamp Ring
Drain Hose And Pump
Mixing Valve, Fill Hose And Valve-to-dispenser Hose
Dispenser Assembly
Outer Tub, Front And Clamp Ring
Inner Basket, Trunnion, Bearing Housing And Pulley
Outer Tub, Front And Clamp Ring
Inner Basket, Trunnion, Bearing Housing And Pulley
Outer Tub, Front And Clamp Ring
Inner Basket, Trunnion, Bearing Housing And Pulley
Front Panel And Door Seal
Door Assembly
Dispenser Assembly
Inner Basket, Trunnion, Bearing Housing And Pulley
Shipping Materials
Outer Tub, Front And Clamp Ring
Inner Basket, Trunnion, Bearing Housing And Pulley
Outer Tub, Front And Clamp Ring
Dispenser Assembly
Door Assembly
Dispenser Assembly
Front Panel And Door Seal
Control Cabinet, Top And Controls (drawing 2 Of 2)
Motor And Belt
Control Cabinet, Top And Controls (drawing 2 Of 2)
Junction Box And Power Cord
Control Cabinet, Top And Controls (drawing 2 Of 2)
Junction Box And Power Cord
Mixing Valve, Fill Hose And Valve-to-dispenser Hose
Dispenser Assembly
Base, Side Panels And Rear Panel
Dispenser Assembly
Motor And Belt
Control Cabinet, Top And Controls (drawing 2 Of 2)
Door Assembly

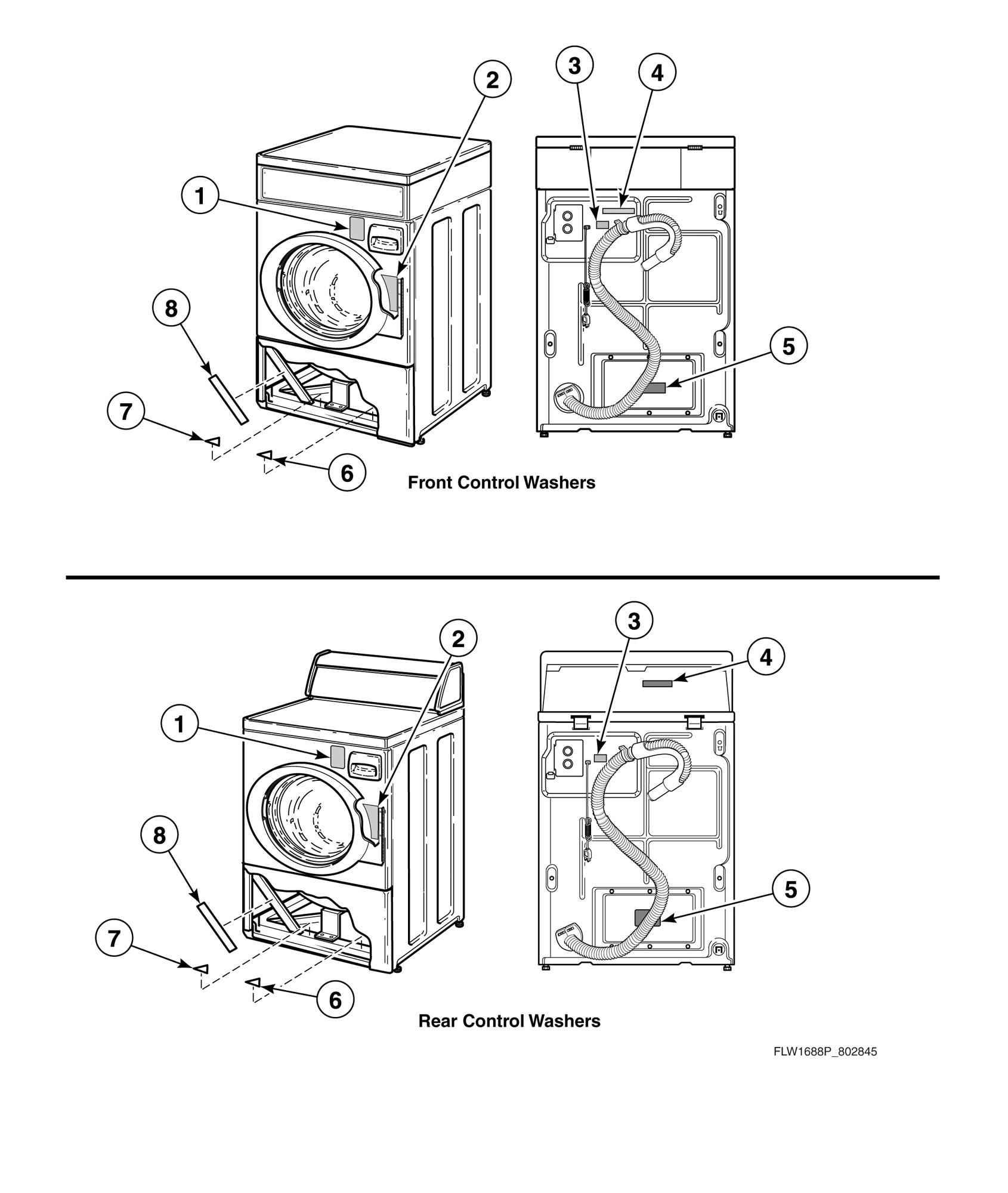

Labels
Mixing Valve, Fill Hose And Valve-to-dispenser Hose
Front Panel And Door Seal
Dispenser Assembly
Front Panel And Door Seal
Mixing Valve, Fill Hose And Valve-to-dispenser Hose
Front Panel And Door Seal
Dispenser Assembly
Outer Tub, Front And Clamp Ring
Front Panel And Door Seal
Dispenser Assembly
Front Panel And Door Seal
Dispenser Assembly
Front Panel And Door Seal
Dispenser Assembly
Special Tools
Outer Tub, Front And Clamp Ring
Labels
Drain Hose And Pump
Outer Tub, Front And Clamp Ring
Drain Hose And Pump
Front Panel And Door Seal
Dispenser Assembly
Door Assembly
Labels
Mixing Valve, Fill Hose And Valve-to-dispenser Hose
Door Assembly
Control Cabinet, Top And Controls (drawing 2 Of 2)
Inner Basket, Trunnion, Bearing Housing And Pulley
Control Cabinet, Top And Controls (drawing 2 Of 2)
Door Assembly
Labels
Control Cabinet, Top And Controls (drawing 2 Of 2)
Outer Tub, Front And Clamp Ring
Control Cabinet, Top And Controls (drawing 2 Of 2)
Wire Harnesses And Wires (drawing 1 Of 2)
Mixing Valve, Fill Hose And Valve-to-dispenser Hose
Base, Side Panels And Rear Panel
Outer Tub, Front And Clamp Ring
Front Panel And Door Seal
Outer Tub, Front And Clamp Ring
Door Assembly
Base, Side Panels And Rear Panel
Control Cabinet, Top And Controls (drawing 2 Of 2)
Base, Side Panels And Rear Panel
Inner Basket, Trunnion, Bearing Housing And Pulley
Drain Hose And Pump
Special Tools
Base, Side Panels And Rear Panel
Mixing Valve, Fill Hose And Valve-to-dispenser Hose
Special Tools
Dispenser Assembly
Base, Side Panels And Rear Panel
Motor And Belt
Inner Basket, Trunnion, Bearing Housing And Pulley
Outer Tub, Front And Clamp Ring
Inner Basket, Trunnion, Bearing Housing And Pulley
Outer Tub, Front And Clamp Ring
Inner Basket, Trunnion, Bearing Housing And Pulley
Outer Tub, Front And Clamp Ring
Dispenser Assembly
Wire Harnesses And Wires (drawing 1 Of 2)
Junction Box And Power Cord
Dispenser Assembly
Motor And Belt
Dispenser Assembly
Mixing Valve, Fill Hose And Valve-to-dispenser Hose
Wire Harnesses And Wires (drawing 1 Of 2)
Front Panel And Door Seal
Control Cabinet, Top And Controls (drawing 2 Of 2)
Front Panel And Door Seal
Inner Basket, Trunnion, Bearing Housing And Pulley
Drain Hose And Pump
Control Cabinet, Top And Controls (drawing 2 Of 2)
Base, Side Panels And Rear Panel
Drain Hose And Pump
Door Assembly
Front Panel And Door Seal
Dispenser Assembly
Wire Harnesses And Wires (drawing 2 Of 2)
Base, Side Panels And Rear Panel
Front Panel And Door Seal
Dispenser Assembly
Inner Basket, Trunnion, Bearing Housing And Pulley
Control Cabinet, Top And Controls (drawing 2 Of 2)
Dispenser Assembly
Door Assembly
Wire Harnesses And Wires (drawing 1 Of 2)
Motor And Belt
Control Cabinet, Top And Controls (drawing 2 Of 2)
Outer Tub, Front And Clamp Ring
Inner Basket, Trunnion, Bearing Housing And Pulley
Base, Side Panels And Rear Panel
Shipping Materials
Drain Hose And Pump
Labels
Mixing Valve, Fill Hose And Valve-to-dispenser Hose
Control Cabinet, Top And Controls (drawing 2 Of 2)
Motor And Belt
Control Cabinet, Top And Controls (drawing 2 Of 2)
Base, Side Panels And Rear Panel
Outer Tub, Front And Clamp Ring
Motor And Belt
Mixing Valve, Fill Hose And Valve-to-dispenser Hose
Junction Box And Power Cord
Front Panel And Door Seal
Drain Hose And Pump
Control Cabinet, Top And Controls (drawing 2 Of 2)
Base, Side Panels And Rear Panel
Control Cabinet, Top And Controls (drawing 2 Of 2)
Wire Ties, Clips And Lead-in Cord
Control Cabinet, Top And Controls (drawing 2 Of 2)
Labels
Control Cabinet, Top And Controls (drawing 2 Of 2)
Front Panel And Door Seal
Base, Side Panels And Rear Panel
Motor And Belt
Control Cabinet, Top And Controls (drawing 2 Of 2)
Front Panel And Door Seal
Mixing Valve, Fill Hose And Valve-to-dispenser Hose
Drain Hose And Pump
Dispenser Assembly
Outer Tub, Front And Clamp Ring
Inner Basket, Trunnion, Bearing Housing And Pulley
Control Cabinet, Top And Controls (drawing 2 Of 2)
Outer Tub, Front And Clamp Ring
Labels
Outer Tub, Front And Clamp Ring
Labels
Door Assembly
Shipping Materials
Inner Basket, Trunnion, Bearing Housing And Pulley
Motor And Belt
Outer Tub, Front And Clamp Ring
Junction Box And Power Cord
Control Cabinet, Top And Controls (drawing 2 Of 2)
Inner Basket, Trunnion, Bearing Housing And Pulley
Control Cabinet, Top And Controls (drawing 2 Of 2)
Base, Side Panels And Rear Panel
Control Cabinet, Top And Controls (drawing 2 Of 2)
Inner Basket, Trunnion, Bearing Housing And Pulley
Mixing Valve, Fill Hose And Valve-to-dispenser Hose
Dispenser Assembly
Inner Basket, Trunnion, Bearing Housing And Pulley
Wire Ties, Clips And Lead-in Cord
Outer Tub, Front And Clamp Ring
