Model Whirlpool AER5845RAB ELECTRIC RANGE – Common Parts & Diagrams
05 - SUPPLEMENTAL INFORMATION
06 - WIRING INFORMATION

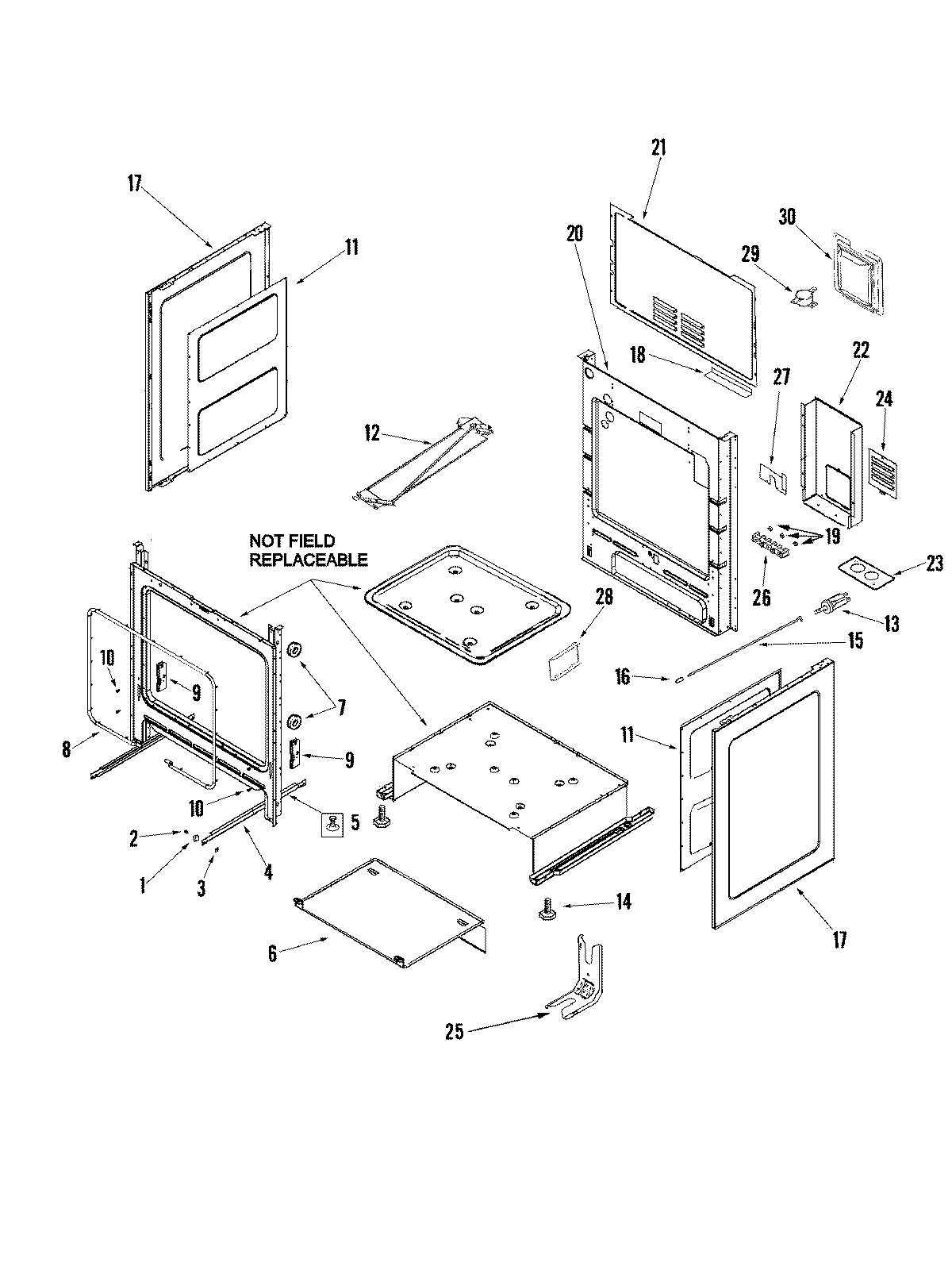

01 - CABINET

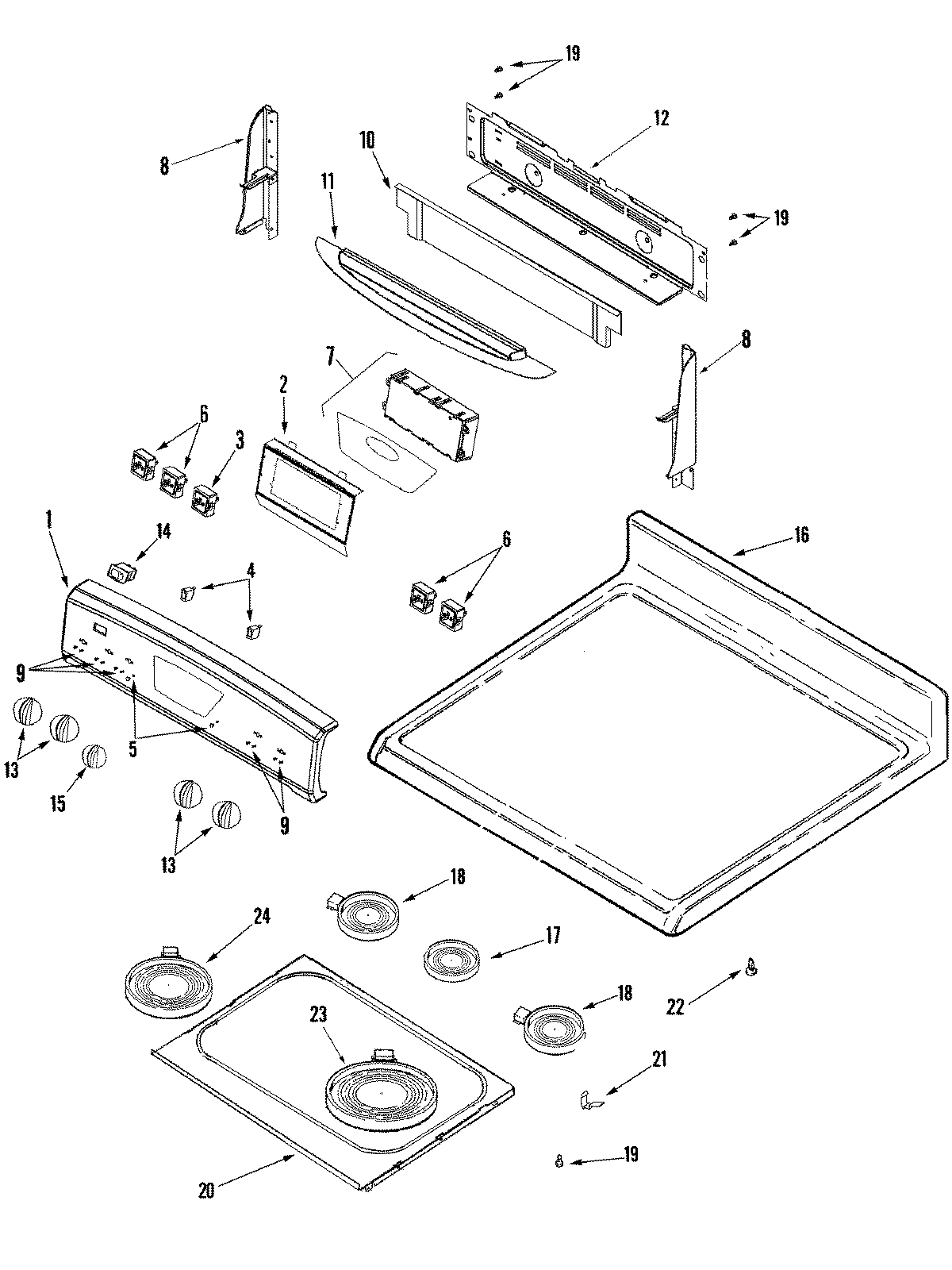

03 - CONTROL PANEL/TOP ASSEMBLY

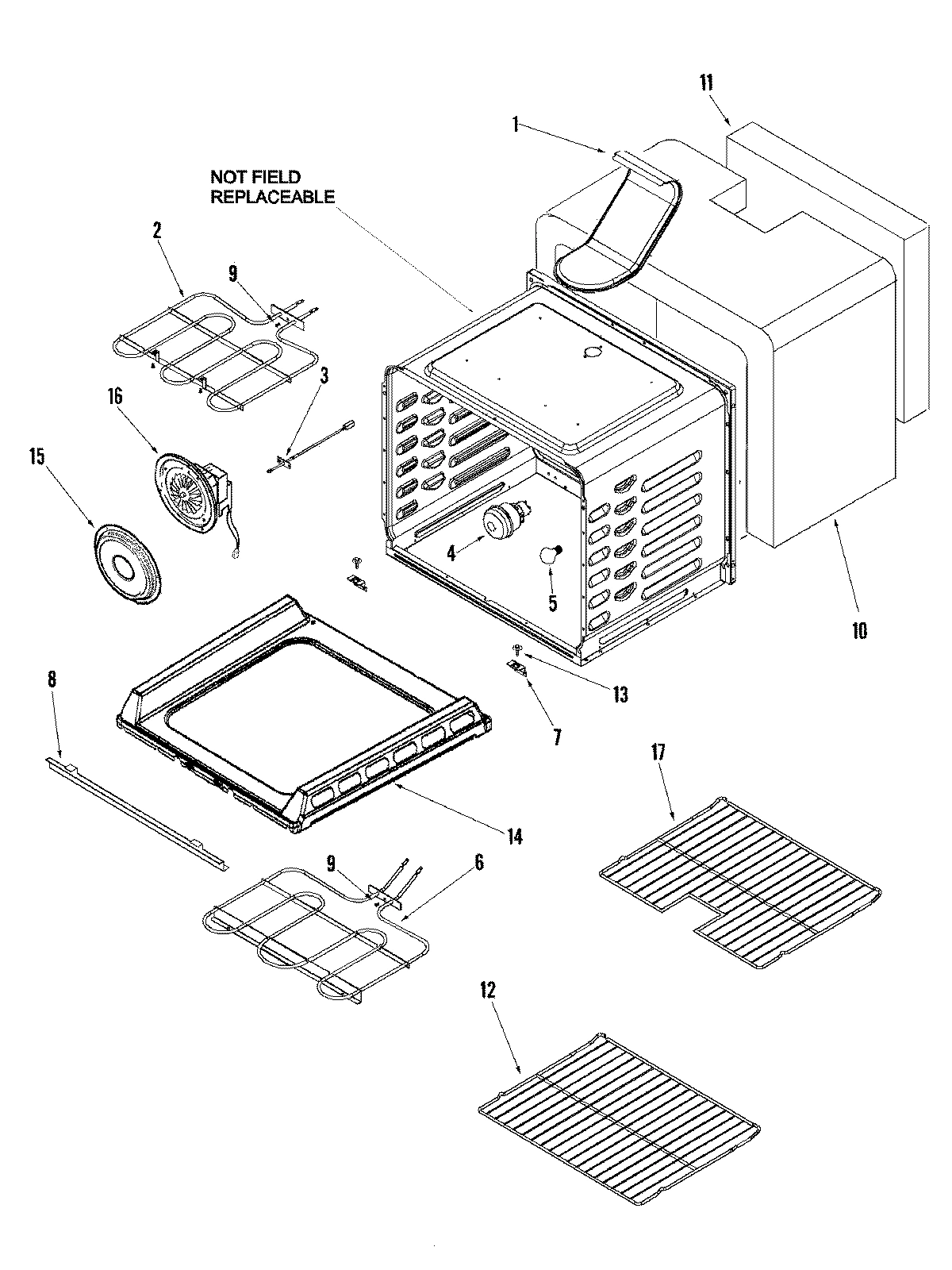

02 - CAVITY

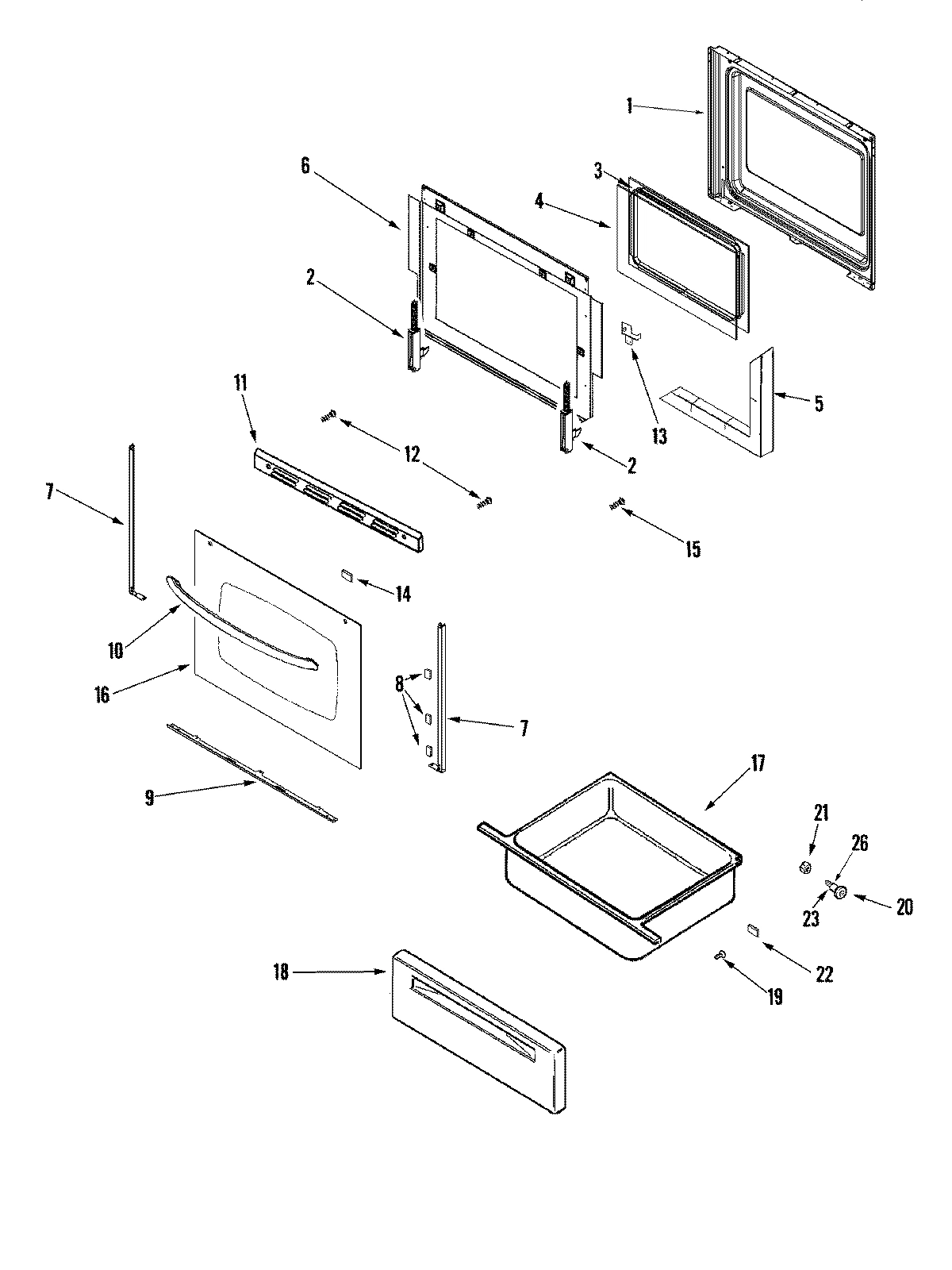

04 - DOOR/DRAWER
Common parts from model Whirlpool AER5845RAB ELECTRIC RANGE
1
PANEL, BACKGUARD (BLK) WPL 74011423 Contact Us For Availability
1
VENT, OVEN WPL 74008691 Contact Us For Availability
1
LINING, DOOR WPL 74008926 Contact Us For Availability
2
BRACKET, CLOCK WPL 74008716 Contact Us For Availability
3
NUT, LOCK (8-32) WPL 74005230 Contact Us For Availability
3
SWITCH, INFINITE (WARMING) WPL 74006589 Contact Us For Availability
3
FRAME, GLASS WPL 74003644 Contact Us For Availability
4
HARNESS, MAIN WPL 5171P86060 Contact Us For Availability
4
HARNESS, MAIN WPL 74011427 Contact Us For Availability
4
RUNNER, SERVICE DRAWER WPL 74008687 Contact Us For Availability
4
LENS, LIGHT BULB WPL 74011299 Contact Us For Availability
5
HARNESS, BURNER BOX WPL 74011426 Contact Us For Availability
5
STOP, DRAWER WPL 74008688 Contact Us For Availability
5
LENS, INDICATOR LIGHT WPL 7730P01160 Contact Us For Availability
5
BULB-OVEN WPL 7407P10360 Contact Us For Availability
5
INSULATION, OVEN DOOR WPL 74003647 Contact Us For Availability
5
INSULATION, DOOR WPL 74010564 Contact Us For Availability
6
SHIELD, HEAT WPL 74008689 Contact Us For Availability
6
SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability
6
SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability
6
BAFFLE, DOOR WPL 74008744 Contact Us For Availability
7
SCREW W/SHOULDER (No.8) WPL 74008798 Contact Us For Availability
7
BOOKLET, COOKING MADE SIMPLE WPL 74009330 Contact Us For Availability
7
CLOCK/OVERLAY (BLK) WPL 74008644 Contact Us For Availability
7
SUPPORT, OVEN BOTTOM (REAR) WPL 74008694 Contact Us For Availability
7
TRIM, SIDE (BLK) WPL 74010560 Contact Us For Availability
8
COOKTOP CLEANING CREME 4 OZ WPL 20001080 Contact Us For Availability
8
END CAP (RT-BLK) WPL 74009022 Contact Us For Availability
8
END CAP (LT-BLK) WPL 74009023 Contact Us For Availability
8
SUPPORT, OVEN BOTTOM (FRONT) WPL 74008695 Contact Us For Availability
8
TAPE, DBL SIDED (WHT) WPL 74009014 Contact Us For Availability
9
SCREW WPL 7101P30960 Contact Us For Availability
9
TRIM, BOTTOM (BLK) WPL 74008889 Contact Us For Availability
10
SCREW WPL 7101P11260 Contact Us For Availability
10
SHIELD, VENT WPL 74009444 Contact Us For Availability
10
INSULATION, WRAPPER WPL 74008700 Contact Us For Availability
10
HANDLE, DOOR (BLK) WPL 74008318 Contact Us For Availability
11
RETAINER, SIDE WPL 3804F31651 Contact Us For Availability
11
INSULATION, SIDE PANEL WPL 7002P49460 Contact Us For Availability
11
RETAINER, SIDE WPL 74008701 Contact Us For Availability
11
SHIELD, HEAT VISOR (BLK) WPL 74009202 Contact Us For Availability
11
INSULATION, BACK WPL 74008698 Contact Us For Availability
11
TRIM, TOP (BLK) WPL 74008890 Contact Us For Availability
12
LATCH ASSEMBLY WPL 74008702 Contact Us For Availability
12
Latch Assembly WPL 8002P10460 Contact Us For Availability
12
INSULATION, BOTTOM (FIBERGLASS) WPL 7002P36160 Contact Us For Availability
12
INSULATION, FOIL (BKGD) WPL 74008836 Contact Us For Availability
12
COVER, REAR WIRE WPL 74010983 Contact Us For Availability
13
SWITCH, DOOR WPL 74008703 Contact Us For Availability
13
INSULATOR, SHIELD WPL 74008704 Contact Us For Availability
13
BRACKET, DOOR HANDLE (LT) WPL 74009412 Contact Us For Availability
13
BRACKET, DOOR HANDLE (RT) WPL 74009413 Contact Us For Availability
14
SWITCH, ROCKER (BLK) WPL 74008718 Contact Us For Availability
14
TAPE, SINGLE SIDED (WHT) WPL 74004224 Contact Us For Availability
15
SLEEVE, ROD TUBE WPL 74008705 Contact Us For Availability
15
ROD, DOOR SWITCH WPL 74008706 Contact Us For Availability
15
KNOB (BLK) WPL 74008892 Contact Us For Availability
15
COVER, CONVECT WPL 74005783 Contact Us For Availability
15
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
16
BUMPER WPL 74008707 Contact Us For Availability
16
TOP, MAIN ASY. (BLK) WPL 74011396 Contact Us For Availability
16
SCREW WPL 74005401 Contact Us For Availability
16
Fan Assy, Convect WPL 74011168 Contact Us For Availability
16
GLASS, DOOR (BLK) WPL 74009018 Contact Us For Availability
16
TAPE, FOIL (3`` WIDE) WPL 8270P09060 Contact Us For Availability
17
SCREW WPL 74004208 Contact Us For Availability
17
PANEL, SIDE (BLK) WPL 74008710 Contact Us For Availability
17
ELEMENT, WARMING WPL 74008898 Contact Us For Availability
17
RACK, EASY WPL 74009045 Contact Us For Availability
17
DRAWER, SERVICE WPL 3405F03780 Contact Us For Availability
17
DRAWER, STORAGE WPL 74008337 Contact Us For Availability
18
BOTTOM, WIRE COVER WPL 74008762 Contact Us For Availability
18
BRACKET, MOUNTING WPL 3605P33751 Contact Us For Availability
18
NUT, LOCK WPL 7103P13960 Contact Us For Availability
18
PANEL, DRAWER (BLK) WPL 74008885 Contact Us For Availability
18
PANEL, DRAWER (BLK) WPL W10163038 Contact Us For Availability
19
NUT, TERMINAL BLOCK WPL 7103P02760 Contact Us For Availability
19
SCREW WPL 74009538 Contact Us For Availability
20
BACK, MAIN WPL 74008699 Contact Us For Availability
20
BOTTOM, BURNER BOX WPL 74008900 Contact Us For Availability
21
COVER, MAIN WIRE (ELE) WPL 74009651 Contact Us For Availability
21
NUT WPL 7103P08260 Contact Us For Availability
22
COVER, WIRE (LWR) WPL 74008760 Contact Us For Availability
23
SHAFT, STORAGE DRAWER ROLLER WPL 74005231 Contact Us For Availability
23
PLATE, CONDUIT REINFORCEMENT WPL 3605F14651 Contact Us For Availability
24
PANEL, ACCESS WPL 74008340 Contact Us For Availability
24
ELEMENT (12``) WPL 74009082 Contact Us For Availability
25
SCREW WPL 7101P35260 Contact Us For Availability
26
BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability
27
INSULATOR, POWER CORD WPL 74008759 Contact Us For Availability
28
BRACKET, OVEN SUPPORT WPL 74011187 Contact Us For Availability
NI
WIRING INFORMATION WPL 15003862 Contact Us For Availability
× ![]()
