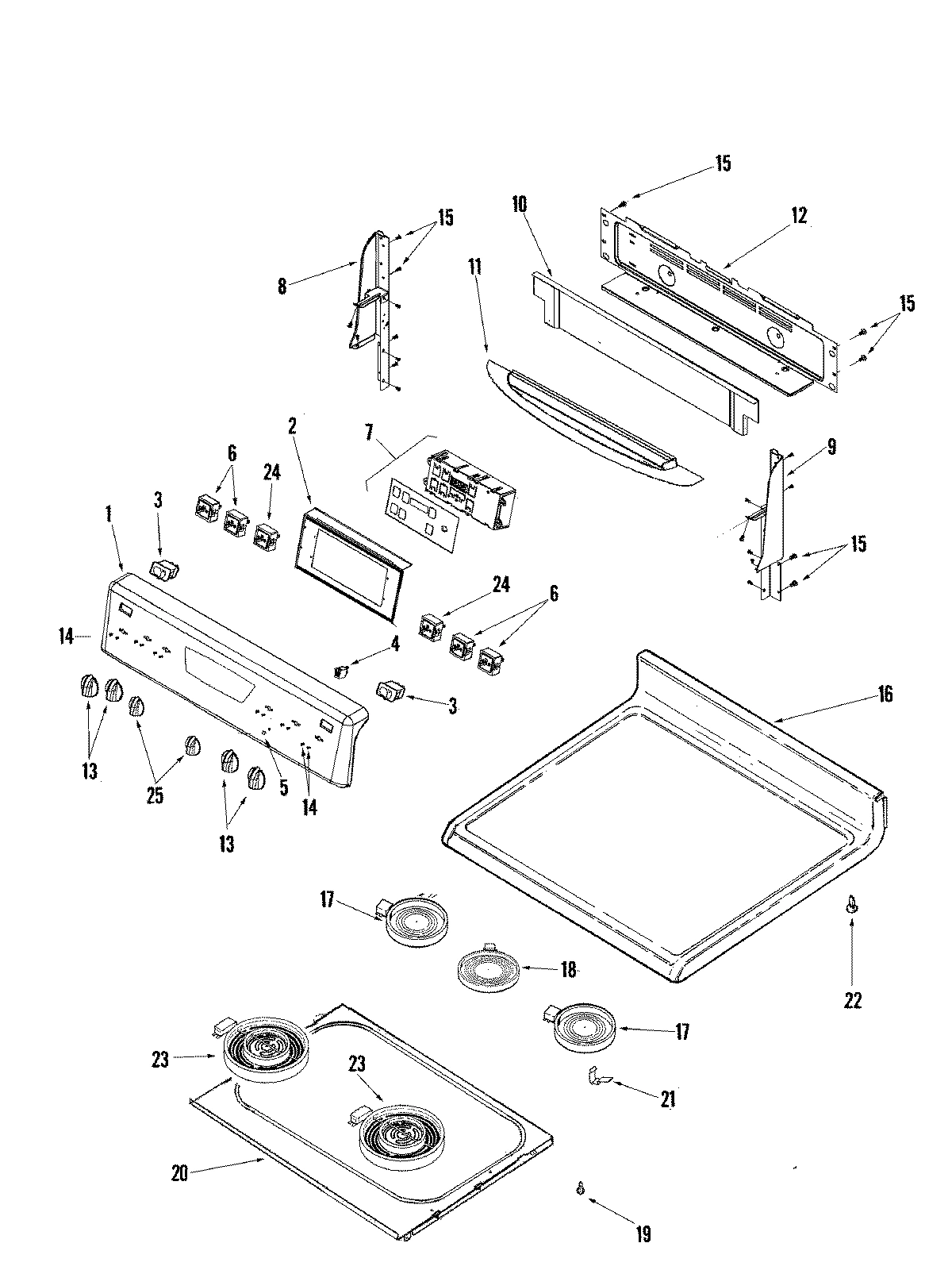

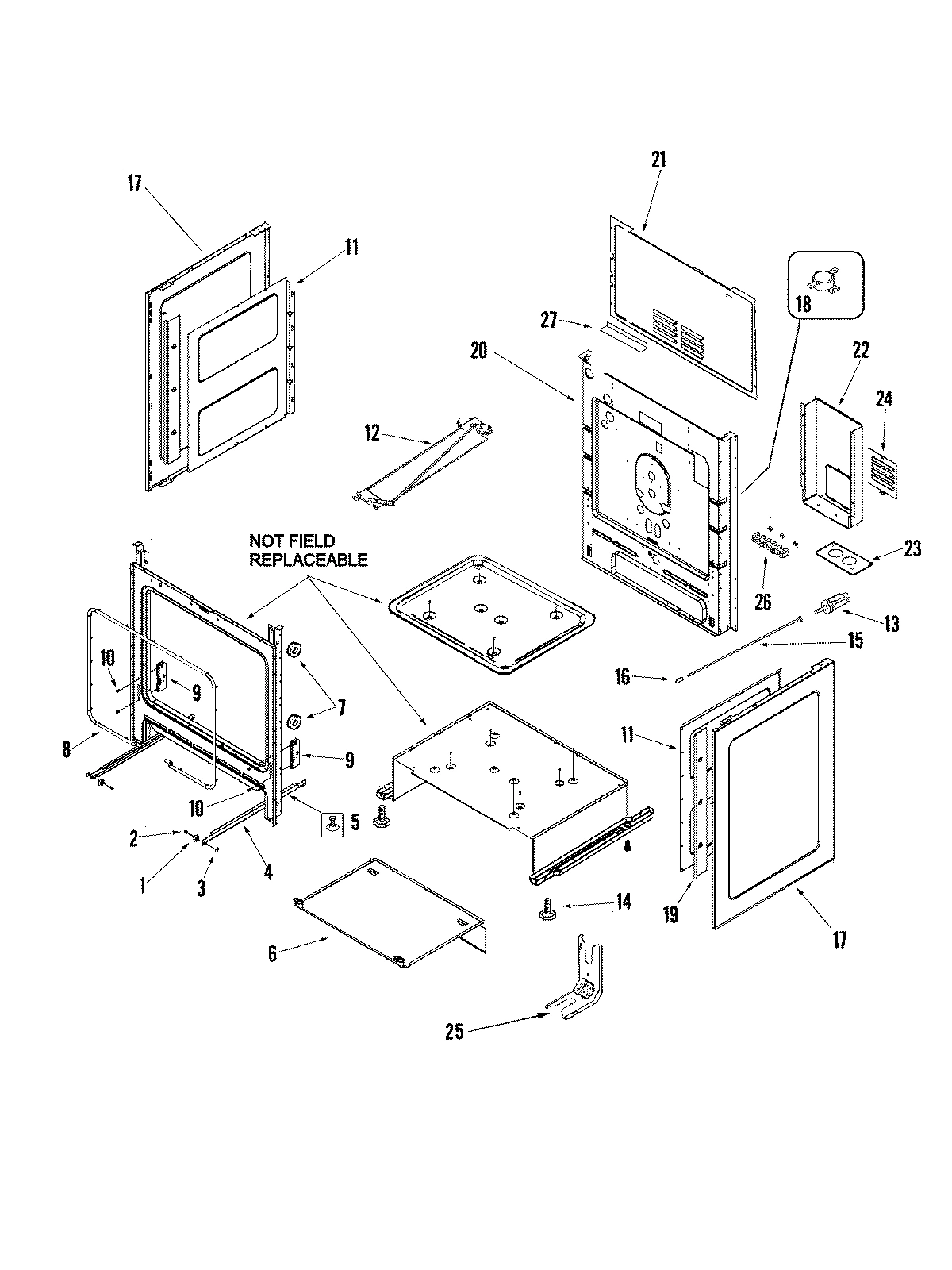

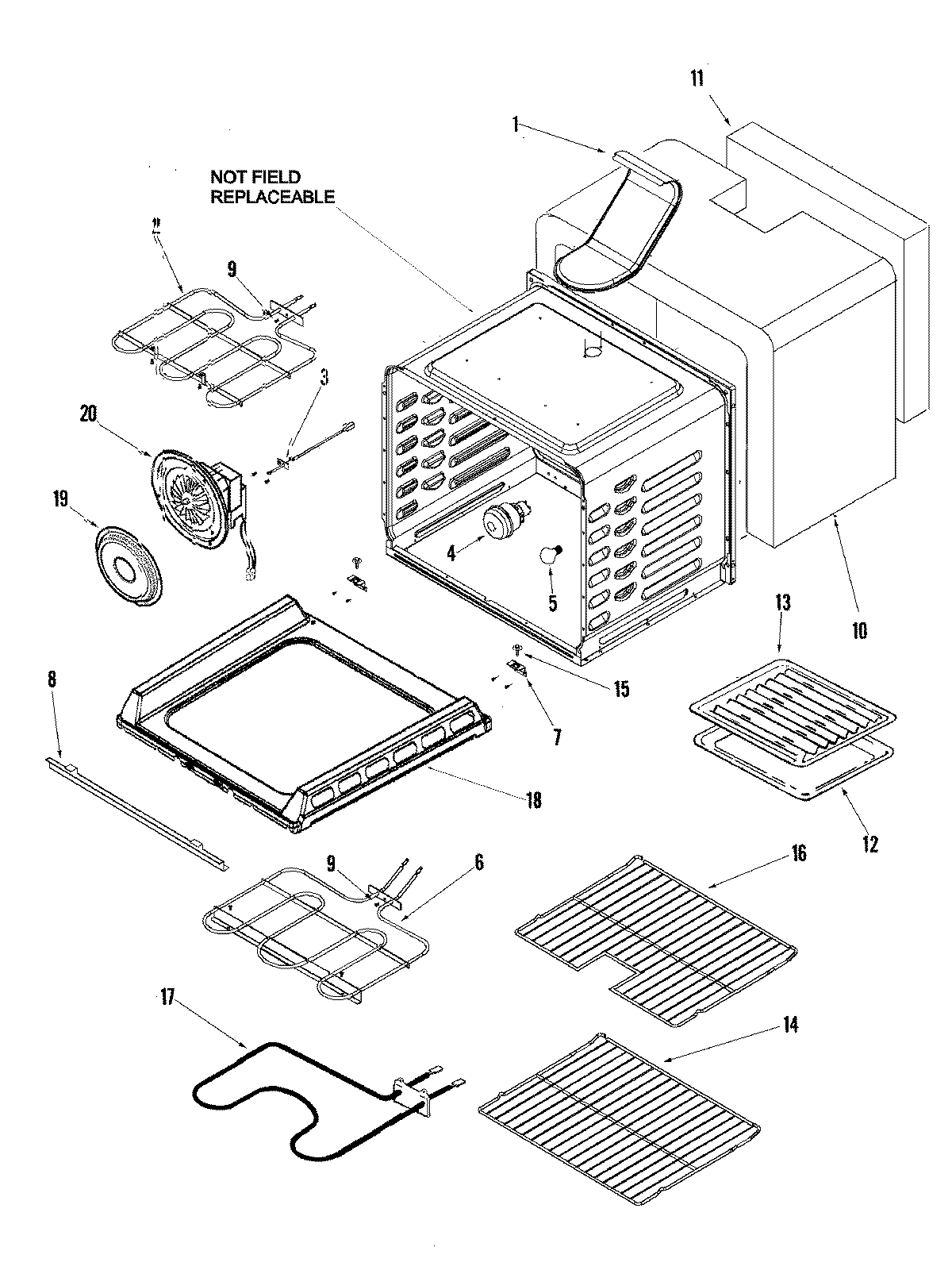

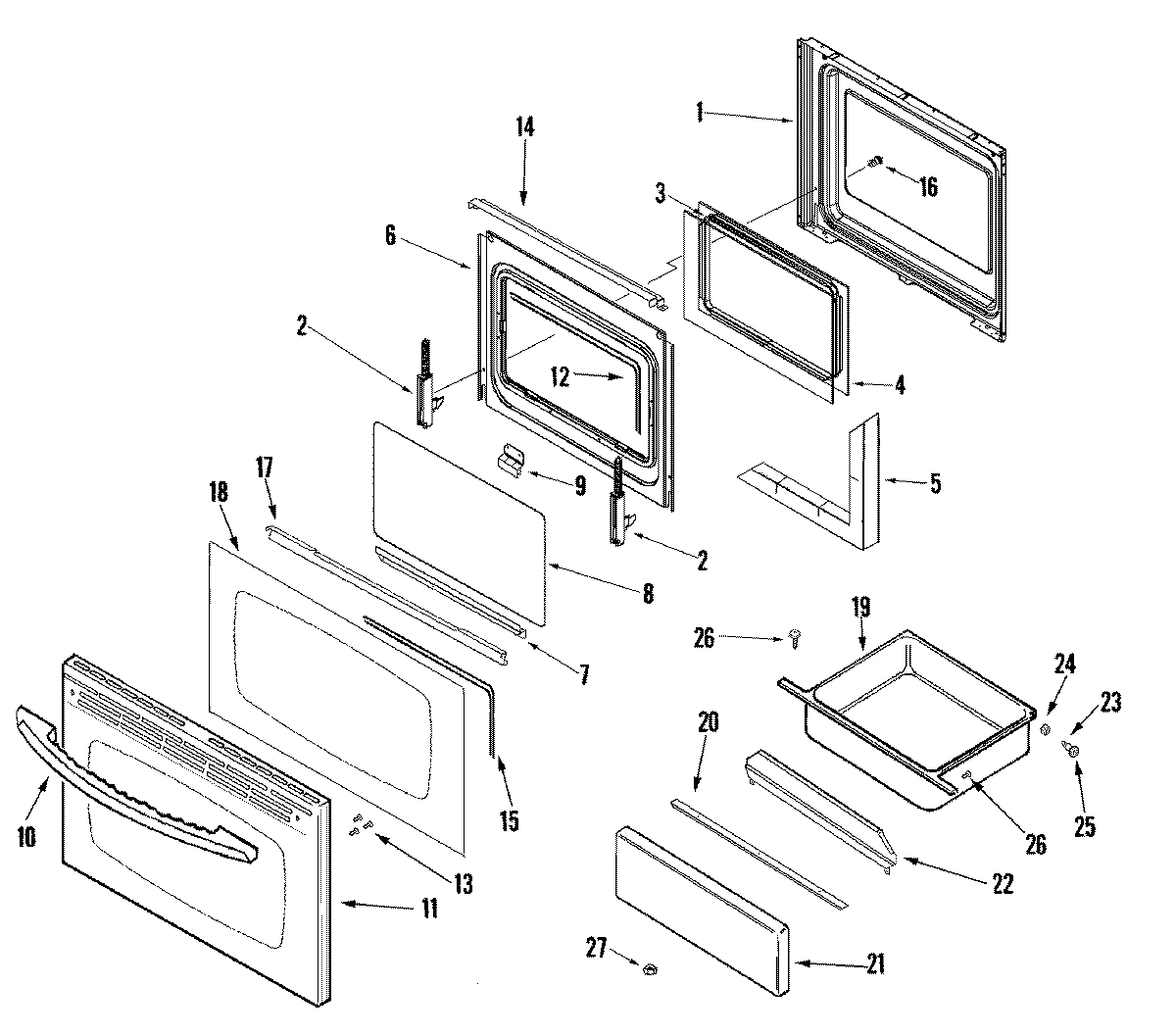

Model Whirlpool AER5845QAS ELECTRIC RANGE – Common Parts &amp; Diagrams

1

LINING, DOOR WPL 74008926 Contact Us For Availability

1

PANEL, BACKGUARD (STLS) WPL 74008674 Contact Us For Availability

1

MANUAL, USE & CARE WPL 8113P39060 Contact Us For Availability

1

MANUAL, USE & CARE WPL 8113P54860 Contact Us For Availability

2

74010546 Whirlpool Range Oven Door Hinge In Stock WPL 74010546 $61.70

2

BRACKET, CLOCK WPL 74008716 Contact Us For Availability

2

HARNESS (SWITCH/TOP-LT) WPL 74008893 Contact Us For Availability

2

SHAFT, STORAGE DRAWER ROLLER WPL 74005231 Contact Us For Availability

3

12001656 Whirlpool Range Oven Temperature Sen In Stock WPL 12001656 $28.98

3

NUT, LOCK (8-32) WPL 74005230 Contact Us For Availability

3

FRAME, GLASS WPL 74003644 Contact Us For Availability

3

SWITCH, ROCKER (BLK) WPL 74008718 Contact Us For Availability

3

HARNESS (SWITCH/TOP-RT) WPL 74008894 Contact Us For Availability

4

74003645 Whirlpool Range Oven Door Inner Glas In Stock WPL 74003645 $115.28

4

WP74004153 Whirlpool Indicator Light Backorder WPL WP74004153 $4.82

4

HARNESS, BURNER BOX WPL 74008899 Contact Us For Availability

4

GLIDE, DRAWER (WARMING DRAWER) WPL 74008881 Contact Us For Availability

5

INSULATION, OVEN DOOR WPL 74003647 Contact Us For Availability

5

LENS, INDICATOR LIGHT WPL 7730P01160 Contact Us For Availability

5

HARNESS, MAIN WPL 74009171 Contact Us For Availability

5

STOP, DRAWER WPL 74008688 Contact Us For Availability

6

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $39.84

6

WP74003122 Whirlpool Infinite Switch Assembly In Stock WPL WP74003122 $81.47

6

BAFFLE, DOOR WPL 74008744 Contact Us For Availability

6

SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability

6

SHIELD, WARMING DRAWER (UPR) WPL 74008882 Contact Us For Availability

6

SHIELD, WARMING DRAWER (UPR) WPL 74009595 Contact Us For Availability

7

74008690 Whirlpool Range Spacer Backorder WPL 74008690 $13.22

7

SCREW W/SHOULDER (No.8) WPL 74008798 Contact Us For Availability

7

RETAINER, DOOR GLASS (LWR) WPL 74008745 Contact Us For Availability

7

CLOCK/OVERLAY (BLK) WPL 74008644 Contact Us For Availability

8

W11562931 Whirlpool Door Gasket In Stock WPL W11562931 $38.53

8

GLASS, DOOR WPL 74003649 Contact Us For Availability

8

END CAP (RT-BLK) WPL 74009022 Contact Us For Availability

9

WP74010551 Whirlpool Receiver In Stock WPL WP74010551 $7.90

9

RETAINER, DOOR GLASS (UPR) WPL 74008746 Contact Us For Availability

9

END CAP (LT-BLK) WPL 74009023 Contact Us For Availability

INSULATION, WRAPPER WPL 74008700 Contact Us For Availability

HANDLE, DOOR (STL) WPL 74008324 Contact Us For Availability

SHIELD, VENT (BLK) WPL 74008725 Contact Us For Availability

SHIELD, VENT (BLK) WPL 74009205 Contact Us For Availability

SHIELD, VENT (BSQ) WPL 74009207 Contact Us For Availability

SCREW WPL 7101P11260 Contact Us For Availability

INSULATION, BACK WPL 74008698 Contact Us For Availability

PANEL, DOOR (STL) WPL 74008913 Contact Us For Availability

SHIELD, HEAT VISOR (BLK) WPL 74008891 Contact Us For Availability

SHIELD, HEAT VISOR (BLK) WPL 74009202 Contact Us For Availability

RETAINER, SIDE WPL 74008701 Contact Us For Availability

74003975 Whirlpool Screw P1 (8ABX3/8-BLK) Backorder WPL 74003975 $8.89

PAN, BROIL WPL Y3401F02019 Contact Us For Availability

GASKET, WINDOW BAFFLE WPL 74008917 Contact Us For Availability

COVER, BACKGUARD WIRE WPL 74008730 Contact Us For Availability

INSULATION, FOIL (BKGD) WPL 74008836 Contact Us For Availability

LATCH ASSEMBLY WPL 74008702 Contact Us For Availability

74008731 Whirlpool Range Black Knob Backorder WPL 74008731 $57.15

WP74006515 Whirlpool Washer Screw Backorder WPL WP74006515 $5.02

INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability

SWITCH, DOOR WPL 74008703 Contact Us For Availability

INSULATOR, SHIELD WPL 74008704 Contact Us For Availability

74008835 Whirlpool Clip Retainer Backorder WPL 74008835 $7.22

W11665456 Whirlpool Range Level Foot In Stock WPL W11665456 $19.10

WP74008763 Whirlpool Range Rack Backorder WPL WP74008763 $136.35

BAFFLE, DOOR (STL) WPL 74009027 Contact Us For Availability

SCREW WPL 7101P30960 Contact Us For Availability

WP74003976 Whirlpool Screw Backorder WPL WP74003976 $4.82

WP74009029 Whirlpool Door Gasket Backorder WPL WP74009029 $113.80

SLEEVE, ROD TUBE WPL 74008705 Contact Us For Availability

ROD, DOOR SWITCH WPL 74008706 Contact Us For Availability

RACK, EASY WPL 74009045 Contact Us For Availability

SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability

TOP ASSEMBLY (BLK) WPL 74008533 Contact Us For Availability

BUMPER WPL 74008707 Contact Us For Availability

W10823711 Whirlpool Surface Element Left Fron In Stock WPL W10823711 $134.91

ELEMENT, WARMING DRAWER WPL 74008883 Contact Us For Availability

SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability

CLIP, WARMING ELEMENT WPL 74006592 Contact Us For Availability

BRACKET, DOOR GLASS (STL) WPL 74009028 Contact Us For Availability

SCREW WPL 74004208 Contact Us For Availability

PANEL, SIDE (BLK) WPL 74008710 Contact Us For Availability

74008715 Whirlpool Thermal Limiter Switch Backorder WPL 74008715 $148.74

W11233072 Whirlpool Screw In Stock WPL W11233072 $11.38

WP7101P434-60 Whirlpool Screw Backorder WPL WP7101P434-60 $4.82

WPW10211368 Whirlpool Range Bottom In Stock WPL WPW10211368 $259.60

GLASS, DOOR (STL) WPL 74008855 Contact Us For Availability

ELEMENT, WARMING WPL 74008898 Contact Us For Availability

SCREW WPL 74005401 Contact Us For Availability

COVER, CONVECT WPL 74005783 Contact Us For Availability

DRAWER, WARMING ASSY. WPL 74008339 Contact Us For Availability

SCREW (ZINC) WPL 7101P04160 Contact Us For Availability

NUT, TERMINAL BLOCK WPL 7103P02760 Contact Us For Availability

FAN ASSY., DUAL CONVECT WPL 74006807 Contact Us For Availability

HANDLE, DRAWER WPL 74008909 Contact Us For Availability

BOTTOM, BURNER BOX WPL 74008900 Contact Us For Availability

BACK, MAIN WPL 74008699 Contact Us For Availability

21

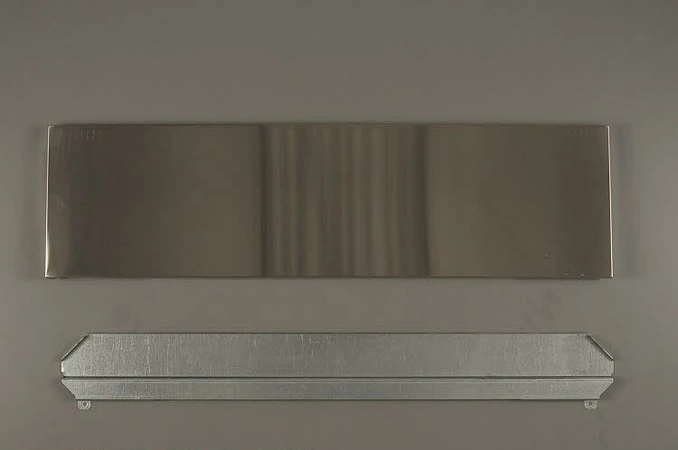

12002306 Whirlpool Air Conditioner Drawer Pan Backorder WPL 12002306 $187.50

21

74007134 Whirlpool Oven Spring Element Suppor Backorder WPL 74007134 $7.72

21

COVER, MAIN WIRE (ELE) WPL 74009651 Contact Us For Availability

22

74008761 Whirlpool Spacer Snap-In Backorder WPL 74008761 $5.46

22

COVER, WIRE (LWR) WPL 74008760 Contact Us For Availability

23

W10823692 Whirlpool Dual Radiant Element In Stock WPL W10823692 $146.35

23

PLATE, CONDUIT REINFORCEMENT WPL 3605F14651 Contact Us For Availability

24

SWITCH, INFINITE (WARMING) WPL 74006589 Contact Us For Availability

24

PANEL, ACCESS WPL 74008340 Contact Us For Availability

WP3801F656-51 Whirlpool Range Anti-Tip Bracke In Stock WPL WP3801F656-51 $5.19

NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability

KNOB (BLK) WPL 74008892 Contact Us For Availability

SCREW WPL 7101P35260 Contact Us For Availability

26

SCREW WPL 7101P07260 Contact Us For Availability

26

BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability

27

NUT, LOCK WPL 7103P13960 Contact Us For Availability

27

BOTTOM, WIRE COVER WPL 74008762 Contact Us For Availability

NI

WIRING INFORMATION WPL 15003696 Contact Us For Availability
