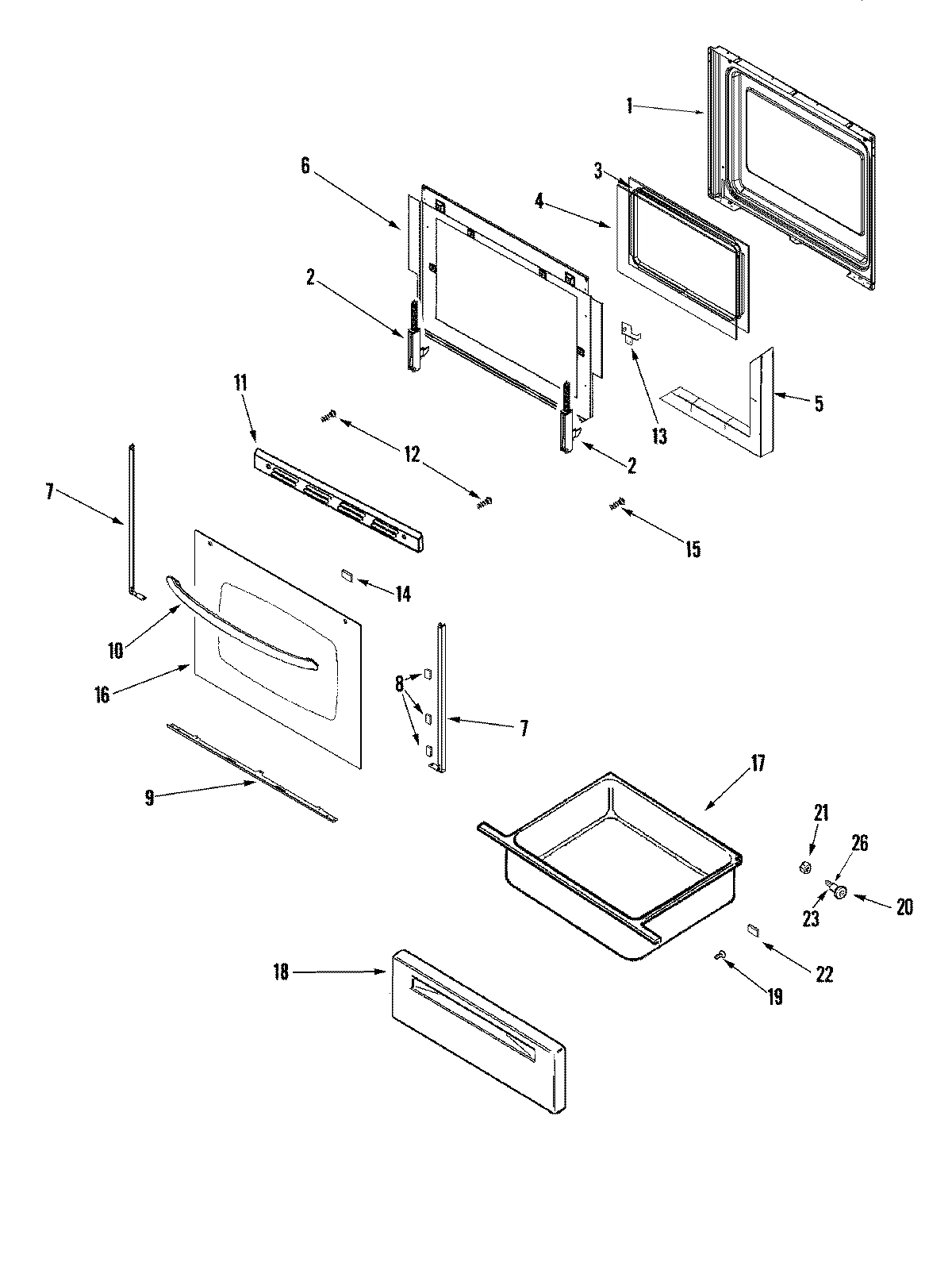

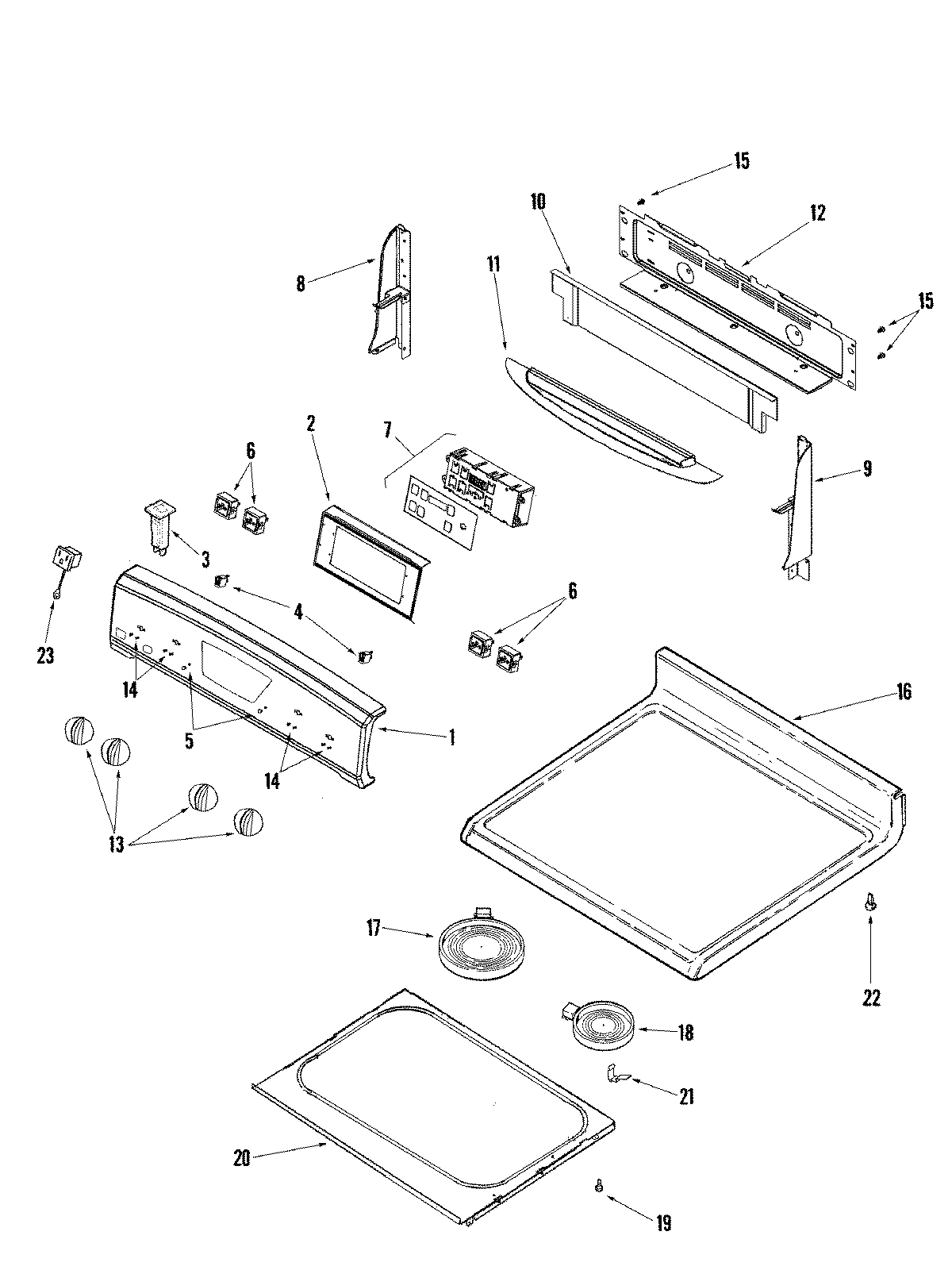

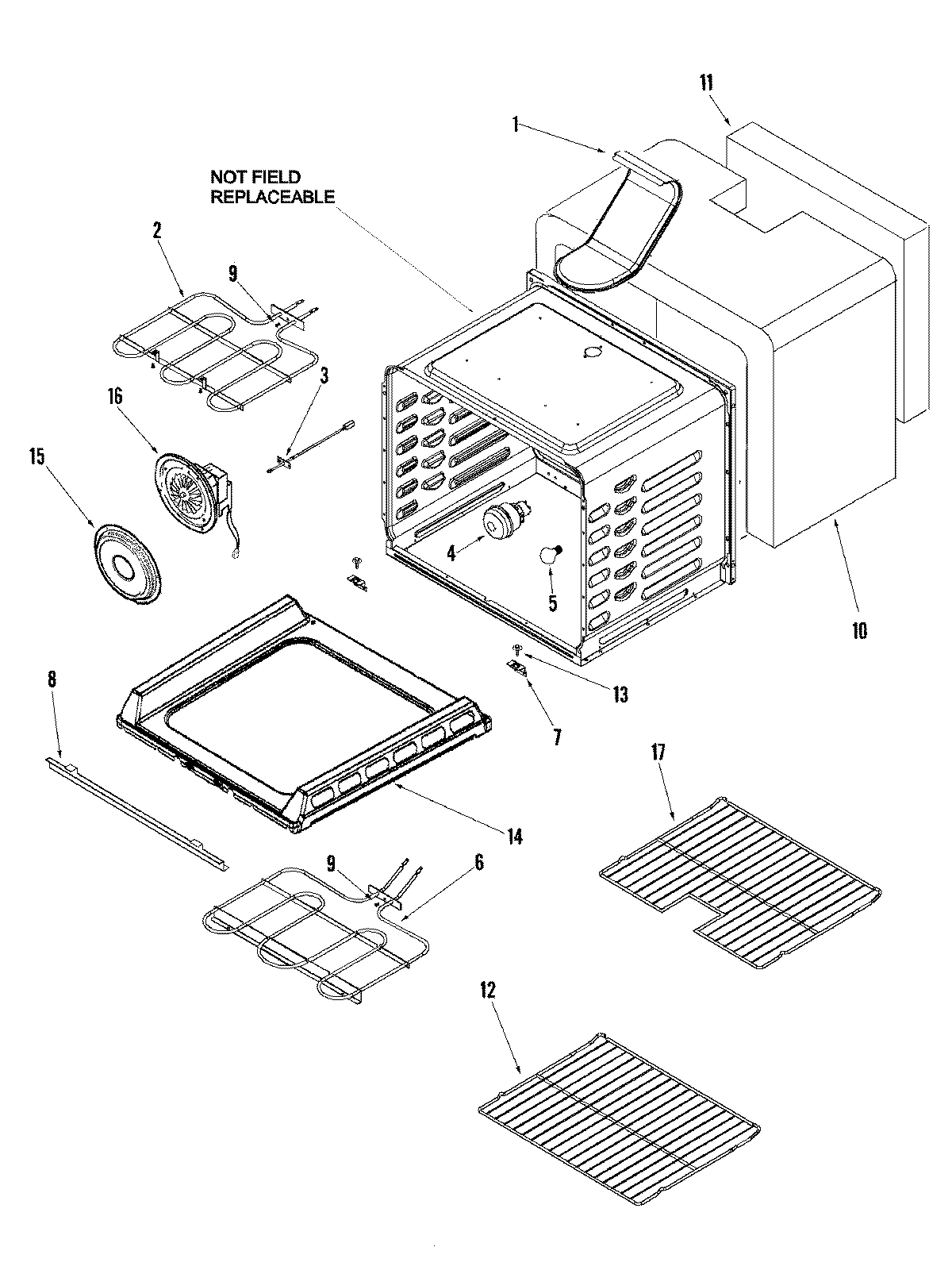

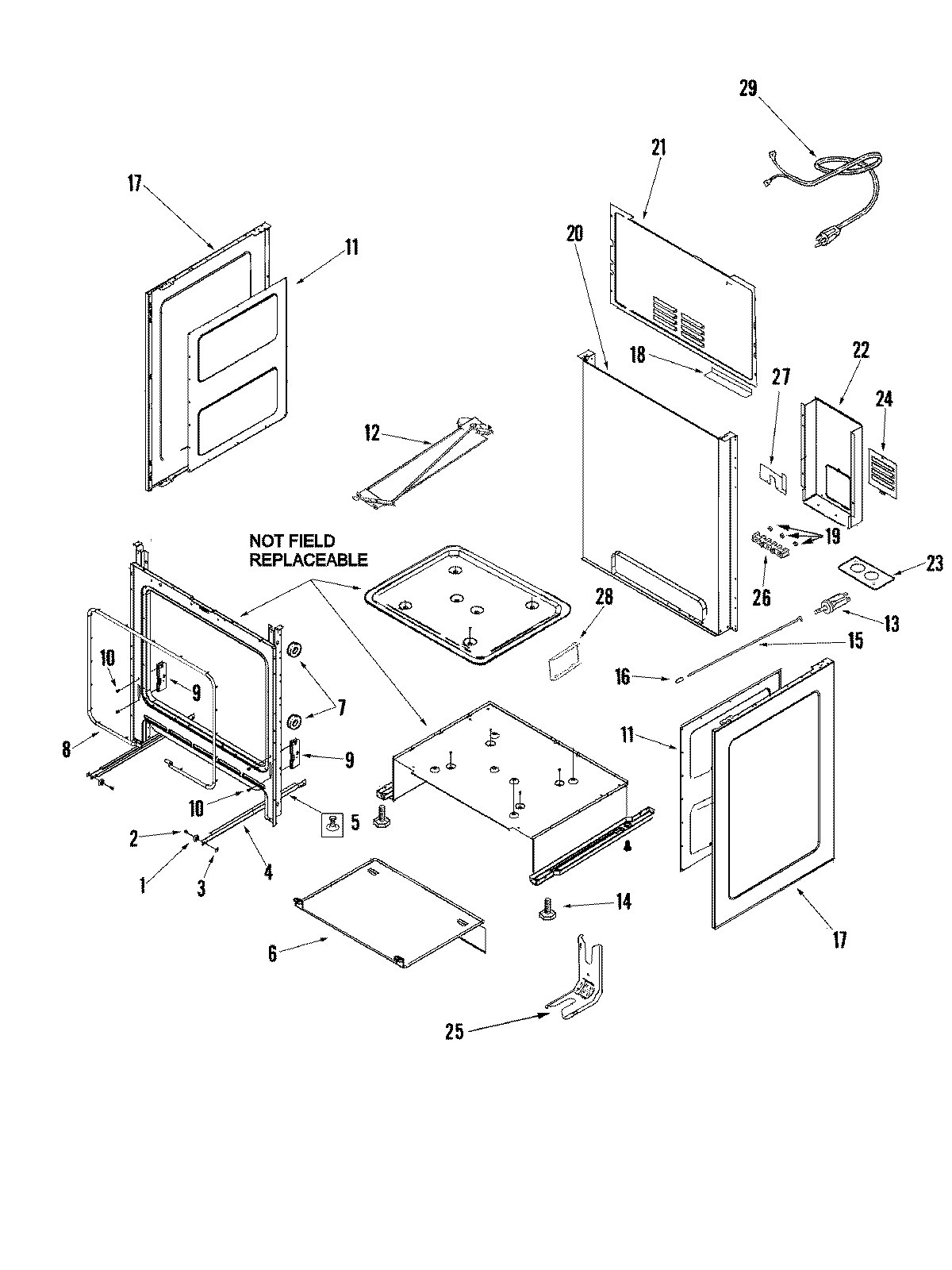

Model Whirlpool AER5815RCB ELECTRIC RANGE – Common Parts &amp; Diagrams

1

VENT, OVEN WPL 74008691 Contact Us For Availability

1

PANEL, BACKGUARD (BLK) WPL 74011440 Contact Us For Availability

1

MANUAL, USE & CARE WPL 8113P48760 Contact Us For Availability

1

MANUAL, USE & CARE WPL 8113P59160 Contact Us For Availability

1

MANUAL, USE & CARE WPL 8113P72460 Contact Us For Availability

2

74010546 Whirlpool Range Oven Door Hinge In Stock WPL 74010546 $61.70

2

WP74008692 Whirlpool Bake Element Backorder WPL WP74008692 $133.16

2

SHAFT, STORAGE DRAWER ROLLER WPL 74005231 Contact Us For Availability

2

BRACKET, CLOCK WPL 74008716 Contact Us For Availability

2

HARNESS, MAIN WPL 5171P87360 Contact Us For Availability

2

HARNESS, MAIN WPL 74011443 Contact Us For Availability

3

12001656 Whirlpool Range Oven Temperature Sen In Stock WPL 12001656 $28.98

3

NUT, LOCK (8-32) WPL 74005230 Contact Us For Availability

3

BREAKER, CIRCUIT (BLK) WPL 71003070 Contact Us For Availability

3

HARNESS, INF.SW. (LT) WPL 5171P87460 Contact Us For Availability

3

HARNESS, INF.SW.TO ELEM.(LT) WPL 74009327 Contact Us For Availability

4

74003645 Whirlpool Range Oven Door Inner Glas In Stock WPL 74003645 $115.28

4

WP74004153 Whirlpool Indicator Light Backorder WPL WP74004153 $4.82

4

WP74011278 Whirlpool Light Backorder WPL WP74011278 $78.30

4

RUNNER, SERVICE DRAWER WPL 74008687 Contact Us For Availability

4

LENS, LIGHT BULB WPL 74011299 Contact Us For Availability

4

HARNESS, INF.SW. (RT) WPL 5171P87560 Contact Us For Availability

4

HARNESS, INF.SW TO ELEM.(RT) WPL 74009328 Contact Us For Availability

5

STOP, DRAWER WPL 74008688 Contact Us For Availability

5

BULB-OVEN WPL 7407P10360 Contact Us For Availability

5

LENS, INDICATOR LIGHT WPL 7730P01160 Contact Us For Availability

5

HARNESS, BURNER BOX WPL 74009329 Contact Us For Availability

6

WPW10276482 Whirlpool Bake Element In Stock WPL WPW10276482 $125.13

6

SHIELD, HEAT WPL 74008689 Contact Us For Availability

6

SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability

6

SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability

6

BOOKLET, COOKING MADE SIMPLE WPL 74009330 Contact Us For Availability

7

74008690 Whirlpool Range Spacer Backorder WPL 74008690 $13.22

7

SCREW W/SHOULDER (No.8) WPL 74008798 Contact Us For Availability

7

SUPPORT, OVEN BOTTOM (REAR) WPL 74008694 Contact Us For Availability

7

CLOCK/OVERLAY (BLK) WPL 74008644 Contact Us For Availability

7

COOKTOP CLEANING CREME 4 OZ WPL 20001080 Contact Us For Availability

8

W11562931 Whirlpool Door Gasket In Stock WPL W11562931 $38.53

8

WA906B Whirlpool Cooktop Glass Scraper Backorder WPL WA906B $4.61

8

SUPPORT, OVEN BOTTOM (FRONT) WPL 74008695 Contact Us For Availability

8

END CAP (RT-BLK) WPL 74009022 Contact Us For Availability

9

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $39.84

9

WP74010551 Whirlpool Receiver In Stock WPL WP74010551 $7.90

9

TRIM, BOTTOM (BLK) WPL 74008889 Contact Us For Availability

9

END CAP (LT-BLK) WPL 74009023 Contact Us For Availability

8019P013-60 Whirlpool Clip Backorder WPL 8019P013-60 $11.90

HANDLE, DOOR (BLK) WPL 74008318 Contact Us For Availability

SCREW WPL 7101P11260 Contact Us For Availability

INSULATION, WRAPPER WPL 74008700 Contact Us For Availability

SHIELD, VENT WPL 74009444 Contact Us For Availability

WP98008545 Whirlpool Screw Backorder WPL WP98008545 $11.88

TRIM, TOP (BLK) WPL 74008890 Contact Us For Availability

RETAINER, SIDE WPL 3804F31651 Contact Us For Availability

INSULATION, SIDE PANEL WPL 7002P49460 Contact Us For Availability

RETAINER, SIDE WPL 74008701 Contact Us For Availability

INSULATION, BACK WPL 74008698 Contact Us For Availability

SHIELD, HEAT VISOR (BLK) WPL 74009202 Contact Us For Availability

74003975 Whirlpool Screw P1 (8ABX3/8-BLK) Backorder WPL 74003975 $8.89

WP74006515 Whirlpool Washer Screw Backorder WPL WP74006515 $5.02

WP74008763 Whirlpool Range Rack Backorder WPL WP74008763 $136.35

LATCH ASSEMBLY WPL 74008702 Contact Us For Availability

Latch Assembly WPL 8002P10460 Contact Us For Availability

INSULATION, BOTTOM (FIBERGLASS) WPL 7002P36160 Contact Us For Availability

INSULATION, FOIL (BKGD) WPL 74008836 Contact Us For Availability

COVER, REAR WIRE WPL 74010983 Contact Us For Availability

74008731 Whirlpool Range Black Knob Backorder WPL 74008731 $57.15

WP74003976 Whirlpool Screw Backorder WPL WP74003976 $4.82

BRACKET, DOOR HANDLE (LT) WPL 74009412 Contact Us For Availability

BRACKET, DOOR HANDLE (RT) WPL 74009413 Contact Us For Availability

SWITCH, DOOR WPL 74008703 Contact Us For Availability

INSULATOR, SHIELD WPL 74008704 Contact Us For Availability

74008835 Whirlpool Clip Retainer Backorder WPL 74008835 $7.22

W11665456 Whirlpool Range Level Foot In Stock WPL W11665456 $19.10

WPW10211368 Whirlpool Range Bottom In Stock WPL WPW10211368 $259.60

TAPE, SINGLE SIDED (WHT) WPL 74004224 Contact Us For Availability

SCREW WPL 7101P30960 Contact Us For Availability

SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability

SLEEVE, ROD TUBE WPL 74008705 Contact Us For Availability

ROD, DOOR SWITCH WPL 74008706 Contact Us For Availability

COVER, CONVECT WPL 74005783 Contact Us For Availability

GLASS, DOOR (BLK) WPL 74009018 Contact Us For Availability

TAPE, FOIL (3`` WIDE) WPL 8270P09060 Contact Us For Availability

BUMPER WPL 74008707 Contact Us For Availability

SCREW WPL 74005401 Contact Us For Availability

FAN ASY., DUAL CONVECT WPL 74011168 Contact Us For Availability

TOP ASSEMBLY (BLK) WPL 74008528 Contact Us For Availability

W10823696 Whirlpool Radiant Surface Element In Stock WPL W10823696 $113.71

DRAWER, SERVICE WPL 3405F03780 Contact Us For Availability

DRAWER, SERVICE WPL 74008333 Contact Us For Availability

SCREW WPL 74004208 Contact Us For Availability

PANEL, SIDE (BLK) WPL 74008710 Contact Us For Availability

RACK, EASY WPL 74009045 Contact Us For Availability

W10823711 Whirlpool Surface Element Left Fron In Stock WPL W10823711 $134.91

BRACKET, MOUNTING WPL 3605P33751 Contact Us For Availability

NUT, LOCK WPL 7103P13960 Contact Us For Availability

PANEL, DRAWER (BLK) WPL 74008885 Contact Us For Availability

PANEL, DRAWER (BLK) WPL W10163038 Contact Us For Availability

BOTTOM, WIRE COVER WPL 74008762 Contact Us For Availability

19

NUT, TERMINAL BLOCK WPL 7103P02760 Contact Us For Availability

19

SCREW (ZINC) WPL 7101P04160 Contact Us For Availability

20

BACK, MAIN (ELEC) WPL 74009675 Contact Us For Availability

20

BOTTOM, BURNER BOX WPL 74008900 Contact Us For Availability

21

74007134 Whirlpool Oven Spring Element Suppor Backorder WPL 74007134 $7.72

21

NUT WPL 7103P08260 Contact Us For Availability

21

COVER, MAIN WIRE (ELE) WPL 74009651 Contact Us For Availability

22

74008761 Whirlpool Spacer Snap-In Backorder WPL 74008761 $5.46

22

WP74005546 Whirlpool RU Spacer Backorder WPL WP74005546 $6.25

22

COVER, WIRE (LWR) WPL 74008760 Contact Us For Availability

23

W11233072 Whirlpool Screw In Stock WPL W11233072 $11.38

23

PLATE, CONDUIT REINFORCEMENT WPL 3605F14651 Contact Us For Availability

23

RECEPTACLE, OUTLET (BLK) WPL 71003068 Contact Us For Availability

24

PANEL, ACCESS WPL 74008340 Contact Us For Availability

25

WP3801F656-51 Whirlpool Range Anti-Tip Bracke In Stock WPL WP3801F656-51 $5.19

25

SCREW WPL 7101P35260 Contact Us For Availability

26

BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability

27

INSULATOR, POWER CORD WPL 74008759 Contact Us For Availability

28

BRACKET, OVEN SUPPORT WPL 74011187 Contact Us For Availability

29

CORD, POWER WPL 7402P05060 Contact Us For Availability

NI

WIRING INFORMATION (FRC) WPL 15003866 Contact Us For Availability

NI

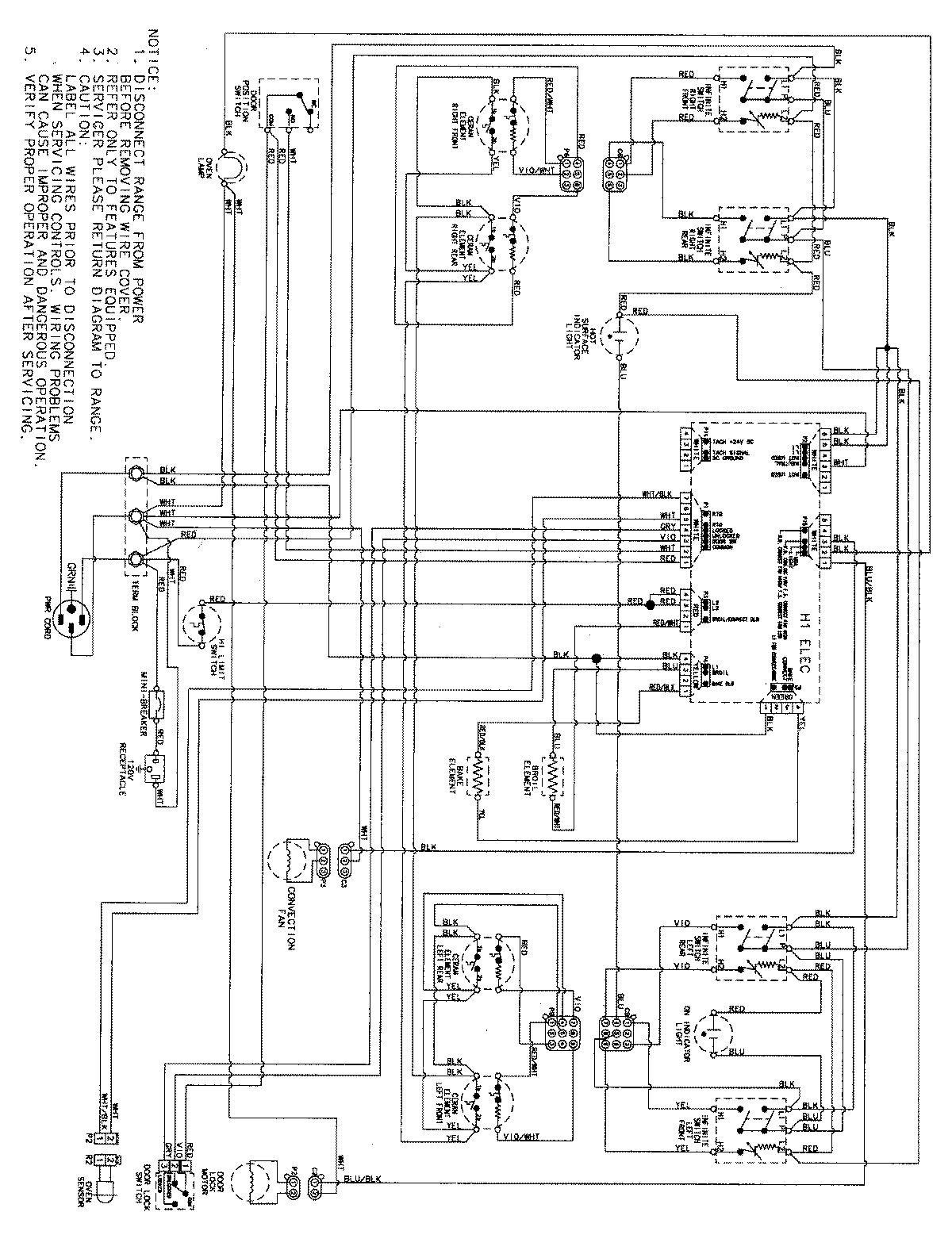

WIRING INFORMATION WPL 15003865 Contact Us For Availability
