Model Maytag AER5524XAD0 ELECTRIC RANGE – Common Parts & Diagrams

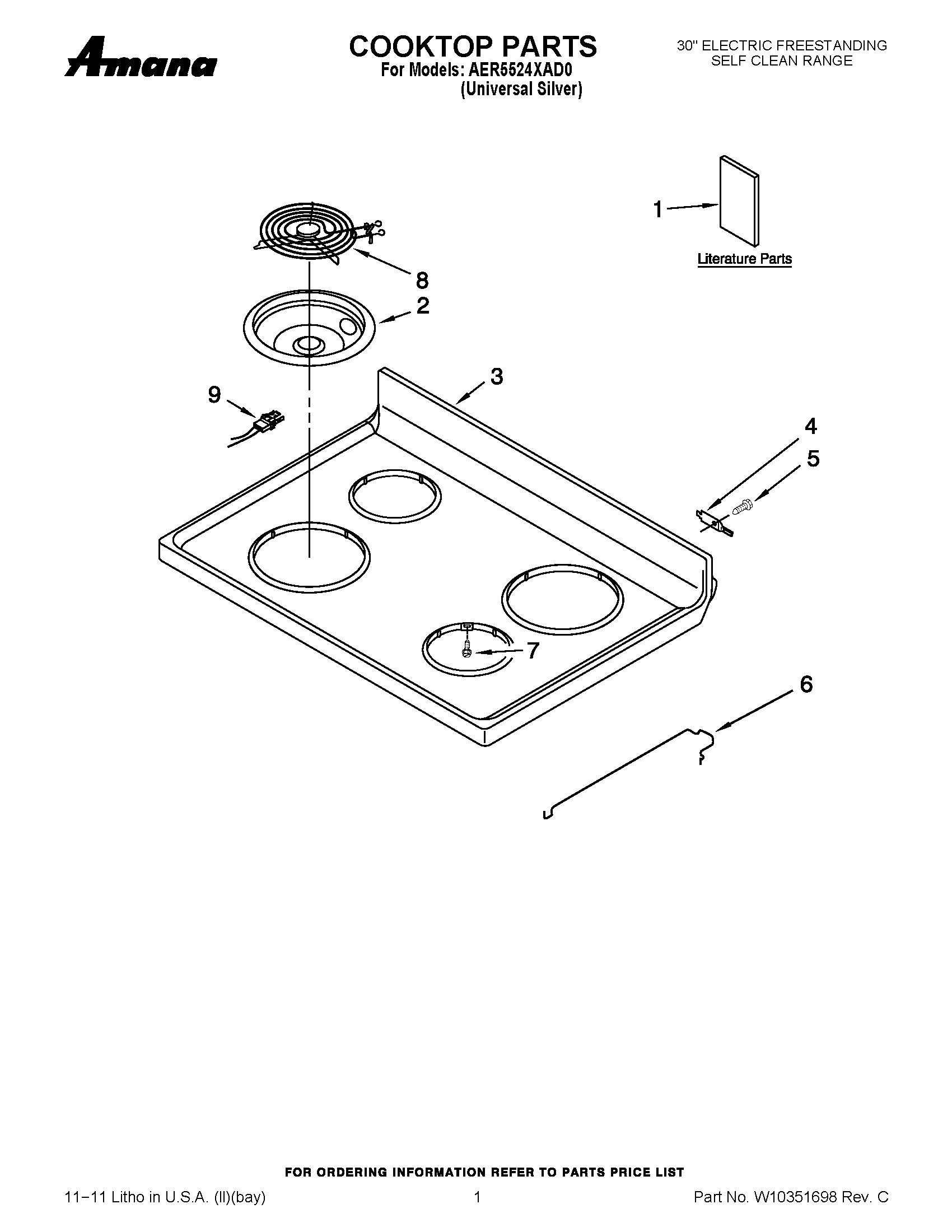

01 - COOKTOP PARTS

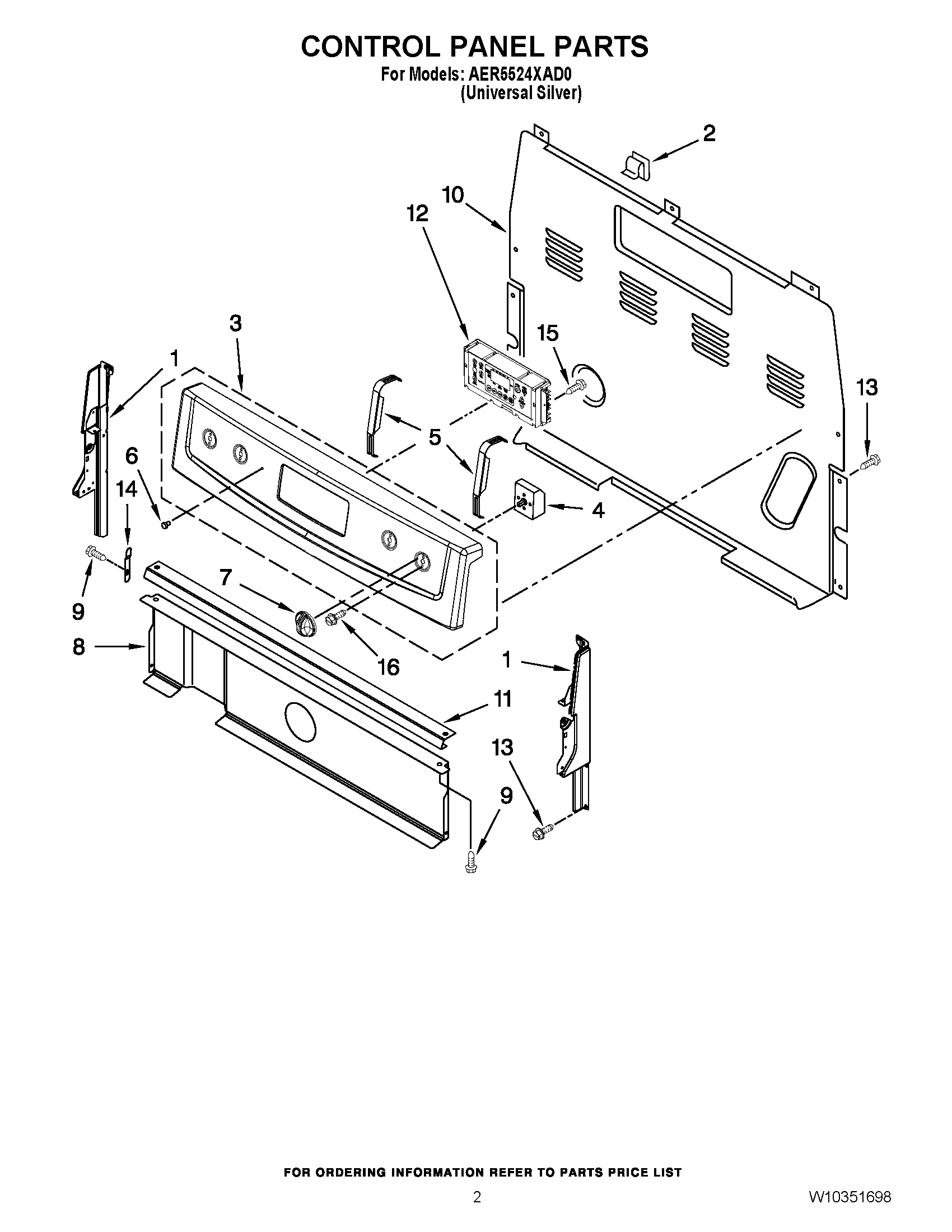

02 - CONTROL PANEL PARTS

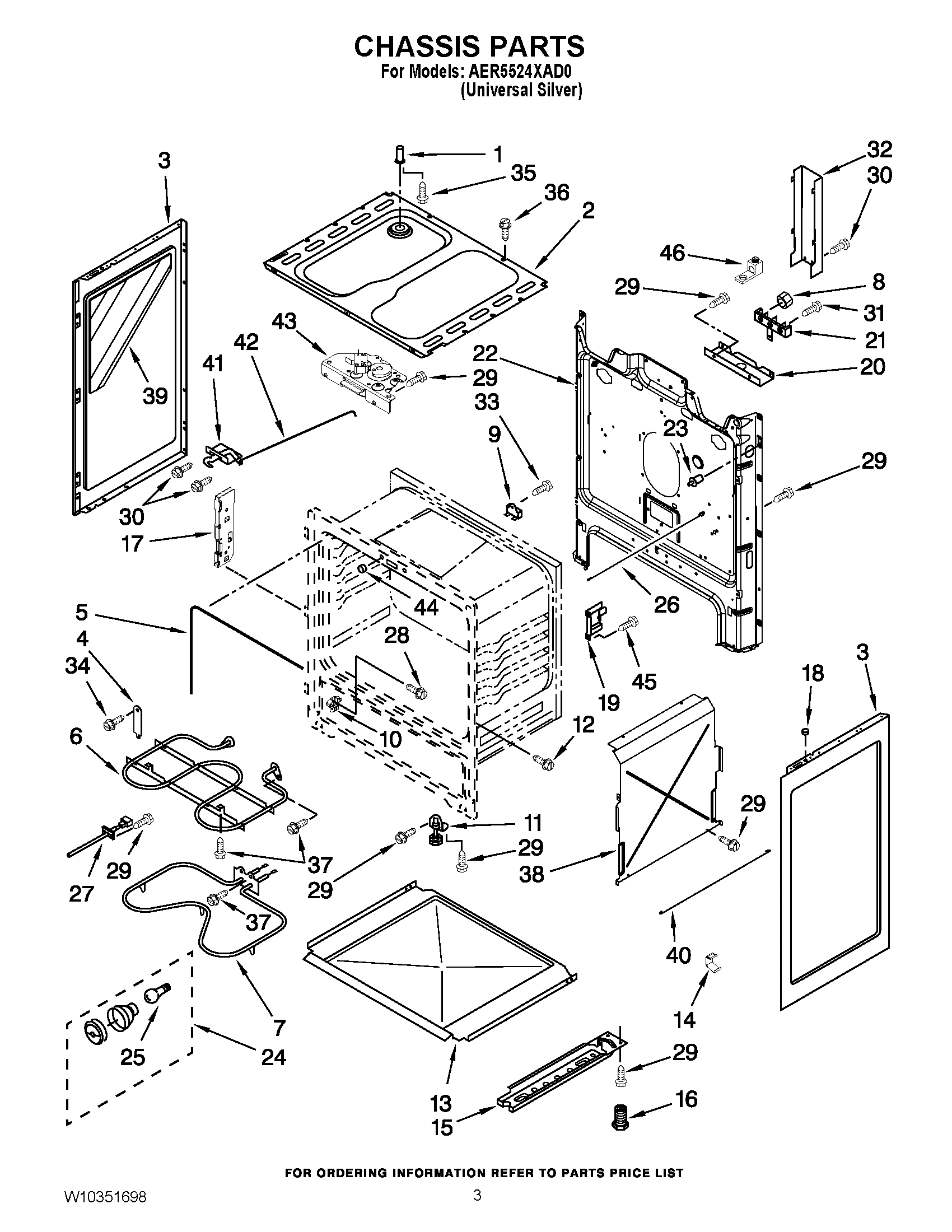

03 - CHASSIS PARTS

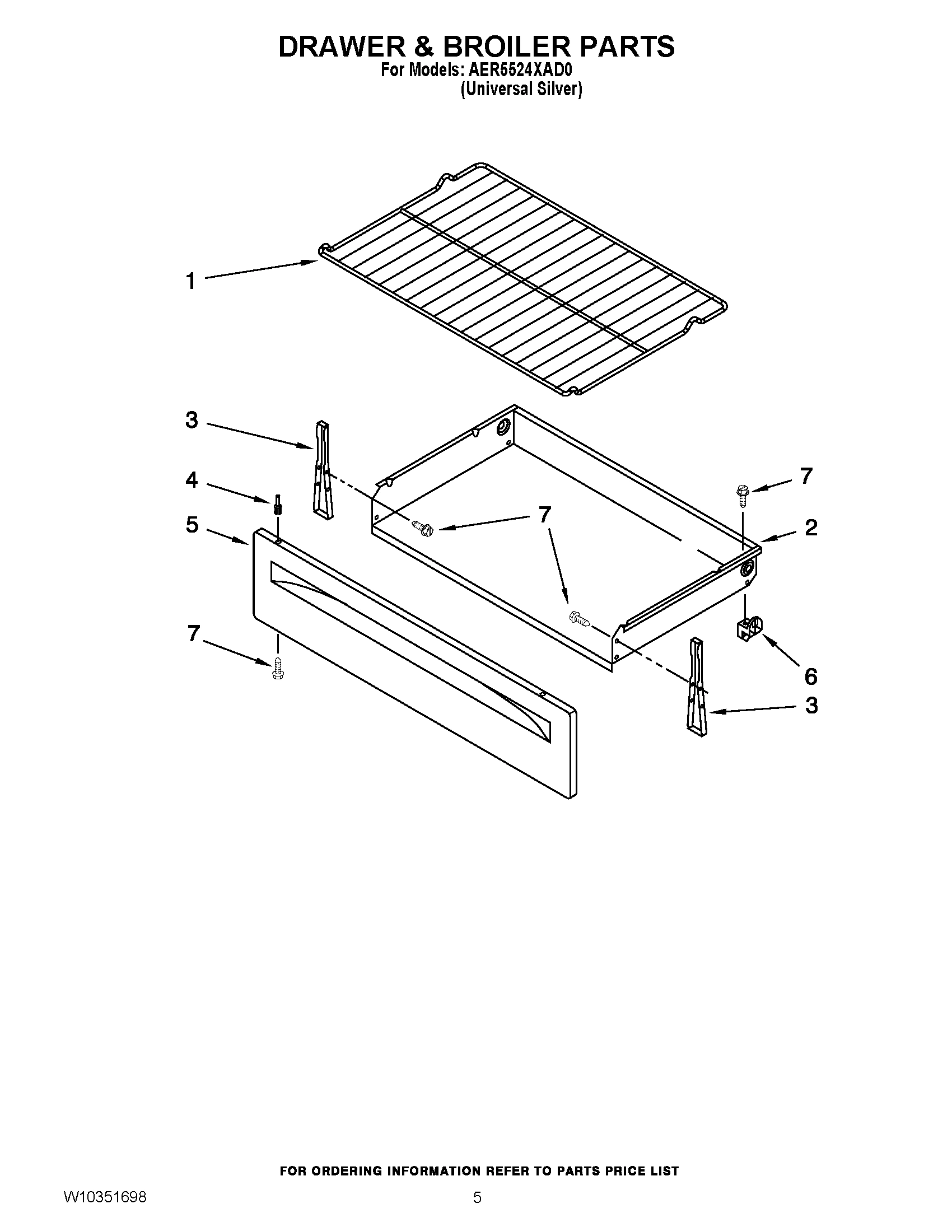

04 - DRAWER & BROILER PARTS

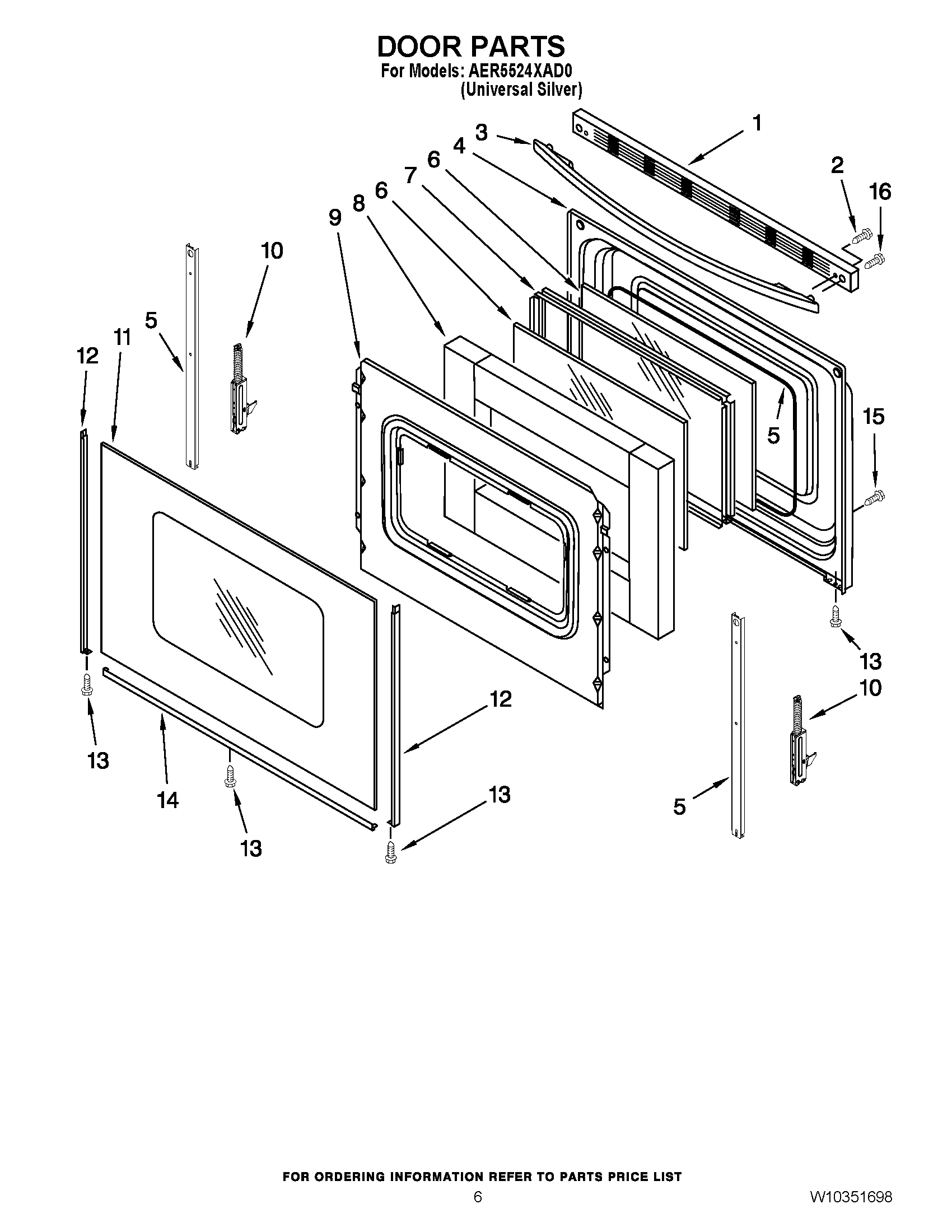

05 - DOOR PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag AER5524XAD0 ELECTRIC RANGE
1
Template, Anti-Tip (English/French) MAY 9757143 Contact Us For Availability
1
Safer Cooking Tips MAY 9762761 Contact Us For Availability
1
MAY W10198623 MAY W10198623 Contact Us For Availability
1
MAY W10252706 MAY W10252706 Contact Us For Availability
1
MAY W10320987 MAY W10320987 Contact Us For Availability
1
ENDCAP (BLACK (LEFT HAND)) MAY W10184437 Contact Us For Availability
1
ENDCAP (BLACK (RIGHT HAND)) MAY W10184438 Contact Us For Availability
1
Vent Tube MAY 9755804 Contact Us For Availability
1
MAY W10268578 MAY W10268578 Contact Us For Availability
1
TRIM, TOP (BLACK) MAY W10016380 Contact Us For Availability
2
Bowl, Drip (8`` Chrome) MAY W10196405 Contact Us For Availability
2
Bowl, Drip (6`` Chrome) MAY W10196406 Contact Us For Availability
2
Clip MAY 8273564 Contact Us For Availability
2
MAY W10209613 MAY W10209613 Contact Us For Availability
2
MAY 9761031 MAY 9761031 Contact Us For Availability
2
Screw MAY 3196164 Contact Us For Availability
3
MAY 3186233 MAY 3186233 Contact Us For Availability
3
MAY W10320998 MAY W10320998 Contact Us For Availability
3
PANEL, SIDE (BLACK) MAY 8053832 Contact Us For Availability
3
BRACKET, DRAWER MAY W10174396 Contact Us For Availability
3
MAY W10202217 MAY W10202217 Contact Us For Availability
4
MAY 3195060 MAY 3195060 Contact Us For Availability
4
MAY 3148952 MAY 3148952 Contact Us For Availability
4
MAY 3148954 MAY 3148954 Contact Us For Availability
4
CLIP,DOOR MNTG MAY 9761517 Contact Us For Availability
4
RIVET, PUSH (UNIVERSAL SILVER) MAY 3196813 Contact Us For Availability
4
MAY 9761344 MAY 9761344 Contact Us For Availability
5
BRACKET, EOC MAY W10138683 Contact Us For Availability
5
Seal, Oven Door MAY 8522416 Contact Us For Availability
5
Panel, Drawer Frnt (Universal Silver) MAY 9761694 Contact Us For Availability
5
STRAP, DOOR MAY W10113759 Contact Us For Availability
6
ROD, SUPPORT MAY 3195812 Contact Us For Availability
6
Lens, Light MAY 3196068 Contact Us For Availability
6
MAY W10308476 MAY W10308476 Contact Us For Availability
6
GLIDE, DRAWER MAY 8053334 Contact Us For Availability
6
MAY 9758162 MAY 9758162 Contact Us For Availability
7
KNOB, INFINITE (BLACK) MAY W10119706 Contact Us For Availability
7
MAY W10308477 MAY W10308477 Contact Us For Availability
7
Screw MAY 3196168 Contact Us For Availability
7
MAY W10316950 MAY W10316950 Contact Us For Availability
8
ELEMENT, SURFACE (8``) MAY W10259865 Contact Us For Availability
8
ELEMENT, SURFACE (6``) MAY W10259868 Contact Us For Availability
8
MAY 8053912 MAY 8053912 Contact Us For Availability
8
INSULATION, DOOR MAY W10278991 Contact Us For Availability
9
RECEPTACLE, ELMNT MAY 3195210 Contact Us For Availability
9
MAY 3196548 MAY 3196548 Contact Us For Availability
9
Retainer, Insul. MAY 9761357 Contact Us For Availability
10
Cover, Upper MAY 8272473 Contact Us For Availability
10
Glide, Drawer Frnt MAY W10114344 Contact Us For Availability
10
HINGE, DOOR ACTIVE MAY W10299224 Contact Us For Availability
10
HINGE, DOOR PASSIVE MAY W10299227 Contact Us For Availability
11
MAY W10182322 MAY W10182322 Contact Us For Availability
11
FOOT, FRONT MAY 3196037 Contact Us For Availability
11
GLASS, OUTER (BLACK) MAY W10144949 Contact Us For Availability
12
CONTROL, RANGE (BLACK) MAY W10271730 Contact Us For Availability
12
MAY W10067840 MAY W10067840 Contact Us For Availability
12
TRIM, SIDE (BLACK, RIGHT HAND) MAY 8523165 Contact Us For Availability
12
TRIM, SIDE (BLACK, LEFT HAND) MAY 8523171 Contact Us For Availability
13
Tray, Insulation MAY 8054068 Contact Us For Availability
13
MAY 3196160 MAY 3196160 Contact Us For Availability
14
MAY 3196200 MAY 3196200 Contact Us For Availability
14
MAY W10137382 MAY W10137382 Contact Us For Availability
14
TRIM, LOWER (UNIVERSAL SILVER) MAY W10067550 Contact Us For Availability
15
RAIL, BASE MAY 9760314 Contact Us For Availability
15
MAY W10031790 MAY W10031790 Contact Us For Availability
16
MAY 3400882 MAY 3400882 Contact Us For Availability
16
FOOT, REAR MAY W10058460 Contact Us For Availability
16
MAY W10200660 MAY W10200660 Contact Us For Availability
17
Brkt-Mntg,Dr Hinge MAY 9760407 Contact Us For Availability
18
BUMPER, SIDE MAY 3195809 Contact Us For Availability
19
SUPPORT, OVEN MAY 3186116 Contact Us For Availability
20
MAY 3186034 MAY 3186034 Contact Us For Availability
21
MAY W10245259 MAY W10245259 Contact Us For Availability
22
MAY 8274034 MAY 8274034 Contact Us For Availability
23
MAY 9757262 MAY 9757262 Contact Us For Availability
24
MAY 3196701 MAY 3196701 Contact Us For Availability
25
MAY 311255 MAY 311255 Contact Us For Availability
26
Rod, Door Switch Rear Mount MAY 9757239 Contact Us For Availability
27
MAY W10181986 MAY W10181986 Contact Us For Availability
28
MAY 3196165 MAY 3196165 Contact Us For Availability
29
MAY 3196178 MAY 3196178 Contact Us For Availability
30
MAY 3196560 MAY 3196560 Contact Us For Availability
31
MAY 3400016 MAY 3400016 Contact Us For Availability
32
COVER, BOX MAY W10326122 Contact Us For Availability
33
MAY 3196172 MAY 3196172 Contact Us For Availability
34
MAY W10031780 MAY W10031780 Contact Us For Availability
35
MAY 3196567 MAY 3196567 Contact Us For Availability
37
Screw MAY 3196174 Contact Us For Availability
38
RETAINER, SIDE MAY 9758238 Contact Us For Availability
39
MAY W10182346 MAY W10182346 Contact Us For Availability
40
MAY W10196451 MAY W10196451 Contact Us For Availability
41
Latch, Door MAY 9761013 Contact Us For Availability
42
MAY W10078380 MAY W10078380 Contact Us For Availability
43
Latch Asy, Rear MAY W10107820 Contact Us For Availability
44
Spacer, Door MAY 9758701 Contact Us For Availability
45
MAY 3196169 MAY 3196169 Contact Us For Availability
46
KIT, BARE WIRE MAY W10281322 Contact Us For Availability
NI
MAY 8272612 MAY 8272612 Contact Us For Availability
NI
MAY W10208653 MAY W10208653 Contact Us For Availability
NI
MAY 240132 MAY 240132 Contact Us For Availability
NI
MAY 241430 MAY 241430 Contact Us For Availability
NI
REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 MAY 242756 Contact Us For Availability
NI
MAY 261514 MAY 261514 Contact Us For Availability
NI
MAY 311227 MAY 311227 Contact Us For Availability
NI
Clip, Wire Ground MAY 313660 Contact Us For Availability
NI
Cleaner, Glass MAY 3184478 Contact Us For Availability
NI
MAY 3196154 MAY 3196154 Contact Us For Availability
NI
Screw MAY 3196173 Contact Us For Availability
NI
Broiler Pan Assy MAY 4396923 Contact Us For Availability
NI
MAY W10017440 MAY W10017440 Contact Us For Availability
NI
Harness, Wire Door Switch/Sensor MAY W10084660 Contact Us For Availability
NI
MAY W10251772 MAY W10251772 Contact Us For Availability
NI
HARNESS, WIRE (SURFACE UNIT) MAY W10279107 Contact Us For Availability
× ![]()
