Model Whirlpool ADW850EAW DISHWASHER – Common Parts &amp; Diagrams

1

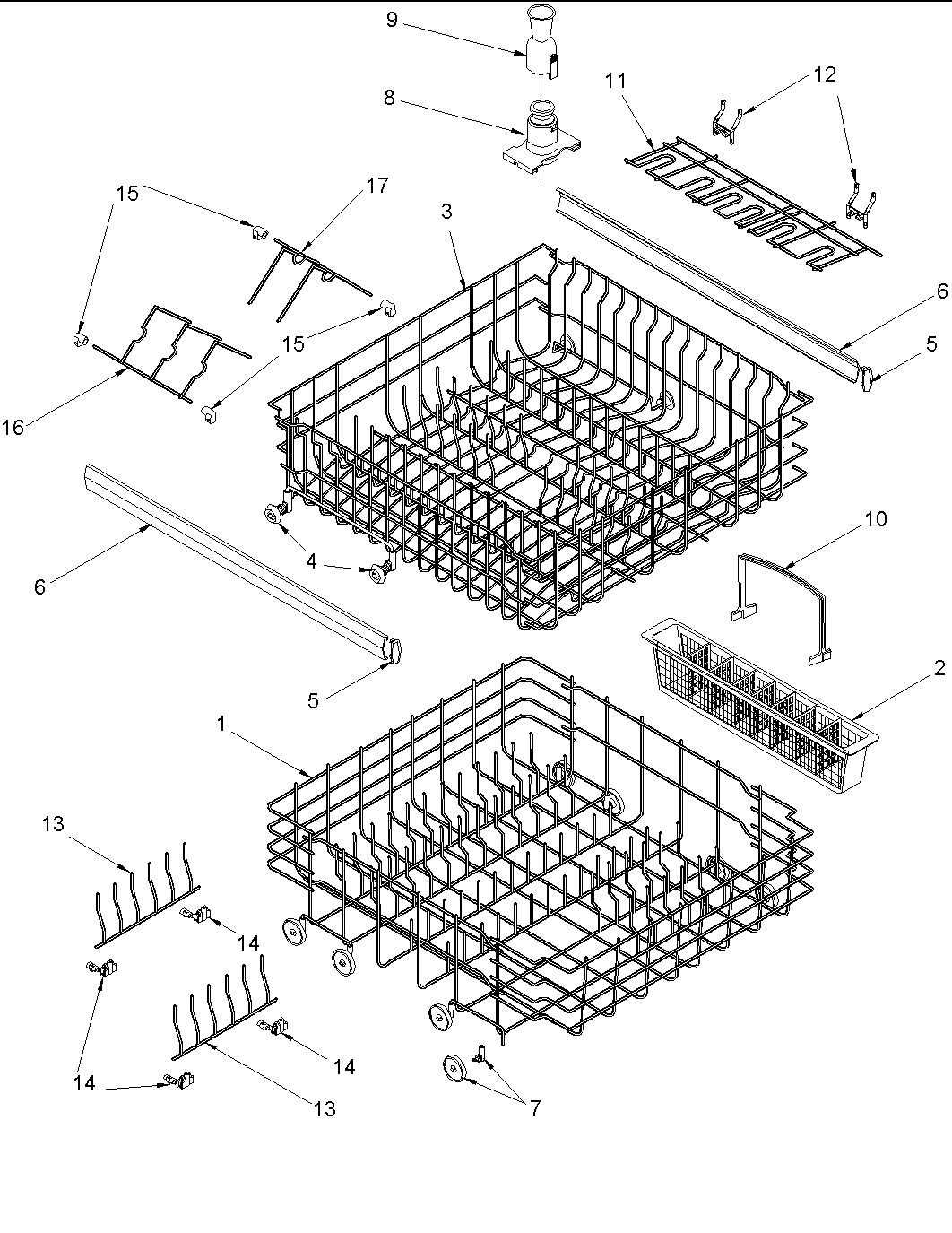

ASSY, LOWER RACK WPL R9800204 Contact Us For Availability

1

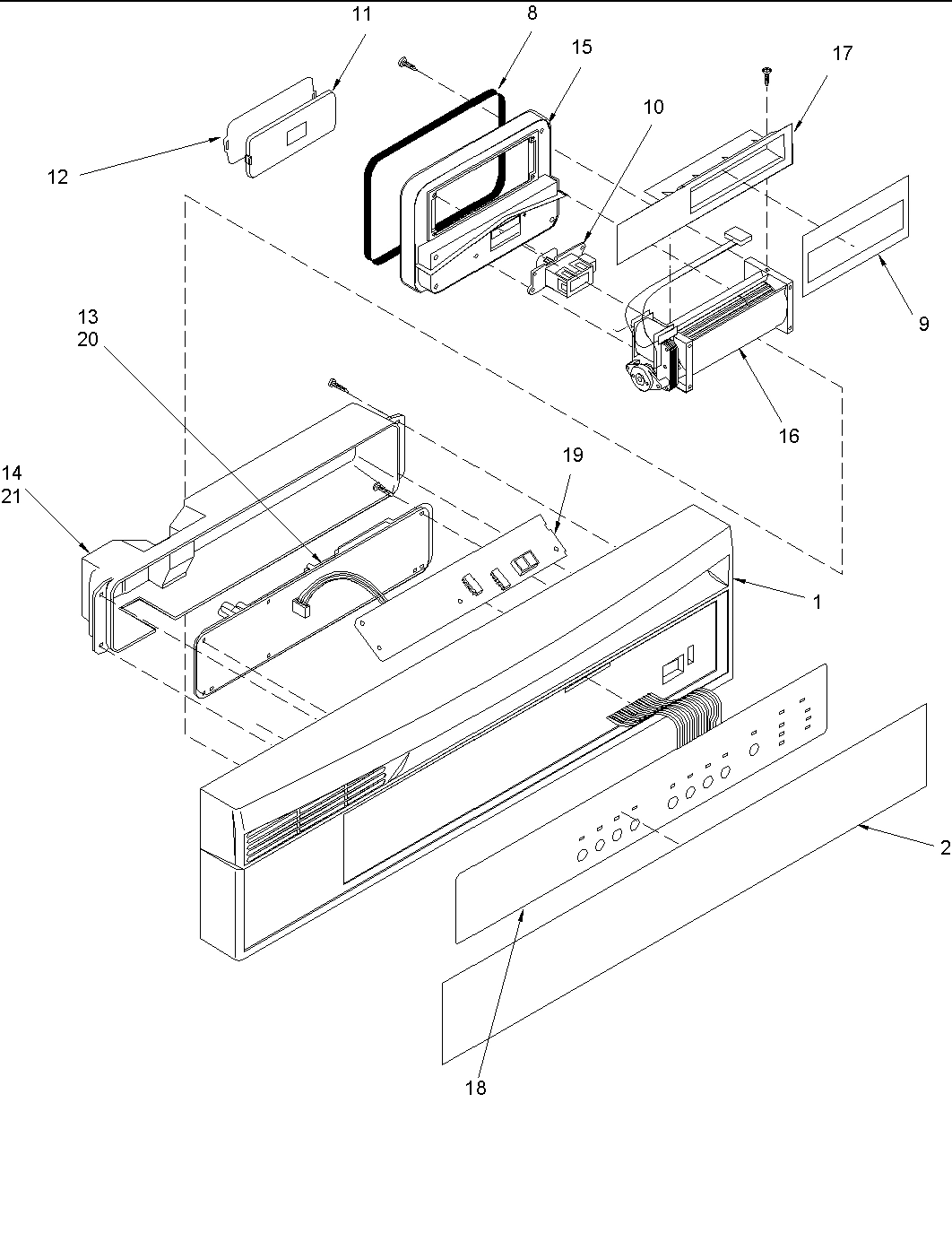

PANEL,CONTROL(WHITE) WPL R0000440 Contact Us For Availability

1

SPRING WPL R0000296 Contact Us For Availability

1

HEATER WPL R9800148 Contact Us For Availability

2

BASKET, SILVERWARE WPL R9800080 Contact Us For Availability

2

INSERT,CONT PNL(WHITE) WPL R0130009 Contact Us For Availability

2

SPRING, LINKAGE WPL R9800211 Contact Us For Availability

2

NUT, HEATER WPL R9800066 Contact Us For Availability

2

STRIKE, DOOR WPL R9800084 Contact Us For Availability

2

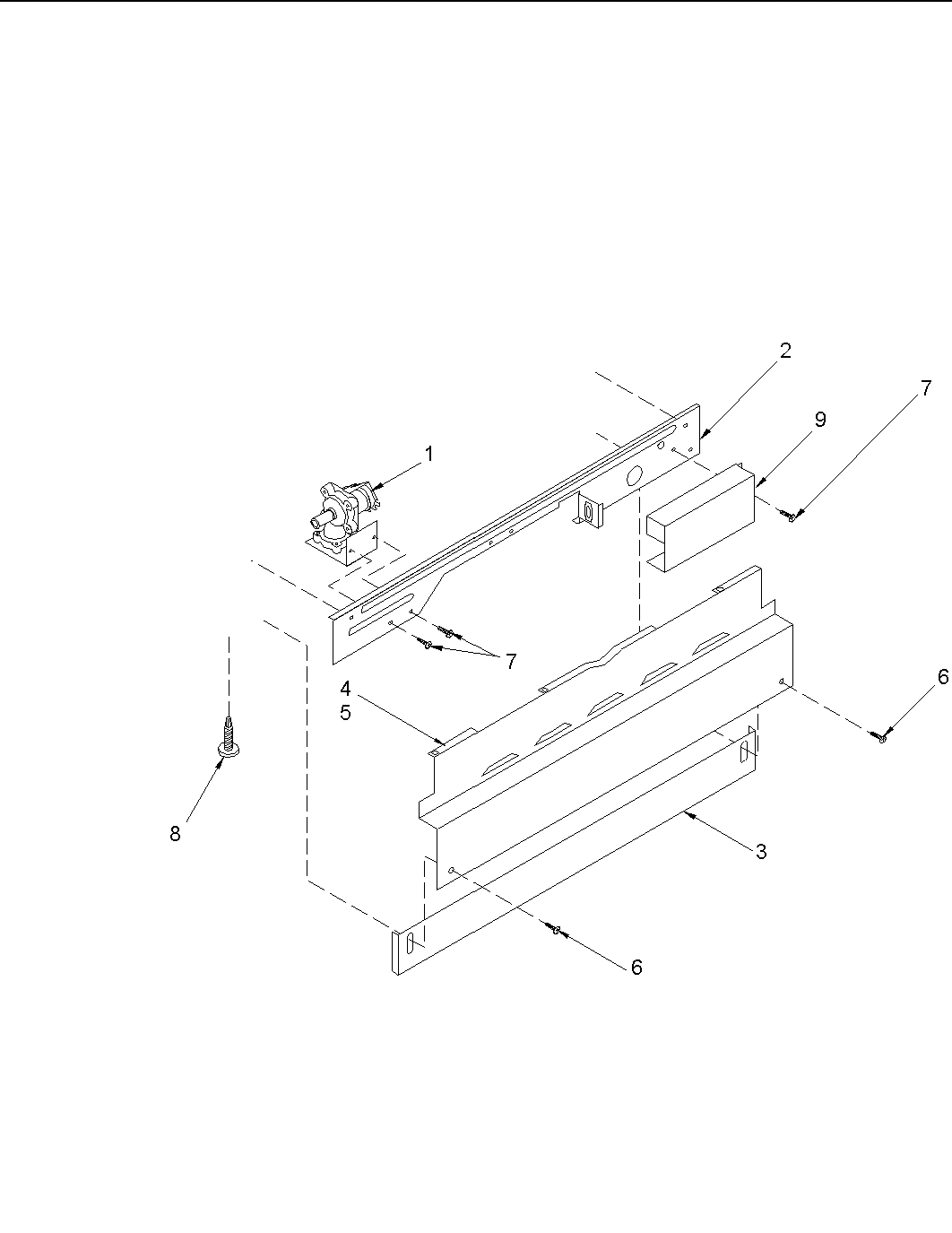

BRACE, FRONT WPL R9800074 Contact Us For Availability

3

ASSY,UPPER RACK WPL R0000477 Contact Us For Availability

3

SCREW, ARM ASSY WPL R9800063 Contact Us For Availability

3

BRACKET,HEATER (2) WPL R0000303 Contact Us For Availability

3

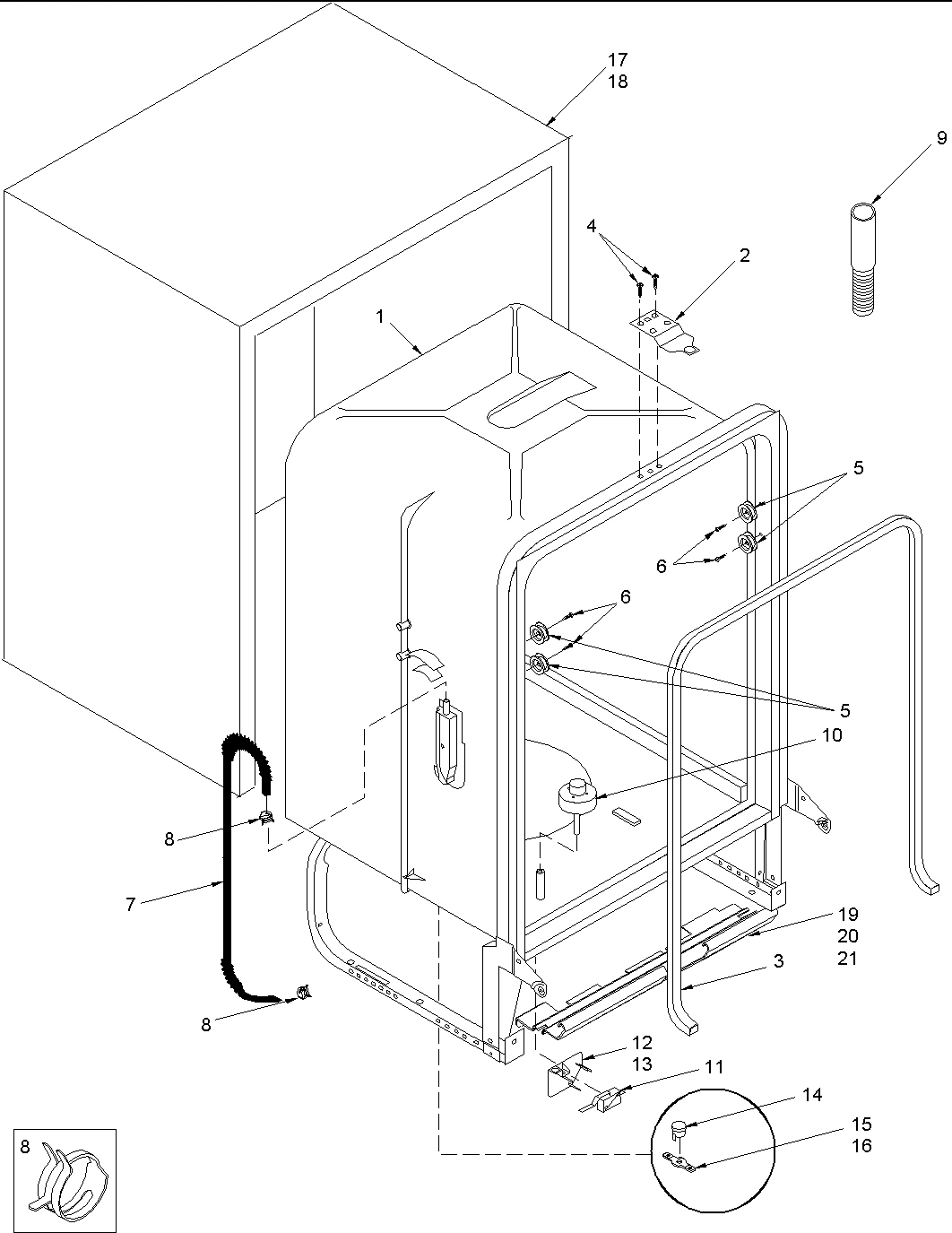

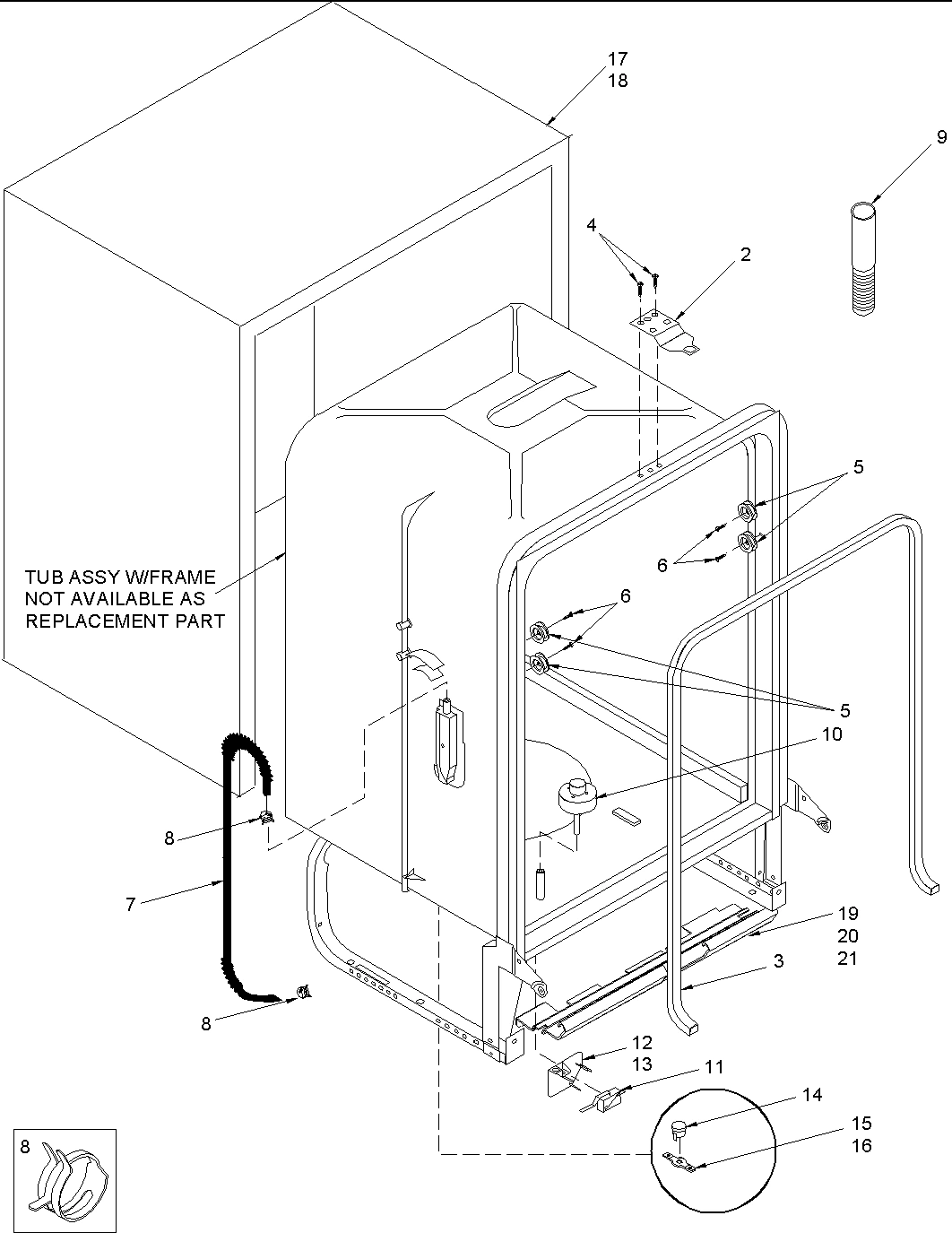

GASKET, TUB WPL R9800085 Contact Us For Availability

3

TOEPLATE, ADJUSTABLE (BLK) WPL R9800209 Contact Us For Availability

4

ASSY,UPPER RACK-WHEEL&BUSHING WPL R0000316 Contact Us For Availability

4

ASSY, L.H. ARM WPL R9800213 Contact Us For Availability

4

ASSY, KICKPLATE WPL R0131559 Contact Us For Availability

5

CAP, SLIDE WPL R9800231 Contact Us For Availability

5

ASSY, R.H. HINGE ARM WPL R9800212 Contact Us For Availability

5

COVER, VOLUTE WPL R9800133 Contact Us For Availability

5

ROLLER, TUB WPL R0000301 Contact Us For Availability

5

INSULATION, KICKPLATE WPL R9800149 Contact Us For Availability

6

M0282009 Whirlpool Air Conditioner Nut Backorder WPL M0282009 $8.89

6

W10236043 Whirlpool Screw Backorder WPL W10236043 $53.26

6

SLIDE, RACK WPL R9800120 Contact Us For Availability

6

SCREW, W/WASHER WPL R9800236 Contact Us For Availability

7

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.82

7

ASSY, WHEEL & BRKT WPL R9800069 Contact Us For Availability

7

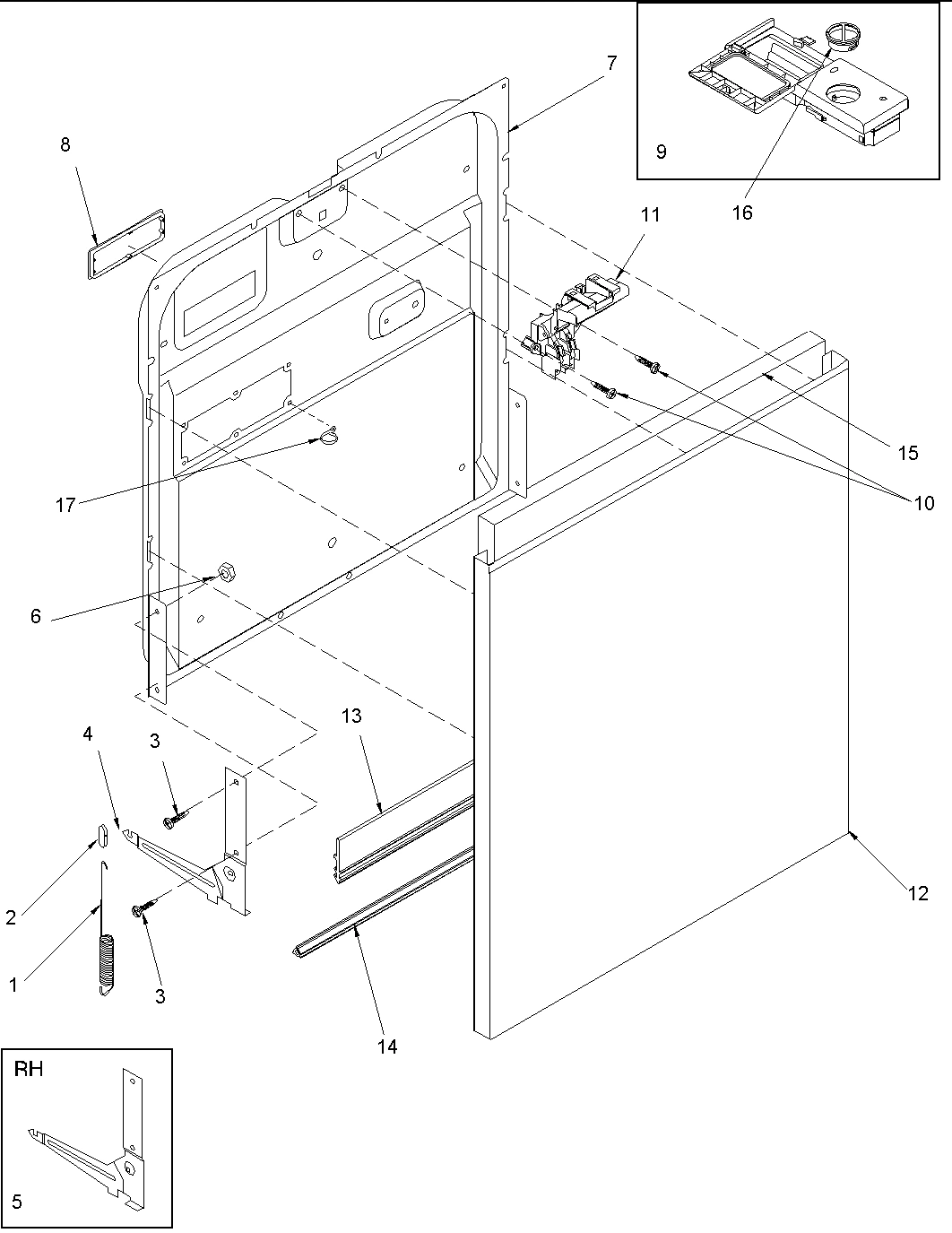

ASSY, INNER DOOR WPL R0000297 Contact Us For Availability

7

TUBING, WATER INLET WPL R9800129 Contact Us For Availability

8

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $5.02

8

BASE, FUNNEL WPL R9800189 Contact Us For Availability

8

SEAL, CHAMBER WPL R9800116 Contact Us For Availability

8

GRATE, LINER WPL R9800100 Contact Us For Availability

8

GASKET, SUMP WPL R9800142 Contact Us For Availability

8

SCREW, LEVELING WPL R9800081 Contact Us For Availability

9

FUNNEL WPL R9800155 Contact Us For Availability

9

GASKET, VENT WPL R9800188 Contact Us For Availability

9

DISPENSER,DET/RINS AID W/ LEVE WPL R0000470 Contact Us For Availability

9

HOUSING,SUMP WPL R0000472 Contact Us For Availability

9

HOSE, DRAIN WPL R9800096 Contact Us For Availability

9

COVER, J-BOX WPL R9800077 Contact Us For Availability

HANDLE, SILVERWARE BASKET WPL R9800162 Contact Us For Availability

ACTUATOR, WAX WPL R9800108 Contact Us For Availability

SCREW, LATCH WPL R9800065 Contact Us For Availability

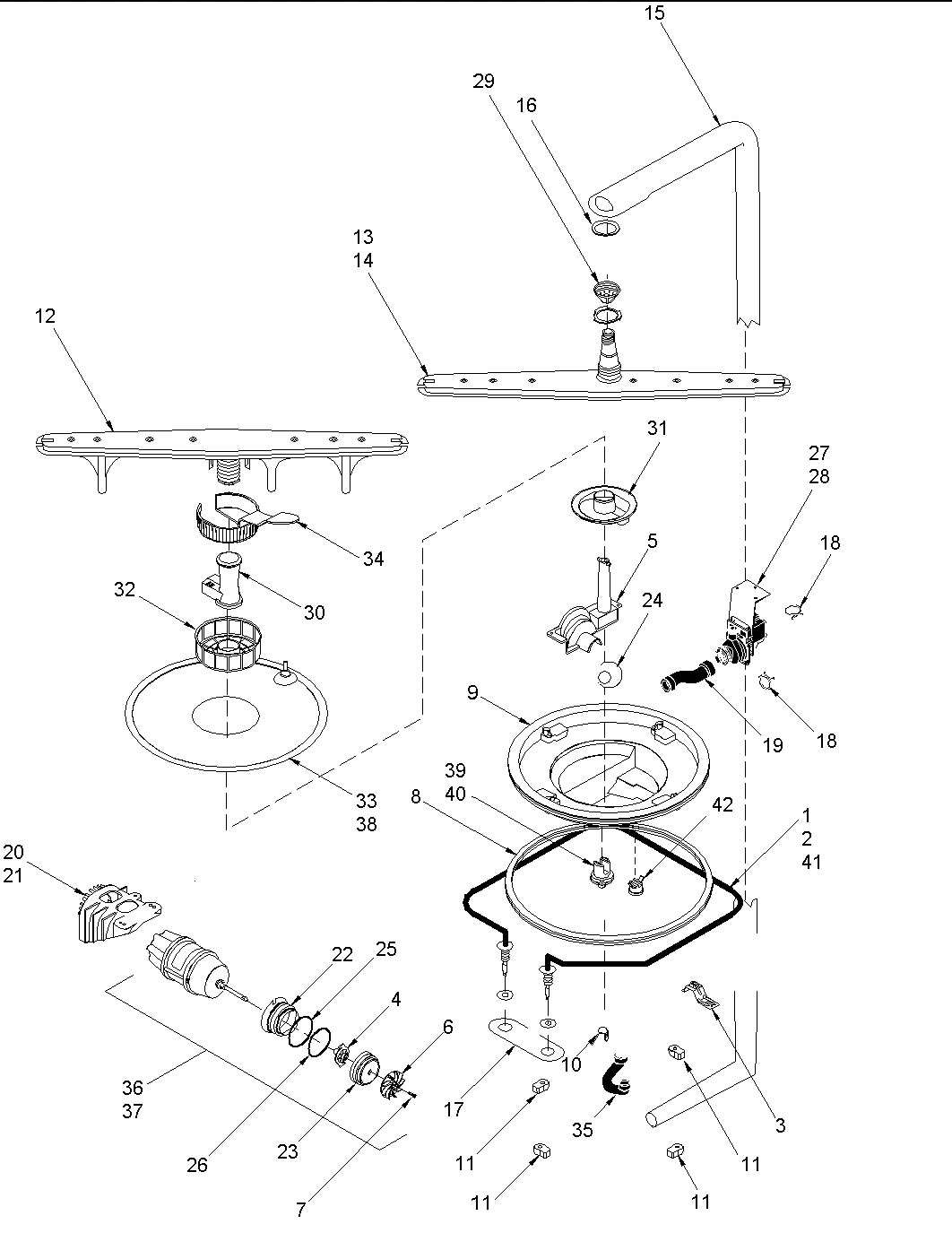

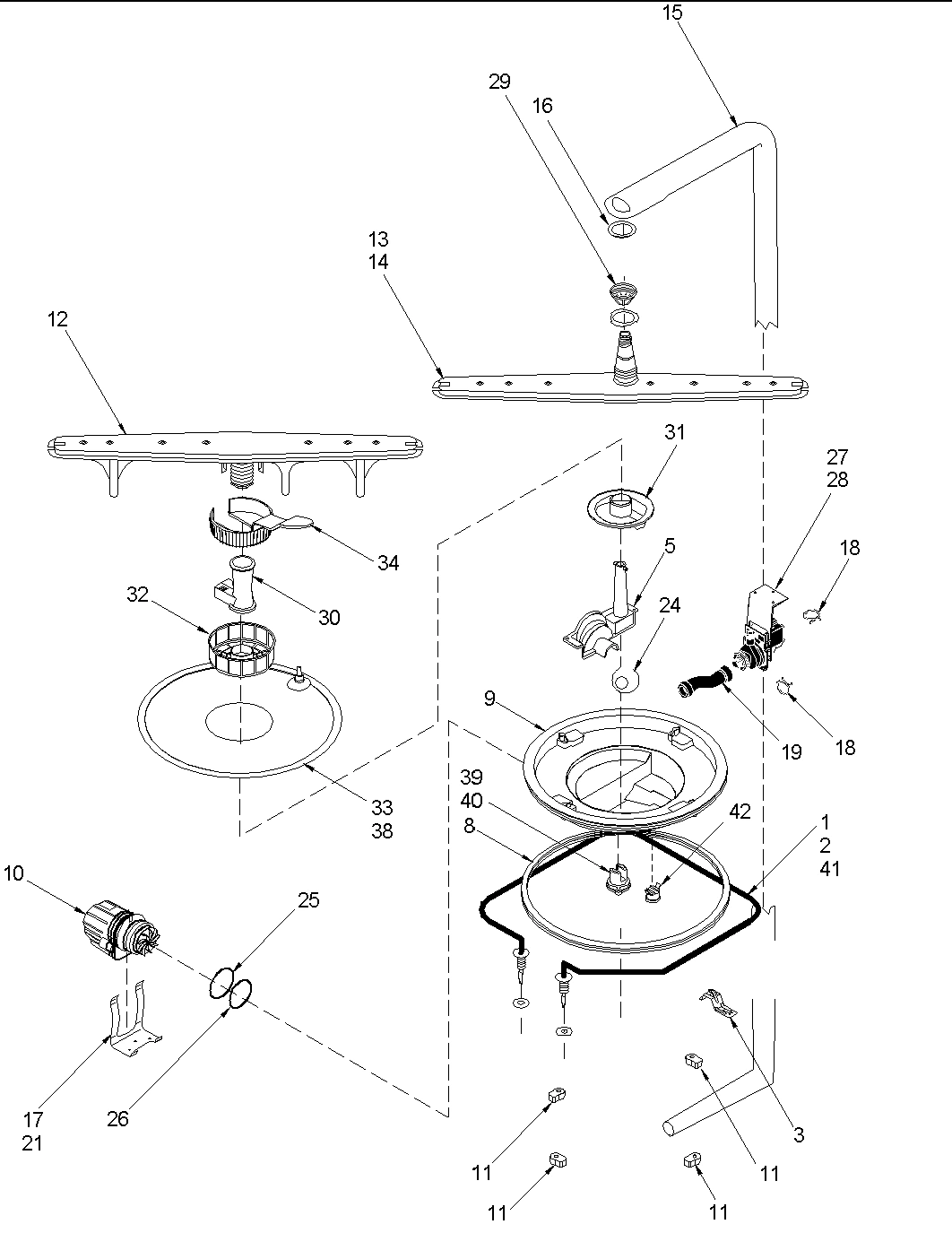

ASSY, MOTOR W/O O`RINGS WPL R0131558 Contact Us For Availability

FLOAT WPL R9800078 Contact Us For Availability

11

VENT, VALVE WPL R9800109 Contact Us For Availability

11

RETAINER, SUMP WPL R9800141 Contact Us For Availability

11

SWITCH, FLOAT WPL R9800095 Contact Us For Availability

BRACKET, SHELF CUP WPL R0000317 Contact Us For Availability

GASKET, VALVE WPL R0000294 Contact Us For Availability

DOOR(WHITE) WPL R0000431 Contact Us For Availability

ARM, LOWER SPRAY WPL R9800152 Contact Us For Availability

BRACKET,FLOAT SW WPL R0130012 Contact Us For Availability

FENCE, FOLD DOWN WPL R9800093 Contact Us For Availability

CONTROL WPL R0000461 Contact Us For Availability

GSKET, DOOR BOTTOM WPL R9800181 Contact Us For Availability

ARM, CENTER SPRAY WPL R9800200 Contact Us For Availability

SCREW,BRKT MTG PH TRUSS HEAD WPL R0000456 Contact Us For Availability

BRACKET,FENCE-FOLD DOWN LOWER WPL R0000480 Contact Us For Availability

COVER,CONTROL WPL R0000462 Contact Us For Availability

SUPPORT, HINGE WPL R9800082 Contact Us For Availability

NUT, SPRAY ARM WPL R9800156 Contact Us For Availability

THERMOSTAT, RESET WPL R9800173 Contact Us For Availability

BRACKET,FENCE-MULTI WHITE UPPR WPL R0000481 Contact Us For Availability

BUSHING WPL R0000482 Contact Us For Availability

DUCT,DYNAMIC WPL R0000464 Contact Us For Availability

INSULATION, DOOR WPL R9800161 Contact Us For Availability

NOZZLE KIT WPL R9800154 Contact Us For Availability

RETAINER, THERMOSTAT WPL R9800132 Contact Us For Availability

FENCE,UPPER RACK-MULTI 3 WIRE WPL R0000478 Contact Us For Availability

BLOWER,CROSSFLOW WPL R0000465 Contact Us For Availability

GASKET,DELIVERY TUBE WPL R0000306 Contact Us For Availability

SCREW, RETAINER THERMOSTAT WPL R9800182 Contact Us For Availability

FENCE,UPPER RACK-MULTI 2 WIRE WPL R0000479 Contact Us For Availability

CHAMBER,VAPOR WPL R0000466 Contact Us For Availability

CLAMP-WIRE,DRIP LOOP WPL R0000300 Contact Us For Availability

BRACKET, MOTOR WPL R0131557 Contact Us For Availability

INSULATION,BLANKET BACK WPL R0000302 Contact Us For Availability

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $5.30

KEYPAD,10 PAD WPL R0000467 Contact Us For Availability

CLAMP,SILVER PUMP WPL R0000458 Contact Us For Availability

INSULATION, TUB WPL R9800126 Contact Us For Availability

19

BOARD,DISPLAY WPL R0000468 Contact Us For Availability

19

HOSE CONNECTOR WPL R9800121 Contact Us For Availability

19

INSULATION,BAFFLE-SIDE WPL R0000312 Contact Us For Availability

20

SCREW, No.6-10 X 3/8`` PAN WPL R9800070 Contact Us For Availability

20

GUARD-WIRE, BAFFLE WPL R0000313 Contact Us For Availability

21

SCREW,TRUSS HEAD No.8 1.5`` STN S WPL R0000463 Contact Us For Availability

21

SCREW, TRUSS WPL R9800233 Contact Us For Availability

21

BAFFLE, SOUND WPL R0000314 Contact Us For Availability

24

CHECK, BALL WPL R9800140 Contact Us For Availability

25

O-RING, REAR WPL R9800143 Contact Us For Availability

26

O-RING, FRONT WPL R9800144 Contact Us For Availability

27

ASSY, DRAIN PUMP WPL R9800147 Contact Us For Availability

28

BRACKET, DRAIN MOTOR WPL R9800122 Contact Us For Availability

29

NOZZLE,3RD LEVEL-SPRAY ARM WPL R0000308 Contact Us For Availability

30

SUPPORT, SPRAY ARM WPL R9800175 Contact Us For Availability

31

BASE, SOIL DIRECTOR WPL R9800157 Contact Us For Availability

32

FILTER, STAINLESS STEEL WPL R9800158 Contact Us For Availability

34

TRAP, GLASS WPL R9800160 Contact Us For Availability

38

FILTER, STAINLESS STEEL WPL R0000473 Contact Us For Availability

39

SENSOR,TURBIDITY WPL R0000474 Contact Us For Availability

40

O-RING,TURBIDITY WPL R0000475 Contact Us For Availability

41

SHIELD, HEATER TERMINAL WPL R9800171 Contact Us For Availability

42

THERMISTOR WPL R9800111 Contact Us For Availability

HOLDER, STEMWARE CUP WPL R9800163 Contact Us For Availability

HARNESS, WIRING WPL R0131562 Contact Us For Availability

SCREW, No.8-10 X 3/8`` PHIL WPL R9800166 Contact Us For Availability

SCREW,No.7 PLAS .375 DISP ASSY WPL R0000452 Contact Us For Availability

PIN, ARM WPL R9800083 Contact Us For Availability

CLAMP, P NYLON WPL R0000460 Contact Us For Availability

SCREW, No.10-16 X 3/8`` HEX WPL R9800072 Contact Us For Availability

SCREW, No.1 WPL R9800059 Contact Us For Availability

SCREW WPL R9800227 Contact Us For Availability
