Model Whirlpool ADW80 DISHWASHER – Common Parts & Diagrams

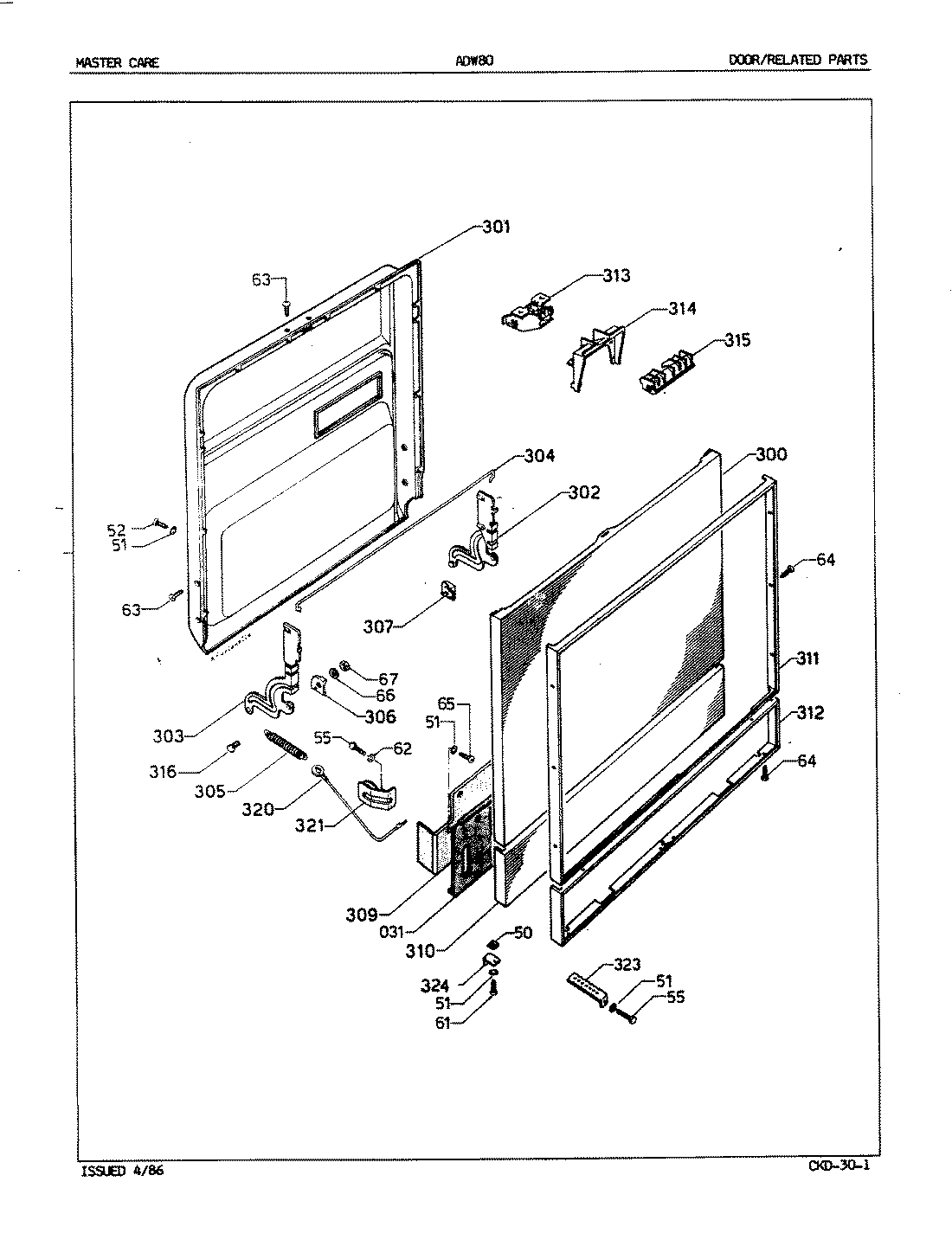

03 - DOOR

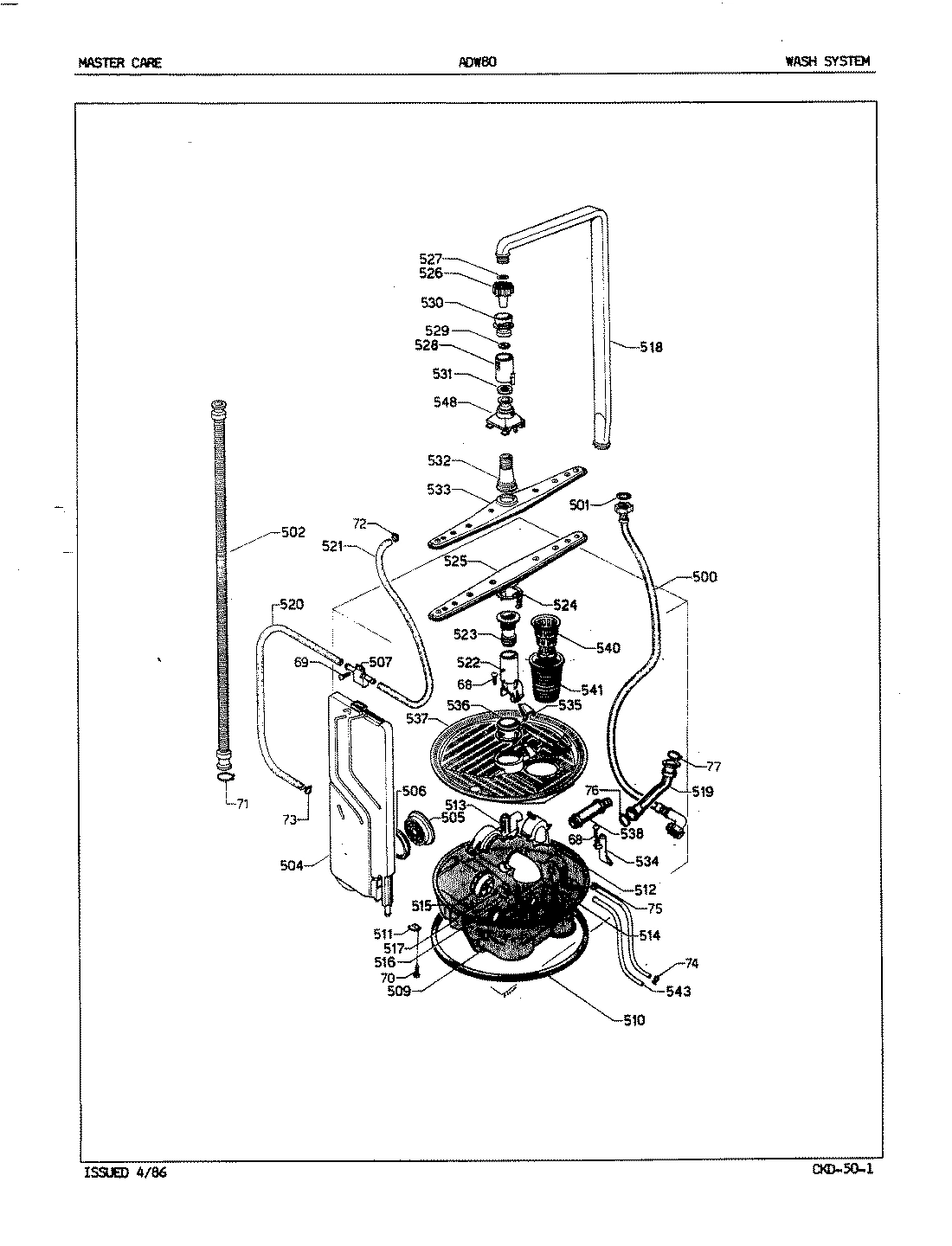

06 - WASH SYSTEM

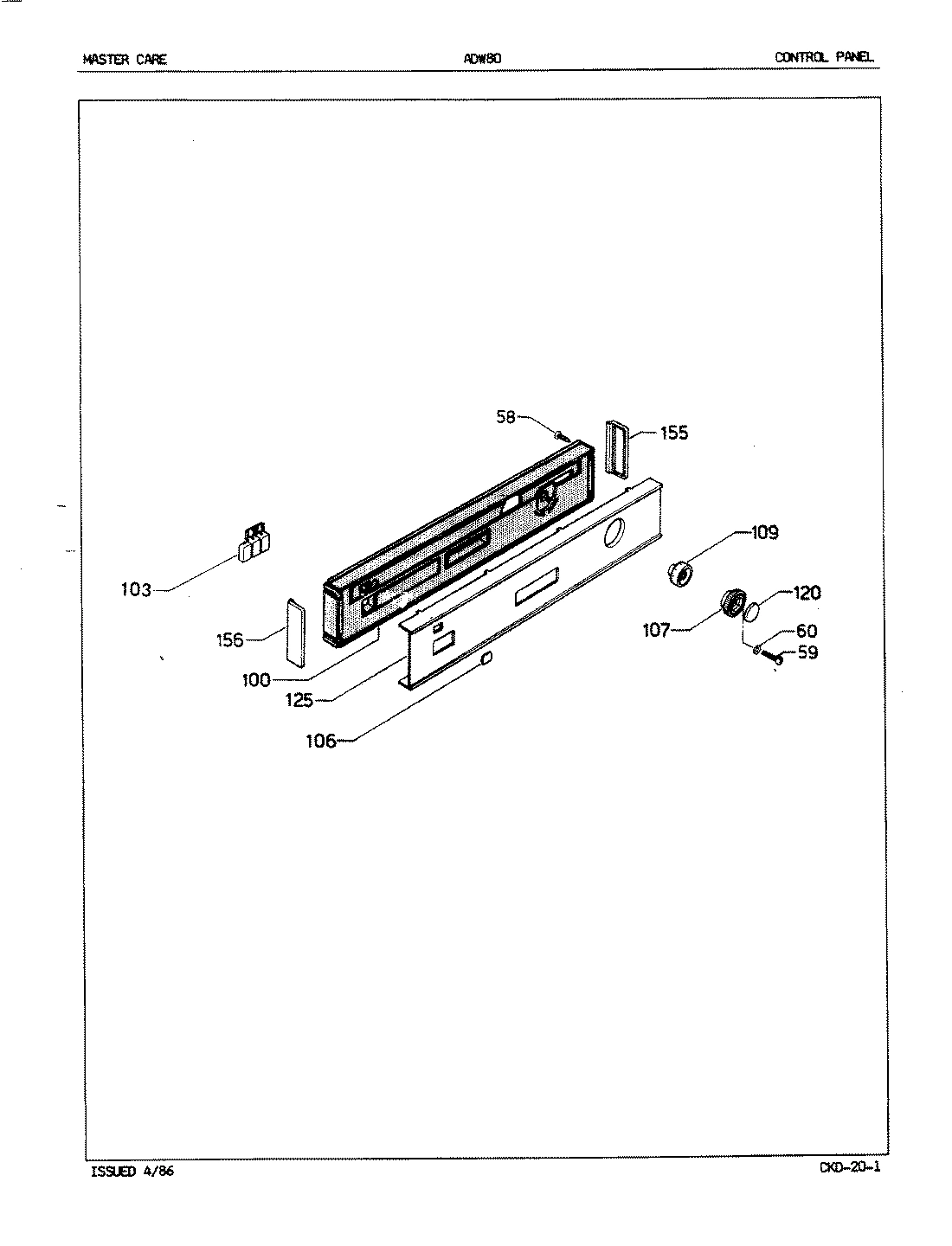

02 - CONTROL PANEL

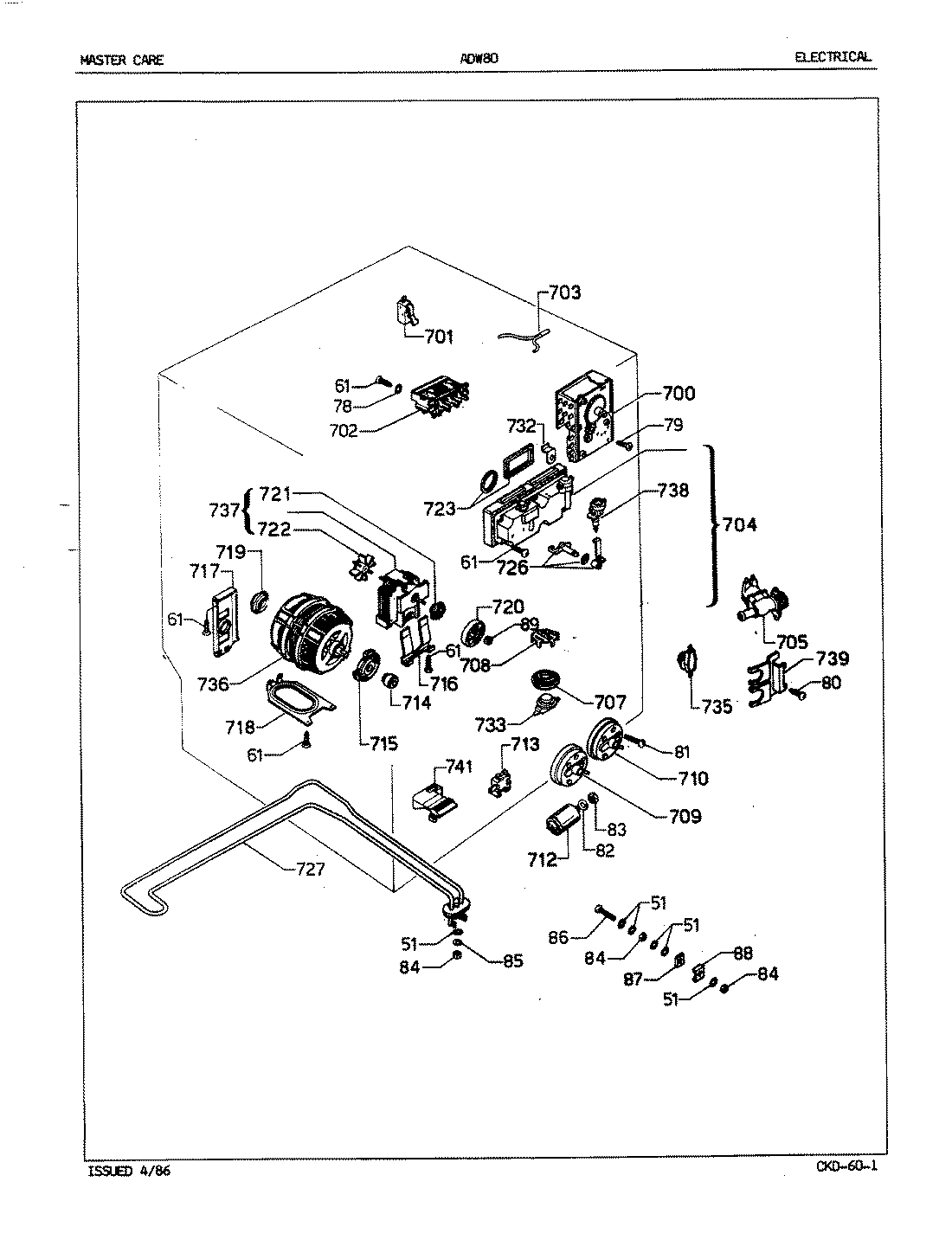

04 - ELECTRICAL

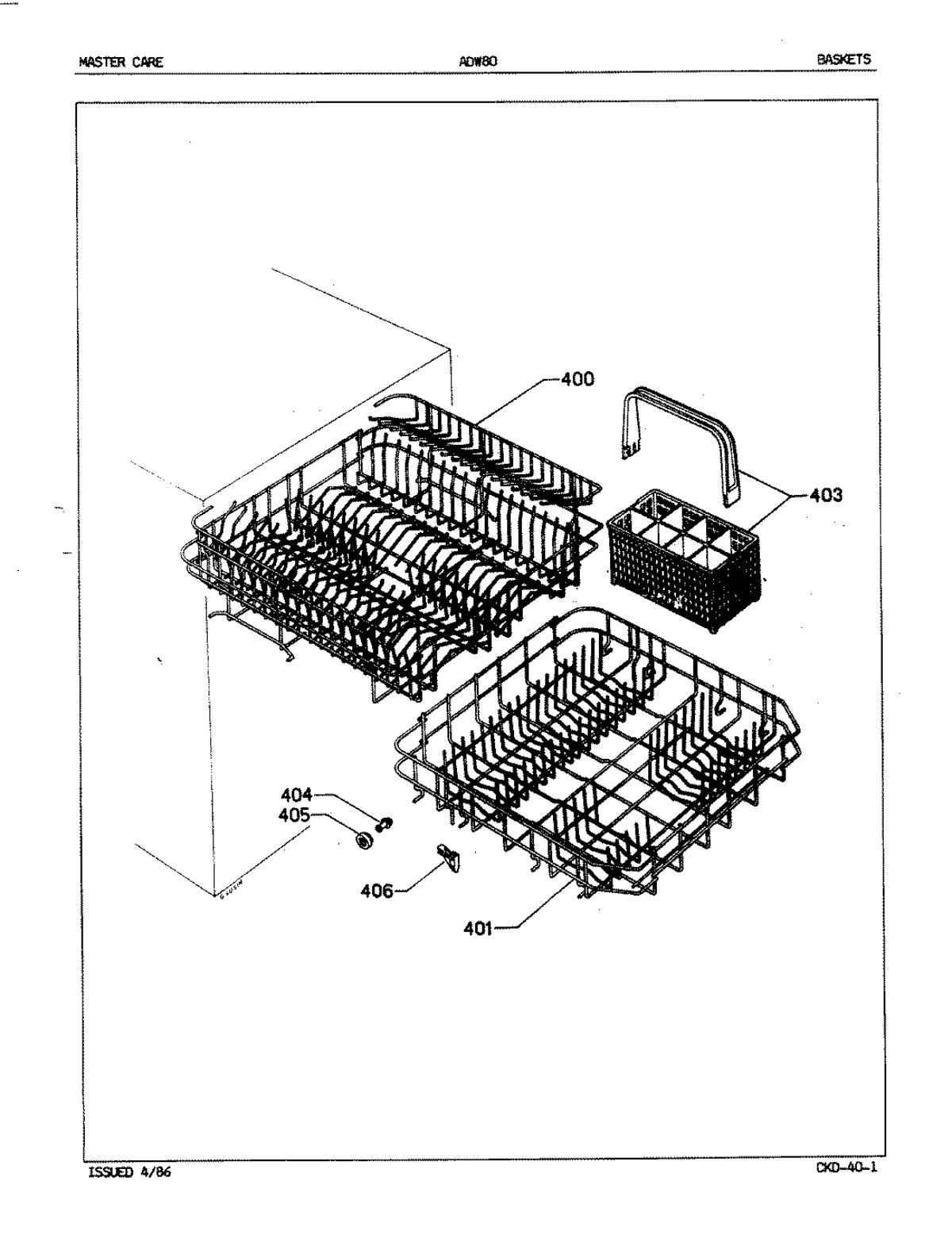

01 - BASKET

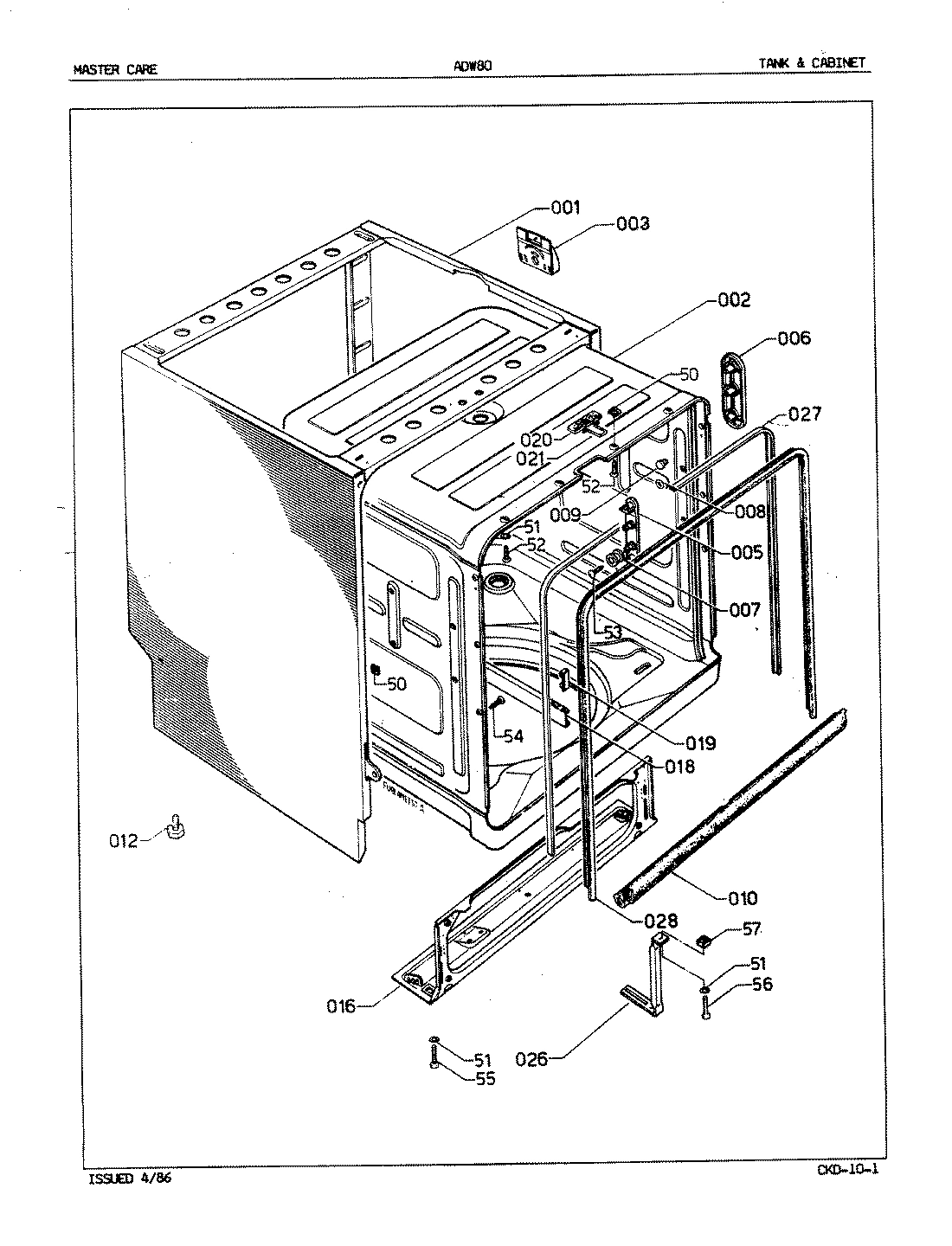

05 - TANK & CABINET
Common parts from model Whirlpool ADW80 DISHWASHER
1
CABINET WPL 658975 Contact Us For Availability
2
TUB ASSEMBLY WPL 658838 Contact Us For Availability
3
TUBE SUPPORT WPL 658940 Contact Us For Availability
5
TUB ROLLER BRKT WPL 657967 Contact Us For Availability
6
ROLR BRKT REINF WPL 657965 Contact Us For Availability
7
TUB ROLLER WPL 657968 Contact Us For Availability
8
ROLLER GASKET WPL 657552 Contact Us For Availability
9
SPACER WPL 657846 Contact Us For Availability
10
BTTM GASKET WPL 657557 Contact Us For Availability
12
LEVELER WPL 658586 Contact Us For Availability
16
FRONT CROSS BAR WPL 658963 Contact Us For Availability
18
TOP BASKT GUIDE WPL 658005 Contact Us For Availability
19
BASKET STOP WPL 657852 Contact Us For Availability
20
CATCH SUPPORT WPL 658012 Contact Us For Availability
21
STRIKE WPL 658118 Contact Us For Availability
26
BTTM BRACKET WPL 657663 Contact Us For Availability
27
BUTT JOINT WPL 657514 Contact Us For Availability
28
DOOR GASKET WPL 657556 Contact Us For Availability
31
PLATE WPL 658835 Contact Us For Availability
50
NUT WPL 063397 Contact Us For Availability
51
WASHER WPL 044378 Contact Us For Availability
53
SCREW WPL 043692 Contact Us For Availability
54
WASHER WPL 044379 Contact Us For Availability
55
SCREW WPL 042803 Contact Us For Availability
56
SCREW WPL 043236 Contact Us For Availability
57
NUT WPL 044380 Contact Us For Availability
58
SCREW WPL 044263 Contact Us For Availability
59
SCREW WPL 044381 Contact Us For Availability
60
NUT WPL 044382 Contact Us For Availability
61
SCREW WPL 043636 Contact Us For Availability
62
FLAT WASHER WPL 042526 Contact Us For Availability
63
SCREW WPL 043742 Contact Us For Availability
64
SCREW WPL 043734 Contact Us For Availability
65
SCREW WPL 042707 Contact Us For Availability
66
FLAT WASHER WPL 043818 Contact Us For Availability
67
NUT WPL 042804 Contact Us For Availability
68
SCREW WPL 043705 Contact Us For Availability
69
SCREW WPL 043628 Contact Us For Availability
70
SCREW WPL 043821 Contact Us For Availability
71
HOSE CLAMP WPL 044383 Contact Us For Availability
72
HOSE CLAMP WPL 044384 Contact Us For Availability
73
HOSE CLAMP WPL 062795 Contact Us For Availability
74
CLAMP WPL 651715 Contact Us For Availability
75
HOSE CLAMP WPL 044385 Contact Us For Availability
76
CLAMP WPL 062798 Contact Us For Availability
77
HOSE CLAMP WPL 044388 Contact Us For Availability
78
SCREW WPL 042720 Contact Us For Availability
80
SCREW WPL 043598 Contact Us For Availability
81
SCREW WPL 043737 Contact Us For Availability
82
LOCKWASHER WPL 042763 Contact Us For Availability
83
NUT WPL 044594 Contact Us For Availability
84
NUT WPL 042245 Contact Us For Availability
85
WASHER WPL 042415 Contact Us For Availability
86
SCREW WPL 044386 Contact Us For Availability
87
NUT WPL 044779 Contact Us For Availability
88
NUT WPL 044387 Contact Us For Availability
103
PUSHBUTTON WPL 658923 Contact Us For Availability
106
PILOT LAMP LENS WPL 098405 Contact Us For Availability
107
TIMER KNOB WPL 658924 Contact Us For Availability
109
INDICATOR WPL 658842 Contact Us For Availability
120
INSERT, KNOB WPL 658925 Contact Us For Availability
125
ESCUTCHEON WPL 658839 Contact Us For Availability
156
END CAP WPL 658111 Contact Us For Availability
300
OUTER DR PANEL WPL 658854 Contact Us For Availability
301
INNER PANEL WPL 658094 Contact Us For Availability
302
RH HINGE WPL 658477 Contact Us For Availability
303
LH HINGE WPL 658478 Contact Us For Availability
304
TIE ROD WPL 657585 Contact Us For Availability
305
DOOR SPRING WPL 658200 Contact Us For Availability
306
LH PNL SEC BLK WPL 659063 Contact Us For Availability
307
RH PNL SEC BLK WPL 659064 Contact Us For Availability
309
BASE COVER WPL 657712 Contact Us For Availability
310
BOTTOM PANEL WPL 658284 Contact Us For Availability
311
TOP DOOR FRAME WPL 659062 Contact Us For Availability
312
BTM PANEL FRAME WPL 659230 Contact Us For Availability
313
DOOR LATCH WPL 658006 Contact Us For Availability
314
DOOR HANDLE WPL 658007 Contact Us For Availability
315
HANDLE COVER WPL 658922 Contact Us For Availability
316
HINGE PIN WPL 657627 Contact Us For Availability
320
SPRING HOOK WPL 657699 Contact Us For Availability
321
PULLEY SUPPORT WPL 657698 Contact Us For Availability
323
ADJ BRACKET WPL 657711 Contact Us For Availability
324
PANEL MTG BRKT WPL 657710 Contact Us For Availability
400
TOP BASKET WPL 658002 Contact Us For Availability
401
BOTTOM BASKET WPL 658853 Contact Us For Availability
403
CUTLERY BASKET WPL 658289 Contact Us For Availability
404
ROLLER AXLE WPL 657497 Contact Us For Availability
405
BASKET ROLLER WPL 657498 Contact Us For Availability
406
STOP BLOCK WPL 658843 Contact Us For Availability
500
SUPPLY HOSE WPL 658921 Contact Us For Availability
501
GASKET TRIM WPL 651839 Contact Us For Availability
502
DRAIN HOSE WPL 658781 Contact Us For Availability
504
DISCH PLENUM WPL 658304 Contact Us For Availability
505
AIR DISCH GRILL WPL 657854 Contact Us For Availability
506
AIR DISCH GASKT WPL 657565 Contact Us For Availability
507
AIR BREAK WPL 657915 Contact Us For Availability
509
SUMP WPL 657517 Contact Us For Availability
510
SUMP GASKET WPL 657536 Contact Us For Availability
511
SUMP MTG BRKT WPL 657537 Contact Us For Availability
513
WASH SCROLL WPL 657527 Contact Us For Availability
514
WASH PUMP INLET WPL 657526 Contact Us For Availability
515
IMPELLER ASM WPL 658474 Contact Us For Availability
516
IMPELLER SCREW WPL 658313 Contact Us For Availability
517
IMPELLER GASKET WPL 657524 Contact Us For Availability
518
MANIFOLD WPL 657558 Contact Us For Availability
519
MNFLD/SUMP TUBE WPL 657559 Contact Us For Availability
520
BRK/SOFTNR TUBE WPL 657577 Contact Us For Availability
521
VALVE/BRK TUBE WPL 657576 Contact Us For Availability
522
BOTTOM COLUMN WPL 657847 Contact Us For Availability
523
BOTTOM VENTURI WPL 657861 Contact Us For Availability
524
LOCKING RING WPL 657860 Contact Us For Availability
525
BTTM SPRAY ARM WPL 659014 Contact Us For Availability
526
NOZZLE WPL 657853 Contact Us For Availability
527
NOZZLE GASKET WPL 657561 Contact Us For Availability
528
ADJ VALVE BODY WPL 657864 Contact Us For Availability
529
SPRAY ADJ VALVE WPL 657046 Contact Us For Availability
530
PIPE UNION WPL 657865 Contact Us For Availability
531
TOP VENTURI NUT WPL 657051 Contact Us For Availability
532
TOP VENTURI WPL 657892 Contact Us For Availability
533
TOP SPRAY ARM WPL 659013 Contact Us For Availability
534
PUMP EXHAUST WPL 657535 Contact Us For Availability
535
EXHAUST COVER WPL 657858 Contact Us For Availability
536
FILTER RINGNUT WPL 658322 Contact Us For Availability
537
WASHPUMP FILTER WPL 657855 Contact Us For Availability
538
COUPLING WPL 658881 Contact Us For Availability
540
DRAIN FILTER WPL 657879 Contact Us For Availability
541
WASHPUMP FILTER WPL 657878 Contact Us For Availability
543
TUBE WPL 658938 Contact Us For Availability
548
VENTURI GUIDE WPL 658066 Contact Us For Availability
700
TIMER WPL 658909 Contact Us For Availability
701
DOOR SWITCH WPL 657926 Contact Us For Availability
702
PB BOARD WPL 658166 Contact Us For Availability
703
PILOT LAMP WPL 658910 Contact Us For Availability
704
SOAP DISPENSER WPL 658918 Contact Us For Availability
705
ELECTRIC VALVE WPL 658917 Contact Us For Availability
707
TSTAT GASKET WPL 657539 Contact Us For Availability
708
TSTAT COVER WPL 657540 Contact Us For Availability
709
PRESSURE SWITCH WPL 658915 Contact Us For Availability
710
OVERFLOW SWITCH WPL 658916 Contact Us For Availability
712
CAPACITOR WPL 658911 Contact Us For Availability
713
TERMINAL BLOCK WPL 025582 Contact Us For Availability
714
SEALING RING WPL 656982 Contact Us For Availability
715
WASHPUMP GASKET WPL 657520 Contact Us For Availability
716
PUMP RETAINER WPL 658486 Contact Us For Availability
718
MOTOR TIE ROD WPL 658833 Contact Us For Availability
719
MOTOR BUSHING WPL 657519 Contact Us For Availability
720
IMPELLER WPL 658867 Contact Us For Availability
721
IMPELLER GASKET WPL 657755 Contact Us For Availability
722
COOLING FAN WPL 657754 Contact Us For Availability
723
DISP GASKET KIT WPL 658249 Contact Us For Availability
726
DISP LEVER KIT WPL 658247 Contact Us For Availability
727
HEATING ELEMENT WPL 658912 Contact Us For Availability
732
DISP MTG BRKT WPL 658553 Contact Us For Availability
733
SAFETY TSTAT WPL 658913 Contact Us For Availability
735
LO TEMP TSTAT WPL 658914 Contact Us For Availability
736
WASH MOTOR WPL 658907 Contact Us For Availability
737
DRAIN PUMP WPL 658906 Contact Us For Availability
738
DISP HTG ELEMNT WPL 658248 Contact Us For Availability
739
BRACKET WPL 658836 Contact Us For Availability
741
TERM BLK CLAMP WPL 658767 Contact Us For Availability
NI
NUT WPL 658119 Contact Us For Availability
× ![]()
