Model Whirlpool ADU6000DB DISHWASHER – Common Parts & Diagrams
02 - Door Assy

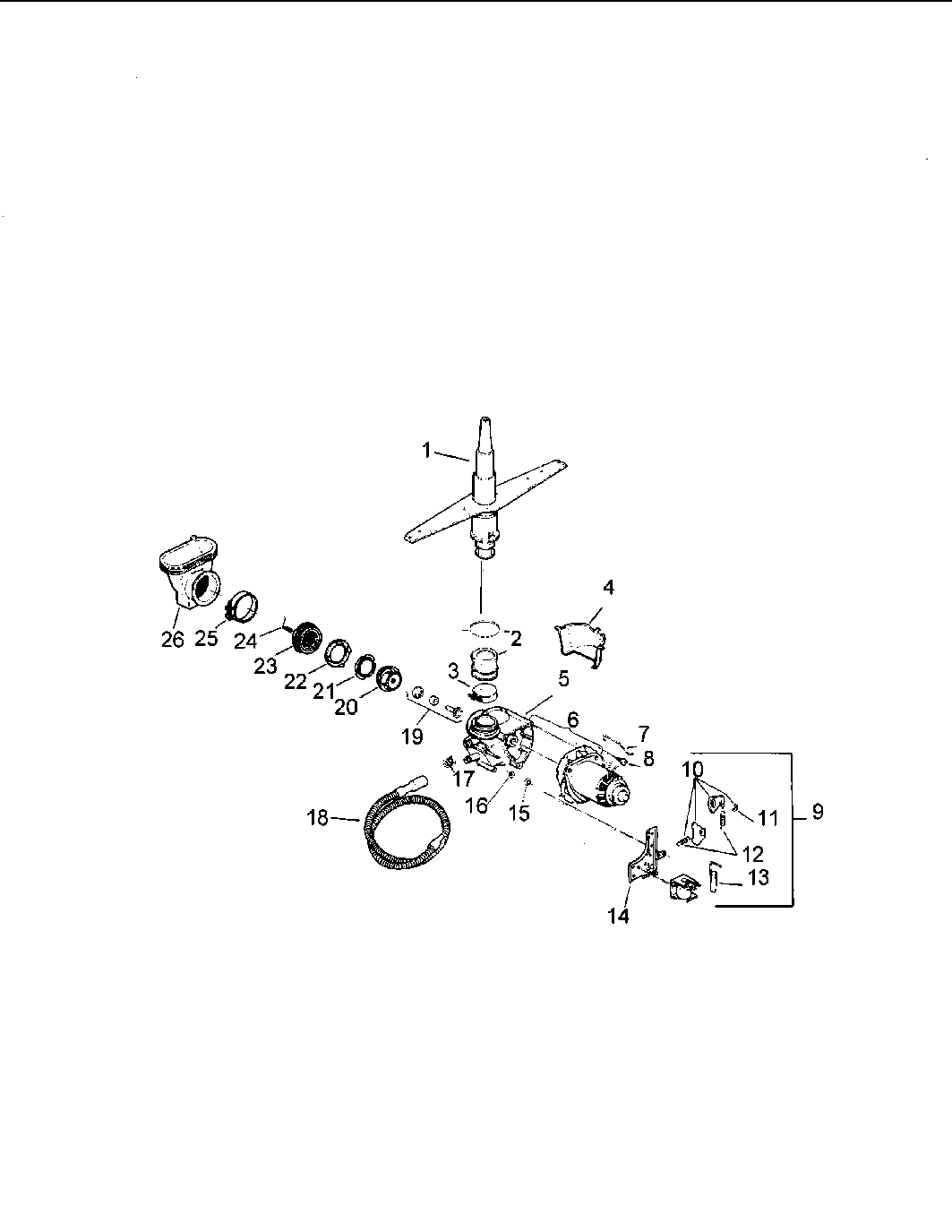

03 - Motor & Pump Assembly

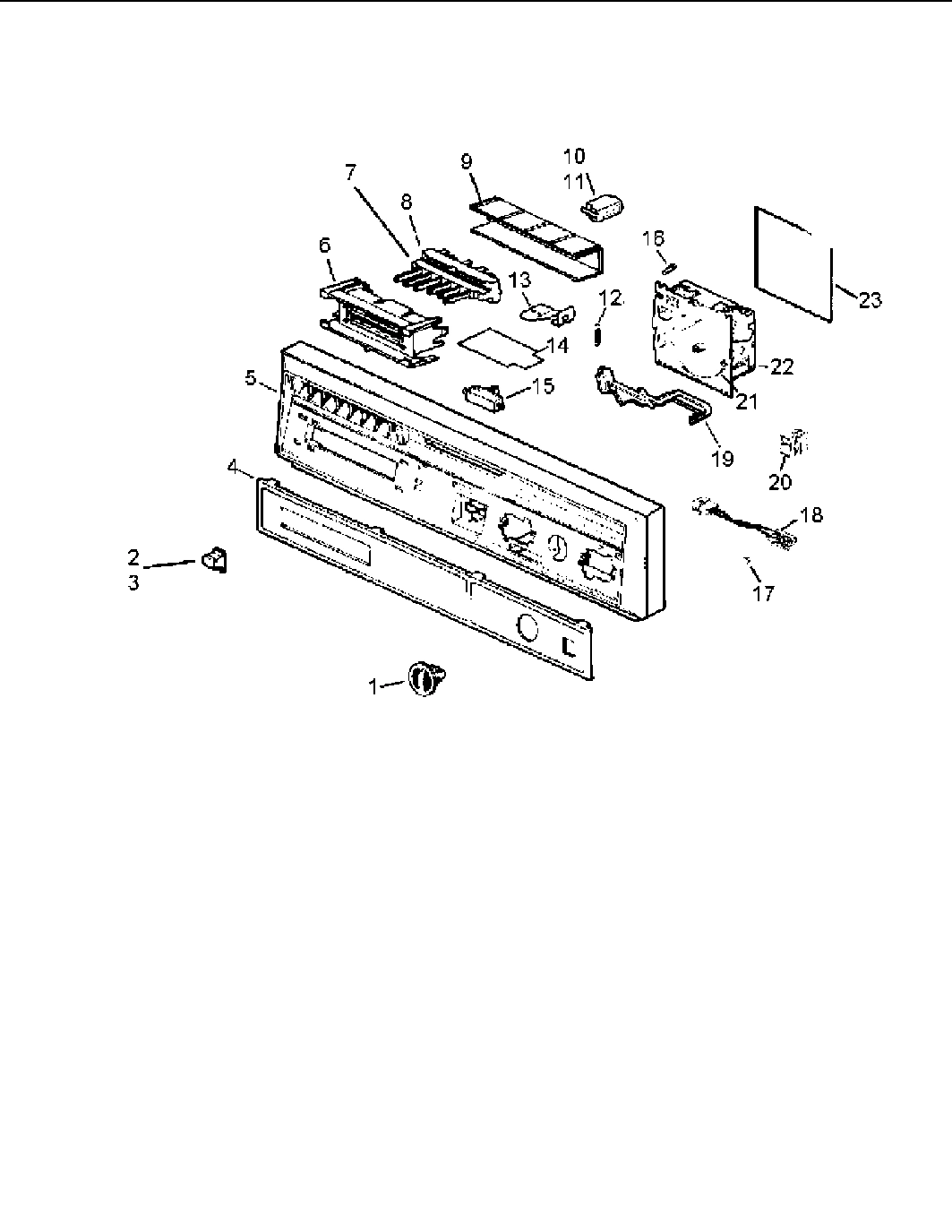

01 - Control Panel Assembly

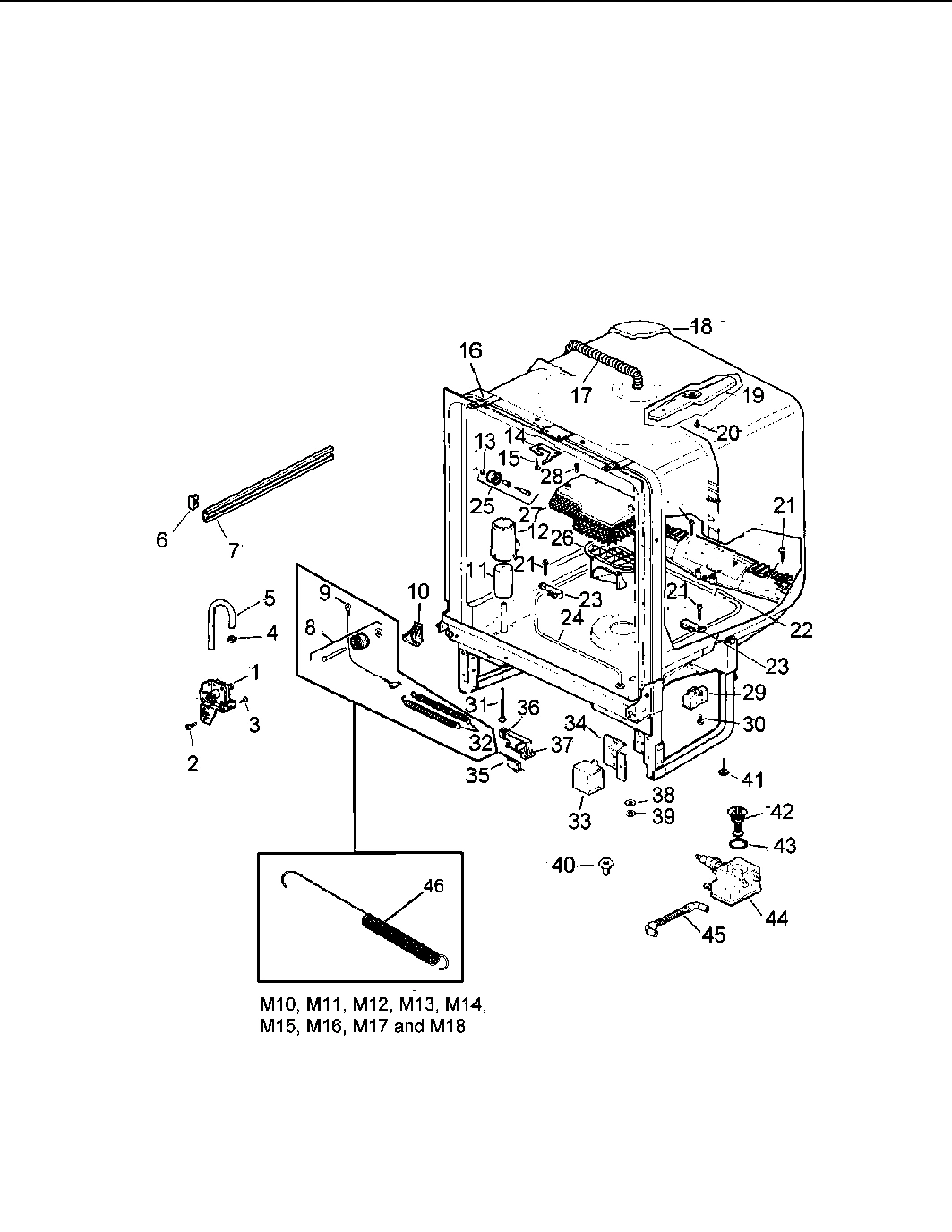

05 - Tub Assy

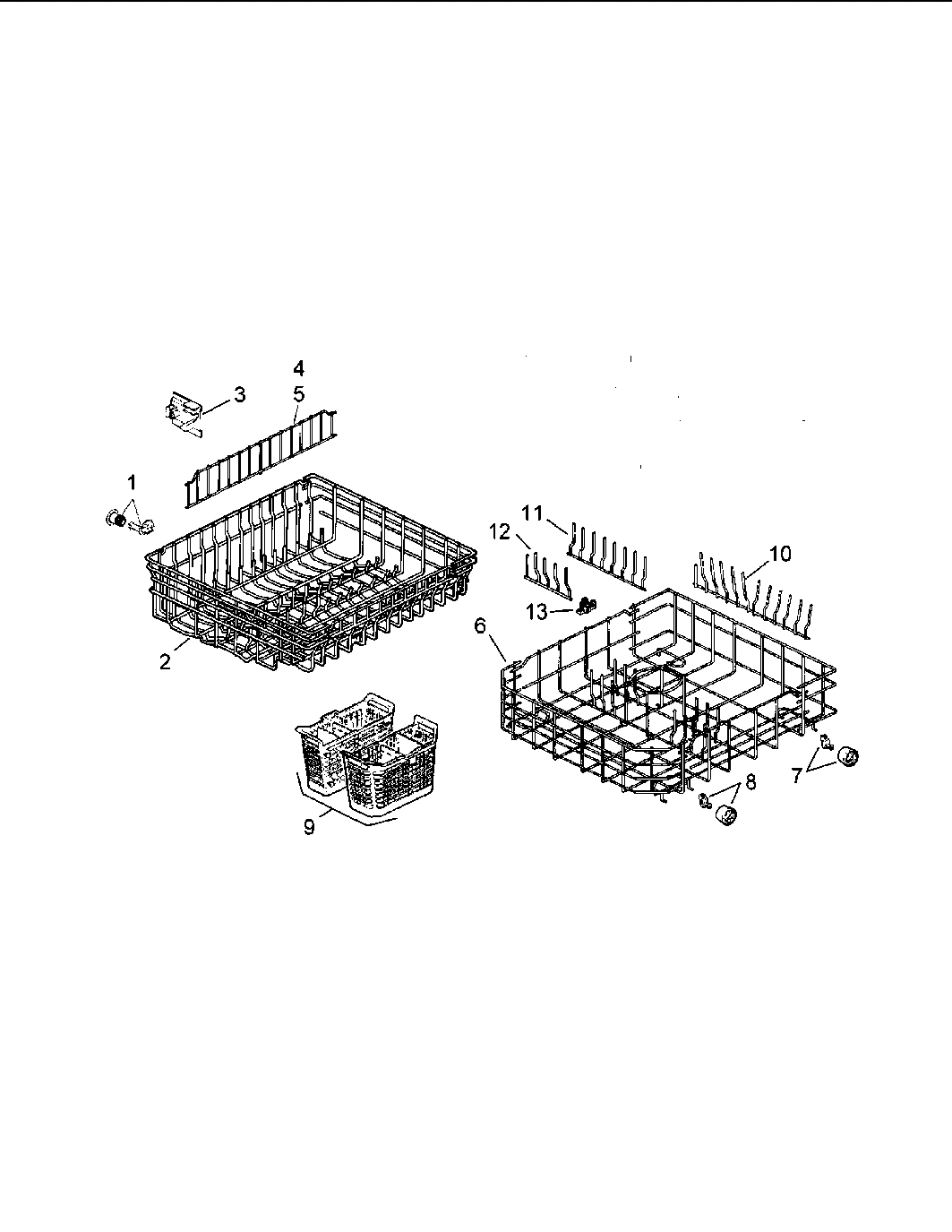

04 - Rack Assembly
Common parts from model Whirlpool ADU6000DB DISHWASHER
1
DOOR PANEL INSERT WPL R0903525 Contact Us For Availability
1
DOOR PANEL INSERT WPL R0905559 Contact Us For Availability
1
ASSY, SPRAY ARM WPL R0913208 Contact Us For Availability
1
ASSY, TIMER KNOB WPL R0903597 Contact Us For Availability
1
VALVE, WATER INLET (W/SOLENOID WPL R0910033 Contact Us For Availability
1
ROLLER STUD ASSY. (1= 4 PACK) WPL R0910005 Contact Us For Availability
2
INSULATOR WPL R0906002 Contact Us For Availability
2
ASSY, PUMP CONNECTOR WPL R0913113 Contact Us For Availability
2
PUSH BUTTON WPL R0903571 Contact Us For Availability
2
SCR 10-24X3/8 TT HEX WPL R0900012 Contact Us For Availability
2
RACK UPPER WPL R0904528 Contact Us For Availability
3
DOOR & HINGE ASSY, OUTER WPL R0905637 Contact Us For Availability
3
SCREW WPL R0900011 Contact Us For Availability
4
KNOB, LATCH HANDLE WPL R0903596 Contact Us For Availability
4
GUARD WPL R0905522 Contact Us For Availability
4
CLAMP WPL R0901510 Contact Us For Availability
4
INSERT, ESCUTCHEON WPL 10856718 Contact Us For Availability
5
MOTOR/PUMP ASSY DISHWA WPL R0904527 Contact Us For Availability
5
ESCUTCHEON/BLACK WPL R0913137 Contact Us For Availability
5
HOSE, WATER INLET WPL R0903514 Contact Us For Availability
5
SHELF, CUP WPL R0910165 Contact Us For Availability
6
MOTOR/PUMP ASSY DISHWA WPL R0907001 Contact Us For Availability
6
RETAINER WPL R0905592 Contact Us For Availability
6
END CAP WPL R0903517 Contact Us For Availability
6
ASSY, LWR RACK/ROLLER WPL R0913124 Contact Us For Availability
7
DOOR VENT WPL R0905536 Contact Us For Availability
7
HANGER MECHANISM WPL R0905712 Contact Us For Availability
7
RACK SLIDE WPL R0905567 Contact Us For Availability
7
ROLLER ASSY WPL R0910008 Contact Us For Availability
8
LATCH ASM WPL R0910121 Contact Us For Availability
8
SCREW WPL R0900007 Contact Us For Availability
8
SWITCH PUSH BUTTON WPL R0902527 Contact Us For Availability
8
ROLLER & STUD KIT WPL R0910013 Contact Us For Availability
8
LOWER ROLLER ASSY WPL R0910007 Contact Us For Availability
9
RINSE AID INJECTOR ASSY WPL R0905618 Contact Us For Availability
9
SOLENOID KIT WPL R0909003 Contact Us For Availability
9
COVER WPL R0905593 Contact Us For Availability
9
CABLE AND EYELET WPL R0910012 Contact Us For Availability
9
BASKET,SILVERWARE WPL R0910113 Contact Us For Availability
10
GATE VALVE ARM KIT WPL R0905619 Contact Us For Availability
10
HOUSING TERMINAL WPL R0910049 Contact Us For Availability
10
BAFFLE, TUBE CORNER RH WPL R0905596 Contact Us For Availability
10
BAFFLE TUB CORNER LH WPL R0905597 Contact Us For Availability
11
ASSY RINSE AID DISP. WPL R0910155 Contact Us For Availability
11
RETAINER WPL R0901503 Contact Us For Availability
11
TERM SPEC.(1=12) WPL R0910050 Contact Us For Availability
11
FLOOD FLOAT WPL R0903501 Contact Us For Availability
12
SHAFT HAND D CUP WPL R0905615 Contact Us For Availability
12
SPRING, GATE ARM WPL R0905529 Contact Us For Availability
12
SPRING, TIMER LEVER WPL R0905541 Contact Us For Availability
12
FLOAT, DOME WPL R0913227 Contact Us For Availability
13
ARMATURE & LINK ASSY WPL R0905517 Contact Us For Availability
13
SWITCH LEAF WPL R0905533 Contact Us For Availability
13
No.8 TYPE A SET SST WASHER WPL R0900503 Contact Us For Availability
14
DETERGENT CUP COVER WPL R0910010 Contact Us For Availability
14
BRACKET-SOLENOID WPL R0905639 Contact Us For Availability
14
SHIELD, SWITCH WPL R0905534 Contact Us For Availability
14
LATCH KEEPER WPL R0905505 Contact Us For Availability
15
NUT WPL R0906510 Contact Us For Availability
15
SWITCH, INTERLOCK WPL R0902506 Contact Us For Availability
15
SCREW WPL R0900025 Contact Us For Availability
16
SCREW WPL R0900009 Contact Us For Availability
16
SEAL, SHAFT WPL R0906504 Contact Us For Availability
16
KIT, MTG BRACKET WPL R0913209 Contact Us For Availability
17
DEFLECTER WPL R0905523 Contact Us For Availability
17
LENS WPL R0910061 Contact Us For Availability
17
HOSE, SHOWER ASSY WPL R0903527 Contact Us For Availability
18
TRIP SPRING WPL R0905542 Contact Us For Availability
18
DRAIN TUBE ASM WPL R0903584 Contact Us For Availability
18
ASS`Y PILOT LIGHT WPL R0910159 Contact Us For Availability
18
INSULATION, TUB WPL R0913228 Contact Us For Availability
19
SCREW WPL R0900006 Contact Us For Availability
19
ASSY, PUMP SEAL WPL R0913111 Contact Us For Availability
19
LEVER, TIMER WPL R0905545 Contact Us For Availability
19
ASSY, PWR SHOWER WPL R0913122 Contact Us For Availability
20
LATCH DETERGENT CUP WPL R0905539 Contact Us For Availability
20
ASSY, IMPELLER WPL R0913109 Contact Us For Availability
20
SCREW, No.8-16 ABHW SN WPL R0913205 Contact Us For Availability
21
DOOR GASKET WPL R0904507 Contact Us For Availability
21
WEAR RING WPL R0905520 Contact Us For Availability
21
CAM, TIMER WPL R0904019 Contact Us For Availability
22
GASKET, INSERT WPL R0913145 Contact Us For Availability
22
WEAR RING BASE WPL R0905518 Contact Us For Availability
22
TIMER WPL R0913221 Contact Us For Availability
22
ASS`Y, FILTER FRAME WPL R0913117 Contact Us For Availability
23
DOOR, INNER WPL R0903021 Contact Us For Availability
23
NUT WPL R0905563 Contact Us For Availability
23
SHIELD, TIMER WPL R0904016 Contact Us For Availability
23
SUPPORT HEATER REAR WPL R0905633 Contact Us For Availability
24
HINGE ARM BEARING WPL R0905537 Contact Us For Availability
24
SPRING, CUTTER WPL R0913110 Contact Us For Availability
24
ASS`Y, HTG ELEMENT WPL R0913106 Contact Us For Availability
25
DRIP SHIELD WPL R0910011 Contact Us For Availability
25
TUB ROLLER & STUD KIT WPL R0910004 Contact Us For Availability
26
SCREW WPL R0900042 Contact Us For Availability
26
SUMP, INLET WPL R0905719 Contact Us For Availability
26
CAP, SUMP WPL R0905718 Contact Us For Availability
27
TRIM DOOR SIDE WIDE {BLA WPL R0905765 Contact Us For Availability
27
COVER INLET WPL R0905717 Contact Us For Availability
28
TRIM DOOR BTM WIDE E WPL R0905768 Contact Us For Availability
28
SCREW WPL R0900008 Contact Us For Availability
29
SCREW WPL R0900017 Contact Us For Availability
31
TRIM ACCESS WIDE {WHI WPL R0905760 Contact Us For Availability
31
TRIM ACCESS WIDE {BLA WPL R0905762 Contact Us For Availability
31
FLOAT STEM WPL R0905512 Contact Us For Availability
32
TRIM,ACCESS TOP WIDE {BL WPL R0905771 Contact Us For Availability
32
DOOR SPRING BLUE WPL R0905503 Contact Us For Availability
32
DOOR SPRING YELLOW WPL R0905504 Contact Us For Availability
33
INSULATOR, INSERT PANEL WPL R0910036 Contact Us For Availability
33
COVER, JUNCTION BOX WPL R0913225 Contact Us For Availability
34
INSERT, SERVICE PANEL WPL R0903526 Contact Us For Availability
34
BRKT, J-BOX WPL R0913226 Contact Us For Availability
35
PANEL,ACCESS AND SCREW BK WPL R0903035 Contact Us For Availability
35
SWITCH FLOOD WPL R0902501 Contact Us For Availability
36
TOE KICK ASSY WPL R0903022 Contact Us For Availability
36
BRKT, FLOOD SWITCH WPL R0905513 Contact Us For Availability
37
COVER SWITCH BRKT WPL R0905514 Contact Us For Availability
38
WASHER WPL R0900501 Contact Us For Availability
39
GROMMET WPL R0906502 Contact Us For Availability
40
NUT, HR TOWER WPL R0913107 Contact Us For Availability
41
LEG, LEVELING WPL R0905506 Contact Us For Availability
42
PISTON & NUT ASSY WPL R0903586 Contact Us For Availability
43
GASKET WPL R0904503 Contact Us For Availability
44
ASSY, VALVE &CHECK WPL R0913073 Contact Us For Availability
45
HOSE, CHAMBER WPL R0903590 Contact Us For Availability
× ![]()
