Model GE ADEE9RGS173TW01 General Electric Model ADEE9RGS173TW01 – Common Parts & Diagrams

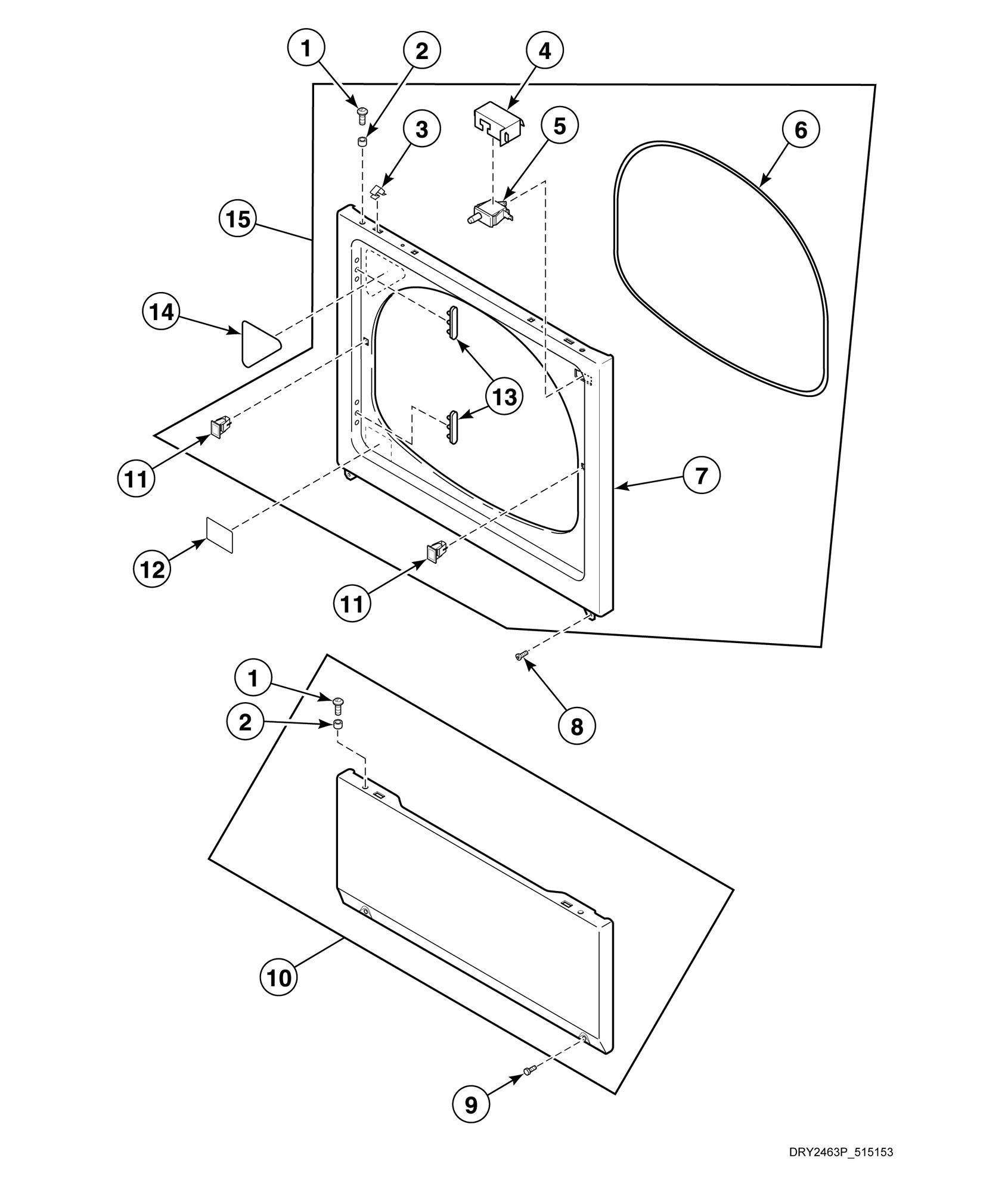

Access Panel, Front Panel and Seal
Cabinet, Exhaust Duct and Base - Single Dryers

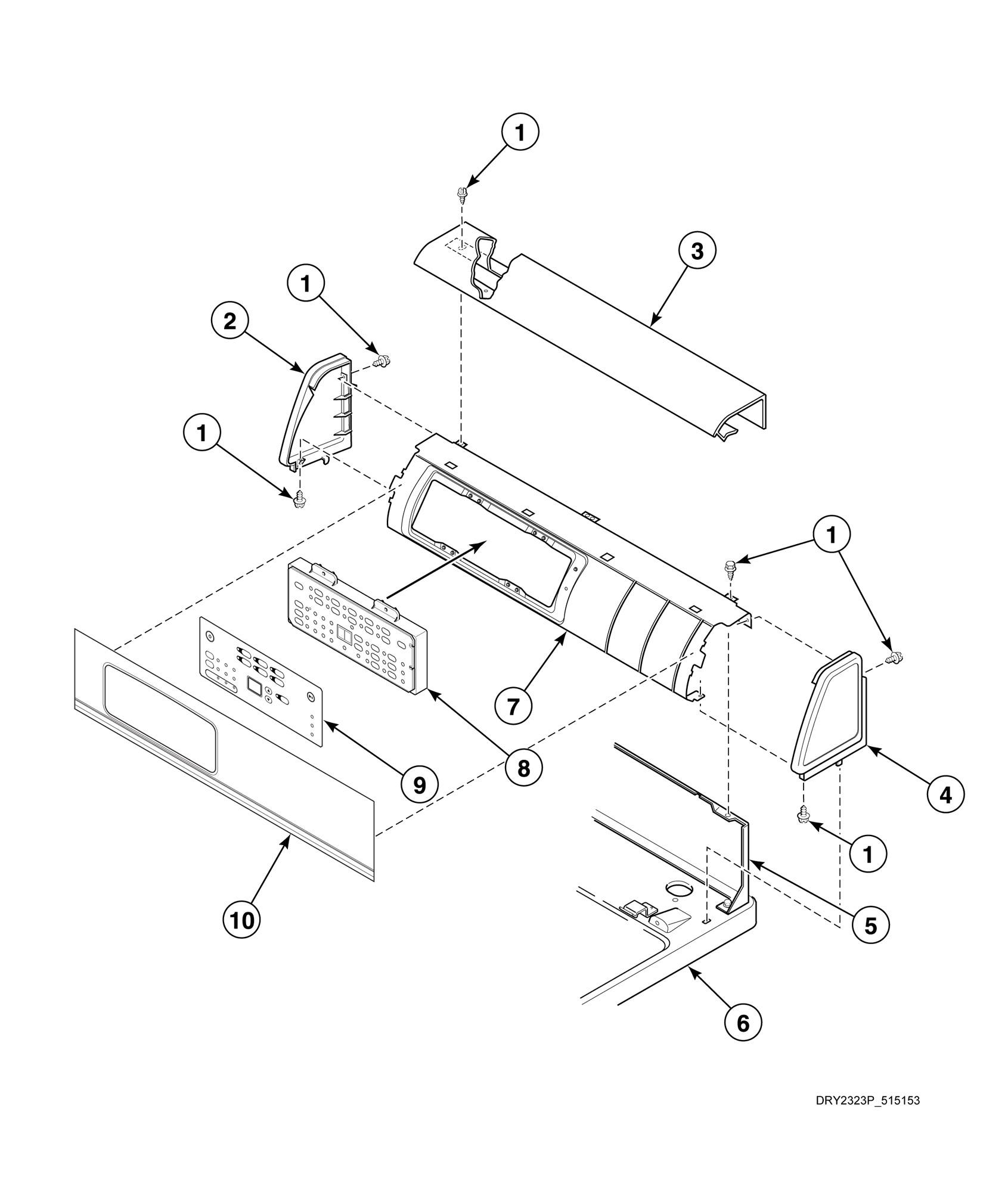

Control Panel and Controls - Rear Control (Drawing 2 of 2)
Cylinder
Front Bulkhead, Air Duct and Felt Seal
Heater Duct and Element Assembly (Electric Models)
Loading Door - Without Window
Motor, Exhaust Fan and Belt
Rear Bulkhead, Felt Seal, Cylinder Roller and Terminal Block
Terminal Block and Terminals
Terminals
Terminals and Terminal Extractor Tools
Wire Harnesses and Wires - Rear Control Models
Common parts from model GE ADEE9RGS173TW01 General Electric Model ADEE9RGS173TW01
1
Panel Locator GEN 56079 Contact Us For Availability
1
Moisture Sensor Base GEN D513738 Contact Us For Availability
1
Cylinder Seal Assembly GEN D510207P Contact Us For Availability
1
Adhesive (Comment: Apply to cylinder seal) GEN D511637P Contact Us For Availability
1
Seal Kit (Comment: Includes 2 cylinder seals, GEN RB170001 Contact Us For Availability
1
Door Strike Mount GEN D510127 Contact Us For Availability
1
Blower Housing Seal GEN D510238P Contact Us For Availability
1
Insulated Female Spade Terminal GEN 00360 Contact Us For Availability
1
Grounding Clip GEN 00161 Contact Us For Availability
1
10 Position Housing GEN D500338 Contact Us For Availability
1
Electric Harness (Comment: Main harness) GEN D513986 Contact Us For Availability
2
Screw (Comment: Use with painted side panels) GEN 39733 Contact Us For Availability
2
Screw GEN D503688 Contact Us For Availability
2
Screw (Comment: Use with stainless steel side GEN D512921 Contact Us For Availability
2
End Panel (Comment: Left) GEN D504009WP Contact Us For Availability
2
Bar Sensor (Comment: 2 required) GEN D513737 Contact Us For Availability
2
Screw GEN D500227 Contact Us For Availability
2
Outlet Cover GEN D500820 Contact Us For Availability
2
Outlet Cover (Comment: Black) GEN D515573 Contact Us For Availability
2
Door Strike GEN D510181 Contact Us For Availability
2
Blower Housing Cover Assembly GEN D510250 Contact Us For Availability
2
Wire Clip (Comment: 1 inch) GEN 687500 Contact Us For Availability
2
Wire Clip (Comment: 11/16 inch) GEN D504034 Contact Us For Availability
2
Female Terminal (Comment: 1/4 inch, (1) 12 ga GEN 00255 Contact Us For Availability
3
Speed Clip GEN 28835 Contact Us For Availability
3
Bumper Pad GEN 56128 Contact Us For Availability
3
Screw GEN D501086 Contact Us For Availability
3
Top Cover GEN D505808W Contact Us For Availability
3
Cylinder Baffle (Comment: 3 required, Light g GEN D510102LG Contact Us For Availability
3
Heater Duct and Screw Assembly (Comment: Incl GEN D510025P Contact Us For Availability
3
Liner Door Seal GEN D510147P Contact Us For Availability
3
Screw GEN 31260 Contact Us For Availability
3
Rear Bulkhead Assembly (Comment: White, Inclu GEN D510905WP Contact Us For Availability
3
Rear Bulkhead Assembly (Comment: Includes ite GEN D511082P Contact Us For Availability
3
Female Terminal (Comment: For 1 or 2 wire app GEN 00188 Contact Us For Availability
4
Cabinet Rear Panel GEN D514632P Contact Us For Availability
4
End Panel (Comment: Right) GEN D504008WP Contact Us For Availability
4
Cylinder Assembly (Comment: White) GEN D510159WP Contact Us For Availability
4
Cylinder Assembly GEN D510265LGP Contact Us For Availability
4
Screw (Comment: Use with stainless steel side GEN M405188 Contact Us For Availability
4
Screw GEN D501285 Contact Us For Availability
4
Wire Assembly (Comment: Orange, Thermostat ju GEN D510528 Contact Us For Availability
4
Liner, Seal and Grill Assembly (Comment: Gray GEN D513109P Contact Us For Availability
4
Terminal Extractor Tool (Comment: For use on GEN 283P4 Contact Us For Availability
5
Switch GEN D512973 Contact Us For Availability
5
Top Hinge GEN D510136 Contact Us For Availability
5
Hood Back Panel GEN 804169 Contact Us For Availability
5
Screw GEN 62588 Contact Us For Availability
5
Screw GEN D514461 Contact Us For Availability
5
Wire Assembly (Comment: Black, Fuse jumper, A GEN D510527 Contact Us For Availability
5
Blower Housing (Comment: Includes items 1 and GEN D511969LG Contact Us For Availability
5
Terminal Block Shield (Comment: All other ele GEN D510237 Contact Us For Availability
5
Female Spade Terminal (Comment: 1/4 inch, (1) GEN 00223 Contact Us For Availability
5
Extractor Tool (Comment: For use on electric GEN 190P4 Contact Us For Availability
6
Front Panel Seal GEN D511056 Contact Us For Availability
6
Top Panel Kit GEN D510029WP Contact Us For Availability
6
Drying Rack GEN D512082P Contact Us For Availability
6
Thermal Fuse Assembly GEN D511412 Contact Us For Availability
6
Hinge GEN D511036 Contact Us For Availability
6
Motor Mount Clamp GEN D510180 Contact Us For Availability
6
Terminal Block Assembly (Comment: Includes 3 GEN D510190P Contact Us For Availability
7
Front Panel GEN D510066WP Contact Us For Availability
7
Control Support Panel GEN 804836 Contact Us For Availability
7
Air Duct Assembly GEN D510151LG Contact Us For Availability
7
Screw GEN 23222 Contact Us For Availability
7
Door Pull and Wedge Kit (Comment: White, Incl GEN D510103WP Contact Us For Availability
7
Door Pull and Wedge Kit (Comment: Black, Incl GEN D511213P Contact Us For Availability
7
Cylinder Belt GEN D511255P Contact Us For Availability
7
Ground Wire Assembly GEN D510550 Contact Us For Availability
7
Harness Strap GEN 55881 Contact Us For Availability
7
Female Tab Terminal (Comment: 1/4 inch) GEN 00344 Contact Us For Availability
8
Access Panel Plate GEN D510903 Contact Us For Availability
8
Control Assembly (Comment: Includes item 9) GEN D515501P Contact Us For Availability
8
Limit Thermostat GEN D510701 Contact Us For Availability
8
Door Handle Wedge GEN D510129W Contact Us For Availability
8
Motor and Pulley Assembly (Comment: 120 Volt/ GEN D511629P Contact Us For Availability
8
Screw GEN 61199 Contact Us For Availability
9
Screw GEN 33562 Contact Us For Availability
9
Electric Clearance Label GEN D511005 Contact Us For Availability
9
Overlay GEN D513779 Contact Us For Availability
9
Cylinder Glide Bracket (Comment: 2 required) GEN D510145 Contact Us For Availability
9
Heater Assembly (Comment: 5.35 kW, 240 Volt) GEN D510329P Contact Us For Availability
9
Dryer Door (Comment: White) GEN D510013WP Contact Us For Availability
9
Dryer Door (Comment: Stainless steel) GEN D512969 Contact Us For Availability
9
Motor Pulley (Comment: 60 Hertz) GEN D500011 Contact Us For Availability
9
Cylinder Roller Bracket GEN D510100 Contact Us For Availability
9
Insulated Female Spade Terminal (Comment: 1/4 GEN 00359 Contact Us For Availability
10
Access Panel and Guard Assembly (Comment: Whi GEN D514252W Contact Us For Availability
10
Flexible Venting Kit GEN 521P3 Contact Us For Availability
10
Graphic Panel GEN 804565 Contact Us For Availability
10
Lint Filter (Comment: Light gray) GEN D503980LG Contact Us For Availability
10
Heater Kit Assembly (Comment: 5 kW, 240 Volt/ GEN 61927 Contact Us For Availability
10
Heater Kit Assembly (Comment: 4.75 kW, 208 Vo GEN 61928 Contact Us For Availability
10
Heater Kit (Comment: 5.35 kW, 240 Volt, Inclu GEN 964P3 Contact Us For Availability
10
Motor Hub Ring Kit GEN 590P3 Contact Us For Availability
10
Cylinder Roller GEN D510708P Contact Us For Availability
11
Door Catch Assembly GEN D510177 Contact Us For Availability
11
Exhaust Duct (Comment: Each dryer requires 2 GEN D510137 Contact Us For Availability
11
Felt Pad (Comment: 2 required) GEN D510189 Contact Us For Availability
11
Retaining Ring GEN 23748 Contact Us For Availability
12
Cabinet Side Panel (Comment: Right, White) GEN D510002WP Contact Us For Availability
12
Cylinder Glide (Comment: 2 required) GEN D513710 Contact Us For Availability
12
Blower Fan Assembly GEN D510139P Contact Us For Availability
12
Washer GEN 52549 Contact Us For Availability
13
Hinge Hole Plug GEN D510186 Contact Us For Availability
13
Directional Exhaust Kit (Comment: Used to ven GEN 528P3 Contact Us For Availability
13
Glide Kit (Comment: Includes items 11 and 12 GEN RB170003 Contact Us For Availability
13
Idler Spring GEN D510185 Contact Us For Availability
13
Washer GEN D504082 Contact Us For Availability
14
Warning/Caution Label GEN D500281 Contact Us For Availability
14
Hold Down Kit (Comment: For mobile home insta GEN 526P3 Contact Us For Availability
14
Cylinder Light Lens GEN D512106 Contact Us For Availability
14
Shaft GEN 56461P Contact Us For Availability
15
Leveling Leg GEN D510135 Contact Us For Availability
15
Drum Light Lamp GEN 60954 Contact Us For Availability
15
Idler Lever GEN D510133 Contact Us For Availability
15
Roller Kit (Comment: Includes 2 each of items GEN RB170002 Contact Us For Availability
16
Rubber Foot GEN D501855 Contact Us For Availability
16
Light Housing Assembly (Comment: 120 Volt, In GEN D512108 Contact Us For Availability
16
Nut GEN 56156 Contact Us For Availability
17
Dryer Base GEN D514245 Contact Us For Availability
17
Front Bulkhead GEN D513641 Contact Us For Availability
17
Bulkhead Assembly (Comment: White, Includes i GEN D515544W Contact Us For Availability
18
Idler Wheel and Bearing Assembly GEN D510142P Contact Us For Availability
19
Screw GEN D514428 Contact Us For Availability
20
Output Control Assembly GEN D513797P Contact Us For Availability
20
Screw GEN D500824 Contact Us For Availability
21
Screw GEN 804667 Contact Us For Availability
21
Idler Lever and Wheel Assembly (Comment: Incl GEN D510158 Contact Us For Availability
22
Cabinet Side Panel (Comment: Left, White) GEN D510001WP Contact Us For Availability
22
Nut GEN 52566 Contact Us For Availability
23
Motor Mount GEN D510060 Contact Us For Availability
23
Thermistor Assembly (Comment: Black) GEN D510523 Contact Us For Availability
25
Screw GEN D502535 Contact Us For Availability
NA
NOT ON YOUR MODEL GEN - Contact Us For Availability
NA
Anti-Seize Compound (Comment: Apply to motor GEN 27604P Contact Us For Availability
× ![]()
