Model Whirlpool AD40DSR1 DEHUMIDIFIER – Common Parts & Diagrams
02 - UNIT PARTS

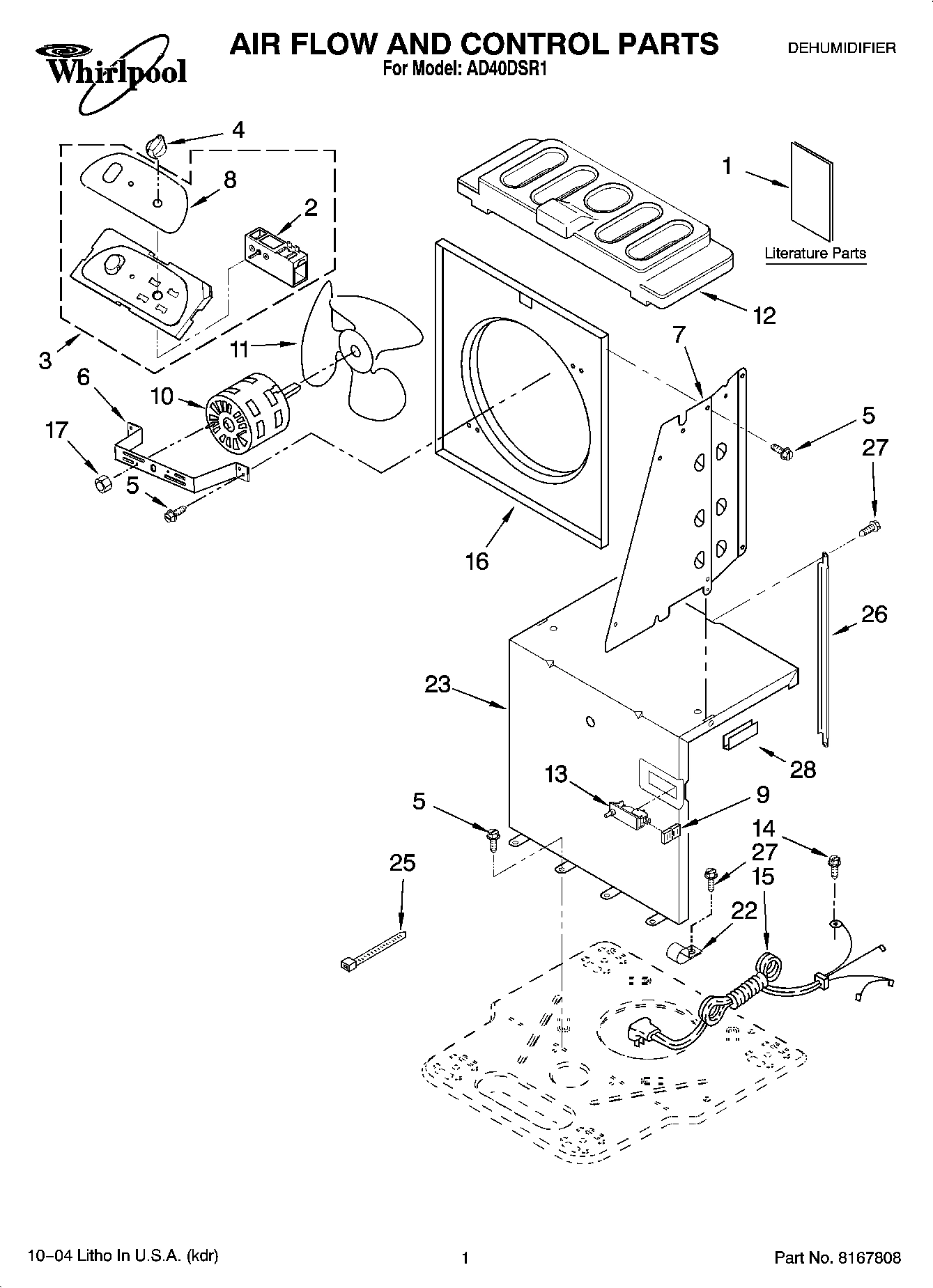

01 - AIR FLOW AND CONTROL PARTS

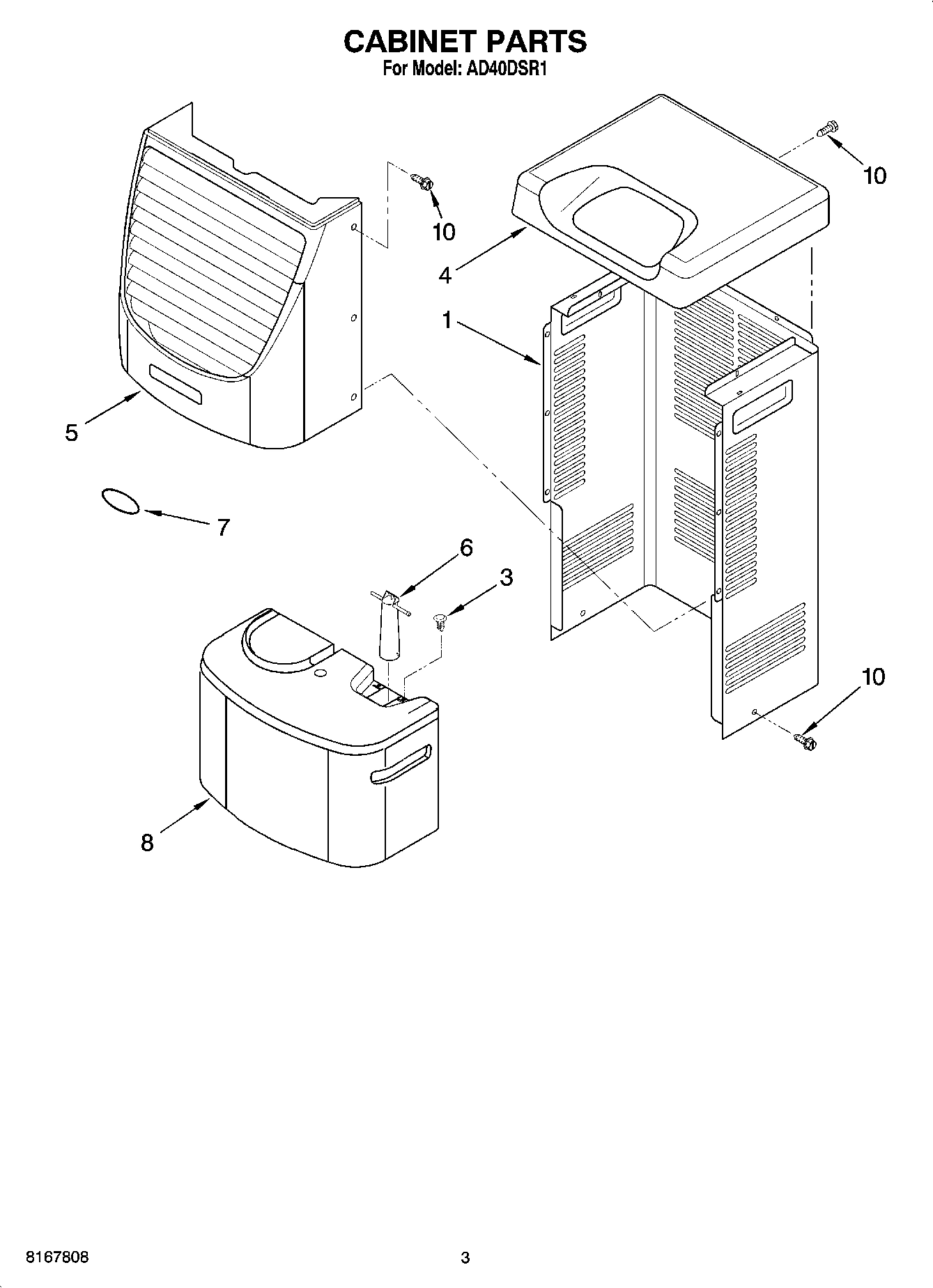

03 - CABINET PARTS
Common parts from model Whirlpool AD40DSR1 DEHUMIDIFIER
1
Wiring Diagram WPL 1186972 Contact Us For Availability
1
Use & Care Guide WPL 1187984 Contact Us For Availability
1
Cabinet WPL 1186822 Contact Us For Availability
2
Humidistat, Control WPL 1168670 Contact Us For Availability
3
Assembly, Control Panel WPL 1187910 Contact Us For Availability
3
Clip, Float WPL 1186430 Contact Us For Availability
4
Knob WPL 1168687 Contact Us For Availability
4
Cover, Top WPL 1168652 Contact Us For Availability
5
Cover, Front (Includes Item 7) WPL 1188009 Contact Us For Availability
6
Float WPL 1172075 Contact Us For Availability
6
Bracket, Motor WPL 1183427 Contact Us For Availability
7
Panel, Air System (Left Side) WPL 1168758 Contact Us For Availability
7
Panel, Air System (Right Side) WPL 1168759 Contact Us For Availability
7
Nameplate WPL 1187171 Contact Us For Availability
8
Escutcheon WPL 1187911 Contact Us For Availability
8
Bucket, Condensate WPL 1182080 Contact Us For Availability
9
Barrier, Bucket Fill Switch WPL 1168781 Contact Us For Availability
10
5/8`` Tube O.D. WPL 978029 Contact Us For Availability
10
Tape, No Drip Valve, Access WPL 505168 Contact Us For Availability
10
epoxy, tube (aluminum repair) WPL 484310 Contact Us For Availability
10
1/2`` Tube O.D. WPL 978028 Contact Us For Availability
10
BulK Seal, Ring Access Valve (20-Pack) WPL 978865 Contact Us For Availability
10
Following Parts Not Illustrated and Optional WPL ARI20254A4 Contact Us For Availability
11
Blade, Fan WPL 1168731 Contact Us For Availability
12
Cover, Terminal WPL 1185792 Contact Us For Availability
12
Cover, Air System WPL 1168681 Contact Us For Availability
13
Washer, Nut WPL 1185794 Contact Us For Availability
13
Switch, Bucket Fill/Check WPL 1186480 Contact Us For Availability
14
Evaporator WPL 1186754 Contact Us For Availability
14
Screw 8-18 x .295 WPL 1159222 Contact Us For Availability
15
Cord, Appliance WPL 1186735 Contact Us For Availability
16
Gasket, Terminal Cover WPL 1185793 Contact Us For Availability
16
Plate, Orifice WPL 1168666 Contact Us For Availability
17
Clip, Compressor WPL 8011446 Contact Us For Availability
18
Capacitor WPL 1188137 Contact Us For Availability
19
Harness, Wire (With De-Icer) WPL 1187006 Contact Us For Availability
20
Grommet (3) WPL 950212 Contact Us For Availability
21
Base WPL 1186674 Contact Us For Availability
22
Caster (4) WPL 1164241 Contact Us For Availability
22
Relief, Strain WPL 488937 Contact Us For Availability
23
Support, Air System WPL 1184946 Contact Us For Availability
25
Compressor, (Complete Assembly) WPL 1188132 Contact Us For Availability
26
Pan, Drain WPL 1168761 Contact Us For Availability
26
Brace, Support WPL 1168752 Contact Us For Availability
28
Edge Guard WPL 1180634 Contact Us For Availability
29
Insulation (Restrictor Tube) WPL 1184625 Contact Us For Availability
29
REFRIGERANT CHARGE 7.50 oz. WPL ARI20253A1 Contact Us For Availability
× ![]()
