Model Whirlpool AD0482XP0 DEHUMIDIFIER – Common Parts & Diagrams
02 - SECTION

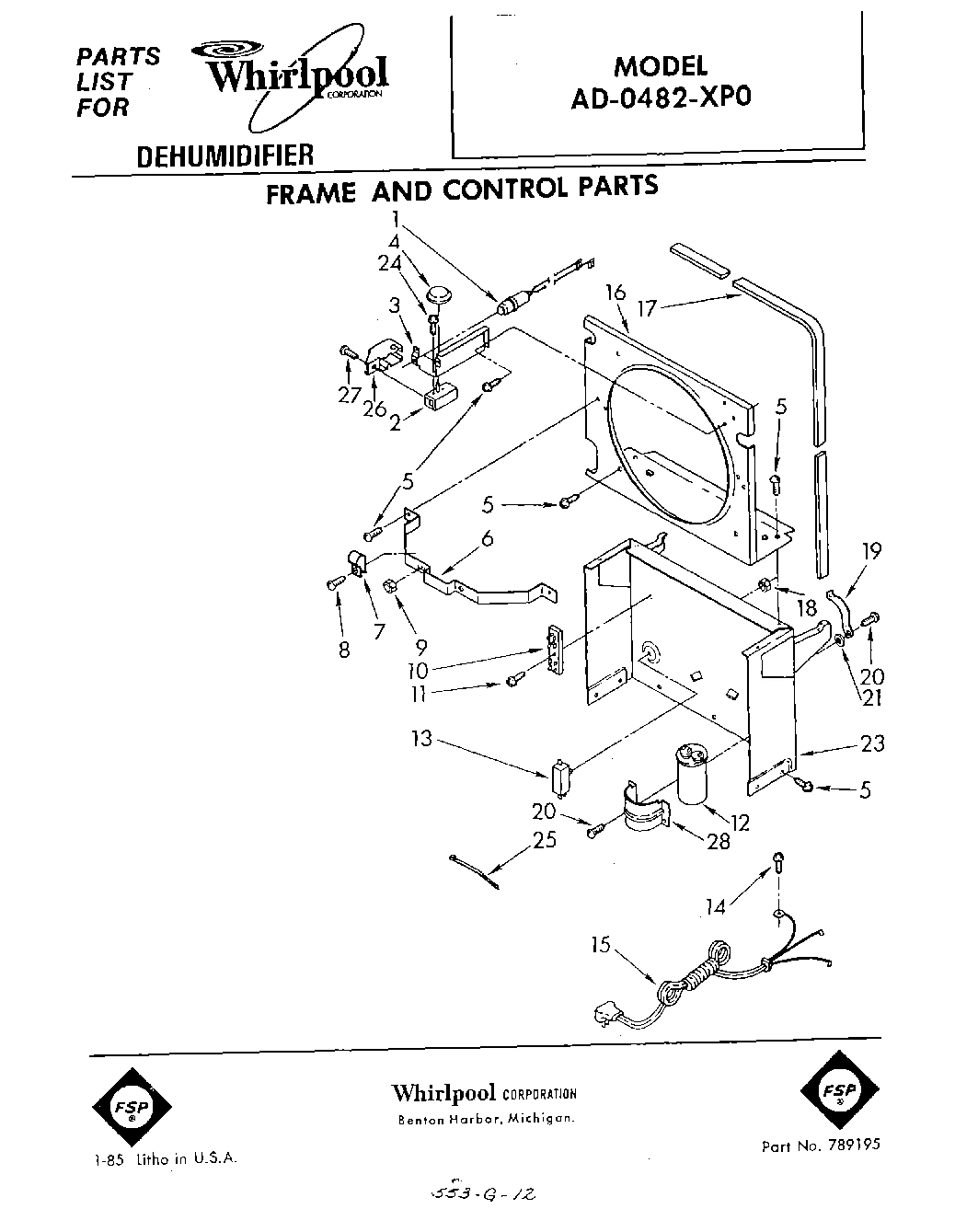

01 - SECTION

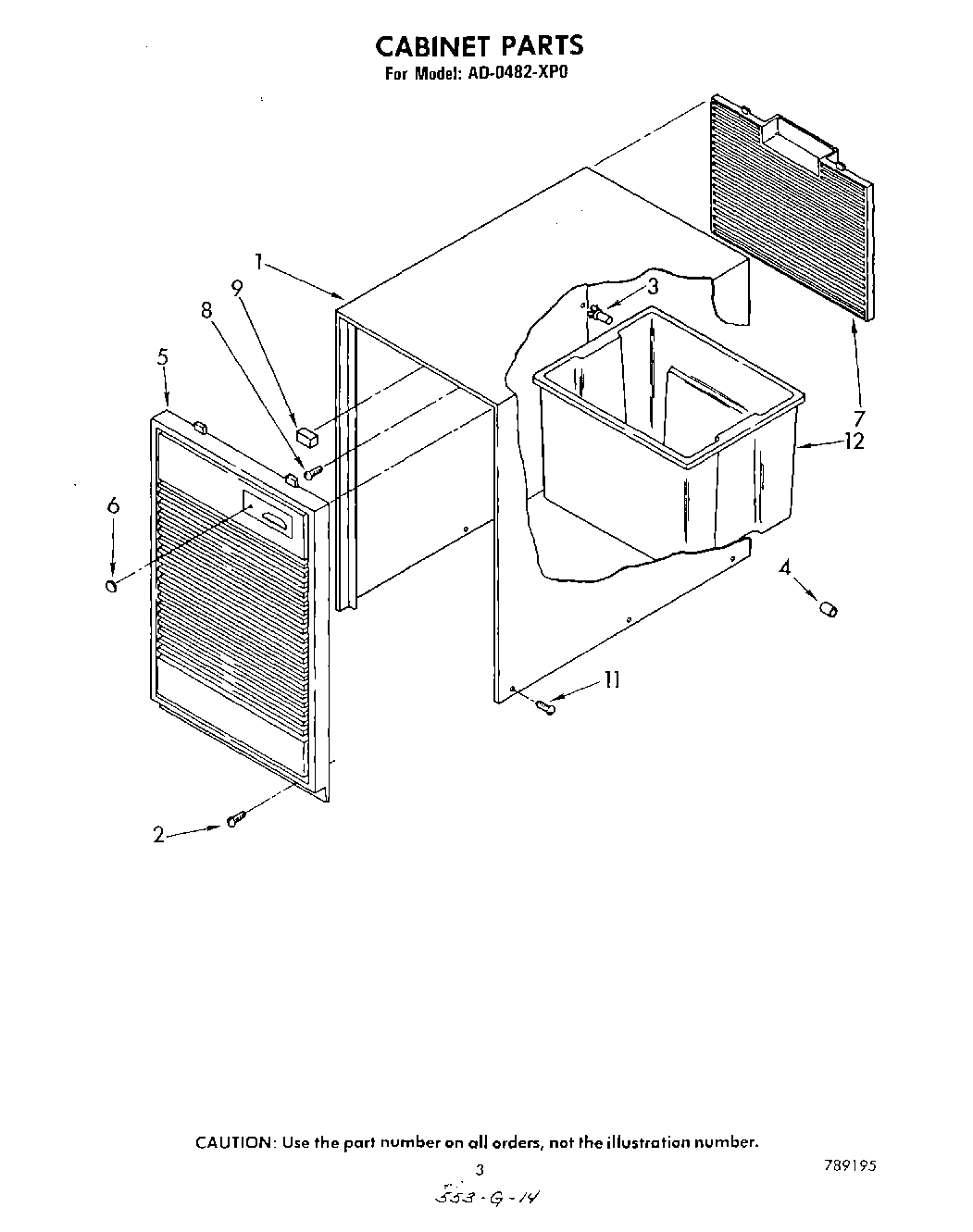

03 - SECTION
Common parts from model Whirlpool AD0482XP0 DEHUMIDIFIER
List, Repair Parts WPL LIT789195 Contact Us For Availability
Sheet, Service Tech WPL LIT951825 Contact Us For Availability
Guide, Use & Care WPL LIT998866 Contact Us For Availability
1
Light, Indicator WPL 950747 Contact Us For Availability
1
Cabinet WPL 998821 Contact Us For Availability
2
Humidistat Assembly WPL 951280 Contact Us For Availability
3
Strainer, Tube WPL 474013 Contact Us For Availability
3
Bracket, Humidistat & Light Assembly WPL 951285 Contact Us For Availability
3
Retainer, Pin (2) (Rear Grille) WPL 998813 Contact Us For Availability
4
Tube, Outlet (Includes Item 3) WPL 949896 Contact Us For Availability
4
Knob, Humidistat Control WPL 998859 Contact Us For Availability
4
Cap, Thread Cover (2) WPL 998869 Contact Us For Availability
5
Blade, Fan (Includes Item 6) WPL 948756 Contact Us For Availability
5
Screw, S.M. No.8 x 3/8A WPL 488624 Contact Us For Availability
5
Grille, Front WPL 950269 Contact Us For Availability
6
Setscrew, 1/4 x 5/16 WPL 488035 Contact Us For Availability
6
Bracket, Fan Motor Mounting WPL 998777 Contact Us For Availability
6
Lens, Light WPL 998846 Contact Us For Availability
7
Motor, Fan WPL 949635 Contact Us For Availability
7
Grille, Rear WPL 998832 Contact Us For Availability
8
Sleeve (4) WPL 646498 Contact Us For Availability
9
Spring, Overload WPL 950061 Contact Us For Availability
9
Spacer, Grille WPL 948584 Contact Us For Availability
10
Overload, Protector WPL 951312 Contact Us For Availability
10
Board, Terminal WPL 950431 Contact Us For Availability
11
Roller (2) WPL 998726 Contact Us For Availability
11
screw, 6 x 3/8 WPL 488966 Contact Us For Availability
11
screw, tc 8-32 x 3/8 (6) WPL 489016 Contact Us For Availability
12
Cover, Terminal WPL 950055 Contact Us For Availability
12
Capacitor, Run WPL 951363 Contact Us For Availability
12
Lacquer, Starlight Gray (1/2 Pt. Uncut) WPL 485426 Contact Us For Availability
12
Cap, Condensate Pan WPL 646753 Contact Us For Availability
12
Pan, Condensate WPL 998801 Contact Us For Availability
13
Retainer, Cover WPL 950056 Contact Us For Availability
13
Switch, Water Level Control WPL 998783 Contact Us For Availability
14
Evaporator WPL 951350 Contact Us For Availability
15
Cord, Appliance WPL 950743 Contact Us For Availability
16
Seal WPL 998867 Contact Us For Availability
16
Plate, Orifice WPL 998779 Contact Us For Availability
17
Seal WPL 998802 Contact Us For Availability
18
Screw, 1/4-28 x 1`` (4) WPL 488400 Contact Us For Availability
18
Palnut, 3/8-32 WPL 489001 Contact Us For Availability
19
Harness, Wire WPL 484136 Contact Us For Availability
19
Spring, Water Level WPL 998730 Contact Us For Availability
20
Grommet (4) WPL 646499 Contact Us For Availability
21
Base WPL 949976 Contact Us For Availability
21
Washer, Repair (.060 Thickness) WPL 489029 Contact Us For Availability
21
Washer, Repair (.030 Thickness) WPL 489083 Contact Us For Availability
21
Washer, Repair (.045 Thickness) WPL 489091 Contact Us For Availability
23
Foot (2) WPL 472577 Contact Us For Availability
23
Support WPL 998729 Contact Us For Availability
24
Glide (2) WPL 998725 Contact Us For Availability
25
Compressor, Service (Complete Assembly) WPL 876949 Contact Us For Availability
26
Retainer, Cover WPL 832008 Contact Us For Availability
26
Cover, Terminal WPL 951281 Contact Us For Availability
27
Cover, Terminal WPL 798470 Contact Us For Availability
28
Overload WPL 798479 Contact Us For Availability
28
Bracket, Capacitor WPL 951364 Contact Us For Availability
29
Spring, Overload WPL 798469 Contact Us For Availability
30
Pin, Roller (2) WPL 489015 Contact Us For Availability
31
Bend, Return (13) WPL 855199 Contact Us For Availability
32
Bend, Return WPL 854624 Contact Us For Availability
33
Control, Deicer WPL 951824 Contact Us For Availability
34
Clip, Spring WPL 469366 Contact Us For Availability
35
Plate, Compressor Mounting WPL 876944 Contact Us For Availability
36
Spring, Mounting WPL 643179 Contact Us For Availability
37
Gasket, Cover WPL 798471 Contact Us For Availability
× ![]()
