Model Whirlpool AD0402XM1 DEHUMIDIFIER – Common Parts & Diagrams
01 - SECTION
03 - SECTION

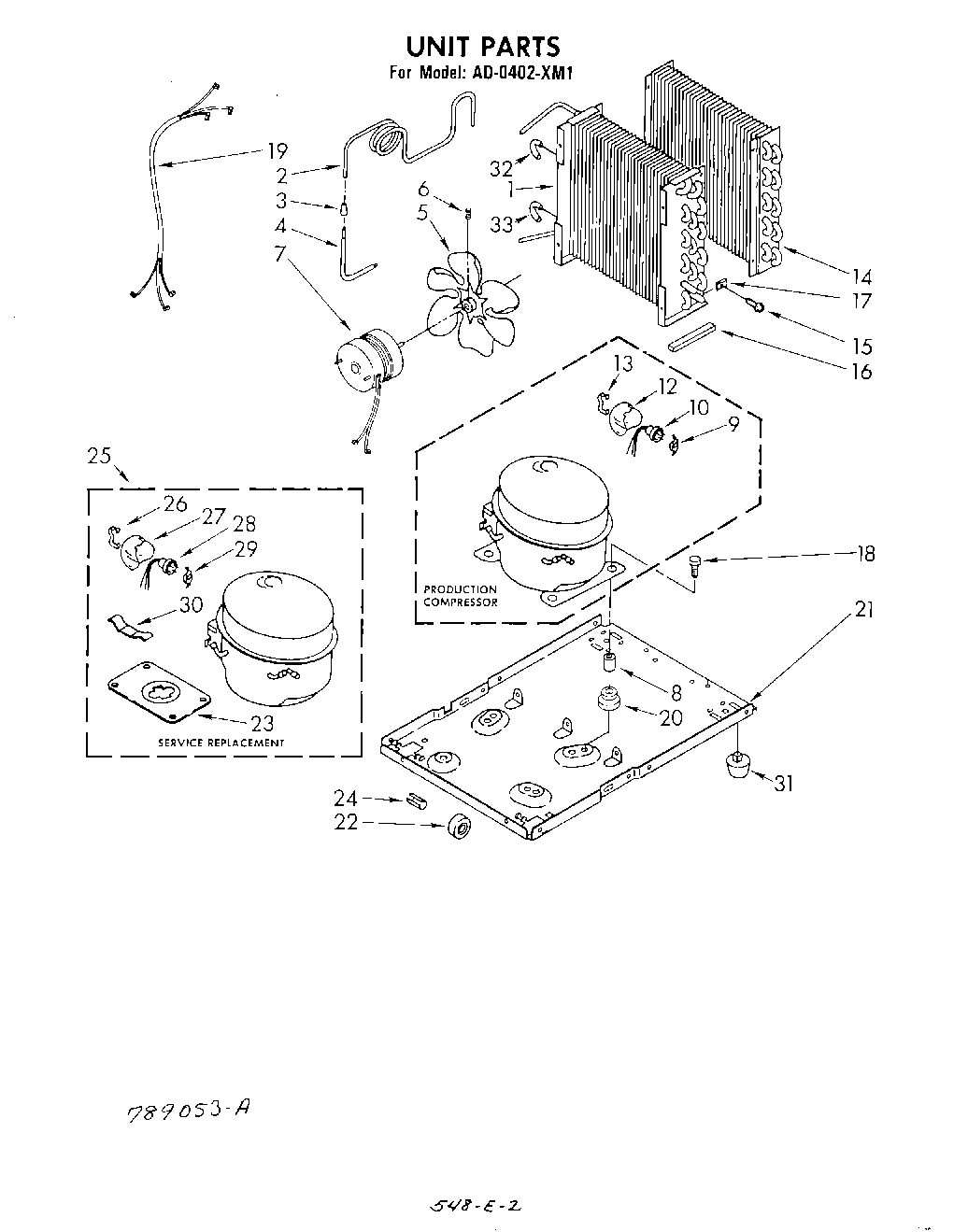

02 - SECTION
Common parts from model Whirlpool AD0402XM1 DEHUMIDIFIER
1
Cabinet WPL 998821 Contact Us For Availability
1
Condenser WPL 951345 Contact Us For Availability
2
Tube, Restrictor (46.0`` Length) WPL 951684 Contact Us For Availability
3
Retainer Pin (Rear Grille) WPL 998813 Contact Us For Availability
3
Strainer, Tube WPL 474013 Contact Us For Availability
4
cap, thread WPL 998869 Contact Us For Availability
4
rube, outlet (includes item 3) WPL 949896 Contact Us For Availability
5
Grille, Front WPL 950269 Contact Us For Availability
5
Blade, Fan (Includes Item 6) WPL 948756 Contact Us For Availability
6
Lens, Light WPL 998846 Contact Us For Availability
6
setscrew, 1/4-28 x 5/16 WPL 488035 Contact Us For Availability
7
Grille, Rear WPL 998832 Contact Us For Availability
7
Motor, Fan WPL 949635 Contact Us For Availability
8
Pan, Condensate WPL 998801 Contact Us For Availability
8
Sleeve (4) WPL 646498 Contact Us For Availability
9
screw, tc 8-32 x 3/8 (6) WPL 489016 Contact Us For Availability
9
Spring, Overload WPL 950061 Contact Us For Availability
10
Board, Terminal WPL 950431 Contact Us For Availability
10
Spacer, Grille WPL 948584 Contact Us For Availability
10
Overload, Protector WPL 951417 Contact Us For Availability
11
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
11
Tape, No Drip WPL 505168 Contact Us For Availability
11
screw, 6 x 3/8 WPL 488966 Contact Us For Availability
11
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
11
epoxy, tube (aluminum repair) WPL 484310 Contact Us For Availability
11
Lacquer, Starlight Gray (1/2 Pt. Uncut) WPL 485426 Contact Us For Availability
11
Cap, Condensate Pan WPL 646753 Contact Us For Availability
11
list, repair part WPL 789053 Contact Us For Availability
11
sheet, service tech WPL 951708 Contact Us For Availability
11
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
11
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
11
Guide, Use & Care WPL 998866 Contact Us For Availability
12
Capacitor, Run WPL 951363 Contact Us For Availability
12
Cover, Terminal WPL 950055 Contact Us For Availability
13
Switch, Water Level Control WPL 998783 Contact Us For Availability
13
Retainer, Cover WPL 950056 Contact Us For Availability
14
evaporator WPL 998746 Contact Us For Availability
15
Cord, Appliance WPL 950743 Contact Us For Availability
16
Plate, Orifice WPL 998779 Contact Us For Availability
16
Seal WPL 998867 Contact Us For Availability
17
Seal WPL 998802 Contact Us For Availability
18
Palnut, 3/8-32 WPL 489001 Contact Us For Availability
18
Screw, 1/4-28 x 1`` (4) WPL 488400 Contact Us For Availability
19
Spring, Water Level WPL 998730 Contact Us For Availability
19
Harness, Wire WPL 484136 Contact Us For Availability
20
Grommet (4) WPL 646499 Contact Us For Availability
21
washer, reapair (.060 thickness) WPL 489029 Contact Us For Availability
21
washer, reapair (.030 thickness) WPL 489083 Contact Us For Availability
21
washer, reapair (.045 thickness) WPL 489091 Contact Us For Availability
21
Base WPL 949976 Contact Us For Availability
22
roller (2) WPL 887625 Contact Us For Availability
23
Support WPL 998729 Contact Us For Availability
23
plate, compressor WPL 998726 Contact Us For Availability
24
pin, roller (2) WPL 876944 Contact Us For Availability
25
compressor, service (complete assembly) WPL 813527 Contact Us For Availability
26
Cover, Terminal WPL 951281 Contact Us For Availability
26
Retainer, Cover WPL 643299 Contact Us For Availability
27
Cover, Terminal WPL 589230 Contact Us For Availability
28
Bracket, Capacitor WPL 951364 Contact Us For Availability
28
Overload WPL 643295 Contact Us For Availability
29
Spring, Overload WPL 798469 Contact Us For Availability
30
Spring, Clip WPL 643179 Contact Us For Availability
31
Glide (2) WPL 998725 Contact Us For Availability
32
Bend, Return (13) WPL 855199 Contact Us For Availability
33
Bend, Return WPL 854624 Contact Us For Availability
× ![]()
