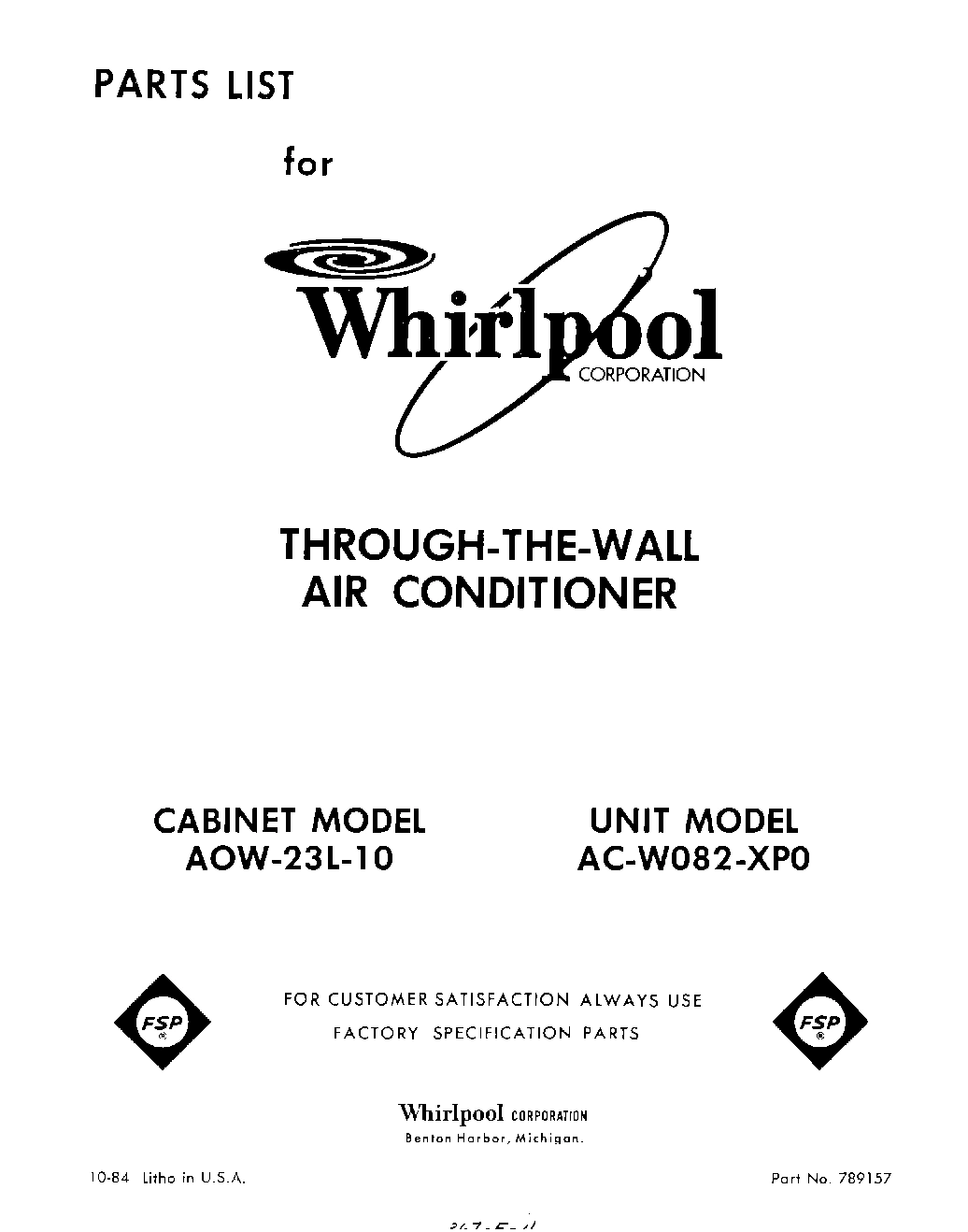

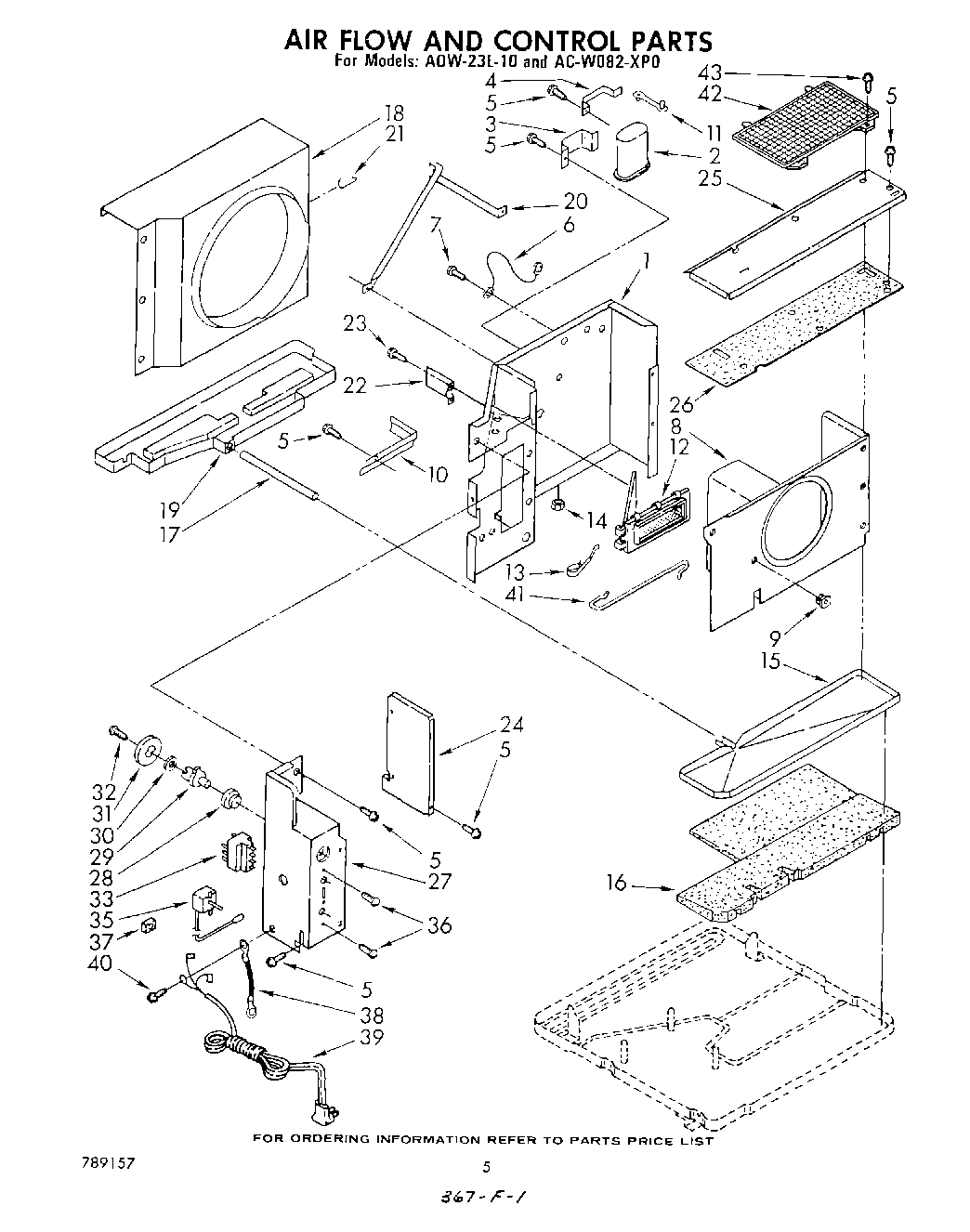

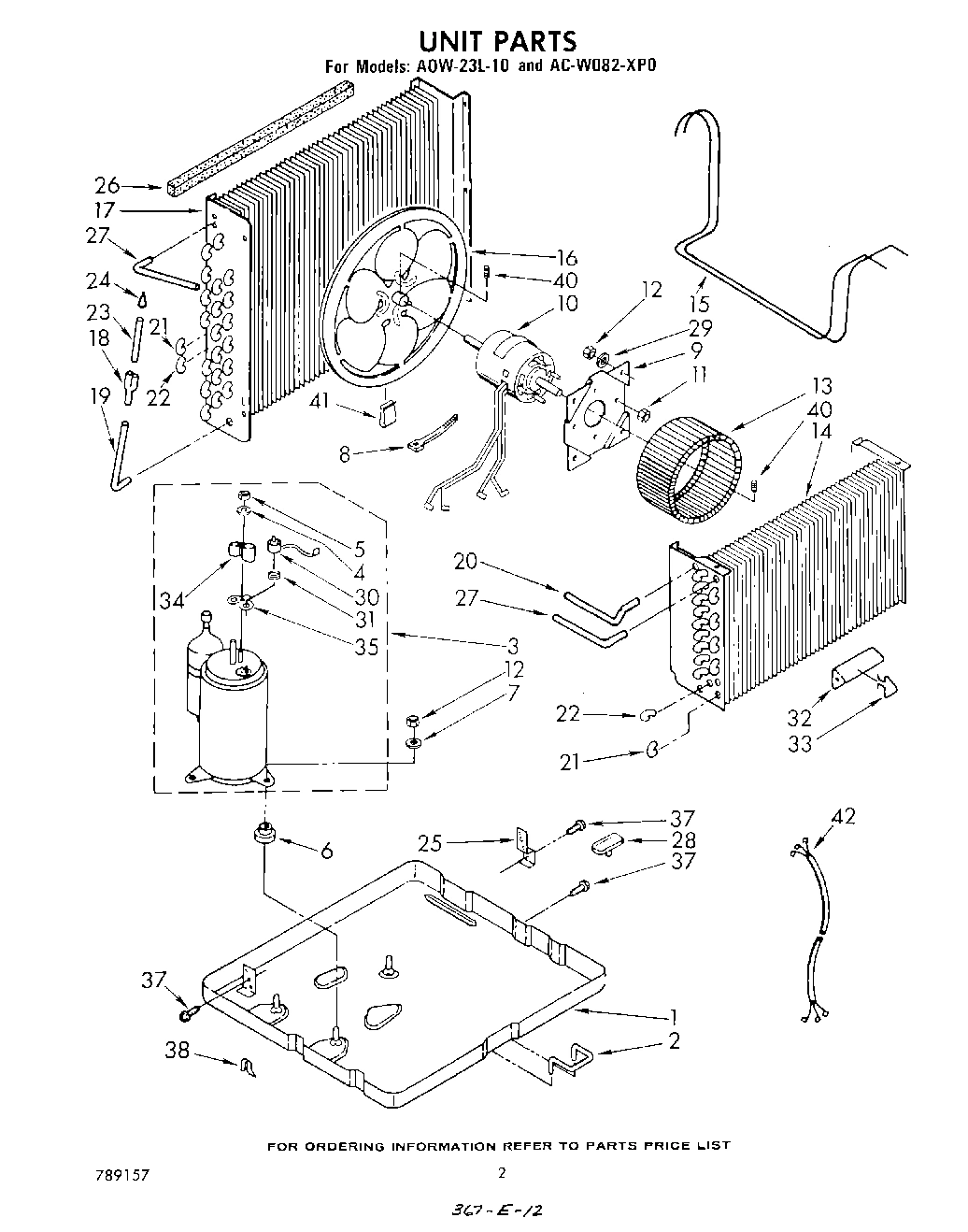

Model Whirlpool ACW082XP0 AIR CONDITIONER – Common Parts & Diagrams
03 - SECTION
02 - SECTION
04 - SECTION
01 - SECTION
Common parts from model Whirlpool ACW082XP0 AIR CONDITIONER
1
Base Assembly WPL 951481 Contact Us For Availability
1
Wall, Dividing (Requires Insulation 649939) WPL 998003 Contact Us For Availability
2
Handle, Base WPL 647971 Contact Us For Availability
2
capacitor, running WPL 950931 Contact Us For Availability
3
Compressor Assembly WPL 813535 Contact Us For Availability
3
Bracket, Running Capacitor WPL 852992 Contact Us For Availability
4
Gasket, Nut WPL 950037 Contact Us For Availability
4
Bracket, Running Capacitor WPL 475844 Contact Us For Availability
6
Wire, Capacitor Ground WPL 948285 Contact Us For Availability
7
Seal, Cabinet Front WPL 647914 Contact Us For Availability
8
Seal WPL 649198 Contact Us For Availability
8
Housing, Blower Wheel WPL 852875 Contact Us For Availability
9
Filter WPL 648008 Contact Us For Availability
9
Plate, Fan Motor WPL 998024 Contact Us For Availability
9
Fastener, snap (2) WPL 487808 Contact Us For Availability
10
Retainer, Filter WPL 476707 Contact Us For Availability
10
Motor, Fan WPL 949054 Contact Us For Availability
10
Channel, Wiring WPL 852317 Contact Us For Availability
11
Louver, Vertical WPL 647798 Contact Us For Availability
11
Clamp, Cable WPL 648791 Contact Us For Availability
12
Handle, Verticle Louver (2) WPL 644165 Contact Us For Availability
12
Nut, Lock WPL 858122 Contact Us For Availability
12
Door, Exhaust WPL 649720 Contact Us For Availability
13
Link, Vertical Louver (2) WPL 647799 Contact Us For Availability
13
Wheel, Blower WPL 859495 Contact Us For Availability
13
Spring, Exhaust Door WPL 859369 Contact Us For Availability
14
Spring, Detent (2) WPL 641484 Contact Us For Availability
14
Evaporator Assembly WPL 951669 Contact Us For Availability
14
Clip, Speed WPL 649620 Contact Us For Availability
15
Tube, Restrictor (Length 25.5``) WPL 951487 Contact Us For Availability
15
Pan, Evaporator Condensate WPL 853268 Contact Us For Availability
16
Knob, Control (2) WPL 947264 Contact Us For Availability
16
Blade, Fan WPL 859496 Contact Us For Availability
16
Insulation, Condensate Pan WPL 853269 Contact Us For Availability
17
Screw, Mach 8-32 x 3/8 WPL 488853 Contact Us For Availability
17
Condenser Assembly WPL 951488 Contact Us For Availability
17
Tube, Condensate WPL 49181 Contact Us For Availability
18
Tube, Flow Divider WPL 947364 Contact Us For Availability
18
Shroud, Condenser WPL 647862 Contact Us For Availability
19
Plate, Escutcheon WPL 950536 Contact Us For Availability
19
Tube, Outlet WPL 950814 Contact Us For Availability
19
Pan, Condenser Condensate WPL 859238 Contact Us For Availability
20
Spacer, Escutcheon Plate (3) WPL 470036 Contact Us For Availability
20
Tube, Inlet WPL 852454 Contact Us For Availability
20
Support, Unit WPL 852318 Contact Us For Availability
21
xCabinet (Requires Insulation 649939) WPL 857273 Contact Us For Availability
21
Bend, Return Condenser (18) Evaporator (5) WPL 855199 Contact Us For Availability
21
Retainer, Shroud Cover (3) WPL 647873 Contact Us For Availability
22
xScrew, Wood No.10 x 3/4 (8) WPL 487371 Contact Us For Availability
22
Bend, Return Condenser (4) Evaporator (10) WPL 854624 Contact Us For Availability
22
Cover, Dividing Wall WPL 994399 Contact Us For Availability
23
Panel, Front WPL 853974 Contact Us For Availability
23
Tube & Strainer Assembly (Includes Illus. 24) WPL 484230 Contact Us For Availability
24
Strainer WPL 49599 Contact Us For Availability
24
Wall, Dividing L.S. WPL 852994 Contact Us For Availability
25
Insulation, Cabinet (L.S.) WPL 857271 Contact Us For Availability
25
Condenser, Support (R.S.) WPL 647824 Contact Us For Availability
25
Cover, Evaporator WPL 856957 Contact Us For Availability
26
Seal, Cabinet (Bottom) WPL 998961 Contact Us For Availability
26
Insulation, Evaporator Cover WPL 948410 Contact Us For Availability
27
xGrommet, Appliance Cable WPL 647849 Contact Us For Availability
27
Front, Cabinet Assembly WPL 951115 Contact Us For Availability
27
Tube, Outlet WPL 647949 Contact Us For Availability
27
Box, Control WPL 994174 Contact Us For Availability
28
Cup, Condensate WPL 647850 Contact Us For Availability
28
Bushing, Control Shaft WPL 647879 Contact Us For Availability
29
Washer, Shim WPL 470280 Contact Us For Availability
29
Shaft, Control WPL 852023 Contact Us For Availability
30
Washer, Spring WPL 647881 Contact Us For Availability
31
Spring, Overload WPL 950032 Contact Us For Availability
31
Cam, Control WPL 647882 Contact Us For Availability
32
Anticipator, Temperature WPL 475573 Contact Us For Availability
33
Clip, Anticipator WPL 475577 Contact Us For Availability
33
Switch, Rotary WPL 950523 Contact Us For Availability
35
Control, Tempetature WPL 949431 Contact Us For Availability
36
Screw, Mach 6-32 x .175 (2) WPL 488734 Contact Us For Availability
37
Grommet, Wiring WPL 647865 Contact Us For Availability
38
Clamp, Restrictor Tube WPL 642684 Contact Us For Availability
38
Wire, Ground WPL 857634 Contact Us For Availability
39
Cable, Appliance WPL 648535 Contact Us For Availability
40
Setscrew, 5/16 x 1/4 WPL 595085 Contact Us For Availability
41
Clip, Balancing WPL 485334 Contact Us For Availability
41
Wire, Control WPL 859370 Contact Us For Availability
42
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
42
No Drip Tape (For Sweating Tubes) WPL 505168 Contact Us For Availability
42
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
42
Harness, Wiring WPL 484136 Contact Us For Availability
42
Kit, Evaporator Repair (Aluminum Epoxy) WPL 484310 Contact Us For Availability
42
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
42
Guard, Blower Wheel WPL 997949 Contact Us For Availability
43
Wire, Black (25 Ft.) WPL 47261 Contact Us For Availability
43
Wire, Red, (25 Ft.) WPL 47262 Contact Us For Availability
43
Wire, White (25 Ft.) WPL 47263 Contact Us For Availability
43
Lacquer, Starlight Gray (1/2 Pt. Uncut) WPL 485426 Contact Us For Availability
43
List, Parts WPL 789157 Contact Us For Availability
43
WPL 799351 WPL 799351 Contact Us For Availability
43
WPL 950356 WPL 950356 Contact Us For Availability
43
WPL 951496 WPL 951496 Contact Us For Availability
× ![]()
