Model Whirlpool ACS802XV0 AIR CONDITIONER – Common Parts & Diagrams
01 - SECTION

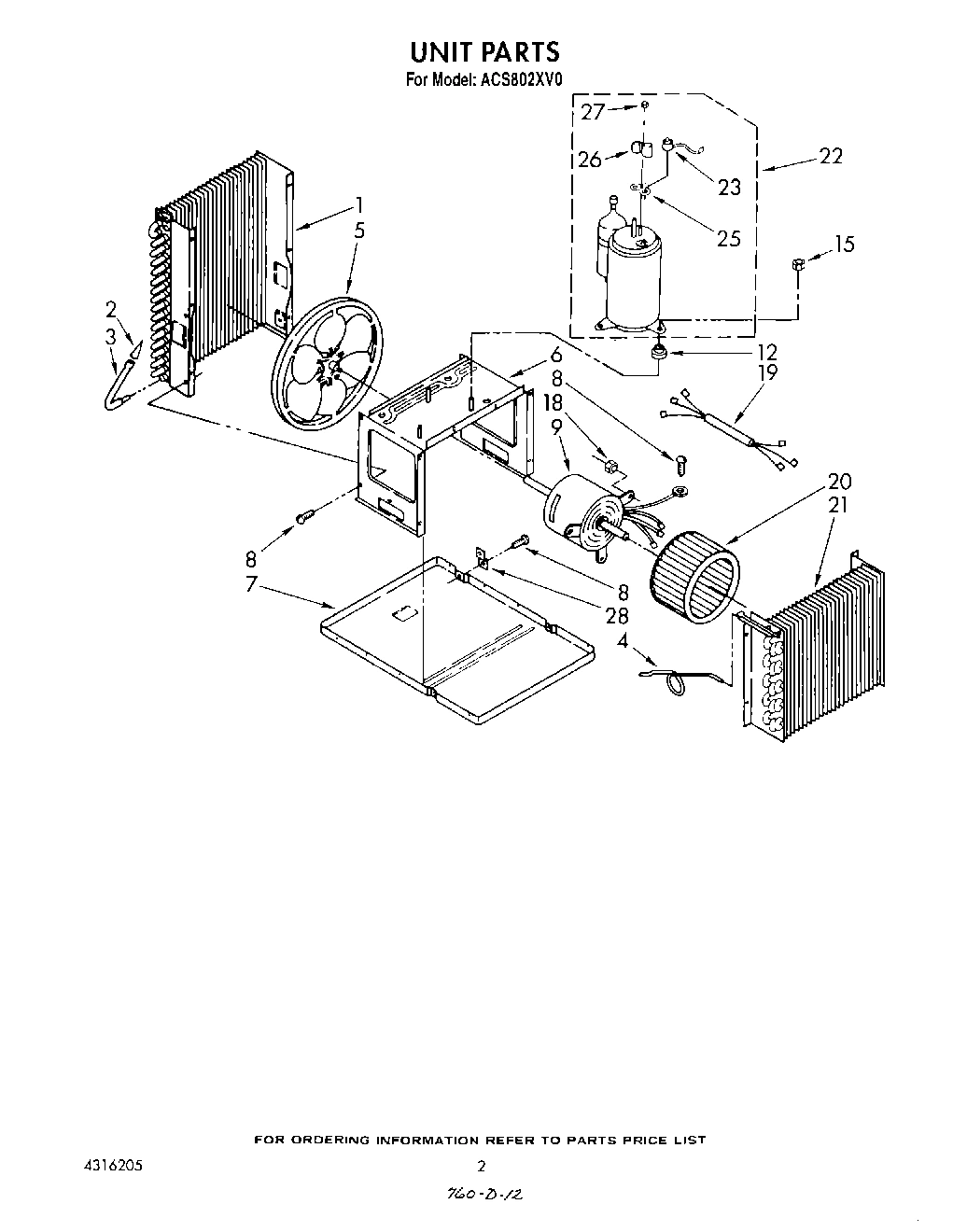

02 - SECTION

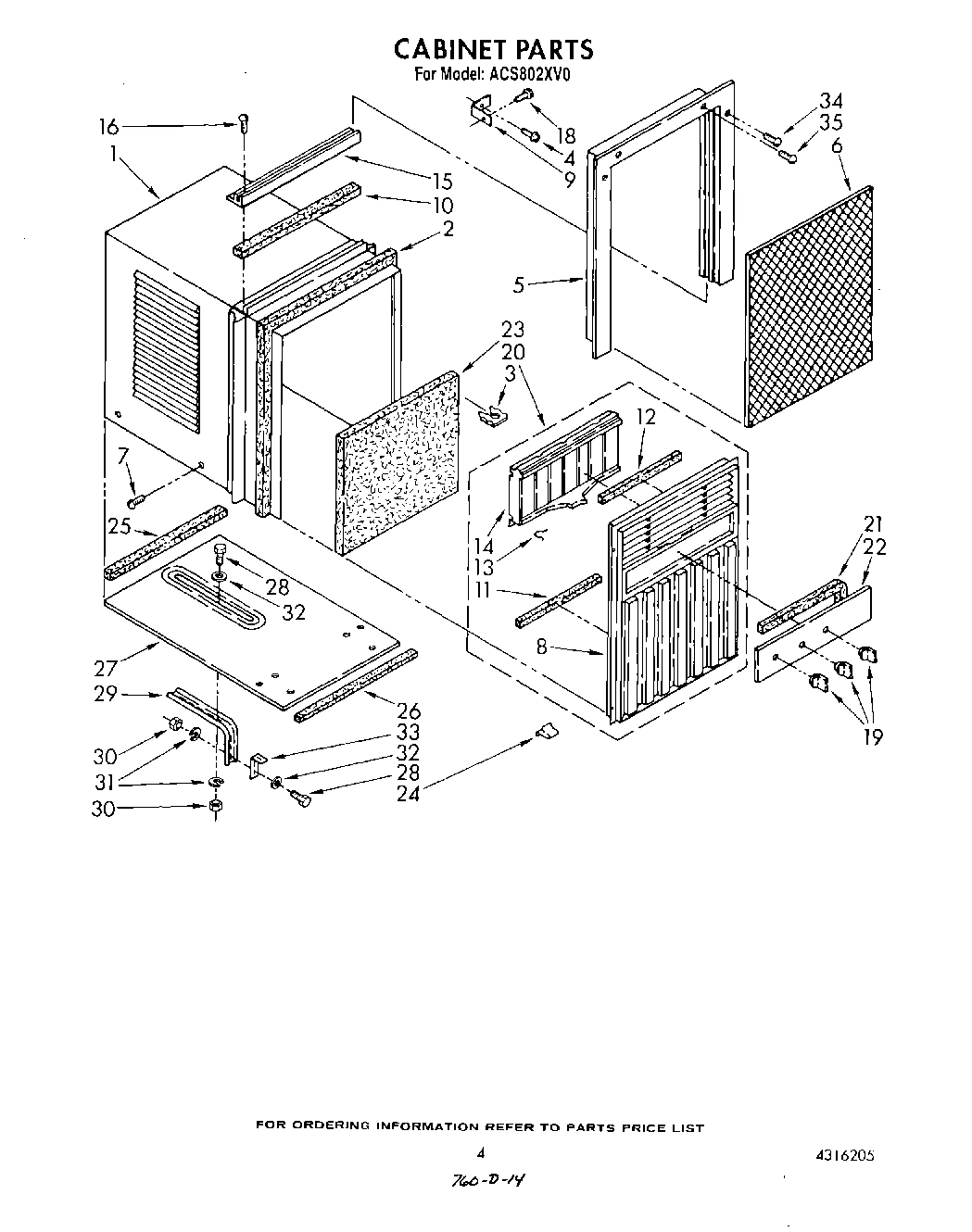

04 - SECTION

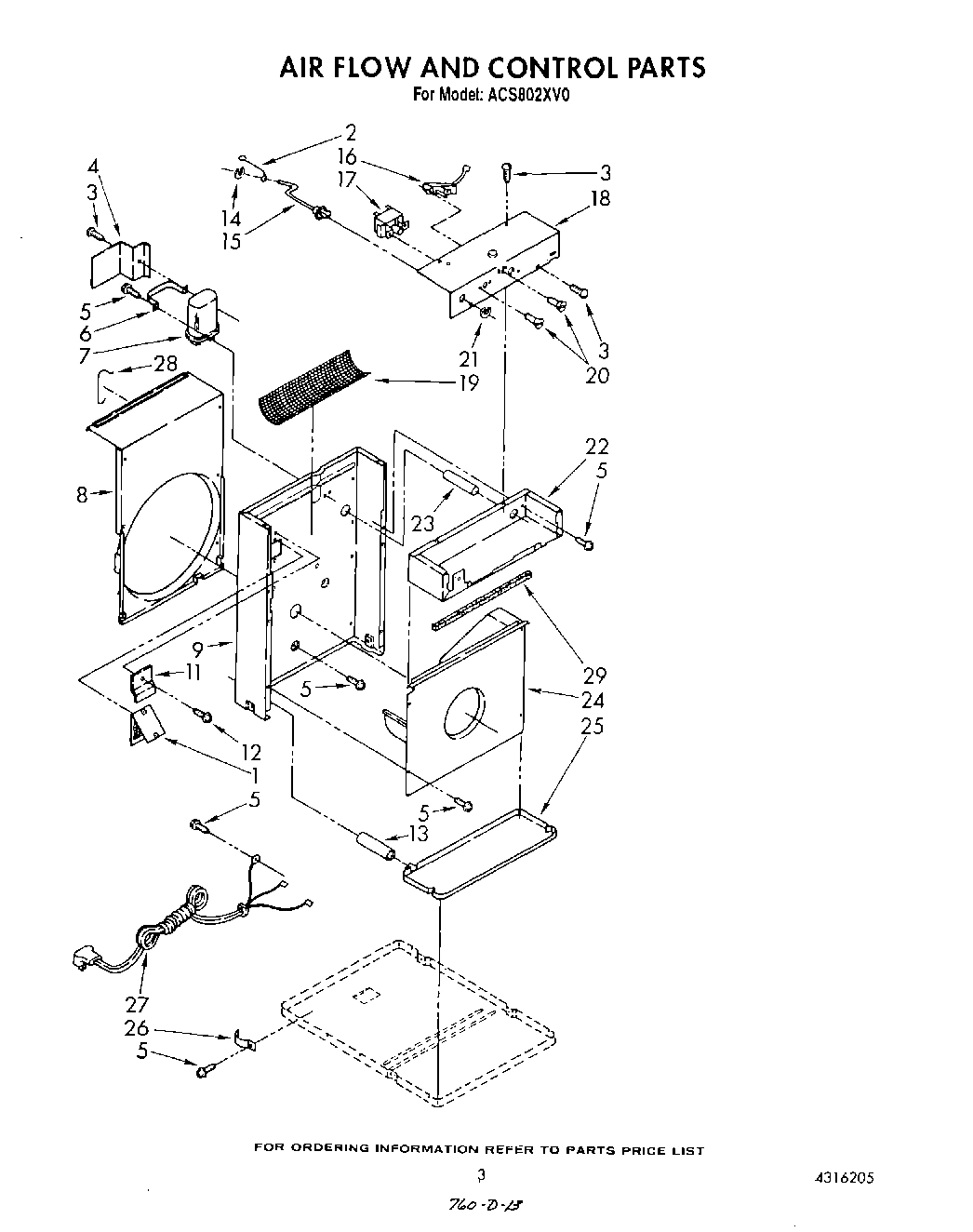

03 - SECTION
Common parts from model Whirlpool ACS802XV0 AIR CONDITIONER
1
Condenser WPL 789545 Contact Us For Availability
1
Cabinet WPL 977908 Contact Us For Availability
1
Door, Exhaust WPL 977891 Contact Us For Availability
2
Strainer WPL 977830 Contact Us For Availability
2
Strip, Seal Window WPL 977906 Contact Us For Availability
2
Link, Wire WPL 977903 Contact Us For Availability
3
Tube, Strainer WPL 977829 Contact Us For Availability
3
Clip, Filter (2) WPL 977860 Contact Us For Availability
4
Tube, Restrictor WPL 789544 Contact Us For Availability
4
Bracket, Capacitor WPL 977409 Contact Us For Availability
5
Fan, Slinger WPL 977554 Contact Us For Availability
5
Filler, Frame WPL 977897 Contact Us For Availability
6
Mount, Compressor WPL 789504 Contact Us For Availability
6
Board, Filler WPL 977902 Contact Us For Availability
6
Clamp, Capacitor WPL 977672 Contact Us For Availability
7
Base, Assembly WPL 977970 Contact Us For Availability
7
Capacitor, Running WPL 789550 Contact Us For Availability
8
Instructions, Installation WPL 977532 Contact Us For Availability
8
Meeting Rail Gasket WPL 977546 Contact Us For Availability
8
Front WPL 980936 Contact Us For Availability
8
Shroud, Condenser WPL 977663 Contact Us For Availability
9
Motor, Fan WPL 789548 Contact Us For Availability
9
Bracket, Window Locking (2) WPL 980703 Contact Us For Availability
9
Wall, Dividing Assembly WPL 980706 Contact Us For Availability
10
Seal Strip WPL 977907 Contact Us For Availability
11
Strip, Seal WPL 977677 Contact Us For Availability
11
Stop, Exhaust Door WPL 977950 Contact Us For Availability
12
Grommet (3) WPL 980818 Contact Us For Availability
12
Strip, Seal WPL 977710 Contact Us For Availability
13
Retainer, Louver (2) WPL 977589 Contact Us For Availability
13
Tube, Condensate Drain WPL 977462 Contact Us For Availability
14
Louver, Vertical WPL 832171 Contact Us For Availability
14
Clip WPL 977452 Contact Us For Availability
15
Angle, Top WPL 977896 Contact Us For Availability
15
Control, Exhaust Assembly WPL 977892 Contact Us For Availability
16
Control, Temperature WPL 977900 Contact Us For Availability
17
Switch, Rotary WPL 980931 Contact Us For Availability
18
Screw, 89 x 3/4 (2) WPL 832086 Contact Us For Availability
18
Nut, Hex No. 1/4 (3) WPL 977858 Contact Us For Availability
18
Cover, Control Box WPL 977909 Contact Us For Availability
19
Harness, Wiring (For Compressor Service) WPL 484136 Contact Us For Availability
19
Knob (3) WPL 977949 Contact Us For Availability
19
Guard, Hazard WPL 977690 Contact Us For Availability
20
Wheel, Blower WPL 977667 Contact Us For Availability
20
Front Assembly WPL 980935 Contact Us For Availability
20
Screw, 6-32 x 1/4 WPL 977838 Contact Us For Availability
21
Evaporator WPL 789543 Contact Us For Availability
21
Strip, Backing WPL 977673 Contact Us For Availability
21
Ring, Retainer WPL 832241 Contact Us For Availability
22
Compressor WPL 4210779 Contact Us For Availability
22
Plate, Dial WPL 980932 Contact Us For Availability
22
Box, Control WPL 977971 Contact Us For Availability
23
Overload WPL 789547 Contact Us For Availability
23
Filter WPL 977839 Contact Us For Availability
23
Tube, Wire Guard WPL 977752 Contact Us For Availability
24
Spring, Front Support (2) WPL 798307 Contact Us For Availability
24
Housing, Blower Wheel WPL 977489 Contact Us For Availability
25
Gasket, Cover WPL 789542 Contact Us For Availability
25
Seal, Lower Track WPL 832415 Contact Us For Availability
25
Pan, Drain WPL 977461 Contact Us For Availability
26
Cover, Overload WPL 789551 Contact Us For Availability
26
Strip Seal WPL 977678 Contact Us For Availability
26
Clamp WPL 798356 Contact Us For Availability
27
Nut WPL 980968 Contact Us For Availability
27
Shelf, Window Mounting WPL 977478 Contact Us For Availability
27
Cable, Appliance WPL 832114 Contact Us For Availability
28
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
28
No Drip Tape (For Sweating Tubes) WPL 505168 Contact Us For Availability
28
Bracket, Condenser Shroud WPL 977955 Contact Us For Availability
28
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
28
Bolt, Carriage (5/16 x 3/4) (2) WPL 487692 Contact Us For Availability
28
Retainer, Shroud Cover WPL 977470 Contact Us For Availability
29
Bracket, Shelf (Large) WPL 977479 Contact Us For Availability
29
List, Repair Parts WPL 4316205 Contact Us For Availability
29
Insulation, Fiberglass WPL 469938 Contact Us For Availability
29
Wire, Black (25 Ft.) WPL 47261 Contact Us For Availability
29
Wire, Red, (25 Ft.) WPL 47262 Contact Us For Availability
29
Wire, White (25 Ft.) WPL 47263 Contact Us For Availability
29
Lacquer, Starlight Gray (1/2 Pt. Uncut) WPL 485426 Contact Us For Availability
29
Guide, Use & Care WPL 789540 Contact Us For Availability
29
Sheet, Tech & Wiring Diagram WPL 789541 Contact Us For Availability
29
Guide, Energy WPL 789549 Contact Us For Availability
30
Nut, Hex No. 2 (2) WPL 486251 Contact Us For Availability
31
Lockwasher (2) WPL 487108 Contact Us For Availability
33
Bracket, Shelf (Small) WPL 977482 Contact Us For Availability
34
Screw, 10 x 1 (2) WPL 487746 Contact Us For Availability
35
Screw, 10 x 1-3/4 (2) WPL 798399 Contact Us For Availability
× ![]()
