Model Whirlpool ACS102XA0 AIR CONDITIONER – Common Parts & Diagrams
01 - SECTION

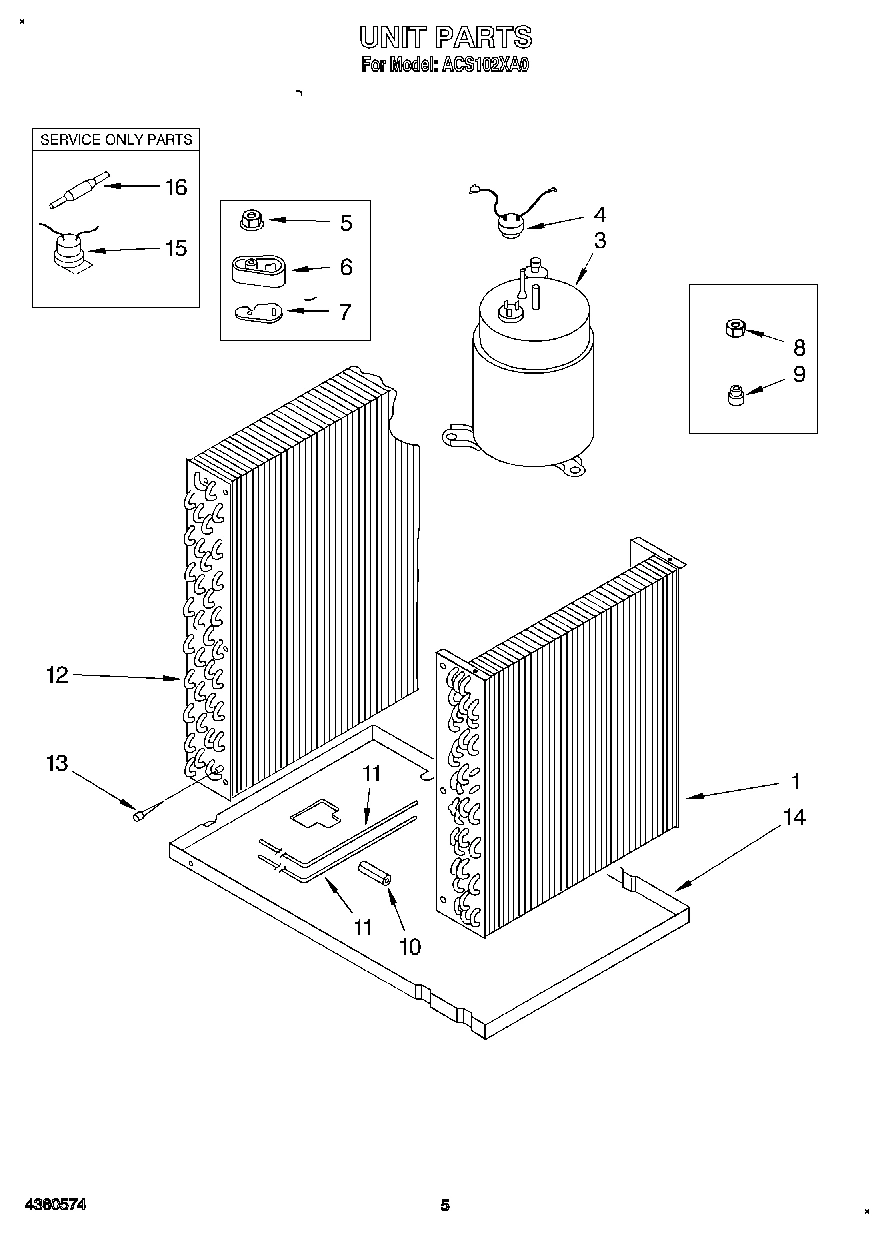

03 - SECTION

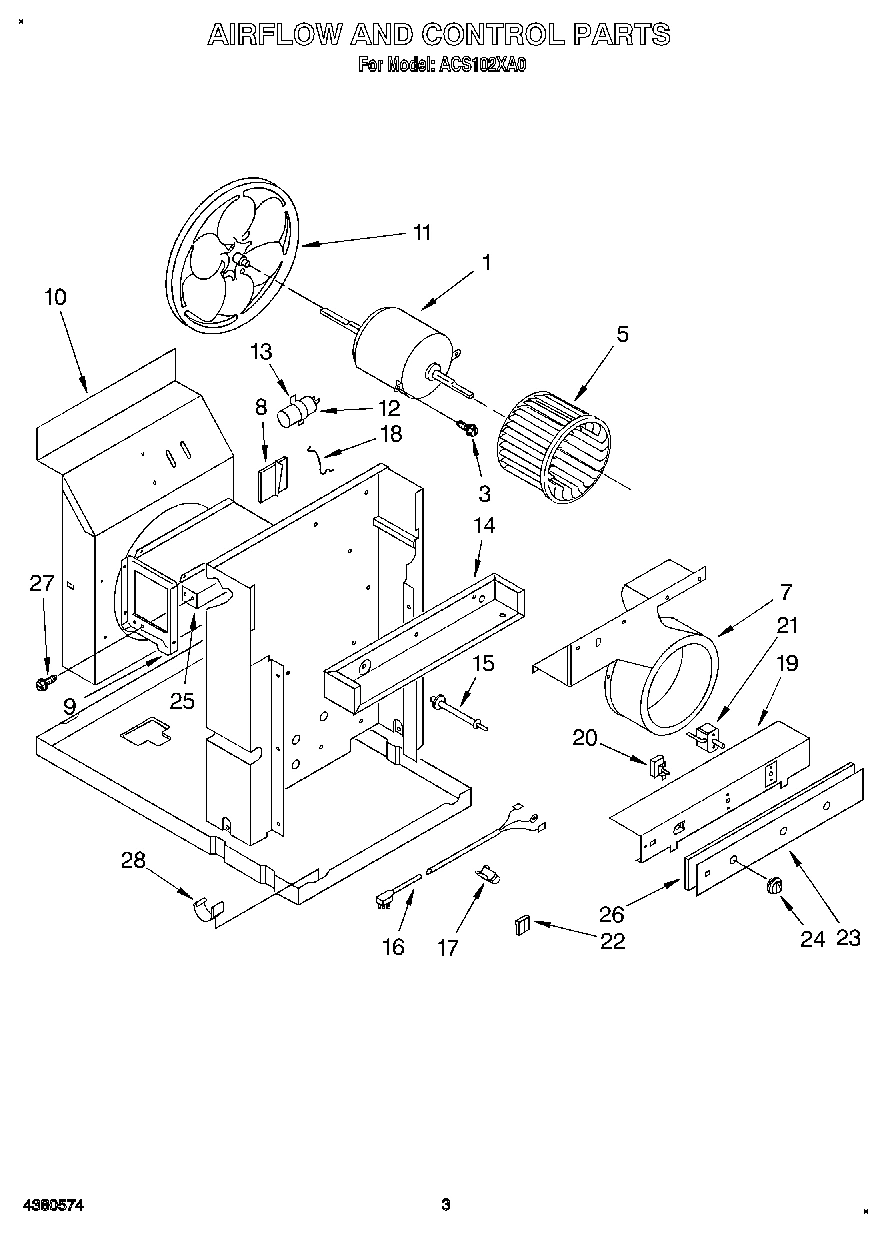

02 - SECTION
Common parts from model Whirlpool ACS102XA0 AIR CONDITIONER
Owners Manual & Installation Instructions WPL LIT1164145 Contact Us For Availability
Repair Parts List WPL LIT4380574 Contact Us For Availability
Tech Sheet & Wiring Diagram WPL LIT4380575 Contact Us For Availability
1
Evaporator WPL 4380518 Contact Us For Availability
1
Motor, Fan WPL 4380500 Contact Us For Availability
3
Screw WPL 4380545 Contact Us For Availability
3
Compressor WPL 4380509 Contact Us For Availability
4
Seal WPL 4380570 Contact Us For Availability
4
Overload Front Mtg (2) WPL 4380512 Contact Us For Availability
5
Seal WPL 4380543 Contact Us For Availability
5
Nut, Cover WPL 4380515 Contact Us For Availability
5
Blower Wheel WPL 4380519 Contact Us For Availability
6
Panel-Window WPL 4380541 Contact Us For Availability
6
Cover, Terminal WPL 4380514 Contact Us For Availability
7
Frame-Extension WPL 4380539 Contact Us For Availability
7
Gasket-Terminal WPL 4380513 Contact Us For Availability
7
Housing, Blower WPL 4380520 Contact Us For Availability
8
Retainer-Window Pnl WPL 4380538 Contact Us For Availability
8
Nut-Compressor WPL 4380510 Contact Us For Availability
8
Door-Exhaust WPL 4380502 Contact Us For Availability
9
Seal-Side WPL 4380540 Contact Us For Availability
9
Grommet WPL 4380511 Contact Us For Availability
9
Bracket-Comptr Mtg WPL 4380506 Contact Us For Availability
10
Tube-Rubber WPL 4380516 Contact Us For Availability
10
Shroud-Condenser WPL 4380523 Contact Us For Availability
11
Bracket, Window Stop WPL 4380547 Contact Us For Availability
11
Capillary Tube (Cut to 40``) WPL 4380517 Contact Us For Availability
11
Fan-Slinger Ring WPL 4380524 Contact Us For Availability
12
Louver-Vertical Direct (2) WPL 4380561 Contact Us For Availability
12
Condenser WPL 4380521 Contact Us For Availability
12
Capacitor WPL 4380533 Contact Us For Availability
13
Louver, Vertical (4) WPL 4380560 Contact Us For Availability
13
Strainer WPL 4380522 Contact Us For Availability
13
Strap, Capacitor WPL 4380532 Contact Us For Availability
14
Link, Vertical Louver WPL 4380559 Contact Us For Availability
14
Base WPL 4380505 Contact Us For Availability
14
Box, Control WPL 4380531 Contact Us For Availability
15
Link, Horizontal Louver WPL 4380558 Contact Us For Availability
15
Kit-Starter WPL 4380567 Contact Us For Availability
15
Control-Exhaust Dr WPL 4380503 Contact Us For Availability
16
Louver-Horiz.Defl.(4) WPL 4380557 Contact Us For Availability
16
Drier WPL 4380573 Contact Us For Availability
16
Cord-Service WPL 4380529 Contact Us For Availability
17
Front W/Louvers WPL 4380556 Contact Us For Availability
17
Clamp-Cable WPL 4380530 Contact Us For Availability
18
Wire-Exhaust Dr. WPL 4380504 Contact Us For Availability
19
Panel, Front WPL 4380564 Contact Us For Availability
19
Panel, Control WPL 4380525 Contact Us For Availability
20
Filter-Air WPL 4380563 Contact Us For Availability
20
Switch-Rotary WPL 4380526 Contact Us For Availability
21
Screw-Mtg Plate WPL 4380551 Contact Us For Availability
21
Control-Temperature WPL 4380527 Contact Us For Availability
22
Plate-Mtg. WPL 4380554 Contact Us For Availability
22
Clip-Bulb Spacer WPL 4380528 Contact Us For Availability
23
Seal WPL 4380542 Contact Us For Availability
23
Escutcheon WPL 4380568 Contact Us For Availability
24
Bracket-Support WPL 4380553 Contact Us For Availability
24
Knob, Control WPL 4380555 Contact Us For Availability
25
Screw WPL 4380546 Contact Us For Availability
25
Baffle WPL 4380508 Contact Us For Availability
26
Nut-Bracket WPL 4380544 Contact Us For Availability
26
Spacer-Escutcheon WPL 4380569 Contact Us For Availability
27
Screw-Cabinet WPL 4380536 Contact Us For Availability
28
Cabinet WPL 4380534 Contact Us For Availability
28
Clip-Front Mounting WPL 4380566 Contact Us For Availability
29
Screw WPL 4380549 Contact Us For Availability
30
Screw WPL 4380550 Contact Us For Availability
31
Bracket-Safety WPL 4380548 Contact Us For Availability
32
Screw WPL 4380552 Contact Us For Availability
33
Label WPL 4380565 Contact Us For Availability
34
Grille-Rear WPL 4380535 Contact Us For Availability
35
Nameplate, Rear Grille WPL 4380537 Contact Us For Availability
× ![]()
