Model Whirlpool ACQ304XR3 AIR CONDITIONER – Common Parts & Diagrams

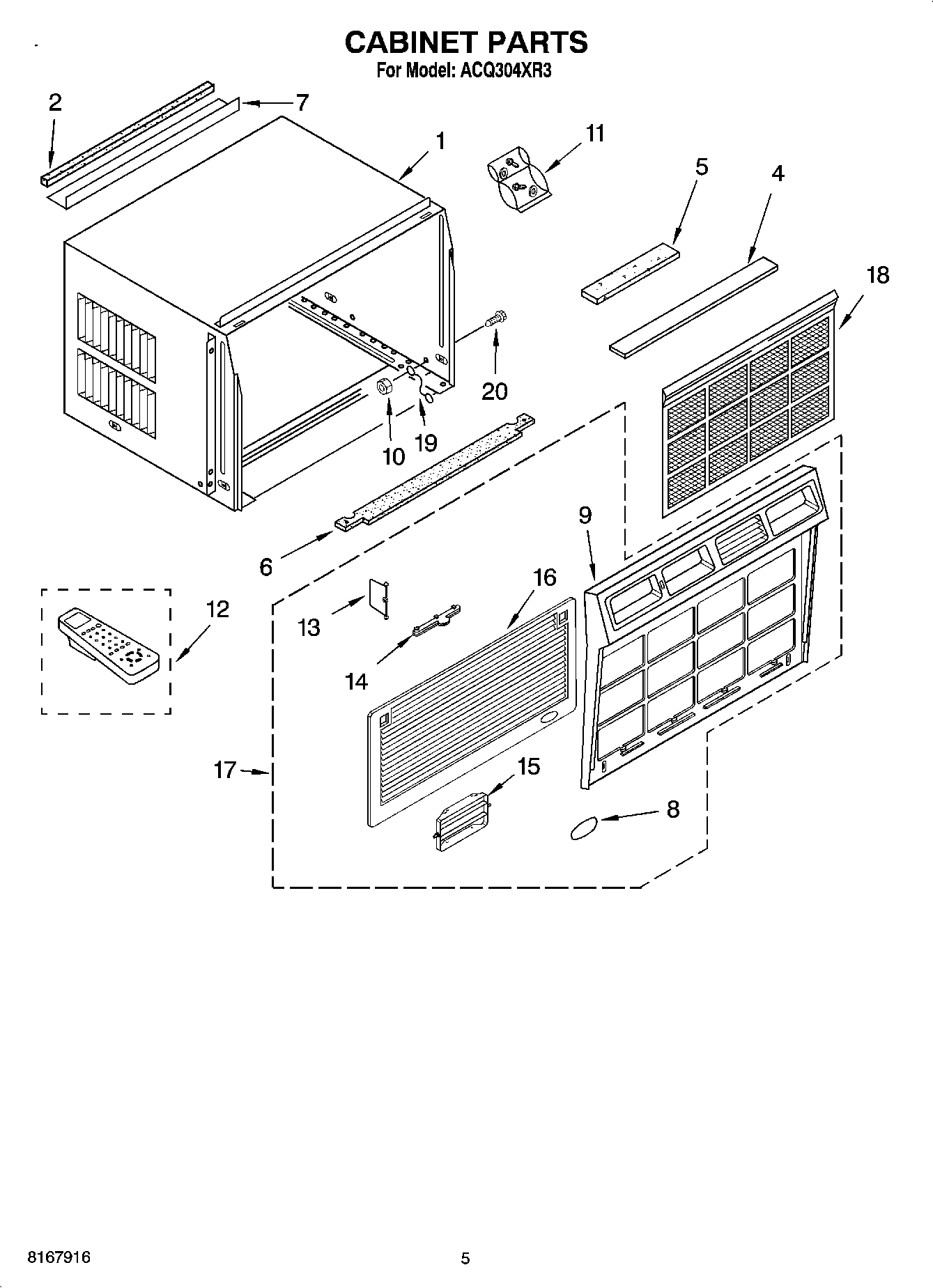

03 - CABINET PARTS

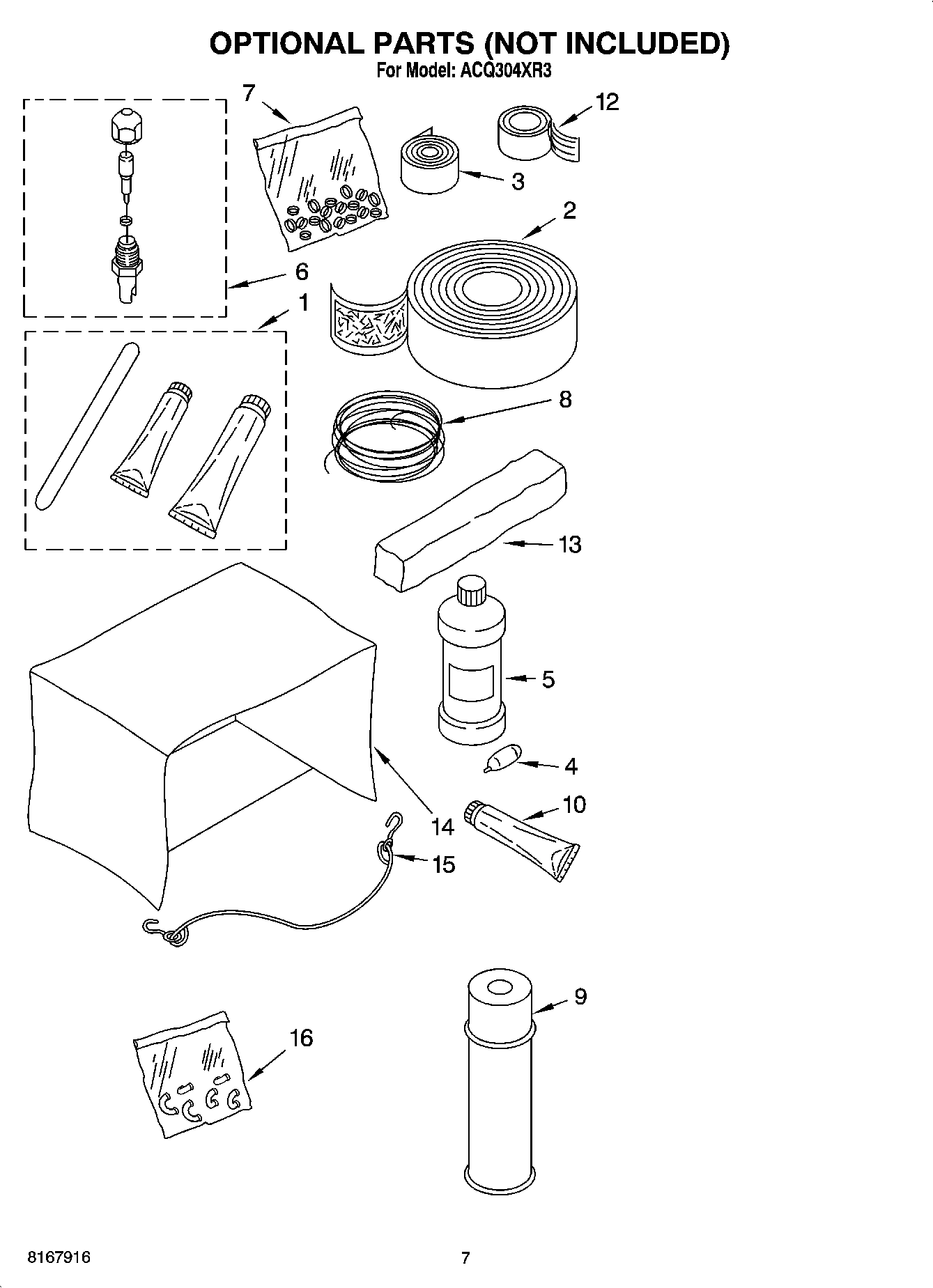

05 - OPTIONAL PARTS (NOT INCLUDED)

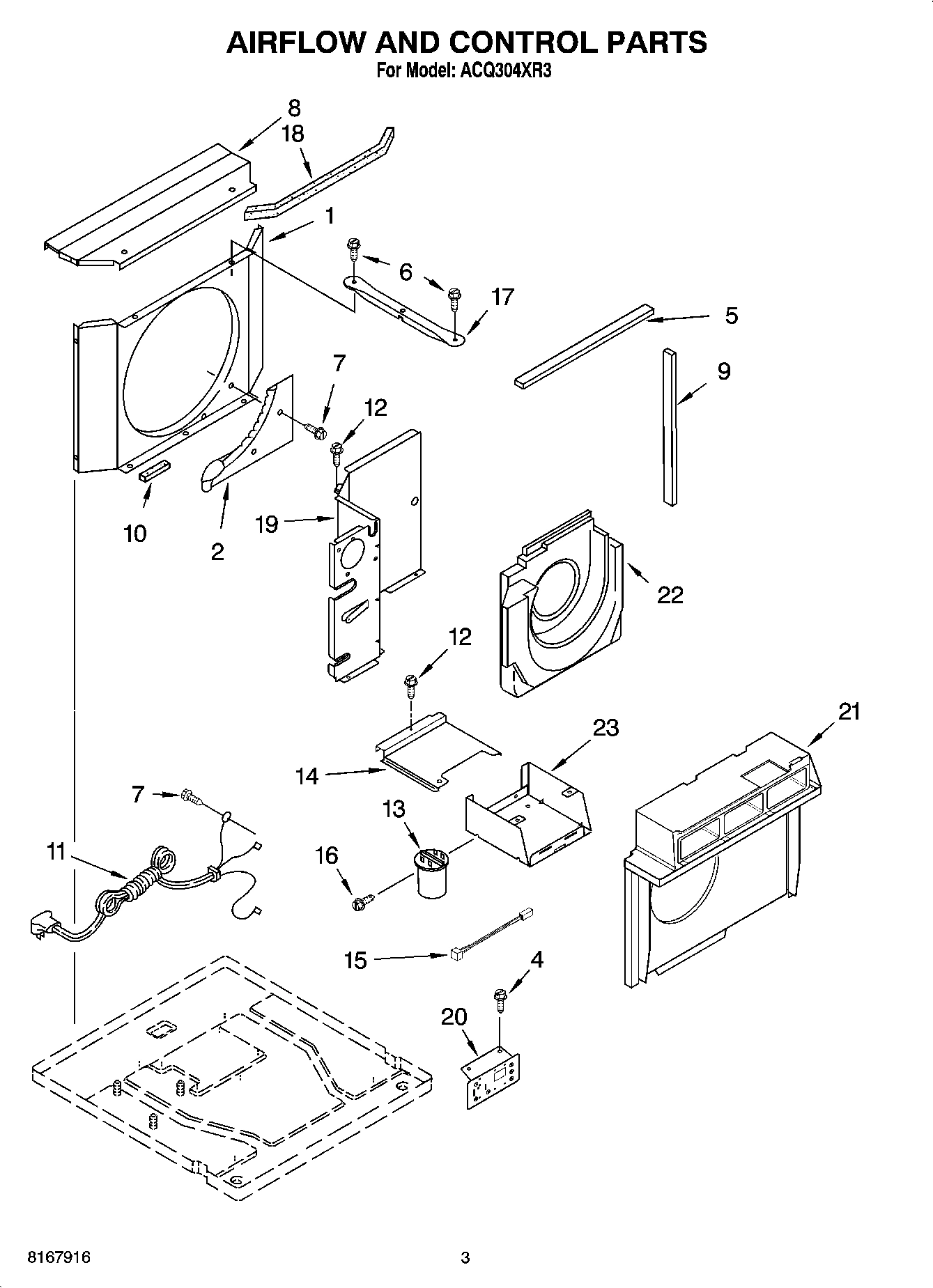

02 - AIRFLOW AND CONTROL PARTS

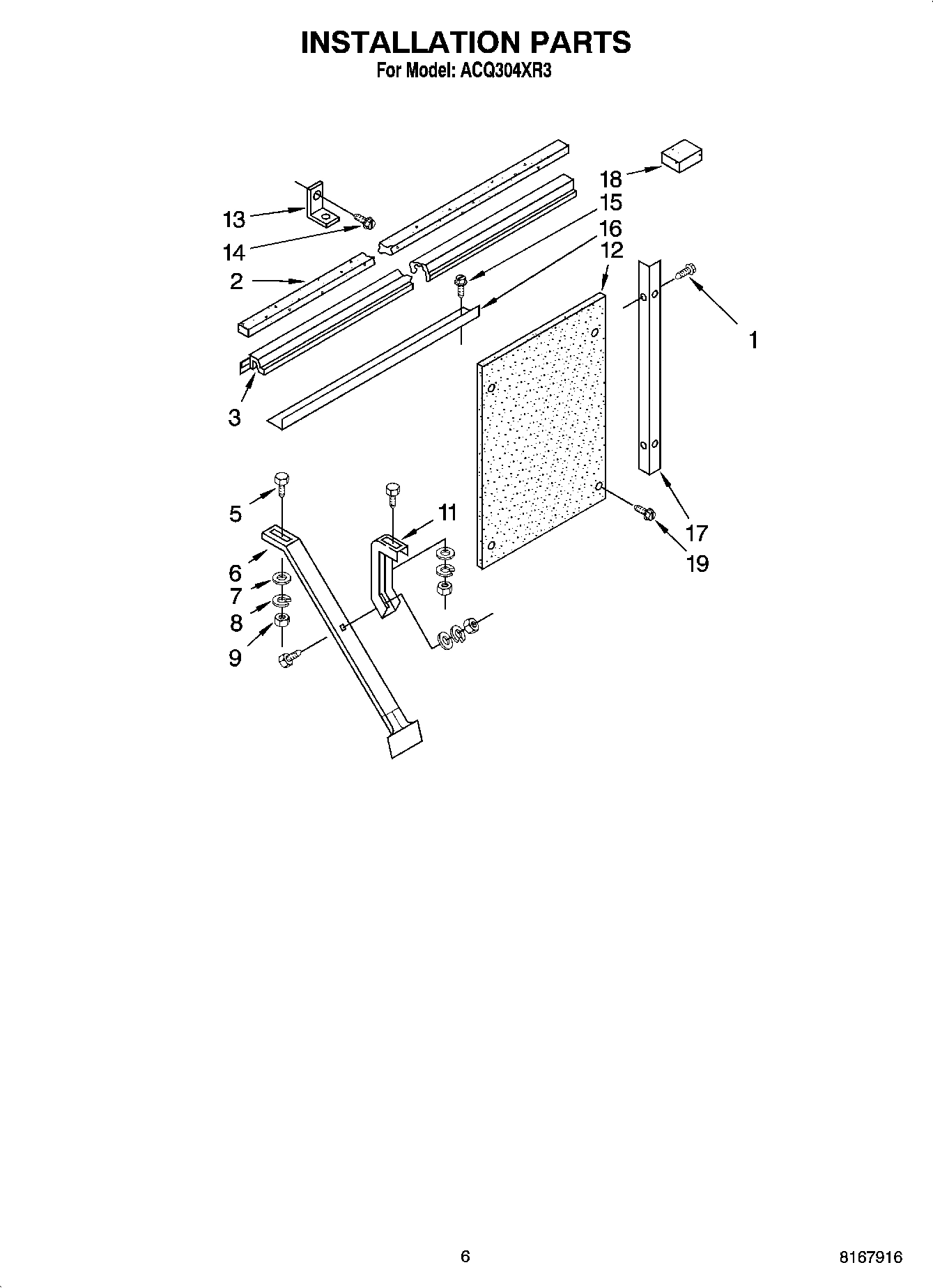

04 - INSTALLATION PARTS

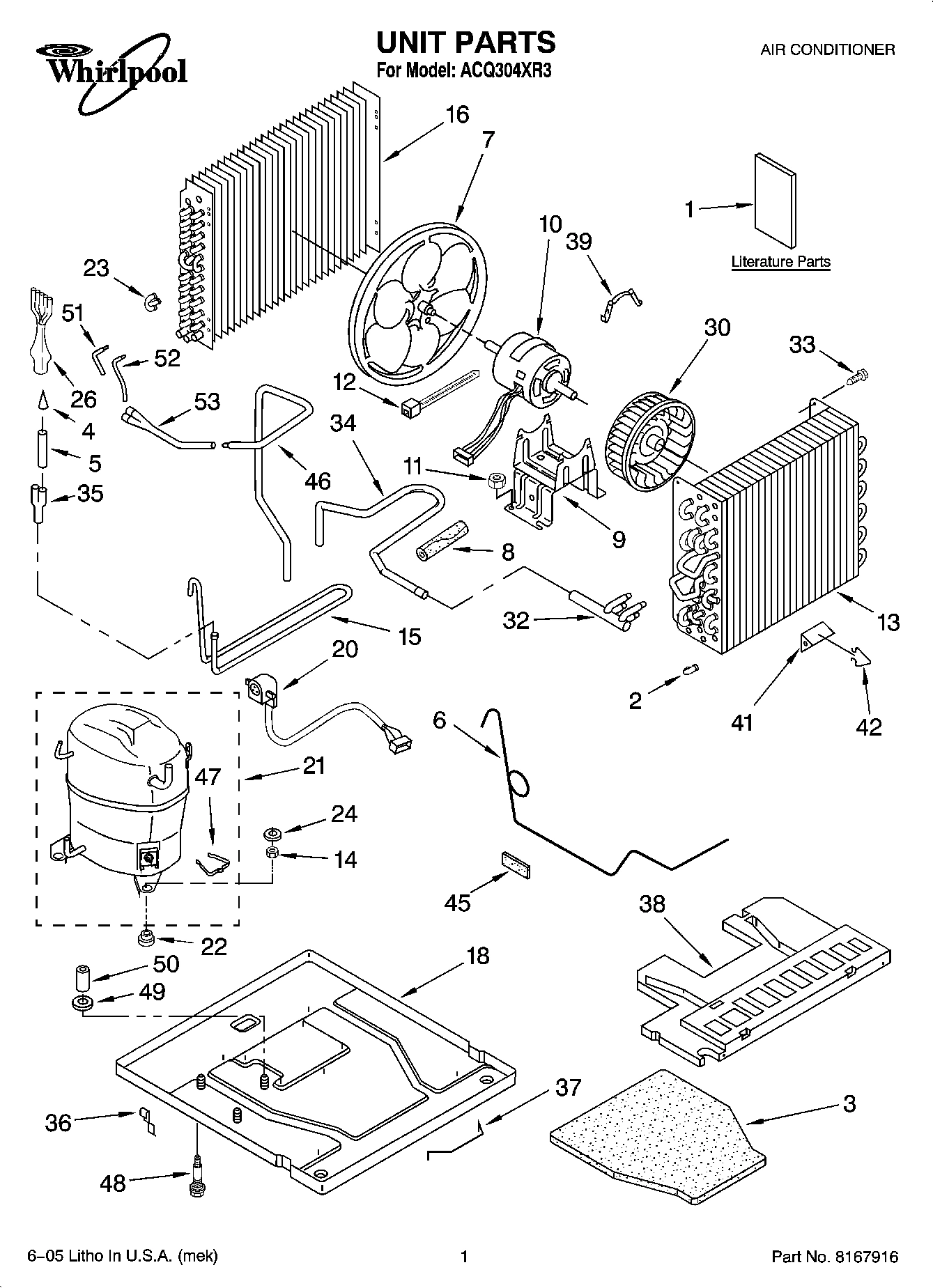

01 - UNIT PARTS
Common parts from model Whirlpool ACQ304XR3 AIR CONDITIONER
1
Shroud, Condenser WPL 1157403 Contact Us For Availability
1
Screw (4) WPL 1159222 Contact Us For Availability
1
Energy Guide WPL 1188111 Contact Us For Availability
1
Wiring Diagram WPL 1188126 Contact Us For Availability
1
Use & Care Guide WPL 1188127 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Cup, Condensate WPL 1160684 Contact Us For Availability
2
Seal, Meeting Rail WPL 469877 Contact Us For Availability
2
Bend, Return WPL 855199 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Gasket, Sash WPL 1166388 Contact Us For Availability
3
Insulation, Base (Bottom) WPL 1167085 Contact Us For Availability
4
Strainer, Tube WPL 49599 Contact Us For Availability
5
Seal (Top) WPL 1185513 Contact Us For Availability
5
Bolt, 1/4 x 3/4 (6) WPL 488750 Contact Us For Availability
5
Tube, Outlet (Includes Illus. 4) WPL 1163768 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Support, Cabinet (2) WPL 1185549 Contact Us For Availability
6
Tube, Restrictor (4) WPL 1186077 Contact Us For Availability
7
BulK Seal, Ring Access Valve (20-Pack) WPL 978865 Contact Us For Availability
7
Blade, Fan (Condenser) WPL 1158665 Contact Us For Availability
8
Lockwasher (6) WPL 486009 No Longer Available
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
8
Top, Condenser WPL 1157407 Contact Us For Availability
8
Seal, Suction Tube WPL 1186425 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
9
Seal (Side) WPL 1185911 Contact Us For Availability
9
Nut, Hex (6) WPL 486035 Contact Us For Availability
9
Bracket, Fan Motor WPL 1160672 Contact Us For Availability
10
Motor, Fan WPL 1188487 Contact Us For Availability
10
Seal, Cup WPL 1163332 Contact Us For Availability
11
Cord, Appliance WPL 1187856 Contact Us For Availability
11
Support, Retainer (2) WPL 1168474 Contact Us For Availability
12
Screw, 8-15 x .375 WPL 488624 Contact Us For Availability
12
Board, Filler WPL 1168473 Contact Us For Availability
13
Capacitor WPL 1186507 Contact Us For Availability
13
Bracket WPL 644228 Contact Us For Availability
13
EVAPORATOR WPL 1185744 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
14
Cover, Control Box WPL 1186664 Contact Us For Availability
14
Screw (Window Lock Bracket) WPL 487371 Contact Us For Availability
15
Cartridge WPL 1185540 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
15
Thermistor WPL 1188387 Contact Us For Availability
15
Wet, Loop WPL 1185519 Contact Us For Availability
16
Return Bend ReplacementKit (5/16 Inch Tube) WPL 4388784 Contact Us For Availability
16
Return Bend ReplacementKit (3/8 Inch Tube) WPL 4388785 Contact Us For Availability
16
Angle (Top) WPL 1168490 Contact Us For Availability
16
CONDENSER WPL 1185738 Contact Us For Availability
17
Support, Unit (2) WPL 1166169 Contact Us For Availability
17
Angle (2) WPL 1168472 Contact Us For Availability
18
Filter WPL 1185523 Contact Us For Availability
18
Seal, Shroud WPL 1158732 Contact Us For Availability
18
Spacer, Block (4) WPL 995274 Contact Us For Availability
18
Base WPL 1185846 Contact Us For Availability
19
Dividing Wall WPL 1185505 Contact Us For Availability
19
Screw (Side Angle To Filler Board) WPL 1166265 Contact Us For Availability
20
Control, Electronic WPL 1187928 Contact Us For Availability
20
Harness, Wiring Compressor WPL 1186572 Contact Us For Availability
21
Shroud Assembly, Evaporator WPL 1187338 Contact Us For Availability
21
Compressor WPL 1184620 Contact Us For Availability
22
Housing, Air WPL 1187340 Contact Us For Availability
22
Grommet (3) WPL 1165973 Contact Us For Availability
23
Control Box WPL 1187820 Contact Us For Availability
23
Return Bend 3-Way WPL 1158685 Contact Us For Availability
26
Distributor (Bottom) WPL 1185986 Contact Us For Availability
30
Wheel, Blower (Evaporator) WPL 1185543 Contact Us For Availability
32
Manifold, Suction WPL 1186089 Contact Us For Availability
34
Tube, Suction WPL 1186426 Contact Us For Availability
35
Tube, Flow Divider WPL 947364 Contact Us For Availability
36
Clamp (2) WPL 471088 Contact Us For Availability
37
Handle, Base WPL 647971 Contact Us For Availability
38
Pan, Drain WPL 1185843 Contact Us For Availability
41
Anticipator WPL 1185173 Contact Us For Availability
42
Clip, Anticipator WPL 475577 Contact Us For Availability
45
Seal, Restrictor Tube WPL 1163759 Contact Us For Availability
46
Tube, Discharge WPL 1164476 Contact Us For Availability
47
Retainer, Cover WPL 1161083 Contact Us For Availability
48
Bolt, Compressor WPL 1165674 Contact Us For Availability
49
Spacer, Grommet WPL 1160654 Contact Us For Availability
50
Sleeve, Mounting WPL 1160655 Contact Us For Availability
51
Tube, Feeder WPL 1186185 Contact Us For Availability
52
Tube, Feeder WPL 1186184 Contact Us For Availability
53
Tube, Discharge Top Assembly (Includes 51 & 5 WPL 1186090 Contact Us For Availability
53
REFRIGERANT CHARGE 56.00 oz. WPL ARI144146A Contact Us For Availability
× ![]()
