Model Whirlpool ACQ124XH0 AIR CONDITIONER – Common Parts & Diagrams

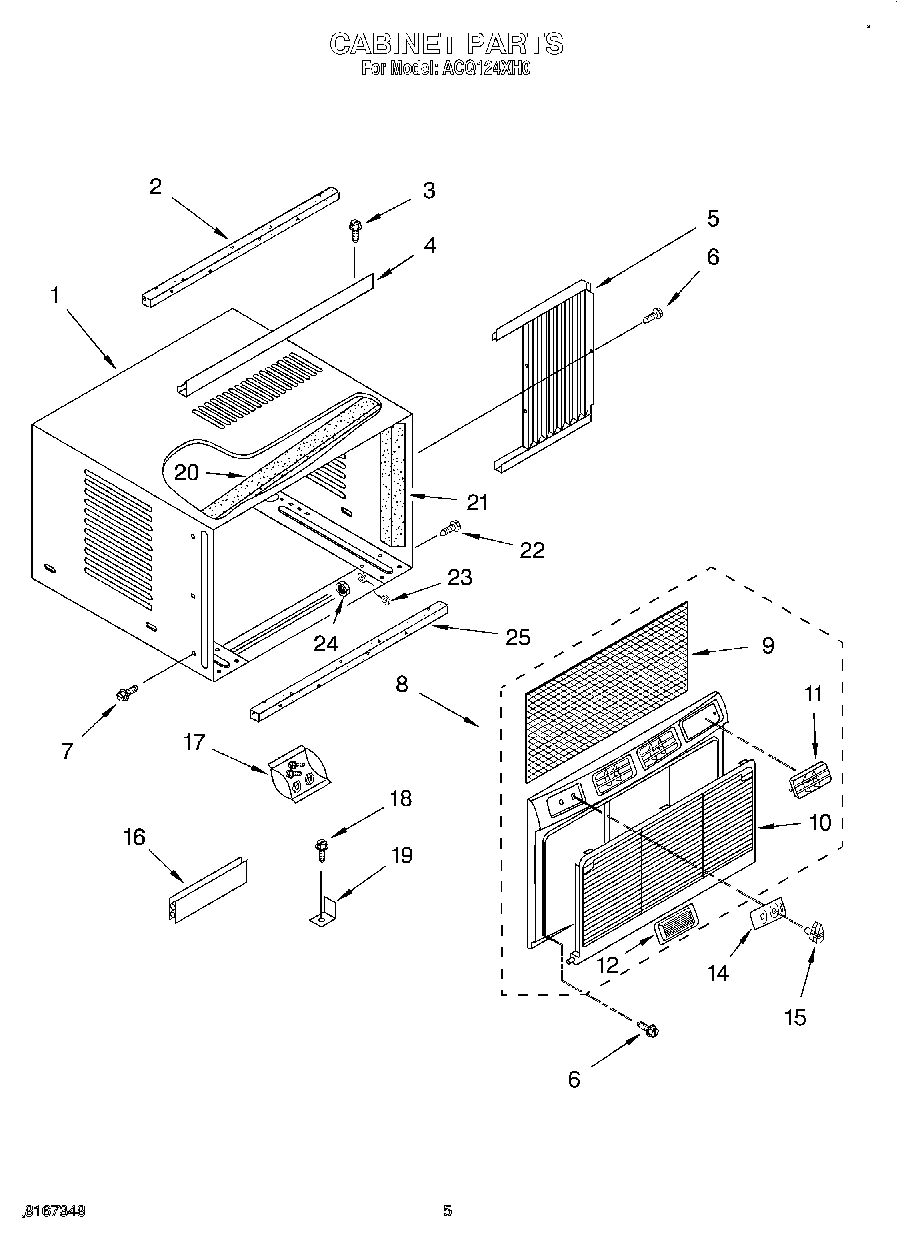

03 - CABINET

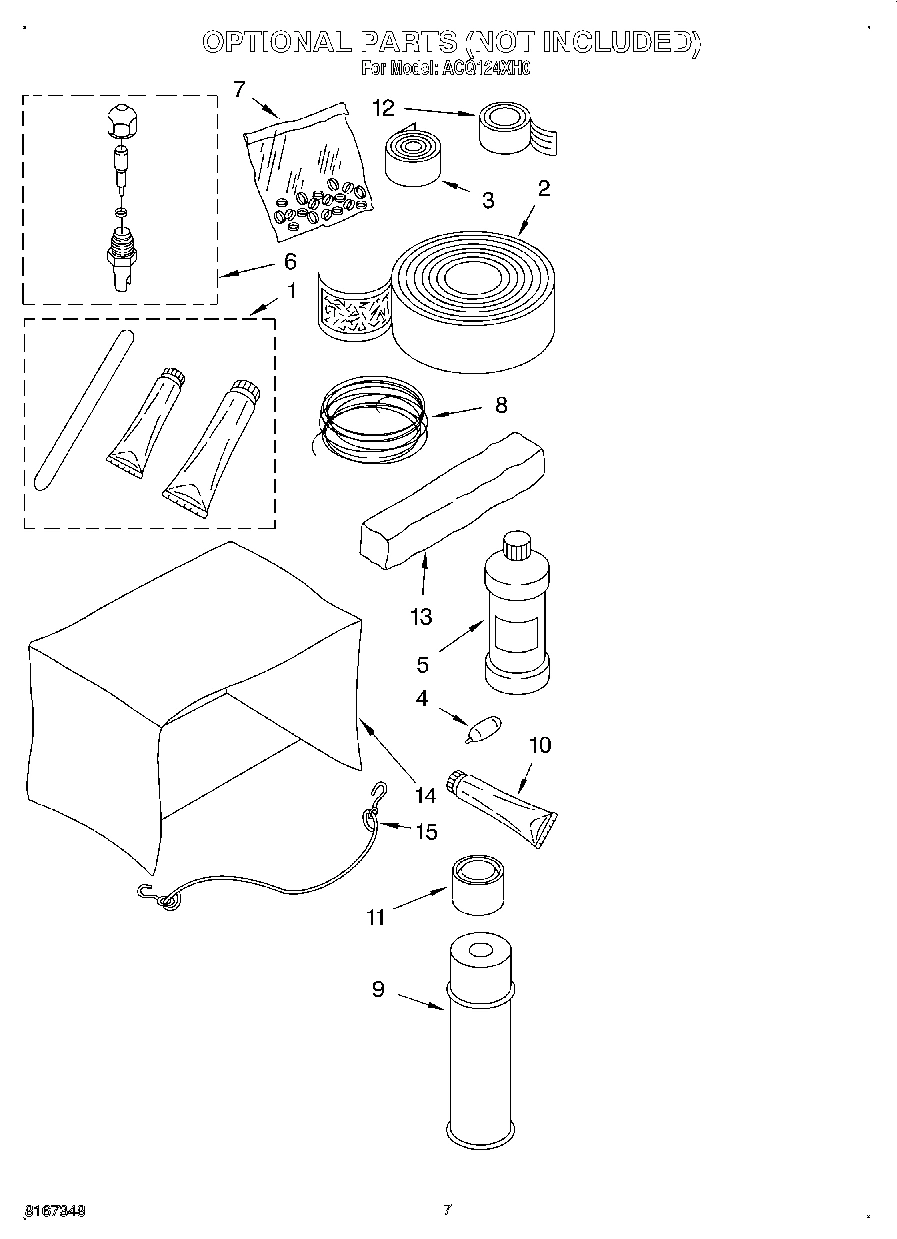

04 - OPTIONAL

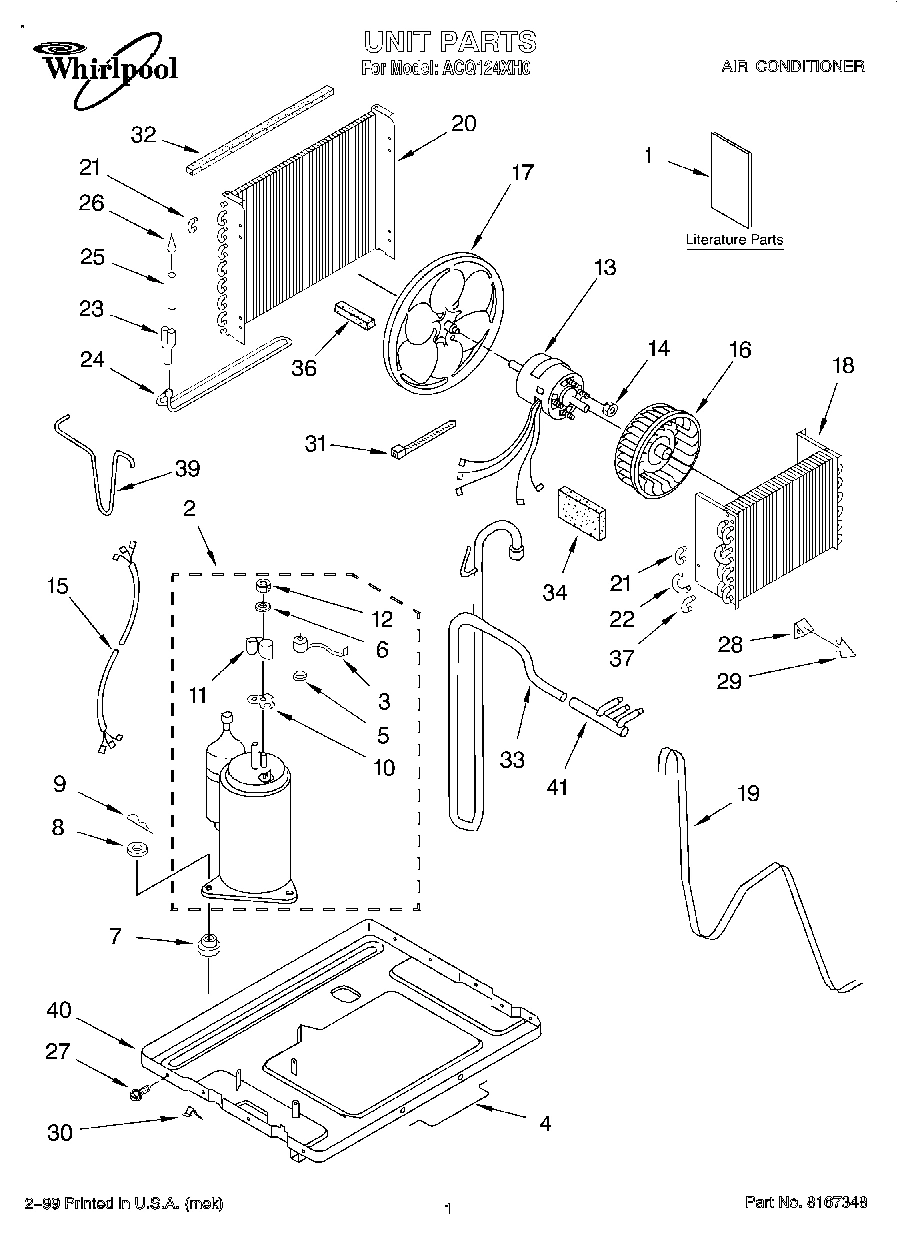

01 - UNIT, LITERATURE

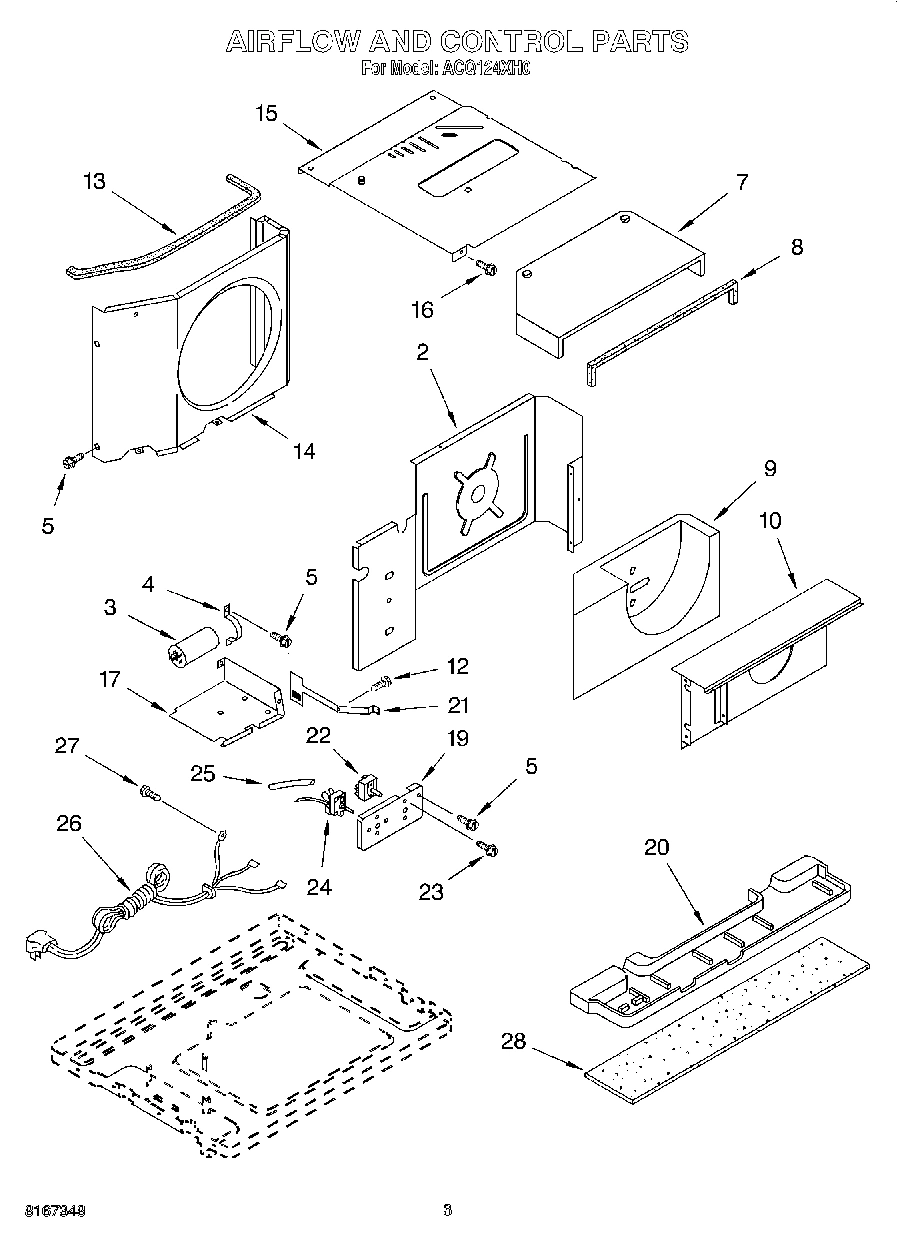

02 - AIR FLOW AND CONTROL
Common parts from model Whirlpool ACQ124XH0 AIR CONDITIONER
1
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
1
Use & Care Guide WPL LIT1182584 Contact Us For Availability
1
LITERATURE PARTS (Wiring Diagram) WPL LIT8031275 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Compressor WPL 8031477 Contact Us For Availability
2
Wall, Dividing WPL 8031104 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Overload WPL 1156409 Contact Us For Availability
3
Capacitor, Running WPL 1162592 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
4
Handle, Base WPL 8031320 Contact Us For Availability
4
Bracket, Running Capacitor WPL 1167611 Contact Us For Availability
5
Oil, Turbine 8 Fl. Oz. WPL 99243 Contact Us For Availability
5
Spring, Overload WPL 950032 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
6
Gasket, Nut WPL 950037 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
7
Grommet WPL 950212 Contact Us For Availability
7
Hood, Air Housing WPL 8031570 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
8
Washer, Nylon WPL 8011418 Contact Us For Availability
9
Filter WPL 8031292 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
9
Clip, Compressor WPL 8011398 Contact Us For Availability
9
Housing, Air WPL 8031587 Contact Us For Availability
10
Shroud, Evaporator WPL 8031479 Contact Us For Availability
11
Louver Assembly WPL 8031202 Contact Us For Availability
11
Paint, Touch-up Starlight Gray 1/2 Pint (Lacq WPL 485426 Contact Us For Availability
12
Screw, 8-18 x .437 WPL 8031309 Contact Us For Availability
13
Motor, Fan WPL 8031489 Contact Us For Availability
13
Seal, Condenser Shroud WPL 8031312 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
14
Shroud, Condenser WPL 8031110 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
15
Wiring Harness, Compressor WPL 8031579 Contact Us For Availability
15
Cover, Unit WPL 8031112 Contact Us For Availability
16
Wheel, Blower WPL 1158443 Contact Us For Availability
16
Screw, 8-15 x .375 WPL 488624 Contact Us For Availability
17
Blade, Fan WPL 1156979 Contact Us For Availability
17
Box, Control WPL 8031200 Contact Us For Availability
18
Evaporator WPL 8031236 Contact Us For Availability
19
Tube, Restrictor WPL 8031487 Contact Us For Availability
19
Panel, Control WPL 8031311 Contact Us For Availability
20
Condenser WPL 8031226 Contact Us For Availability
20
Pan, Drain WPL 8031111 Contact Us For Availability
21
Bend, Return Evaporator (5) Condenser (1) WPL 8031222 Contact Us For Availability
21
Door, Exhaust WPL 8011139 Contact Us For Availability
22
Switch, Rotary WPL 8031151 Contact Us For Availability
22
Bend, Return (5) WPL 8031224 Contact Us For Availability
23
Tube, Flow Divider WPL 947364 Contact Us For Availability
23
Screw, Machine 6-32 x .175 (4) WPL 488734 Contact Us For Availability
24
Thermostat WPL 8031115 Contact Us For Availability
24
Tube, Wet Loop WPL 8031238 Contact Us For Availability
25
Seal, Cabinet Bottom WPL 8031518 Contact Us For Availability
25
Tube, Outlet (Includes No. 26) WPL 1155460 Contact Us For Availability
25
Sleeve, Insulating WPL 8011238 Contact Us For Availability
26
Strainer, Tube WPL 49599 Contact Us For Availability
26
Cable, Appliance WPL 8031424 Contact Us For Availability
27
Screw 8-18 x .295 WPL 1159222 Contact Us For Availability
28
Anticipator, Temperature WPL 996773 Contact Us For Availability
28
Insulation, Drain Pan WPL 8031480 Contact Us For Availability
29
Clip, Temperature Anticipator WPL 475577 Contact Us For Availability
30
Clamp, Tube WPL 471088 Contact Us For Availability
33
Tube, Suction WPL 8031265 Contact Us For Availability
34
Insulation, Suction Tube WPL 1165440 Contact Us For Availability
37
Bend, Return Evaporator (5) Condenser (15) WPL 8031223 Contact Us For Availability
39
Tube, Discharge WPL 8031264 Contact Us For Availability
40
Base WPL 8031392 Contact Us For Availability
41
Tube, Manifold WPL 8031259 Contact Us For Availability
× ![]()
