Model LG ACO1560AW – Common Parts & Diagrams
Diagram 0

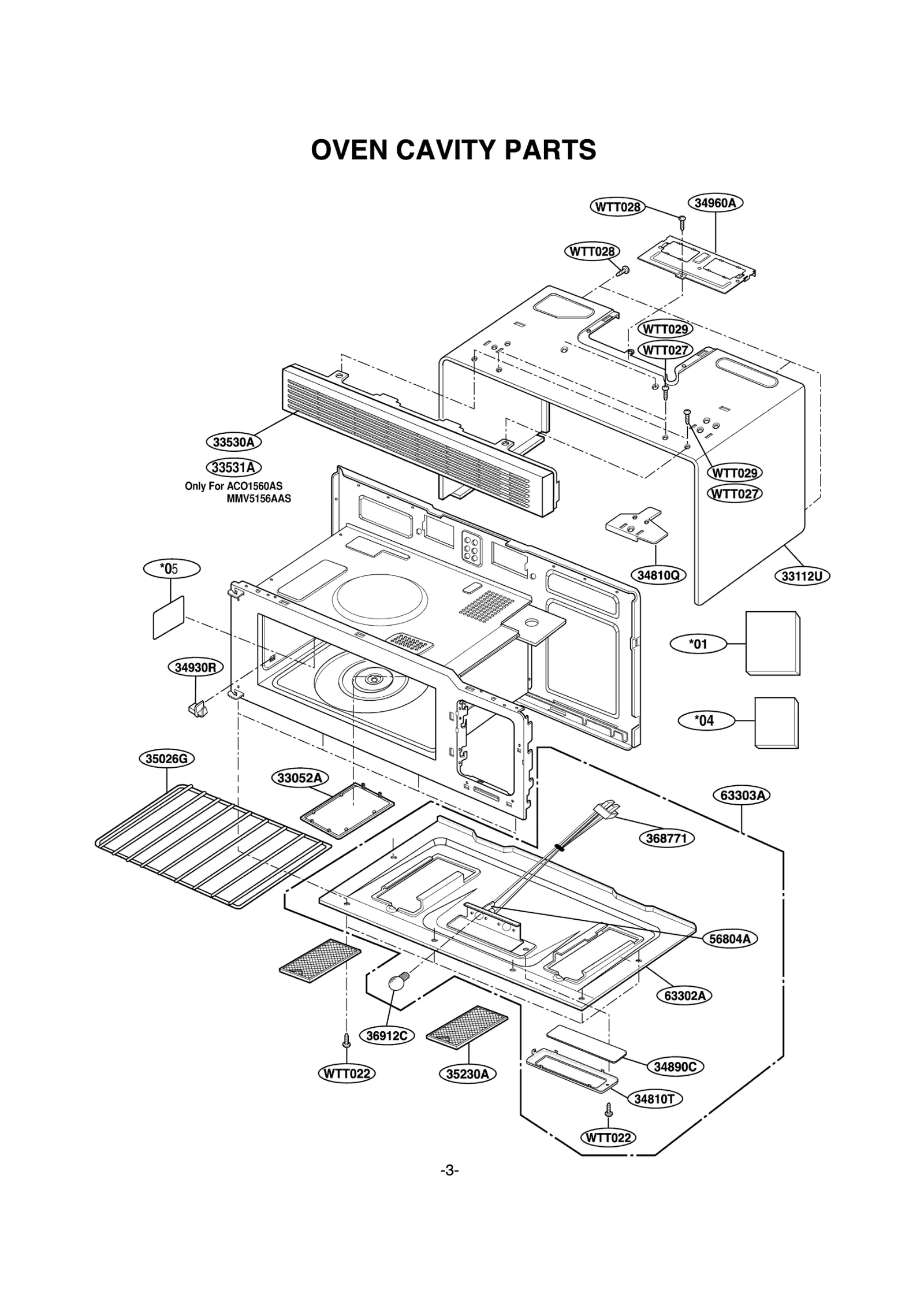

Diagram 1

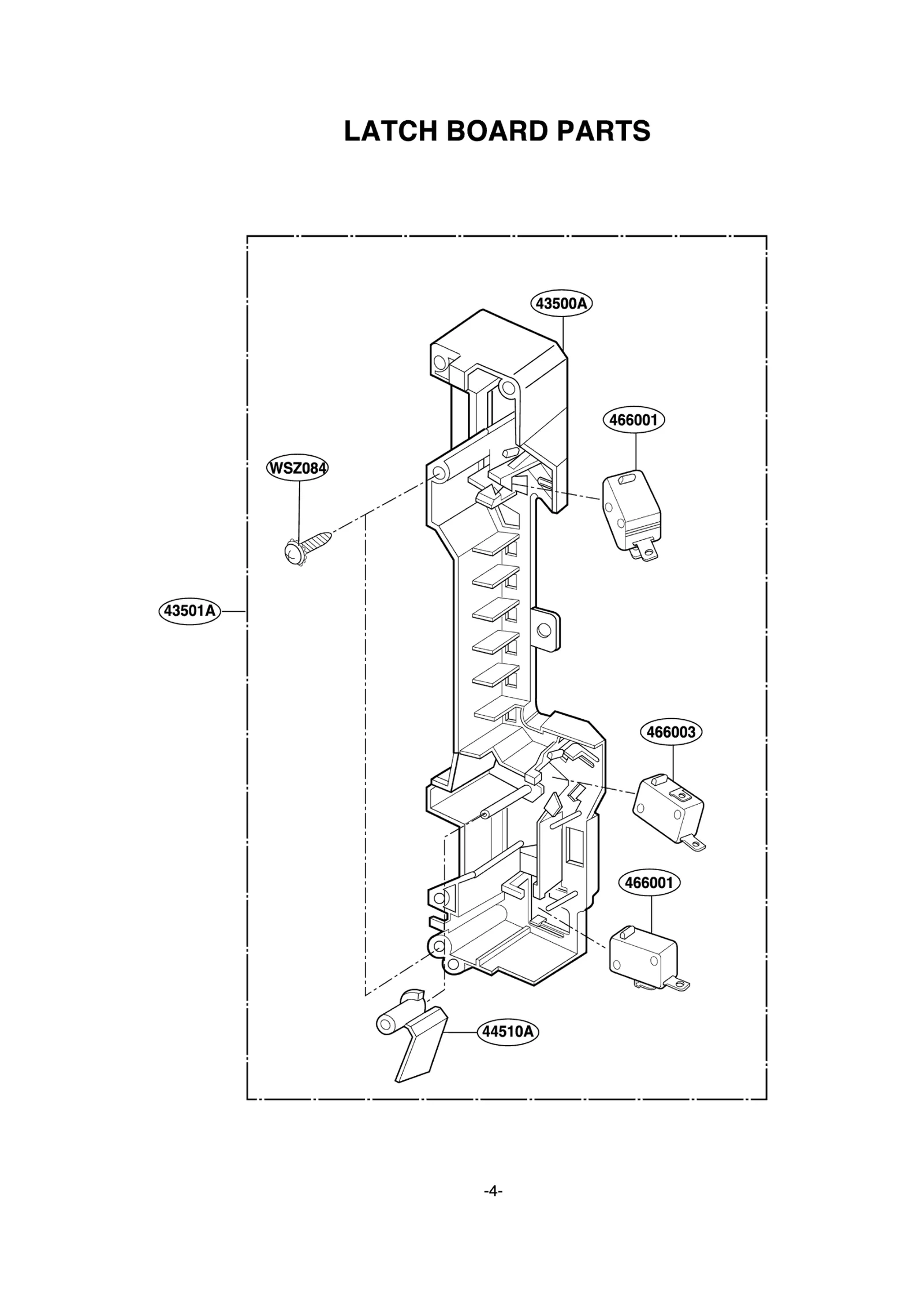

Diagram 2

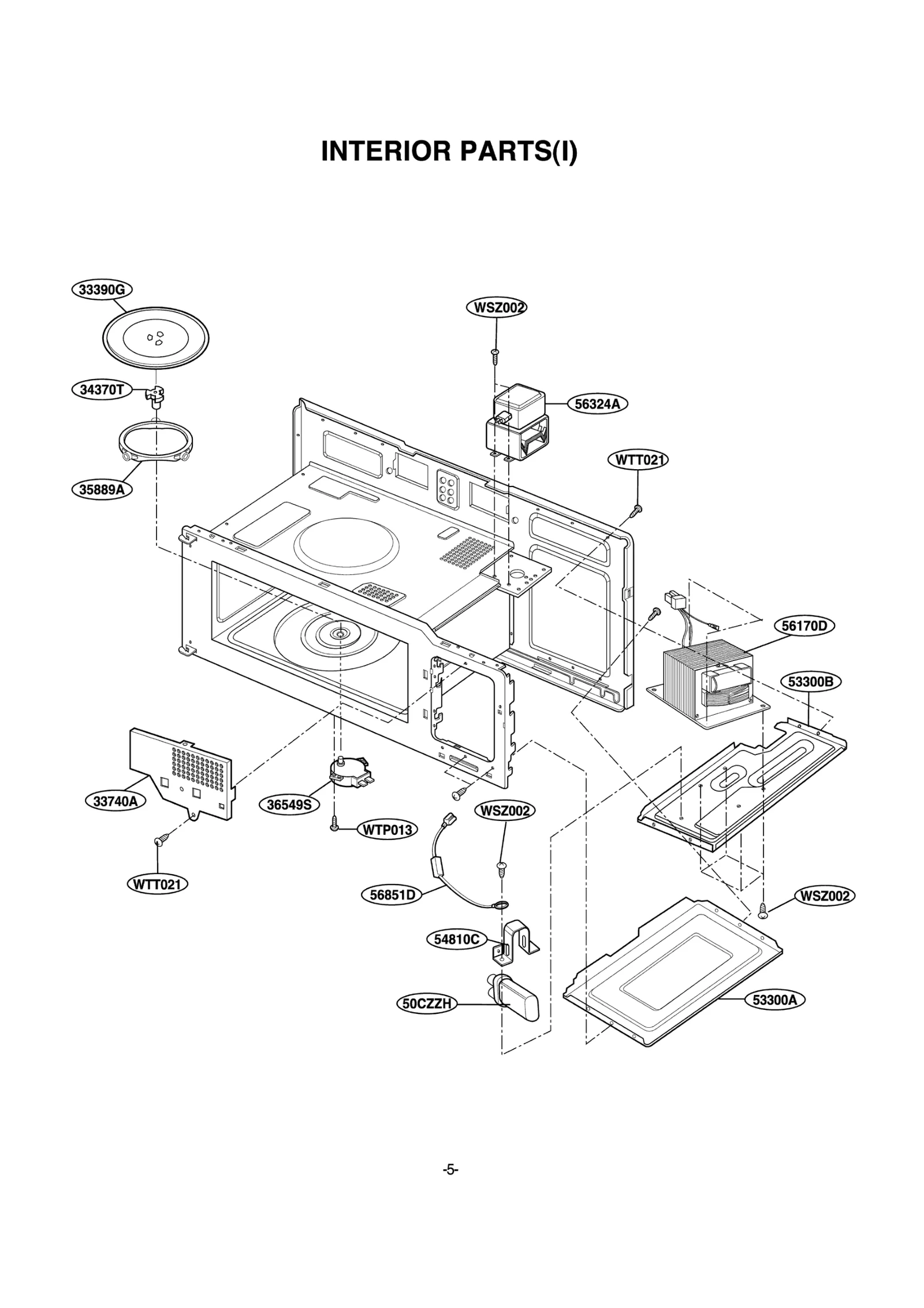

Diagram 3

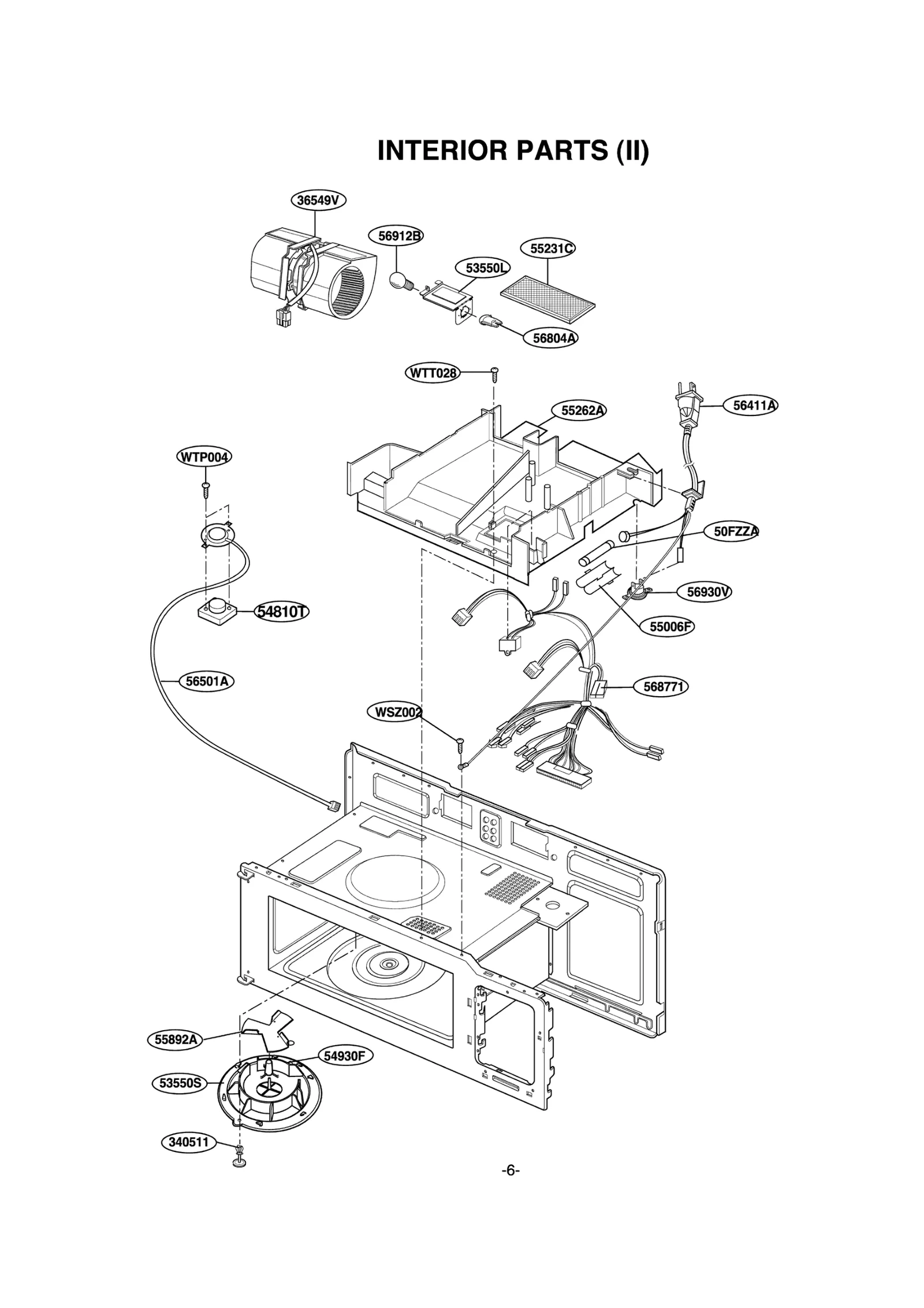

Diagram 4

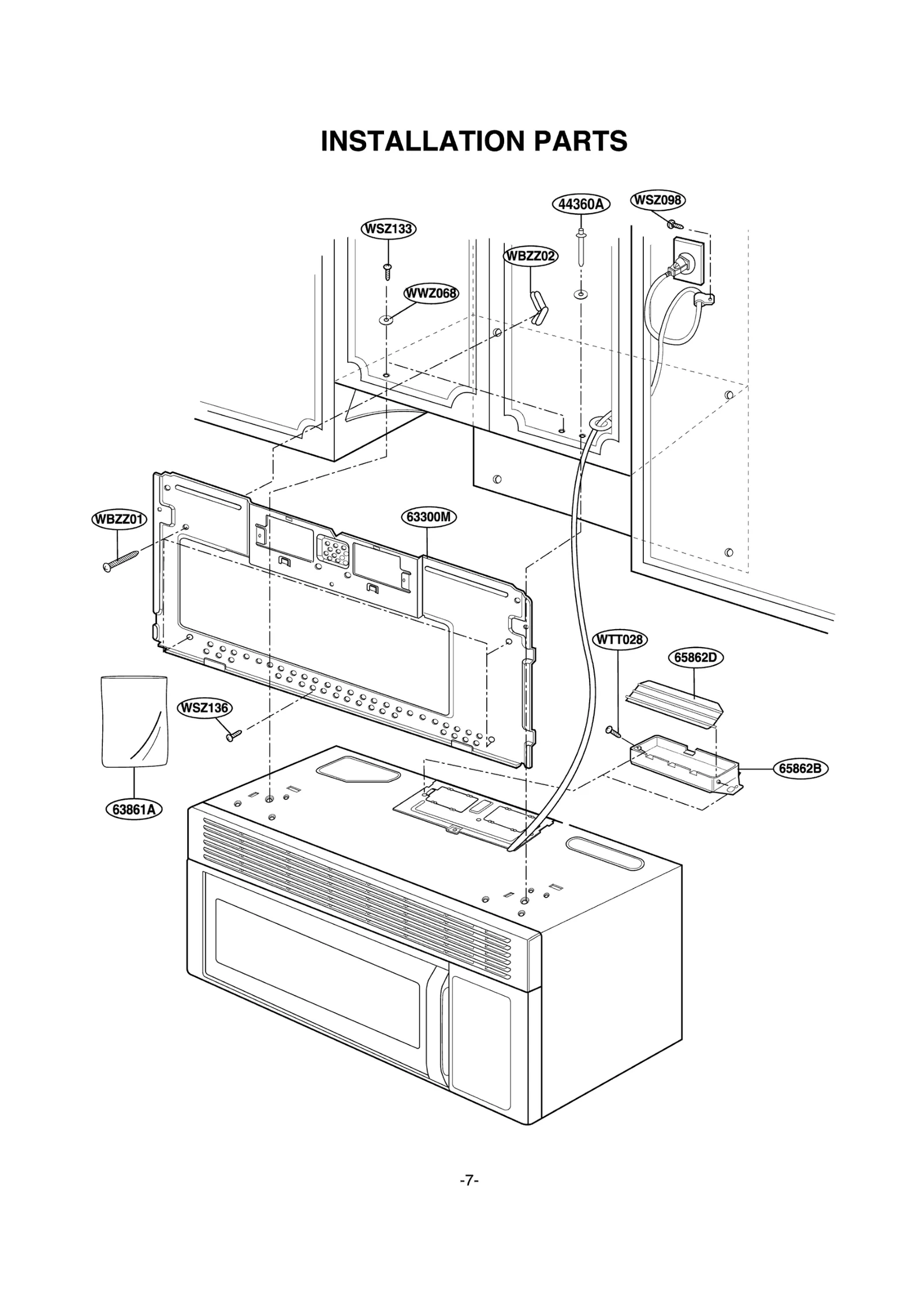

Diagram 5
Common parts from model LG ACO1560AW
1000
DOOR FRAME ASSY,ALL LGE 3213W1A035D Contact Us For Availability
1002
SEAL TAPE LGE 3536WRA001R Contact Us For Availability
1003
PANEL,DOOR LGE 3720W0D233A Contact Us For Availability
1004
CHOKE COVER,ALL LGE 3552W1A032B Contact Us For Availability
1005
DOOR ASSEMBLY LGE 3581W1A322A Contact Us For Availability
1008
GLASS LGE 4890W1A021L Contact Us For Availability
1011
BAFFLE LGE 4760W1A014A Contact Us For Availability
1012
HANDLE ASSEMBLY LGE 3651W1A006A Contact Us For Availability
2000
KEY MEMBRANE LGE 3506W1A194A Contact Us For Availability
2002
PANEL,CONTROL LGE 3720W1C002A Contact Us For Availability
2004
CONTROLLER ASSEMBLY,MICOM LGE 4781W1M286A Contact Us For Availability
2006
PWB(PCB) ASSEMBLY,SUB LGE 6871W1S106A Contact Us For Availability
2008
BRACKET,[CONTROL PANEL] LGE 4810W1A017A Contact Us For Availability
2381
CONTROL PANEL W/ KEY PAD LGE 383EW1A045A Contact Us For Availability
3001
Case,Flat LGE 3112W1F042L Contact Us For Availability
3002
GLASS TRAY LGE 1B71961A Contact Us For Availability
3008
ROTATING RING ASSEMBLY LGE 5889W2A012D Contact Us For Availability
3010
MOUNT LGE 4960W1A004B Contact Us For Availability
3011
GLASS ALL MV-1320M MV-1325S W/ LGE 4890W4A001B Contact Us For Availability
3014
LEAD WIRE ASSY LGE 6877W1A340A Contact Us For Availability
3018
SHELF LGE 5026W1A048B Contact Us For Availability
3024
GRILLE,VENT LGE 3530W0A021A Contact Us For Availability
3025
BRACKET ALL MV-1320,C/TOP LAMP LGE 4810W3G100A Contact Us For Availability
3027
MOTOR(CIRC),VENTILATION LGE 6549W1V008A Contact Us For Availability
3027
MOTOR(CIRC),VENTILATION LGE 6549W1V006C Contact Us For Availability
3028
LAMP[OVEN/BASELESS] LGE 6912W3Q001D Contact Us For Availability
3029
BRACKET MOUNT LGE 4810W3G062A Contact Us For Availability
3034
CANOPY WAVE GUIDE MA-880M/680M LGE 3052WRA002A Contact Us For Availability
3036
HOLDER,COOK AUXILIARY LGE 4930W1A026A Contact Us For Availability
3037
PROTECTOR (MECH) LGE 3740W1A005A Contact Us For Availability
4001
BOARD ASSY,[LATCH] LGE 3501W1A019A Contact Us For Availability
4002
MICRO SWITCH(PRIMARY) VP-533A LGE 3B73362E Contact Us For Availability
4002
SWITCH,MICRO LGE 6600W1K004C Contact Us For Availability
4003
MICRO SWITCH(MONITOR) VP-532A LGE 3B73361D Contact Us For Availability
4003
SWITCH,MICRO LGE 6600W1K004B Contact Us For Availability
4004
LEVER-SWITCH MH6110XBBO W/POOL LGE 4510W4A005A Contact Us For Availability
5002
BRACKET HVC MV-1320,SECC 0.5T LGE 4810W3C002A Contact Us For Availability
5004
BRACKET,SENSOR LGE 4810W1A065A Contact Us For Availability
5005
FUSE CAP NATURAL MA-1554M MW LGE 5006WRA002A Contact Us For Availability
5006
DUCT LGE 5208W0A006A Contact Us For Availability
5008
Transformer,high voltage LGE 6170W1D060A Contact Us For Availability
5008
TRANSFORMER,HIGH VOLTAGE LGE 6170W1D052B Contact Us For Availability
5010
POWER CORD ASSY LGE 6411W1A010H Contact Us For Availability
5010
Power Cord Assembly LGE 6411W1A010F Contact Us For Availability
5015
OVEN LAMP 125V 30W E17, ER-71 LGE 3B70067A Contact Us For Availability
5034
PLATE,[BOTTOM PLATE] LGE 3300W1A003A Contact Us For Availability
5035
PLATE,BOTTOM LGE 3300W1A052A Contact Us For Availability
5036
COVER,MWO LGE 3550W3A095A Contact Us For Availability
5038
LAMP HOLDER - ALL LGE 6804W3A001A Contact Us For Availability
5044
COVER,STIRRER FAN LGE 3550W1A126A Contact Us For Availability
5045
COVER ALL MV-1320,OVEN LAMP,SE LGE 3550W3A082A Contact Us For Availability
6000
BASE PLATE LGE 3302W0A013H Contact Us For Availability
6001
BASE PLATE ASSY LGE 3303W1A041N Contact Us For Availability
6008
PLATE,[MOUNTING PLATE] LGE 3300W0M003A Contact Us For Availability
6009
MOUNTING KIT (OTR) LGE 2B72771A Contact Us For Availability
6009
Kit Assembly LGE 2B72771F Contact Us For Availability
6011
EXHAUST DAMPER ER-841PV CBESE LGE 3B71432A Contact Us For Availability
MAY1
Box LGE 3890W3Y418J Contact Us For Availability
MBM2
CARD,TECHNICAL LGE 3840W1T004A Contact Us For Availability
MBM3
TEMPLATE LGE 4922W5A031A Contact Us For Availability
MEZ1
LABEL,COOKING GUIDE LGE 3850W1D013A Contact Us For Availability
MFL1
Manual,Owners LGE 3828W5A2755 Contact Us For Availability
MFL3
Manual,Installation LGE 3828W5U0312 Contact Us For Availability
W121
TRUSS HEAD TP SCREW+2 CUT MV- LGE 1TTL0402422 Contact Us For Availability
× ![]()
