Model Whirlpool ACM052XJ0 AIR CONDITIONER – Common Parts & Diagrams
04 - OPTIONAL

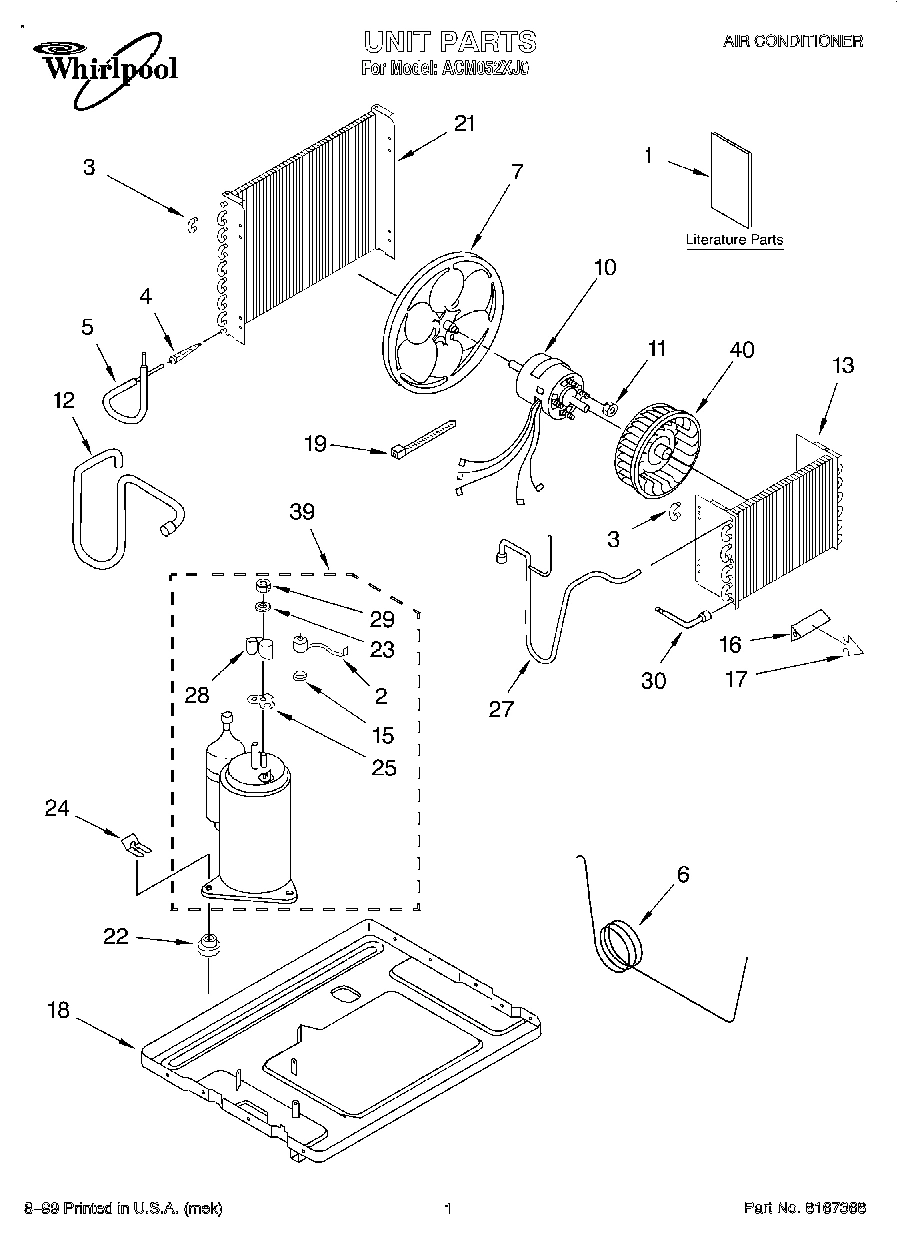

01 - UNIT, LITERATURE

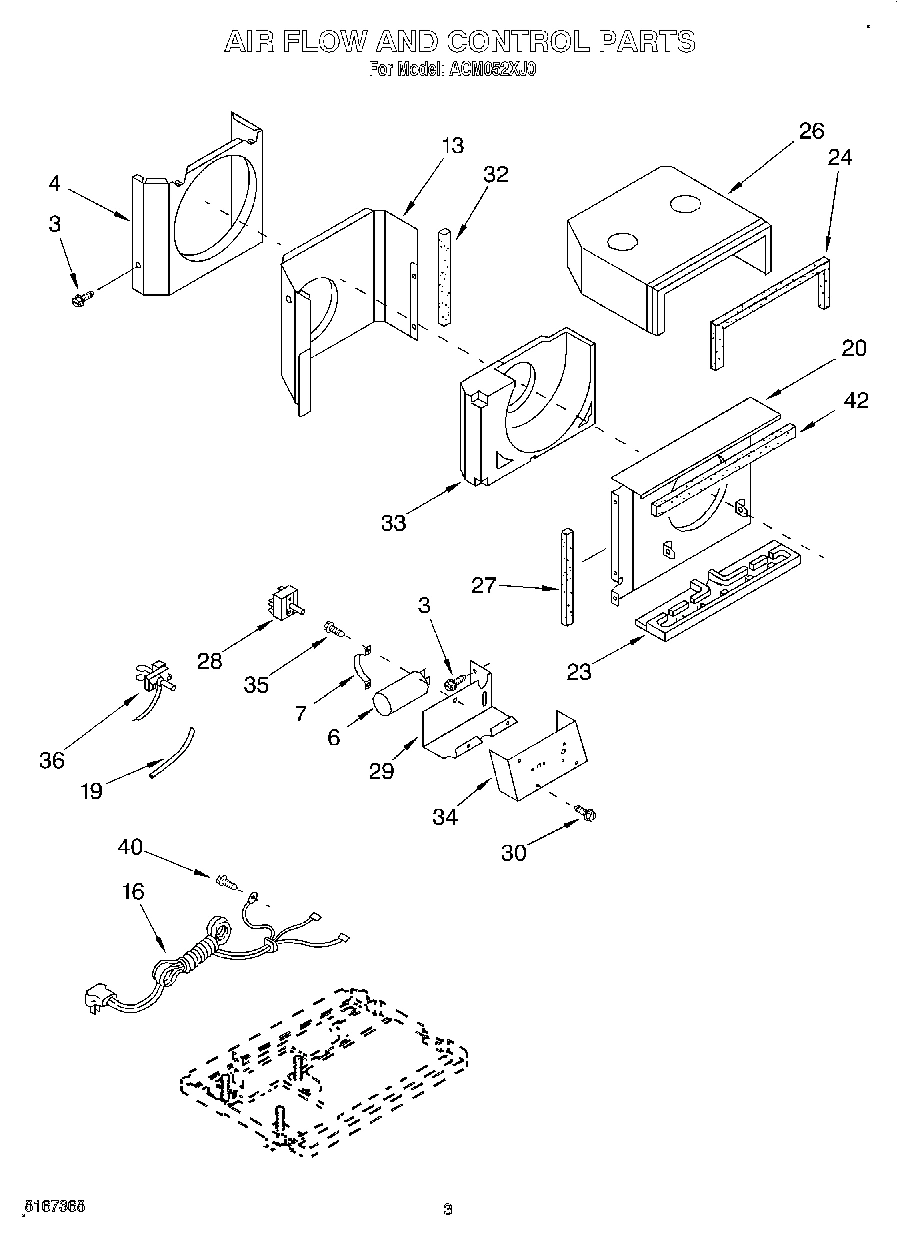

02 - AIR FLOW AND CONTROL

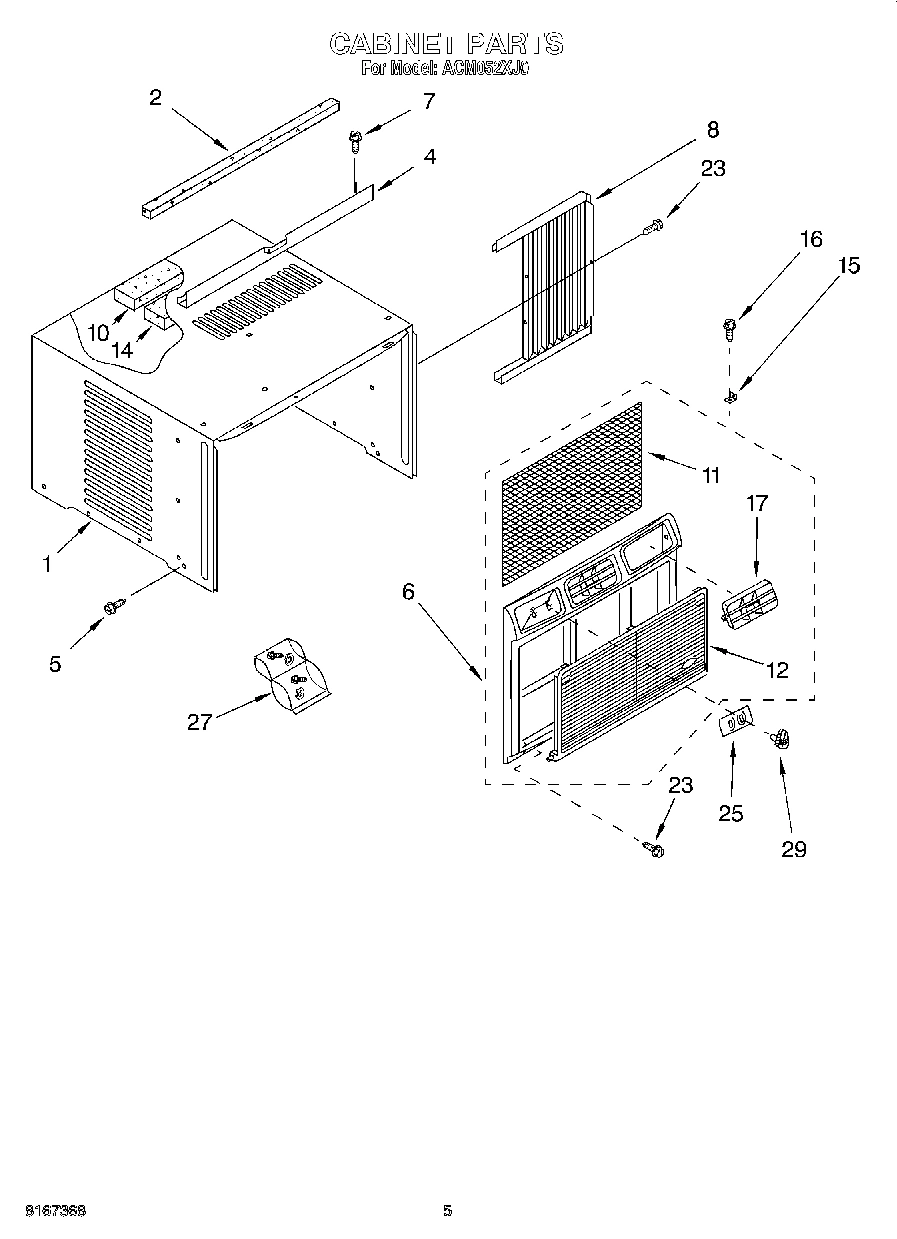

03 - CABINET
Common parts from model Whirlpool ACM052XJ0 AIR CONDITIONER
1
LITERATURE PARTS (Wiring Diagram) WPL LIT8031275 Contact Us For Availability
1
Cabinet WPL 8011107 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Overload WPL 1161179 Contact Us For Availability
2
Gasket, Meeting Rail WPL 469877 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Bend, Return Evaporator (4) Condenser (6) WPL 8031222 Contact Us For Availability
4
Shroud, Condenser WPL 8011266 Contact Us For Availability
4
Channel, Top WPL 8011307 Contact Us For Availability
5
Tube, Outlet WPL 8011396 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Tube, Restrictor WPL 8011217 Contact Us For Availability
6
Capacitor, Running WPL 1162590 Contact Us For Availability
6
Front, Cabinet Assembly WPL 8011112 Contact Us For Availability
7
Blade, Fan WPL 1158524 Contact Us For Availability
7
Bracket, Capacitor WPL 1167611 Contact Us For Availability
8
Curtain (R.S.) WPL 8011308 Contact Us For Availability
8
Curtain (L.S.) WPL 8011311 Contact Us For Availability
10
Motor, Fan WPL 8011334 Contact Us For Availability
10
Insulation, Top WPL 8011385 Contact Us For Availability
11
Filter WPL 8011314 Contact Us For Availability
12
Tube, Discharge WPL 8011443 Contact Us For Availability
12
Grille, Front WPL 8011100 Contact Us For Availability
13
Evaporator WPL 8011193 Contact Us For Availability
13
Wall, Dividing WPL 8011422 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Foam, Condenser WPL 8011386 Contact Us For Availability
15
Spring, Overload WPL 950032 Contact Us For Availability
15
Bracket, Window WPL 644228 Contact Us For Availability
16
Anticipator WPL 996773 Contact Us For Availability
16
Cord, Appliance WPL 8011105 Contact Us For Availability
16
Screw, 8 x 3/4 WPL 488255 Contact Us For Availability
17
Clip, Anticipator WPL 475577 Contact Us For Availability
17
Louver, Assembly WPL 8011189 Contact Us For Availability
18
Base WPL 8011187 Contact Us For Availability
19
Sleeve, Insulating WPL 8011238 Contact Us For Availability
20
Shroud, Evaporator WPL 8011265 Contact Us For Availability
21
Condenser WPL 1182831 Contact Us For Availability
22
Grommet (3) WPL 950212 Contact Us For Availability
23
Gasket, Nut WPL 950037 Contact Us For Availability
23
Pan, Evaporator WPL 8011133 Contact Us For Availability
23
Screw, (2) WPL 1161561 Contact Us For Availability
24
Clip, Compressor WPL 8011446 Contact Us For Availability
24
Seal Hood, Front WPL 1181735 Contact Us For Availability
25
Escutcheon WPL 8031156 Contact Us For Availability
26
Hood, Air Housing WPL 8011401 Contact Us For Availability
27
Tube, Suction WPL 8011429 Contact Us For Availability
27
Seal, Left Side WPL 8011399 Contact Us For Availability
27
Bag, Accessory WPL 476180 Contact Us For Availability
28
Switch, Rotary WPL 8031150 Contact Us For Availability
29
Box, Control WPL 8011188 Contact Us For Availability
30
Tube, Feeder (Restrictor) WPL 8011208 Contact Us For Availability
30
Screw, 6-32 x .175 WPL 488734 Contact Us For Availability
33
Housing, Air WPL 8011400 Contact Us For Availability
34
Panel, Control WPL 8031113 Contact Us For Availability
36
Control, Temp. WPL 8031115 Contact Us For Availability
39
Compressor Assembly WPL 1161178 Contact Us For Availability
40
Wheel, Blower WPL 8011135 Contact Us For Availability
40
Screw WPL 1159222 Contact Us For Availability
42
Seal WPL 1158515 Contact Us For Availability
× ![]()
