Model Whirlpool ACFW0940 AIR CONDITIONER – Common Parts & Diagrams
02 - UNIT , LIT/OPTIONAL

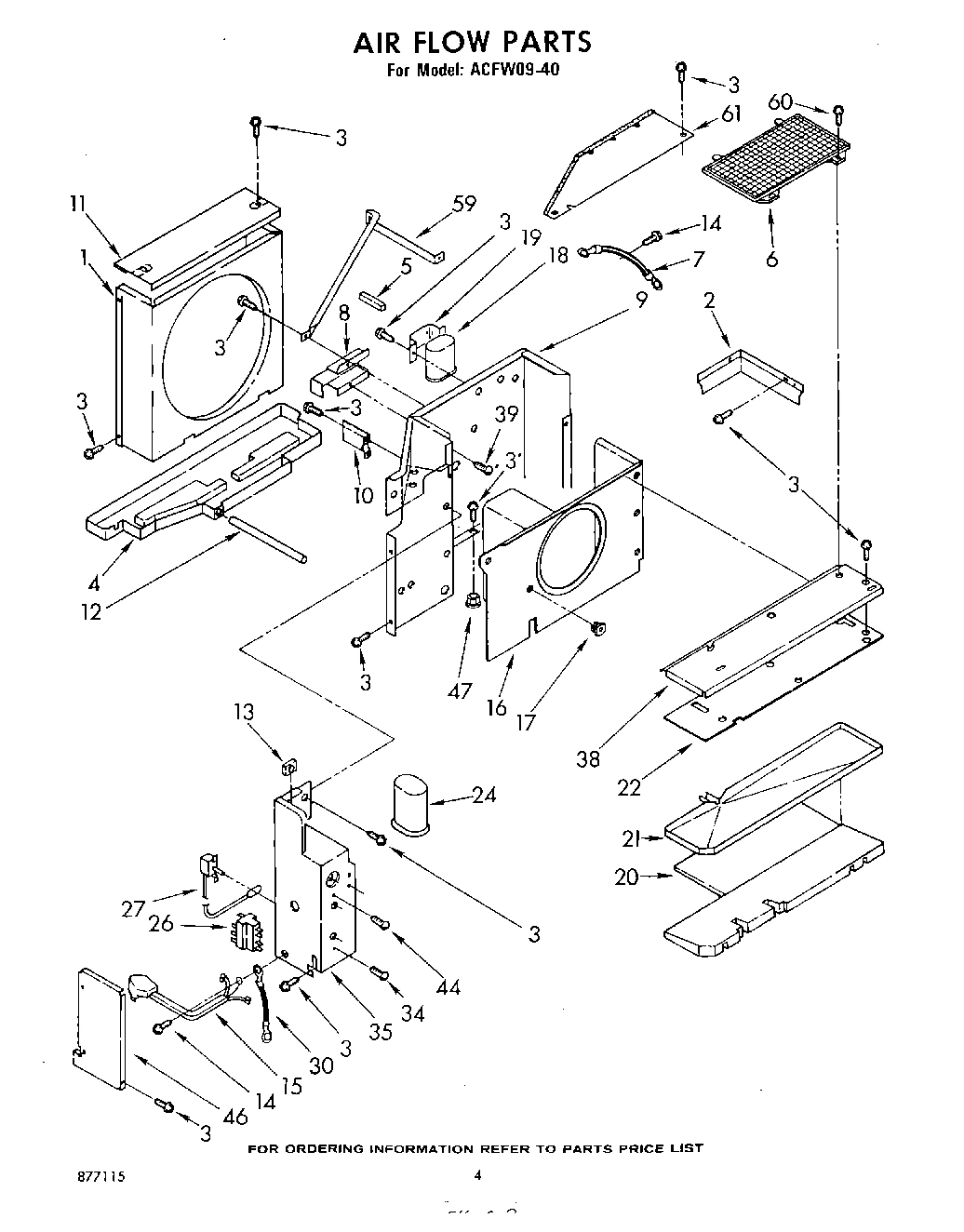

03 - AIRFLOW

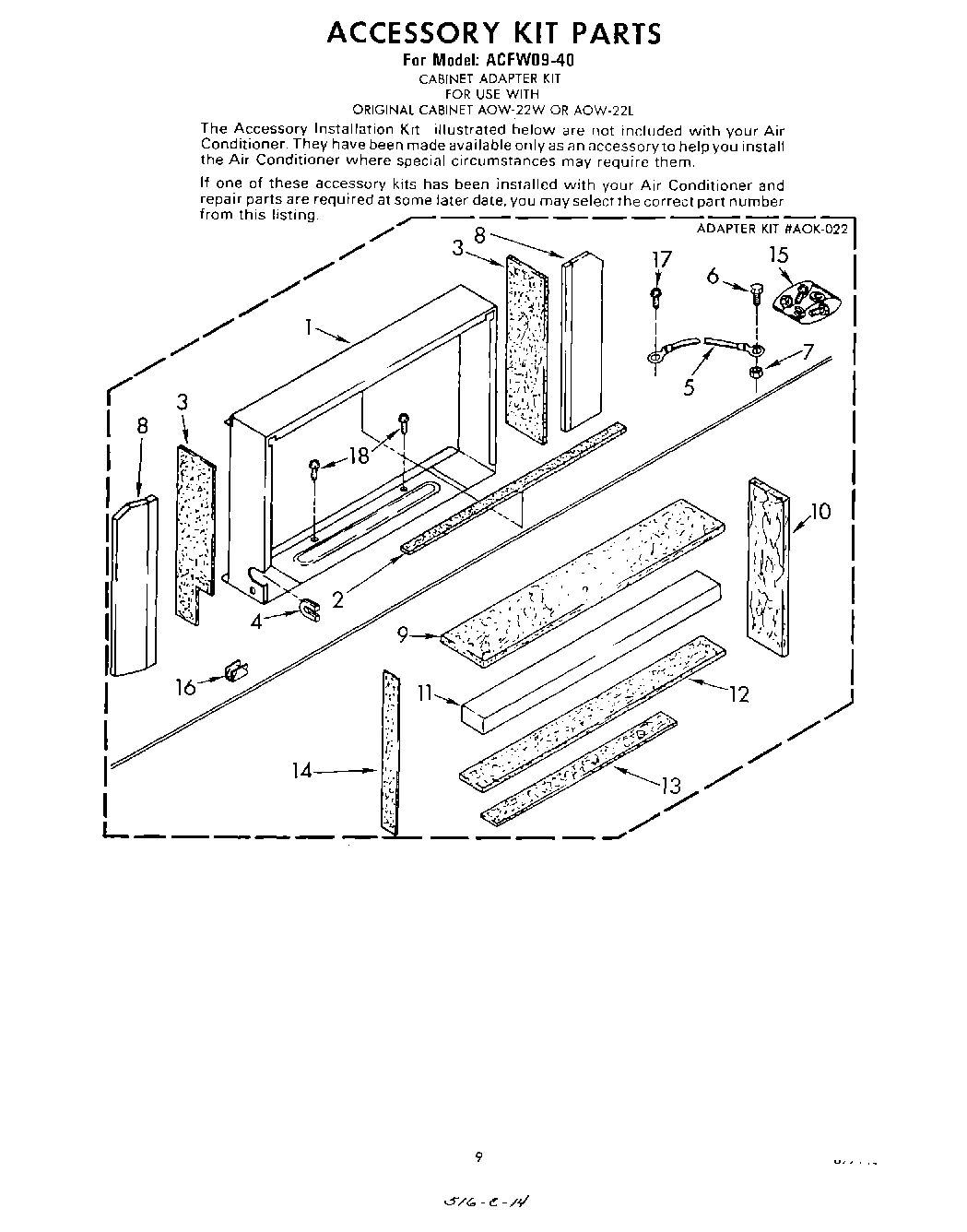

06 - ACCESSORY KIT PARTS

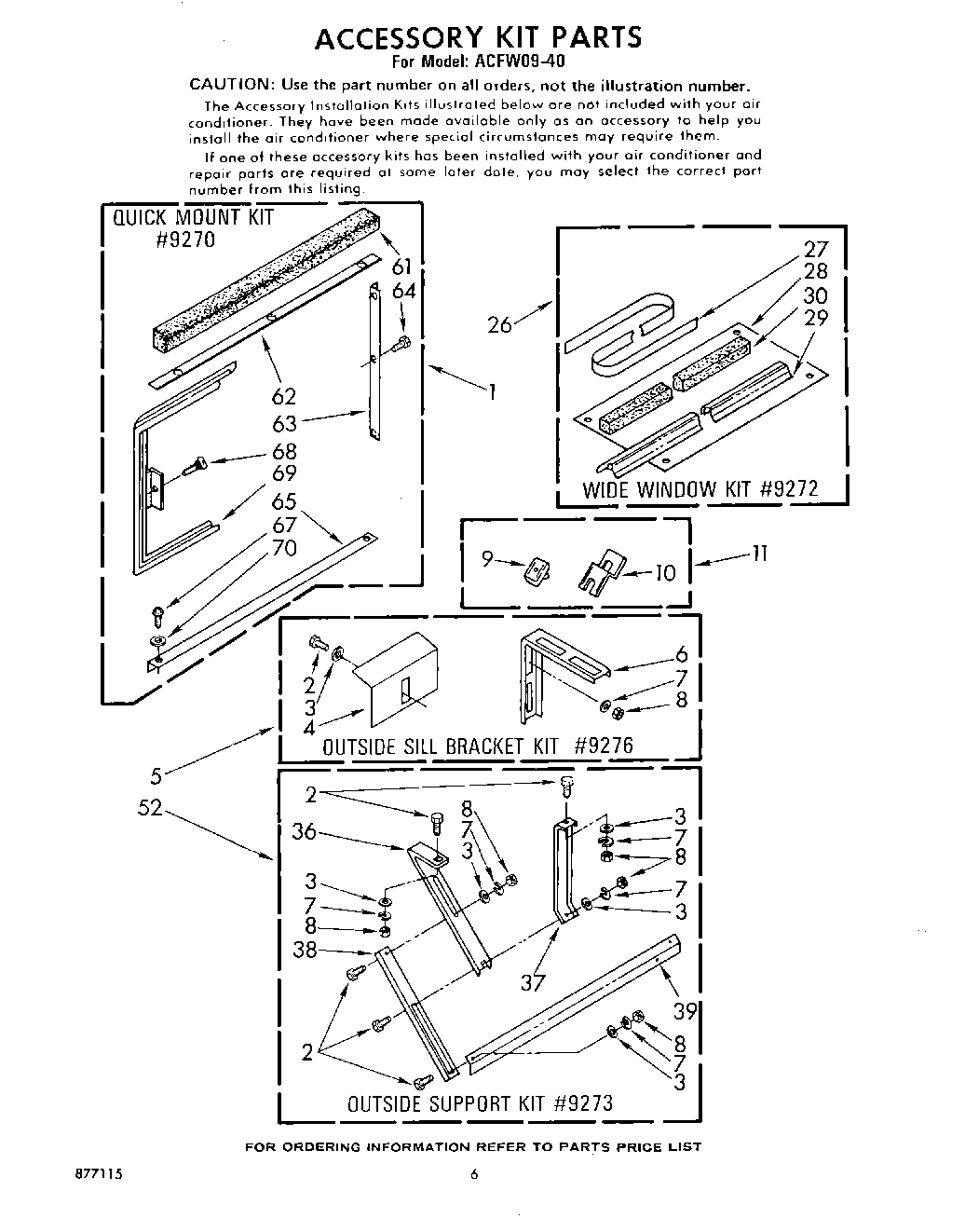

04 - ACCESSORY KIT

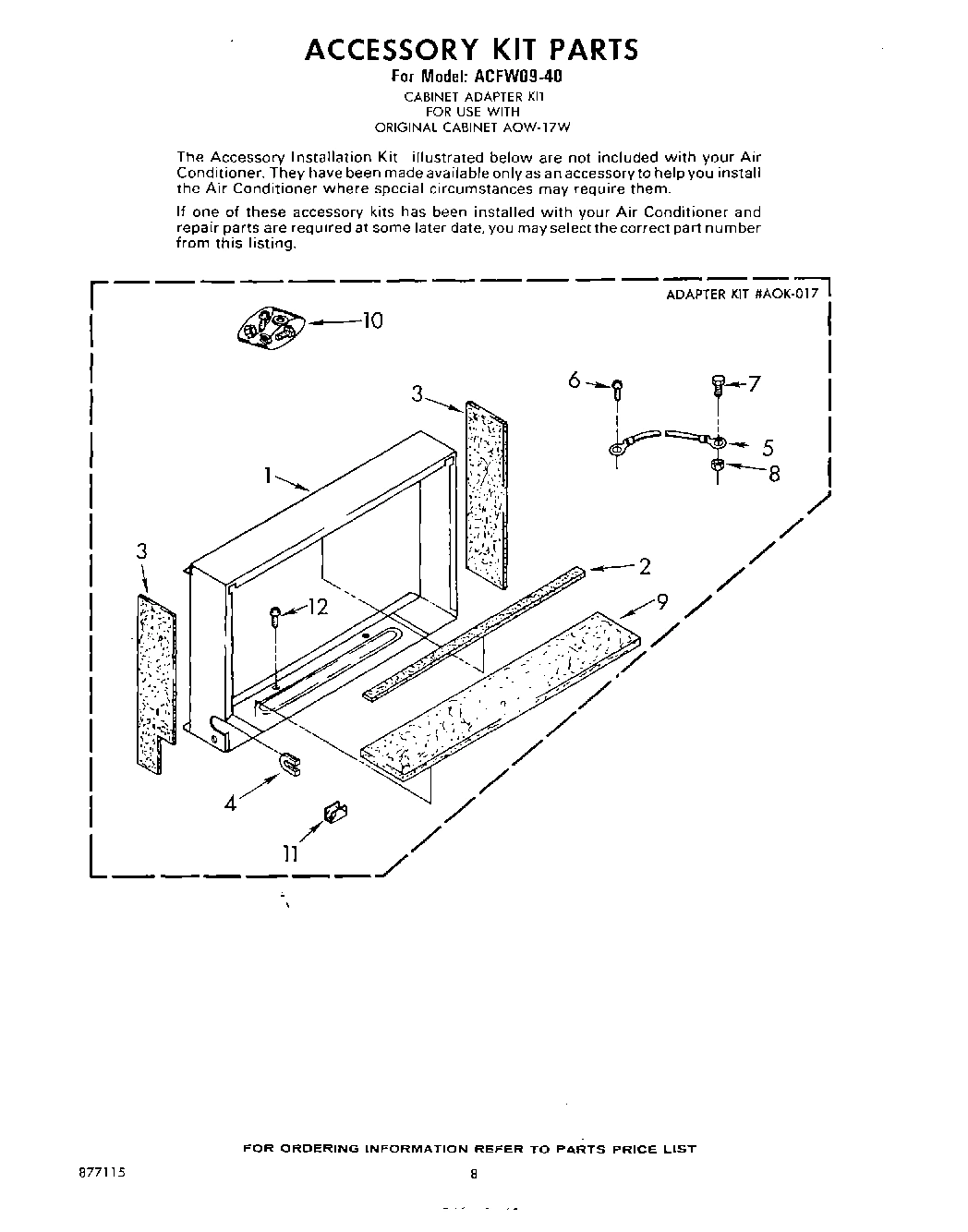

05 - ACCESSORY KIT PARTS

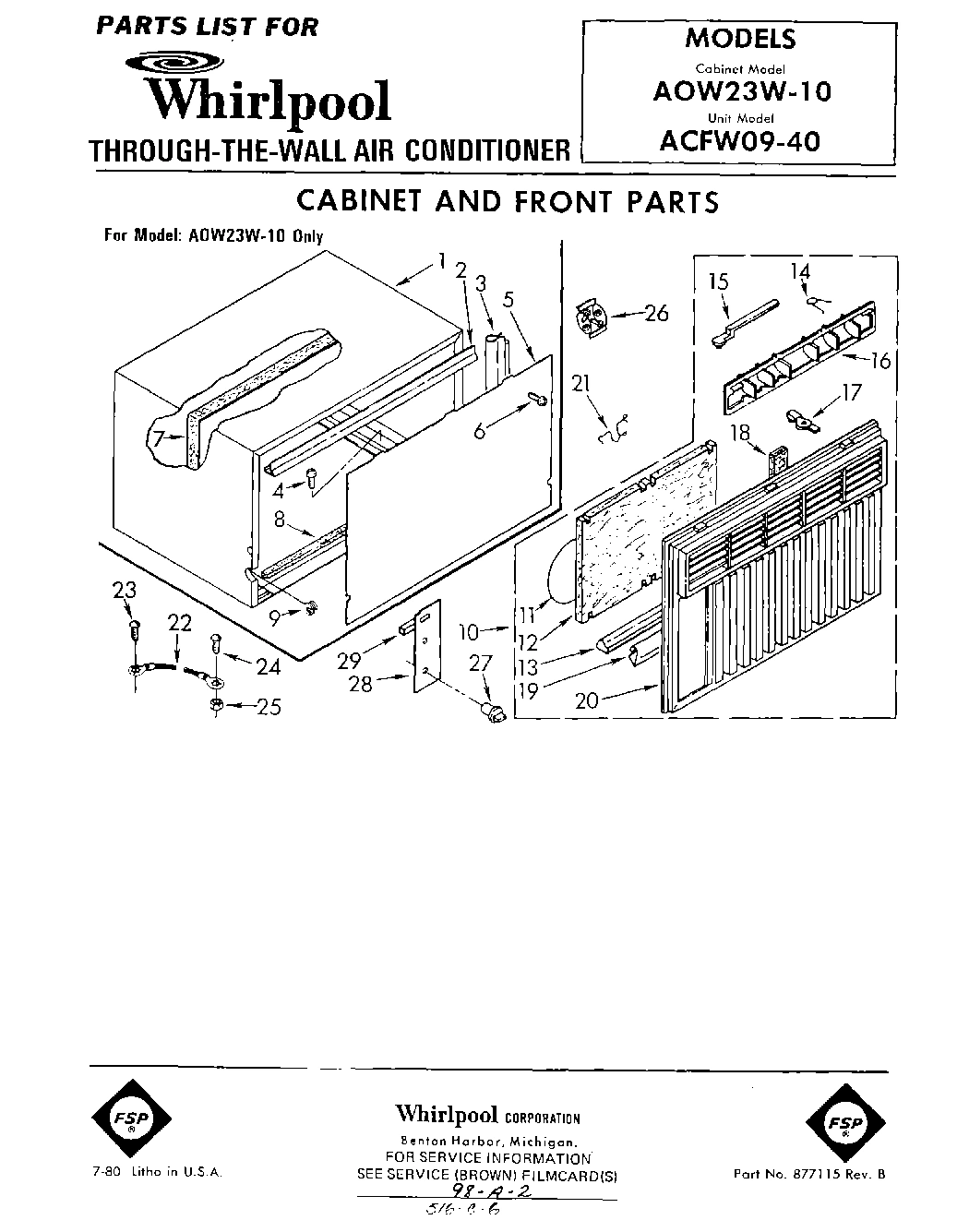

01 - CABINET AND FRONT
Common parts from model Whirlpool ACFW0940 AIR CONDITIONER
1
Shroud WPL 853356 Contact Us For Availability
1
Kit, Quick Mount WPL 485675 Contact Us For Availability
1
cabinet (requires insulation no. 649939) WPL 853367 Contact Us For Availability
2
Channel, Wiring WPL 852317 Contact Us For Availability
2
Insulation, Top WPL 947432 Contact Us For Availability
2
bolt, 1/4 x 3/4 WPL 488750 Contact Us For Availability
2
Insulation, Top WPL 947444 Contact Us For Availability
3
Screw, Repair WPL 488481 Contact Us For Availability
3
Insulation, Cabinet Extension (L.S.) WPL 947431 Contact Us For Availability
3
Insulation, Cabinet Extension (R.S.) WPL 947433 Contact Us For Availability
3
Insulation, Cabinet Extension (L.S.) WPL 947443 Contact Us For Availability
3
Insulation, Cabinet Extension (R.S.) WPL 947445 Contact Us For Availability
4
Pan, Condensate WPL 853391 Contact Us For Availability
4
Bracket, Sill Mounting (2) WPL 645515 Contact Us For Availability
4
screw WPL 487371 Contact Us For Availability
5
Kit, Outside Sill Bracket WPL 485678 Contact Us For Availability
5
Panel, Front WPL 853974 Contact Us For Availability
6
Guard, Evaporator Impeller WPL 997949 Contact Us For Availability
6
Bracket, Rail Support (2) WPL 485466 Contact Us For Availability
7
Lockwasher WPL 486009 No Longer Available
7
Ground WPL 998010 Contact Us For Availability
7
seal, weather WPL 649972 Contact Us For Availability
8
Bracket, Capacitor Shield WPL 998009 Contact Us For Availability
8
Spacer Assembly, Rear (R.S.) WPL 948161 Contact Us For Availability
8
Spacer Assembly, Rear (L.S.) WPL 948162 Contact Us For Availability
8
Nut, Hex WPL 486035 Contact Us For Availability
8
Seal, Cabinet Bottom WPL 647854 Contact Us For Availability
9
Wall WPL 947417 Contact Us For Availability
9
Grommet, Appliance Cable WPL 647849 Contact Us For Availability
9
Insulation, Cabinet (Front Top) WPL 947436 Contact Us For Availability
9
Seal, Cabinet Bottom WPL 947427 Contact Us For Availability
9
Cup, Condensate Pan WPL 647850 Contact Us For Availability
10
Baffle WPL 853329 Contact Us For Availability
10
Insulation, Cabinet (2) (Front Sides) WPL 947437 Contact Us For Availability
10
Bag, Accessory WPL 947744 Contact Us For Availability
10
Support, Cup WPL 995075 Contact Us For Availability
10
Front, Cabinet Assembly WPL 947658 Contact Us For Availability
11
Cover, Shroud (Condenser) WPL 853390 Contact Us For Availability
11
Stop WPL 947434 Contact Us For Availability
11
Clip (12) WPL 947960 Contact Us For Availability
11
Kit, Cup WPL 978929 Contact Us For Availability
11
Retainer, Filter WPL 476707 Contact Us For Availability
12
Clamp WPL 642684 Contact Us For Availability
12
Tube, Condensate WPL 465777 Contact Us For Availability
12
Filter WPL 648008 Contact Us For Availability
13
Blade, Fan WPL 947370 Contact Us For Availability
13
Grommet WPL 647865 Contact Us For Availability
13
Seal, Cabinet Front WPL 647914 Contact Us For Availability
14
Seal, Unit Side (2) WPL 947438 Contact Us For Availability
14
Spring, Detent (2) WPL 641484 Contact Us For Availability
15
Condenser, Support (R.S.) WPL 647824 Contact Us For Availability
15
Cable WPL 997694 Contact Us For Availability
15
Link, Vertical Louver (2) WPL 647799 Contact Us For Availability
16
Housing, Blower Wheel WPL 852875 Contact Us For Availability
16
Louver, Vertical WPL 647798 Contact Us For Availability
17
Capacitor, 41-53 MFD (Component Of Start Kit) WPL 866965 Contact Us For Availability
17
Fastener, snap (2) WPL 487808 Contact Us For Availability
17
Handle, Vertical Louver (2) WPL 644165 Contact Us For Availability
18
Base WPL 857643 Contact Us For Availability
18
Capacitor, Compressor Running WPL 948208 Contact Us For Availability
18
Screw, 8 x 3/8 WPL 488624 Contact Us For Availability
18
Seal WPL 649198 Contact Us For Availability
19
Bracket (Lower) WPL 475844 Contact Us For Availability
19
Bracket (Upper) WPL 852992 Contact Us For Availability
20
Cap, Capacitor (Component Of Start Kit) WPL 866842 Contact Us For Availability
20
Insulation, Condensate Pan WPL 853269 Contact Us For Availability
20
front, cabinet WPL 947659 Contact Us For Availability
21
Bracket, Capacitor (Component Of Start Kit) WPL 866843 Contact Us For Availability
21
Pan, Evaporator Condensate WPL 853268 Contact Us For Availability
21
clip, front mounting (2) WPL 649966 Contact Us For Availability
22
Anticipator WPL 475573 Contact Us For Availability
22
Insulation, Evaporator Cover WPL 948410 Contact Us For Availability
22
Wire, Ground WPL 857017 Contact Us For Availability
23
Screw, 10 x 5/8 (2) (Component Of Start Kit) WPL 487880 Contact Us For Availability
23
Screw, 8 x 3/8 WPL 488854 Contact Us For Availability
24
Multiplier, Terminal (Component Of Start Kit) WPL 90654 Contact Us For Availability
24
Capacitor, Fan WPL 996504 Contact Us For Availability
24
Screw, 8 x 3/8 WPL 488853 Contact Us For Availability
25
Motor WPL 948206 Contact Us For Availability
26
Wheel, Blower WPL 852065 Contact Us For Availability
26
Switch, Pushbutton WPL 947654 Contact Us For Availability
26
Kit, Wide Window WPL 485676 Contact Us For Availability
26
accessory bag WPL 948213 Contact Us For Availability
27
Screw, 5/16 x 1/4 WPL 595085 Contact Us For Availability
27
Control, Temperature WPL 852543 Contact Us For Availability
27
Strip, Seal WPL 855265 Contact Us For Availability
27
Knob, Control WPL 947264 Contact Us For Availability
28
Evaporator WPL 993875 Contact Us For Availability
28
Board, Filler WPL 485484 Contact Us For Availability
28
Plate, Escutcheon WPL 948073 Contact Us For Availability
29
Clip WPL 475577 Contact Us For Availability
29
Bracket, Mounting (R.S.) WPL 485454 Contact Us For Availability
29
Bracket, Mounting (L.S.) WPL 485455 Contact Us For Availability
29
Spacer, Escutcheon Plate WPL 470036 Contact Us For Availability
30
Bend, Return (22) Condenser (15) Evaporator WPL 855199 Contact Us For Availability
30
Wire, Ground WPL 857634 Contact Us For Availability
30
Gasket, Meeting Rail WPL 479158 Contact Us For Availability
31
Clip, Terminal Right Angle (8) (Component Of WPL 45571 Contact Us For Availability
34
Locknut (4) WPL 858122 Contact Us For Availability
34
Screw, 6-20 x .362 WPL 488735 Contact Us For Availability
35
Box, Control WPL 947942 Contact Us For Availability
36
Cover, Terminal WPL 947948 Contact Us For Availability
36
Support (2) WPL 644283 Contact Us For Availability
37
Strap, Terminal Cover WPL 947949 Contact Us For Availability
37
Support, Retainer (2) WPL 644285 Contact Us For Availability
38
Cover, Evaporator WPL 856957 Contact Us For Availability
38
Extension, Support (2) WPL 644284 Contact Us For Availability
39
Handle, Base WPL 647971 Contact Us For Availability
39
Bracket, Support WPL 644281 Contact Us For Availability
40
Return Bend (3-Way) WPL 49493 Contact Us For Availability
41
Return Bend (3-Way) WPL 476078 Contact Us For Availability
42
Outlet Tube (Rear) WPL 993756 Contact Us For Availability
43
Outlet Tube (Front) WPL 993755 Contact Us For Availability
44
Tube, Flow Divider WPL 466527 Contact Us For Availability
44
Screw, 6-32 x .175 WPL 488734 Contact Us For Availability
46
Overload WPL 947950 Contact Us For Availability
46
Wall, Dividing L.S. WPL 852994 Contact Us For Availability
47
Clip, Speed WPL 649620 Contact Us For Availability
49
Retainer, Overload WPL 947951 Contact Us For Availability
50
Strainer WPL 49599 Contact Us For Availability
51
Harness, Wiring WPL 484136 Contact Us For Availability
52
Kit, Outside Support WPL 485679 Contact Us For Availability
53
Clip, Balancing WPL 485334 Contact Us For Availability
59
Support, Unit WPL 852318 Contact Us For Availability
61
Cover, Discharge Assembly WPL 947943 Contact Us For Availability
61
Seal, Meeting Rail WPL 469877 Contact Us For Availability
62
Strip, Seal WPL 477597 Contact Us For Availability
63
Retainer, Curtain (2) WPL 644388 Contact Us For Availability
64
Screw, 8 x 7/16 WPL 488730 Contact Us For Availability
65
Channel, Bottom WPL 644387 Contact Us For Availability
66
WPL 978029 WPL 978029 Contact Us For Availability
66
WPL 484069 WPL 484069 Contact Us For Availability
66
WPL 505168 WPL 505168 Contact Us For Availability
66
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
66
Wire, Black (25 Ft.) WPL 47261 Contact Us For Availability
66
Wire, WPL 47262 Contact Us For Availability
66
WPL 47263 WPL 47263 Contact Us For Availability
66
WPL 484220 WPL 484220 Contact Us For Availability
66
WPL 484366 WPL 484366 Contact Us For Availability
66
WPL 485426 WPL 485426 Contact Us For Availability
66
WPL 649939 WPL 649939 Contact Us For Availability
66
WPL 799351 WPL 799351 Contact Us For Availability
66
WPL 858148 WPL 858148 Contact Us For Availability
66
WPL 877115 WPL 877115 Contact Us For Availability
66
WPL 947601 WPL 947601 Contact Us For Availability
66
WPL 978028 WPL 978028 Contact Us For Availability
68
Thumbscrew (2) WPL 475581 Contact Us For Availability
69
Curtain Housing Assembly, R.S. WPL 647840 Contact Us For Availability
69
Curtain Housing Assembly, L.S. WPL 647841 Contact Us For Availability
70
Instructions, Installation (Kit, Quick Mount) WPL 485687 Contact Us For Availability
70
Instructions, Installation (Kit, Wide Window) WPL 485688 Contact Us For Availability
70
Instructions, Installation (Outside Sill Kit) WPL 485706 Contact Us For Availability
70
Instructions, Installation (Kit, Outside Supp WPL 485707 Contact Us For Availability
70
Washer (2) WPL 488520 Contact Us For Availability
70
Instructions, Installation (Kit, Standard Ins WPL 648435 Contact Us For Availability
× ![]()
