Model Whirlpool ACF4205AK ELECTRIC RANGE – Common Parts & Diagrams
02 - CABINET
07 - SUPPLEMENTAL INFORMATION
08 - WIRING INFORMATION

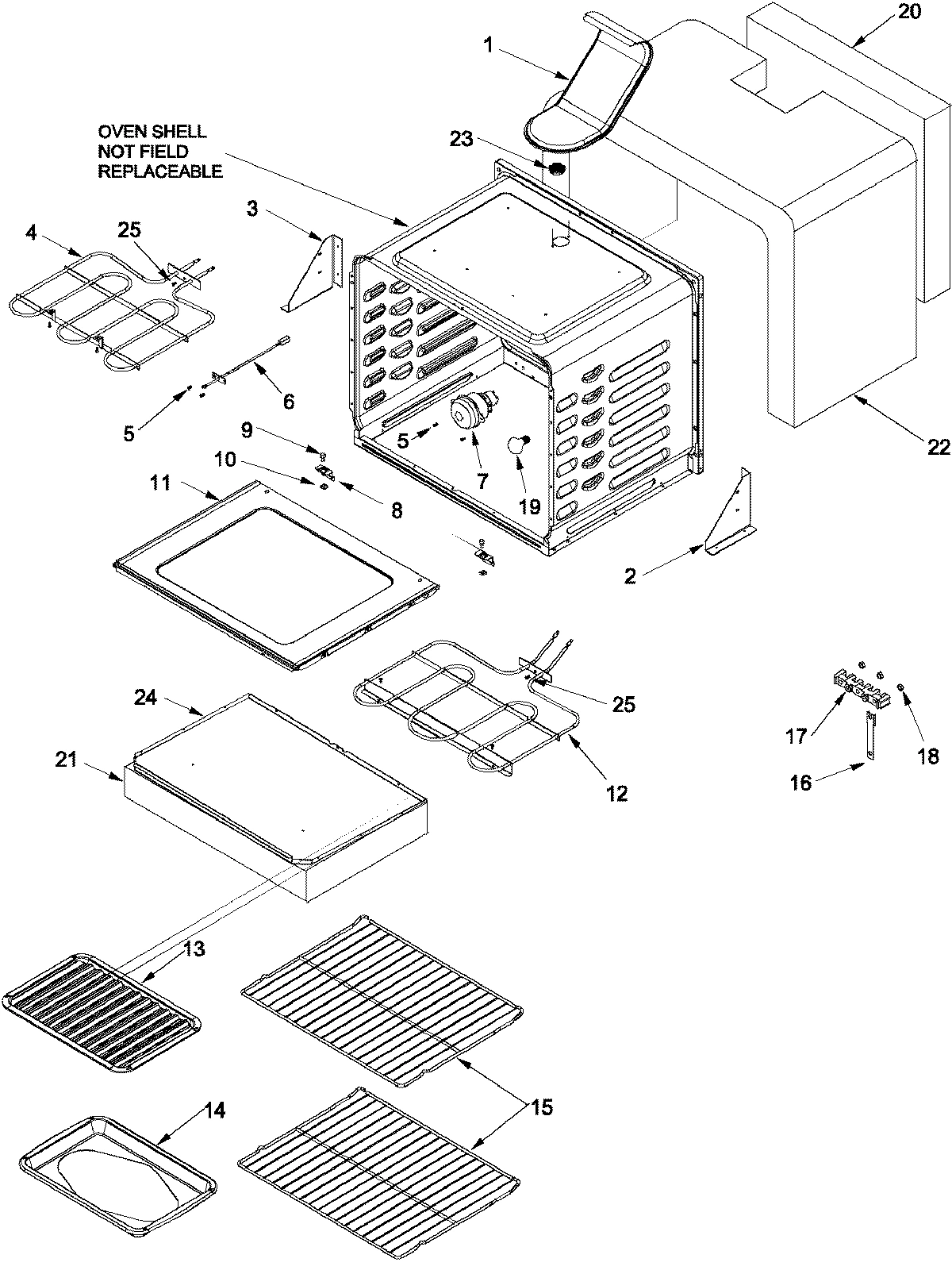

03 - CAVITY

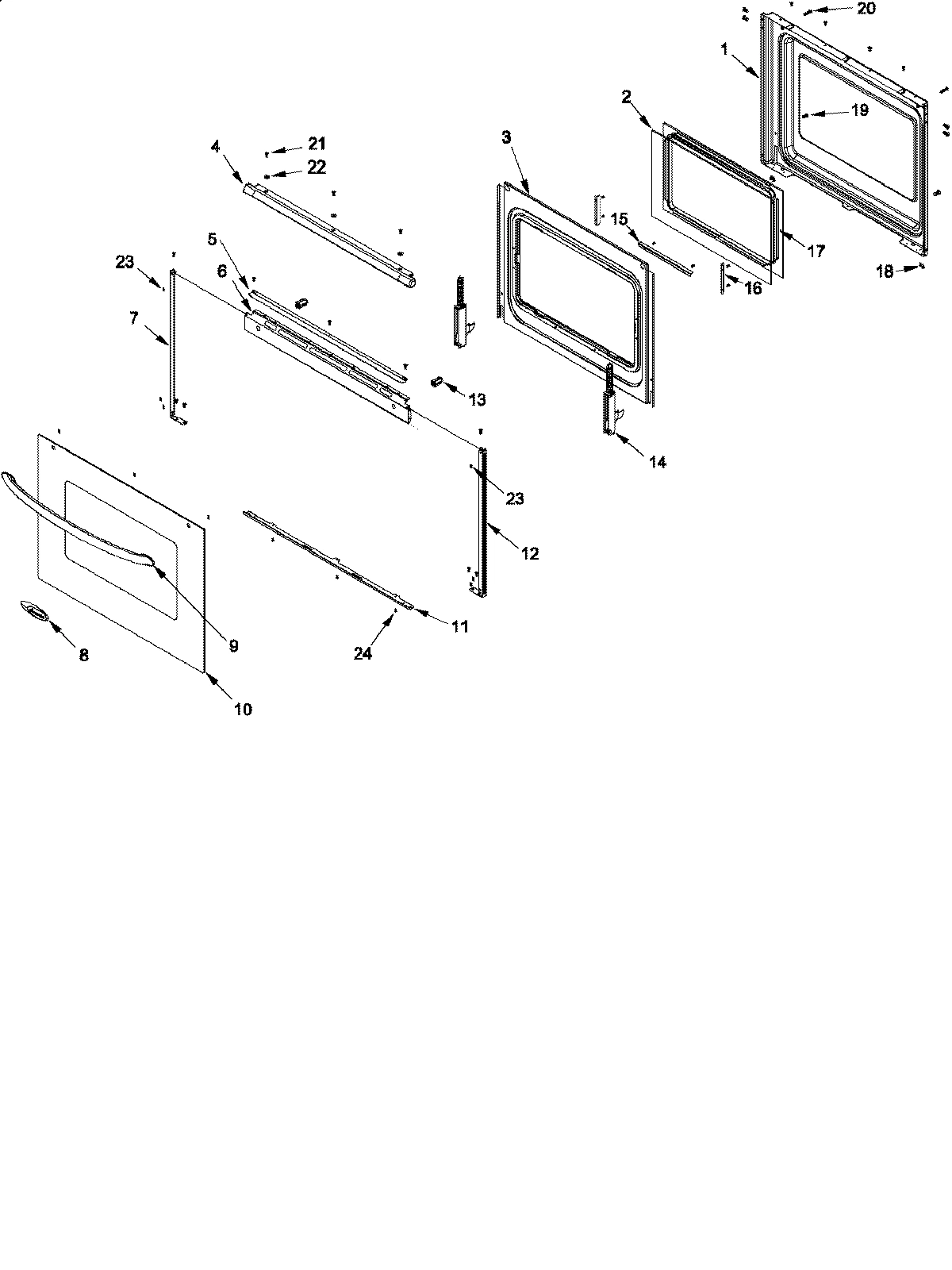

05 - OVEN DOOR

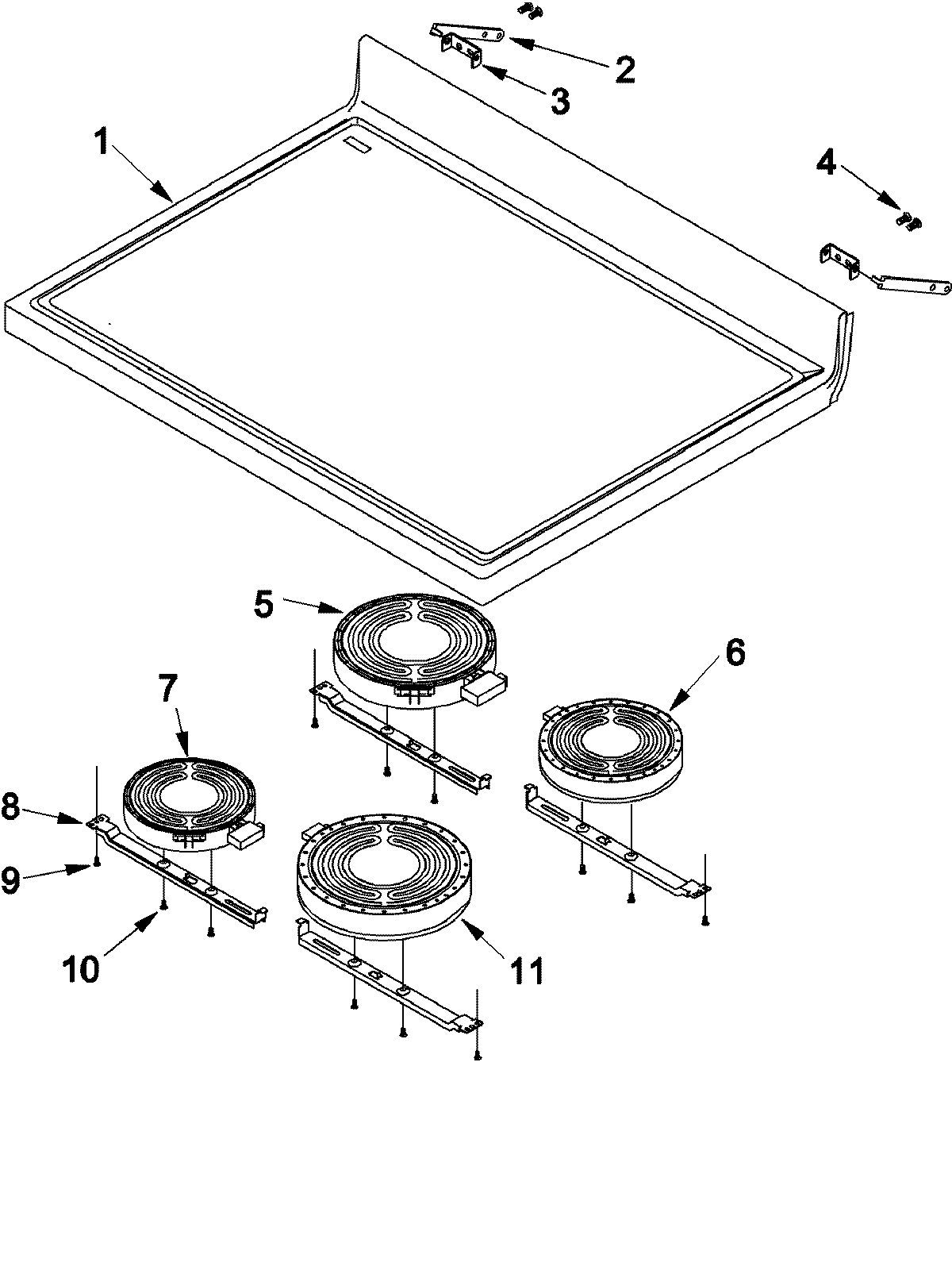

04 - MAIN TOP

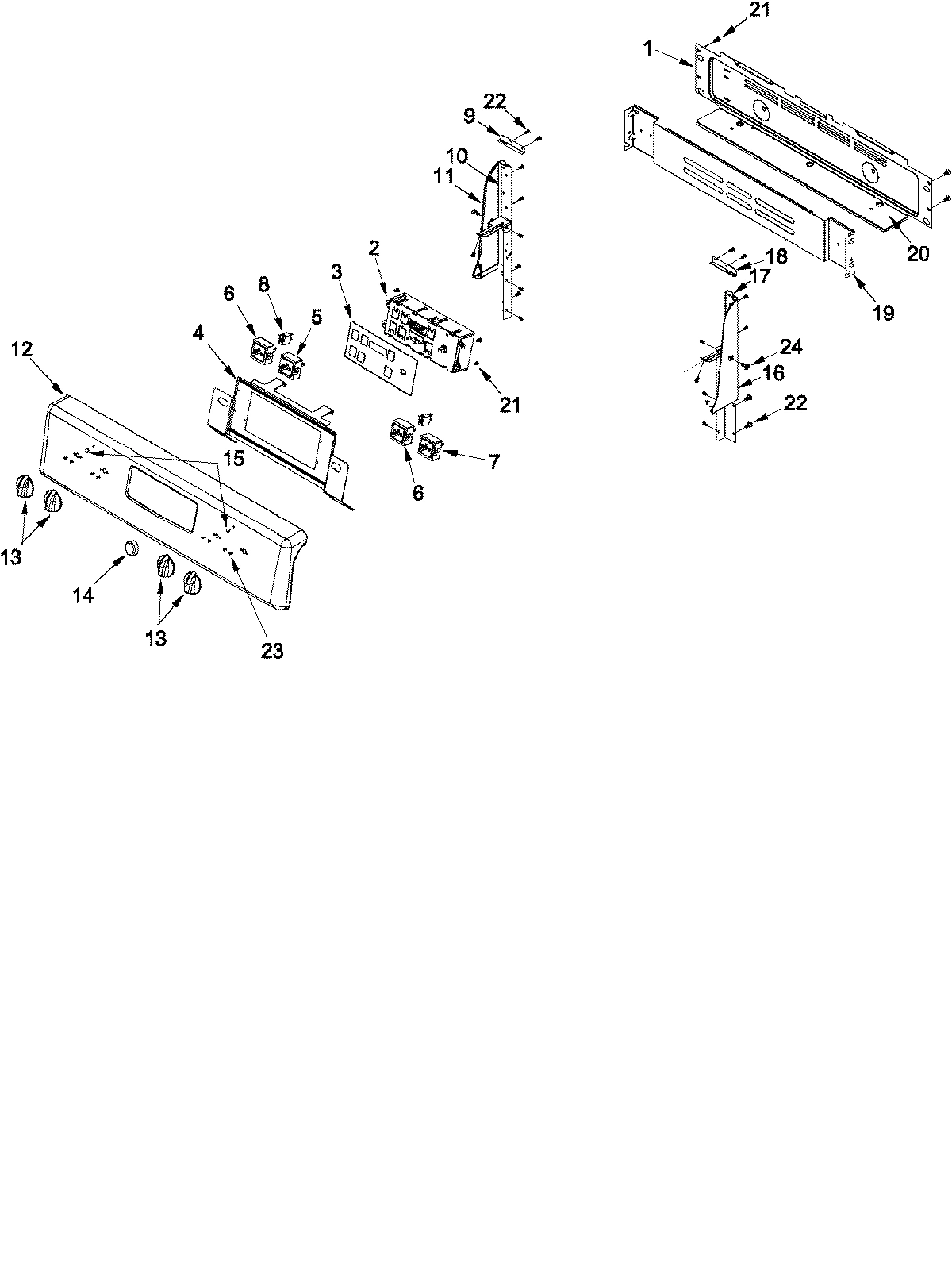

01 - BACKGUARD

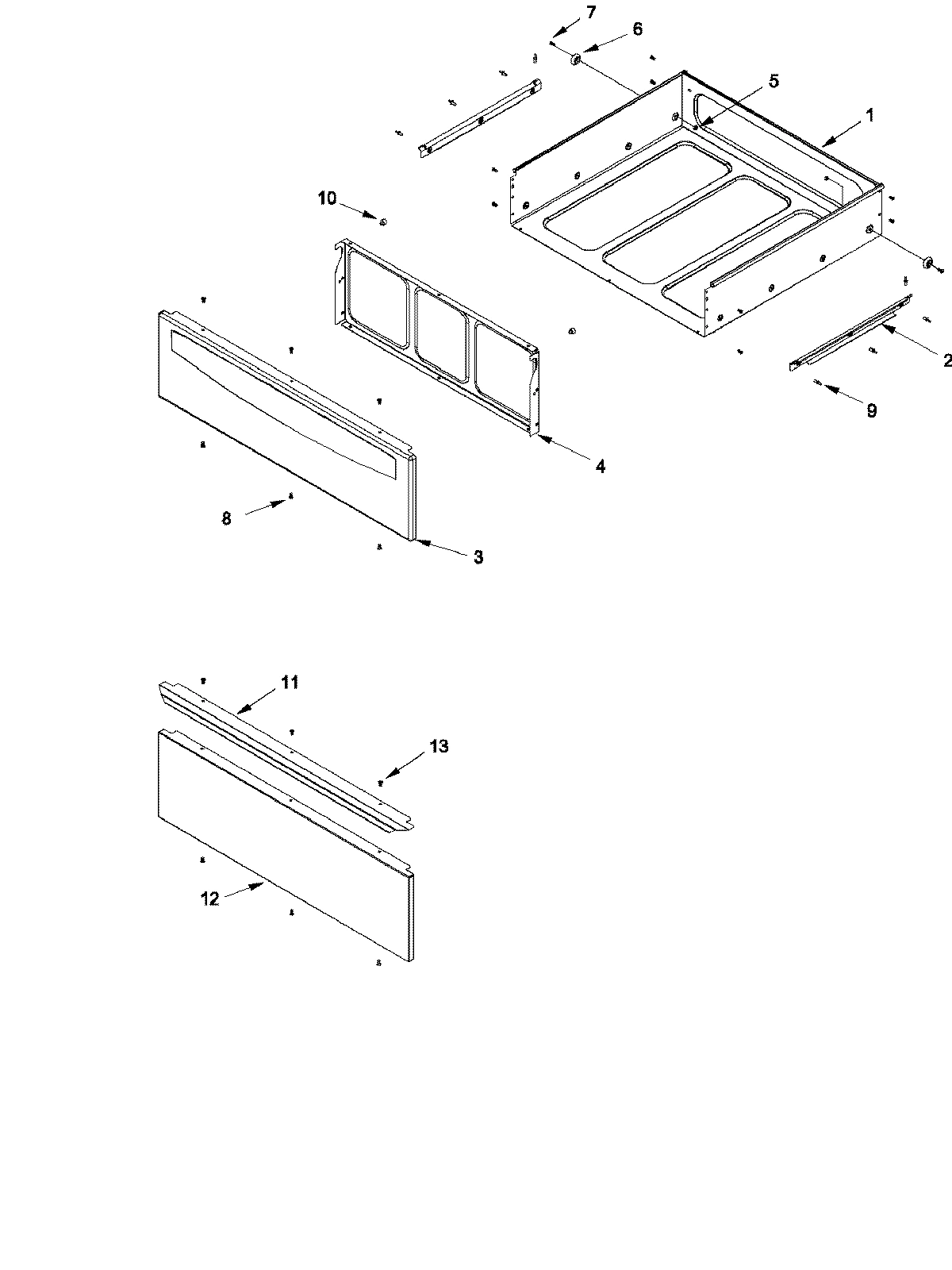

06 - STORAGE DRAWER
Common parts from model Whirlpool ACF4205AK ELECTRIC RANGE
1
TUBE, VENT WPL 77001147 Contact Us For Availability
1
BACKER, OVEN DOOR WPL 31932203CG Contact Us For Availability
1
MAIN TOP/GLASS (BSQ) WPL 32041601C Contact Us For Availability
1
COVER, UPPER REAR WPL 31954402 Contact Us For Availability
1
WRAPPER, STORAGE DR (WHT) WPL 32059401W Contact Us For Availability
2
GUSSET, OVEN SUPPORT-RT WPL 31937101 Contact Us For Availability
2
GLASS, WINDOW (XXL) WPL 32028101 Contact Us For Availability
2
PIN, HINGE WPL Y0315931 Contact Us For Availability
2
ERC, ELEC CONV-GENESIS WPL 77001146 Contact Us For Availability
2
TRACK, STORAGE DRAWER WPL 31733301 Contact Us For Availability
3
RETAINER INSULATION (SIDE) WPL 31932101 Contact Us For Availability
3
GUSSET, OVEN SUPPORT-LT WPL 31937102 Contact Us For Availability
3
AMANA COOKING WPL 16021970 Contact Us For Availability
3
HEAT SHIELD, BACKER (XXL) WPL 32052701 Contact Us For Availability
3
BRKT, HINGE STRAP MTG WPL Y0306150 Contact Us For Availability
3
PANEL, MEMBRANE SWITCH (BLK) WPL 32025901B Contact Us For Availability
3
DRAWER PANEL (BSQ) WPL 31937803C Contact Us For Availability
4
BRACE, TOP CHASSIS WPL 31943101 Contact Us For Availability
4
MANUAL, SERVICE WPL RS2320006 Contact Us For Availability
4
ELEMENT, BROIL (3000 WATTS) WPL 31967302 Contact Us For Availability
4
TRIM, TOP DOOR (BLK) WPL 31946401B Contact Us For Availability
4
BRKT, CLOCK (GENESIS) WPL 31937401 Contact Us For Availability
4
LINER, DRAWER PANEL (BLK) WPL 31942802B Contact Us For Availability
5
PANEL, SIDE (BSQ) WPL 32041003C Contact Us For Availability
5
NUT, LOCK (CENTER) No.10-32 (ZN) WPL 31750130 Contact Us For Availability
5
TECH SHEET, ELE RNG DCF4205Ax1 WPL 16021624 Contact Us For Availability
5
SHIELD, HEAT-DOOR GLASS (BLK) WPL 77001149 Contact Us For Availability
6
SHIELD, SIDE PANEL WPL 32034001 Contact Us For Availability
6
SENSOR, TEMPERTURE WPL 31954301 Contact Us For Availability
6
HEAT SHIELD (BLK) WPL 32039502B Contact Us For Availability
6
SWITCH, INFINITE CSI (Y) WPL 31926701 Contact Us For Availability
7
ASSY, BTM BRACE/LEVEL LEG-LT WPL 31968501 Contact Us For Availability
7
BOLT, SHOULDER 10-32 WPL 31750717 Contact Us For Availability
7
OVEN LIGHT ASSY WPL 31823701 Contact Us For Availability
7
ELEMENT, RIBBON 6`` 240V/1200W WPL 32082801 Contact Us For Availability
7
SWITCH, INFINITE CSI (B) WPL 31926702 Contact Us For Availability
8
BRACKET, MAINTOP (BLK) WPL 32040801B Contact Us For Availability
8
BRKT, SUPPORT-OVEN BTM WPL 31945401 Contact Us For Availability
8
BRACKET, ELEMENT WPL 31720701 Contact Us For Availability
9
GASKET, OVEN DOOR WPL 32057601 Contact Us For Availability
9
SCREW, OVEN BOTTOM WPL 31750723 Contact Us For Availability
9
HANDLE, OVEN DOOR (BLK) WPL 77001118 Contact Us For Availability
9
SCREW, No.8-32 X3/8 P TRS HD LP WPL 31750420 Contact Us For Availability
9
MTG BRACKET, BACKGUARD LT WPL 32030702 Contact Us For Availability
9
RIVET, POP WPL Y0097822 Contact Us For Availability
10
TRACK, MOUNTING WPL 32075601 Contact Us For Availability
10
NUT, SPEED WPL 31750129 Contact Us For Availability
10
GLASS, OVEN DOOR (BLK) WPL 32020401B Contact Us For Availability
10
SCREW, SHOULDER AB 6-20 X .825 WPL 31750715 Contact Us For Availability
10
BRKT, MTG-BKGD PIVOT (LT) WPL 32044002 Contact Us For Availability
10
BUMPER, OVEN DOOR WPL Y0063661 Contact Us For Availability
11
RECEIVER, HINGE WPL 31946801 Contact Us For Availability
11
BOTTOM, OVEN (CG) WPL 31940806CG Contact Us For Availability
11
ANGLE, GLASS SUPPORT (BLK) WPL 31944603B Contact Us For Availability
11
SUPPORT, BACKGUARD (BLK) LT WPL 31937602B Contact Us For Availability
12
ELEMENT, BAKE (240V-2800W) WPL 31967101 Contact Us For Availability
12
TRIM, SIDE DOOR LT (BLK) WPL 31944507B Contact Us For Availability
12
BACKGUARD PANEL-SCREEN WPL 77001012 Contact Us For Availability
12
BACKGUARD PANEL-PLAIN (BLK) WPL 77001169 Contact Us For Availability
13
BUSHING, DOOR HANDLE (BLK) WPL 31947901 Contact Us For Availability
13
KNOB, SWITCH (BLK) WPL 31942604B Contact Us For Availability
14
HINGE, OVEN DOOR (XXL) WPL 31946302 Contact Us For Availability
14
KNOB, CLOCK (BLK) WPL 32031301B Contact Us For Availability
15
RETAINER, REAR INSULATION WPL 77001037 Contact Us For Availability
15
RACK, OVEN-24.080`` X 17.750`` WPL 32016001J Contact Us For Availability
15
WINDOW BRKT, DR HT SHIELD WPL 32050601 Contact Us For Availability
15
LENS, INDICATOR WPL Y0316265 Contact Us For Availability
16
HEAT SHIELD, DRAWER WPL 32075901 Contact Us For Availability
16
GROUND STRAP WPL 31967801 Contact Us For Availability
16
WINDOW BRKT, DR HT SHIELD WPL 32050701 Contact Us For Availability
16
SUPPORT, BACKGUARD (BLK) RT WPL 31937606B Contact Us For Availability
17
ASSY, BTM BRACE/LEVEL LEG-RT WPL 31968502 Contact Us For Availability
17
FRAME, WINDOW PACK WPL 31941901 Contact Us For Availability
17
BRKT, MTG-BKGD PIVOT (RT) WPL 32044001 Contact Us For Availability
18
SWITCH, MICRO-CLASS N WPL 32041201 Contact Us For Availability
18
HEX NUT (NKL) WPL 31750124 Contact Us For Availability
18
SCREW, 8-32 X .312 TRHDWH(BLK) WPL 31750434 Contact Us For Availability
18
MTG BRACKET, BACKGUARD RT WPL 32030701 Contact Us For Availability
19
AUTO LATCH (ELECTRIC) WPL 77001108 Contact Us For Availability
19
BULB, LIGHT WPL Y0042175 Contact Us For Availability
19
SCREW, 10-24X .500 TRHDWH(BLK) WPL 31750530 Contact Us For Availability
19
SHIELD, BACKGUARD WPL 77001062 Contact Us For Availability
20
SWITCH, PLUNGER-CLASS N WPL 32041401 Contact Us For Availability
20
INSULATION, BACK WPL 31966301 Contact Us For Availability
20
SCREW, 10-32 X 2.00`` WPL 31750529 Contact Us For Availability
20
INSULATION, BACKGUARD WPL 77001063 Contact Us For Availability
21
COVER, LOWER REAR WPL 77001052 Contact Us For Availability
21
INSULATION, BOTTOM WPL 77001170 Contact Us For Availability
22
PLATE, ACCESS WPL 31757201 Contact Us For Availability
22
INSULATION, WRAPPER WPL 31966201 Contact Us For Availability
22
WASHER, FIBER (.188 ID/.500 OD WPL 31750016 Contact Us For Availability
23
RACEWAY, LOWER WIRE WPL 31955101 Contact Us For Availability
23
SMOKE ELIMINATOR WPL 77001150 Contact Us For Availability
23
CUSHION, GLASS (3/8 X 3/8) WPL 32035001 Contact Us For Availability
23
SCREW, No.8-32 X 1/4 WPL 31750714 Contact Us For Availability
24
CHAMBER, BAKE (ELECTRIC) WPL 77001061 Contact Us For Availability
24
BRACKET, ELECTRICAL CONNECTION WPL 32050501 Contact Us For Availability
25
PLATE, MAIN INLET WIRE WPL 0058311 Contact Us For Availability
27
SCREW, SHOULDER ABNo.8-18 X .550 WPL 31750718 Contact Us For Availability
29
ROLLER, DRAWER WPL 31733401 Contact Us For Availability
31
SCREW, No.8-32 X 5/16 PPH (BLK) WPL 31750402 Contact Us For Availability
32
LEG, PLASTIC LEVELING WPL 31949001B Contact Us For Availability
33
SCREW, No.8-18X5/8 P RD HD (BLK) WPL 31750412 Contact Us For Availability
34
BRACKET, ANTI TIP WPL 31945201 Contact Us For Availability
35
ANCHOR, PLASTIC WPL Y0301555 Contact Us For Availability
NI
LIMIT CONTROL WPL 77001054 Contact Us For Availability
NI
ASSY, ANTI TIP WPL 77001171 Contact Us For Availability
NI
WIRING INFORMATION WPL 15003076 Contact Us For Availability
NI
INSULATION, DOOR WPL 31947501 Contact Us For Availability
NI
HARNESS, RADIANT LT WPL 77001050 Contact Us For Availability
NI
HARNESS, RADIANT RT WPL 77001051 Contact Us For Availability
NI
HARNESS, AUTOLATCH WPL 77001060 Contact Us For Availability
NI
HARNESS, BACKGUARD (GENESIS) WPL 77001074 Contact Us For Availability
× ![]()
