Model Whirlpool ACE244XP0 AIR CONDITIONER – Common Parts & Diagrams
05 - INSTALLATION PARTS

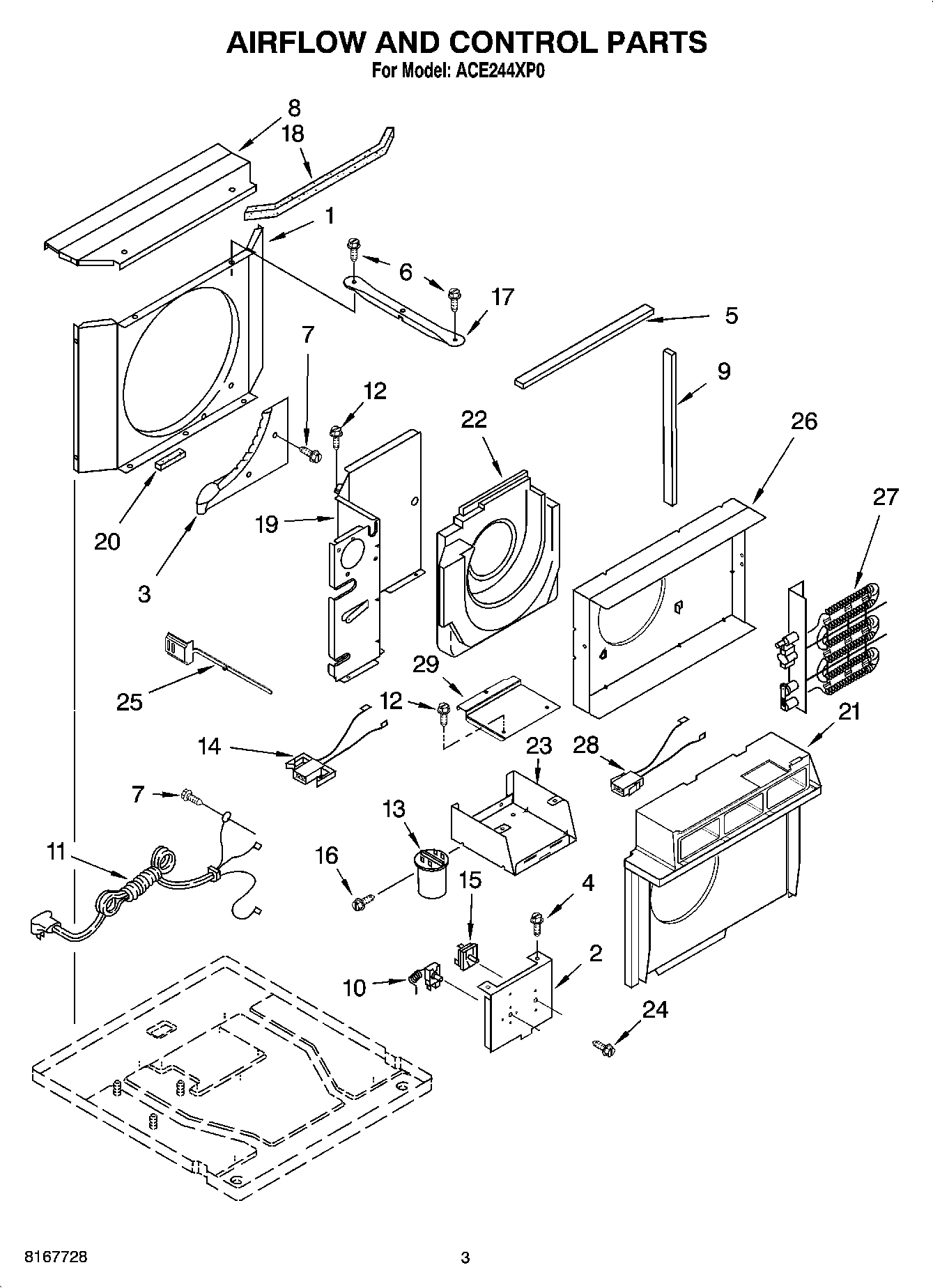

02 - AIRFLOW AND CONTROL PARTS

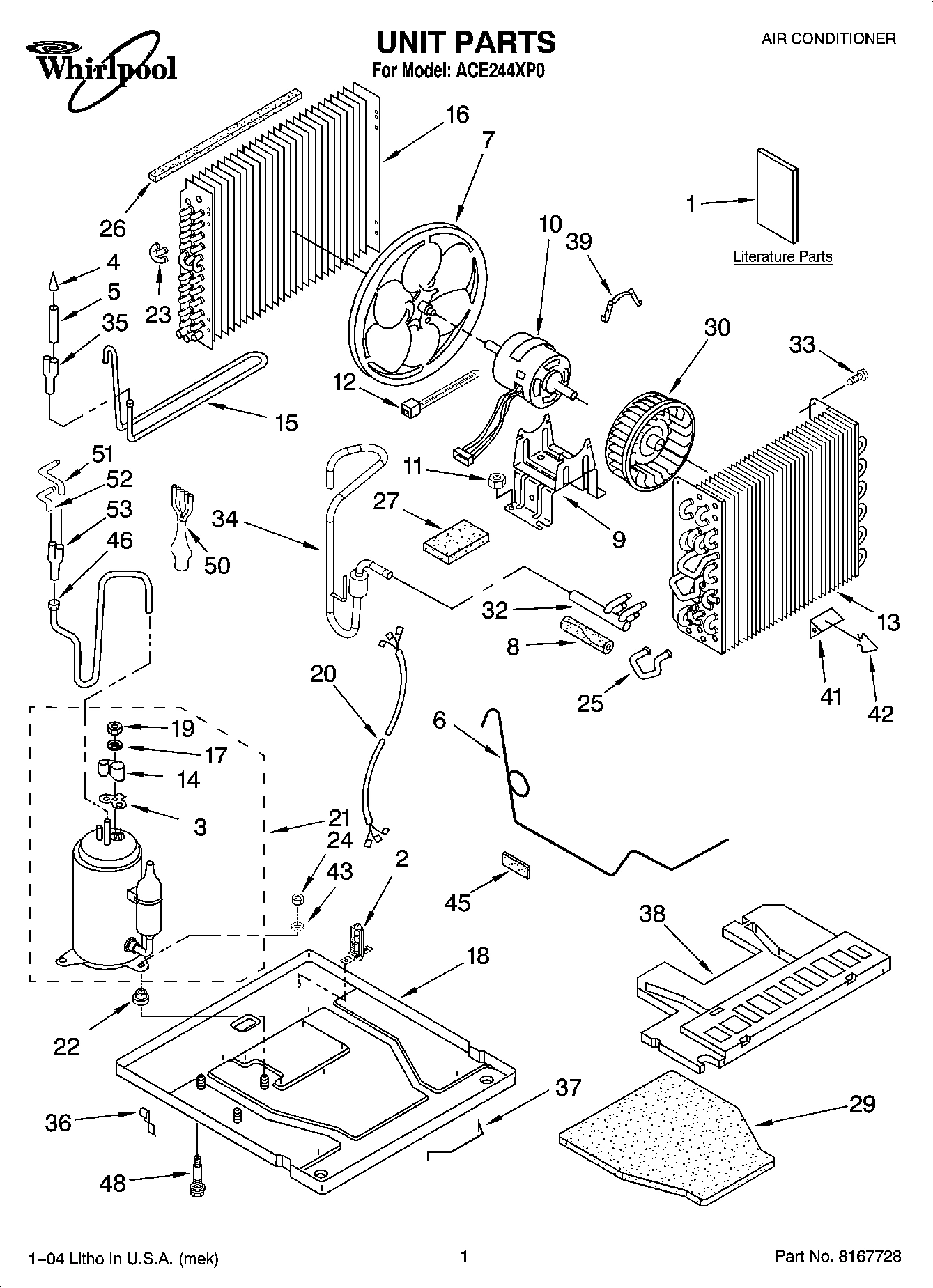

01 - UNIT PARTS

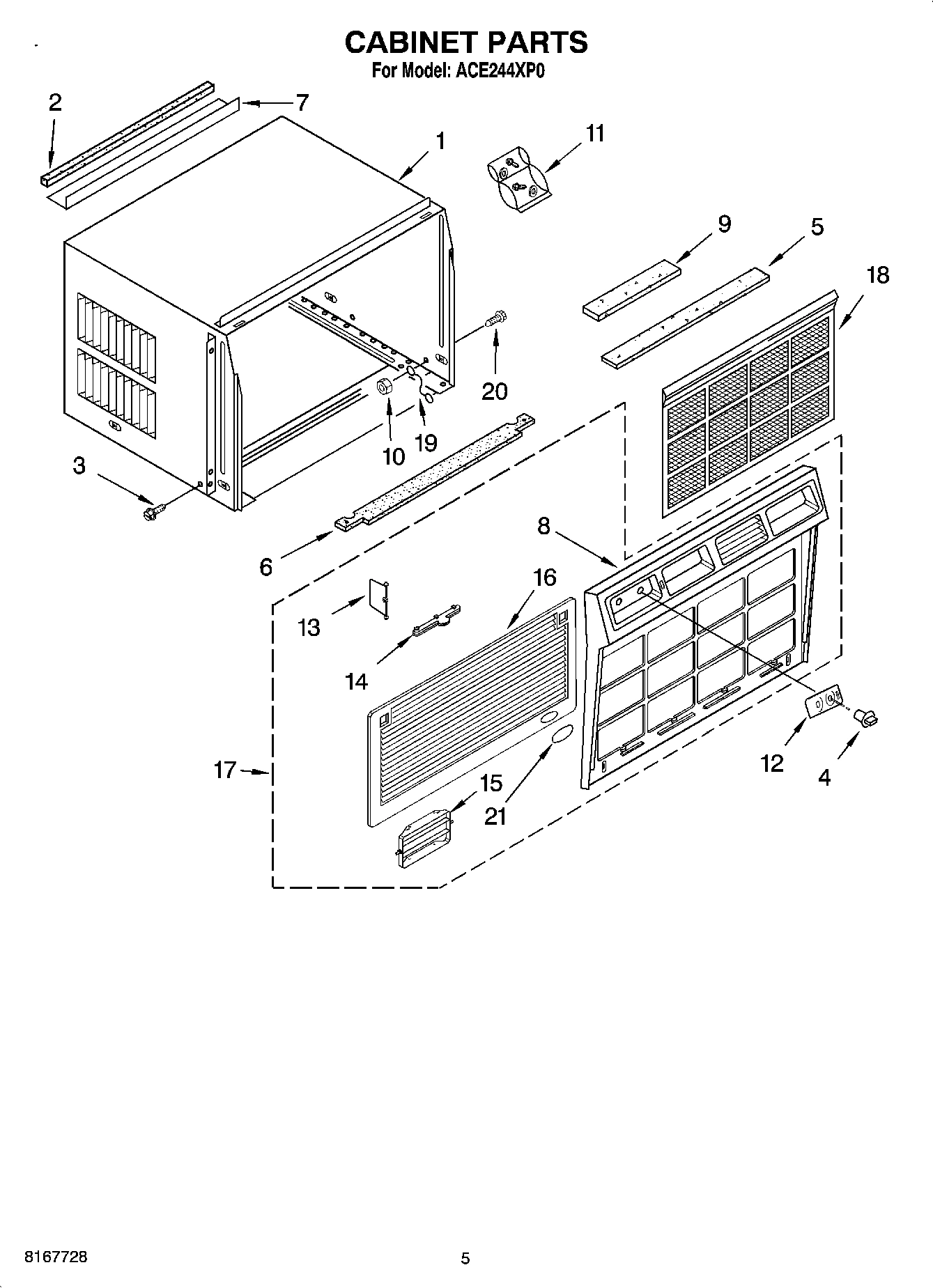

03 - CABINET PARTS

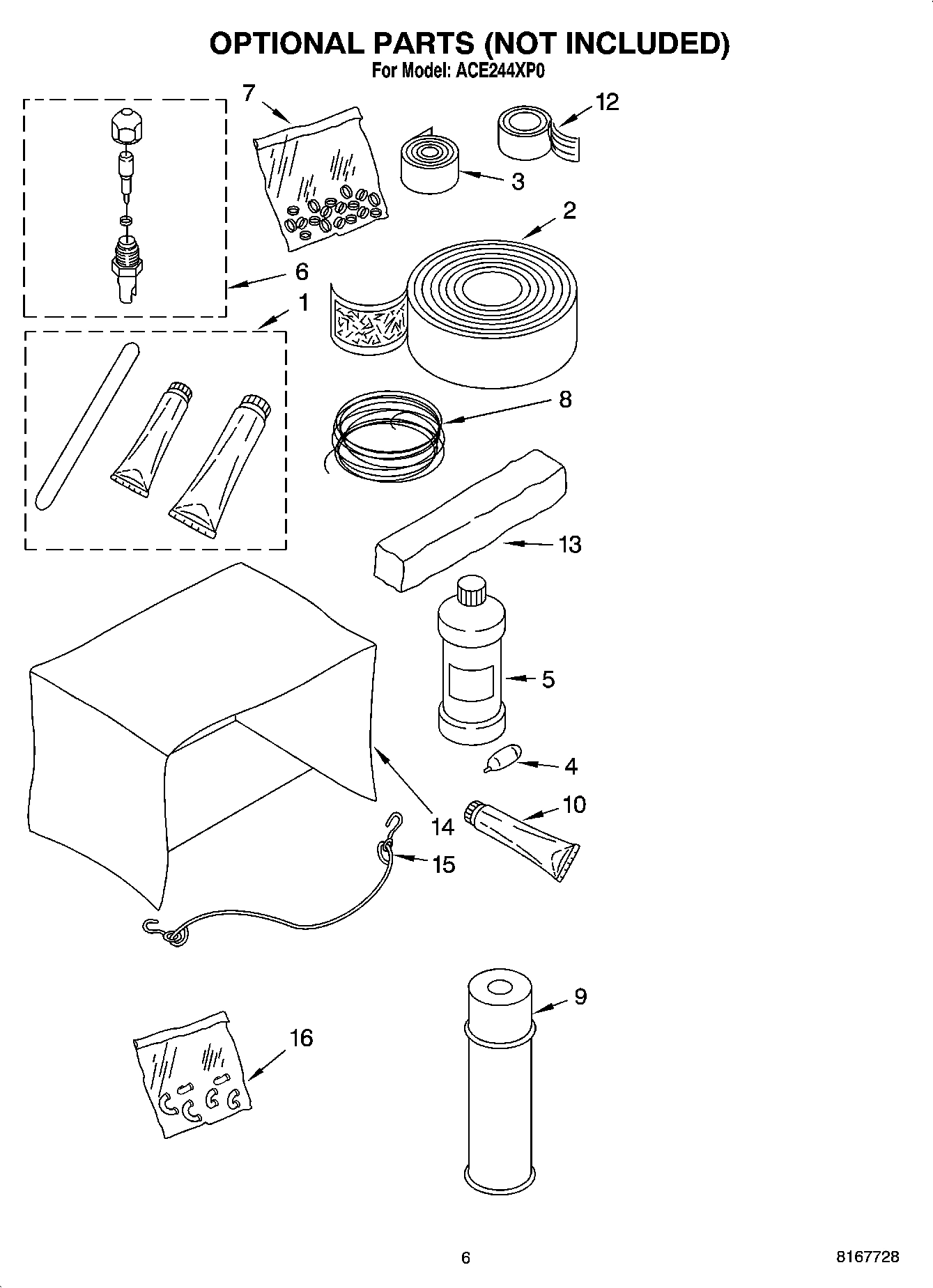

04 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Whirlpool ACE244XP0 AIR CONDITIONER
1
Literature Parts (Use & Care Guide) WPL LIT1186898 Contact Us For Availability
1
Energy Guide WPL LIT1187252 Contact Us For Availability
1
Literature Parts (Wiring Diagram) WPL LIT8011287 Contact Us For Availability
1
Cabinet WPL 1185518 Contact Us For Availability
1
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Valve, Drain Pan WPL 1187761 Contact Us For Availability
2
Gasket, Meeting Rail WPL 469877 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Gasket, Terminal Cover WPL 1182356 Contact Us For Availability
4
Strainer, Tube WPL 49599 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
5
Seal (Top) WPL 1185513 Contact Us For Availability
5
Tube, Outlet (Includes Illus. 4) WPL 1163768 Contact Us For Availability
5
Seal, Hood (Large) WPL 1187359 Contact Us For Availability
5
Oil, Turbine 8 Oz. WPL 99243 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Tube, Restrictor (4) WPL 1186540 Contact Us For Availability
6
Seal WPL 1160768 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
7
Blade, Fan (Condenser) WPL 1158665 Contact Us For Availability
7
Angle, Top Mounting WPL 1168490 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
8
Lockwasher (6) WPL 486009 No Longer Available
8
Top, Condenser WPL 1157407 Contact Us For Availability
8
Seal, Suction Tube WPL 1185481 Contact Us For Availability
8
Frame, Front WPL 1186037 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
9
Seal (Side) WPL 1185911 Contact Us For Availability
9
Bracket, Fan Motor WPL 1160672 Contact Us For Availability
9
Seal, Hood (Small) WPL 1181735 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
10
Thermostat WPL 1185753 Contact Us For Availability
10
Motor, Fan WPL 1186579 Contact Us For Availability
11
Cord, Appliance WPL 1186588 Contact Us For Availability
11
Bag, Accessory WPL 1186155 Contact Us For Availability
12
Screw, 8-15 x .375 WPL 488624 Contact Us For Availability
12
ESCUTCHEON WPL 1185780 Contact Us For Availability
13
Capacitor WPL 1186639 Contact Us For Availability
13
Evaporator WPL 1186027 Contact Us For Availability
13
Louver, Verticle WPL 1185541 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Harness, Heater WPL 1186586 Contact Us For Availability
14
Cover, Terminal WPL 1182355 Contact Us For Availability
14
Link, Verticle Louver (2) WPL 8011106 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
15
Cartridge WPL 1185540 Contact Us For Availability
15
Switch, Rotary WPL 1186500 Contact Us For Availability
15
Wet, Loop WPL 1185519 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
16
Condenser WPL 1185737 Contact Us For Availability
16
Door, Filter WPL 1187336 Contact Us For Availability
16
Return Bend ReplacementKit (5/16 Inch Tube) WPL 4388784 Contact Us For Availability
16
Return Bend ReplacementKit (3/8 Inch Tube) WPL 4388785 Contact Us For Availability
17
Support, Unit (2) WPL 1166169 Contact Us For Availability
17
Gasket, Nut WPL 1182120 Contact Us For Availability
17
Front, Complete WPL 1187343 Contact Us For Availability
18
Filter WPL 1185523 Contact Us For Availability
18
Seal, Shroud WPL 1158732 Contact Us For Availability
18
Base WPL 1185852 Contact Us For Availability
19
Dividing Wall WPL 1185505 Contact Us For Availability
19
Wire, Ground WPL 1186627 Contact Us For Availability
20
Seal, Cup WPL 1163332 Contact Us For Availability
20
Harness, Wiring Compressor WPL 1187119 Contact Us For Availability
21
Shroud Assembly, Evaporator WPL 1187338 Contact Us For Availability
21
Compressor WPL 1186521 Contact Us For Availability
21
Nameplate WPL 1187171 Contact Us For Availability
22
Housing, Air WPL 1187339 Contact Us For Availability
22
Grommet (3) WPL 1165973 Contact Us For Availability
23
Control Box WPL 1185529 Contact Us For Availability
23
Return Bend 3-Way Condenser (1) WPL 1158685 Contact Us For Availability
24
Screw, WPL 488734 Contact Us For Availability
24
Locknut (3) Connect WPL 858121 Contact Us For Availability
25
Door, Exhaust WPL 1185506 Contact Us For Availability
25
Tube, Crossover WPL 1185265 Contact Us For Availability
26
Evaporator, Shroud WPL 1185747 Contact Us For Availability
27
Element, Heating WPL 1186163 Contact Us For Availability
27
Putty, Sound Dampener WPL 1182480 Contact Us For Availability
28
Plug, Heater Harness WPL 1186546 Contact Us For Availability
29
Cover, Control Box WPL 1186663 Contact Us For Availability
29
Insulation, Base (Bottom) WPL 1167085 Contact Us For Availability
30
Wheel, Blower (Evaporator) WPL 1185544 Contact Us For Availability
32
Manifold, Suction WPL 1186028 Contact Us For Availability
34
Tube, Suction WPL 1186641 Contact Us For Availability
35
Tube, Flow Divider WPL 947364 Contact Us For Availability
36
Clamp (2) WPL 471088 Contact Us For Availability
37
Handle, Base WPL 647971 Contact Us For Availability
38
Pan, Drain WPL 1185843 Contact Us For Availability
41
Anticipator WPL 1166782 Contact Us For Availability
42
Clip, Anticipator WPL 642080 Contact Us For Availability
45
Seal, Restrictor Tube WPL 1163759 Contact Us For Availability
46
Tube, Discharge WPL 1182750 Contact Us For Availability
48
Bolt, Compressor WPL 1165674 Contact Us For Availability
50
Distributor WPL 1184612 Contact Us For Availability
51
Tube, Feeder WPL 1186003 Contact Us For Availability
52
Tube, Feeder WPL 1186002 Contact Us For Availability
53
Tube, Flow Divider (Includes 51 & 52) WPL 1159832 Contact Us For Availability
53
REFRIGERANT CHARGE 42.50 oz. WPL ARI144043A Contact Us For Availability
× ![]()
