Model Whirlpool ACE124XK0 Air Conditioner – Common Parts & Diagrams

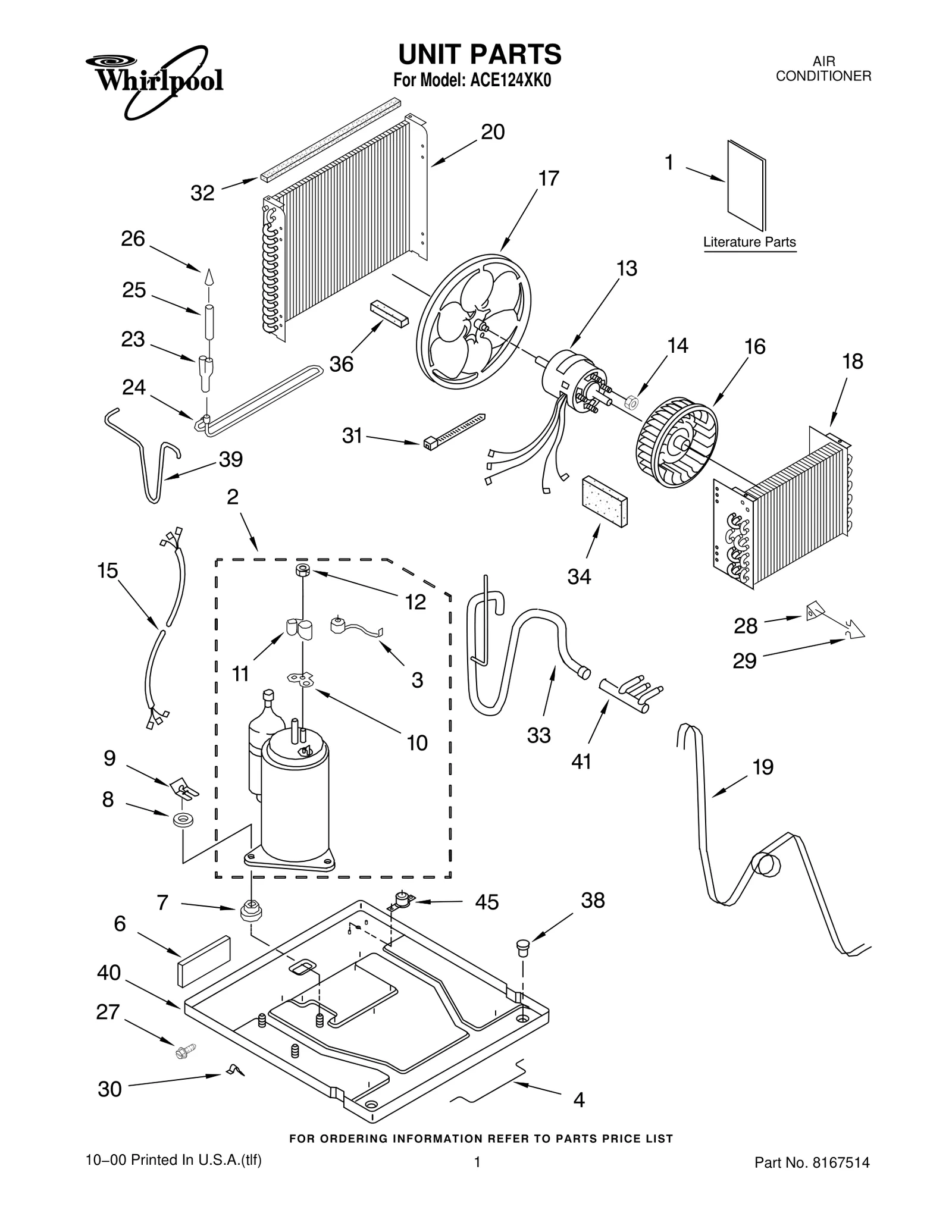

UNIT PARTS

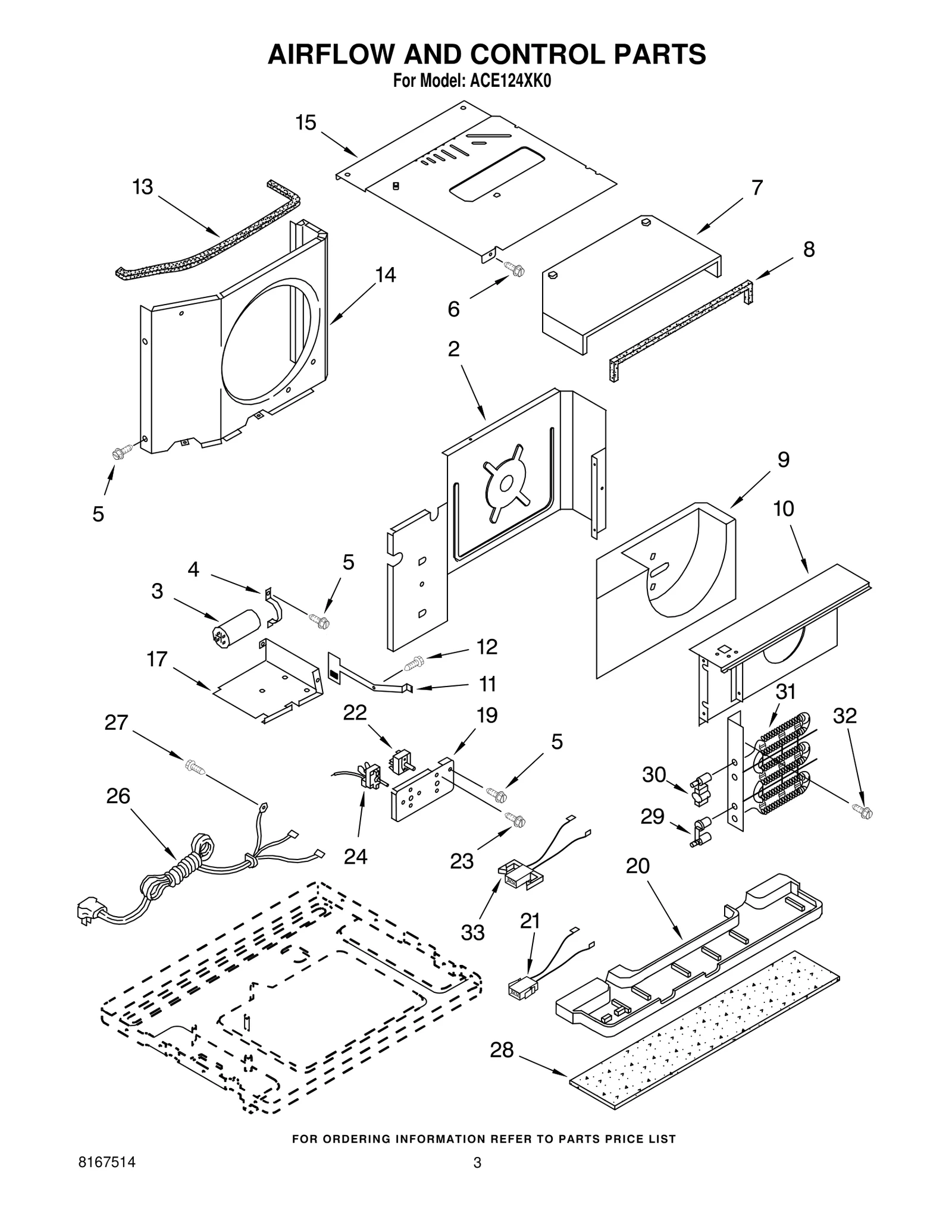

AIRFLOW AND CONTROL PARTS

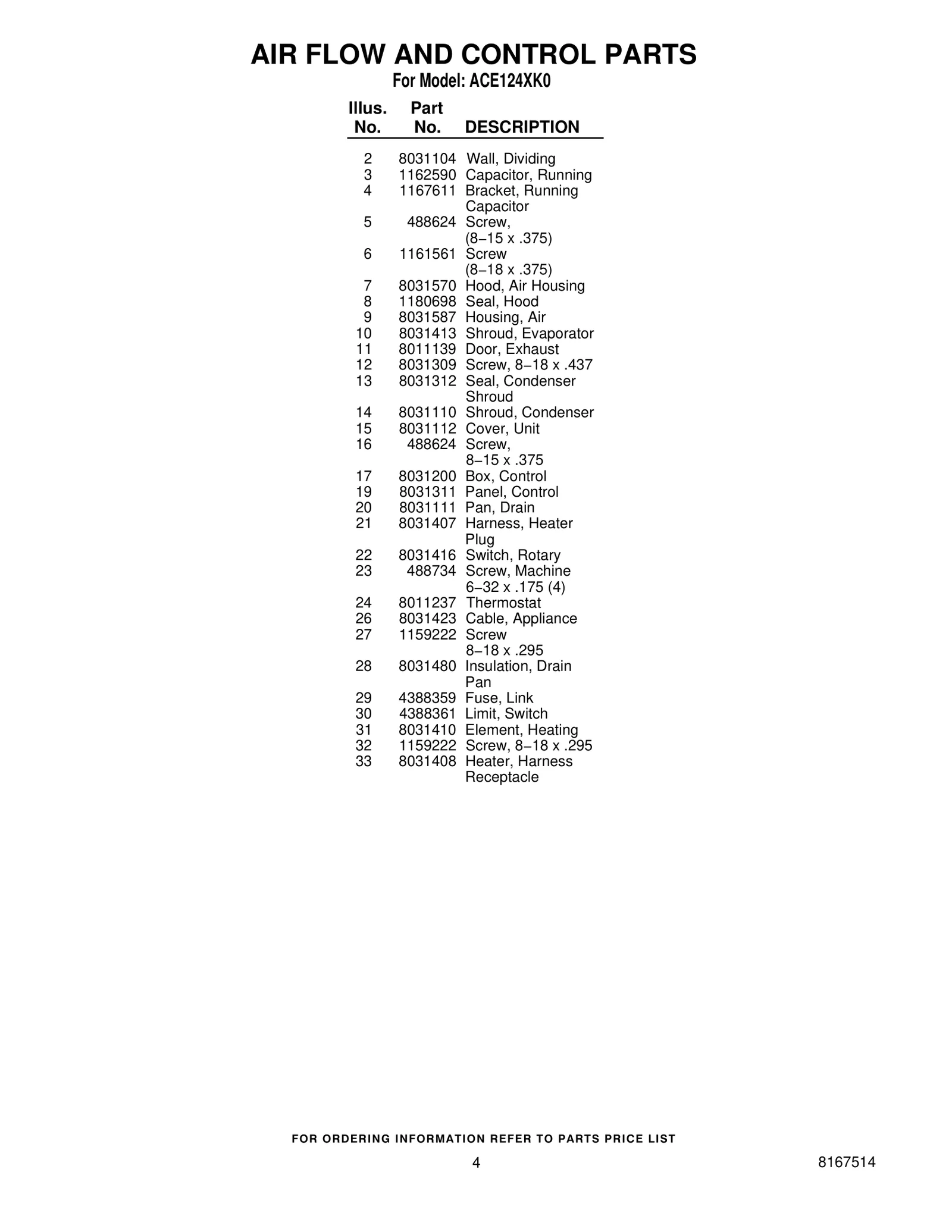

AIR FLOW AND CONTROL PARTS

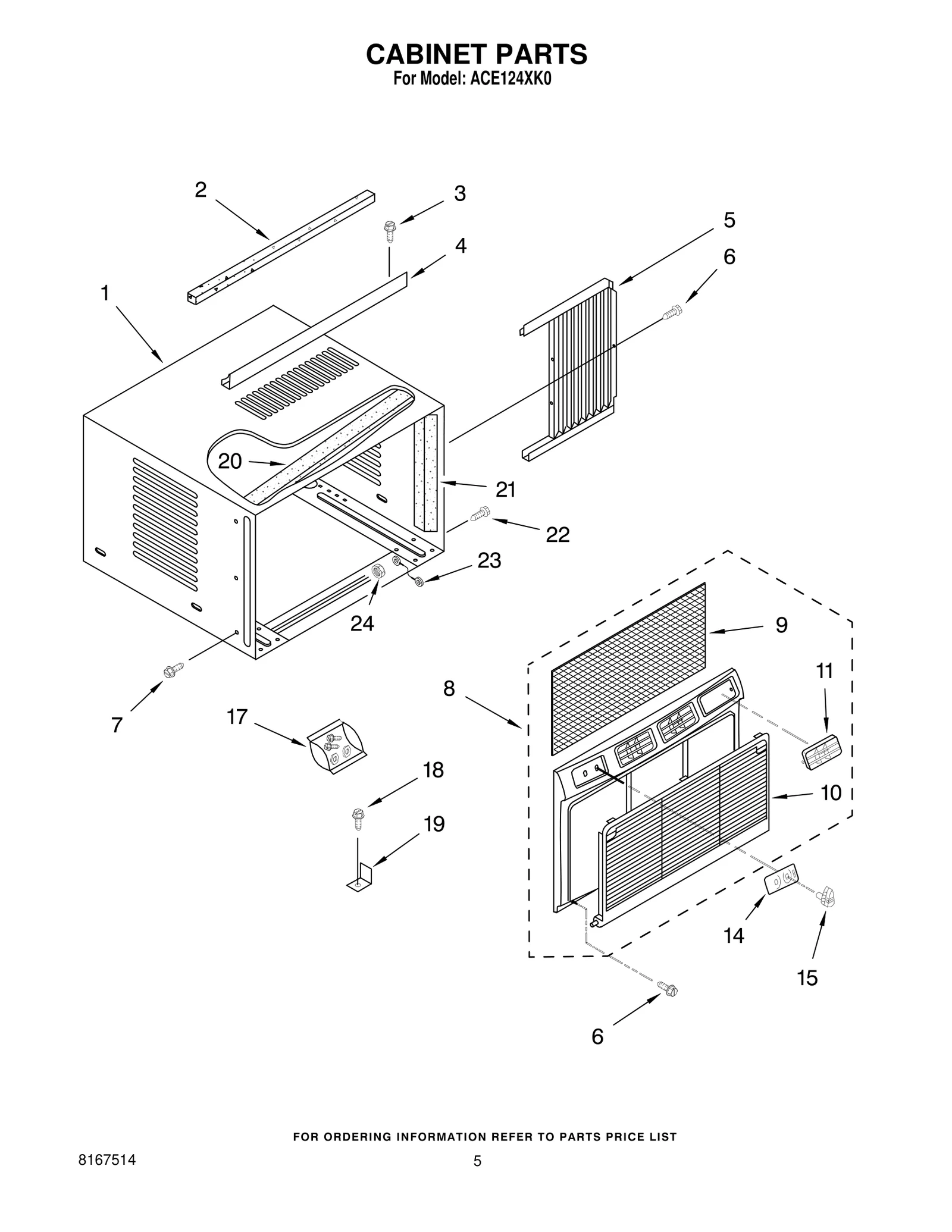

CABINET PARTS

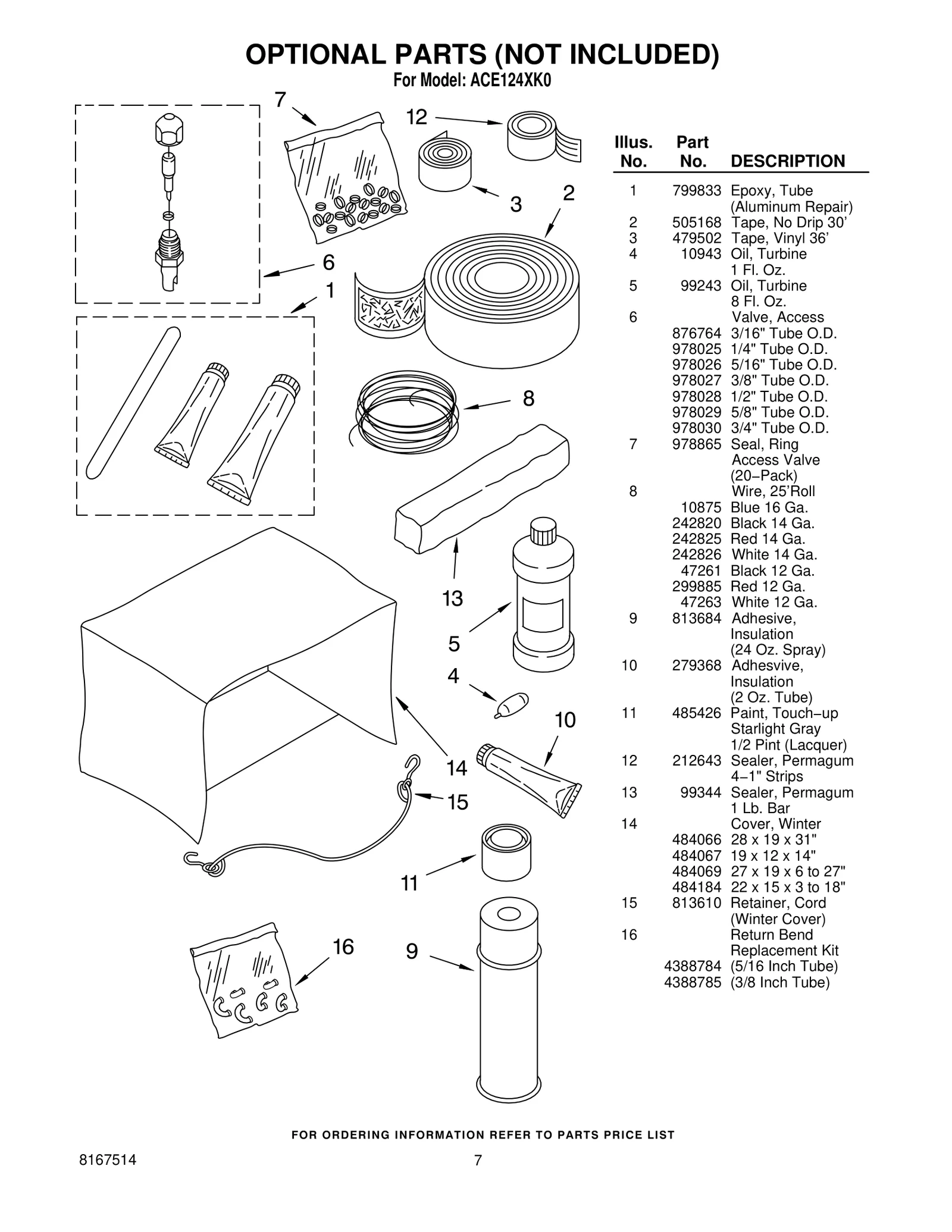

OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Whirlpool ACE124XK0 Air Conditioner
1
Cabinet WPL 8031388 Contact Us For Availability
2
Wall, Dividing WPL 8031104 Contact Us For Availability
2
Seal, Meeting Rail WPL 469877 Contact Us For Availability
3
Capacitor, Running WPL 1162590 Contact Us For Availability
4
Bracket, Running Capacitor WPL 1167611 Contact Us For Availability
4
Channel, Top WPL 8031401 Contact Us For Availability
5
(Right Side) WPL 8031397 Contact Us For Availability
5
(Left Side) WPL 8031399 Contact Us For Availability
6
Screw WPL 1161561 Contact Us For Availability
7
Screw 8−15 x .375 WPL 488624 Contact Us For Availability
7
Hood, Air Housing WPL 8031570 Contact Us For Availability
8
Front WPL 8031515 Contact Us For Availability
9
Filter WPL 8031292 Contact Us For Availability
9
Housing, Air WPL 8031587 Contact Us For Availability
10
Shroud, Evaporator WPL 8031413 Contact Us For Availability
10
Grille, Front WPL 8031124 Contact Us For Availability
11
Louver Assembly WPL 8031202 Contact Us For Availability
11
Door, Exhaust WPL 8011139 Contact Us For Availability
12
Screw, 8−18 x .437 WPL 8031309 Contact Us For Availability
13
Seal, Condenser Shroud WPL 8031312 Contact Us For Availability
14
Shroud, Condenser WPL 8031110 Contact Us For Availability
14
Escutcheon WPL 1184592 Contact Us For Availability
15
Cover, Unit WPL 8031112 Contact Us For Availability
16
Wheel, Blower WPL 1163783 Contact Us For Availability
17
Blade, Fan WPL 1156979 Contact Us For Availability
17
Box, Control WPL 8031200 Contact Us For Availability
17
Bag, Accessory WPL 1157654 Contact Us For Availability
18
Screw, Wood 8−15 x .750 WPL 488255 Contact Us For Availability
19
Panel, Control WPL 8031311 Contact Us For Availability
19
Bracket, Window Lock WPL 644228 Contact Us For Availability
20
Pan, Drain WPL 8031111 Contact Us For Availability
20
Seal, Top Cover WPL 8031322 Contact Us For Availability
21
Harness, Heater Plug WPL 8031407 Contact Us For Availability
21
Seal, Cabinet Side (2) WPL 8031519 Contact Us For Availability
22
Switch, Rotary WPL 8031416 Contact Us For Availability
23
Screw, Machine 6−32 x .175 (4) WPL 488734 Contact Us For Availability
23
Wire, Ground WPL 856094 Contact Us For Availability
24
Thermostat WPL 8011237 Contact Us For Availability
26
Cable, Appliance WPL 8031423 Contact Us For Availability
28
Anticipator, Temperature WPL 1166782 Contact Us For Availability
28
Insulation, Drain Pan WPL 8031480 Contact Us For Availability
29
Clip, Temperature Anticipator WPL 642080 Contact Us For Availability
29
Fuse, Link WPL 4388359 Contact Us For Availability
30
Clamp, Tube WPL 471088 Contact Us For Availability
30
Limit, Switch WPL 4388361 Contact Us For Availability
31
Element, Heating WPL 8031410 Contact Us For Availability
32
Seal WPL 1181735 Contact Us For Availability
32
Screw, 8−18 x .295 WPL 1159222 Contact Us For Availability
33
Tube, Suction WPL 1185169 Contact Us For Availability
33
Heater, Harness Receptacle WPL 8031408 Contact Us For Availability
34
Insulation, Suction Tube WPL 1165440 Contact Us For Availability
38
Cup, Condensate WPL 1184776 Contact Us For Availability
39
Tube, Discharge WPL 8031522 Contact Us For Availability
40
Base WPL 1185018 Contact Us For Availability
41
Tube, Flow Divider WPL 8031259 Contact Us For Availability
45
Valve, Condensate REFRIGERANT CHARGE 28.00 oz WPL 998612 Contact Us For Availability
OPT-1
Epoxy, Tube WPL 799833 Contact Us For Availability
OPT-2
Tape, No Drip 30’ WPL 505168 Contact Us For Availability
OPT-3
Tape, Vinyl 36’ WPL 479502 Contact Us For Availability
OPT-4
Oil, Turbine WPL 10943 Contact Us For Availability
OPT-5
Oil, Turbine WPL 99243 Contact Us For Availability
OPT-10
1/2" Tube O.D. WPL 978028 Contact Us For Availability
OPT-11
5/8" Tube O.D. WPL 978029 Contact Us For Availability
OPT-13
Seal, Ring WPL 978865 Contact Us For Availability
OPT-14
Blue 16 Ga. WPL 10875 Contact Us For Availability
OPT-15
Black 14 Ga. WPL 242820 Contact Us For Availability
OPT-16
Red 14 Ga. WPL 242825 Contact Us For Availability
OPT-17
White 14 Ga. WPL 242826 Contact Us For Availability
OPT-18
Black 12 Ga. WPL 47261 Contact Us For Availability
OPT-19
Red 12 Ga. WPL 299885 Contact Us For Availability
OPT-20
White 12 Ga. WPL 47263 Contact Us For Availability
OPT-21
Adhesive, WPL 813684 Contact Us For Availability
OPT-23
Paint, Touch−up WPL 485426 Contact Us For Availability
OPT-26
28 x 19 x 31" WPL 484066 No Longer Available
OPT-27
19 x 12 x 14" WPL 484067 Contact Us For Availability
OPT-28
27 x 19 x 6 to 27" WPL 484069 Contact Us For Availability
OPT-29
22 x 15 x 3 to 18" WPL 484184 Contact Us For Availability
OPT-30
Retainer, Cord WPL 813610 Contact Us For Availability
OPT-31
(5/16 Inch Tube) WPL 4388784 Contact Us For Availability
OPT-32
(3/8 Inch Tube) WPL 4388785 Contact Us For Availability
× ![]()
