Model Maytag ACC6340KFB00 COOKTOP, ELECTRIC COIL, BUILT-IN – Common Parts & Diagrams

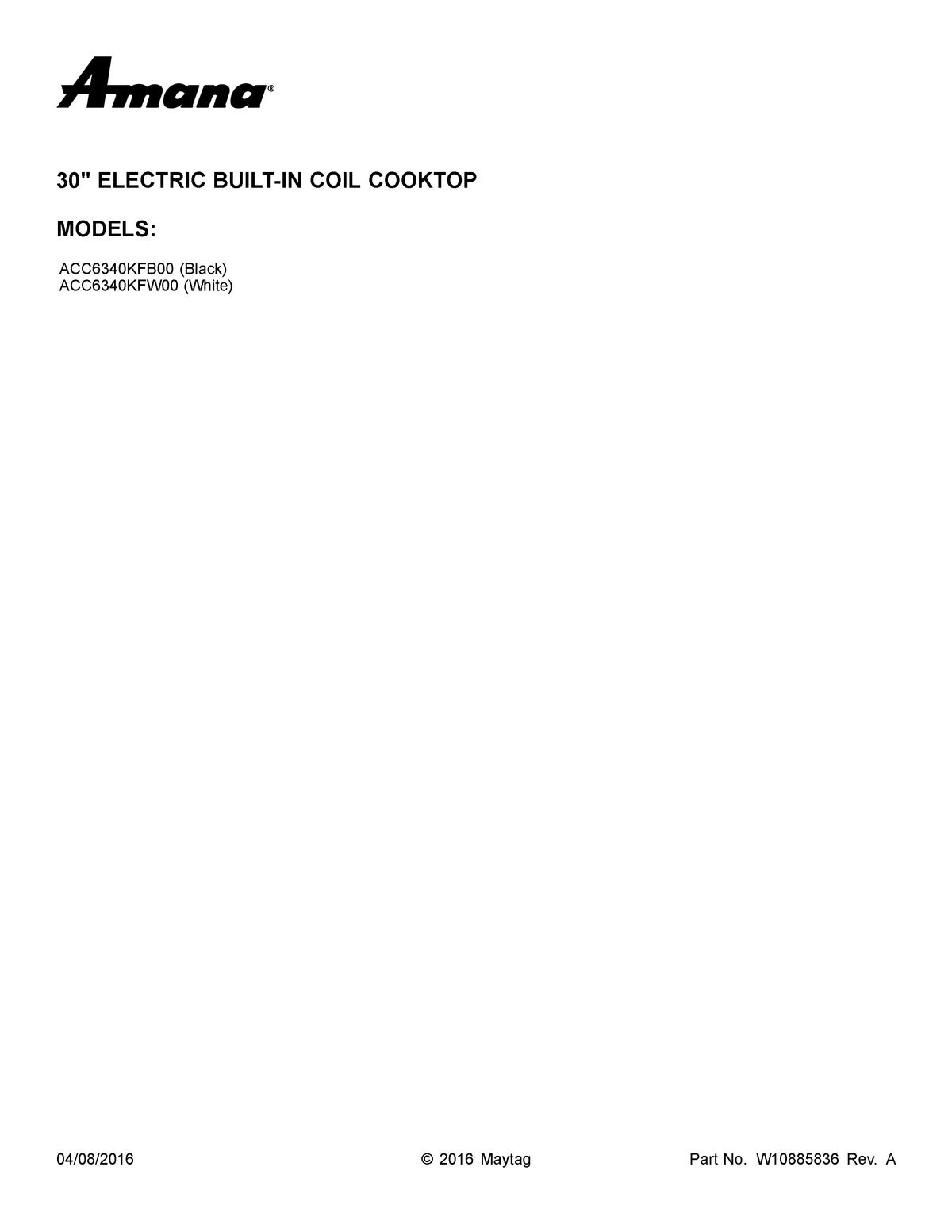

01 - COVER SHEET

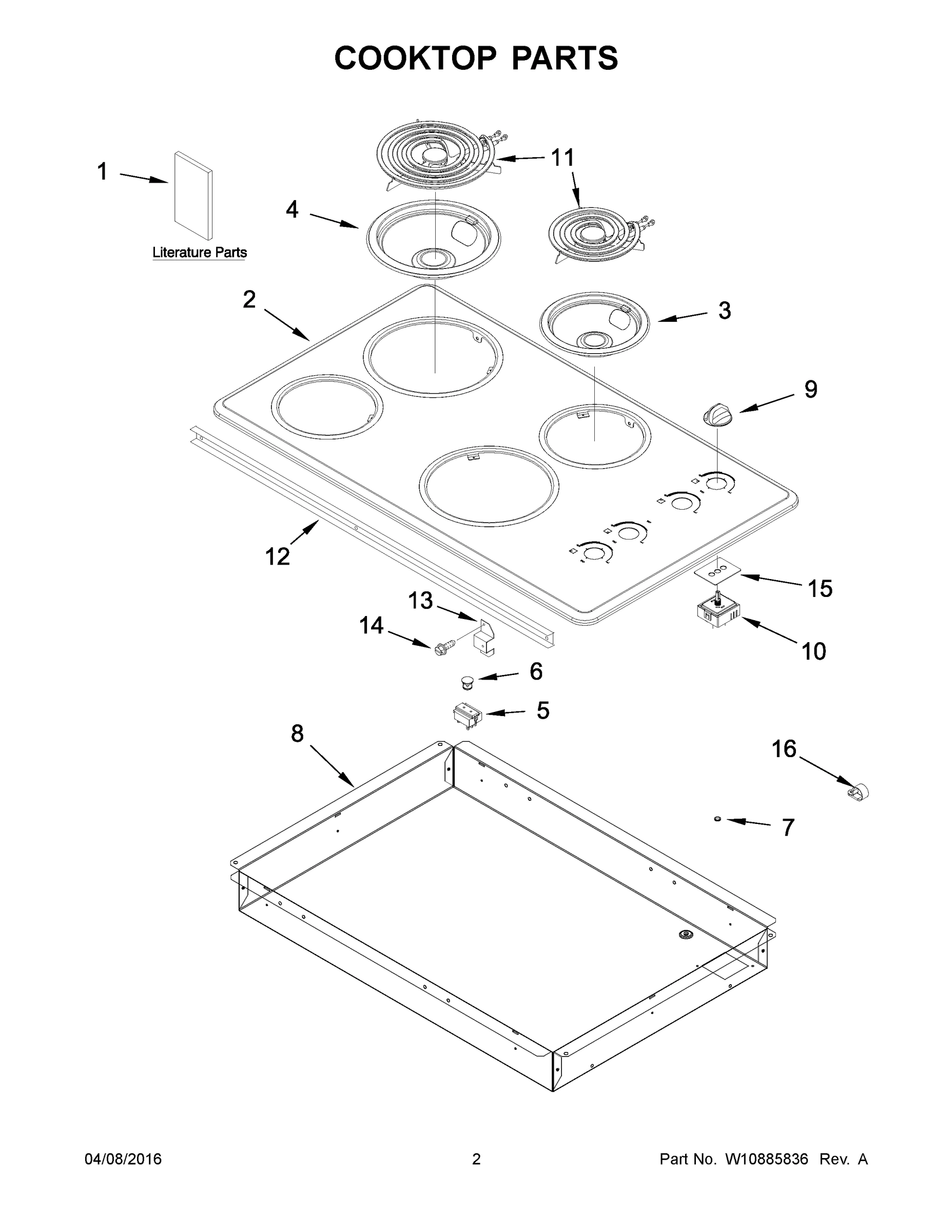

02 - COOKTOP PARTS
Common parts from model Maytag ACC6340KFB00 COOKTOP, ELECTRIC COIL, BUILT-IN
1B
MAY 9762761 MAY 9762761 Contact Us For Availability
1C
TIPS, SAFE COOKING (FRENCH) MAY W10065852 Contact Us For Availability
1D
MAY W10852773 MAY W10852773 Contact Us For Availability
2
MAY W10828615 MAY W10828615 Contact Us For Availability
2A
MAY W10828619 MAY W10828619 Contact Us For Availability
3
BOWL, DRIP SMALL MAY 7725P053-60 Contact Us For Availability
4
BOWL, DRIP LARGE MAY 7725P054-60 Contact Us For Availability
7
MAY 8008P010-60 MAY 8008P010-60 Contact Us For Availability
9
MAY W10270282 MAY W10270282 Contact Us For Availability
9A
MAY W10270283 MAY W10270283 Contact Us For Availability
10
SWITCH, INFINITE (LEFT FRONT & RIGHT REAR) MAY W10326246 Contact Us For Availability
10A
INFINITE SWIITCH (LEFT REAR & RIGHT FRONT) MAY W10600015 Contact Us For Availability
11
MAY W10828616 MAY W10828616 Contact Us For Availability

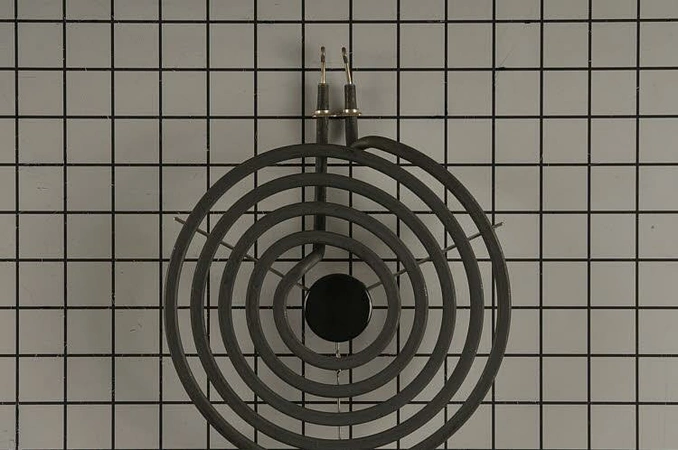

11A
MAY W10828617 MAY W10828617 Contact Us For Availability
12
BRACE, TOP MAY 3802F070-51 Contact Us For Availability
13
BRACKET, MAIN TOP MAY 3801F183-45 Contact Us For Availability
14
MAY 7101P336-60 MAY 7101P336-60 Contact Us For Availability
15
MAY 7212P030-60 MAY 7212P030-60 Contact Us For Availability
16
CLAMP, WIRE MAY 7111P002-60 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability

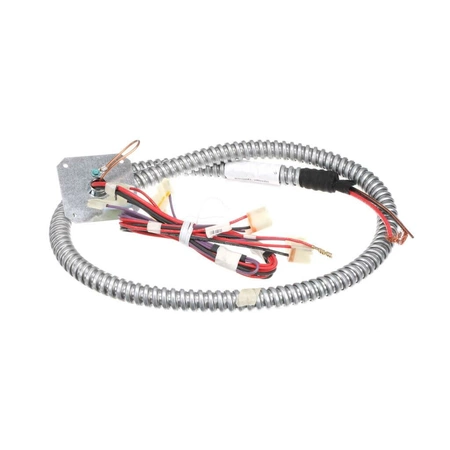

NI
MAY W10845395 MAY W10845395 Contact Us For Availability
NI
MAY W10845396 MAY W10845396 Contact Us For Availability
× ![]()
