Model Electrolux AC056N7A1 ROOM AIR CONDITIONER – Common Parts & Diagrams
02 - CABINET PARTS
03 - AIR HANDLING PARTS

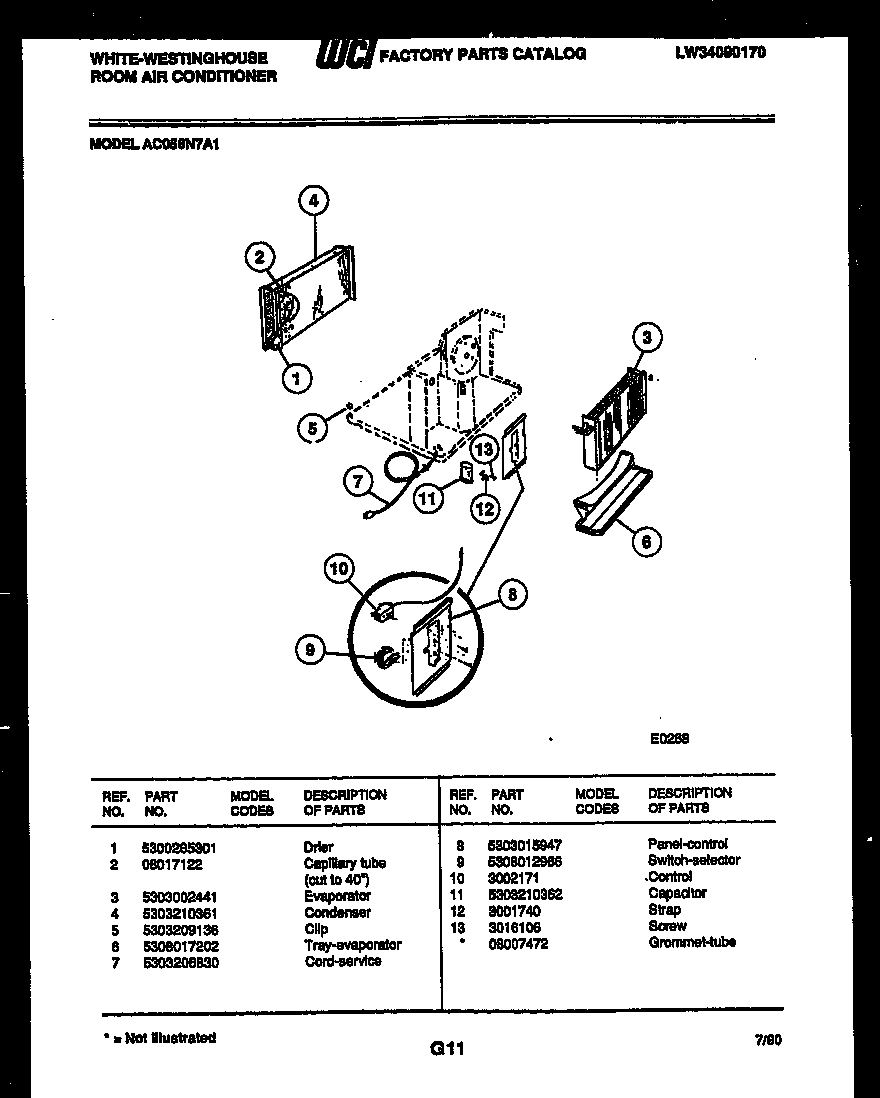

04 - ELECTRICAL PARTS

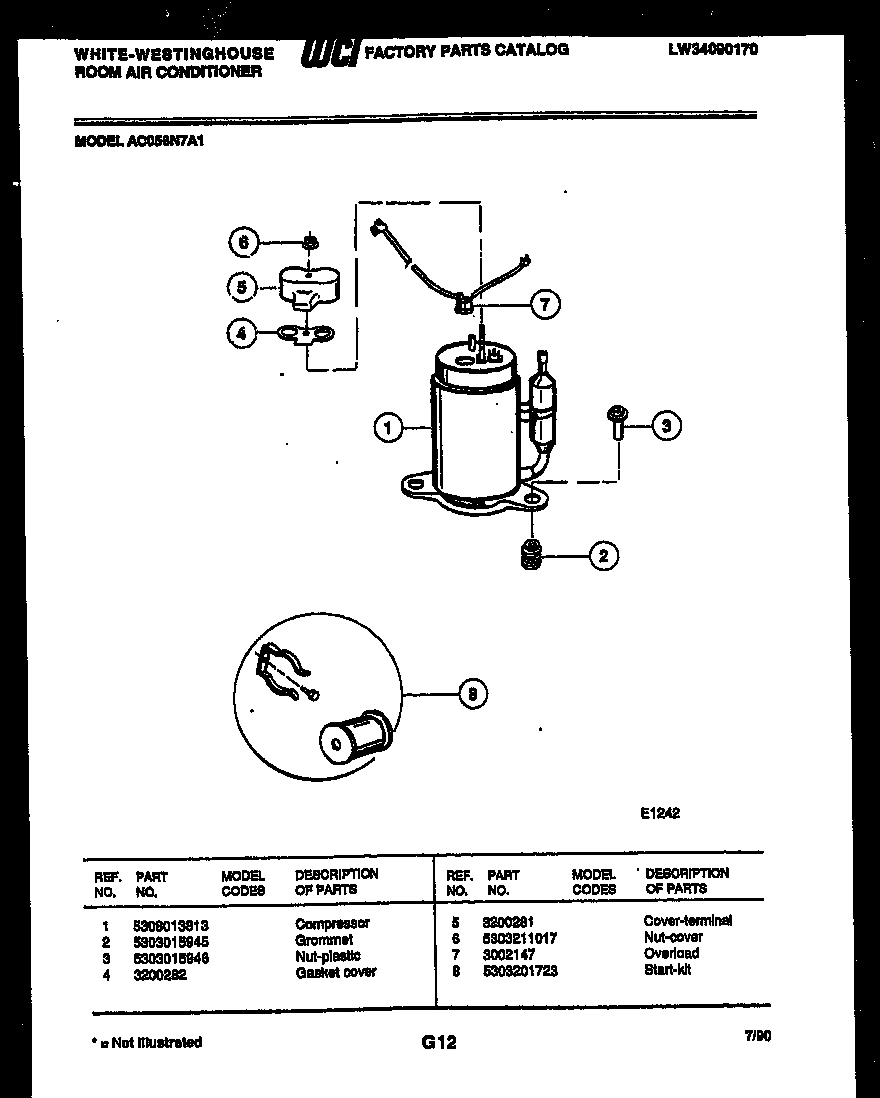

05 - COMPRESSOR PARTS

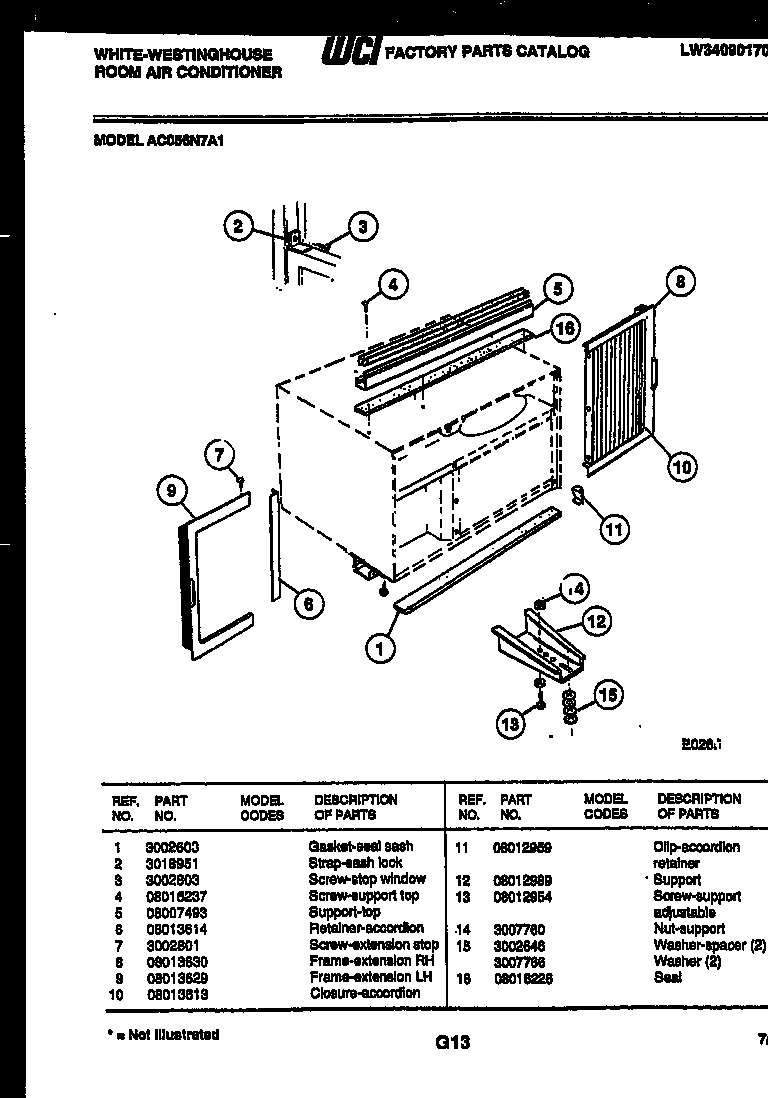

06 - CABINET AND INSTALLATION PARTS
Common parts from model Electrolux AC056N7A1 ROOM AIR CONDITIONER
*32369
WCI 3014763 WCI 3014763 Contact Us For Availability
*32370
GROMMET-TUBE WCI 08007472 Contact Us For Availability
1
WRAPPER WCI 3016092 Contact Us For Availability
1
BLADE-COND WCI 5303002074 Contact Us For Availability
1
WCI 5308013813 WCI 5308013813 Contact Us For Availability
2
LOUVER & LINK ASSY WCI 5303002457 Contact Us For Availability
2
WCI 5303200891 WCI 5303200891 Contact Us For Availability
2
CAPILLARY TUBE (CUT TO 40``) WCI 08017122 Contact Us For Availability
2
GROMMET WCI 5303015945 Contact Us For Availability
2
STRAP-SASH LOCK WCI 3018951 Contact Us For Availability
3
WCI 5303002160 WCI 5303002160 Contact Us For Availability
3
WCI 5303002441 WCI 5303002441 Contact Us For Availability
3
NUT (PLASTIC) WCI 5303015946 Contact Us For Availability
3
SCREW-STOP WINDOW WCI 3002803 Contact Us For Availability
4
CLIP-LINK DETENT WCI 5303001844 Contact Us For Availability
4
SCREW-FAN MTR MTG WCI 5303001817 Contact Us For Availability
4
WCI 5303210361 WCI 5303210361 Contact Us For Availability
4
GASKET-COVER WCI 3200282 Contact Us For Availability
4
WCI 08016237 WCI 08016237 Contact Us For Availability
5
LINK-LOUVER LH WCI 5303002165 Contact Us For Availability
5
WCI 5303209086 WCI 5303209086 Contact Us For Availability
5
CLIP WCI 5303209136 Contact Us For Availability
5
COVER-TERMINAL WCI 3200281 Contact Us For Availability
5
WCI 08007493 WCI 08007493 Contact Us For Availability
6
WCI 3016094 WCI 3016094 Contact Us For Availability
6
MOTOR-FAN FLEX MTG 3 SPEED WCI 5303209656 Contact Us For Availability
6
TRAY-EVAPORATOR WCI 5308017202 Contact Us For Availability
6
WCI 5303211017 WCI 5303211017 Contact Us For Availability
6
WCI 08013614 WCI 08013614 Contact Us For Availability
7
WCI 5303016095 WCI 5303016095 Contact Us For Availability
7
WCI 5303206830 WCI 5303206830 Contact Us For Availability
7
OVERLOAD WCI 3002147 Contact Us For Availability
7
SCREW-EXTENSION STOP WCI 3002801 Contact Us For Availability
8
WCI 3016096 WCI 3016096 Contact Us For Availability
8
SEAL-COND BOTTOM WCI 3002573 Contact Us For Availability
8
WCI 5303015947 WCI 5303015947 Contact Us For Availability
8
WCI 5303201723 WCI 5303201723 Contact Us For Availability
8
FRAME-EXTENSION RH WCI 08013630 Contact Us For Availability
9
WCI 5303201354 WCI 5303201354 Contact Us For Availability
9
SWITCH-SELECTOR WCI 5308012966 Contact Us For Availability
9
FRAME, EXTENSION, LH WCI 08013629 Contact Us For Availability
10
WCI 5303017980 WCI 5303017980 Contact Us For Availability
10
WCI 5308010950 WCI 5308010950 Contact Us For Availability
10
CONTROL WCI 3002171 Contact Us For Availability
10
CLOSURE-ACCORDION WCI 08013613 Contact Us For Availability
11
WCI 5303001784 WCI 5303001784 Contact Us For Availability
11
CLAMP-FAN WCI 5308011040 Contact Us For Availability
11
WCI 5303210362 WCI 5303210362 Contact Us For Availability
11
CLIP, ACCORDION RETAINER WCI 08012959 Contact Us For Availability
12
FRONT WCI 3016097 Contact Us For Availability
12
WCI 3001740 WCI 3001740 Contact Us For Availability
12
SUPPORT WCI 08012989 Contact Us For Availability
13
SCREW-FRONT WCI 5308008175 Contact Us For Availability
13
WCI 08007475 WCI 08007475 Contact Us For Availability
13
SCREW WCI 3016106 Contact Us For Availability
13
SCREW-SUPPORT ADJUSTABLE WCI 08012954 Contact Us For Availability
14
WCI 5300331902 WCI 5300331902 Contact Us For Availability
14
WCI 3007760 WCI 3007760 Contact Us For Availability
15
WCI 3016098 WCI 3016098 Contact Us For Availability
15
WASHER-SPACER (2) WCI 3002646 Contact Us For Availability
16
SEAL-DIAL PLATE WCI 5303001861 Contact Us For Availability
16
WCI 08016226 WCI 08016226 Contact Us For Availability
× ![]()
