Model Whirlpool A9895XRB ELECTRIC WALL OVEN/MICROWAVE COMBO – Common Parts & Diagrams
02 - BODY

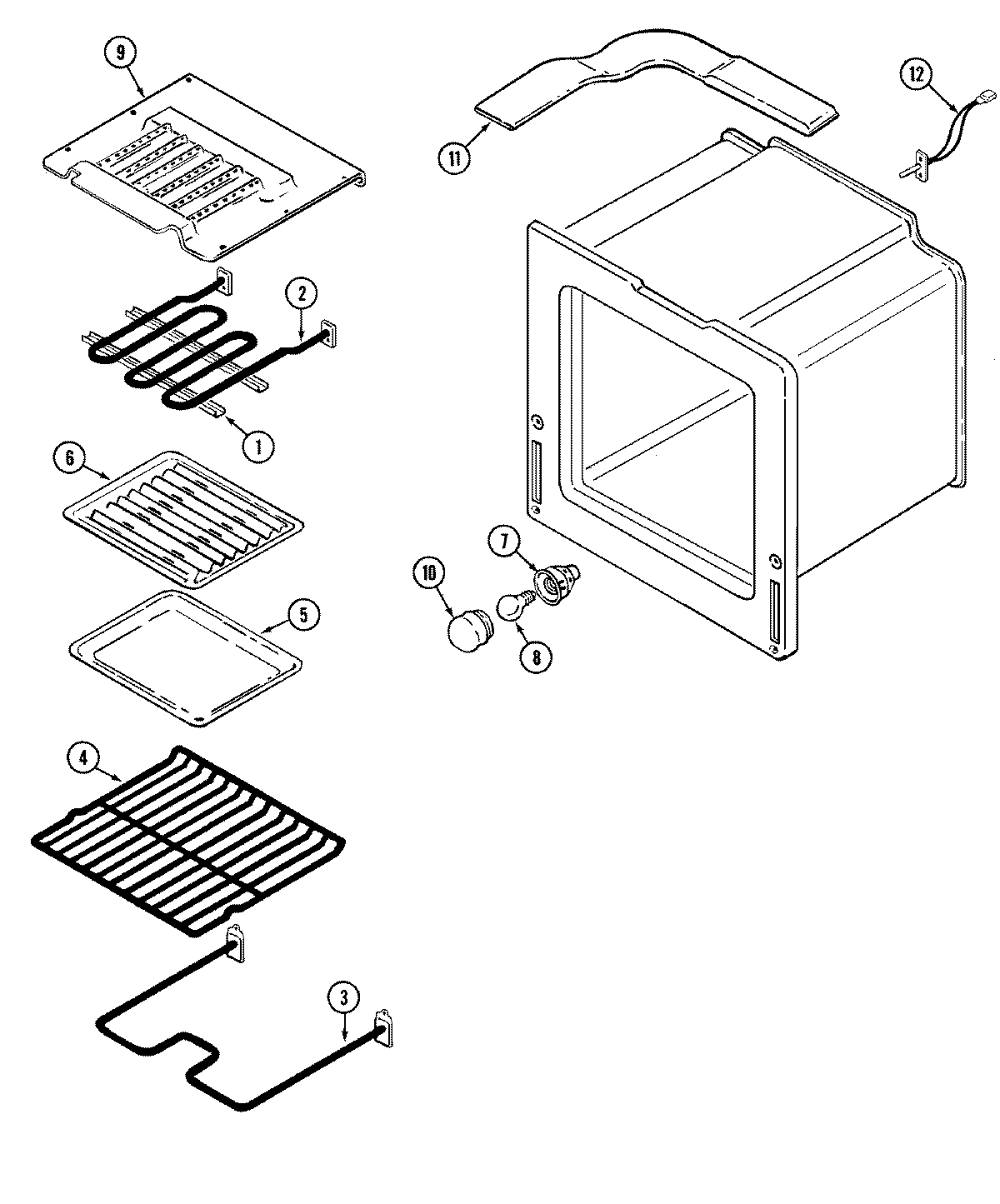

09 - OVEN

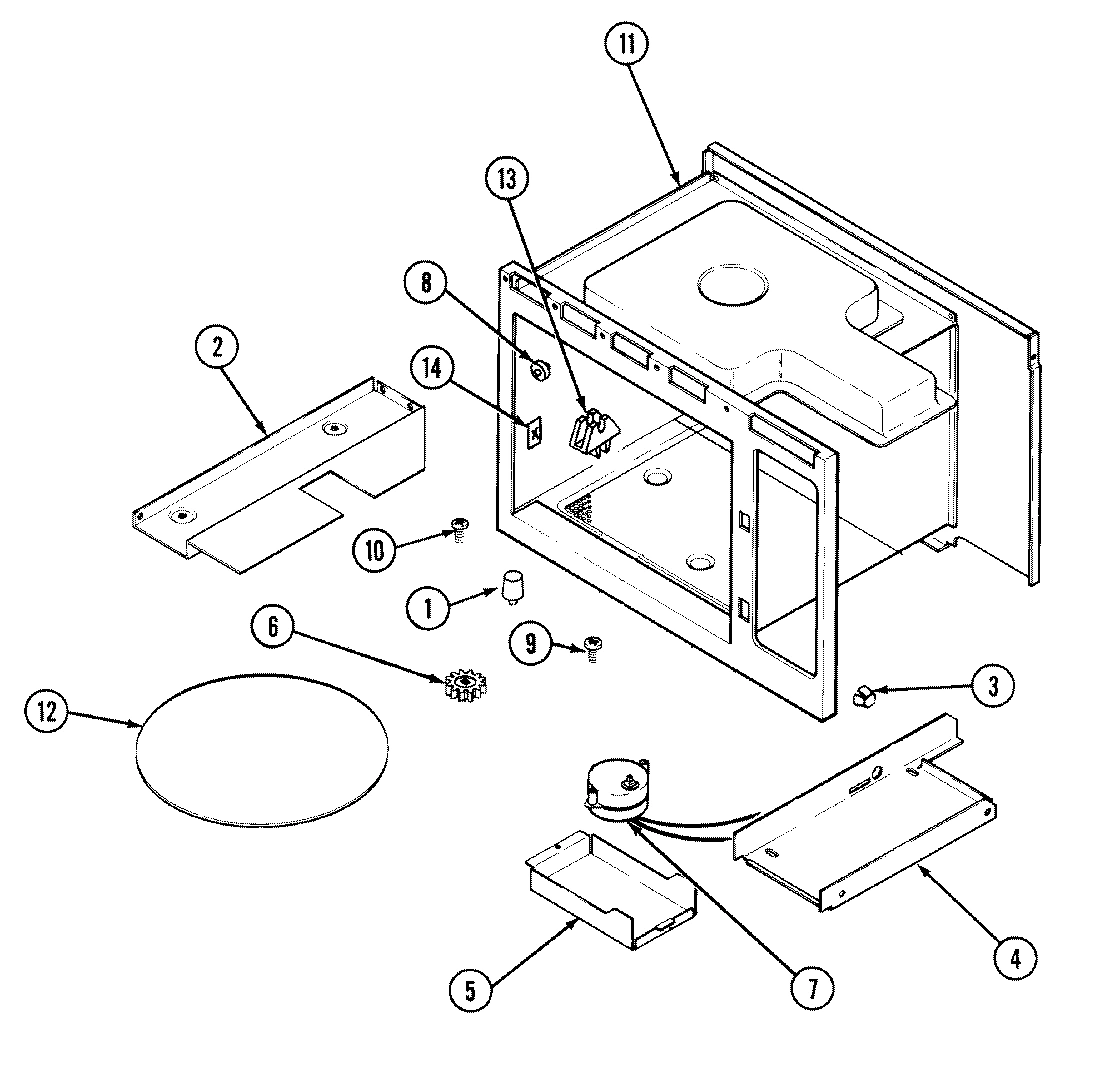

10 - TURNTABLE

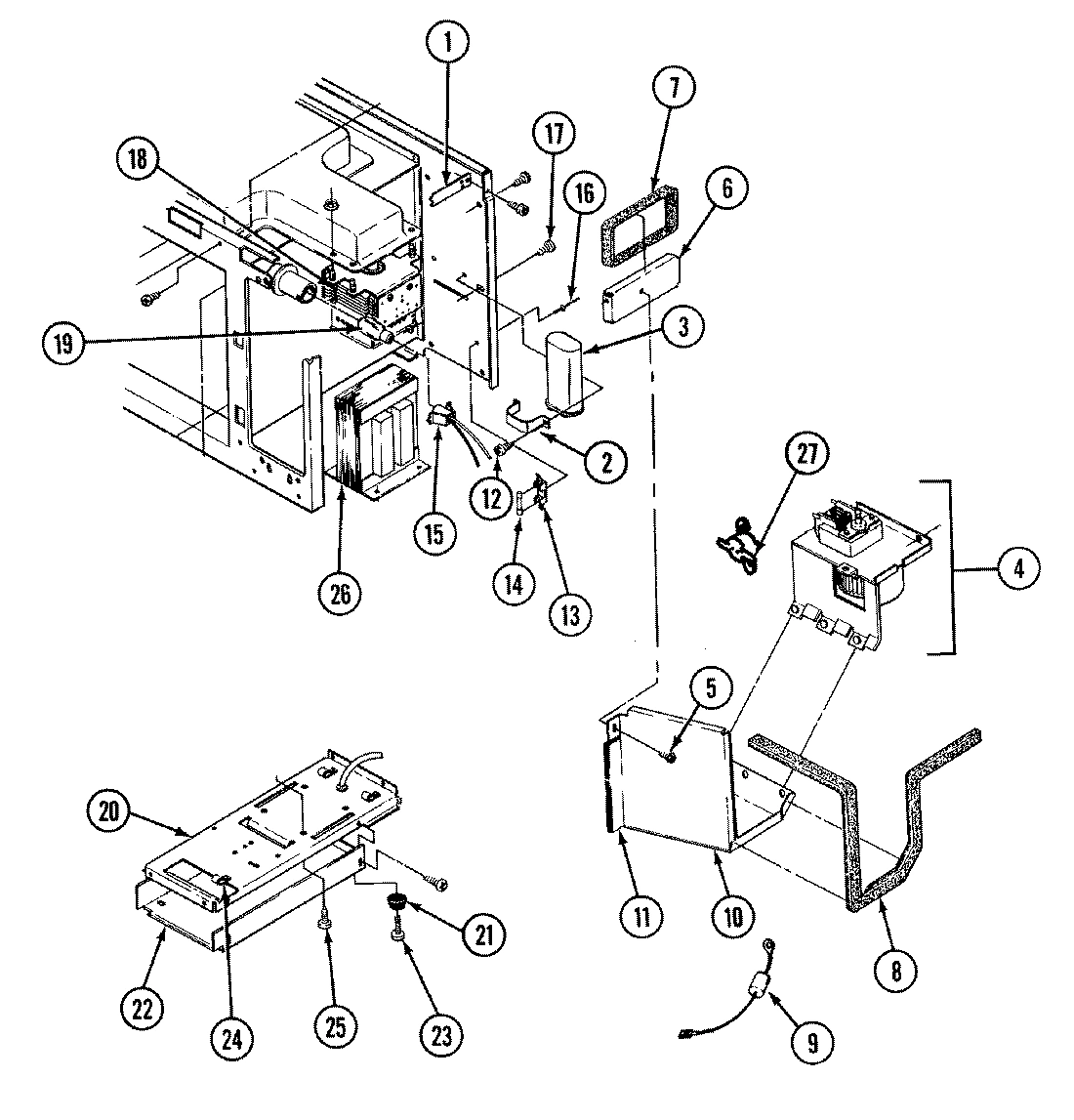

08 - INTERNAL CONTROLS

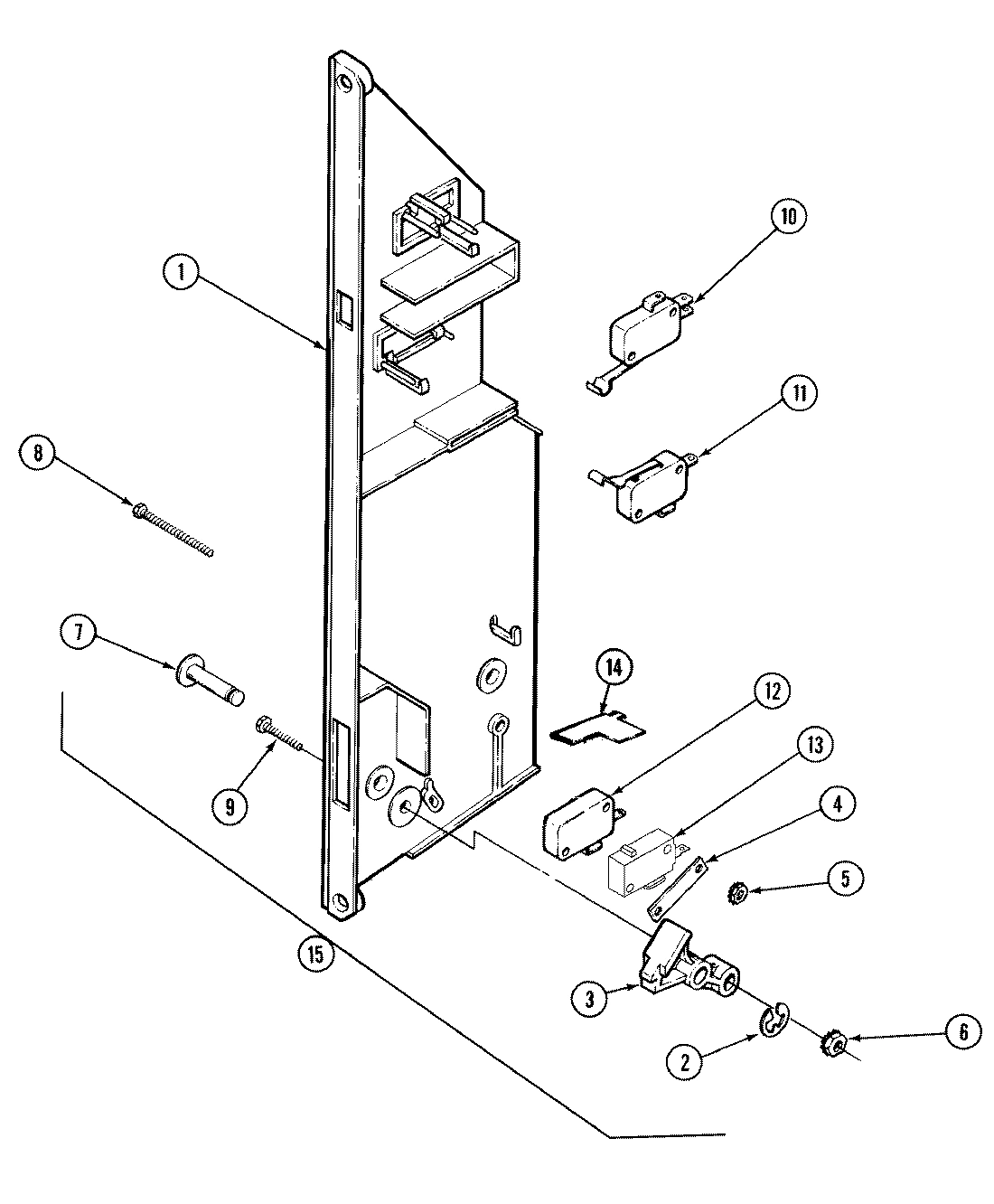

06 - INTERLOCK SWITCH

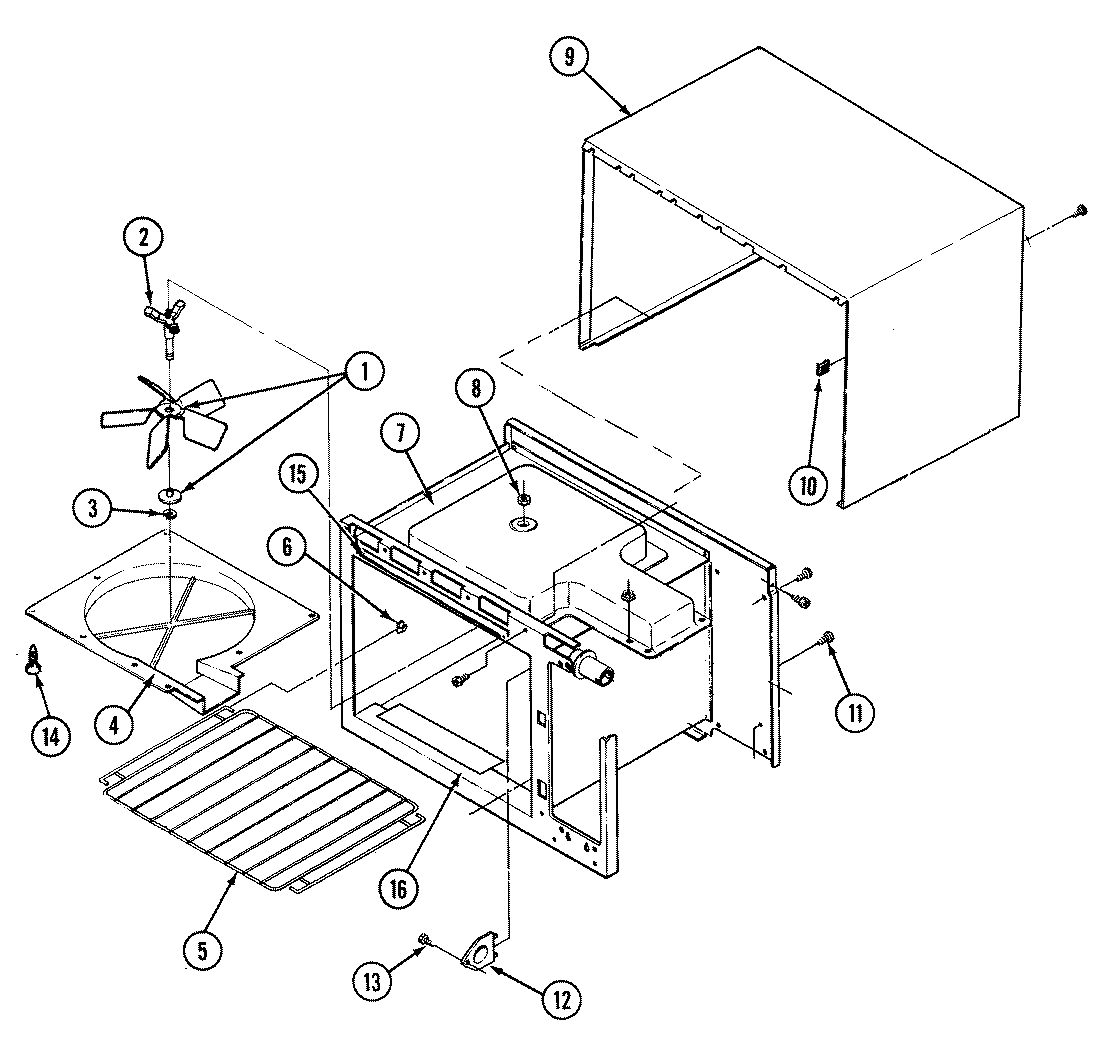

01 - BASE

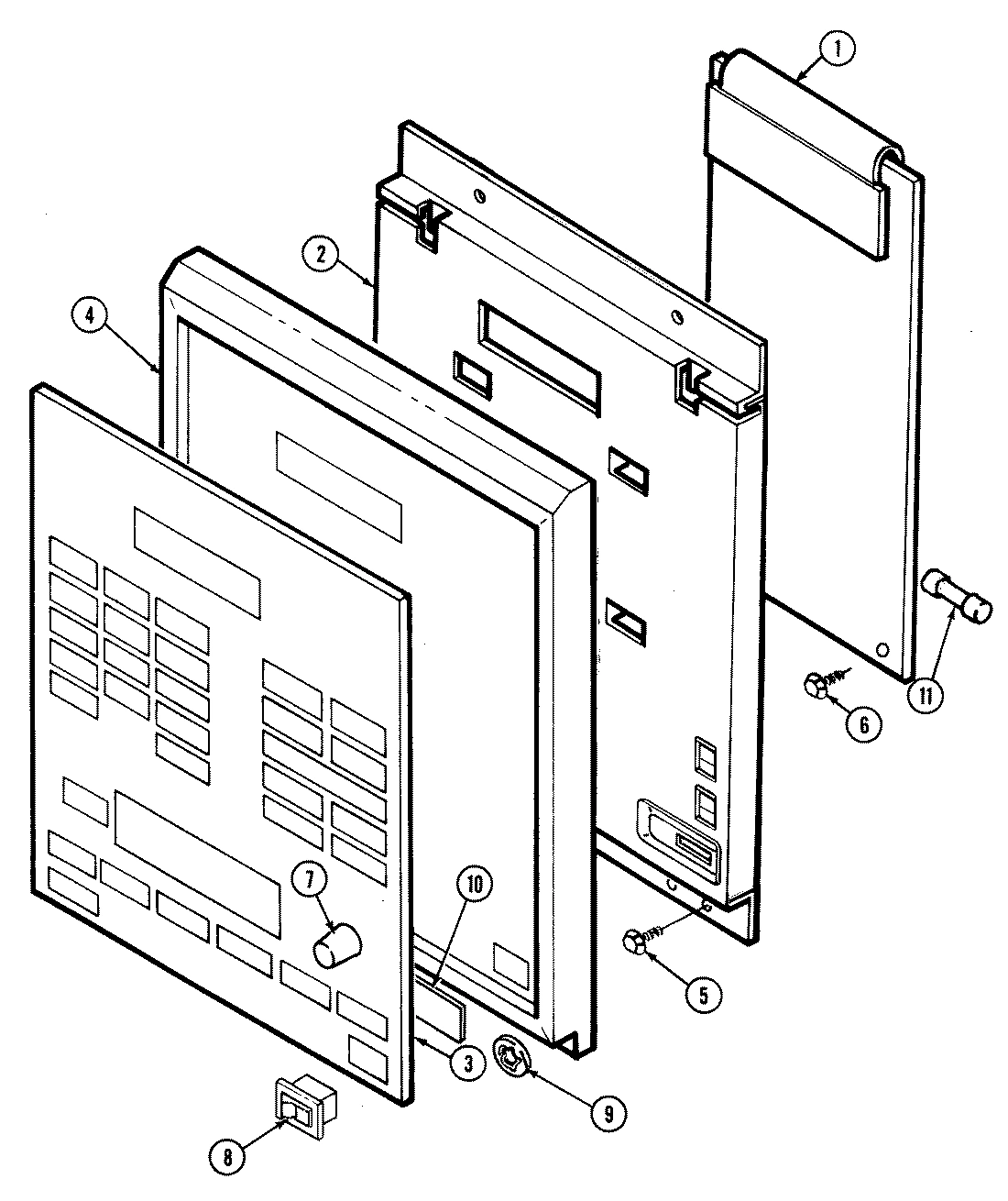

03 - CONTROL PANEL

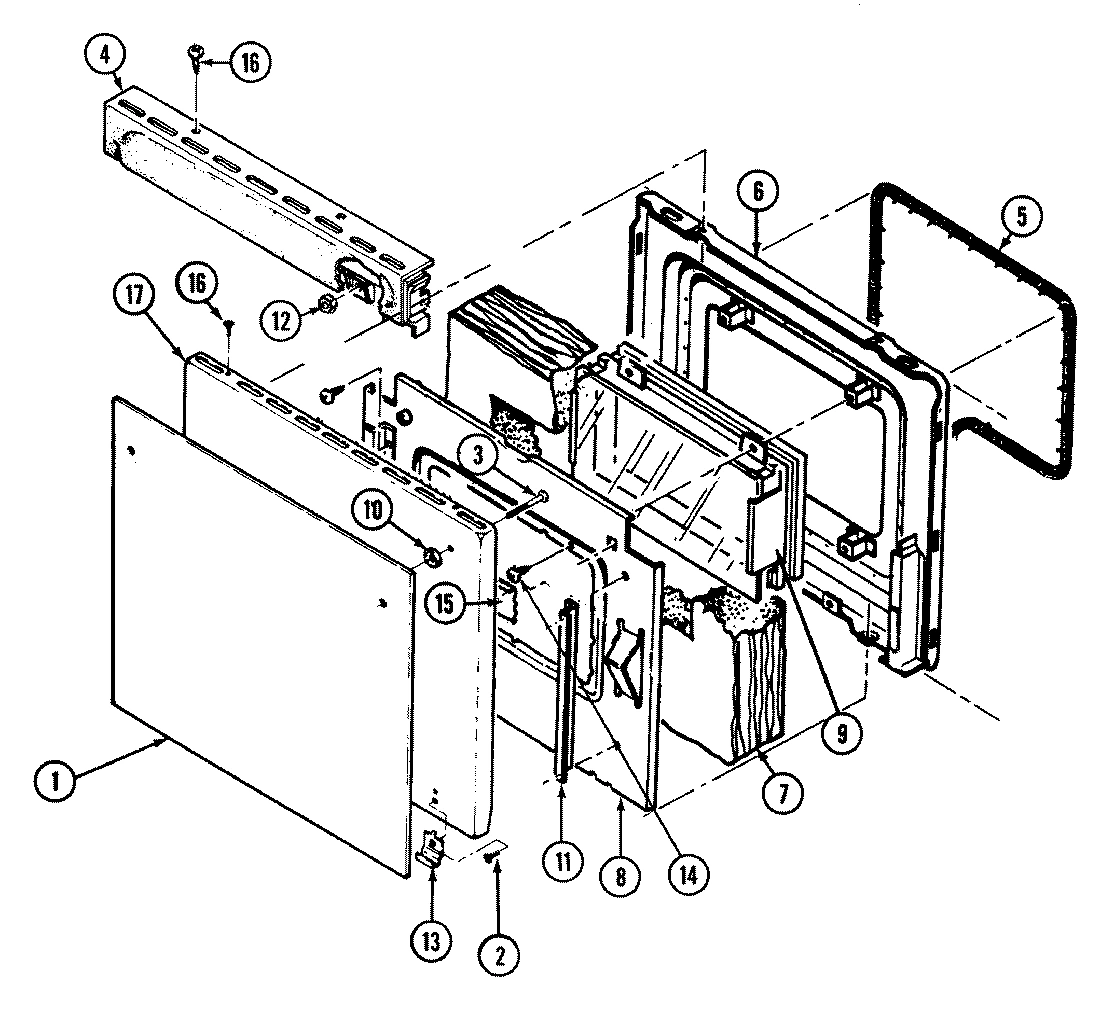

05 - DOOR

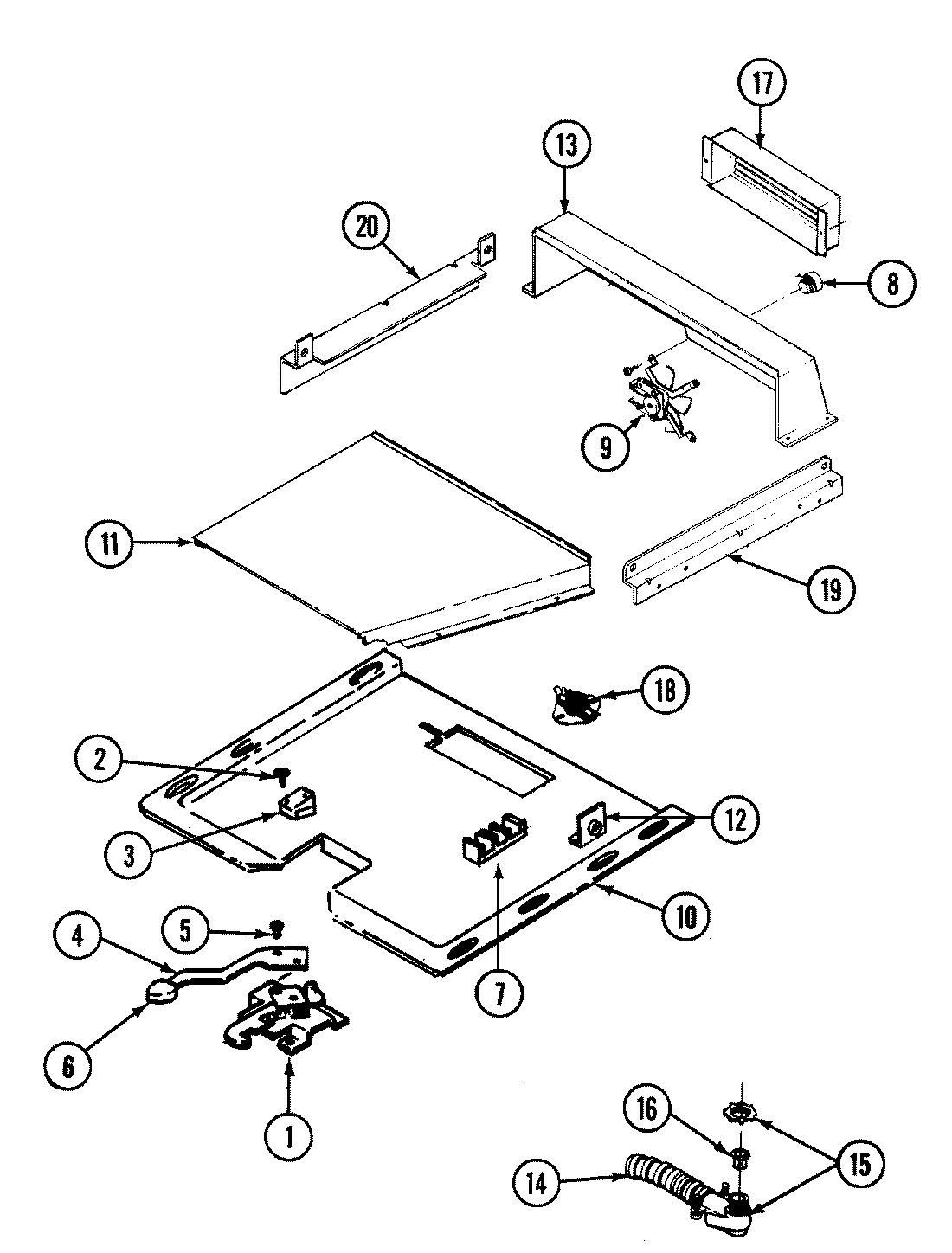

07 - INTERNAL CONTROLS

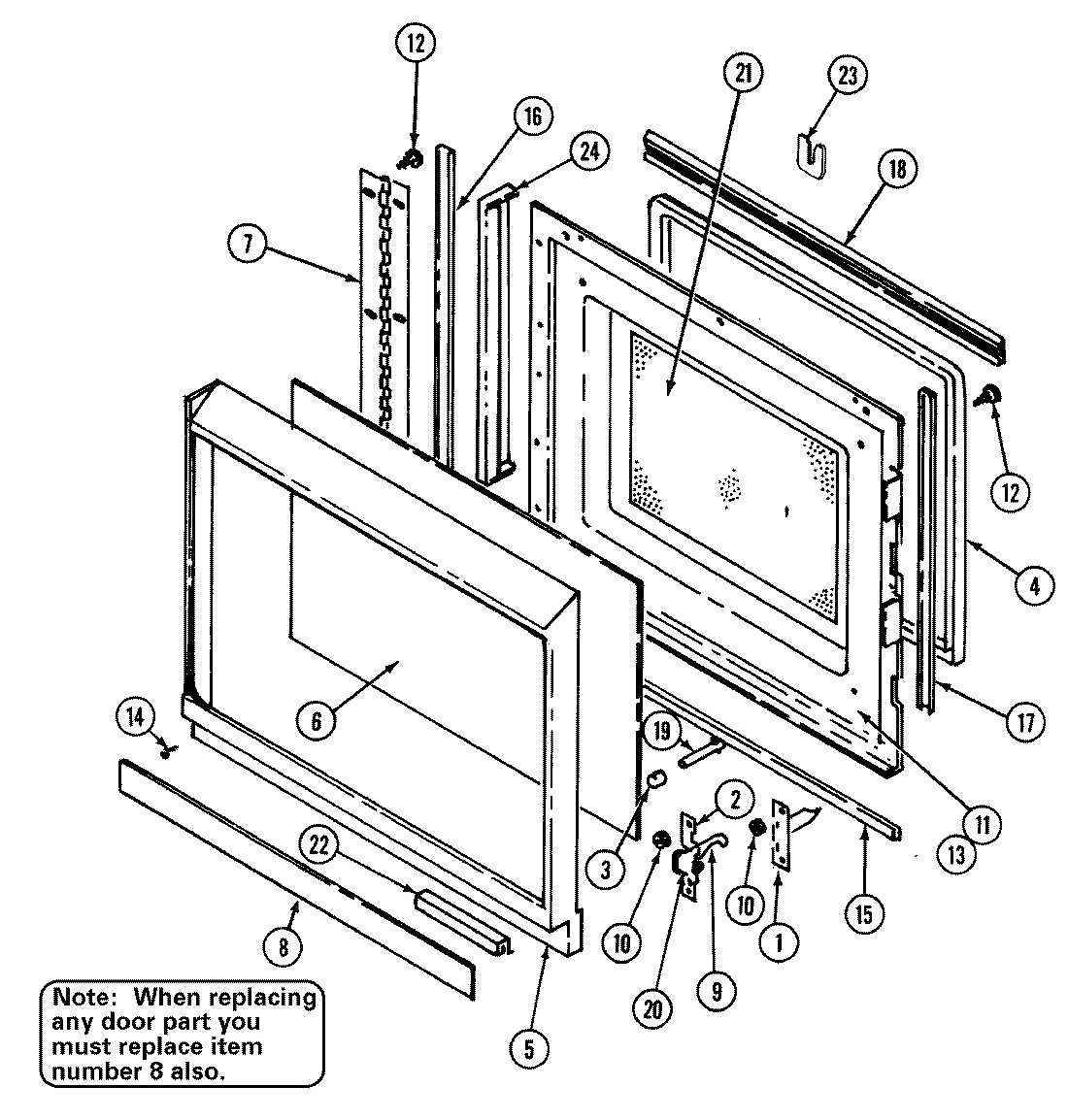

04 - DOOR
Common parts from model Whirlpool A9895XRB ELECTRIC WALL OVEN/MICROWAVE COMBO
1
BACK, MAIN WPL 4002F16951 Contact Us For Availability
1
SUPPORT, BROIL ELEMENT WPL 3807F38745 Contact Us For Availability
1
SCREW WPL 7101P33460 Contact Us For Availability
1
PIN, PIVOT WPL Y03070041 Contact Us For Availability
1
BRACE, SUPPORT (LOWER) WPL Y02020028 Contact Us For Availability
1
BRACKET, INTERLOCK WPL Y02030133 Contact Us For Availability
1
BLADE, BUSHING ASSEMBLY WPL 04021190 Contact Us For Availability
1
BOARD, CONTROL WPL 01210093 Contact Us For Availability
1
BOARD, CONTROL (T-CLOCK) WPL 01210101 Contact Us For Availability
1
GLASS, DOOR (BLK)----NA WPL 7902P35060 Contact Us For Availability
1
INSULATION, LATCH ASSY. WPL 4804F02860 Contact Us For Availability
1
LATCH ASSY. WPL 8002P02560 Contact Us For Availability
1
ACTIVATOR, MONITOR WPL Y02030117 Contact Us For Availability
2
PANEL, SIDE WPL 2618F08251 Contact Us For Availability
2
ELEMENT, BROIL WPL Y04000072 Contact Us For Availability
2
BRACE, LOWER SUPPORT WPL 04021455 Contact Us For Availability
2
BRACKET WPL 02030123 Contact Us For Availability
2
CLIP, RETAINER WPL 03110040 Contact Us For Availability
2
SHAFT, STIRRER WPL 02360058 Contact Us For Availability
2
BRACKET, CONTROL MTG WPL 02030164 Contact Us For Availability
2
SCREW (BLK) WPL 7101P27660 Contact Us For Availability
2
SCREW, LATCH SWITCH WPL 7101P13060 Contact Us For Availability
2
BRACKET, DOOR LATCH WPL Y02030116 Contact Us For Availability
3
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
3
BUSHING WPL Y03140008 Contact Us For Availability
3
RESISTOR, BLEEDER WPL 01010008 Contact Us For Availability
3
CAPACITOR WPL Y01020023 Contact Us For Availability
3
LATCH, DOOR INTERLOCK WPL 02190049 Contact Us For Availability
3
CLIP, STIRRER WPL Y03110055 Contact Us For Availability
3
SWITCH, CONTROL PANEL WPL 02060354 Contact Us For Availability
3
SWITCH CONTROL PANEL WPL 02060373 Contact Us For Availability
3
SCREW WPL 7101P32660 Contact Us For Availability
3
INSULATION, FIBERBOARD WPL 7003P05160 Contact Us For Availability
3
SWITCH, DOOR LATCH WPL 7403P22860 Contact Us For Availability
3
BUMPER WPL Y02100135 Contact Us For Availability
4
COVER, REAR WPL 4005F43451 Contact Us For Availability
4
RACK WPL 7801P04060 Contact Us For Availability
4
MOTOR, BLOWER WPL 01110029 Contact Us For Availability
4
HOUSING WPL 02171191 Contact Us For Availability
4
BLOWER ASSEMBLY WPL 04021191 Contact Us For Availability
4
WHEEL, BLOWER WPL Y01110016 Contact Us For Availability
4
BRACKET, BLOWER SUPPORT WPL Y02030144 Contact Us For Availability
4
INSULATOR, SWITCH WPL Y01100043 Contact Us For Availability
4
COVER, STIRRER WPL Y02300045 Contact Us For Availability
4
CONTROL PANEL WPL 02100224 Contact Us For Availability
4
HANDLE, DOOR (BLK) WPL 7701P12060 Contact Us For Availability
4
LEVER WPL 8009P02060 Contact Us For Availability
4
CHOKE, FILLER (BLK) WPL Y02100166 Contact Us For Availability
5
EXTENSION WPL 3826F01545 Contact Us For Availability
5
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
5
COVER, MOTOR TURNTABLE WPL Y02300050 Contact Us For Availability
5
NUT WPL Y03050001 Contact Us For Availability
5
RACK, OVEN WPL Y02410004 Contact Us For Availability
5
SCREW WPL 03020061 Contact Us For Availability
5
GASKET, DOOR WPL 7201P04660 Contact Us For Availability
5
SCREW, LEVER WPL 7101P23060 Contact Us For Availability
5
TRIM BLACK WPL 04021498 Contact Us For Availability
6
SWITCH, HI-LIMIT WPL 7403P31660 Contact Us For Availability
6
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
6
GEAR, TURNTABLE WPL Y02450002 Contact Us For Availability
6
SUPPORT, DUCT MAGNETRON WPL Y02170111 Contact Us For Availability
6
NUT WPL 03050003 Contact Us For Availability
6
SUPPORT, RACK WPL 02010031 Contact Us For Availability
6
WIRE ASSEMBLY WPL 04010255 Contact Us For Availability
6
SCREW (TOP) WPL Y03010147 Contact Us For Availability
6
LINING, DOOR WPL 2402W20219 Contact Us For Availability
6
CLIP, LATCH HANDLE WPL 7112P00360 Contact Us For Availability
6
HANDLE, DOOR LATCH (BLK) WPL 7701P13260 Contact Us For Availability
6
GLASS, OUTER DOOR WPL 02220113 Contact Us For Availability
7
HINGE----NA WPL 7106P05060 Contact Us For Availability
7
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
7
MOTOR, TURNTABLE WPL 01110022 Contact Us For Availability
7
CAVITY WPL 04021491 Contact Us For Availability
7
TAPE, FOAM WPL 02310109 Contact Us For Availability
7
PIN, LEVER & PIVOT LATCH WPL Y03070031 Contact Us For Availability
7
KNOB, CLOCK (BLK) WPL 7711P43160 Contact Us For Availability
7
INSULATION, DOOR WPL 4804F03460 Contact Us For Availability
7
BLOCK, TERMINAL WPL 7401P03860 Contact Us For Availability
7
HINGE WPL 02200021 Contact Us For Availability
8
SCREW WPL 7101P11560 Contact Us For Availability
8
BULB, OVEN WPL 7407P09560 Contact Us For Availability
8
ROLLER WPL 02210011 Contact Us For Availability
8
TAPE, FOAM WPL 02310070 Contact Us For Availability
8
SCREW WPL 03010117 Contact Us For Availability
8
NUT, SHAFT STIRRER WPL 03050007 Contact Us For Availability
8
ROCKER SWITCH WPL Y01140066 Contact Us For Availability
8
BAFFLE, DOOR WPL 3601F23245 Contact Us For Availability
8
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
8
FUSE WPL 7416P00260 Contact Us For Availability
8
INSERT DOOR/CONTROL (BLACK) WPL 02100226 Contact Us For Availability
9
INSULATION, WRAP WPL 4804F02960 Contact Us For Availability
9
INSULATION, BACK & BOTTOM WPL 4804F03060 Contact Us For Availability
9
BAFFLE. BROIL WPL 3601F20245 Contact Us For Availability
9
COVER, BULB WPL 7724P04760 Contact Us For Availability
9
SCREW WPL 03010151 Contact Us For Availability
9
DIODE WPL Y04010206 Contact Us For Availability
9
SCREW WPL 03010114 Contact Us For Availability
9
CABINET WPL 02140079 Contact Us For Availability
9
CLIP, SWITCH WPL 03110069 Contact Us For Availability
9
CLAMP, WINDOW ASSY. WPL 3805F00234 Contact Us For Availability
9
WINDOW ASY. WPL 7907P02160 Contact Us For Availability
9
FAN ASSY. WPL 7427P01060 Contact Us For Availability
9
LATCH, DOOR WPL 02190056 Contact Us For Availability
10
STRIP, BOTTOM (BLK) WPL 4005F35470 Contact Us For Availability
10
DUCT ASSEMBLY, MAGNETRON WPL Y04020842 Contact Us For Availability
10
SWITCH, SECONDARY INTERLOCK WPL Y01140038 Contact Us For Availability
10
CLIP, CABINET (RT) WPL 03110027 Contact Us For Availability
10
CLIP, CABINET (LT) WPL 03110046 Contact Us For Availability
10
INLAY, TRIM (BLACK) WPL 7728P07660 Contact Us For Availability
10
SPACER, GLASS WPL 8010P01660 Contact Us For Availability
10
RETAINER, TOP INSULATION WPL 3804F11151 Contact Us For Availability
11
RETAINER, INSULATION (SIDE) WPL 3804F10851 Contact Us For Availability
11
COVER, VENT WPL 4005F40351 Contact Us For Availability
11
SCREW, BASE WPL 7101P08460 Contact Us For Availability
11
TUBE, VENT WPL 7506P12560 Contact Us For Availability
11
TAPE, FOAM WPL 02310071 Contact Us For Availability
11
FUSE 15A 125V WPL Y01050005 Contact Us For Availability
11
SWITCH, MONITOR INTERLOCK WPL Y01140030 Contact Us For Availability
11
MANUAL, USE & CARE WPL Y06010311 Contact Us For Availability
11
CHANNEL, AIR WPL 3818F05251 Contact Us For Availability
11
SHIELD, HEAT WPL 3604F20645 Contact Us For Availability
11
PANEL, INNER DOOR (BLK) WPL 04021377 Contact Us For Availability
12
SENSOR, OVEN WPL 7430P01060 Contact Us For Availability
12
SCREW WPL Y03020076 Contact Us For Availability
12
TURNTABLE WPL Y02460007 Contact Us For Availability
12
SWITCH, PRIMARY INTERLOCK WPL 01140068 Contact Us For Availability
12
LENS, BULB WPL Y02400007 Contact Us For Availability
12
NUT WPL 7103P03460 Contact Us For Availability
12
PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability
12
SCREW, 6-32 X 3/8 PH BLACK WPL Y03010157 Contact Us For Availability
13
BOTTOM, MAIN WPL 4011F21751 Contact Us For Availability
13
SUPPORT, ROLLER WPL Y02100186 Contact Us For Availability
13
SCREW WPL 03010138 Contact Us For Availability
13
NOT REQUIRED PART OR SEE NOTE CLIP, FUSE WPL W10124350 Contact Us For Availability
13
WASHER WPL 03040039 Contact Us For Availability
13
SWITCH, LOGIC INTERLOCK WPL Y01140043 Contact Us For Availability
13
CLIP, GLASS (BLK) WPL 7112P09360 Contact Us For Availability
13
HOUSING, FAN WPL 4001F09051 Contact Us For Availability
13
SCREW WPL Y03010118 Contact Us For Availability
14
EXTRUSION (RT-BLK) WPL 7750P08960 Contact Us For Availability
14
EXTRUSION (LT-BLK) WPL 7750P09060 Contact Us For Availability
14
SCREW WPL 7101P29060 Contact Us For Availability
14
CLIP - PUSH ON WPL Y03110070 Contact Us For Availability
14
LEVER, INTERLOCK SWITCH WPL 02180014 Contact Us For Availability
14
CLIP WPL Y03110050 Contact Us For Availability
14
TUBING CONDUIT WPL 3414F09844 Contact Us For Availability
14
WIRES, TUBING CONDUIT WPL 5140A03260 Contact Us For Availability
15
EXTRUSION, VENT (BTM-BLK) WPL 7756P09760 Contact Us For Availability
15
RECEPTACLE, LIGHT WPL 01100045 Contact Us For Availability
15
SWITCH, INTERLOCK ASSY WPL 04021452 Contact Us For Availability
15
SWITCH, INTERLOCK ASSY. WPL 04021546 Contact Us For Availability
15
LABEL, COOKING GUIDE WPL 02240781 Contact Us For Availability
15
TAPE, FOIL (3`` WIDE) WPL 8270P09060 Contact Us For Availability
15
CONNECTOR, CONDUIT WPL 7417P00560 Contact Us For Availability
15
SEAL, BOTTOM WPL 02120114 Contact Us For Availability
16
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
16
EXTRUSION, MICROWAVE (BLK) WPL 7756P08760 Contact Us For Availability
16
PLATE, POPCORN WPL 02040094 Contact Us For Availability
16
COVER, FRONT EDGE WPL 02300057 Contact Us For Availability
16
SEAL, HINGE SIDE WPL Y02120121 Contact Us For Availability
16
GROMMET WPL 8008P01760 Contact Us For Availability
17
COVER FAN WPL 4005F37451 Contact Us For Availability
17
SEAL, LATCH SIDE WPL Y02120122 Contact Us For Availability
18
MAGNETRON WPL 01040004 Contact Us For Availability
18
SCREW, SWITCH WPL 7101P14860 Contact Us For Availability
18
SWITCH, HI-LIMIT WPL 7403P31360 Contact Us For Availability
18
SEAL, TOP WPL 02120153 Contact Us For Availability
19
BULB, LIGHT WPL Y01060024 Contact Us For Availability
19
BRKT, MTG-R WPL 3801F28751 Contact Us For Availability
19
SPACER, DOOR WINDOW WPL Y03120069 Contact Us For Availability
20
PLATE, COMPONENT MOUNTING WPL Y02040101 Contact Us For Availability
20
BRACKET, M/WAVE MTG. (LT) WPL 3801F28651 Contact Us For Availability
20
RACEWAY, WIRE WPL 3830F00851 Contact Us For Availability
20
HARNESS SENSOR PROBE WPL 5170P09860 Contact Us For Availability
20
HARNESS, LOWER WPL 5185D28360 Contact Us For Availability
20
SPRING, DOOR LATCH WPL Y03180023 Contact Us For Availability
21
FOOT, BASE WPL 02230012 Contact Us For Availability
21
WINDOW, POLYESTER WPL Y02220073 Contact Us For Availability
22
COVER, MTG PLATE WPL 02300039 Contact Us For Availability
22
EXTRUSION, HANDLE (BLK) WPL 02120151 Contact Us For Availability
23
SHIM WPL Y03120064 Contact Us For Availability
24
CLIP, WIRE HARNESS WPL 03110022 Contact Us For Availability
24
TRIM (BLACK) WPL 02100230 Contact Us For Availability
25
SCREW WPL 03010094 Contact Us For Availability
26
TRANSFORMER, H.V. WPL 01130028 Contact Us For Availability
27
SWITCH, TEMP LIMIT WPL 01180010 Contact Us For Availability
27
WIRE HARNESS WPL 04010262 Contact Us For Availability
27
HV LEAD WIRE (8 ``) WPL Y04060532 Contact Us For Availability
27
HV LEAD WIRE (16``) WPL Y04060535 Contact Us For Availability
× ![]()
Login and Registration Form
