Model Maytag A8TXNWFXW01 REFRIGERATOR – Common Parts & Diagrams

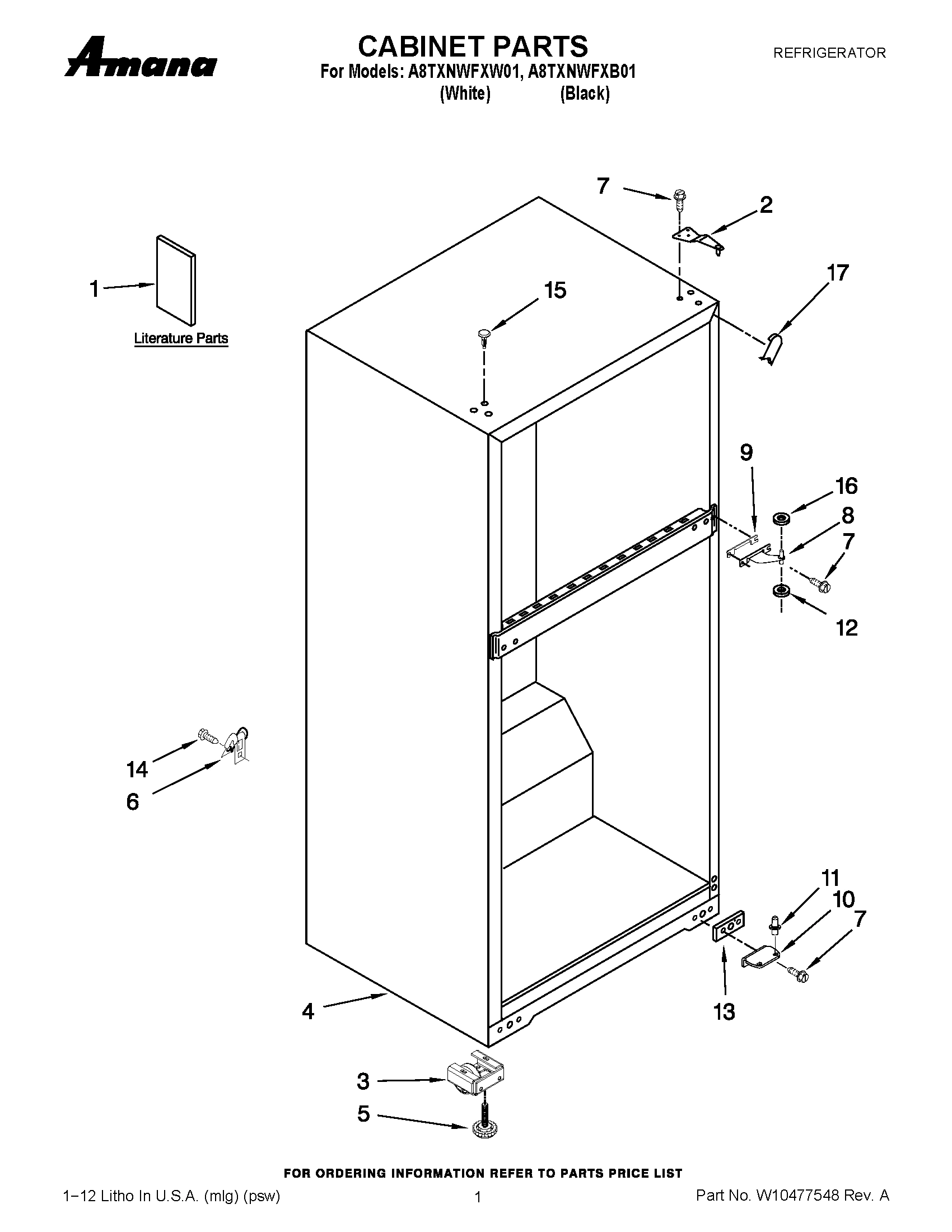

01 - CABINET PARTS

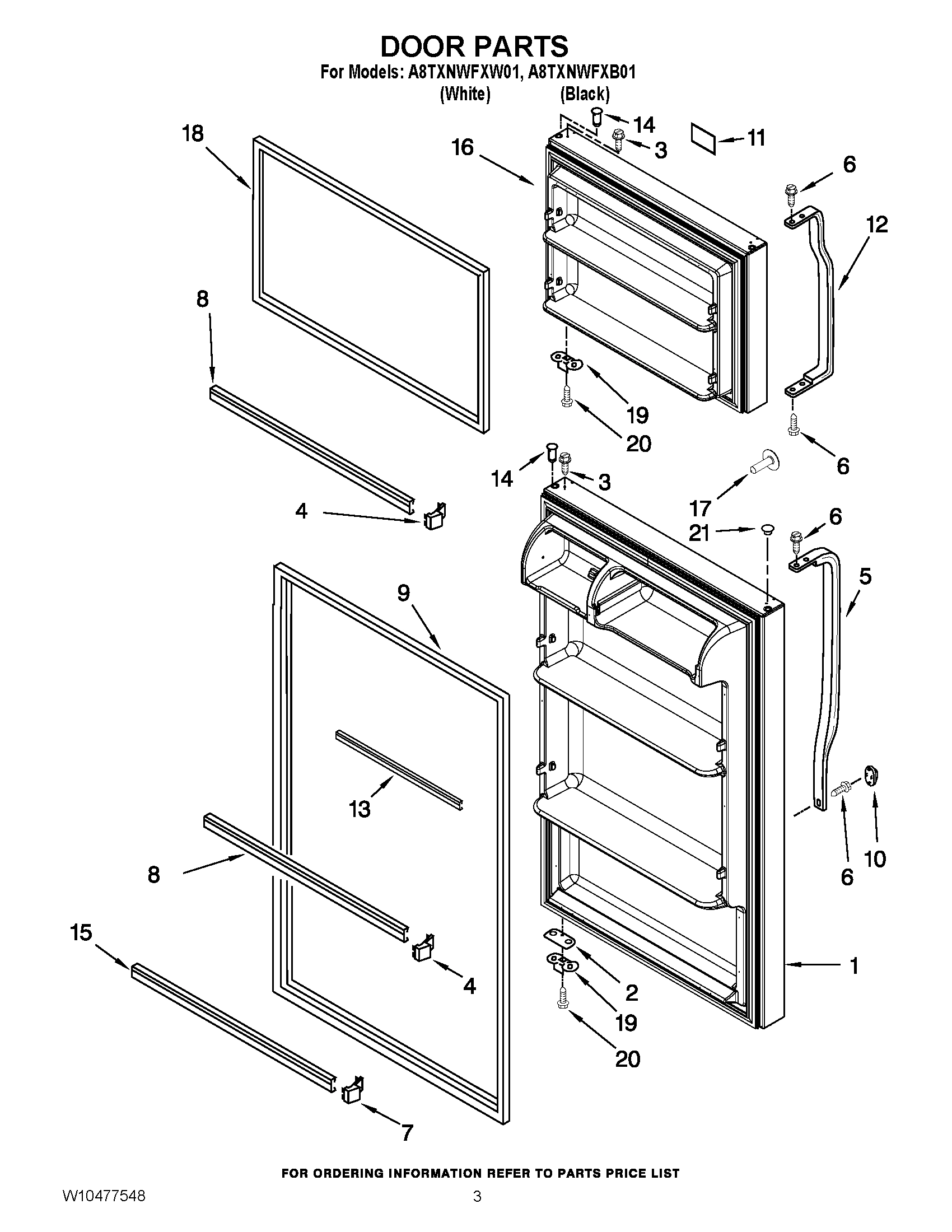

02 - DOOR PARTS

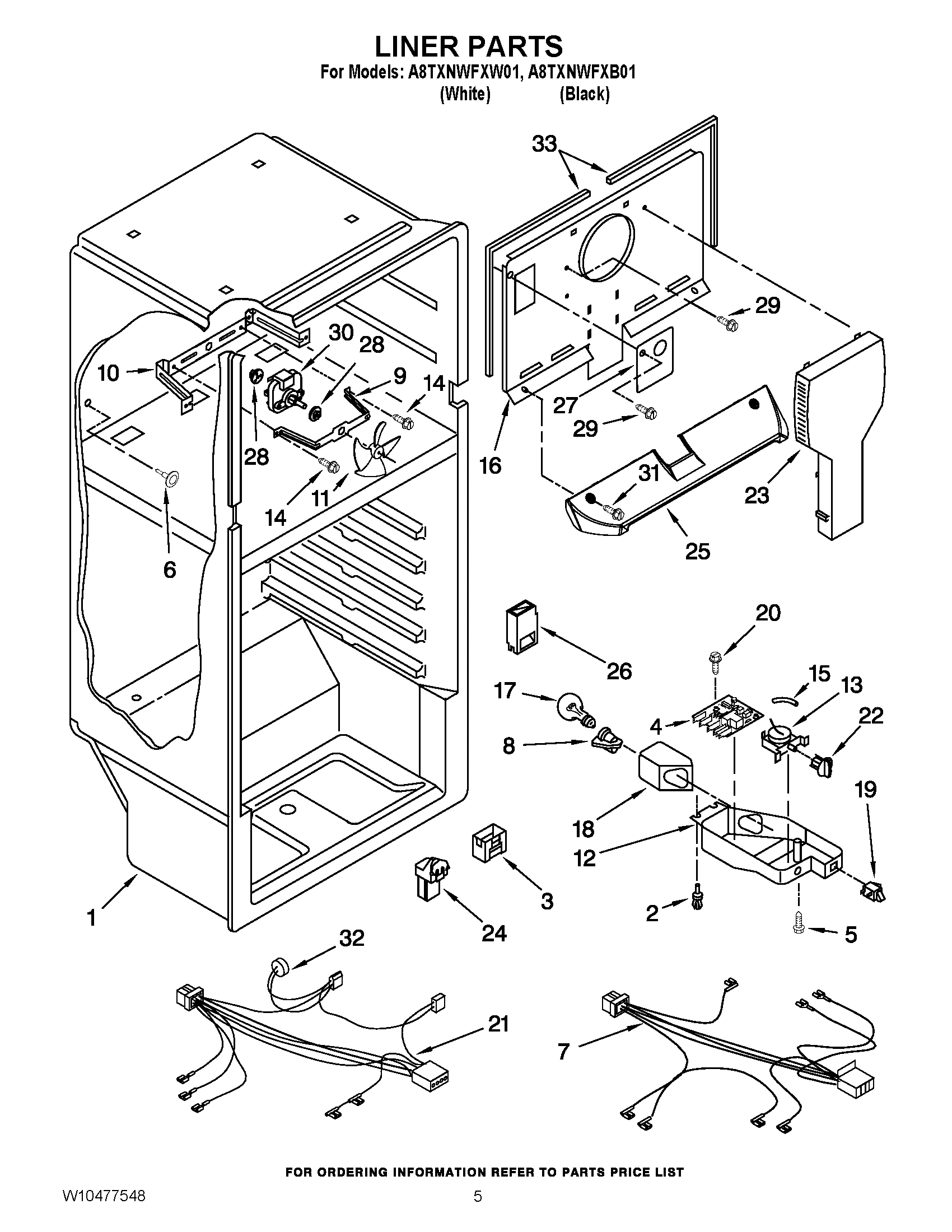

03 - LINER PARTS

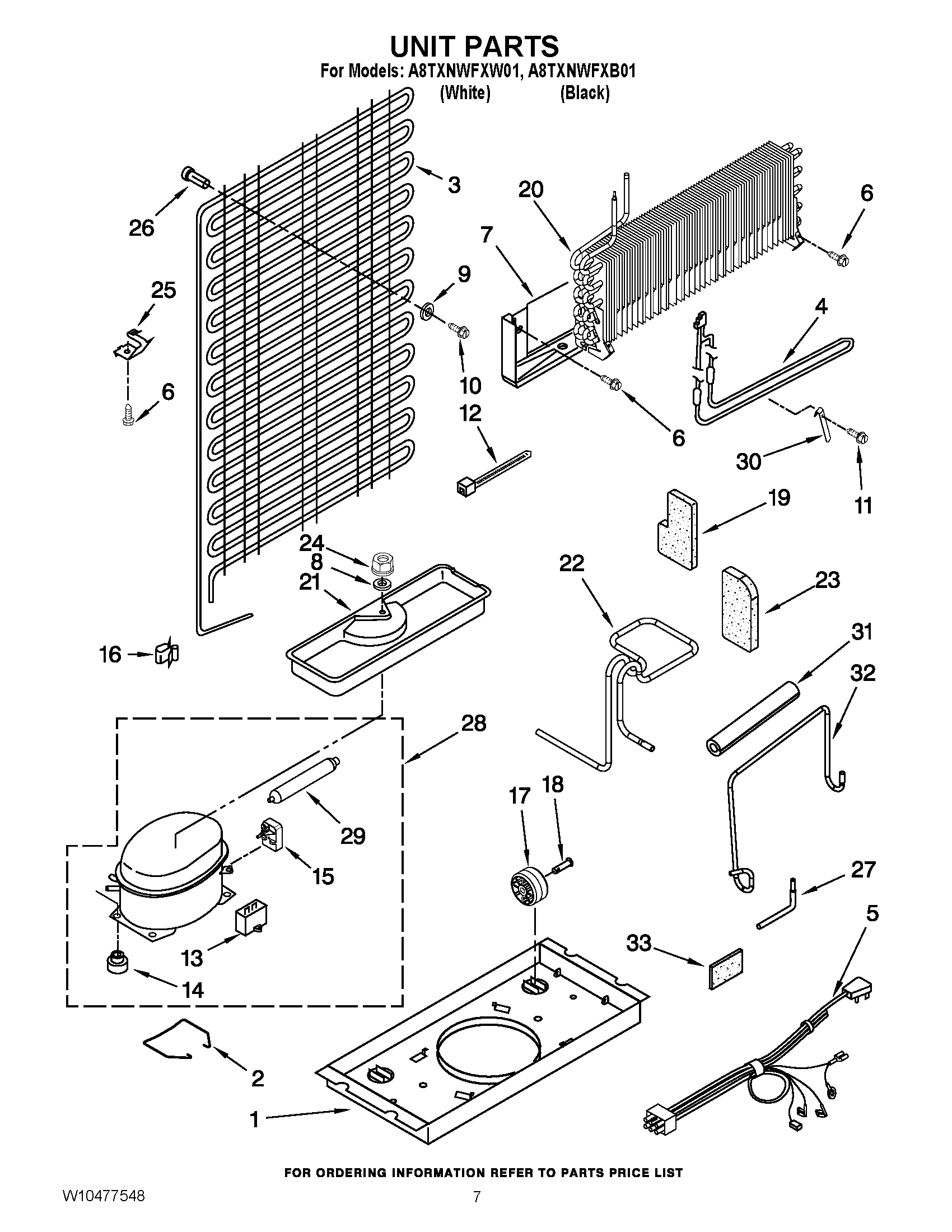

04 - UNIT PARTS

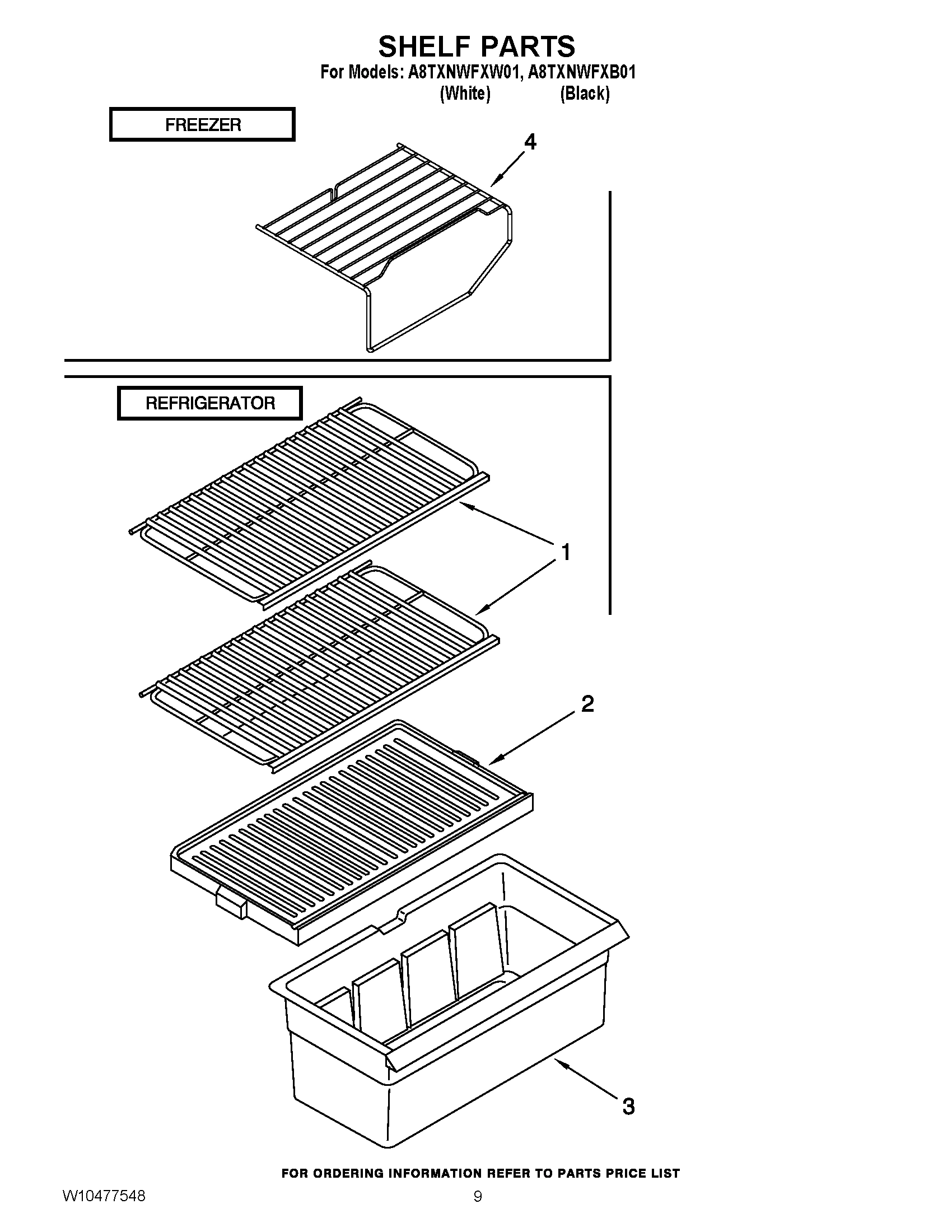

05 - SHELF PARTS
06 - OPTIONAL PARTS
Common parts from model Maytag A8TXNWFXW01 REFRIGERATOR
1
DO-IT-YOURSELF MANUAL REF./FZR. MAY 677969 Contact Us For Availability
1
MAY W10214129 MAY W10214129 Contact Us For Availability
1
MAY W10287906 MAY W10287906 Contact Us For Availability
1
MAY W10444227 MAY W10444227 Contact Us For Availability
1
REFRIGERATOR DOOR (INCLUDES ITEMS 9 & 14) (BL MAY 2263256B Contact Us For Availability
1
REFRIGERATOR DOOR (INCLUDES ITEMS 9 & 14) (WH MAY 2263256W Contact Us For Availability
1
MAY W10222451 MAY W10222451 Contact Us For Availability
1
SHELF, WIRE MAY W10142522 Contact Us For Availability
2
HINGE ASSY, TOP MAY 2261963 Contact Us For Availability
2
Shim, Door Stop (Black) MAY 2258681B Contact Us For Availability
2
Shim, Door Stop (White) MAY 2258681W Contact Us For Availability
2
RIVET, PLASTIC MAY 939962 Contact Us For Availability
2
MAY 2212996 MAY 2212996 Contact Us For Availability
2
MAY 9791600 MAY 9791600 Contact Us For Availability
3
ROLLER ASSY, FRONT (INCLUDES ITEM 5) MAY W10142530 Contact Us For Availability
3
SCREW 8-18 X 1/2 MAY 8281206 Contact Us For Availability
3
MAY 2183061 MAY 2183061 Contact Us For Availability
3
MAY W10219349 MAY W10219349 Contact Us For Availability
3
Crisper Pan MAY 2192009 Contact Us For Availability
4
END CAP, TRIM MAY 2156003 Contact Us For Availability
4
ELECTRONIC CONTROL MAY 2303825 Contact Us For Availability
4
MAY 2176942 MAY 2176942 Contact Us For Availability
4
MAY W10142524 MAY W10142524 Contact Us For Availability
5
MAY W10133299 MAY W10133299 Contact Us For Availability
5
Handle, Refrigerator (White) MAY 2221946W Contact Us For Availability
5
Handle, Refrigerator (Black) MAY 2326169B Contact Us For Availability
5
SCREW 8-15 X 2.00 MAY 489174 Contact Us For Availability
5
WIRE ASSY, UNIT MAY W10151654 Contact Us For Availability
6
MAY 549193 MAY 549193 Contact Us For Availability
6
SCREW 8-18 X .600 MAY 489442 Contact Us For Availability
6
SCREW 8-18 X 5/8 MAY 489357 Contact Us For Availability
6
MAY 941839 MAY 941839 Contact Us For Availability
7
SCREW 12-24 X .700 MAY 489497 Contact Us For Availability
7
END CAP, TRIM MAY 2195916 Contact Us For Availability
7
MAY 2265930 MAY 2265930 Contact Us For Availability
7
MAY 2319224 MAY 2319224 Contact Us For Availability
8
HINGE ASSY, CENTER MAY 2166086 Contact Us For Availability
8
Trim, Door Shelf (Narrow) MAY 2266727 Contact Us For Availability
8
Socket, Light MAY 2162085 Contact Us For Availability
8
WASHER, NYLON MAY 487802 Contact Us For Availability
9
HINGE SHIM, CENTER MAY 2166043 Contact Us For Availability
9
Door Gasket, Magnetic (Black) MAY 2264723 Contact Us For Availability
9
DOOR GASKET, MAGNETIC (MIST BEIGE) MAY W10190032 Contact Us For Availability
9
Fan Support Bracket MAY W10180172 Contact Us For Availability
9
MAY VS611 MAY VS611 Contact Us For Availability
10
MAY 2325482 MAY 2325482 Contact Us For Availability
10
SCREW COVER (BLACK) MAY 2202819B Contact Us For Availability
10
Screw Cover (White) MAY 2202819W Contact Us For Availability
10
MAY 2197405 MAY 2197405 Contact Us For Availability
10
SCREW 8-32 X 3/8 MAY 8533892 Contact Us For Availability
11
HINGE PIN, BOTTOM MAY 2325483 Contact Us For Availability
11
MAY 2325418 MAY 2325418 Contact Us For Availability
11
Fan Blade MAY 2169142 Contact Us For Availability
11
SCREW 48-18 X 1/2 MAY 489478 Contact Us For Availability
12
Washer, Nylon MAY 487576 Contact Us For Availability
12
Handle, Freezer (White) MAY 2202098 Contact Us For Availability
12
Handle, Freezer (Black) MAY 2202098B Contact Us For Availability
12
MAY 2215210 MAY 2215210 Contact Us For Availability
12
MAY 2263990 MAY 2263990 Contact Us For Availability
13
HINGE SHIM, BOTTOM MAY 2201567 Contact Us For Availability
13
TRIM, DOOR SHELF (UPPER) MAY W10234242 Contact Us For Availability
13
MAY 2325701 MAY 2325701 Contact Us For Availability
13
CAPACITOR MAY 2252799 Contact Us For Availability
14
MAY 2262054 MAY 2262054 Contact Us For Availability
14
SCREW 8-32 X .312 MAY 489399 Contact Us For Availability
14
MAY 2264447 MAY 2264447 Contact Us For Availability
15
HOLE PLUG (BLACK) MAY 2183998 Contact Us For Availability
15
HOLE PLUG (WHITE) MAY 2201012 Contact Us For Availability
15
Trim, Door Shelf (Wide) MAY 2266738 Contact Us For Availability
15
MAY 1118680 MAY 1118680 Contact Us For Availability
15
START-DEVICE, COMBINATION (START RELAY AND OV MAY W10399283 Contact Us For Availability
16
WASHER, PLASTIC MAY 489341 Contact Us For Availability
16
FREEZER DOOR (INCLUDES ITEMS 14 & 18) (BLACK) MAY 2263254B Contact Us For Availability
16
FREEZER DOOR (INCLUDES ITEMS 14 & 18) (WHITE) MAY 2263254W Contact Us For Availability
16
COVER, EVAPORATOR (INCLUDES ITEM 33) MAY 2215193 Contact Us For Availability
16
MAY 939054 MAY 939054 Contact Us For Availability
17
MAY 2166003 MAY 2166003 Contact Us For Availability
17
Corner Filler (Black) MAY 2215384 Contact Us For Availability
17
Hole PLug (White) MAY 2189000 Contact Us For Availability
17
MAY 2189009 MAY 2189009 Contact Us For Availability
17
MAY 527949 MAY 527949 Contact Us For Availability
17
ROLLER, REAR MAY 2150304 Contact Us For Availability
18
Door Gasket, Magnetic (Black) MAY 2264722 Contact Us For Availability
18
DOOR GASKET, MAGNETIC (MIST BEIGE) MAY W10190031 Contact Us For Availability
18
MAY 9791702 MAY 9791702 Contact Us For Availability
18
MAY 2264756 MAY 2264756 Contact Us For Availability
19
MAY 2189202 MAY 2189202 Contact Us For Availability
19
MAY 1118894 MAY 1118894 Contact Us For Availability
19
MAY 2262191 MAY 2262191 Contact Us For Availability
20
SCREW 8-15 X 1/2 MAY 488921 Contact Us For Availability
20
MAY 488693 MAY 488693 Contact Us For Availability
20
EVAPORATOR ASSY MAY 2263920 Contact Us For Availability
21
PLUG, HINGE (WHITE) MAY 2212648 Contact Us For Availability
21
PLUG, HINGE (BLACK) MAY 2212651 Contact Us For Availability
21
MAY W10290502 MAY W10290502 Contact Us For Availability
21
EVAPORATOR TRAY MAY W10174378 Contact Us For Availability
22
MAY 2202885 MAY 2202885 Contact Us For Availability
22
TUBE, DISCHARGE (INCL PRE-COOLER) MAY W10442467 Contact Us For Availability
23
MAY 9790408 MAY 9790408 Contact Us For Availability
23
MAY 2262192 MAY 2262192 Contact Us For Availability
24
Hood And Foil Assembly MAY 2197052 Contact Us For Availability
24
MAY 489153 MAY 489153 Contact Us For Availability
25
MAY 2261978 MAY 2261978 Contact Us For Availability
25
MAY 2172892 MAY 2172892 Contact Us For Availability
26
MAY 2221992 MAY 2221992 Contact Us For Availability
26
SPACER MAY 2258452 Contact Us For Availability
27
MAY 2217784 MAY 2217784 Contact Us For Availability
27
PROCESS TUBE MAY VS20001 Contact Us For Availability
28
MAY 2264462 MAY 2264462 Contact Us For Availability
28
COMPRESSOR (INCLUDES ITEMS 13, 14, 15 & 29) ( MAY W10399120 Contact Us For Availability
29
MAY W10190413 MAY W10190413 Contact Us For Availability
30
MAY W10188389 MAY W10188389 Contact Us For Availability
30
PROBE, HEAT MAY 2258429 Contact Us For Availability
31
SCREW 8-18 X 1.00 MAY 2262178 Contact Us For Availability
31
MAY 2264838 MAY 2264838 Contact Us For Availability
32
MAY 2266067 MAY 2266067 Contact Us For Availability
32
EXTENSION, TUBE HEAT MAY W10442468 Contact Us For Availability
33
GASKET, EVAP COVER MAY W10244016 Contact Us For Availability
33
MAY 2215468 MAY 2215468 Contact Us For Availability
NI
REFRIGERANT CHARGE (3.75 OZS. (R134A)) MAY N/P Contact Us For Availability
NI
MAY 876764 MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability
NI
Valve, Access (5/16``) MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability
NI
Valve, Access (1/2``) MAY 978028 Contact Us For Availability
NI
Valve, Access (5/8``) MAY 978029 Contact Us For Availability
NI
Valve, Access (3/4``) MAY 978030 Contact Us For Availability
NI
MAY 1117510 MAY 1117510 Contact Us For Availability
NI
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
FIELD INSTALLABLE ICE MAKER (ECKMF94) MAY 2155469 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (ENAMEL, BL MAY 285006 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (ENAMEL, WH MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WH MAY 350942 Contact Us For Availability
NI
MAY 479502 MAY 479502 Contact Us For Availability
NI
MAY 503695 MAY 503695 Contact Us For Availability
NI
MAY 505587 MAY 505587 Contact Us For Availability
NI
TOUCH-UP, WHITE PORCELAIN (2 OZ.) MAY 511873 Contact Us For Availability
NI
MAY 542638 MAY 542638 Contact Us For Availability
NI
MAY 542639 MAY 542639 Contact Us For Availability
NI
MAY 606755 MAY 606755 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (ENAMEL, WHITE) MAY 799344 Contact Us For Availability
NI
MAY 833938 MAY 833938 Contact Us For Availability
NI
MAY 876029 MAY 876029 Contact Us For Availability
NI
KIT, INSULATION (14 PCS. 3`` X 24`` X 48``) MAY 876305 Contact Us For Availability
NI
KIT, INSULATION (2 PCS. 3`` X 24 `` X 48``) MAY 876370 Contact Us For Availability
NI
MAY 978941 MAY 978941 Contact Us For Availability
NI
MAY W10395148 MAY W10395148 Contact Us For Availability
× ![]()
