Model Maytag A8TXEGFYW02 REFRIGERATOR – Common Parts & Diagrams

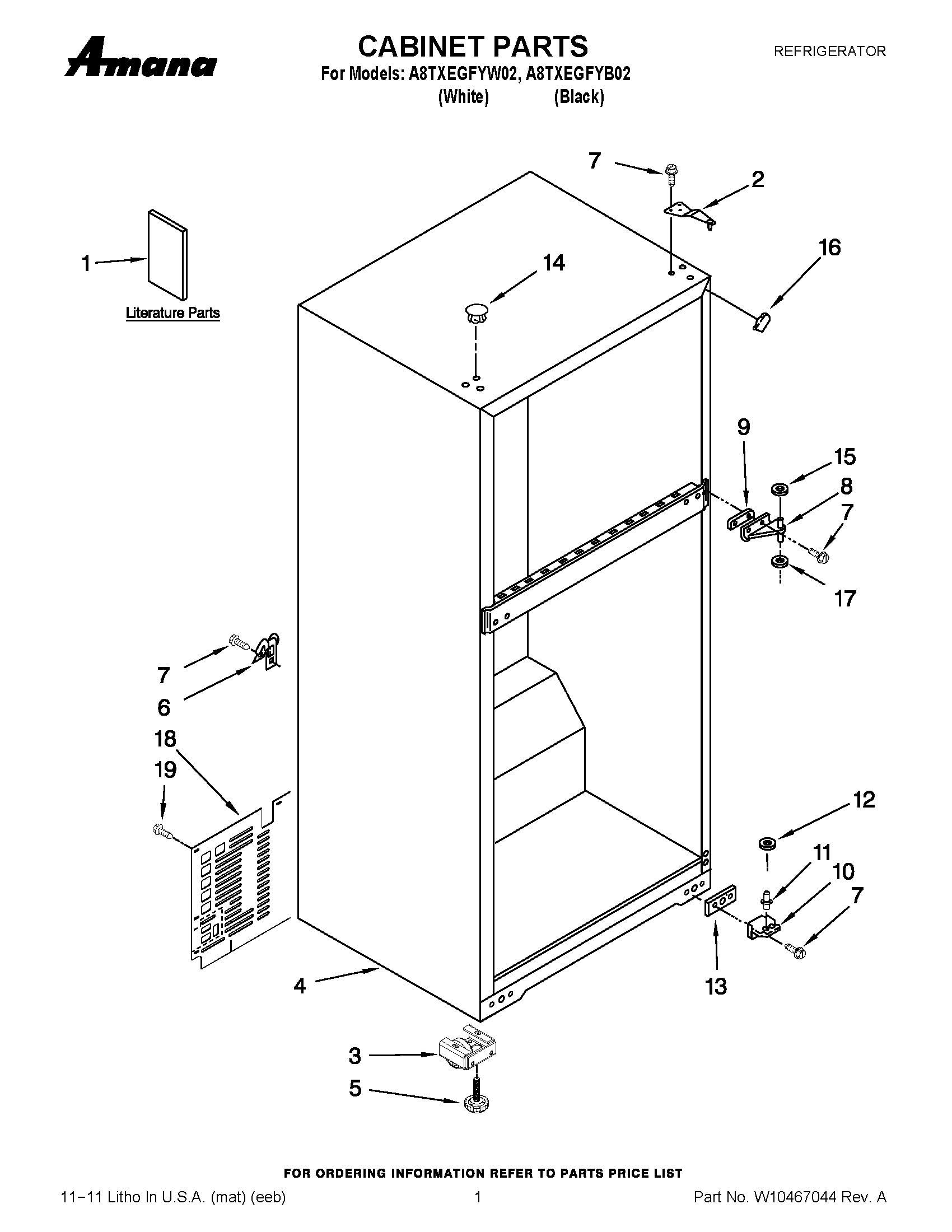

01 - CABINET PARTS

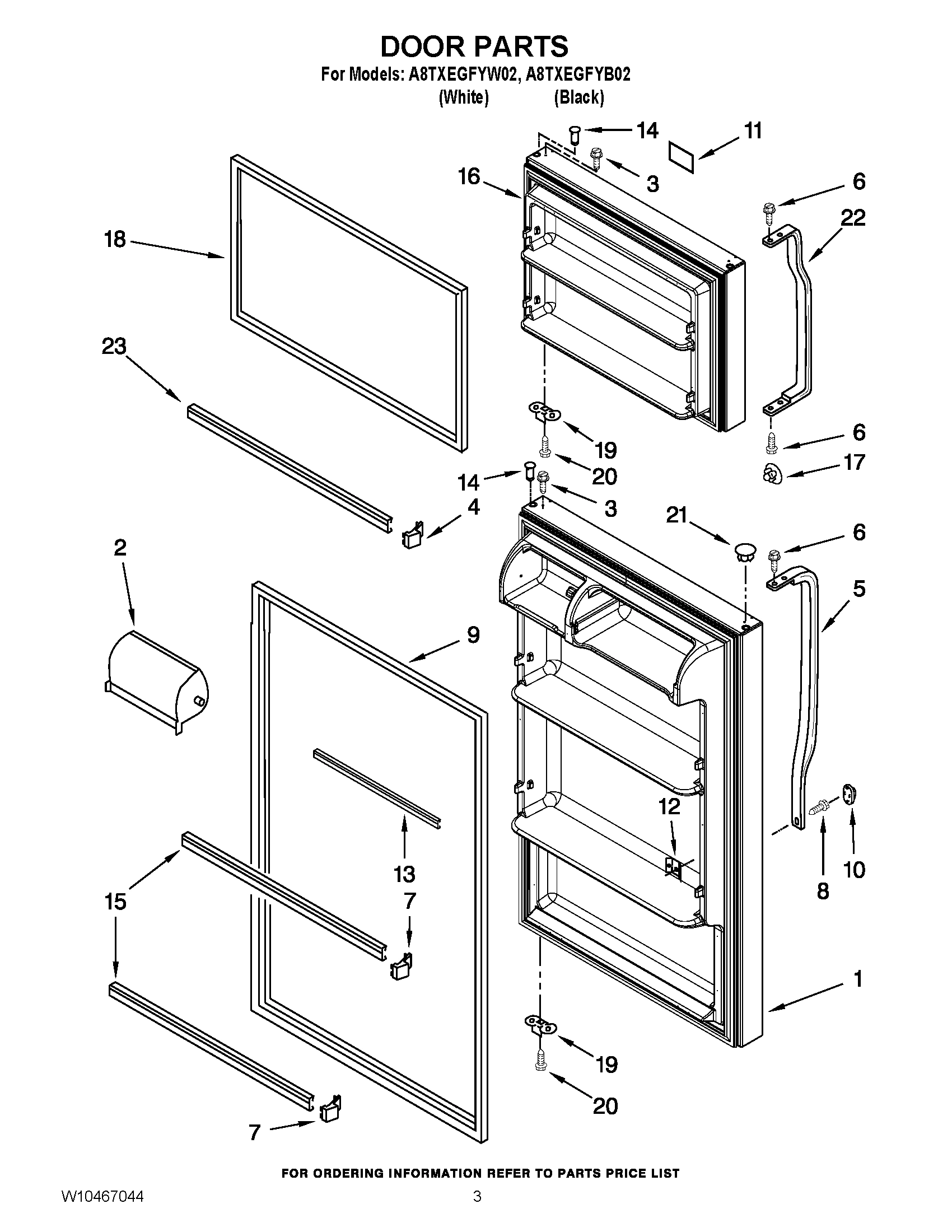

02 - DOOR PARTS

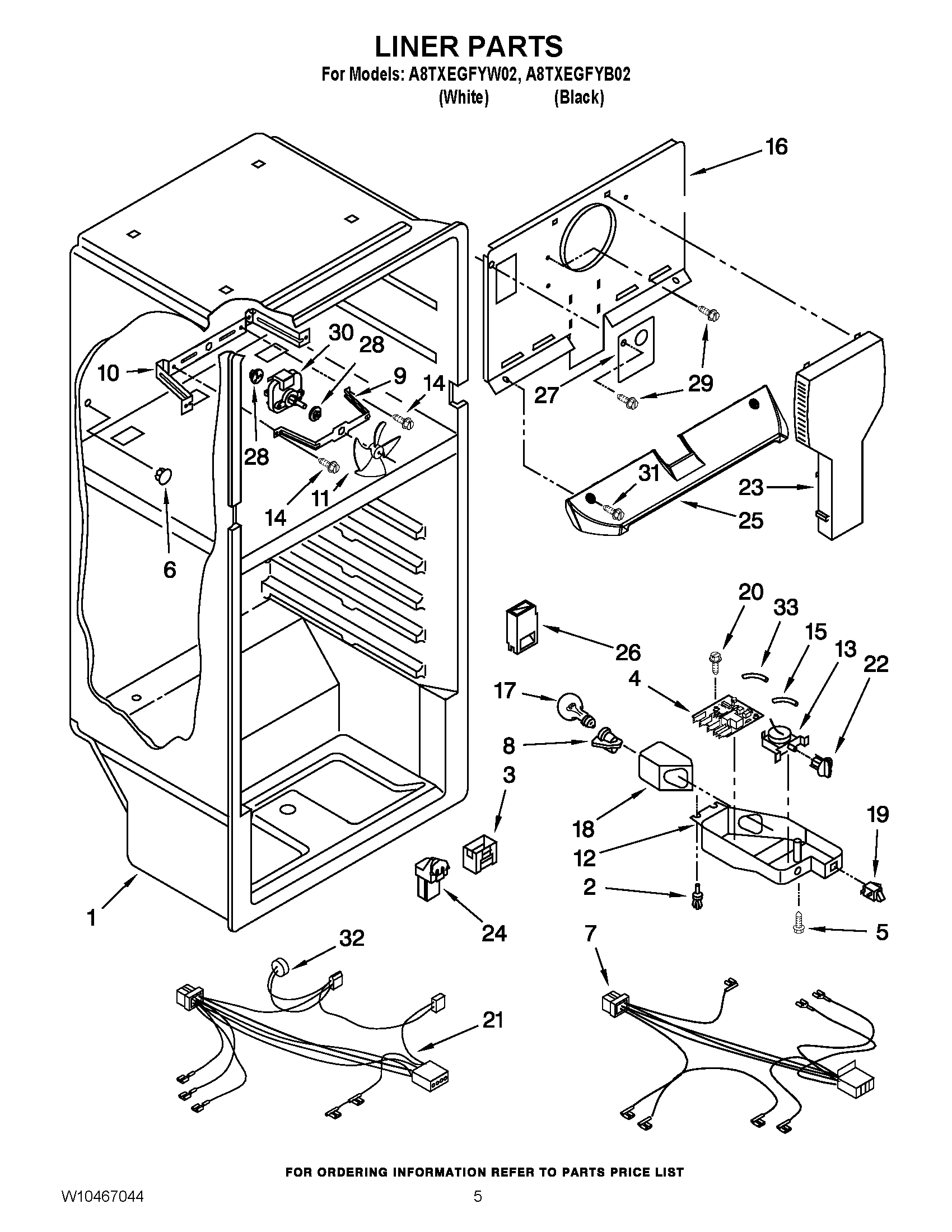

03 - LINER PARTS

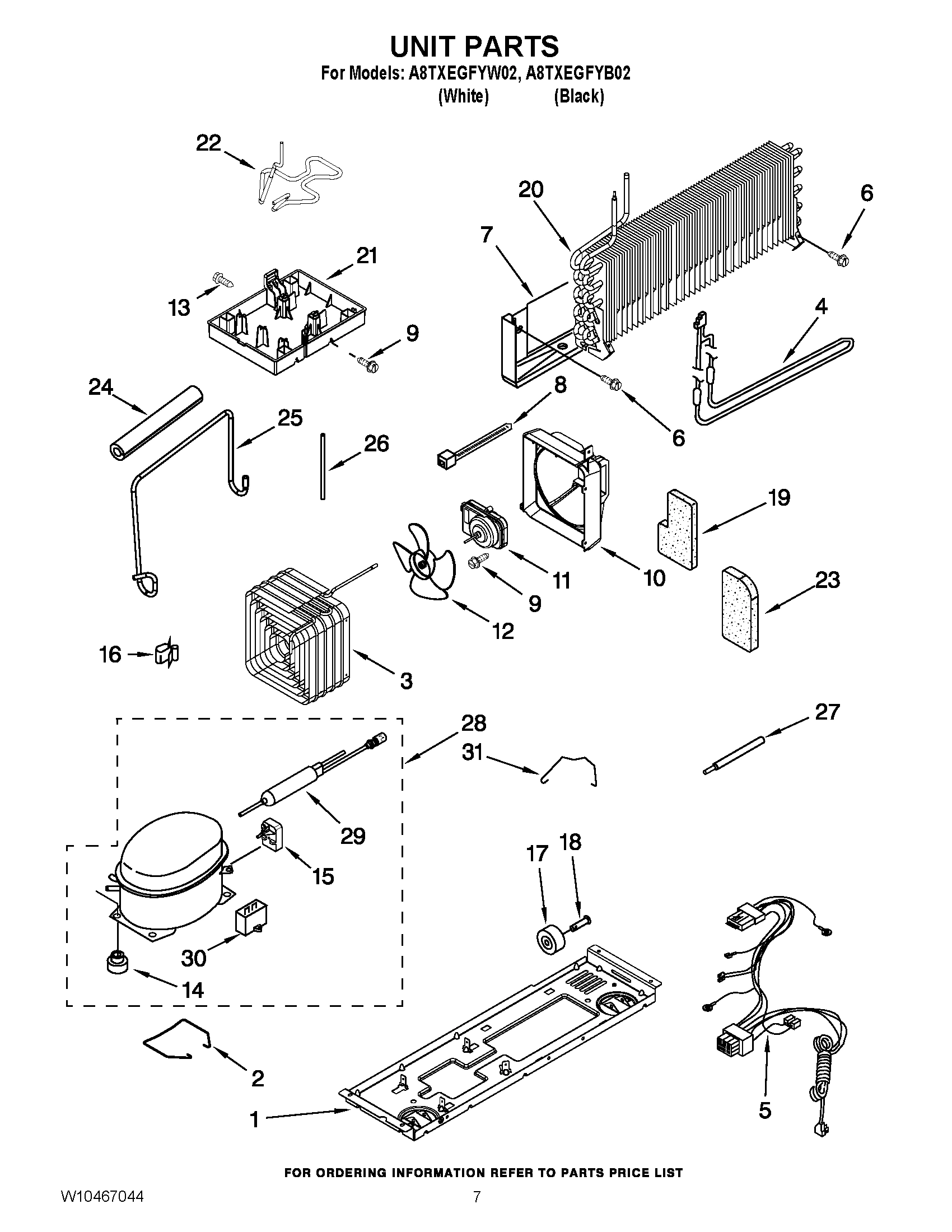

04 - UNIT PARTS

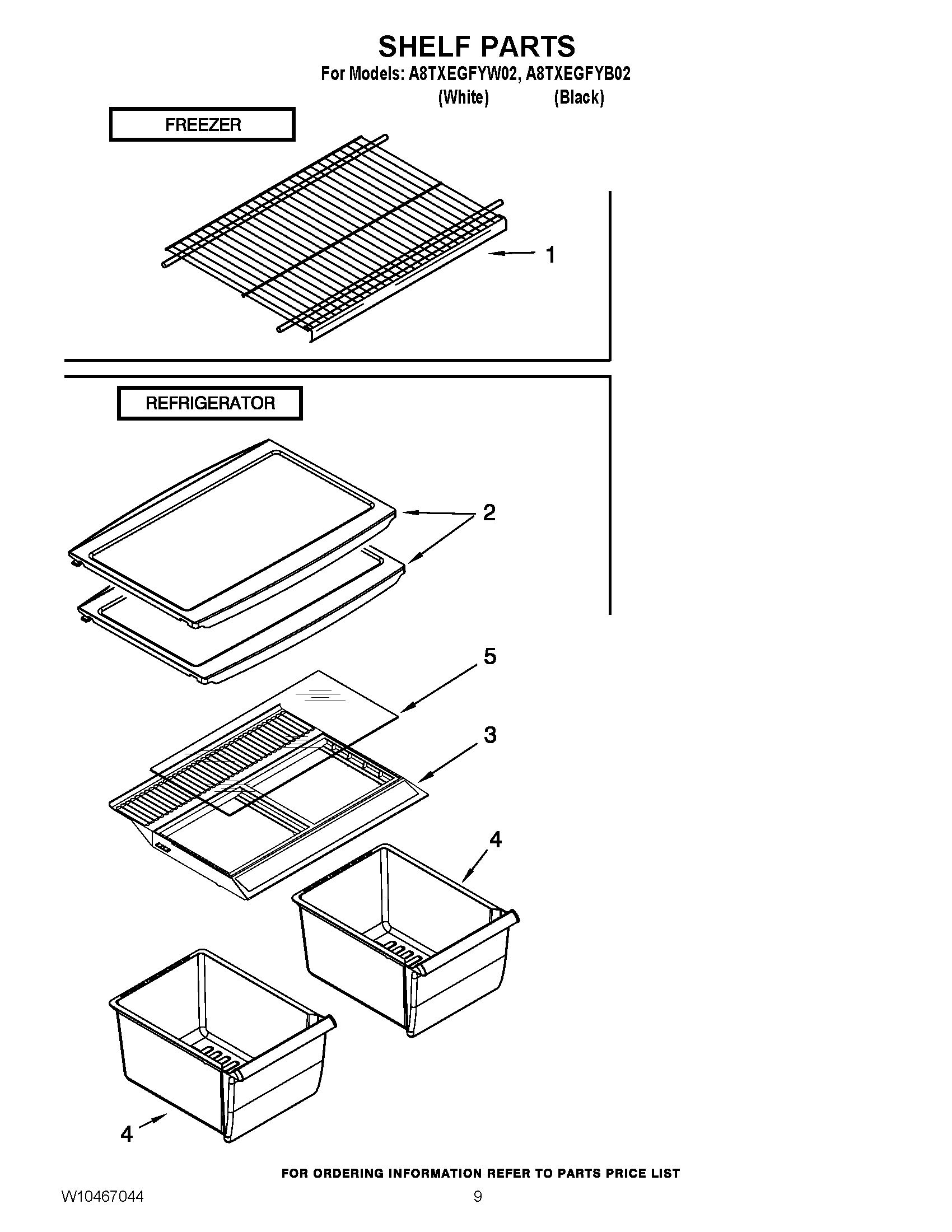

05 - SHELF PARTS
06 - OPTIONAL PARTS
Common parts from model Maytag A8TXEGFYW02 REFRIGERATOR
1
DO-IT-YOURSELF MANUAL REF./FZR. MAY 677969 Contact Us For Availability
1
MAY W10214129 MAY W10214129 Contact Us For Availability
1
MAY W10315504 MAY W10315504 Contact Us For Availability
1
MAY W10344152 MAY W10344152 Contact Us For Availability
1
REFRIGERATOR DOOR (INCLUDES ILLUS. 9 & 14) (W MAY W10267740 Contact Us For Availability
1
REFRIGERATOR DOOR (INCLUDES ILLUS. 9 & 14) (B MAY W10337760 Contact Us For Availability
1
MAY W10222450 MAY W10222450 Contact Us For Availability
1
SHELF, WIRE (FREEZER) MAY W10142525 Contact Us For Availability
2
MAY 2261963 MAY 2261963 Contact Us For Availability
2
MAY 2207942 MAY 2207942 Contact Us For Availability
2
RIVET, PLASTIC MAY 939962 Contact Us For Availability
2
MAY 2264835 MAY 2264835 Contact Us For Availability
2
MAY 2263641 MAY 2263641 Contact Us For Availability
3
ROLLER, FRONT MAY W10142530 Contact Us For Availability
3
MAY 2183061 MAY 2183061 Contact Us For Availability
3
MAY 2264597 MAY 2264597 Contact Us For Availability
3
CRISPER, COVER MAY 2222031 Contact Us For Availability
4
END CAP, TRIM MAY 2156003 Contact Us For Availability
4
Control, Adaptive Defrost MAY 2303825 Contact Us For Availability
4
MAY 2176942 MAY 2176942 Contact Us For Availability
4
MAY 2256704 MAY 2256704 Contact Us For Availability
5
SCREW, LEVELER MAY W10133299 Contact Us For Availability
5
Handle, Refrigerator (White) MAY 2221946W Contact Us For Availability
5
Handle, Refrigerator (Black) MAY 2326169B Contact Us For Availability
5
MAY 489174 MAY 489174 Contact Us For Availability
5
Wire Assy. Unit MAY W10151677 Contact Us For Availability
5
GLASS, CRISPER MAY 2262441 Contact Us For Availability
6
MAY 549193 MAY 549193 Contact Us For Availability
6
MAY 489442 MAY 489442 Contact Us For Availability
6
MAY 489357 MAY 489357 Contact Us For Availability
6
MAY 941839 MAY 941839 Contact Us For Availability
7
MAY 489497 MAY 489497 Contact Us For Availability
7
END CAP, TRIM MAY 2195916 Contact Us For Availability
7
MAY 2265930 MAY 2265930 Contact Us For Availability
7
MAY 2319224 MAY 2319224 Contact Us For Availability
8
MAY 2166086 MAY 2166086 Contact Us For Availability
8
MAY 8281206 MAY 8281206 Contact Us For Availability
8
Socket, Light MAY 2162085 Contact Us For Availability
8
MAY 2263990 MAY 2263990 Contact Us For Availability
9
SHIM HINGE, CENTER MAY 2166043 Contact Us For Availability
9
DOOR GASKET,(BLACK) MAY 2264723 Contact Us For Availability
9
DOOR GASKET, MAGNETIC (MIST BEIGE) MAY W10190032 Contact Us For Availability
9
Fan Support Bracket MAY W10180172 Contact Us For Availability
9
MAY 8533859 MAY 8533859 Contact Us For Availability
10
Hinge Butt MAY 2325482 Contact Us For Availability
10
SCREW COVER (BLACK) MAY 2202819B Contact Us For Availability
10
Screw Cover (White) MAY 2202819W Contact Us For Availability
10
MAY 2197405 MAY 2197405 Contact Us For Availability
10
AIR BAFFLE MAY W10358308 Contact Us For Availability
11
HINGE PIN, BOTTOM MAY 2325483 Contact Us For Availability
11
MAY 2325418 MAY 2325418 Contact Us For Availability
11
MAY 2169141 MAY 2169141 Contact Us For Availability
11
MOTOR, CONDENSOR MAY 2188874 Contact Us For Availability
12
SCREW ANCHOR MAY 939101 Contact Us For Availability
12
MAY W10338474 MAY W10338474 Contact Us For Availability
12
MAY 2264129 MAY 2264129 Contact Us For Availability
13
MAY 2201567 MAY 2201567 Contact Us For Availability
13
TRIM, DOOR SHELF (UPPER) MAY W10234242 Contact Us For Availability
13
MAY 2325701 MAY 2325701 Contact Us For Availability
13
MAY 2264841 MAY 2264841 Contact Us For Availability
14
HOLE PLUG (BLACK) MAY 2183998 Contact Us For Availability
14
HOLE PLUG (WHITE) MAY 2201012 Contact Us For Availability
14
MAY 2262054 MAY 2262054 Contact Us For Availability
14
MAY 489399 MAY 489399 Contact Us For Availability
14
Grommet (Production) MAY 2264447 Contact Us For Availability
15
MAY 489341 MAY 489341 Contact Us For Availability
15
Trim, Door (Wide) MAY 2266738 Contact Us For Availability
15
MAY 1118680 MAY 1118680 Contact Us For Availability
15
START DEVICE, COMBINATION (START RELAY AND OV MAY W10197428 Contact Us For Availability
16
MAY 2166003 MAY 2166003 Contact Us For Availability
16
Corner Filler (Black) MAY 2215384 Contact Us For Availability
16
FREEZER DOOR (INCLUDES ILLUS. 14, & 18) (WHIT MAY W10267736 Contact Us For Availability
16
FREEZER DOOR (INCLUDES ILLUS. 14, & 18) (BLAC MAY W10337761 Contact Us For Availability
16
MAY W10244012 MAY W10244012 Contact Us For Availability
16
MAY 939054 MAY 939054 Contact Us For Availability
17
MAY 487576 MAY 487576 Contact Us For Availability
17
Hole Plug, Handle (White) MAY 2189000 Contact Us For Availability
17
MAY 2189009 MAY 2189009 Contact Us For Availability
17
MAY 527949 MAY 527949 Contact Us For Availability
17
Roller MAY 2150304 Contact Us For Availability
18
MAY 2264132 MAY 2264132 Contact Us For Availability
18
DOOR GASKET, (BLACK) MAY 2264722 Contact Us For Availability
18
DOOR GASKET, MAGNETIC (MIST BEIGE) MAY W10190031 Contact Us For Availability
18
MAY 9791702 MAY 9791702 Contact Us For Availability
18
MAY 2264756 MAY 2264756 Contact Us For Availability
19
MAY 2189202 MAY 2189202 Contact Us For Availability
19
MAY 1118894 MAY 1118894 Contact Us For Availability
19
MAY 2262191 MAY 2262191 Contact Us For Availability
20
MAY 488921 MAY 488921 Contact Us For Availability
20
Screw MAY 488693 Contact Us For Availability
20
EVAPORATOR ASSY MAY 2263920 Contact Us For Availability
21
Hole Plug (White) MAY 2212648 Contact Us For Availability
21
Hole Plug (Black) MAY 2212651 Contact Us For Availability
21
WIRING, FREEZER (INCLUDES ITEM 32) MAY W10183127 Contact Us For Availability
21
Evaporating Tray MAY 2263928 Contact Us For Availability
22
Handle, Freezer (White) MAY 2202098 Contact Us For Availability
22
Handle, Freezer (Black) MAY 2202098B Contact Us For Availability
22
MAY 2202885 MAY 2202885 Contact Us For Availability
22
TUBE, DISCHARGE (INCL. PRE-COOLER) MAY W10336305 Contact Us For Availability
23
Trim, Door (Narrow) MAY 2266727 Contact Us For Availability
23
MAY 9790408 MAY 9790408 Contact Us For Availability
23
MAY 2262192 MAY 2262192 Contact Us For Availability
24
Hood And Foil Assembly MAY 2197052 Contact Us For Availability
24
MAY 2264838 MAY 2264838 Contact Us For Availability
25
MAY 2261978 MAY 2261978 Contact Us For Availability
25
MAY W10209727 MAY W10209727 Contact Us For Availability
26
MAY 2221992 MAY 2221992 Contact Us For Availability
26
MAY 2264278 MAY 2264278 Contact Us For Availability
27
MAY 2217784 MAY 2217784 Contact Us For Availability
27
PROCESS TUBE MAY 2174739 Contact Us For Availability
28
MAY 2264462 MAY 2264462 Contact Us For Availability
28
COMPRESSOR (INCLUDES ITEMS15, 29 & 30) (ALSO MAY W10200250 Contact Us For Availability
29
MAY 489478 MAY 489478 Contact Us For Availability
29
MAY W10143759 MAY W10143759 Contact Us For Availability
29
DRIER (PRODUCTION) MAY W10190413 Contact Us For Availability
30
MAY 2315539 MAY 2315539 Contact Us For Availability
30
Capacitor (Production) MAY 2264017 Contact Us For Availability
31
MAY 2262178 MAY 2262178 Contact Us For Availability
31
CLIP, COMBO MAY 2263628 Contact Us For Availability
32
MAY 2266066 MAY 2266066 Contact Us For Availability
33
MAY W10337823 MAY W10337823 Contact Us For Availability
NI
REFRIGERANT CHARGE (R134A) MAY N/P Contact Us For Availability
NI
MAY 876764 MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability
NI
Valve, Access (5/16``) MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability
NI
Valve, Access (1/2``) MAY 978028 Contact Us For Availability
NI
Valve, Access (5/8``) MAY 978029 Contact Us For Availability
NI
Valve, Access (3/4``) MAY 978030 Contact Us For Availability
NI
MAY 1117510 MAY 1117510 Contact Us For Availability
NI
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
MAY 2155469A MAY 2155469A Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (ENAMEL, WHITE (12 MAY 350930 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (ENAMEL, BLACK (12 MAY 350939 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (PRIMER, WHITE (12 MAY 350942 Contact Us For Availability
NI
MAY 479502 MAY 479502 Contact Us For Availability
NI
MAY 503695 MAY 503695 Contact Us For Availability
NI
MAY 505587 MAY 505587 Contact Us For Availability
NI
TOUCH-UP, WHITE PORCELAIN (2 OZ.) MAY 511873 Contact Us For Availability
NI
MAY 542638 MAY 542638 Contact Us For Availability
NI
MAY 542639 MAY 542639 Contact Us For Availability
NI
MAY 606755 MAY 606755 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (BRUSH TOUCH-UP KI MAY 72017 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (BRUSH TOUCH-UP KI MAY 72032 Contact Us For Availability
NI
REFINISHING MATERIAL (ENAMEL, WHITE (1 QT. UN MAY 799344 Contact Us For Availability
NI
REFINISHING MATERIAL, KIT, TERMINAL CONNECTOR MAY 833938 Contact Us For Availability
NI
MAY 876029 MAY 876029 Contact Us For Availability
NI
KIT, INSULATION (14 PCS. 3`` X 24`` X 48``) MAY 876305 Contact Us For Availability
NI
KIT, INSULATION (2 PCS. 3`` X 24 `` X 48``) MAY 876370 Contact Us For Availability
NI
MAY 978941 MAY 978941 Contact Us For Availability
× ![]()
