Model Maytag A8RXNGFBS01 REFRIGERATOR – Common Parts & Diagrams

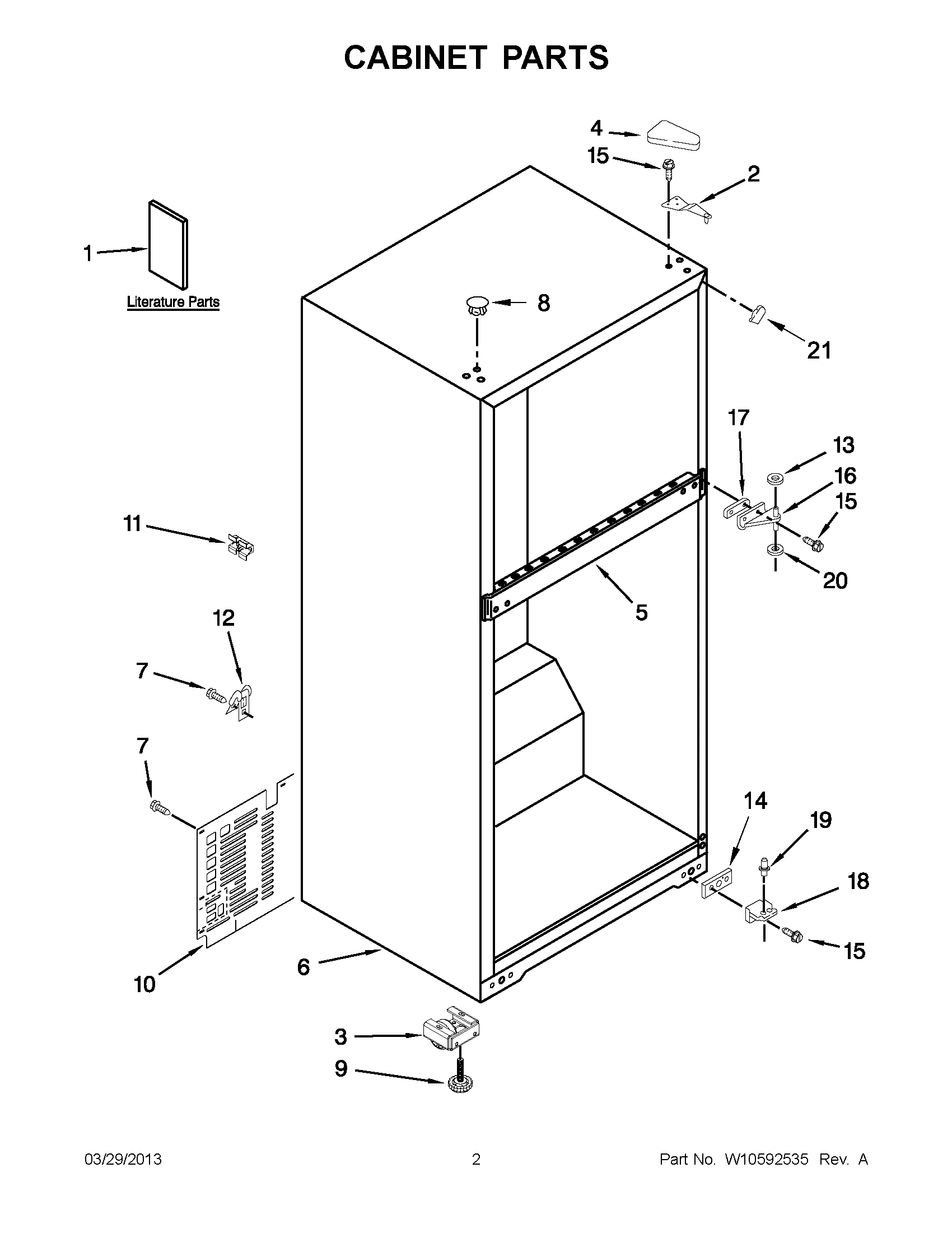

01 - CABINET PARTS

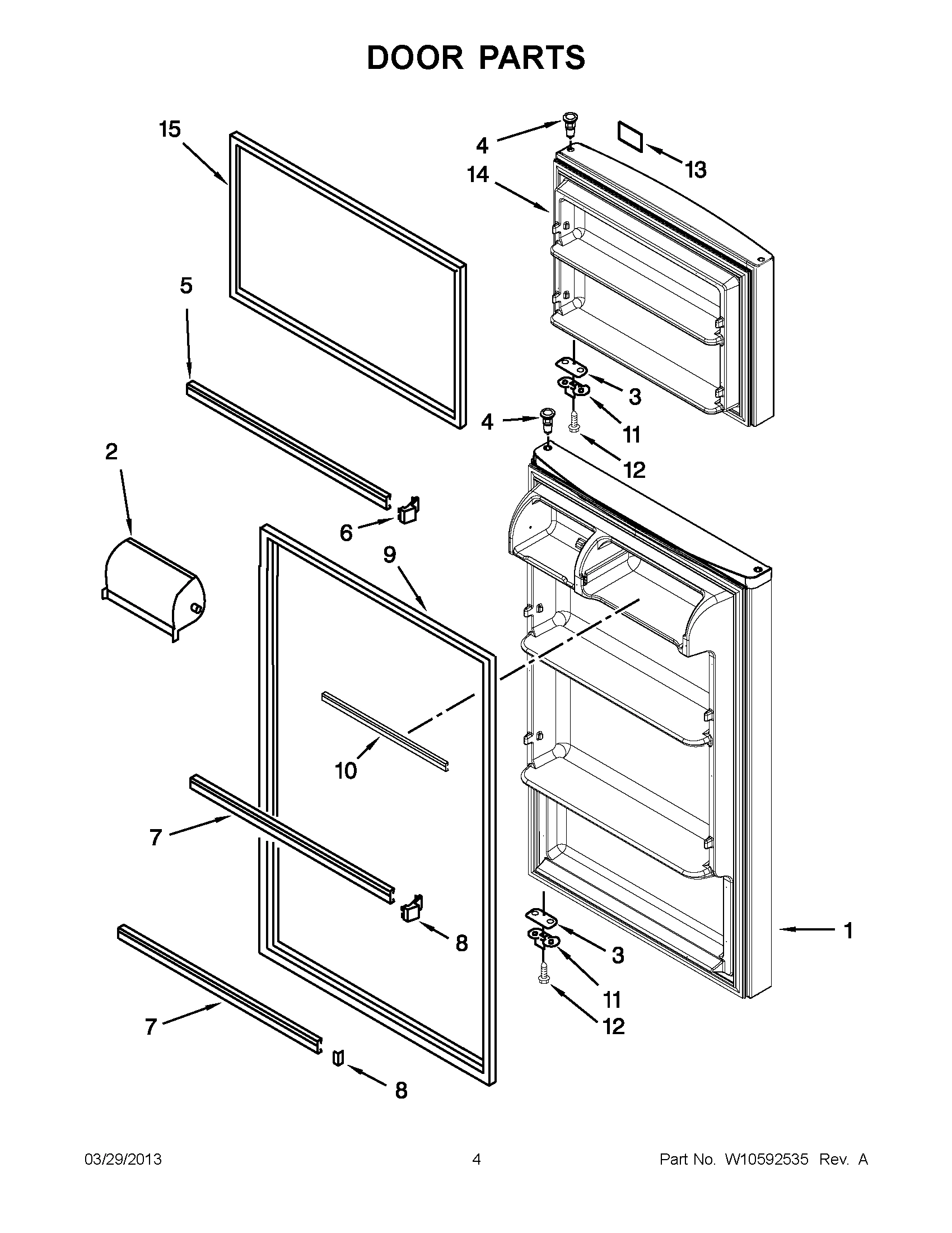

02 - DOOR PARTS

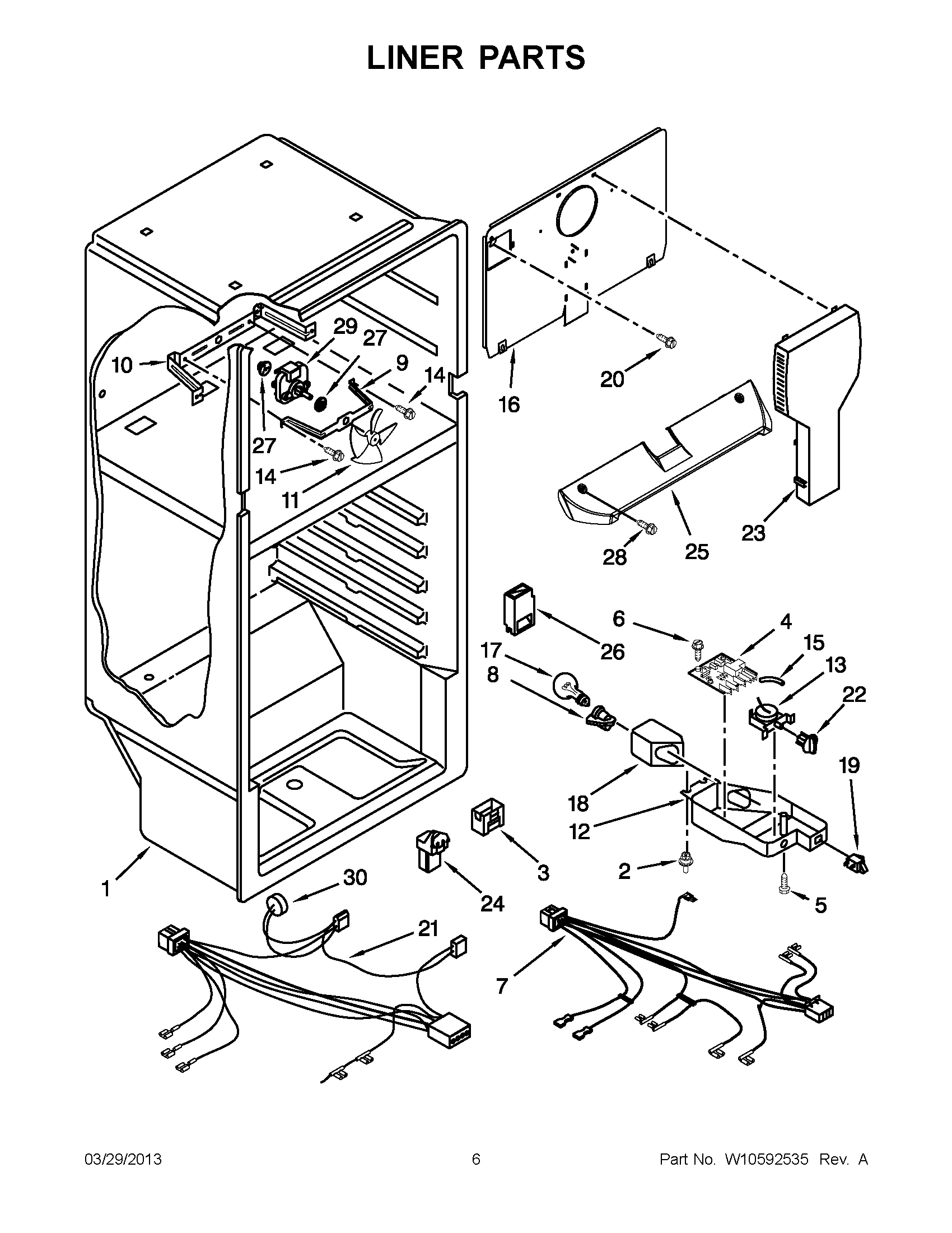

03 - LINER PARTS

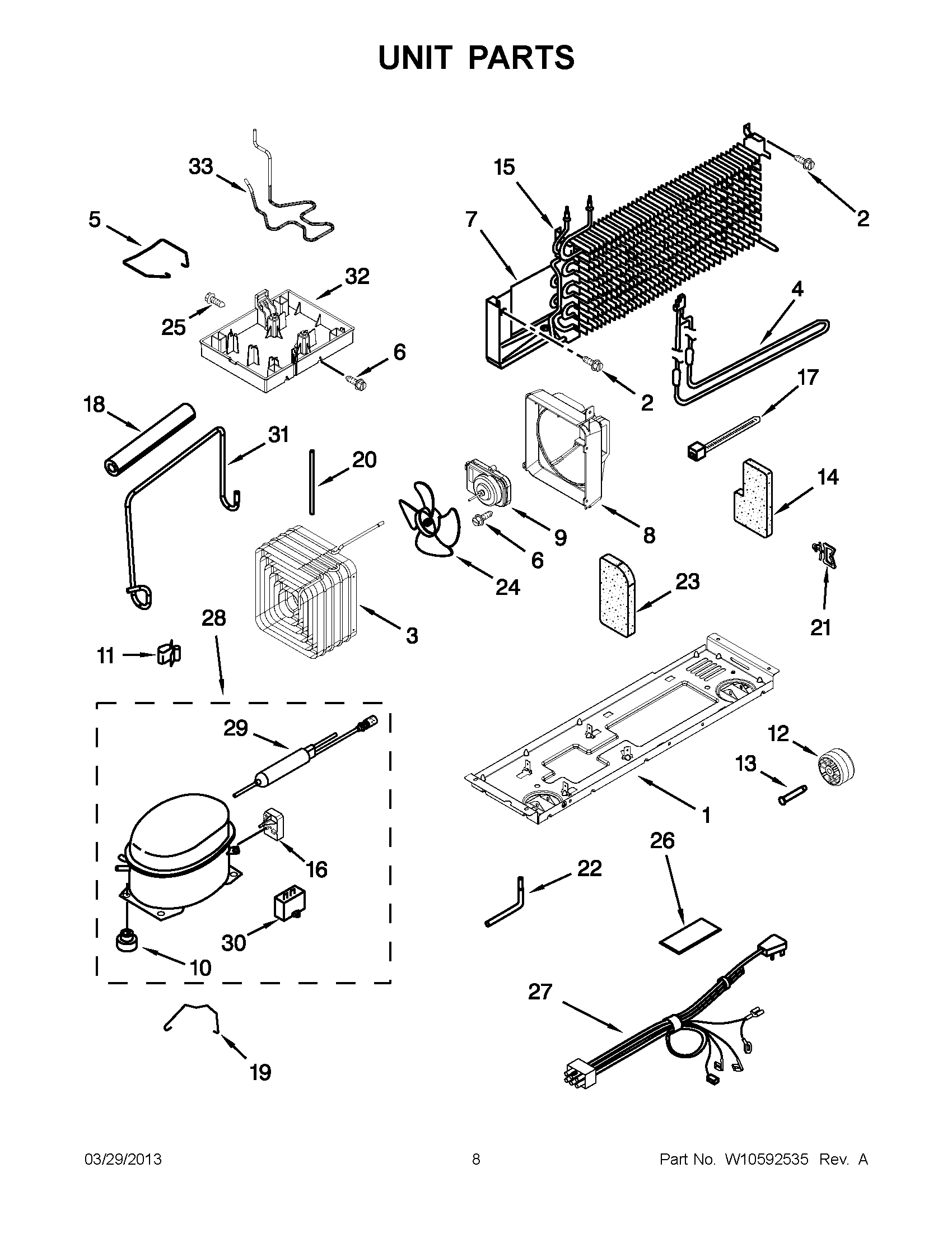

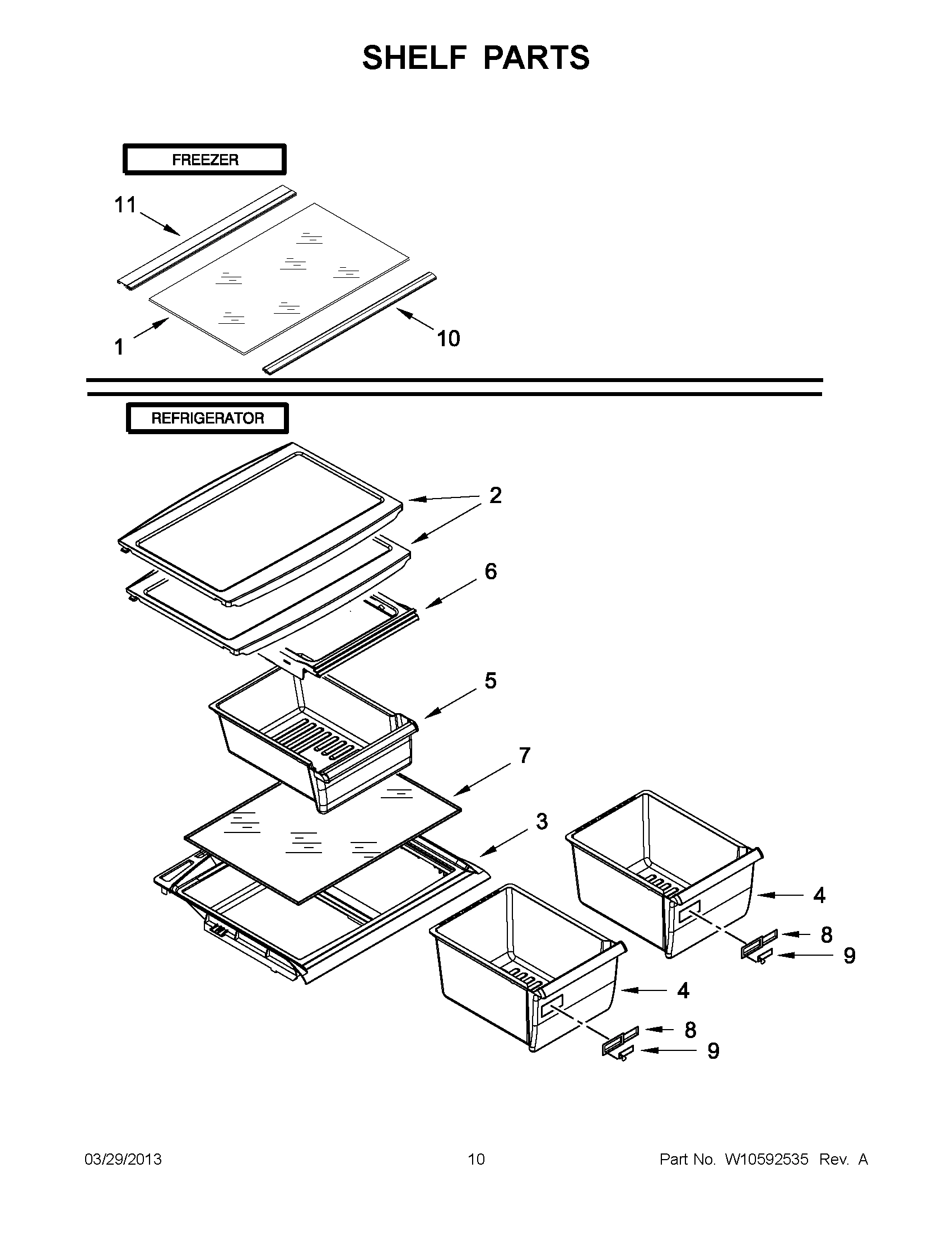

04 - UNIT PARTS
05 - SHELF PARTS
06 - OPTIONAL PARTS
Common parts from model Maytag A8RXNGFBS01 REFRIGERATOR
1
DO-IT-YOURSELF REPAIR MANUALS MAY 677969 Contact Us For Availability
1
MAY W10214129 MAY W10214129 Contact Us For Availability
1
MAY W10402929 MAY W10402929 Contact Us For Availability
1
MAY W10564384 MAY W10564384 Contact Us For Availability
1
REFRIGERATOR DOOR (INCLUDES ILLUS 9 & MOLDED MAY W10209801 Contact Us For Availability
1
MAY W10222450 MAY W10222450 Contact Us For Availability
1
SHELF, GLASS MAY W10283871 Contact Us For Availability
2
ASSEMBLY, HINGE, TOP MAY 2261963 Contact Us For Availability
2
MAY 489442 MAY 489442 Contact Us For Availability
2
MAY 2207942 MAY 2207942 Contact Us For Availability
2
RIVET, PLASTIC MAY 939962 Contact Us For Availability
2
MAY W10283851 MAY W10283851 Contact Us For Availability
3
ASSEMBLY, ROLLER COVER, HINGE MAY W10142530 Contact Us For Availability
3
Shim, Door Stop (Black) MAY 2258681B Contact Us For Availability
3
Air Diffuser Cover MAY 2183061 Contact Us For Availability
3
MAY 2264004 MAY 2264004 Contact Us For Availability
3
COVER, CRISPER MAY W10211610 Contact Us For Availability
4
MAY 2213363 MAY 2213363 Contact Us For Availability
4
Hole Plug (Black) MAY 2212651 Contact Us For Availability
4
MAY 2303825 MAY 2303825 Contact Us For Availability
4
MAY 2176942 MAY 2176942 Contact Us For Availability
4
CRISPER PAN (ALSO ORDER ITEMS 8, & 9) MAY 2256704 Contact Us For Availability
5
MAY 2266727 MAY 2266727 Contact Us For Availability
5
MAY 489174 MAY 489174 Contact Us For Availability
5
MAY 2264835 MAY 2264835 Contact Us For Availability
5
MAY 2261934 MAY 2261934 Contact Us For Availability
6
END CAP, DOOR TRIM MAY 2156003 Contact Us For Availability
6
Screw MAY 488693 Contact Us For Availability
6
MAY 8533859 MAY 8533859 Contact Us For Availability
6
MAY W10258418 MAY W10258418 Contact Us For Availability
7
TRIM, DOOR MAY 2266738 Contact Us For Availability
7
MAY 2265930 MAY 2265930 Contact Us For Availability
7
MAY 2319224 MAY 2319224 Contact Us For Availability
7
MAY 2262441 MAY 2262441 Contact Us For Availability
8
HOLE PLUG (BLACK) MAY W10520305 Contact Us For Availability
8
END CAP, DOOR TRIM MAY 2195916 Contact Us For Availability
8
Socket, Light MAY 2162085 Contact Us For Availability
8
MAY W10358308 MAY W10358308 Contact Us For Availability
8
MAY 2212446 MAY 2212446 Contact Us For Availability
9
MAY W10133299 MAY W10133299 Contact Us For Availability
9
Door Gasket, Magnetic (Black) MAY 2264723 Contact Us For Availability
9
MAY W10180172 MAY W10180172 Contact Us For Availability
9
MAY 2188875 MAY 2188875 Contact Us For Availability
9
Slide, Humidity Control MAY 2176222 Contact Us For Availability
10
MAY 2264132 MAY 2264132 Contact Us For Availability
10
TRIM, DOOR MAY W10234242 Contact Us For Availability
10
BRACKET, FAN MOUNTING MAY 2197405 Contact Us For Availability
10
MAY 2264447 MAY 2264447 Contact Us For Availability
10
MAY W10272377 MAY W10272377 Contact Us For Availability
11
MAY 2266506 MAY 2266506 Contact Us For Availability
11
BRACKET, DOOR STOP (SILVER) MAY 2189202 Contact Us For Availability
11
MAY 2169142 MAY 2169142 Contact Us For Availability
11
CLIP, WIRE (COMPRESSOR) MAY 939054 Contact Us For Availability
11
MAY W10272381 MAY W10272381 Contact Us For Availability
12
Clamp, Power Cord MAY 549193 Contact Us For Availability
12
SCREW 8-16 X .580 MAY 8533904 Contact Us For Availability
12
MAY 2215210 MAY 2215210 Contact Us For Availability
12
MAY W10475495 MAY W10475495 Contact Us For Availability
13
Washer, Plastic MAY 487576 Contact Us For Availability
13
NAMEPLATE (SILVER) MAY 2325418 Contact Us For Availability
13
MAY 2325701 MAY 2325701 Contact Us For Availability
13
AXLE, ROLLER MAY 2264756 Contact Us For Availability
14
MAY 2201567 MAY 2201567 Contact Us For Availability
14
FREEZER DOOR (INCLUDES ILLUS 15 & MOLDED DOOR MAY W10209802 Contact Us For Availability
14
MAY 489399 MAY 489399 Contact Us For Availability
14
MAY 2262191 MAY 2262191 Contact Us For Availability
15
MAY 489497 MAY 489497 Contact Us For Availability
15
Door Gasket, Magnetic (Black) MAY 2264722 Contact Us For Availability
15
TUBE BARRIER, THERMOSTAT MAY 1118680 Contact Us For Availability
15
EVAPORATOR MAY 2263920 Contact Us For Availability
16
HINGE ASSEMBLY, CENTER MAY 2166086 Contact Us For Availability
16
MAY W10244012 MAY W10244012 Contact Us For Availability
16
START DEVICE, MAY W10399283 Contact Us For Availability
17
SHIM HINGE, CENTER (BLACK) MAY 2215385 Contact Us For Availability
17
Bulb, Light MAY 527949 Contact Us For Availability
17
TIE, WIRE MAY 2263990 Contact Us For Availability
18
MAY 2325482 MAY 2325482 Contact Us For Availability
18
MAY 9791702 MAY 9791702 Contact Us For Availability
18
MAY 2264838 MAY 2264838 Contact Us For Availability
19
MAY 2325483 MAY 2325483 Contact Us For Availability
19
SWITCH, ROCKER ARM (REF) MAY 1118894 Contact Us For Availability
19
MAY 2212996 MAY 2212996 Contact Us For Availability
20
WASHER (PLASTIC) MAY 487802 Contact Us For Availability
20
MAY 489478 MAY 489478 Contact Us For Availability
20
MAY 2264278 MAY 2264278 Contact Us For Availability
21
Corner Filler (Black) MAY 2215384 Contact Us For Availability
21
WIRE ASSEMBLY, FREEZER COMPARTMENT MAY W10290502 Contact Us For Availability
21
CLIP-HARNESS MAY 2266467 Contact Us For Availability
22
KNOB, CONTROL MAY 2202885 Contact Us For Availability
22
MAY VS20001 MAY VS20001 Contact Us For Availability
23
MAY 9790408 MAY 9790408 Contact Us For Availability
23
MAY 2262192 MAY 2262192 Contact Us For Availability
24
ASSEMBLY, HOOD & FOIL MAY 2197052 Contact Us For Availability
24
MAY 2264129 MAY 2264129 Contact Us For Availability
25
COVER, AIR RETURN (FREEZER) MAY 2261978 Contact Us For Availability
25
SCREW 8-18 X .405 MAY 2264841 Contact Us For Availability
26
AIR DIFFUSER ASSEMBLY MAY 2221992 Contact Us For Availability
26
SHIELD-ELECTRICAL MAY 2266360 Contact Us For Availability
27
MAY 2264462 MAY 2264462 Contact Us For Availability
27
WIRE ASSEMBLY, UNIT MAY W10151677 Contact Us For Availability
28
SCREW 8-18 X 1.00 MAY 2262178 Contact Us For Availability
28
COMPRESSOR (ALSO ORDER 482801 INSTALLATION KI MAY W10399120 Contact Us For Availability
29
MOTOR, FAN MAY W10188389 Contact Us For Availability
29
MAY W10190413 MAY W10190413 Contact Us For Availability
30
MAY 2266067 MAY 2266067 Contact Us For Availability
30
CAPACITOR MAY 2252799 Contact Us For Availability
31
MAY W10401891 MAY W10401891 Contact Us For Availability
32
MAY 2263928 MAY 2263928 Contact Us For Availability
33
TUBE, DISCHARGE MAY W10401889 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED, MAY N/P Contact Us For Availability
NI
VALVE, ACCESS MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS MAY 978025 Contact Us For Availability
NI
VALVE, ACCESS MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS MAY 978027 Contact Us For Availability
NI
VALVE, ACCESS MAY 978028 Contact Us For Availability
NI
VALVE, ACCESS MAY 978029 Contact Us For Availability
NI
VALVE, ACCESS MAY 978030 Contact Us For Availability
NI
TORX SCREW WRENCH, TORX KEY MAY 1117510 Contact Us For Availability
NI
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
MAY 2155469A MAY 2155469A Contact Us For Availability
NI
MAY 479502 MAY 479502 Contact Us For Availability
NI
CORK, SEALER MAY 503695 Contact Us For Availability
NI
MAY 505587 MAY 505587 Contact Us For Availability
NI
WHITE PORCELAIN (2 OZ.) MAY 511873 Contact Us For Availability
NI
MAY 542638 MAY 542638 Contact Us For Availability
NI
MAY 542639 MAY 542639 Contact Us For Availability
NI
BAG MAY 606755 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (WHITE) MAY 72017 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (BLACK) MAY 72032 Contact Us For Availability
NI
REFINISHING MATERIAL (WHITE) MAY 799344 Contact Us For Availability
NI
REFINISHING MATERIAL, KIT, TERMINAL CONNECTOR MAY 833938 Contact Us For Availability
NI
MAY 876029 MAY 876029 Contact Us For Availability
NI
INSULATION KIT (14 PIECES, 3`` X 24`` X 48``) MAY 876305 Contact Us For Availability
NI
INSULATION (2 PIECES, 3`` X 24`` X 48``) MAY 876370 Contact Us For Availability
NI
MAY 978941 MAY 978941 Contact Us For Availability
× ![]()
