Model Maytag A8RXCGFXS01 REFRIGERATOR – Common Parts & Diagrams
01 - CABINET PARTS

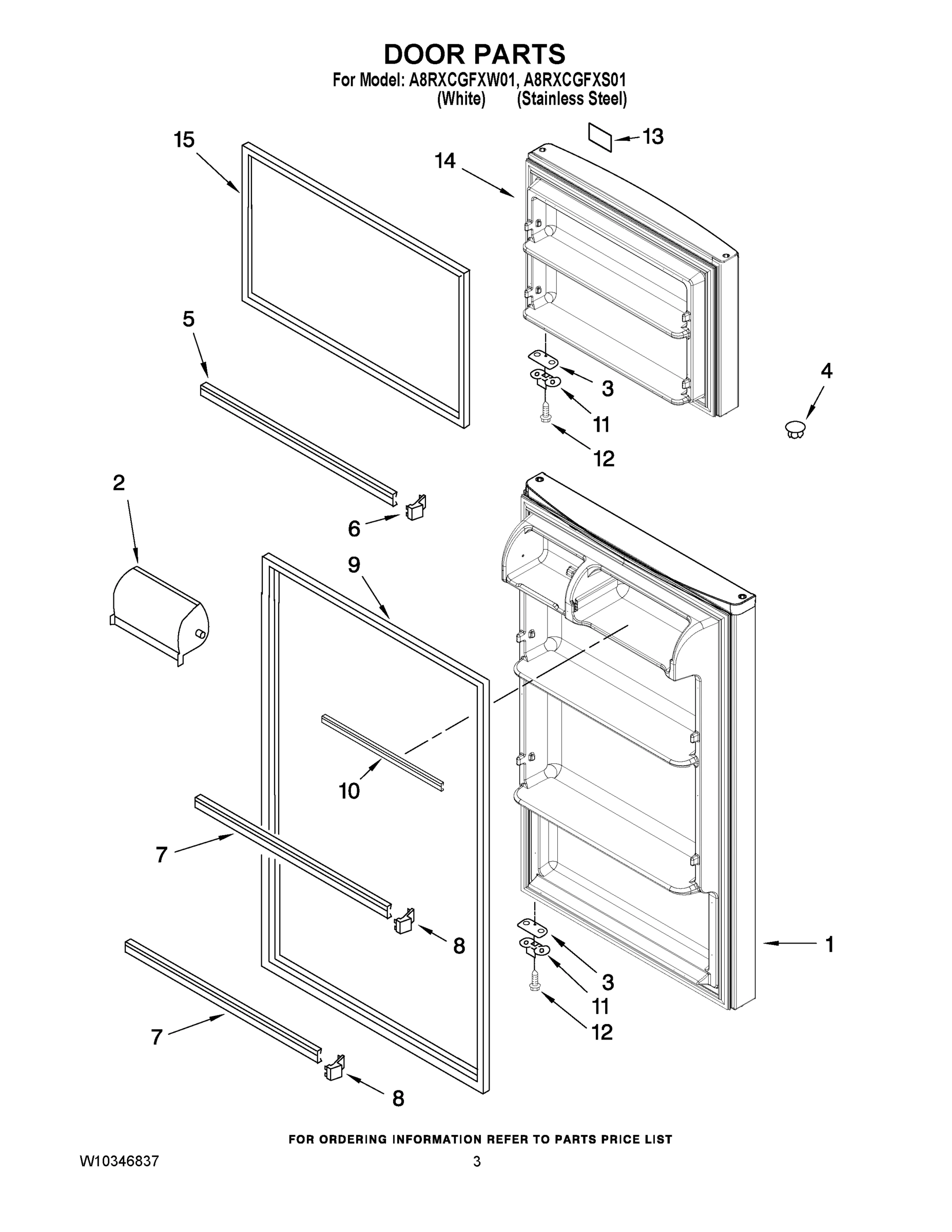

02 - DOOR PARTS

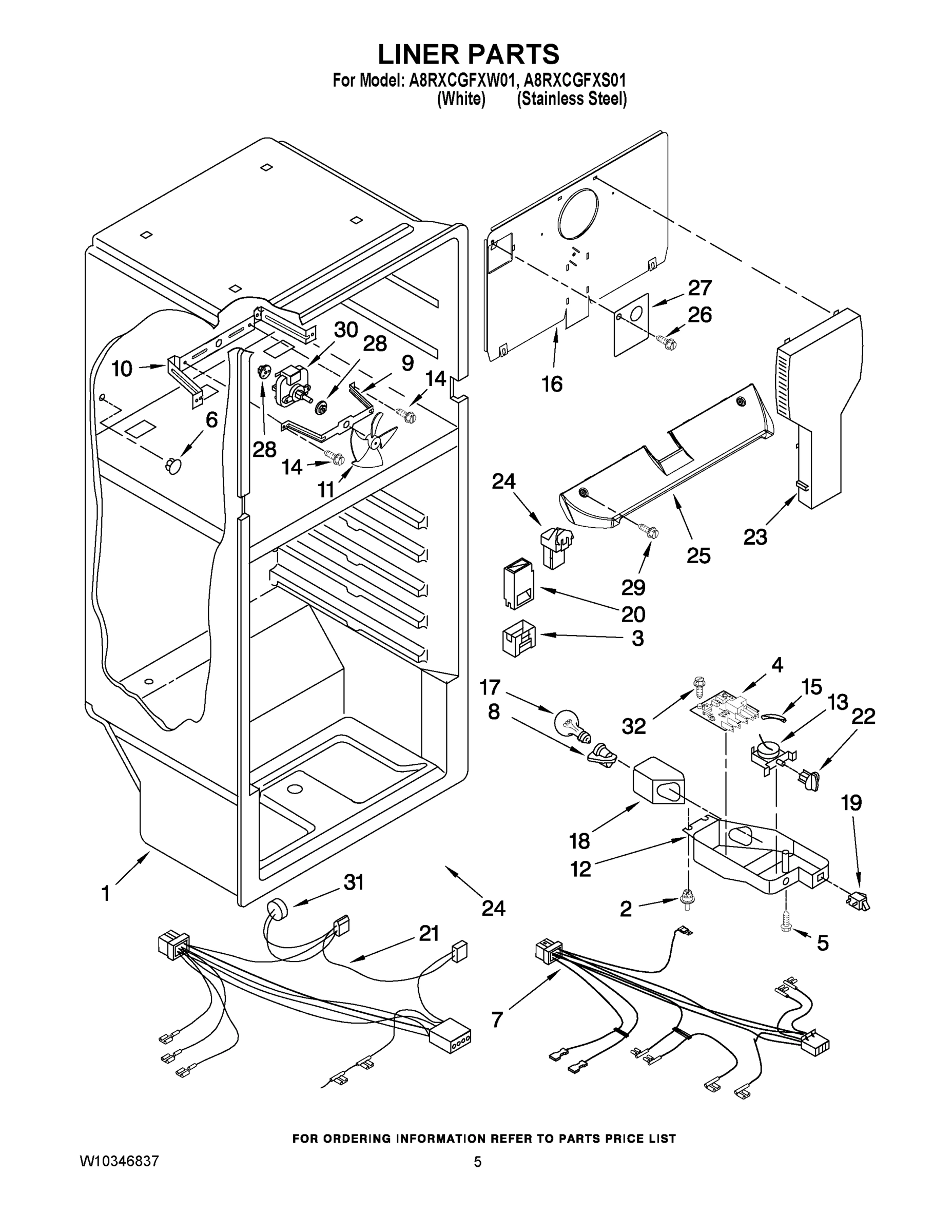

03 - LINER PARTS

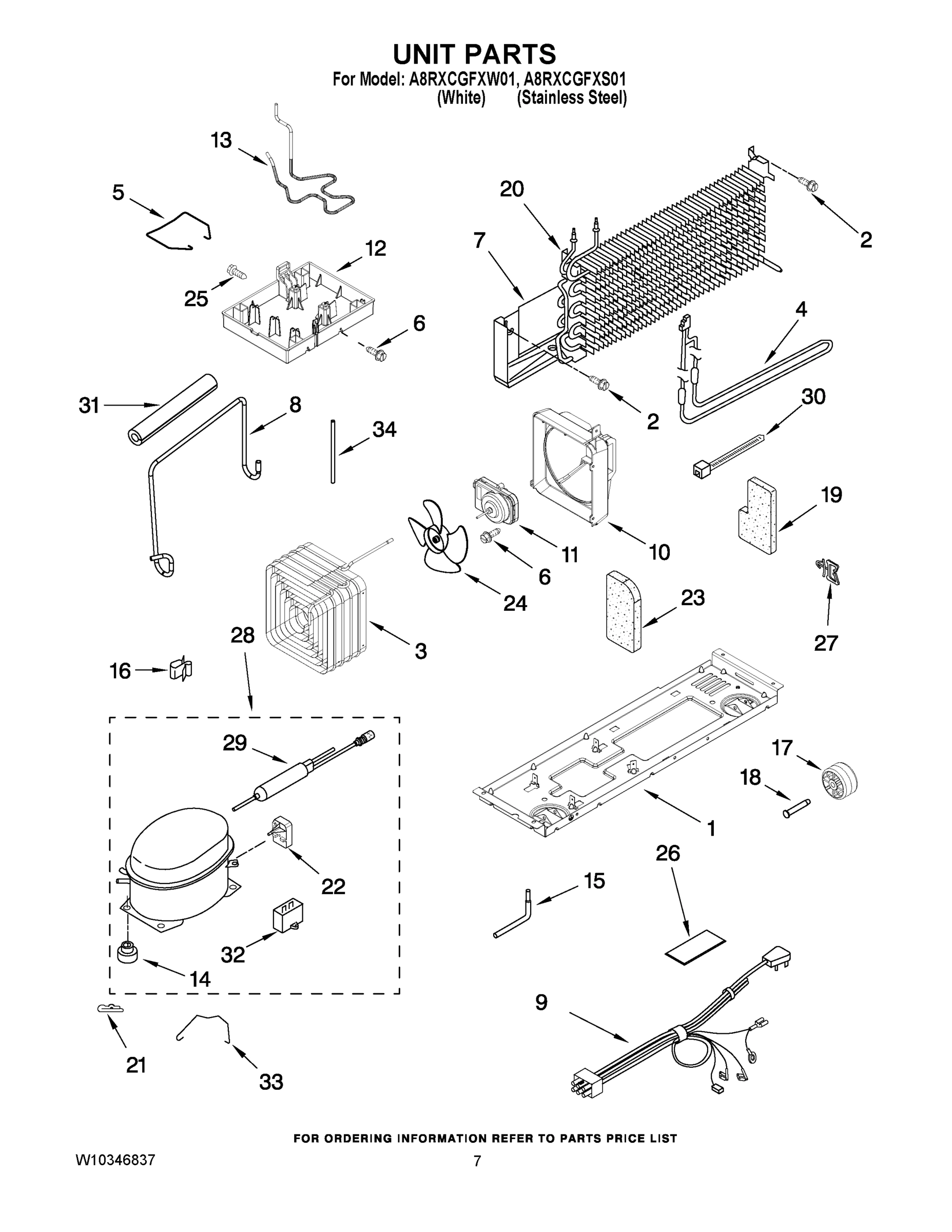

04 - UNIT PARTS

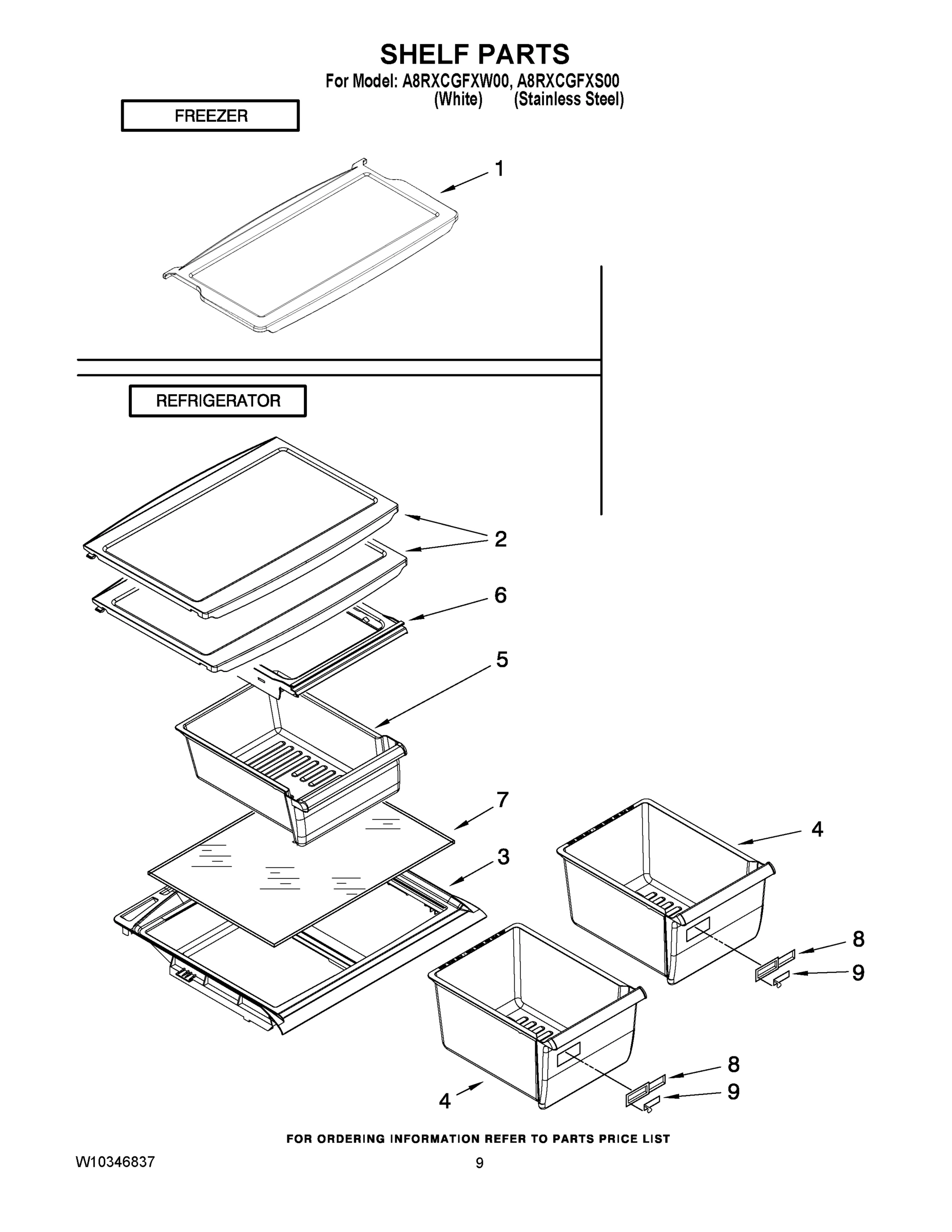

05 - SHELF PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag A8RXCGFXS01 REFRIGERATOR
1
DO-IT-YOURSELF MANUAL REF./ FRZ. MAY 677969 Contact Us For Availability
1
MAY W10214129 MAY W10214129 Contact Us For Availability
1
MAY W10267756 MAY W10267756 Contact Us For Availability
1
MAY W10283801 MAY W10283801 Contact Us For Availability
1
REFRIGERATOR DOOR (INCLUDES ILLUS. 9 & MOLDED MAY W10267739 Contact Us For Availability
1
REFRIGERATOR DOOR (INCLUDES ILLUS. 9 & MOLDED MAY W10267761 Contact Us For Availability
1
SUPPORT PLATE, ALUMILASTIC) MAY W10222450 Contact Us For Availability
1
SHELF, FREEZER MAY 2264803 Contact Us For Availability
2
MAY 2261963 MAY 2261963 Contact Us For Availability
2
MAY 489442 MAY 489442 Contact Us For Availability
2
MAY 2207942 MAY 2207942 Contact Us For Availability
2
RIVET, PLASTIC MAY 939962 Contact Us For Availability
2
MAY 2263641 MAY 2263641 Contact Us For Availability
3
ROLLER, FRONT MAY W10142530 Contact Us For Availability
3
Shim, Door Stop (Black) MAY 2258681B Contact Us For Availability
3
Shim, Door Stop (White) MAY 2258681W Contact Us For Availability
3
MAY 2183061 MAY 2183061 Contact Us For Availability
3
MAY 2264004 MAY 2264004 Contact Us For Availability
3
MAY W10211610 MAY W10211610 Contact Us For Availability
4
Cover, Hinge (White) MAY 2213360 Contact Us For Availability
4
MAY 2213363 MAY 2213363 Contact Us For Availability
4
Hole Plug (White) MAY 2212648 Contact Us For Availability
4
Hole Plug (Black) MAY 2212651 Contact Us For Availability
4
Control, Adaptive Defrost MAY 2303825 Contact Us For Availability
4
MAY 2176942 MAY 2176942 Contact Us For Availability
4
MAY 2256704 MAY 2256704 Contact Us For Availability
5
Trim, Door Shelf (Narrow) MAY 2266727 Contact Us For Availability
5
MAY 489174 MAY 489174 Contact Us For Availability
5
MAY 2264835 MAY 2264835 Contact Us For Availability
5
MAY 2261934 MAY 2261934 Contact Us For Availability
6
END CAP, TRIM MAY 2156003 Contact Us For Availability
6
MAY 941839 MAY 941839 Contact Us For Availability
6
MAY 8533859 MAY 8533859 Contact Us For Availability
6
MAY 2256601 MAY 2256601 Contact Us For Availability
7
Trim, Door Shelf (Wide) MAY 2266738 Contact Us For Availability
7
MAY 2265930 MAY 2265930 Contact Us For Availability
7
MAY 2319224 MAY 2319224 Contact Us For Availability
7
GLASS, COVER MAY 2262441 Contact Us For Availability
8
MAY 489497 MAY 489497 Contact Us For Availability
8
END CAP, TRIM MAY 2195916 Contact Us For Availability
8
Socket, Light MAY 2162085 Contact Us For Availability
8
MAY 2264131 MAY 2264131 Contact Us For Availability
8
MAY 2212446 MAY 2212446 Contact Us For Availability
9
MAY W10133299 MAY W10133299 Contact Us For Availability
9
MAGNETIC (BLACK) MAY 2264723 Contact Us For Availability
9
MAGNETIC (WHITE) MAY W10190032 Contact Us For Availability
9
Fan Support Bracket MAY W10180172 Contact Us For Availability
9
Wire Assy. Unit MAY W10151677 Contact Us For Availability
9
Slide, Humidity Control MAY 2176222 Contact Us For Availability
10
MAY 2264132 MAY 2264132 Contact Us For Availability
10
TRIM, DOOR MAY W10234242 Contact Us For Availability
10
MAY 2197405 MAY 2197405 Contact Us For Availability
10
MAY 2263929 MAY 2263929 Contact Us For Availability
11
SPACER, BACK CB MAY 2266506 Contact Us For Availability
11
MAY 2189202 MAY 2189202 Contact Us For Availability
11
MAY 2169141 MAY 2169141 Contact Us For Availability
11
MAY 2188875 MAY 2188875 Contact Us For Availability
12
MAY 549193 MAY 549193 Contact Us For Availability
12
MAY 8533904 MAY 8533904 Contact Us For Availability
12
MAY 2263083 MAY 2263083 Contact Us For Availability
12
Evaporating Tray MAY 2263928 Contact Us For Availability
13
MAY 2166086 MAY 2166086 Contact Us For Availability
13
MAY 2325418 MAY 2325418 Contact Us For Availability
13
MAY 2325701 MAY 2325701 Contact Us For Availability
13
TUBE, DISCHARGE (INCL. PRE-COOLER) MAY W10289687 Contact Us For Availability
14
SHIM, HINGE CENTER (WHITE) MAY 2166043 Contact Us For Availability
14
SHIM HINGE, CENTER (BLACK) MAY 2215385 Contact Us For Availability
14
FREEZER DOOR (INCLUDES ILLUS. 15 & MOLDED DOO MAY W10267735 Contact Us For Availability
14
FREEZER DOOR (INCLUDES ILLUS. 15 & MOLDED DOO MAY W10267762 Contact Us For Availability
14
MAY 489399 MAY 489399 Contact Us For Availability
14
Grommet (Production) MAY 2264447 Contact Us For Availability
15
Hinge Butt MAY 2325482 Contact Us For Availability
15
Door Gasket, Magnetic (Black) MAY 2264722 Contact Us For Availability
15
DOOR GASKET, MAGNETIC (WHITE) MAY W10190031 Contact Us For Availability
15
MAY 1118680 MAY 1118680 Contact Us For Availability
15
MAY VS20001 MAY VS20001 Contact Us For Availability
16
HINGE PIN, BOTTOM MAY 2325483 Contact Us For Availability
16
MAY W10244012 MAY W10244012 Contact Us For Availability
16
MAY 939054 MAY 939054 Contact Us For Availability
17
MAY 527949 MAY 527949 Contact Us For Availability
17
Roller MAY 2150304 Contact Us For Availability
18
MAY 2201567 MAY 2201567 Contact Us For Availability
18
MAY 9791702 MAY 9791702 Contact Us For Availability
18
MAY 2264756 MAY 2264756 Contact Us For Availability
19
MAY 2174760 MAY 2174760 Contact Us For Availability
19
MAY 1118894 MAY 1118894 Contact Us For Availability
19
WEDGE-EVAPORATO MAY 2262191 Contact Us For Availability
20
MAY 2183998 MAY 2183998 Contact Us For Availability
20
Hole Plug (6) (White) MAY 2201012 Contact Us For Availability
20
MAY 2221992 MAY 2221992 Contact Us For Availability
20
EVAPORATOR ASSY MAY 2263920 Contact Us For Availability
21
Seal MAY 1106508 Contact Us For Availability
21
WIRING-FREEZER (INCLUDES ITEM 31) MAY W10183127 Contact Us For Availability
21
MAY 24364001 MAY 24364001 Contact Us For Availability
22
MAY 2262176 MAY 2262176 Contact Us For Availability
22
MAY 2202885 MAY 2202885 Contact Us For Availability
22
START-DEVICE, COMBINATION (START RELAY AND OV MAY W10249964 Contact Us For Availability
23
MAY 2166003 MAY 2166003 Contact Us For Availability
23
Corner Filler (Black) MAY 2215384 Contact Us For Availability
23
MAY 9790408 MAY 9790408 Contact Us For Availability
23
MAY 2262192 MAY 2262192 Contact Us For Availability
24
MAY 487576 MAY 487576 Contact Us For Availability
24
Hood And Foil Assembly MAY 2197052 Contact Us For Availability
24
MAY 2264129 MAY 2264129 Contact Us For Availability
25
CAP BUSHING MAY 487996 Contact Us For Availability
25
MAY 2261978 MAY 2261978 Contact Us For Availability
25
MAY 2264841 MAY 2264841 Contact Us For Availability
26
MAY 489341 MAY 489341 Contact Us For Availability
26
MAY 489478 MAY 489478 Contact Us For Availability
26
SHIELD-ELECTRICAL MAY 2266360 Contact Us For Availability
27
MAY 2217784 MAY 2217784 Contact Us For Availability
27
CLIP-HARNESS MAY 2266467 Contact Us For Availability
28
MAY 2264462 MAY 2264462 Contact Us For Availability
28
COMPRESSOR (INCLUDES ITEMS 14, 22, 29 & 32) ( MAY W10252075 Contact Us For Availability
29
MAY 2262178 MAY 2262178 Contact Us For Availability
29
MAY W10143759 MAY W10143759 Contact Us For Availability
29
DRIER (PRODUCTION) MAY W10190413 Contact Us For Availability
30
MAY 2315539 MAY 2315539 Contact Us For Availability
30
MAY 2263990 MAY 2263990 Contact Us For Availability
31
MAY 2266066 MAY 2266066 Contact Us For Availability
31
MAY 2264838 MAY 2264838 Contact Us For Availability
32
Screw MAY 488693 Contact Us For Availability
32
CAPACITATOR (SERVICE) MAY 2169373 Contact Us For Availability
32
Capacitator (Production) MAY 2264017 Contact Us For Availability
33
MAY 2212996 MAY 2212996 Contact Us For Availability
34
MAY 2264278 MAY 2264278 Contact Us For Availability
NI
REFRIGERANT CHARGE (3.75 OZS. (R134A)) MAY N/P Contact Us For Availability
NI
MAY 876764 MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability
NI
Valve, Access (5/16``) MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability
NI
Valve, Access (1/2``) MAY 978028 Contact Us For Availability
NI
Valve, Access (5/8``) MAY 978029 Contact Us For Availability
NI
Valve, Access (3/4``) MAY 978030 Contact Us For Availability
NI
MAY 1117510 MAY 1117510 Contact Us For Availability
NI
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
MAY 2155469A MAY 2155469A Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (ENAMEL, WHITE (12 MAY 350930 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (ENAMEL, BLACK (12 MAY 350939 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (PRIMER, WHITE (12 MAY 350942 Contact Us For Availability
NI
MAY 479502 MAY 479502 Contact Us For Availability
NI
MAY 503695 MAY 503695 Contact Us For Availability
NI
MAY 505587 MAY 505587 Contact Us For Availability
NI
TOUCH-UP, WHITE PORCELAIN (2 OZ.) MAY 511873 Contact Us For Availability
NI
MAY 542638 MAY 542638 Contact Us For Availability
NI
MAY 542639 MAY 542639 Contact Us For Availability
NI
MAY 606755 MAY 606755 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (BRUSH TOUCH-UP KI MAY 72017 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (BRUSH TOUCH-UP KI MAY 72032 Contact Us For Availability
NI
REFINISHING MATERIAL (ENAMEL, WHITE (1 QT. UN MAY 799344 Contact Us For Availability
NI
MAY 799832 MAY 799832 Contact Us For Availability
NI
REFINISHING MATERIAL, KIT, TERMINAL CONNECTOR MAY 833938 Contact Us For Availability
NI
MAY 876029 MAY 876029 Contact Us For Availability
NI
KIT, INSULATION (14 PCS. 3`` X 24`` X 48``) MAY 876305 Contact Us For Availability
NI
KIT, INSULATION (2 PCS. 3`` X 24 `` X 48``) MAY 876370 Contact Us For Availability
NI
MAY 978941 MAY 978941 Contact Us For Availability
× ![]()
