Model Whirlpool A8241RA-L GAS COOK-TOP – Common Parts & Diagrams

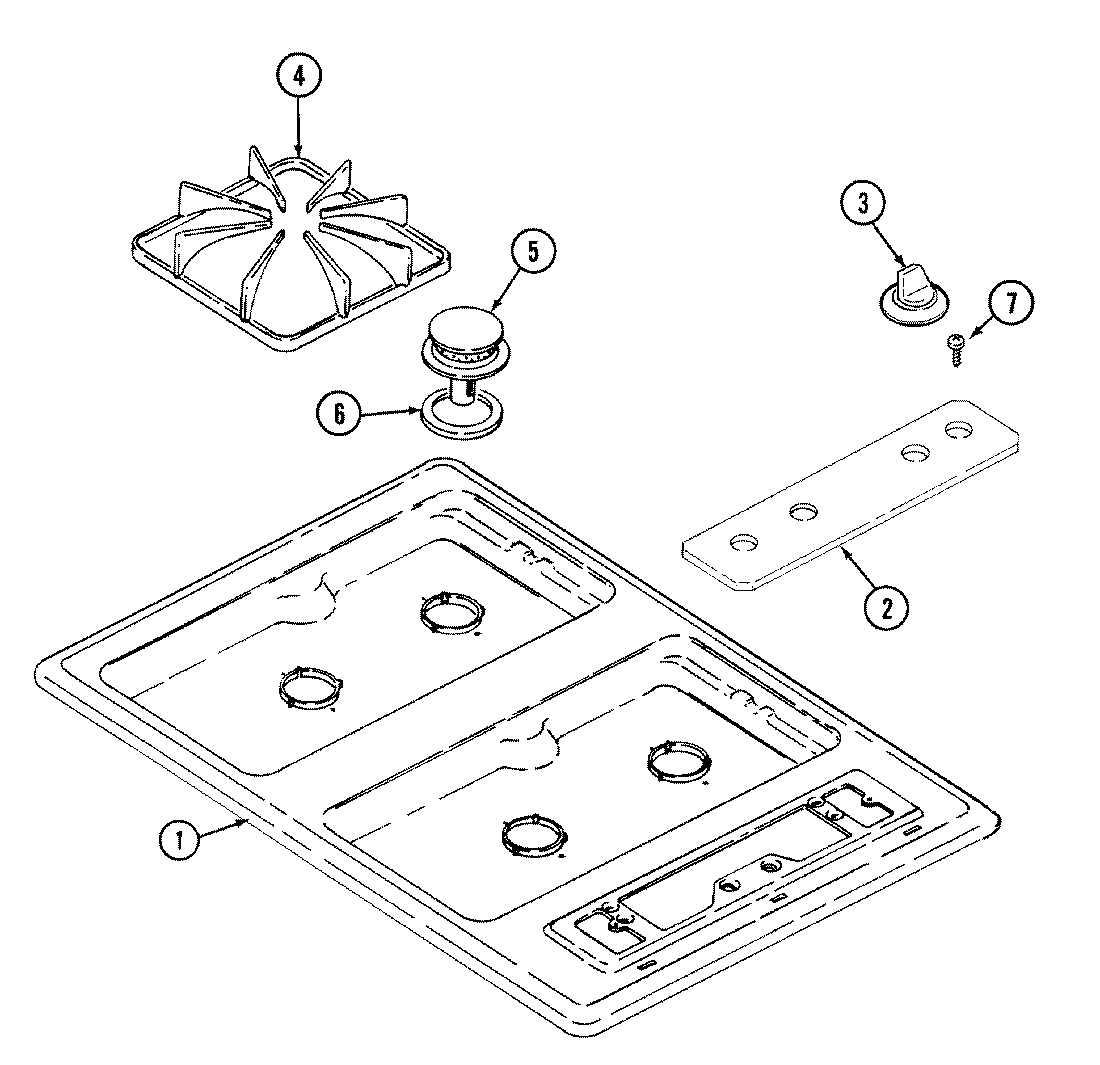

02 - TOP ASSEMBLY (A8241RA-L/RW-L)

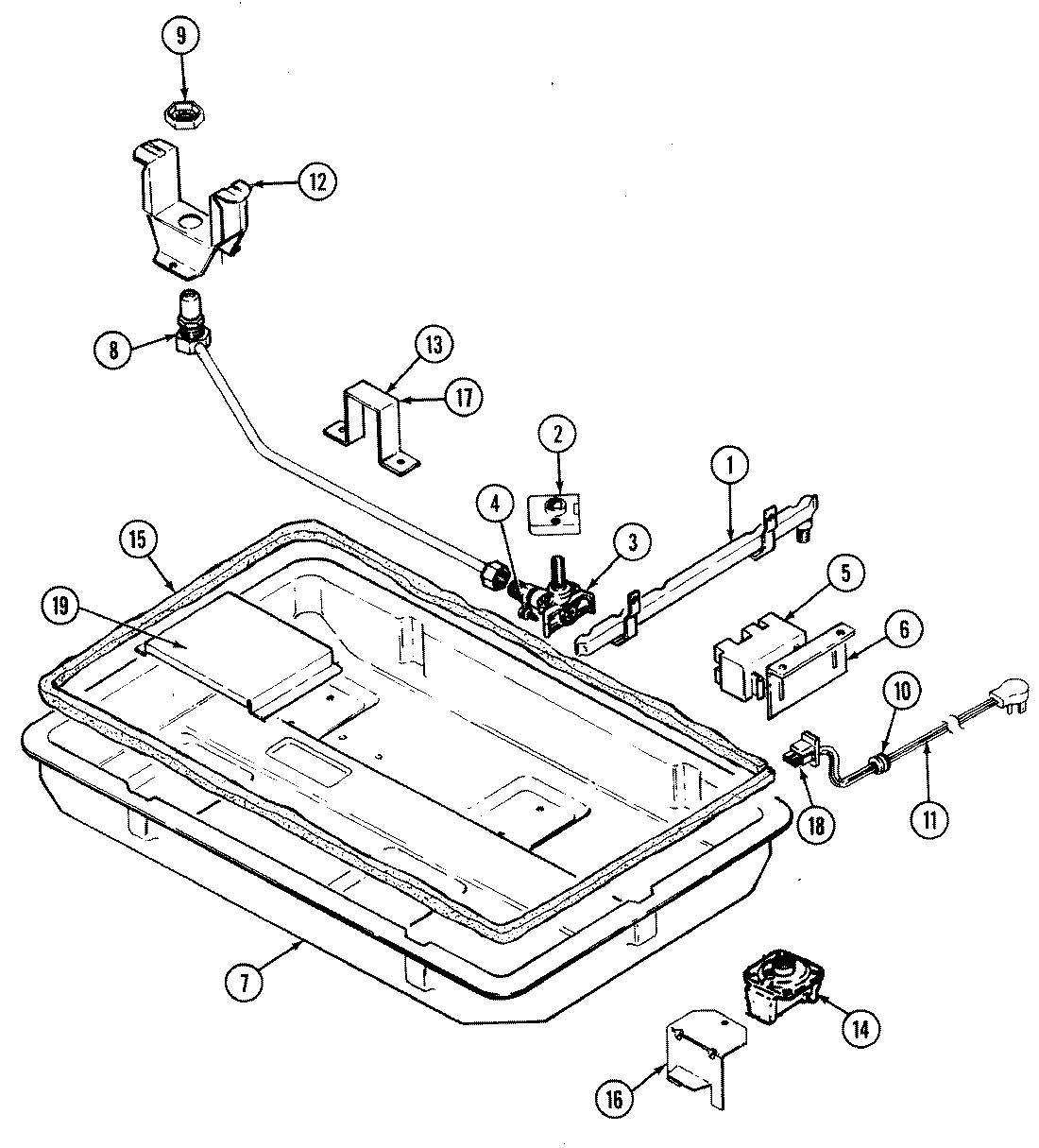

01 - BODY (A8241RA-L/RW-L)
Common parts from model Whirlpool A8241RA-L GAS COOK-TOP
1
TOP, MAIN (ALM) WPL 2001W08384 Contact Us For Availability
1
SEAL, MANIFOLD PIPE WPL 7208P01960 Contact Us For Availability
1
PIPE, MANIFOLD WPL 7513P08960 Contact Us For Availability
2
NAMEPLATE, ADMIRAL (BLK) WPL 7719P06260 Contact Us For Availability
2
PANEL, CONTROL (BLK) WPL 7720P14660 Contact Us For Availability
2
SWITCH, BURNER WPL 7403P19060 Contact Us For Availability
3
KNOB, BURNER (BLACK) WPL 7733P04560 Contact Us For Availability
3
VALVE, BURNER WPL 74001381 Contact Us For Availability
3
VALVE, BURNER WPL 7502P10560 Contact Us For Availability
3
VALVE, BURNER WPL 7502P25360 Contact Us For Availability
4
GRATE (BLK) WPL 2003W02700 Contact Us For Availability
4
SCREW, CONTROL VALVE WPL 7101P04360 Contact Us For Availability
5
SEALED BURNER ASSY. WPL 3412D01709 Contact Us For Availability
5
WIRE, IGNITER - R WPL 5111A26160 Contact Us For Availability
5
WIRE, IGNITER - R WPL 5111A61060 Contact Us For Availability
5
NOT REQUIRED PART OR SEE NOTE IGNITER NOT SOL WPL W10124350 Contact Us For Availability
5
MODULE, SPARK WPL 7431P02360 Contact Us For Availability
6
GASKET, BURNER WPL 7201P05060 Contact Us For Availability
6
BRACKET, SPARK MODULE WPL 3801F30445 Contact Us For Availability
6
SCREW WPL 7101P05960 Contact Us For Availability
7
SCREW (6ABX38-ZN) WPL 7101P07760 Contact Us For Availability
7
MANUAL, USE & CARE WPL 8113P03760 Contact Us For Availability
7
BOX, BURNER WPL 4011F20280 Contact Us For Availability
8
FITTING, ORIFICE (LP L.F.) WPL 7507P14660 Contact Us For Availability
8
FITTING, ORIFICE (LP L.R.) WPL 7507P14760 Contact Us For Availability
8
FITTING, ORIFICE (LP R.R.) WPL 7507P14860 Contact Us For Availability
8
FITTING, ORIFICE (LP R.F.) WPL 7507P14960 Contact Us For Availability
9
PALNUT WPL 7103P11960 Contact Us For Availability
10
SCREW, GROUND (GRN) WPL 7101P02760 Contact Us For Availability
10
BUSHING, SNAP WPL 8007P00360 Contact Us For Availability
11
CORD, POWER WPL 7402P01460 Contact Us For Availability
12
SUPPORT, ORIFICE FITTING WPL 3807F44151 Contact Us For Availability
12
SCREW WPL 7118P01860 Contact Us For Availability
13
BRACKET, MAIN TOP WPL 3801F29845 Contact Us For Availability
14
REGULATOR, PRESSURE WPL 7510P00160 Contact Us For Availability
15
TAPE, FOAM 94`` WPL 8270P07360 Contact Us For Availability
16
BRACKET, TIE DOWN WPL 3801F19245 Contact Us For Availability
16
SCREW (10ABX1.0-ZN) WPL 7101P06060 Contact Us For Availability
17
TAPE, SEAL 112`` LONG WPL 12400008 Contact Us For Availability
18
BLOCK, DISCONNECT (PIN) WPL 7401P01760 Contact Us For Availability
18
BLOCK WPL 7401P01860 Contact Us For Availability
19
COVER, ACCESS WPL 4005F42751 Contact Us For Availability
19
WIRES, LOOSE WPL 5125A23460 Contact Us For Availability
× ![]()
